297 Anna St. | Watsonville, CA 95076
831.724.7300
www.PulseShowerSpas.com

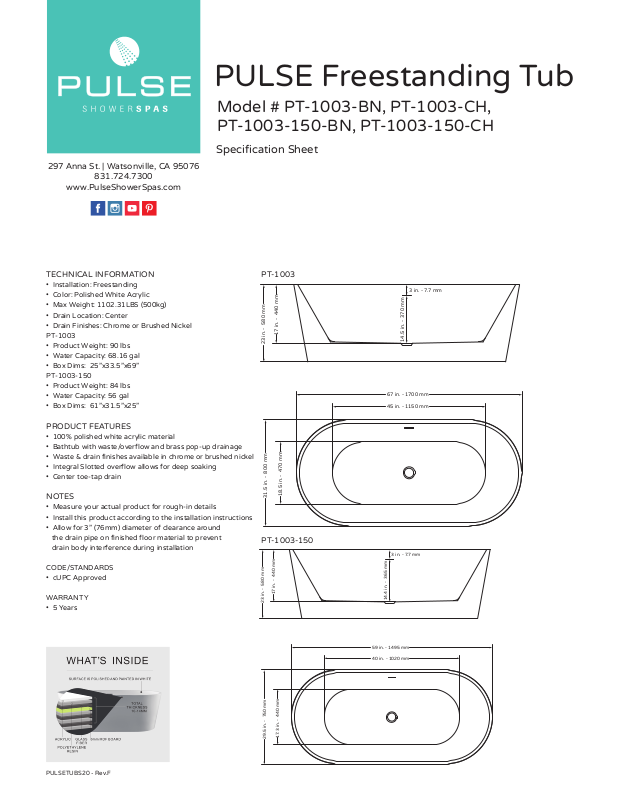

PULSE Freestanding Tub
Model # PT-1003-BN, PT-1003-CH,
PT-1003-150-BN, PT-1003-150-CH
Specification Sheet
TECHNICAL INFORMATION
• Installation: Freestanding
• Color: Polished White Acrylic
• Max Weight: 1102.31LBS (500kg)
• Drain Location: Center
• Drain Finishes: Chrome or Brushed Nickel
PT-1003
• Product Weight: 90 lbs
• Water Capacity: 68.16 gal
• Box Dims: 25”x33.5”x69”
PT-1003-150
• Product Weight: 84 lbs
• Water Capacity: 56 gal
• Box Dims: 61”x31.5”x25”
PRODUCT FEATURES
• 100% polished white acrylic material
• Bathtub with waste/overflow and brass pop-up drainage
• Waste & drain finishes available in chrome or brushed nickel
• Integral Slotted overflow allows for deep soaking
• Center toe-tap drain
NOTES
• Measure your actual product for rough-in details
• Install this product according to the installation instructions
• Allow for 3” (76mm) diameter of clearance around
the drain pipe on finished floor material to prevent
drain body interference during installation
CODE/STANDARDS
• cUPC Approved
WARRANTY
• 5 Years
PT-1003
17 in. - 440 mm
23 in. - 580 mm
18.5 in. - 470 mm
31.5 in. - 800 mm
PT-1003-150
17 in. - 440 mm
23 in. - 580 mm
3 in. - 7.7 mm
14.5 in. - 370 mm
67 in. - 1700 mm
45 in. - 1150 mm
3 in. - 7.7 mm
14.4 in. - 365 mm
PULSETUBS20 - Rev.F
59 in. - 1495 mm
40 in. - 1020 mm
17.3 in. - 440 mm
29.5 in. - 750 mm
