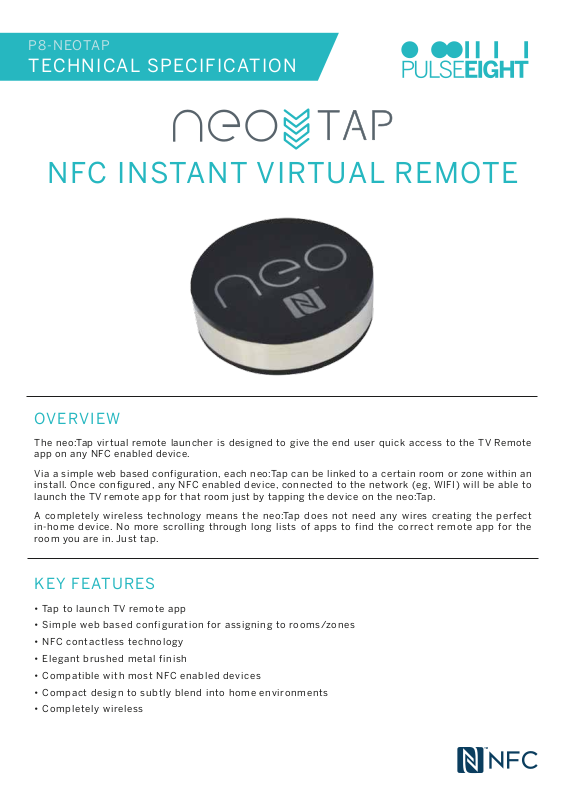

Pulse Eight P8-NEOTAP TECHNICAL SPECIFICATION

P8-NEOTAP

TECHNICAL SPECIFICATION

NFC INSTANT VIRTUAL REMOTE

OVERVIEW

The neo:Tap virtual remote launcher is designed to give the end user quick access to the TV Remote
app on any NFC enabled device.

Via a simple web based configuration, each neo:Tap can be linked to a certain room or zone within an
install. Once configured, any NFC enabled device, connected to the network (eg, WIFI) will be able to
launch the TV remote app for that room just by tapping the device on the neo:Tap.

A completely wireless technology means the neo:Tap does not need any wires creating the perfect
in-home device. No more scrolling through long lists of apps to find the correct remote app for the
room you are in. Just tap.

KEY FEATURES

• Tap to launch TV remote app

• Simple web based configuration for assigning to rooms/zones

• NFC contactless technology

• Elegant brushed metal finish

• Compatible with most NFC enabled devices

• Compact design to subtly blend into home environments

• Completely wireless

TECHNICAL DATA

Dimensions: 5cm diameter x 1.6cm high

Material: Machined stainless steel, with acrylic top and anti-slip foam pad base

Compatible Devices: Compatible with most NFC enabled devices

Operating Distance: Up to 100 mm

Operating Frequency: 13.56 MHz

Operating Temperature Range: 25°C to 70°C (-13°F to 158°F)

Operating Humidity Range: 20 to 90% RH (no condensation)

Certication: CE, RoHS certication
