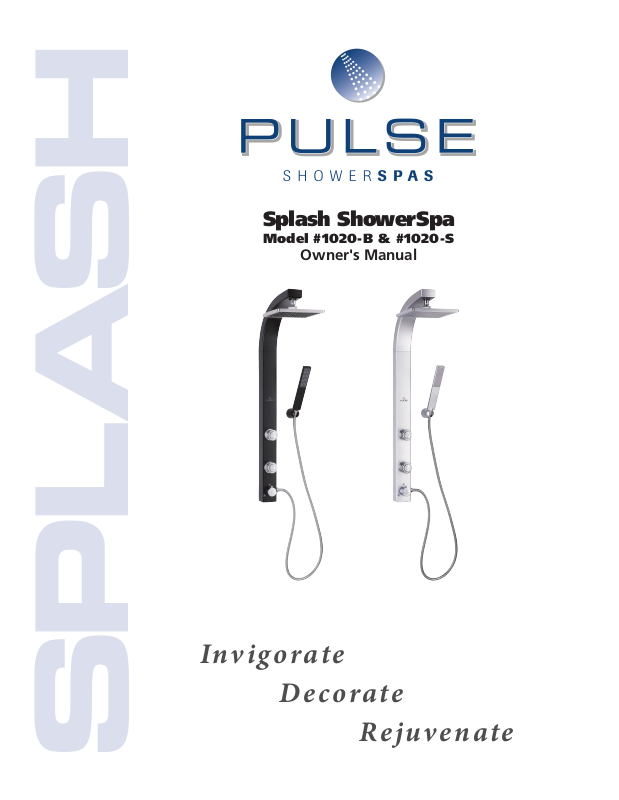

Splash ShowerSpa

Model #1020-B & #1020-S

Owner's Manual

Invigorate

SPLASH

Decorate

Rejuvenate

Splash

ShowerSpa 1020

Please Read The Following Instructions COMPLETELY Before Beginning!

Our goal is to ensure your installation goes smoothly and safely. Please read these instructions carefully and follow

recommendations for plumbing and mounting. After reading instructions, if you determine you do not have the

necessary skills and/or tools, we recommend that a licensed plumbing contractor complete the installation.

If you encounter any problems during installation

CALL TECHNICAL SUPPORT

TOLL FREE at 888-785-7320

Before returning your ShowerSpa to the store

You Will Need The Following Tools

Drill, 3/16"(5mm) tile/masonry bit, 1/4" (7mm) tile/masonry bit, adjustable wrench, hammer, phillips screwdriver and pencil.

Parts Legend

1. Splash Showerspa ..........................1

2. Rubber Washer (6mm) ...................1

3. Showerhead ................................... 1

4. 90° Degree Inlet Fitting ................. 1

5. Compression Nut ............................1

6. Mounting Plate .............................. 1

7. 2½" Brass NPT Nipple ..................... 1

8. Nylon Wall Anchor (7x37mm) .......6

9. Philips Coarse Screw (5x35mm) ..... 6

10. Two Faced Tape .............................. 1

1

7

8

6

A

B

C

29

A

7

9

4

5

13

12

11

14

11. Retaining Washer ..........................1

12. Brass Nut.........................................1

13. Rubber Washer (2mm) ...................3

14. Supply Line ..................................... 1

15. Hand Shower Mount ..................... 1

16. Hand Shower ..................................1

17. Nylon Wall Anchor (5x30mm) .......2

18. Philips Coarse Screw (4x35mm) ..... 2

19. Philips Machine Screw (4x25mm) ..2

20. Lock Washer ...................................2

15

13

16

2

3

29

21. Nut (4mm) ...................................... 2

22. Escutcheon Base Plate (ABS) .........1

23. Escutcheon Cover (ABS) ................. 1

24. Hand Shower Hose ........................1

25. Shower Arm Plug ........................... 1

26. Chrome Escutcheon ....................... 1

27. Supply Line Extension (40cm) ........1

28. Supply Line Connector ...................1

29. Teflon® Tape .................................. 1

22

7

7 A

6

8

10

13

5

27

9

23

25

15

26

1

2

3

16

13

4

Figure A

10

8

9

9

13

17

21

24

20

18

19

8

13

27

28

21

17

18

20

19

24

Figure B

Installation

Prior to installation

1. Remove your showerhead and trim plate (escutcheon) from
your existing shower arm.

2. Determine the length of brass NPT nipple

a. Place mark on existing shower arm at wall surface. Unscrew

shower arm from elbow in wall.

b. Measure distance from mark on shower arm to end of

shower arm threads. Add 1⁄2" to this measurement, then
round to nearest 1⁄2".

Example 1: If measurement = 11⁄4", add 1⁄2" = 13⁄4", rounded = 2"

NPT nipple, this is the length needed.

IMPORTANT: If shower arm is located in wall above tile/fiberglass

wall surface you must add the distance from sheetrock to face
of tile/fiberglass shower wall to the above measurement.

NOTE: If 1⁄2" X 11⁄2"nipple (7) provided is not correct length based

on above formula, you can attach one or both 3⁄4" nipple
extensions (7A) to obtain desired length or it may be necessary
to purchase required length 1⁄2" NPT brass nipple (available at
most hardware stores in 1⁄2" incremental lengths).

(7, 7A)

needed:

3. Apply a generous amount of Teflon® tape (29) to one side of
nipple (13). IMPORTANT: Do not damage final ½" of nipple
threads protruding from wall.

4. Insert mounting plate (6) into slots on back of Splash (1).
Hold Splash to wall and evaluate preferred mounting location
based on showerhead, body spray and existing valve height.
The Splash can be mounted over, below or adjacent to existing
shower arm outlet.

NOTE: If mounting over existing shower arm outlet, no drilling

required (use Method A). If mounting below or adjacent to
existing shower arm outlet, supply line extension (27) must be
installed and drilling wall surface is required (use Method B).

Method A (Figure A)

Mounted OVER Shower Arm Outlet

5. Determine which hole position (A, B or C) of mounting plate (6)
will be used for desired mounting height. If using position A,
skip to step 10.

6. If position B or C is used, the length of supply line (14) must
be shortened accordingly. To shorten supply line, first remove
compression nut (5) from 90° fitting (4) then remove 90° fitting
from supply line. Cut supply line to required length so that 90°
fitting when reinstalled is aligned with selected hole position (B
or C). Hint: Install mounting plate on Splash for reference.

IMPORTANT: Supply line must be cut clean & square to ensure no

leaks. Measure twice, cut once—Take your time!

7. Slide compression nut (5) onto supply line(14).

8. Push supply line (14) over 90° fitting (4) until it bottoms against
base of threads. Hint: Warm the supply line for easier re­installation of 90° fitting.

9. Slide compression nut (5) onto 90° fitting (4) and securely
tighten.

10. Remove face of tape (10) from mounting plate (6) and slide
over nipple (7) through predetermined hole A, B or C. Level
plate before adhering to wall.

11. Push retaining washer (11) over nipple (7) securing mounting
plate (6) to wall and/or use nut (12). [OPTIONAL: Secure
mounting plate using supplied wall fasteners. Drill ¼" (7mm)
holes X 1½" (37mm) deep holes using a masonry/tile drill bit.
Insert anchors (8) and secure plate with screws (9)]

12. Insert washer (13) into 90° fitting (4) and connect to nipple (7).
Turn on water and check for leaks. Once leak free carefully slide
Splash (1) onto mounting plate (6) and push down to secure.
Skip to step 20.

Method B (Figure B)

Mounted BELOW or ADJACENT TO Shower Arm Outlet

13. Remove 90° fitting (4) from supply line (14) and attach supply
line extension (27) using connector (28). Remove shower arm
plug (25) from top of shower arm and insert extended supply
line through hole. Place escutcheon (22 or 26) onto nipple (7)
and attach 90° fitting (4).

14. Position Splash at desired location. Ensure supply line reaches
90° fitting (4). If using the optional escutcheon cover (23), make
certain it will not interfere with Splash (1) after mounting.

15. Mark shower wall at top and bottom of mounting plate (6). Use
plate as a guide, mark and drill ¼" (7mm) holes X 1½" (37mm)
deep. CAUTION: Live plumbing behind wall. Insert anchors
(8) into holes and secure mounting plate with screws (9).
NOTE: anchors provided are for solid surface walls; If you have
fiberglass walls with no backing, different type anchors must be
used (not included).

17. Place Splash (1) on mounting plate (6) and accurately mark
supply line (14) for cutting.

IMPORTANT: Supply line must be cut clean & square to ensure no

leaks. Measure twice, cut once—Take your time!

18. Follow steps 7–9 above.

19. Install escutcheon [either (22) or (26)], insert washer (3) into
90° fitting (4) and connect to nipple (7). Turn on water and
check for leaks. Once leak free, carefully slide Splash (1) onto
mounting plate (6) and push down to secure.

Final Steps

20. Hand shower mount (15) can be attached to side of Splash (Step

21) or secured to wall (Step 22).

21. Mounting to side of Splash (1): drill 5mm holes through side of
Splash (1). Use screws (19), washer (20) and nut (21) to secure.
CAUTION: Do not damage internal supply hoses. Skip to step 23.

22. Mounting to wall: use 7mm masonry/tile drill bit, nylon anchors
(17) and screws (18) to secure.

23. Insert washer (2) into showerhead (3) and attach to Splash (1).
Insert washer (13) into each end of hand shower hose (24).
Secure hex end to Splash and tapered end to hand shower (16).

Usage

Care & Maintenance

Turn diverter either direction to change functions or set between
functions for further enjoyment.

The showerhead and body jets have ball joints, allowing you to
pivot them to the desired spray angle.

Always turn cold water on first to help prevent any accidental burn­ing or scalding; especially for children and elderly.

The Splash is equipped with Spray Straight™ technology in the
tips of the showerhead and hand shower. If the stream becomes
obstructed from mineral deposits, simply rub the soft tips with your
finger to loosen the deposits.

To remove debris from the flow restrictor, unscrew supply line from
nipple in wall. Take out screened washer and restrictor from inside
the nut. Rinse with water or use a toothpick to remove debris.

Manufacturer’s Limited Warranty

PULSE Shower Spas, Inc. warrants that all ShowerSpas are free from
defect in workmanship and/or materials for a period of three years from
the date of purchase. This warranty extends to the original purchaser
only and is non-transferable.

This warranty does not cover, and PULSE ShowerSpas, Inc. will not pay
for conditions, malfunctions or damages resulting from (1) normal wear
and tear, improper installation (whether performed by a contractor,
service company or the consumer), improper maintenance, misuse,
abuse, negligence, accident or alteration; (2) the use of abrasive, caustic
or “no-rinse” cleaning agents; (3) the use of the product in any manner
contrary to the product instruction; (4) conditions in the home such as
excessive water pressure or corrosion.

Should any ShowerSpa be determined by PULSE ShowerSpas, Inc. to
be defective under normal residential use, at the option of PULSE
ShowerSpas, Inc., such product shall either be replaced or repaired and
returned to the customer free of defects. The consumer shall give notice
of any defects to PULSE ShowerSpas, Inc. within 30 days of discovery of
such defect.

Proof of purchase (original sales receipt) must be provided to PULSE

To keep your ShowerSpa looking new, wipe down after each use
with a soft cotton cloth.

Protect your ShowerSpa from hard water stains and mineral depos­its by periodically using an auto spray wax.

Clean using mild liquid soap and a non-abrasive sponge or cloth.
Rinse with clean water.

Do Not Use Any Kind Of
Chemicals Or Abrasives!

ShowerSpas, Inc. with all warranty claims. PULSE ShowerSpas, Inc. is not
responsible for labor charges, removal charges, installation or other
consequential costs. In no event shall the liability of PULSE ShowerSpas,
Inc. exceed the purchase price of the ShowerSpa.

Some states/provinces do not allow limitations of how long an implied
warranty lasts or the exclusion or limitation of such damages, so these
limitations and exclusions may not apply to you. This warranty gives the
consumer specific legal rights. You may also have other rights that vary
by state/province.

Follow manufacturers recommended installation. Use caution with
children under ten years of age. Do not use your ShowerSpa as a
support device. Do not use harsh chemicals or abrasives when cleaning.
Always turn water supply off when servicing your ShowerSpa.
