PULSE 1017 User Manual

Bonzai Shower System

Model #1017-B & 1017-S

Owner's Manual

B ONZAI

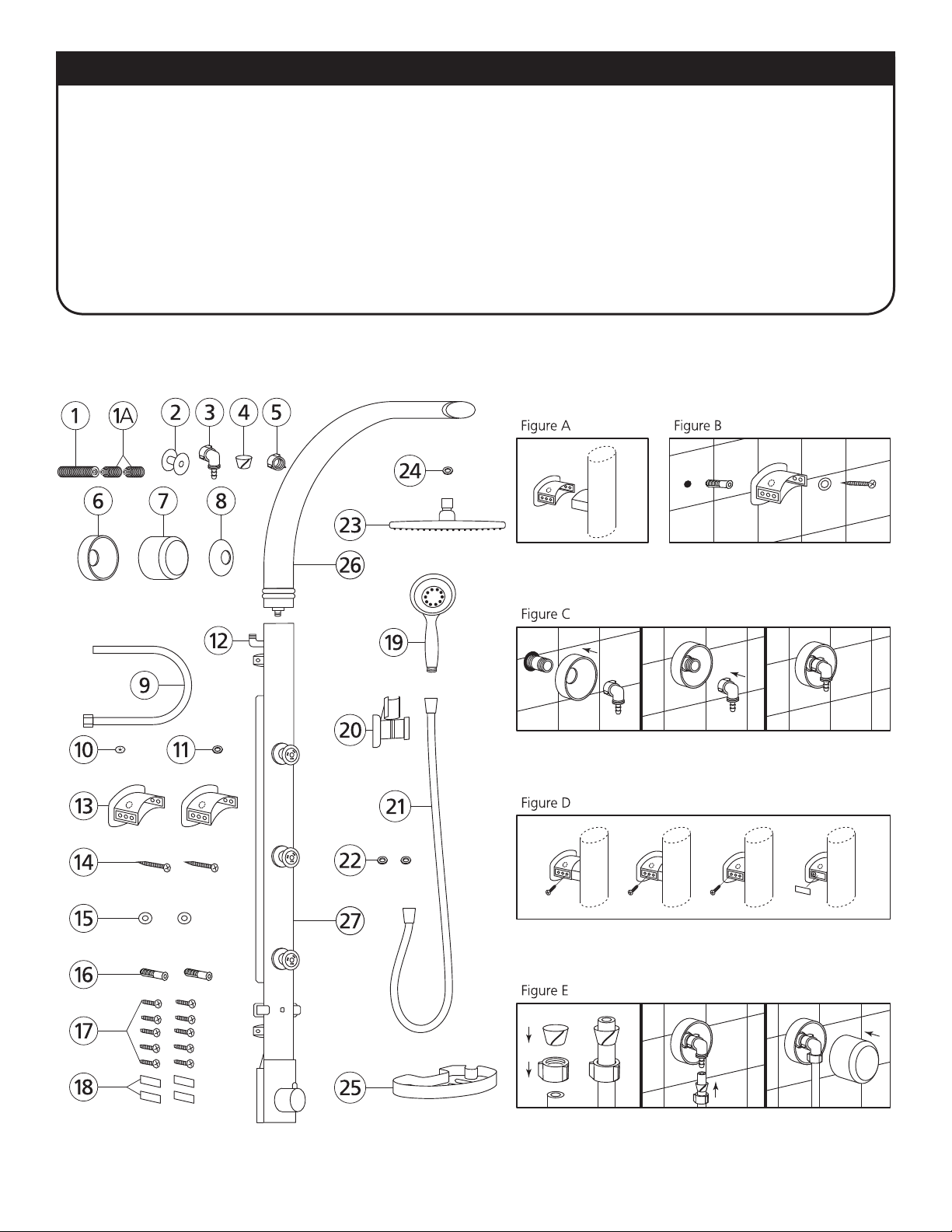

1017-Parts Legend

1. ½" x 2½" NPT Nipple

1A. ½" x 3⁄4" NPT Nipple......(2)

2. PTFE (plumber's) Tape

3. Chrome 90˚ w/ Cone Washer

4. Tapered Plastic Washer

5. Chrome Finned Nut

6. Escutcheon Base

7. Escutcheon Cover

8. Thin Escutcheon (Optional)

9. Supply Line

10. 2.5 GPM Flow Restrictor

11. Screened Rubber Washer

12. 90˚ Inlet

13. Mount ............................ (2)

14. Mounting Screw ............ (2)

15. Metal Washer ................(2)

16. Nylon Anchor .................(2)

17. #4 x 1/2" Screw .............. (10)

18. Cover Plate .....................(2)

19. Hand Shower

20. Hand Shower Holder

21. Hand Shower Hose

22. 4mm Rubber Washer ....(2)

23. Showerhead

24. 6mm Rubber Washer

25. Shelf

26. Shower Arm

27. Shower Body

2

Installation

Thank you for choosing the Bonzai Shower System by PULSE ShowerSpas!

Assembly and installation of the Bonzai Shower System is de­signed to be quick and easy. If you have installation questions or
performance problems, call PULSE Customer Service toll free at
888-785-7320 or visit www.pulseshowerspas.com.

Please read instructions carefully, become familiar with all parts,
installation procedures and tools required. Follow the steps in the
order presented to help avoid any mistakes.

FOR NEW CONSTRUCTION OR
COMPLETE REMODEL

• A hot/cold mixing valve is required (NOT INCLUDED)

• Nipple should extend

FOR FIBERGLASS ENCLOSURES

IMPORTANT: PULSE does not recommend mounting through
fiberglass wall surfaces without adequate wood or sheetrock
backing! If mounting Bonzai to a fiberglass wall you must

purchase appropriate mounting hardware (sold separately).

1

⁄2" past finished wall surface

certain supply line (9) reaches nipple (1).

7. Use a level to check for vertical (plumb) position.

8. Mark the wall at top & bottom mounts (13) for reference.

9. Reposition mounts (13) to marks on wall. Mark the hole in
the center of each mount.

10. For solid surface walls (tile, marble, granite, etc.) use a
masonry/tile bit and drill a 1⁄4" hole at center mark for each
mount that is 11⁄2" deep. BEWA RE—Live Plumbing In Wall!

11. Insert nylon anchors (16) into the holes. [Figure B]

12. Remove tape backing from mounts (13) and reposition to
marks on wall. [Figure B]

13. Secure mounts (13) to wall with mounting screws (14) and
metal washers (15). DO NOT OVERTIGHTEN. [Figure B]

TOOLS REQUIRED

Philips screwdriver, adjustable wrench, level, pencil or marker,
drill, 1⁄4" masonry/tile drill bit, hammer

INSTALLATION

For a helpful installation video go to:

www.pulseshowerspas.com/flash/bonzai_installation.html

1. Remove your showerhead and escutcheon (trim cover) from
your existing shower arm. Leave shower arm in place.

2. Determine the length of brass NPT nipple (1, 1A) needed:

a. Place mark on existing shower arm at wall surface.

Unscrew shower arm from elbow in wall.

b. Measure distance from mark on shower arm to end of

shower arm threads. Add 1⁄2" to this measurement, and
then round to nearest 1⁄2".

Example 1: If measurement = 11⁄4", add 1⁄2" = 13⁄4",

rounded = 2" NPT nipple—this is the length needed.

Example 2: If measurement = 15⁄8", add 1⁄2" = 21⁄8",

rounded = 2" NPT nipple—this is the length needed.

NOTE: If 1⁄2" X 11⁄2"nipple (1) provided is not correct length

based on above formula, you can attach one or both 3⁄4"
nipple extensions (1A) to obtain desired length or it may be
necessary to purchase required length 1⁄2" NPT brass nipple
(available at most hardware stores in 1⁄2" incremental
lengths).

3. Secure hand shower holder (20) to Bonzai with screws (17).
Connect Shower Arm (26) to Shower Body (27) and secure
with screws (17).

4. Apply a generous amount of PTFE (plumber's) tape (2) to
both ends of nipple (1). Insert flow restrictor (10), then
screened rubber washer (11) into hexagon fitting of supply
line (9). Connect to 90° inlet (12) on backside of Bonzai body.
DO NOT OVERTIGHTEN.

5. Slide mounts (13) over their male counterparts. [Figure A]

NOTE: Do not remove the tape backing on mounts at this time!

6. Hold Bonzai up to the wall and determine mounting loca­tion. Evaluate showerhead and body jet heights, making

14. Remove tape backing on escutcheon base (6), slide over
nipple (1) and attach to wall. [Figure C]

NOTE: Optional thin escutcheon (8) is for installations where

the ABS escutcheon (6,7) interferes with desired mounting
height of Bonzai. For best look with thin escutcheon (8),
nipple should not extend more than 3⁄4" from wall surface.

15. Secure chrome 90° w/ cone washer (3) to nipple (2).
DO NOT OVERTIGHTEN. [Figure C]

NOTE: Cone washer is already installed on chrome 90° (3).

16. Insert Bonzai into wall mounts.

17. Determine length of supply line (9). Supply line must install
completely over barbed portion of 90° connector (3). To
shorten, remove Bonzai from wall, cut supply line with sharp
utility knife and re-insert Bonzai into wall mounts.

17. Secure Bonzai to wall mounts (13) with screws (17). Choose
holes that set Bonzai at desired distance from the wall.
[Figure D]

18. Insert cover plates (18) into side of mounts (13). [Figure D]

19. Slide chrome finned nut (5), then tapered plastic washer (4)
over supply line (9). Refer to Figure E for proper positioning.

20. Push hose onto barbed portion of chrome 90° (3). Slide
tapered plastic washer (4) over barbs and secure with chrome
finned nut (5). DO NOT OVERTIGHTEN. [Figure E]

HI N T: Apply small amount of liquid soap to help hose slide onto

barbed connection.

21. Push escutcheon cover (6) into base plate (1). [Figure E]

23. Insert 4mm rubber washer (22) into each end of hand shower
hose (21). Secure to Bonzai and hand shower (19).

24. Insert 6mm rubber washer (24) into showerhead (23) and
securely tighten to Bonzai. DO NOT OVERTIGHTEN.

25. Carefully insert shelf (25) into mounting bracket until tabs
lock in place. Secure shelf to Bonzai with screw (17).

Congratulations! You are now ready to enjoy your new

PULSE ShowerSpas Bonzai Rain Shower System!

3

Usage

Care and Maintenance

The arched shower arm pivots from side to side.

Turn diverter either direction to change functions or set between
functions for further enjoyment.

Turn face of hand shower to switch settings.

Adjust the hand shower position by loosening the knob on
the hanger and rotating forward or back.

Always turn cold water on first to help prevent any accidental
burning or scalding; especially for children and elderly.

The Bonzai is equipped with Spray-Straight™ technology in the
tips of the showerhead and hand shower. If the stream becomes
obstructed from mineral deposits, simply rub the soft tips with
your finger to loosen deposits.

To remove debris from flow restrictor, unscrew supply line
from backside of Bonzai. Take out screened washer and restric­tor from inside the nut. Use a toothpick or rinse with water to
remove debris.

Manufacturer’s Limited Warranty

PULSE ShowerSpas, Inc. warrants that all ShowerSpas are free
from defect in workmanship and/or materials for a period of
three years from the date of purchase. This warranty extends to
the original purchaser only and is non-transferable.

This warranty does not cover, and PULSE ShowerSpas will not
pay for conditions, malfunctions or damages resulting from (1)
normal wear and tear, improper installation (whether performed
by a contractor, service company or the consumer), improper
maintenance, misuse, abuse, negligence, accident or alteration;
(2) the use of abrasive, caustic or “no-rinse” cleaning agents; (3)
the use of the product in any manner contrary to the product
instruction; (4) conditions in the home such as excessive water
pressure or corrosion.

Should any ShowerSpa be determined by PULSE ShowerSpas,
Inc. to be defective in normal residential use, at the option of
PULSE ShowerSpas, Inc., such product shall either be replaced
or repaired and returned to the customer free of defects. The
consumer shall give notice of any defects to PULSE ShowerSpas,
Inc. within thirty days of discovery of such defect.

To keep your ShowerSpa looking new, wipe down after each use
with soft cotton cloth.

Protect your ShowerSpa from hard water stains and mineral
deposits by periodically using an auto spray wax.

Clean using mild liquid soap and a non-abrasive sponge or cloth.
Rinse with clean water.

Do Not Use Any Kind Of
Chemicals Or Abrasives!

Proof of purchase (original sales receipt) must be provided to
PULSE Shower Spas, Inc. with all warranty claims. PULSE Shower­Spas, Inc. is not responsible for labor charges, removal charges,
installation or other consequential costs. In no event shall the
liability of PULSE ShowerSpas, Inc. exceed the purchase price of
the ShowerSpa.

Some states/provinces do not allow limitations of how long an
implied warranty lasts or the exclusion or limitation of such dam­ages, so these limitations and exclusions may not apply to you.
This warranty gives the consumer specific legal rights. You may
also have other rights that vary by state/province.

Follow manufacturers recommended installation. Use caution
with children under ten years of age. Do not use your
ShowerSpa as a support device. Do not use harsh chemicals or
abrasives when cleaning. Always turn water supply off when
servicing your ShowerSpa.

PULSE ShowerSpas, Inc. • 297 Anna Street • Watsonville, CA 95076 • 888.785.7320

[e-mail] • www.pulseshowerspas.com • [e-mail]

Part #1017-OM-ENG Rev. 2015/2/23
