Page 1
FarSight
Instruction Manual
Page 2
2
FarSight (FIRST EDITION)
November 2023
Part Number M-FS01-001-1P
COPYRIGHT
© Pulsar Measurement, 2023. All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language in any form without the written permission of Pulsar Measurement.
WARRANTY AND LIABILITY
Pulsar Measurement guarantee for a period of 2 years from the date of delivery that it will
either exchange or repair any part of this product returned to Pulsar Measurement if it is found
to be defective in material or workmanship, subject to the defect not being due to unfair wear
and tear, misuse, modification or alteration, accident, misapplication, or negligence.
DISCLAIMER
Pulsar Measurement neither gives nor implies any process guarantee for this product and shall
have no liability in respect of any loss, injury or damage whatsoever arising out of the
application or use of any product or circuit described herein.
Every effort has been made to ensure accuracy of this documentation, but Pulsar Measurement
cannot be held liable for any errors.
Pulsar Measurement operates a policy of constant development and improvement and reserves
the right to amend technical details, as necessary.

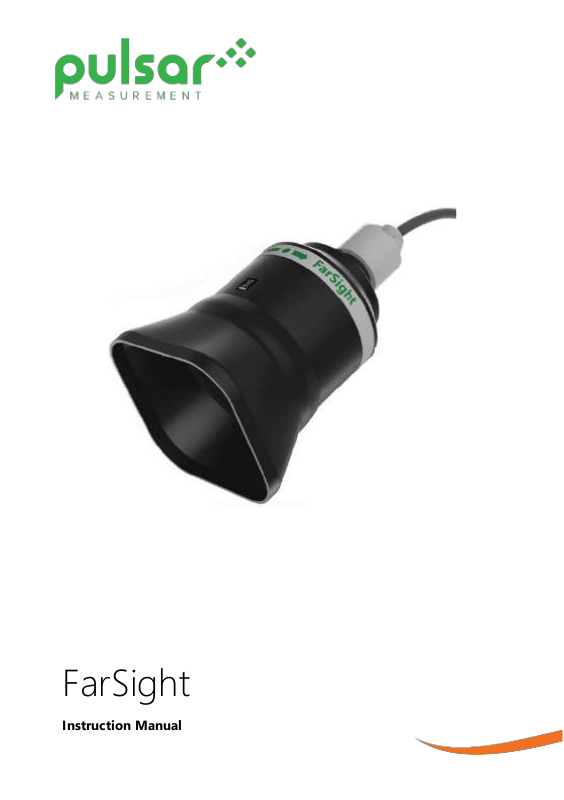

The FarSight shown on the cover of this manual is used for illustrative purposes only and may
not be representative of the actual device supplied.
CONTACT
For technical support, please contact:
Europe: supporteurope@pulsarmeasurement.com
Outside Europe: supportnorthamerica@pulsarmeasurement.com
If you have any comments or suggestions about this product, please contact:
Europe: europe@pulsarmeasurement.com
Outside Europe: northamerica@pulsarmeasurement.com
Pulsar Measurement website: www.pulsarmeasurement.com
United States
11451 Belcher Road South
Largo,
FL 33773
888-473-9546
Canada
16456 Sixsmith Drive
Long Sault, Ont.
K0C 1P0
855-300-9151
United Kingdom
Cardinal Building, Enigma
Commercial Centre
Sandy’s Road, Malvern
WR14 1JJ
00 44 (0)1684 891371
Page 3
3
CONTENTS
Chapter 1: Start Here… .......................................................................................................... 5
About this Manual .............................................................................................................. 5
About the FarSight ............................................................................................................. 6
Benefits .................................................................................................................................... 7
Functional Description ...................................................................................................... 8
Product Specification ......................................................................................................... 9
EU Certificate of Conformity ......................................................................................... 11
Chapter 2 Power Supply Requirements ........................................................................ 12
Unpacking ............................................................................................................................ 12
Power Supply Requirements......................................................................................... 12
Cable Screen and Earth Requirements ..................................................................... 12
Location ................................................................................................................................ 13
Mounting .............................................................................................................................. 13
Angled Mounting Bracket.............................................................................................. 14
FarSight Sensor .................................................................................................................. 16
Mounting Sensor to a Bracket ..................................................................................... 17
Terminal Connection Details ........................................................................................ 21
FlowCERT .............................................................................................................................. 22
Velocity Interface ............................................................................................................... 22
Ultimate Controller ........................................................................................................... 24
Chapter 3 Locating the FarSight ...................................................................................... 25
Installing the Sensor ........................................................................................................ 27
Preparation for Operation ............................................................................................. 28
General Maintenance ...................................................................................................... 28
Chapter 4 Understanding How the FarSight Works ................................................ 29
Measuring streamflow / open channel flow ........................................................... 29
FarSight Protocol ............................................................................................................... 30
Chapter 5 Setting Up the FarSight .................................................................................. 31
FlowCERT Setup ................................................................................................................. 31
Velocity Interface setup .................................................................................................. 32
Page 4
FARSIGHT INSTRUCTION MANUAL
4
Ultimate Controller Fascia and Wall Mount setup ............................................... 33
Chapter 6 Microflow PC ...................................................................................................... 36
Software installation ........................................................................................................ 36
Using MicroFlow/FarSight PC....................................................................................... 37
Flow Tab ................................................................................................................................ 38
Setup Menu ......................................................................................................................... 42
System menu ...................................................................................................................... 42
Tools menu .......................................................................................................................... 43
Info menu ............................................................................................................................. 43
Flow Record Tab ................................................................................................................ 44
Trace Tab .............................................................................................................................. 45
Parameter Tab .................................................................................................................... 46
Chapter 7 Parameter Listing and Description ............................................................ 49
Parameter Access .............................................................................................................. 49
Output parameters ........................................................................................................... 50
Configuration parameters ............................................................................................. 52
Saving & Loading parameters ..................................................................................... 57
Firmware Upgrade ............................................................................................................ 58
Chapter 8 Troubleshooting ................................................................................................ 60
Chapter 9 Disposal ................................................................................................................ 61
Notes .......................................................................................................................................... 62
Page 5
PULSAR MEASUREMENT
5
CHAPTER 1: START HERE…
Congratulations on your purchase of a FarSight velocity sensor. This quality
product has been developed over many years and represents the latest in
non-contacting velocity monitoring technology.
It has been designed to give you years of trouble-free performance, and a
few minutes spent reading this operating manual will ensure that your
installation is as simple as possible.
About this Manual
It is important that this manual is referred to for correct installation
and operation. There are various parts of the manual that offer additional
help or information as shown.
Tips
TIP : L o o k for this icon throughout your Pulsar Measuremen t m a n u a l
to find helpful information and answers to frequently asked
questions.
Additional Information
References
See Also
References to other parts of the manual.
Additional Information
At various parts of the manual, you will find sections
like this that explain specific things in more detail.
Page 6
FARSIGHT INSTRUCTION MANUAL
6
About the FarSight
The FarSight is a non-contacting velocity sensor. The sensor provides
reliable flow velocity measurements using short pulses of micro-waves,
which are transmitted by an enclosed antenna. When reflected off a moving
surface, the signal experiences a shift in frequency characteristics. The
reflected signal is captured by the on-board microprocessor via the antenna
and analysed to determine the velocity.
The FarSight's compact and versatile design allows easy installation.
Housed in a robust enclosure coupled with a fully encapsulated microwave
antenna, it provides an effective fit-and-forget flow velocity solution.
PC software is available to allow setup and run diagnostics using MicroFlow
PC via a RS 485 connection. The FarSight is compatible for use with Pulsar
Measurement’s, FlowCERT, Velocity Interface and Ultimate controllers to
obtain velocity readings. The FarSight can also be retrofitted to replace
existing in-process contacting sensors. Overall, the device has outstanding
stability, accuracy, and repeatability.
Page 7
PULSAR MEASUREMENT
7
Benefits
Combined with the ease of programming there are many other benefits to
using the FarSight, these are listed below:
• Non-contact velocity measurement.
• Retro-fit capability and low-cost installation.
• Monitors flow over natural channels such as streams and rivers.
• Measures flow in both directions.
• ‘See through’ capability for enclosed plastic pipes and concrete (not
reinforced) channels.
• Resilient to liquid vapour, wind, or temperature.
• Storm mitigation when measuring in single direction.
• No minimum liquid level required for measurement.
• Virtually maintenance free; not affected by sedimentation, so there
is no need for regular cleaning.
• Compatible with Pulsar Measurement’s FlowCERT, Velocity Interface
and Ultimate controllers, with retrofit capability for in-contact
sensors.
• Can be installed in addition to existing in process contact measuring
devices.
• Easily setup using MicroFlow PC.
• The sensor is capable of monitoring flow of very shallow liquid,
mitigating the constraint associated with in-liquid techniques.
• Low power design.
• Fast boot sequence allowing a measurement within 10 seconds of
power-up.
Page 8
FARSIGHT INSTRUCTION MANUAL
8
Functional Description
Based upon state-of-the-art microwave sensing technology, the FarSight
integrates Pulsar Measurement’s innovative and award-winning DSP (Digital
Signal Processing) platform, offering you a cost-effective solution with
excellent reliability and performance.
FarSight automatically matches to the protocol and Baud rate of the
controller. When it is connected to a controller and powered up, after
approximately 10 seconds the sensor will adjust to the Baud rate of the
controller it is connected to.
FarSight has been designed to provide maintenance free performance.
Page 9
PULSAR MEASUREMENT
9
Product Specification
PHYSICAL
Dimensions:
Height 195 x Diameter 145mm (7.7 x 5.7”)
Weight:
Nominal 1.2 kg (2.6lbs)
Enclosure Material/Description:
PVDF main body, Valox 357 on cap and sub-shield
Mounting Connection:
Rear: 1-inch BSP or NPT thread with BReez™ adapter.
Optional mounting bracket available.
Cable:
5-core screened
Cable Lengths:
10, 20 or 30m (32.8, 65.6 or 98.4ft)
Optional: 50 m or 100 m (164 ft or 328 ft)
Maximum separation:
Up to 500m (1,640 ft) from FarSight to controller or
RTU/logger
PERFORMANCE
Operational Range:
Up to vertical height of 15m (49ft)
Technology:
K-Band (ISM) Radar
Beam Angle:
10° inclusive
Velocity Range:
±0.2 m/s to ±6 m/s (±0.66 ft/s to ±19.7 ft/s) in most
applications. Performance may vary depending on
application.
Ideal surface condition would include visually
observable ripples
Accuracy
The greater of ±1.5% or 0.05 m/s (0.16 ft/s)
Max. Channel Width per sensor:
Up to 3m (9.8 ft)
Optimal Installation:
30° to 50° (from horizontal) with electronic tilt
compensation.
ENVIRONMENTAL
Enclosure Protection:
IP68 / NEMA 6P
Vibration Protection
Fully Potted
Ambient Operating
Temperature:
-40° to +80°C (-40°F to +176°F)
Humidity:
0 to 99% (non-condensing)
Pressure Connection
Temperature:
-40° to +80°C (-40°F to +176°F)
APPROVALS
Regulatory Approvals:
FCC, RED, CE, UKCA
WEEE and ROHS:
Compliant
Page 10
FARSIGHT INSTRUCTION MANUAL
10
OUTPUT / COMMUNICATION
Connection:
RS485
Digital Communication:
Modbus RTU
Compatibility with Pulsar
Controllers:
Integrates with FlowCERT, Ultimate Controller, and
Flow Monitor
PROGRAMMING
PC Programming:
Via RS485 Modbus RTU, including free Pulsar
Measurement MicroFlow/FarSight PC Software
Programming Security:
Support for passcode protection
Programmed Data Integrity:
Configuration stored in non-volatile memory
PC Setup & Monitoring
Software:
MicroFlow/FarSight PC version 3.1 or newer –
compatible with Windows 10 & 11
POWER SUPPLY
Operating Voltage:
10 – 28V DC
Power Consumption
0.42W
Power Conservation:
Support for complete power-down between
measurements. Required power-on duration depends
on application and field programming of FarSight. See
manual for details.
ACCESSORIES
BReezTM Adapter:
Increases ease of use, supplied as standard. Greatly
reduces installation time
Pulsar Measurement operates a policy of constant development and
improvement and reserve the right to amend technical details, as necessary.
Page 11
PULSAR MEASUREMENT
11
EU Certificate of Conformity
Page 12
FARSIGHT INSTRUCTION MANUAL
12
CHAPTER 2 POWER SUPPLY REQUIREMENTS
Unpacking
Power Supply Requirements
The FarSight can operate from a DC supply of 10 to 28V DC. In all cases the
unit typically draws 0.42W.
Cable Screen and Earth Requirements
The FarSight cable supplied is a 5-core (individual core 2.5mm2) overall
screened cable. Various cable lengths are available, please contact Pulsar
Measurement for the cable lengths available.
Important Information
All shipping cartons should be opened carefully. When using a box cutter, do not
plunge the blade deeply into the box, as it could potentially cut or scratch
equipment components. Carefully remove equipment from each carton,
checking it against the packing list before discarding any packing material. If
there is any shortage or obvious shipping damage to the equipment, report it
immediately to Pulsar Measurement.
FarSight
Cable
Important Information
All electronic products are susceptible to electrostatic shock, so follow proper
grounding procedures during installation.
Page 13
PULSAR MEASUREMENT
13
Location
When choosing a location to mount the bracket and FarSight, note the
following:
• For optimum readings, it is recommended that the FarSight should be
positioned at an angle between 30° and 50° (45° being optimum) to
the surface of the material being measured.
• The mounting surface must be vibration-free.
• The ambient temperature should be between -40ºC and 80ºC.
• Ensure that the Pulsar Measurement Controller is installed in a “Safe”,
non-hazardous, area.
Mounting
For the best results, it is highly recommended to use the FarSight angled
bracket, which is available from your Pulsar Measurement distributor, which
will ensure that the FarSight can be correctly installed. The bracket can be
used if the FarSight sensor is to be mounted on its own in a specific location
or along with a Pulsar Measurement dB transducer. Please see ‘Angled
Mounting Bracket’ for dimensions of this bracket, please note that the
drawing is not to scale.
‘Mounting sensor to a bracket’ illustrates how you would install the sensor
to one of Pulsar Measurement’s angled brackets.
The bracket has 4 holes allowing mounting to a vertical surface by using
suitable fixings, or to a pole by using U-bolts.
Page 14
FARSIGHT INSTRUCTION MANUAL
14
Angled Mounting Bracket
Part number: dBA0008MF
45
o
176mm
22mm
R20mm
12mm
100mm
90mm
130mm
Top view
Side view
Page 15
PULSAR MEASUREMENT
15
R20mm
4 off 12mm
Important Information
Using a spirit level, ensure that the Mounting Bracket is level before attaching
the sensor to the bracket.
Page 16
FARSIGHT INSTRUCTION MANUAL
16
FarSight Sensor
The dimensions of the sensor body are shown in the below diagram:
Surface of measurement
30 -50°
105mm (4.13”)
70mm
(2.76”)
194mm (17.64”)
1” BSP or NPT
120mm (4.72”)
BOTTOM
Page 17
PULSAR MEASUREMENT
17
Mounting Sensor to a Bracket
Mounting the sensor to a Pulsar Measurement 45° bracket (or optional
variable angled bracket) is done via an adapter and M20 nut, as shown in
the diagram below (Pulsar Measurement 45° angled bracket used in
example):
For correct installation, we recommend that the adapter or BReezTM is
threaded on the cable, and carefully screwed onto the FarSight before fitting
to the bracket. This will reduce the risk of any ’twisting’ in the cable.
Ensure that the sensor is tightened, and the dot is in the correct position.
Important Information
When fixing the sensor to the adapter, ensure that care is taken when pulling the
sensor cable through. And once attached to the adapter, and the M20 nut is
tightened, the green dot should be central to the movement of flow as shown in
Fig.4.
Bracket
BReez
TM
Adapter
Cable
M20 Nut
Green dot to be
displayed on top
Page 18
FARSIGHT INSTRUCTION MANUAL
18
Important Information
Care should be taken not to overtighten the sensor when everything is connected,
as seen in the diagram below, as this could cause damage to the housing.
Central to the movement of flow in channel.
340mm (13.39”)
225mm (10.04”)
205mm (8.07”)
Page 19
PULSAR MEASUREMENT
19
When the FarSight is mounted on the bracket with dB series level
transducer, the level measurement is made directly below the sensor where
the velocity measurement is taken from the water surface in view of the
FarSight. As these are different locations, it is important to have a uniform
channel shape when measuring flow via the Area*Velocity method.
Ideal installation for the FarSight would be when it has been installed to
monitor the flow moving towards the sensor. By default, FarSight reports a
positive reading when installed in this position.
Direction of flow
Green dot to be
displayed on top
Page 20
FARSIGHT INSTRUCTION MANUAL
20
Direction of flow
By setting P44 to 1, this allows the sensor to output a positive flow reading
when the direction of flow is away from the FarSight.
Green dot to be
displayed on top
For this installation method, please set P44 to 1 (Away)
Page 21
PULSAR MEASUREMENT
21
Terminal Connection Details
Power
The FarSight operates from a DC voltage supply of 10-28 volts and should
be installed and connected in accordance with ‘Chapter 2–Power supply
requirements’ and the instructions below. When wiring the FarSight the
cable used is of a multicore design. The wire coding is shown below for
ease of use when connecting the FarSight to a device to monitor flow
velocity:
The FarSight can be used with the following Pulsar Measurement controllers
to obtain flow and velocity readings:
• FlowCERT
• Velocity Interface
• Ultimate Controller.
You can also use the Pulsar Measurement MicroFlow PC software to
interrogate and view/record readings from the device. Please refer to
Chapter 6 Microflow PC Software for more details on how to use it. The
RS485 termination is electronically controlled by parameter 57 (P57). Please
refer to ‘Chapter 7 Parameter Listing and Descriptions - RS485
Communications and Modbus’.
CABLE COLOUR
CABLE DETAILS
Red
(Power) +10-28 VDC
Black
0 Volts
Orange
RS485 +
White
RS485 -
Blue
RS485 Common
Green
Cable Screen
FarSight
Cable
Page 22
FARSIGHT INSTRUCTION MANUAL
22
FlowCERT
The terminal strip is as detailed below. There is also a wiring diagram inside
the terminal access cover of the FlowCERT unit. For further information on
how to operate a FlowCERT unit, please refer to the separate FlowCERT user
manual. To set up a FarSight sensor with the FlowCERT please refer to
Chapter 5 – Setting up the FarSight of this manual. The FlowCERT manual
is also available for download from the Pulsar Measurement website:
https://pulsarmeasurement.com/
Connect the FarSight sensor to the FlowCERT terminals as follows:
The green cable (cable screen) should be connected to Earth such as
terminal 44 (0V).
Velocity Interface
The Terminal strip is detailed as below. There is also a wiring diagram
attached to the board directly underneath the terminal strip. For further
information on how to setup a Velocity Interface unit, please refer to the
Velocity Interface user manual.
TERMINAL CONNECTION DETAILS
Cable Type
Red
Power
Black
0 Volts
Orange
RS485+
(B)
White
RS485-
(A)
Blue
RS485
Common
Terminal Number
41
44
36
35
34
Important Information
Power to the controller should be disconnected until the FarSight is connected
correctly. If the equipment is installed or used in a manner not specified in this
manual, then the protection provided by the equipment may be impaired.
Page 23
PULSAR MEASUREMENT
23
To set up a FarSight sensor with the Velocity Interface please refer to
Chapter 5 – Setting up the FarSight of this manual. The Velocity Interface
manual is also available for download from the Pulsar Measurement
website:
https://pulsarmeasurement.com/
Connect the FarSight sensor to the Velocity Interface terminals as follows:
The green cable (cable screen) should be connected to Earth such as
terminal 44 (0V).
TERMINAL CONNECTION DETAILS
Cable Type
Red
Power
Black
0 Volts
Orange
RS485+
(B)
White
RS485-
(A)
Blue
RS485
Common
Terminal Number
23
22
24
25
21
Important Information
If you require help in connecting the FarSight to any of the Pulsar Measurement
controllers mentioned in this manual, then please contact your local Pulsar
Measurement Distributor for assistance.
Page 24
FARSIGHT INSTRUCTION MANUAL
24
Ultimate Controller
The Terminal strip for both Wall and Fascia Mount is detailed as below. For
further information on how to setup an Ultimate Controller unit, please refer
to the Ultimate Controller user manual. To set up a FarSight sensor with
the Ultimate Controller please refer to Chapter 5 – Setting up the FarSight.
The Ultimate Controller manual is also available for download from the
Pulsar Measurement website:
https://pulsarmeasurement.com/
Connect the FarSight sensor to the Ultimate terminals as follows:
The green cable (cable screen) should be connected to Earth such as
terminal 44 (0V).
TERMINAL CONNECTION DETAILS
Cable Type
Red
Power
Black
0 Volts
Orange
RS485+
(B)
White
RS485-
(A)
Blue
RS485
Common
Terminal Number
5 6 7 8 9
Important Information
If you require help in connecting the FarSight to any of the Pulsar Measurement
controllers mentioned in this manual, then please contact your local Pulsar
Measurement Distributor for assistance.
Page 25
PULSAR MEASUREMENT
25
CHAPTER 3 LOCATING THE FARSIGHT
For optimum accuracy install the FarSight where the flow is not turbulent,
and the flow direction is towards the sensor. An ideal location for the sensor
is in the centre of a long straight channel. Vertical drops, baffles, curves, or
junctions can cause the velocity profile to be distorted.
The FarSight sensor requires surface ripples to be present to provide a
reliable measurement. If there are no surface ripples within the sensors field
of view under any flow conditions, an alternative measurement point should
be found, or ripples created.
Locating the FarSight
• If the width of the channel exceeds 3m. Multiple FarSight sensors are
recommended to be used in conjunction with the Ultimate Controller.
• Ensure that there is an unobstructed path between the sensor and the
surface of the moving liquid being measured.
• Position the sensor at a height of 1m above maximum liquid level or up
to two times the channel width from the minimum liquid level, whichever
is greater. As shown below:
• A = Minimum 1m above Maximum Liquid level.
• B = Maximum 15m above Minimum Liquid Level.
B
A
Max Liquid Level
Min Liquid Level
FarSight
Page 26
FARSIGHT INSTRUCTION MANUAL
26
In the instance where there are vertical drops, baffles, curves, or
junctions, the sensor should then be positioned to aim at a straight part
of the channel, at a minimum distance that is at least five times the
width of the channel before a bend. Examples of positioning the sensor
are shown in the below diagrams.
Important Information
If the maximum width of the channel exceeds 3m, you may require more than
one FarSight sensor for your application, please consult Pulsar Measurement for
assistance.
Distance
Distance
Diagram 1
Distance
Diagram 2
Page 27
PULSAR MEASUREMENT
27
Installing the Sensor
• The Sensor housing is designed to accept a 1-inch BSP/NPT female
threaded coupler for pipe or conduit.
• Ensure that the sensor is positioned at an angle between 30 - 50° to
the surface of the measured application, as this will achieve the best
results. An example of this is shown in the diagram below:
• When using one of the Pulsar Measurement Angled Mounting
Brackets, secure the bracket using the correct size screws/bolts/Ubolts (12mm diameter thread).
• Fasten the Breez
TM
adaptor to the FarSight, and then fix the 20mm
thread of the BreezTM to the bracket with the slotted nut. CAUTION:
Extreme over-tightening may crack or cause damage to the unit
or bracket.
• Position the sensor so the green ‘dot’ that is shown on the label
between the two green arrows is on the top of the device and is
central to the movement of flow in the channel.
• If desired, the sensor cable may be extended up to a maximum of
500m. Install the sensor cables in grounded metal conduit. Do not
run-in cable trays or duct banks with variable frequency drives or other
high voltage sources.
• When connecting multiple FarSight sensors for use with the Ultimate
controller. Ensure that all wiring in any junction /connector box is
correct.
Green dot to be displayed on top
30-50°
Surface of measurement
Page 28
FARSIGHT INSTRUCTION MANUAL
28
• The sensor can be positioned to obtain readings following the
direction of the flow. Or it can be positioned to measure the
oncoming flow as seen below:
Preparation for Operation
Before switching on, ensure that the following is checked:
✓ FarSight is mounted correctly and is secure.
✓ All wiring is correct to a Pulsar Measurement controller.
✓ The power supply is correctly installed.
General Maintenance
There are no user serviceable parts inside FarSight. If you experience any
problems with the unit, then please contact Pulsar Measurement for advice.
To clean the equipment, wipe with a damp cloth. Do not use any solvents on
the enclosure.
FarSight obtaining readings
following the direction of the
flow.
FarSight obtaining readings
from the oncoming direction of
the flow (default).
Important Information
Care should be taken to not damage the device when removing and cleaning.
Page 29
PULSAR MEASUREMENT
29
CHAPTER 4 UNDERSTANDING HOW THE FARSIGHT WORKS
To set up and obtain flow readings using the FarSight, it is advised to do this
using a Pulsar Measurement controller.
Measuring streamflow / open channel flow
The calculation of flow using Area x Velocity is only possible when the
FarSight sensor is used as part of an integrated system with either FlowCERT
or Ultimate Controllers.
The calculation for the determination of discharge/flow in open channels
consists of different factors:
• Velocity of the liquid in the channel.
• Depth of the liquid in the channel.
• Cross sectional channel dimensions.
The flow is then calculated using the formula Q = V x A(h)
Where: Q = Flow rate
V = Velocity
A(h) = Area at head
Once the controller and the FarSight have been powered up, you can now
begin to program the controller to work effectively with the FarSight device.
On the Velocity Interface and the FlowCERT, the display provides different
levels of runtime information and a simple, progressive menu system in
program mode.
On the Ultimate Controller you can allocate up to 2 AUX displays to show
different levels of run time information.
Page 30
FARSIGHT INSTRUCTION MANUAL
30
FarSight Protocol
The FarSight uses a unique protocol to Pulsar Measurement’s noncontacting velocity sensors, which enables it to automatically work with the
Baud rate of any appropriate Pulsar Measurement controller that it is
connected to.
To enable the FarSight protocol to work successfully, please ensure that
the controller’s power is disconnected when connecting or disconnecting
a sensor the sensor.
Once the sensor is connected to the controller and power is restored to the
device, after a short period of time, the FarSight will automatically detect
and adjust its protocol and Baud rate to match that of the appropriate
Pulsar Measurement controller.
Page 31
PULSAR MEASUREMENT
31
CHAPTER 5 SETTING UP THE FARSIGHT
This chapter explains the quickest way in which to get your FarSight sensor
working with the Pulsar Measurement controllers that the sensor operates
with.
FlowCERT Setup
1. Install and connect your FlowCERT controller as outlined in the FlowCERT
user manual.
2. Install and connect your FarSight sensor to the FlowCERT as described in
Chapter 2 - FlowCERT Wall Mount of this manual.
3. Power up the unit and enter program mode by keying in ‘1997’ and
pressing Enter to set-up an application for ‘area velocity’. This can be
done by choosing option 4 in Quick set-up or directly changing P700 to
4 = ‘Area velocity’.
4. Continuing with the Quick setup, you now need to select the Primary
Measuring Device (PMD) for your application from the options displayed
on screen.
5. Once you have selected your application you will then be asked a series
of questions, which are answered by selecting the appropriate option
you require. For further information on the Quick set-up of a FlowCERT
please refer to Chapter 6 Quick Set-up Guide in the FlowCERT user
manual.
6. Once you have selected area velocity, set P130 ‘Device Mode’ to 2 =
‘Speedy’ (‘Velocity’ in Ultra firmware versions 7.4.4 and onwards) to
enable the velocity parameters.
7. To change the maximum flow velocity of your application you will need
to set P683 ‘Maximum flow velocity’ to the desired value (in m/s)
8. To change the minimum flow velocity of your application you will need
to set P682 ‘Minimum flow velocity’ to the desired value (in m/s)
9. All other velocity parameters can be left at their default values or can be
adjusted to suit the application, i.e., ‘P688 Gain’ and ‘P684 Damping’ can
be altered to the value range outlined in Chapter 7 – Parameter Listing
and Descriptions of this manual.
10. When a level transducer is also connected, to view the instantaneous
flow velocity measurement on the auxiliary display of the FlowCERT,
P815 ‘Auxiliary Source’ should be set to 1 = Velocity.
Page 32
FARSIGHT INSTRUCTION MANUAL
32
The auxiliary display will then alternate between displaying the flow
units and the current flow velocity. Please note that the instantaneous
flow velocity cannot be displayed in the auxiliary display when the resettable totaliser is selected.
11. If no further changes are required, return to run mode and after a short
time the flow readings from the FarSight will be displayed on the
FlowCERT screen.
Velocity Interface setup
1. Install and connect your Velocity Interface controller as outlined in the
Velocity Interface user manual.
2. Install and connect your FarSight sensor to the Velocity Interface as
shown in Chapter 2 - Velocity Interface of this manual.
3. Power up the unit and enter program mode by keying in ‘1997’ and
pressing Enter to begin setting up the unit for measurement.
4. If you wish to change or view the velocity measurement units, set P130
‘Measurement units’ to the selection of your choice from the options
given in the parameter list shown on the screen.
5. To change the maximum flow velocity of your application you will need
to set P683 ‘Maximum flow velocity’ to the desired value (in m/s).
6. To change the minimum flow velocity of your application you will need
to set P682 ‘Minimum flow velocity’ to the desired value (in m/s).
7. To change the velocity at which the high mA output (20mA) will occur,
you will need to set P835 ‘Output High Level’ to the value you require
in measurement units (P104).
8. All other parameters can be left at their default values, or adjusted to suit
the application, i.e., ‘P688 Gain’ and ‘P684 Damping’ can be altered to
the value range outlined in Chapter 7 – Parameter Listing and
Description of this manual. For further information on the full
parameter listing of a Velocity Interface, please refer to Chapter 5 Parameter Guide in the Velocity Interface user manual.
9. If no further changes are required, return to run mode and after a short
period of time, velocity, and mA readings from the FarSight will appear
on the Velocity Interface’s screen.
Page 33
PULSAR MEASUREMENT
33
Ultimate Controller Fascia and Wall Mount setup
1. Install and connect your Ultimate Controller as outlined in the Ultimate
Controller user manual.
2. Prior to installing and connecting your FarSight sensor to the Ultimate,
you will need to set the sensors unique Modbus address by using
FarSight PC. This is done by changing the Modbus ID value, which can
be done by the Modbus ID box in the software or using the manual
parameter box and change P52 to between 2 & 125 (Ensure multiple
sensors have different addresses). For further details on changing
parameters and using FarSight PC, please refer to Chapter 6 –
Microflow/FarSight PC where details of how to use the software is
explained.
3. Once a Modbus address is set, install, and connect your FarSight
sensor to the Ultimate Controller as shown in Chapter 2 – Installation
– Ultimate Controller (Fascia & Wall Mount) of this manual.
4. Power up the unit and enter program mode by pressing ‘Menu’ and
keying in ‘1997’ and pressing Enter to begin setting up the unit for
measurement.
5. Select Advanced Config. > Live List, where the controller will now
search for the Modbus ID of the FarSight unit(s) that have been
connected.
6. In Advanced Config. > Modules, Select the amount of FarSight
sensors and press the ‘<’ button so that they appear in the ‘Added’
column. Now select each MFL (FarSight) and select ‘Edit’ to change
the Modbus ID to what has already been set and discovered in the
Live List. The controller will now reboot.
7. Re-enter program mode by pressing ‘Menu’ and keying in ‘1997’.
8. Select ‘Setup > Application > Operation’ and press the ‘+’ button to
add a point of measurement, which you can rename to something of
your choice.
9. Select ‘Velocity’ where you will now be able to select the FarSight as a
velocity measurement point.
10. Select ‘Single’ when only using one sensor to obtain velocity
measurements.
Page 34
FARSIGHT INSTRUCTION MANUAL
34
11. If more than one sensor is to be setup for different channels, then
repeat ‘step 8 and 9’ in these instructions. If multiple sensors are to
be used on one channel, please select the appropriate sensors from
the list on screen. You can now select ‘Avg, Diff, or Sum’ as a mode
of operation.
12. If no further changes are needed, you can exit the screen and save
your changes.
13. Return to the ‘Main menu’ and select ‘Sensors > MicroFlow’ and
enter the maximum velocity in m/s and adjust any other settings that
are required.
14. Touching the FarSight picture will allow you to access the sensors
trace screen. Here you can see the velocity (m/s), signal strength and
confidence of the current reading obtained.
15. Return to the ‘Main menu’ and select ‘OCM’.
16. In ‘PMD Type’ select Area Velocity.
17. Below you will need to select from the options available, in Primary
PMD choose the type of measuring device from the list available.
18. In ‘Allocation’, select the point of level measurement that your
transducer has been assigned to.
19. On the image of the channel/measuring device, insert the dimensions
as required in measurement units.
20. Select the drop-down box ‘Vel.Input’ and select the point of
measurement that your FarSight has been assigned to.
21. If all other measurements have been applied, then a value will now
appear in ‘Max.Flow’.
22. If no other changes are required, then exit the OCM (Open Channel
Flow Measurement) setup and Save changes made.
23. To view the velocity obtained from the FarSight(s) on the main display
in run mode, please continue to follow these instructions. If you do
not require to view this information, and you have finished setting up
your Ultimate then return to run mode.
24. To view the velocity and flow information obtained from your OCM
application in run mode, from the ‘Main menu’ select ‘Display >
Source’. From the options available and select ‘OCM Flow’.
25. If no further programming is required exit the screen and save the
changes made. Returning to run mode you will now see an image of
your PMD and a FarSight symbol appear on the main display.
Page 35
PULSAR MEASUREMENT
35
26. Once velocity and flow are obtained, this information will appear on
the screen. Flow will appear in measurement units and will appear as
the main value, and velocity values will appear in the green boxes
under the FarSight symbol and above your PMD.
27. To view the information from your velocity measurement, point in an
auxiliary display, select ‘Display – Aux’, and in ‘Source’ from the
selection available, choose the point of measurement that the
FarSight(s) are assigned to.
28. Exit the screen and save changes made and return to run mode if no
further programming is required.
29. Once velocity is detected then this information can be viewed in the
auxiliary display.
Important Information
For further information on how to set up the individual controllers, please refer
to that controller’s instruction manual. All of Pulsar’s product manuals are
available from the Pulsar Measurement website:
https://pulsarmeasurement.com/downloads
Page 36
FARSIGHT INSTRUCTION MANUAL
36
CHAPTER 6 MICROFLOW PC
The software that accompanies the FarSight can be used to setup, test,
obtain and record readings from a sensor. To utilise the features of the
software, an RS485 connector, which is available from Pulsar Measurement
(as shown below), is required to communicate between the sensor and your
machine.
If a Pulsar Measurement controller is installed, common setup parameters
can be programmed directly from the controller, such as ‘Gain’ and
‘Damping’. This chapter outlines how to install the software onto your
machine and how to use it with your FarSight.
Software installation
Insert the USB that accompanies the FarSight sensor into your PC/Laptop. If
you do not have a USB on your laptop, then this software can be
downloaded from the Pulsar Measurement website:
https://pulsarmeasurement.com/downloads and choose Software and select
to download Microflow PC from the list which will then be downloaded onto
your machine. When setting up the RS485 connector for the first use, the
necessary drivers for it to operate correctly with your OS will be installed
from your installation of the MicroFlow PC software from the USB
accompanying the sensor, or the software can be downloaded from our
website for free. Once downloaded, a shortcut icon will be created onto
your Desktop for ease of use. Double click on this icon to launch the
program.
For optimum installation insert your RS485 connector to your PC whilst
installing the drivers, where your PC should assign it to a Com Port.
Or if you have an internet connection, upon inserting the USB of the RS485
connector for the first time, Windows updates should install this onto your
computer for you. Once the driver’s installation has completed, remove the
RS485 connector from your machine. Your RS485 connector is ready to be
used when a connection to MicroFlow/FarSight PC is required.
Page 37
PULSAR MEASUREMENT
37
Using MicroFlow/FarSight PC
To connect to the software using the RS485 connector, power to the sensor
can be obtained from the compatible Pulsar Measurement controller is
connected to.
With the two FarSight RS485 cables removed, connect the Red wire with the
Red crocodile clip on the connector, to the Orange (RS485+) wire of the
FarSight. And connect the Blue wire with the Black crocodile clip on the
connector to the White (RS485-) wire of the FarSight, as shown below:
Once the sensor is connected to the RS485 connector, insert it into the
PC/laptop ready for use, and ensure that your sensor is switched ‘ON’ to
enable the software to communicate with the sensor.
If you know the Com port that the RS485 connector is assigned to, please
select Setup > Serial Port to enter the Com port number to the device.
Once you have selected the correct Com port number, selecting ‘Connect to
device’ will allow the software to connect to the RS485 connector Com port.
If the Com port number was not known, unchecking Use Setting under
Serial port will search for and connect to it automatically.
After launching the program and connecting to the FarSight, the application
name will change to FarSight PC. The device parameters will be
automatically extracted once a connection is established. Once connected
you can now view the information received from the sensor on the
Software’s individual tabs: Flow, Flow Record, Trace and Parameters.
Important Information
Ensure that power to the controller/sensor is switched ‘OFF’ before removing
cables and any connection is made.
FarSight RS485+
FarSight RS485-
RS485 Connector (-)
RS485 Connector (+)
Page 38
FARSIGHT INSTRUCTION MANUAL
38
Flow Tab
The above picture is the default screen of FarSight PC, which is the Flow tab.
The dial on the left displays the reported flow velocity (up to 6m/s), which is
in metres per second. The numerical display near the Velocity label shows
the Reported velocity flow rate (in bi-directional mode the velocity moving
away from the sensor will be indicated as a negative value) in different
volume and time units. The values displayed on the right also appear on the
PC software’s other tabs to help diagnose the information seen on the
individual tabs. Below the Reported Velocity, there are two dropdown boxes
where you can adjust the values to read different measurement units and/or
time units. Measurement units can be changed to either metres, millimetres,
or feet. The time units can be changed to seconds, minutes, or hours. The
default for distance and time units is m/s. Provided below are the various
options shown under the Flow tab:
Page 39
PULSAR MEASUREMENT
39
Velocity (Reported Flow Velocity)
The reported flow velocity is the flow reading reported by FarSight displayed
in the larger numerical box near the Velocity label. It can show positive or
negative flow value depending on the selected direction for reported flow.
Refer “Chapter 7 - Configuration parameters” for more information.
Inclination
This indicates the angle (with the horizontal axis) at which the FarSight is
mounted.
Signal Strength
The signal strength gives an indication of the actual strength of the velocity
signal detected. A level of higher than 70% is desired for reliable operation.
Stability
The stability level is an indication of the consistency of flow reading, as
derived from the combination of signal strength and statistical fluctuations
of the flow reading. A high level of stability would indicate optimum
condition, and relatively healthy flow within the channel and indicate higher
levels of repeatability and better flow tracking. The stability does not
necessarily indicate the accuracy of the flow reading, as this is subject to
calibration.
Page 40
FARSIGHT INSTRUCTION MANUAL
40
ICON
DETAILS
Connect: Click to connect to the FarSight device.
• If known, set the serial port (Setup > Serial Port) for
your RS485 connector. Otherwise, the software will
search for and connect to it automatically.
• The FarSight is interfaced using Modbus via the
RS485 terminals. The default Modbus Slave ID is
126.
Disconnect: This appears after a connection is
established. Click this icon to disconnect from the
FarSight.
Diagnostic Trace: Requests for a diagnostic trace to be
taken.
• When activated, this icon border will light up yellow
and ‘live’ traces can be observed on the ‘Trace’ tab.
Click again to deactivate.
Save Data to File: Click to record data from the FarSight
device.
When activated, this icon will light up yellow, clicking
again will deactivate the feature.
• To record diagnostic traces along with the flow
data, please ensure that the trace icon is active and
live traces are shown on the trace tab and a site ID
has been entered.
• The recording interval is set via the Setup>Recording
Interval menu. The default is one record in every 2
seconds.
• Files are automatically named with “FarSight…”
prefix followed by the site name (empty if no site
name is specified), current date & time stamp.
Example: FarSight-PULMALVERN-20-01-2015-0830-00.MLG.
• If recording over a long duration, a new file will be
automatically generated after 30 minutes.
• The recorded data files are stored in the FarSight
PC installation folder by default.
• When recording is active, click on the icon again to
stop.
Page 41
PULSAR MEASUREMENT
41
ICON
DETAILS
Replay Recorded Data: Click to replay recorded data.
This can be performed without a connection to a FarSight
sensor.
• The program will disconnect from a sensor during
replay.
• A prompt will appear for choosing the data files to
play.
• Select the data files to replay, ensure that on
FarSight PC recorded data files are selected.
• To replay more than one file, select multiple files by
holding down the ‘CTRL’ key on the keyboard while
clicking additional files.
• Recorded traces are shown in the Trace tab and the
recorded flow is shown in the Flow tab.
• During replay, click on the icon again to stop.
Increase Replay Speed: During replay mode, clicking this
icon will increase the replay speed. A prompt will appear
when the maximum replay speed has been reached.
Decrease Replay Speed: During replay mode, clicking
this icon will decrease the replay speed. A prompt will
appear when the minimum replay speed has been
reached.
Exit: Click on this icon to exit the program.
Page 42
FARSIGHT INSTRUCTION MANUAL
42
Setup Menu
This menu option enables you to perform the following actions:
Clear Flow Record
This option allows you to clear the Flow Record chart that has been
obtained from the sensor since its connection.
Recording Interval
This controls the time interval before a new flow record and trace is saved to
file when the save-to-feature is in use.
Serial Port
This allows you to setup the RS485 port. The default setting when
interfacing with the software is 19200 Baud rate, 8 bits, No Parity, 1 Stop bit.
There is normally no requirement to change the default parameters, as the
COM port number is automatically detected.
Work Folder
Allows you to select the default folder for where the data files are to be
saved to.
System menu
This menu provides the options to perform the following actions:
Save Device Parameters
Extract parameters configured on the sensor and save them to PC as a
parameter file. This will be saved to FarSight PC installation folder and
prefixed with ‘ParamFarSight’.
Load Parameters to Device
Load the parameters from a saved parameter file onto the FarSight sensor.
This should only be used with a file prefixed with ‘ParamFarSight’.
*Bootloader Control
This launches the Bootloader PC program, allowing you to upgrade the
firmware on the FarSight sensor. Any customised parameters will be erased
during a firmware upgrade, it is recommended to save parameters before
performing an upgrade.
Page 43
PULSAR MEASUREMENT
43
*Switch Device into Bootloader
Resets the FarSight into Bootloader mode. The Bootloader PC program
must be used to connect to the sensor in this mode. The FarSight will
resume normal operation if no connection is established after approximately
30 seconds.
Parameter Factory Reset
This resets all the sensor’s parameters to their factory default values.
Tools menu
This menu option allows you to choose the following options:
Export data to CSV
This allows you to export a saved data file (. MLG only) into CSV format.
And once opened in Excel, the information recorded in this file can be
viewed and each section is labelled at the top of the row: Date, Time, Flow
velocity (m/s), Signal Strength and Stability. This information from the
FarSight could then be placed into a chart/graph format.
Chart Data file
This opens the directory folder on your computer where FarSight data is
currently stored.
Info menu
Selecting this will allow you to view the following information:
FarSight PC
This displays information showing the version of software currently being
used.
FarSight Device
When connected to a FarSight sensor the information regarding the
firmware, hardware and the serial number of the device currently connected
are displayed here.
Important Information
*These options are only available via service code access. If you require help in
connecting the FarSight then please contact your local Pulsar Measurement
Distributor for assistance.
Page 44
FARSIGHT INSTRUCTION MANUAL
44
Data Folder Path
This shows where all data files are currently stored when saved to your
machine.
Flow Record Tab
The flow record provides a record of the Reported Flow over time. Each point
on the graph represents a 1.2 second interval. However, when the trace
button has been pressed and a trace is being retrieved from the sensor, this
slows down and a point on the graph now represents a 2 second interval.
You can zoom in by clicking and holding the mouse to draw a box over the
region to zoom in on. Zooming out can be done by right clicking on the
chart and selecting “Undo All Zoom”.
To clear the Flow Record chart, select Setup > Clear Flow Record Chart,
while the chart is inactive.
Important Information
When the save data to file function is being used, flow information and traces
will be written to file, at the fixed interval selected via ‘Setup > Recording
Interval’. See ‘Recording Interval’ in the ‘Using FarSight PC’ section of this
manual.
Page 45
PULSAR MEASUREMENT
45
Trace Tab
This displays the diagnostic traces from the sensor when the trace button is
activated or when replaying a saved file. The vertical axis is related to the
signal strength, while the horizontal axis is related to the detected flow.
Since the trace for FarSight includes bidirectional data, the toward
directional trace is from the flow index 0 to 126, whereas the away
directional trace is from the flow index 127 to 253.
When a signal is received, the ‘green square indicator’ will move down
from 15 on the vertical axis. The further the ‘green square indicator’ moves
from 15, the larger the strength of the received signal. During flow
condition, the ‘green square indicator’ will normally be within the range of
25 to 80. Under no-flow conditions the ‘green square indicator’ will remain
at 15.
When a flow is detected in the toward direction, the ‘red circle indicator’
(Toward index) will move horizontally from left to right (0 to 126) to indicate
toward flow detection, whereas when a flow is detected in the away
direction, the ‘red circle indicator’ (Away index) will move from right to the
left (253 to 127) to indicate away flow detection. Both the ‘red circle
indicators’ should stay at 0 under no-flow conditions and move along the
horizontal axis when flow is detected.
Toward Flow
Away Flow
Page 46
FARSIGHT INSTRUCTION MANUAL
46
Under flow condition, the line should still approach and flatten out at just
below the signal index 15 line (By default).
If the trace remains flat or the indicators struggle to remain stable during
flow, then increase the ‘Gain’ (P102) setting.
You are also able to see the current velocity measurement obtained by the
sensor in the chosen volume and time units selected.
Parameter Tab
This tab enables the user to change parameter settings in the FarSight
sensor. It is important to note the following to ensure that the sensor is
correctly programmed.
Upon every connection to the sensor, FarSight PC will synchronise the
values on the Parameter tab to that currently stored on the sensor, including
the Modbus ID of the sensor. Changing a parameter can be done in one of
two ways:
1. Selecting the parameter and then entering/choosing a value from the
options available when highlighting the box.
2. Using the Manual Setting parameter box.
Page 47
PULSAR MEASUREMENT
47
The option for manually setting the parameters can be done by utilising the
Manual Setting terminal on the parameters tab, as shown below:
All parameters can be queried by entering the parameter address in the
Parameter field and then clicking on the Query button. The FarSight will
then reply with the current value of that parameter.
For setting a parameter, both the Address and Value must be entered
before clicking on the Set button. ‘User’ will show the value you have
changed in the manual setting box. And ‘UI’ will appear when changing a
parameter via one of the parameter dropdown selection boxes. The
appropriate access levels are required for setting parameters. After
changing any parameter, the ‘SAVE’ button must be clicked to send and
save the new values to the device. If the change is not successful, then the
values that are shown on the Parameter tab will reflect the current
parameter value on the sensor.
Important Information
Ensure that the correct parameter/register number is known before making
changes to any of the parameters and their values.
Page 48
FARSIGHT INSTRUCTION MANUAL
48
The values need to be valid and within the allowed range for that parameter
change to be successful. Please refer to ‘Chapter 7 Parameter listing and
Descriptions’ in this manual, on the parameters available and the range
each one can be set between. If a parameter has been incorrectly set,
highlighting the ‘Default’ box, and selecting any of the options from the
drop-down list will display that parameters default box. This shows the
parameter number, its current value, and the default value of that individual
parameter. Select ‘OK’ and then ‘SAVE’ to store that value.
If the FarSight is being controlled simultaneously on both FarSight PC and
RS485 via Modbus interface, the values on the Parameter tab will not be
instantly updated on FarSight PC if a parameter change is instructed via the
RS485 Modbus.
Page 49
PULSAR MEASUREMENT
49
CHAPTER 7 PARAMETER LISTING AND DESCRIPTION
Parameter Access
All the FarSight sensor parameters have factory default values which the
user receives upon first use, or when the sensor is reset. The parameters
consist of two main types: Output parameters and Configuration
parameters.
Output parameters are read only and cannot be set by the user. Examples
are the stability and signal strength. Configuration parameters can be
queried and set, there is also an associated access level required for setting,
either ‘User’ or ‘Service’. Upon connection to a sensor, the access level is
defaulted to ‘User’.
The parameters are always stored and entered as whole numbers, please
refer to the individual parameter for its individual value range.
The naming syntax for the parameters is with a prefix of ‘P’ before the
address. For example, a parameter at address 102 is “P102”. The
value/content of the parameter is delimited by a colon “:”, such that
“P102:20” indicates that the parameter at address 102 has a value of 20.
The terms “parameter” and “register” are used interchangeably as the
parameter number is the actual address of the storage register.
The parameters on the FarSight can be accessed using either:
• The parameters tab on FarSight PC.
• Modbus RTU communication protocol (RS485).
It is recommended that only one method of access is used at any point in
time.
Page 50
FARSIGHT INSTRUCTION MANUAL
50
Output parameters
Using a Modbus Master, output parameters can be polled using Read Input
Registers. For example: To view the flow velocity, you would read register
(parameter) addresses 30020 and 30021.
Toward Flow Velocity P20 and P21
The current flow velocity in the toward direction (flowing towards the unit)
can be read from registers 20 and 21, in the following format:
P20 contains the whole number part of the flow reading, while P21 contains
the fractional part of the flow reading. P21 is stored as a whole number
from 0 – 999 (allowing a fractional representation of 0.001 to 0.999).
Away Flow Velocity P30 and P31
The current flow velocity in the away direction (flowing away from the unit)
can be read from registers 30 and 31, in the following format:
P30 contains the whole number part of the flow reading, while P31 contains
the fractional part of the flow reading. P31 is stored as a whole number
from 0 – 999 (allowing a fractional representation of 0.001 to 0.999).
P22 Signal Strength
This is a ‘read only’ parameter and gives you the current signal strength in a
percentage, from 1 to 100.
P23 Stability
This is a ‘read only’ parameter and gives you the current stability in a
percentage, from 1 to 100.
1.76
Register [20] = 1
Register [21] = 760
0.85
Register [30] = 0
Register [31] = 850
Page 51
PULSAR MEASUREMENT
51
Toward Flow Velocity in 32-bit floating point representation P32 and P33
The user can query the toward flow reading in 32-bit floating point
representation using Modbus polling (Not available using FarSight PC). By
default, the value will be in Big Endian format. i.e., 32-bit floating point value
AB CD can be queried as P32:AB and P33:CD.
Away Flow Velocity in 32-bit floating point representation P34 and P35
The user can query the away flow reading in 32-bit floating point
representation using Modbus polling (Not available using FarSight PC). By
default, the value will be in Big Endian format. i.e., 32-bit floating point value
AB CD can be queried as P34:AB and P35:CD.
Reported Flow Velocity in 32-bit floating point representation P40 and P41
The user can query the reported flow reading in 32-bit floating point
representation using Modbus polling (Not available using FarSight PC). By
default, the value will be in Big Endian format. i.e., 32-bit floating point value
AB CD can be queried as P40:AB and P41:CD.
Page 52
FARSIGHT INSTRUCTION MANUAL
52
Configuration parameters
RS485 Communication and Modbus
Use these parameters to setup the FarSight device to the appropriate Pulsar
Measurement controller.
NAME
PAR NO.
OPTIONS
DEFAULT
DESCRIPTION
FarSight sensor
Modbus
Address
52
1 – 126
126
Unique Modbus
device ID.
Baud Rate
53
0 = 1200
1 = 2400
2 = 4800
3 = 9600
4 = 19200
5 = 38400
6 = 57600
7 = 115200
6 = 57600
Baud rate for RS485
Parity
54
0 = No parity
1 = Odd parity
2 = Even parity
0
Parity for RS-485
Stop Bit
55
1 = One stop bit
2 = Two stop bits
1
Stop bit for RS485
Backup ID
56
1 – 126
126
Modbus device ID.
Modbus
Terminations
57
0 = Off
1 = On
1
Select 1 = On, if
termination is
required.
Endianness
58
0 = Big Endian
1 = Little Endian
0
Endian selection
for RS-485.
Important Information
For Big Endian, 16- bit integers are represented as AB (A = MSB B = LSB),
whereas floats are represented as AB CD (A = MSB, D = LSB).
For Little Endian, 16-bit integers are represented as BA (A = MSB B = LSB),
whereas floats are represented as DC BA (A = MSB, D = LSB).
Page 53
PULSAR MEASUREMENT
53
Device Information Parameters
These parameters are read only.
NAME
PARAMETER
NO.
DESCRIPTION
Serial Number
240 & 241
Registers 240 & 241 form a 32-bit number.
Register 240 = Most significant 16-bit.
Register 241 = Least significant 16-bit.
Firmware ID
261
A number associated with the version of
firmware that is currently programmed onto
the sensor.
Hardware ID
262
A number associated with the version of
hardware that is currently used with the sensor.
Processing Parameters
These parameters are read only.
NAME
PAR NO.
OPTIONS
DEFAULT
DESCRIPTION
Direction
persistence
value
38
1 – 1000
50
Persistence used in
Reported Flow value
calculation.
Direction
factor
42
0 – 100
20
Unit in percentage. Away
highest peak should be X%
(20% by default. i.e., 1.2
times) higher than toward
highest peak to read the
reverse flow (Only
applicable in case P44 = 2)
Reported
flow
damping
factor
43
0 – 6000
200
Factor used to
increase/decrease the
reported flow value (Only
applicable in case P44 = 2)
Reported
flow
direction
selection
44
0 – 2
0
0 = Toward
1 = Away
2 = Bidirectional
Bootup
mode
100
0 – 1
1
0 – Normal bootup mode
1 – Fast bootup mode
Page 54
FARSIGHT INSTRUCTION MANUAL
54
NAME
PAR NO.
OPTIONS
DEFAULT
DESCRIPTION
Gain
102
10 – 160
150
Used to enter a fixed gain
(sensitivity) value, a higher
number means higher gain.
Low
Damping
Factor
104
10 – 999
940
HIGHER number represent
MORE damping.
Average
Count
105
1 – 1024
24
Denotes the number of
times the traces are
averaged.
Cal Factor
108
1 – 500
100
In percentage terms,
default is 100 for 100%.
50% is half and 200%
would be double.
High
Damping
Factor
109
0 – 30
24
This sets the damping
applied to the FarSight
sensor. A higher number
represents more damping.
Step
Response
Mode
113
0 = Off
1 = On
0
When enabled, the high
damping factor will be
bypassed when a step
change in velocity is
detected.
No Signal
Persist
117
1 – 5000
2
When reporting zero
velocity, the number of
valid velocity
measurements to persist
before reporting velocity
Signal
Present state
118
1 – 5000
100
When reporting a valid
velocity, the number of
zero velocity
measurements to persist
before reporting zero
velocity
Minimum
Flow Cut-off
120
10 – 4000
100
In units of mm/s velocity
for user input
Page 55
PULSAR MEASUREMENT
55
NAME
PAR NO.
OPTIONS
DEFAULT
DESCRIPTION
Response
125
0 = Slow
1 = Fast
2 = River
3 = Medium
4 = Instant
Slow
Changing this to ‘Fast’ will
automatically calibrate
parameters in the FarSight
sensor to track
measurements faster. This
is recommended for
Pumped flow. ‘Slow’ is
recommended when there
is natural flow, as
measurements will be
tracked at a slower pace.
River mode is
recommended for river
applications. Instant would
be suitable for Battery
Loggers. The fastest to the
slowest response is as
follows: Instant, Fast,
Medium, Slow, River.
Multipoint
Calibration
@ ±0.2 m/s
152
1 – 500
100
In percentage terms,
default is 100, for 100%.
50% would half and 200%
would double.
Multipoint
Calibration
@ ±0.4 m/s
153
1 – 500
100
In percentage terms,
default is 100, for 100%.
50% would half and 200%
would double.
Multipoint
Calibration
@ ±0.8 m/s
154
1 – 500
100
In percentage terms,
default is 100, for 100%.
50% would half and 200%
would double.
Multipoint
Calibration
@ ±1.5 m/s
155
1 – 500
100
In percentage terms,
default is 100, for 100%.
50% would half and 200%
would double.
Page 56
FARSIGHT INSTRUCTION MANUAL
56
NAME
PAR NO.
OPTIONS
DEFAULT
DESCRIPTION
Multipoint
Calibration
@ ±3.0 m/s
156
1 – 500
100
In percentage terms,
default is 100, for 100%.
50% would half and 200%
would double.
Multipoint
Calibration
@ ±5.0 m/s
157
1 – 500
100
In percentage terms,
default is 100, for 100%.
50% would half and 200%
would double.
Multipoint
calibration
mode
158
0 = Off
1 = On
0 = Off
Turns the multipoint
calibration on and off
Sensor Reset
297
1 – Reset
runtime
persistence
memory.
2 – Reset fast
boot up
7 – Reset
parameter to
factory default
0
1 – This resets the local
variables used with
runtime memory stored
during power down.
2 – This resets the fast
boot flag.
7 – This resets all FarSight
parameters to their
default values. (It does
not affect any mA Trims
applied).
If using the FarSight on an application where flow type is changed
to ‘Fast’, this will reduce the damping to obtain better results. If
there is natural flow and ‘Slow’ is chosen, then damping is
increased to obtain better results.
Page 57
PULSAR MEASUREMENT
57
Saving & Loading parameters
For a device where parameters are heavily customised, the user may wish to
replicate such customisation on a second device. Saving and loading
parameters can be used to avoid having to set-up the parameters
individually again:
1. Connect FarSight PC to the first device, then select System->Save
Device Parameters.
2. A confirmation message will appear, and the parameters saved to a
file within the default folder (use Info > Data Folder Path to see the
folder location). The filename is prefixed by “ParamFarSight-”
followed by the date and time.
3. Connect the second device to FarSight PC, to load the parameters
on to. Select ‘System > Load Parameters to Device’, then choose
the parameter file to load.
4. The unit will disconnect from the software, and a message box will
appear asking to confirm the parameter change, and once
completed another message box will appear informing you that the
parameters have been loaded onto the sensor correctly.
5. Once the parameters have been loaded onto the sensor, it will
automatically re-connect to the FarSight PC software, where you
are able to see the new parameter values.
Page 58
FARSIGHT INSTRUCTION MANUAL
58
Firmware Upgrade
Ensure that any customised parameters are saved before any firmware
upgrade is undertaken. Firmware upgrades are performed in ‘Bootloader’
mode. Note that all flow measurement and output operation will be halted
when the sensor is in the ‘Bootloader’. Please follow these steps:
1. Please ensure that the sensor is connected to a PC via the RS485
port. Prior to reprogramming, you will need the firmware file, and
the COM port number of the RS485 connector.
2. Establish a connection to the sensor, and it is advisable to save any
customised parameters before beginning an upgrade.
3. You will require Service access to switch the device into Bootloader
mode, and to activate Bootloader control.
4. First place the device into bootloader mode by selecting System >
Switch Device into Bootloader.
5. Select System > Bootloader control, which will launch the
Bootloader interface. As seen in Fig.9.
6. Once connected click ‘Load Hex file’ and choose the firmware file
you are using to upgrade the sensor.
7. Click ‘Erase-Program-Verify’ and wait for the process to finish.
8. When the ‘Verification Successful’ message is displayed, click ‘Run
firmware’ and the Bootloader Interface will close.
9. Select the ‘connect’ button on the software, and the sensor will
reconnect to FarSight PC with the new firmware installed.
Page 59
PULSAR MEASUREMENT
59
Important Information
If the sensor does not connect to the device within 40 seconds, it will resume its
normal operation with its current firmware.
Do not switch off supply to the unit or close the software during the firmware
upgrade.
Page 60
FARSIGHT INSTRUCTION MANUAL
60
CHAPTER 8 TROUBLESHOOTING
This section describes many common symptoms, with suggestions as to
what to do. If the issue persists, please contact your local Pulsar
Measurement distributor.
SYMPTOM
WHAT TO DO
FlowCERT/Velocity
Interface/Ultimate shows ‘Lost
Comm’
Check power supply. Check wiring to the
FarSight sensor. If sensor has been
connected to a new unit, then it may
require power cycling to sync with the
controllers Baud rate.
Currently the velocity reads zero,
but you know that there is flow
movement.
Ensure that the sensor is mounted correctly
in accordance with Chapter 2.
Current velocity reading is
higher/lower than known
movement of flow
Check that the sensor is mounted correctly.
Adjust the Gain (P102) or Damping (P109)
parameters to obtain correct
measurements.
Unable to connect to FarSight PC
Check that wiring to the RS485 connector is
correct. Close FarSight PC, cycle power on
the sensor re-open FarSight PC and retry
connection.
The velocity is not moving to the
correct flow peak index/the flow
peak index is jumping between
peaks.
Adjust ‘P125 Response’ to match your
requirements (Refer Chapter 7).
FlowCERT reading is not showing
the negative reported flow velocity.
FlowCERT parameter ‘P682 Min Velocity’
should be adjusted to show negative flow
reading.
FlowCERT reading is incrementing
slow on the display.
Adjust ‘P687 Stability’ on the FlowCERT
controller, to a smaller number than 12, i.e.,
8.
Important Information
If you experience any issues with our equipment, then please contact your local
Pulsar Measurement Distributor for assistance.
Page 61
PULSAR MEASUREMENT
61
CHAPTER 9 DISPOSAL
Incorrect disposal can cause adverse effects to the environment.
Dispose of the device components and packaging material in accordance
with regional environmental regulations including regulations for electrical \
electronic products.
Transducers
Remove power, disconnect the Transducer, cut off the electrical cable and
dispose of cable and Transducer in accordance with regional environmental
regulations for electrical \ electronic products.
Controllers
Remove power, disconnect the Controller, and remove battery (if fitted).
Dispose of Controller in accordance with regional environmental regulations
for electrical \ electronic products.
Dispose of batteries in accordance with regional environmental regulations
for batteries.
EU WEEE Directive Logo
This symbol indicates the requirements of Directive 2012/19/EU regarding
the treatment and disposal of waste from electric and electronic equipment.
Page 62
FARSIGHT INSTRUCTION MANUAL
62
NOTES
Page 63
PULSAR MEASUREMENT
63
www.pulsarmeasurement.com
S U P P O R T @ P U L S A R M E A S U R E M E N T . C O M
Copyright © 2023 Pulsar Measurement Ltd.
Registered Address: 1 Chamberlain Square CS, Birmingham B3 3AX
Registered No.: 3345604 England & Wales
Rev 1.0
Loading...
