CAL. Y911
WITH “WHITE-ON” DISPLAY
★ “WHITE-ON” display
A newly-developed transparent liquid crystal panel called “WHITE-ON”
display is provided over the analogue dial. It shows white characters
clearly without blocking the view of the hands and dial, and various digital
displays can be turned on and off as you require. The watch, therefore,
serves as a multi-function digital watch as well as being an analogue
watch.
● Analogue time and digital calendar
● Single-time alarm
● 3-channel regular alarm
● Stopwatch with 20 lap/split memory
ENGLISH
Hour hand
Digital display turned off
Minute hand
English
2
Second
hand
A
a: Normal position : Free
b: Extended position : Time setting
B
a b
CROWN
C
Press any one
of the buttons.
CALENDAR mode
Press
(Press twice.)
STOPWATCH mode
SINGLE-TIME ALARM mode
A
(Press once.)
Press
B
A
A
C
Press
A
(Press 4 times.)
REGULAR ALARM mode
English
3
[for models with screw down crown]
Unlocking the crown
1 Turn Crown counterclockwise until you no
longer feel the threads turning.
2 Crown can be pulled out.
Locking the crown
English
1 Push Crown back in to normal position.
2 Turn Crown clockwise while pressing it lightly
until tight.
4
● Set the analogue and digital times at the same time.
CROWN
▲
▲
B
C
CROWN
CROWN
▲
▲
▲
B
A
C
✽ Selection of the digits
Minutes ➾ Hour ➾ Year ➾ Month ➾ Date
➾
Pull out when Second hand
is at the 12 o’clock position.
Select the digits to be
adjusted.✽
Set the flashing digits.
Turn to set Hour and Minute
hands to the digital time.
Push back in accordance
with a time signal.
English
5
● The alarm time can be set to ring within 24 hours of the current time.
● The alarm rings once at a designated time and is automatically disengaged thereafter.
ALARM TIME SETTING
Mode
mark
English
A
Single-time alarm mark
(indicating the alarm is engaged)
● To disengage the alarm:
and
B
6
In SINGLE-TIME ALARM mode, press at the same time.
C
Press in CALENDAR mode
B
to show SINGLE-TIME
B
C
▲
ALARM mode.
BorC
* At the designated time, the alarm rings for 20
Set the alarm time.
▲
A
Return to CALENDAR mode.
seconds. To stop it manually, press any one
of the buttons.
● Three regular alarms can be set one by one to the desired alarm times.
They can be engaged and disengaged independently of one another.
DISPLAY CHANGE IN REGULAR ALARM MODE
Press in CALENDAR mode to show REGULAR ALARM mode.
C
▲
With each press, the display changes in the following order.
A
HOURLY TIME
ALARM-1 ALARM-2➾ALARM-3
➾
➾
CALENDAR mode
ALARM TIME SETTING
In REGULAR ALARM mode, select the desired alarm display.
A
▲
SIGNAL
➾
English
7
“ON/OFF”
(Alarm engagement/
disengagement mark)
Mode mark
A
English
Regular alarm mark
(indicating any one of
three regular alarms is engaged)
✽ Selection of the digits
Alarm
engagement/
disengagement
8
➾
B
▲
▲
B
B
▲
C
▲
B
C
Alarm No.
➾ Hour ➾ Minutes ➾
*At the designated time, the alarm rings
for 20 seconds. To stop it manually,
press any one of the buttons.
Show ALARM SETTING
display.
Select the digits to be
adjusted.✽
Set the flashing digits.
Return to REGULAR ALARM
mode.
12-/24-hour
indication
➾
REGULAR
ALARM
mode
TURNING ON/OFF OF HOURLY TIME SIGNAL
B
A
Hourly time signal mark
In REGULAR ALARM mode, press
A
to select HOURLY TIME SIGNAL
▲
display.
With each press, hourly time signal
B
is turned on and off alternately.
▲
Return to CALENDAR mode.
A
English
9
● The stopwatch measures up to 12 hours in 1/100-second increments for the first 60
minutes and in 1-second increments thereafter.
● Up to 20 sets of lap and split times can be stored in memory for later recall.
DISPLAY SELECTION IN STOPWATCH MODE
Press in CALENDAR mode to show STOPWATCH mode.
A
▲
With each press, the display changes alternately.
C
English
LAP mark
LAP TIME
SPLIT TIME
➾
➾
SPLIT
mark
10
C C
STOPWATCH OPERATION
B
Start / Stop / Restart
Mode mark
A
Lap/split time measurement Data No.
▲
▲
C B
C
B C
START LAP/
* When the lap/split time is measured by pressing button
C, the measured time is displayed for 5 seconds as
shown at right, and then the time elapsed from the start
will be displayed.
SPLIT
LAP/
SPLIT
▲
▲
STOP RESET
Data No.
Time measured
C
Reset /
Measure lap (split) time
Lap (split) time
English
11
MEMORY RECALL FUNCTION
● The stored data can be recalled either during or after the measurement.
In STOPWATCH mode, press to show MEMORY RECALL display.
A
▲
Type of
measurement
MEMORY
RECALL
display mark
English
▲
A Return to CALENDAR mode.
* To continue measurement, press button A again to show STOPWATCH mode.
● To clear all the stored data:
and
B
12
In MEMORY RECALL display, press at the same time.
C
Recall data
B
Select display
C
(lap/split)
Data No.
Time measured
“WHITE-ON” DISPLAY
● The digital display is shown most clearly in the light, while it is rather obscure in the
gloom.
● Move the watch face to find an angle that provides the clearest view of the display.
DISPLAY AND MODE CHANGE
● If the watch is left untouched in the CALENDAR mode, the digital display will
automatically become blank in 10 seconds.
● If the watch is left untouched in the SINGLE-TIME ALARM or REGULAR ALARM mode,
the digital display will automatically return to the CALENDAR mode in 10 seconds.
● If the watch is left untouched in the STOPWATCH mode with the stopwatch stopped
or reset, the digital display will automatically return to the CALENDAR mode in 10
minutes.
● Guide marks for button operation
In each mode, guide marks are displayed near the
buttons to indicate the corresponding operations.
Guide mark
Guide markGuide mark
English
13
● Demonstration of “WHITE-ON” display
1 While the digital display is turned off or in the CALENDAR
mode, press buttons B and C at the same time.
• The display as shown at right appears for 1 second,
and then it disappears and the digital display remains
blank for 5 seconds.
The “WHITE-ON” display will continue to appear and
disappear alternately in such a manner.
2 Press buttons B and C at the same time again to stop the
demonstration.
* Be sure to follow the above procedure as the demonstration will not stop
automatically.
TIME/CALENDAR SETTING
English
● Be sure to set the analogue and digital displays to an identical time. Otherwise, the
alarm cannot be used properly.
● The time is set in either 12- or 24-hour indication. The “AM”/“PM” mark is displayed
in the 12-hour indication while there is no mark in the 24-hour indication.
For the changeover between 12- and 24-hour indications, see “REGULAR ALARM
MODE”.
● The year digits can be set from 1996 to 2049.
● The flashing digits move quickly if button C is kept pressed.
● When setting the minute hand, first advance it 4 to 5 minutes ahead of the digital time
and then turn it back to the exact minute.
● After the crown is pushed back, the digital display changes in the following order:
14
B
C
Each of the above displays is shown for 3 seconds. Then, the watch automatically
returns to the display you used before setting the time/calendar. Pressing button A, B
or C in any of the above displays will also return the watch to the display you used before
setting the time/calendar.
● Do not leave the watch with the crown pulled out for a long time. Though the hands
stop moving, the battery energy is being consumed inside the watch to cause battery
depletion.
Time ➾ Year ➾ Month, date and day
SINGLE-TIME ALARM MODE
● When the alarm time is set by pressing button B or C, the single-time alarm mark is
displayed and the alarm is automatically engaged.
● The digits move quickly if button B or C is kept pressed.
● If the alarm time is set to the current time, the alarm will automatically be disengaged.
● The single-time alarm rings differently from the regular alarm.
● If the alarm rings when the digital display is blank, the set alarm time is displayed while
the alarm is ringing and for a few seconds after it stops ringing.
● Please note, if a button is pressed in the STOPWATCH mode to stop the alarm ringing,
the alarm is stopped but the stopwatch operation is also made.
REGULAR ALARM MODE
● If the watch is left untouched in the ALARM SETTING display, it will automatically return
to the REGULAR ALARM mode in 1 to 2 minutes.
English
15
● If the changeover between 12- and 24-hour indications is made in more than one regular
alarm display, the time indication system you set last will be effective for the time
indication in the other displays.

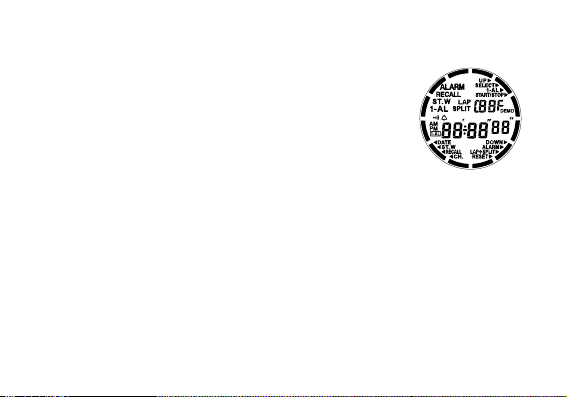

● Note on unusual display:
If buttons B and C are pressed at the same time in the ALARM
SETTING display, the display as shown at right will appear.
This is not a malfunction. Press any one of the buttons to
return to the ALARM SETTING display.
● The regular alarm rings differently from the single-time alarm.
The regular alarm can be tested by pressing and holding button
C in the REGULAR ALARM mode.
● If the alarm rings when the digital display is blank, the set alarm time is displayed while
the alarm is ringing and for a few seconds after it stops ringing.
● Please note, if a button is pressed in the STOPWATCH mode to stop the alarm ringing,
the alarm is stopped but the stopwatch operation is also made.
English
● If the hourly time signal rings when the digital display is blank, the time of the hourly time
signal is displayed while it is ringing and for a few seconds after it stops ringing.
STOPWATCH MODE
● Selection of the lap/split displays can be made when the stopwatch is reset to “00”.
● Restart and stop of the stopwatch can be repeated by pressing button B.
● Lap /split time measurement can be repeated by pressing button C.
● The turning graphic display only indicates that the stopwatch is measuring and does not
show the measured time.
16
● The lap/split times measured by pressing button C and the measurements taken by
pressing button B to stop measurement are stored in memory.
● The data number is not a lap/split number. It indicates the number of measurements
stored in memory.
● Up to 20 newest data are stored in memory. If more than 20 measurements are made,
the data are erased from the oldest one to maintain 20 newest data in memory.
● If the STOPWATCH mode is changed over to the CALENDAR mode or the digital display
is turned off while a measurement is in progress, the stopwatch continues counting
properly and the flashing mode mark appears even if the digital display is blank.
● Notes on MEMORY RECALL function:
• If “F” is attached to the data number, the data displayed is the final one measured by
pressing button B to stop the measurement, followed by resetting procedure of
pressing button C.
• With each press of button B, the stored data are recalled from the newest to the
oldest.
• If the watch is left untouched in the MEMORY RECALL display, it will automatically
return to the CALENDAR mode in 1 to 2 minutes.
• If the data is recalled during measurement, the type of measurement selected last in
the MEMORY RECALL display will be taken when the measurement is resumed.
Therefore, select the desired display, lap or split, in the MEMORY RECALL display,
and then return to the STOPWATCH mode.
English
17
Battery life : Approx. 2 years
2
Years
●
The battery life may be less than 2 years if the calendar is used more than 10 times
a day, regular/single-time alarm for more than 20 seconds for each time a day and/
or stopwatch for more than 1 hour a day.
●
As the battery is inserted at the factory to check the function and performance of
the watch, its actual life once in your possession may be less than the specified
period.
●
When the battery expires, be sure to replace it as soon as possible to prevent any
English
malfunction.
●
We recommend that you contact an AUTHORIZED PULSAR DEALER for battery
replacement.
● Battery life indicator
When you see the second hand moving at two-second intervals instead of the
normal one-second intervals, the battery needs to be replaced with a new one. In
that case, replace the battery as soon as possible.
* Even while the second hand is moving at two-second intervals, the accuracy of the
18
Battery : SEIKO SR927W
analogue time will not be affected. In that period, however, the digital display will not
be shown and the alarm will not ring.
● Necessary procedure after battery change
After the battery is replaced with a new one, or an abnormal display (broken digits,
etc.) appears, follw the procedure below to reset the IC.
1 Pull out crown, and press and hold buttons A, B and C at the same time
for 1 to 2 seconds.
• “12:00” will be shown with MINUTES flashing.
2 Push back crown, and check the following.
• The second hand moves properly.
• The TIME, YEAR, and MONTH, DATE and DAY are shown, and then the
display becomes blank.
* All the stored data is erased from memory by following the above procedure.
* Before using the watch, set the time/calendar.
WARNING
● Do not remove the battery from the watch.
● If it is necessary to take out the battery, keep it out of the reach of
children. If a child swallows it, consult a doctor immediately.
● Never short-circuit, tamper with or heat the battery, and never expose
it to fire. The battery may burst, become very hot or catch fire.
English
19
CAUTION
● The battery is not rechargeable. Never attempt to recharge it, as this
may cause battery leakage or damage to the battery.
English
20
WATER RESISTANCE
● Non-water resistant
• If the watch becomes wet, have it checked by an AUTHORIZED
PULSAR DEALER or SERVICE CENTER.
● Water resistant 5/10/15/20 bar
• Do not operate the crown or buttons when the watch is wet or in
water.
5 bar WR
10/15/20
bar WR
If used in sea water, rinse the watch in fresh water and dry it
completely.
• When taking a shower with the water resistant 5 bar watch, or
taking a bath with the water resistant 10, 15 or 20 bar watch, be
sure to observe the following:
* Do not operate the crown or buttons when the watch is wet with
soapy water or shampoo.
* If the watch is left in warm water, a slight time loss or gain may
be caused. This condition, however, will be corrected when the
watch returns to normal temperature.
English
21
* Pressure in bar is a test pressure and should not be considered as corresponding
to actual diving depth since swimming movement tends to increase the pressure
at a given depth. Care should also be taken on diving into water.
** We recommend that you wear a PULSAR Diver’s Watch for scuba diving.
TEMPERATURES MAGNETISM
Your watch works with
+50°C
stable accuracy within a
temperature range of 5°
-5°C
C and 35° C (41° F and
Temperatures over 50° C (122° F) or
English
below –5° C (+23° F) may cause a
slight time loss or gain or battery
leakage or shorten the battery life.
However, the above conditions will
be corrected when the watch returns
to normal temperature.
95° F).
22
affected. Keep the watch away from
close contact with magnetic objects.
CARE OF CASE AND BRACELET
The analogue unit of your
watch will be adversely
affected by strong
S
N
magnetism, though the
digital unit will not be
To prevent possible
rusting of the case and
bracelet caused by dust,
moisture and perspiration,
wipe them periodically
with a soft dry cloth.
SHOCKS & VIBRATION
Light activities will not
affect your watch, but be
careful not to drop your
watch or hit it against hard
surfaces, as this may
cause damage.
CHEMICALS
Be careful not to expose
the watch to solvents,
mercury, cosmetic spray,
detergents, adhesives or
case, bracelet, etc. may become
discolored, deteriorated or damaged.
paints. Otherwise, the
PERIODIC CHECK
It is recommended that the
2 - 3
Years
DEALER or SERVICE CENTER to
ensure that the case, crown, buttons,
gasket and crystal seal remain intact.
watch be checked once
every 2 to 3 years. Have
your watch checked by an
AUTHORIZED PULSAR
PRECAUTION REGARDING
CASE BACK PROTECTIVE FILM
If your watch has a
protective film and/or a
sticker on the case back,
be sure to peel them off
before using your watch.
English
23
STATIC ELECTRICITY
The IC (Integrated
Circuit) used in your
watch will be affected
by static electricity
display. Keep the watch away
from close contact with objects
such as TV screens which emit
strong static electricity.
which may disturb the
English
24
LIQUID CRYSTAL PANEL
The normal life expectancy for
the liquid crystal panel of the
watch is approximately 7 years.
7 Years
read. If the watch is left at a temperature
of more than 50°C for a long time, the
quality of the liquid crystal panel may
deteriorate. Please contact your
AUTHORIZED PULSAR DEALER or
SERVICE CENTER if you wish to have a
new panel fitted (guaranteed one year).
After that it may decrease in
contrast, becoming difficult to
Loading...
