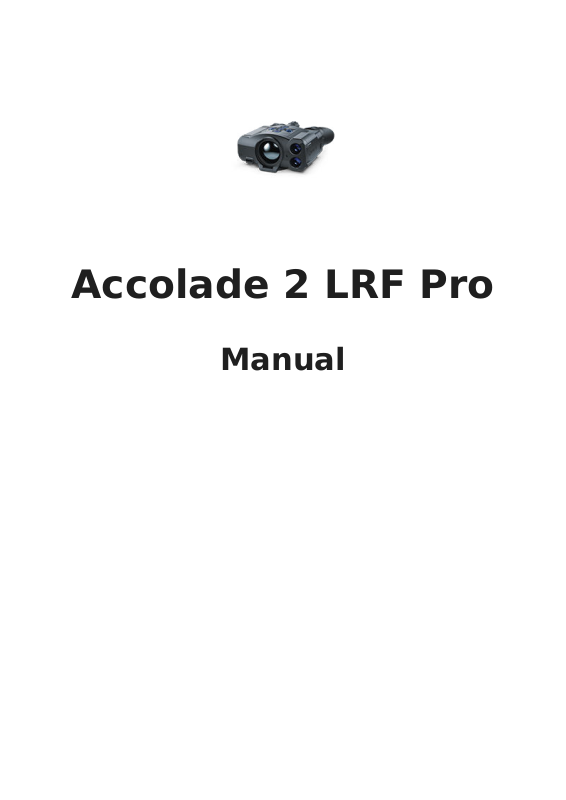

Accolade 2 LRF Pro

Manual

Content

Specifications

Description

Package Contents

Features

Components and Controls

Button Operation

Using the Battery Pack

Safety Measures

Battery Charging

Battery Installation

External Power Supply

Powering on and Image Settings

Microbolometer Calibration

Discrete Digital Zoom

Status Bar

Quick Menu Functions

Main Menu Functions

Enter the Main Menu

Wi-Fi Activation

Image Detail Boost

Mode

Icon Brightness

Color Modes

Calibration Mode

PiP Mode

Wi-Fi Settings

General Settings

Microphone

Rangefinder

Remote Control

Defective Pixel Repair

Restore Default Pixel Map

Device Information

Video Recording and Photography

Wi-Fi Function

Built-In Laser Rangefinder

Display-Off Function

PiP Function

Stream Vision

Firmware Update

USB Connection

Wireless Remote Control

Technical Inspection

Technical Maintenance and Storage

Troubleshooting

Legal Compliances and Disclaimers

Specifications

You can learn more about the main parameters

XP50 PRO

Model XP50 PRO

SKU 77461

Microbolometer

Type uncooled

Resolution, pixels 640x480

Pixel Pitch, µm 17

NETD, mK < 25

Frame rate, Hz 50



here.

Optical Characteristics

Magnification, x 2.5

Continuous digital zoom, x 2.5-20

Digital zoom 2x/4x/8x

Objective lens 1:1.2

Close-up range, m / y 3 / 3.28

Exit pupil diameter, mm 5

Field of view (HxV), degrees /

m@100m

Diopter adjustment, D ±5

Interpupillary distance

adjustment, mm



12.4 / 21.8

56-71

Range of detection (deer type

object), m (y)

1800 / 1970

Display

Type AMOLED

Resolution, pixels 640x480

Operational Characteristics

Power supply, V 3.7

Battery type / Capacity /

Output voltage

External power supply 5V

Operating time on Battery Pack

(at t=22°C), h*

Degree of protection, IP code

(IEC60529)



Li-Ion Battery Pack IPS7 / 6400

mAh / DC 3.7V (3.0-4.2)

IPХ7

Operating temperature range,

°С /° F

Dimensions, mm / inch

Weight (without battery), kg /

Video Recorder

Video / photo resolution, pixel 640x480

Video / photo format .avi / .jpg

Built-in memory 16 Gb

Built-in memory capacity

Wi-Fi Channel**

-25 ... +50 / -13 ... 122

164 х 130 х 64 / 6.46 х 5.12 х

2.52

0.6 / 21.2



650 minutes of video or more

than 100 000 photos



Frequency 2.4 GHz

Standard 802.11 b/g

Characteristics of the

Rangefinder

Safety class for laser



equipment according to BS /

EN 60825-1: 2014

Wavelength, nm 905

Max. measuring range***, m/y 1000 / 1094

Measurement accuracy, m +/-1

*Actual operating time depends on the extent of using Wi-Fi, integrated

video recorder and integrated laser rangefinder.

**The reception range may vary depending on various factors: obstacles,

other Wi-Fi networks.

***Depends on the characteristics of the object under observation and

environmental conditions.

Description

Accolade 2 LRF Prothermal binoculars are based on an IR sensor

(uncooled microbolometer) and are designed for comfortable viewing with

both eyes.

Accolade 2 LRF Pro scopes accommodate day and nighttime observations.

Accolade 2 LRF Pro Binoculars provide exceptional image quality even in

adverse weather conditions (fog, smog, rain) and beyond obstacles like

branches, tall grass, dense foliage, etc. known to hinder target detection.

Accolade 2 LRF Pro devices do not require an external light source and

are not affected by bright light exposure.

These binoculars are equipped with a precise built-in laser rangefinger

capable of measuring distances up to 1000 m accurately (± 1 m).

Accolade 2 LRF Pro Thermal Imaging Binoculars are perfectly suited for

night hunting, observation, trail orientation, identifying hazards, rescue

operations, etc. 

To get started, see the sections:

Battery Charging

Battery Installation

Powering on and Image Setting

Built-In Laser Rangefinder

Stream Vision

Package Contents

Accolade 2 LRF Pro thermal binocular

IPS7 rechargeable battery

Battery Charger

Power adapter

Micro USB cable

Carrying case

Neck strap

Quick-Start guide

Lens cloth

Warranty card

Features

NETD less than 25 mK

Built-in laser rangefinder (up to 1000 m)

Variable interpupillary distance

High refresh rate 50 Hz

Built-in video recorder

Integral Wi-Fi module

Wi-Fi video transmission

Frost resistant AMOLED display

Quick-change, long-life rechargeable Battery Packs

Fully waterproof IPX7

Extra features:

Picture-in-Picture mode

8 color palettes

4 observation modes

3 calibration modes

Manual contrast and brightness adjustment

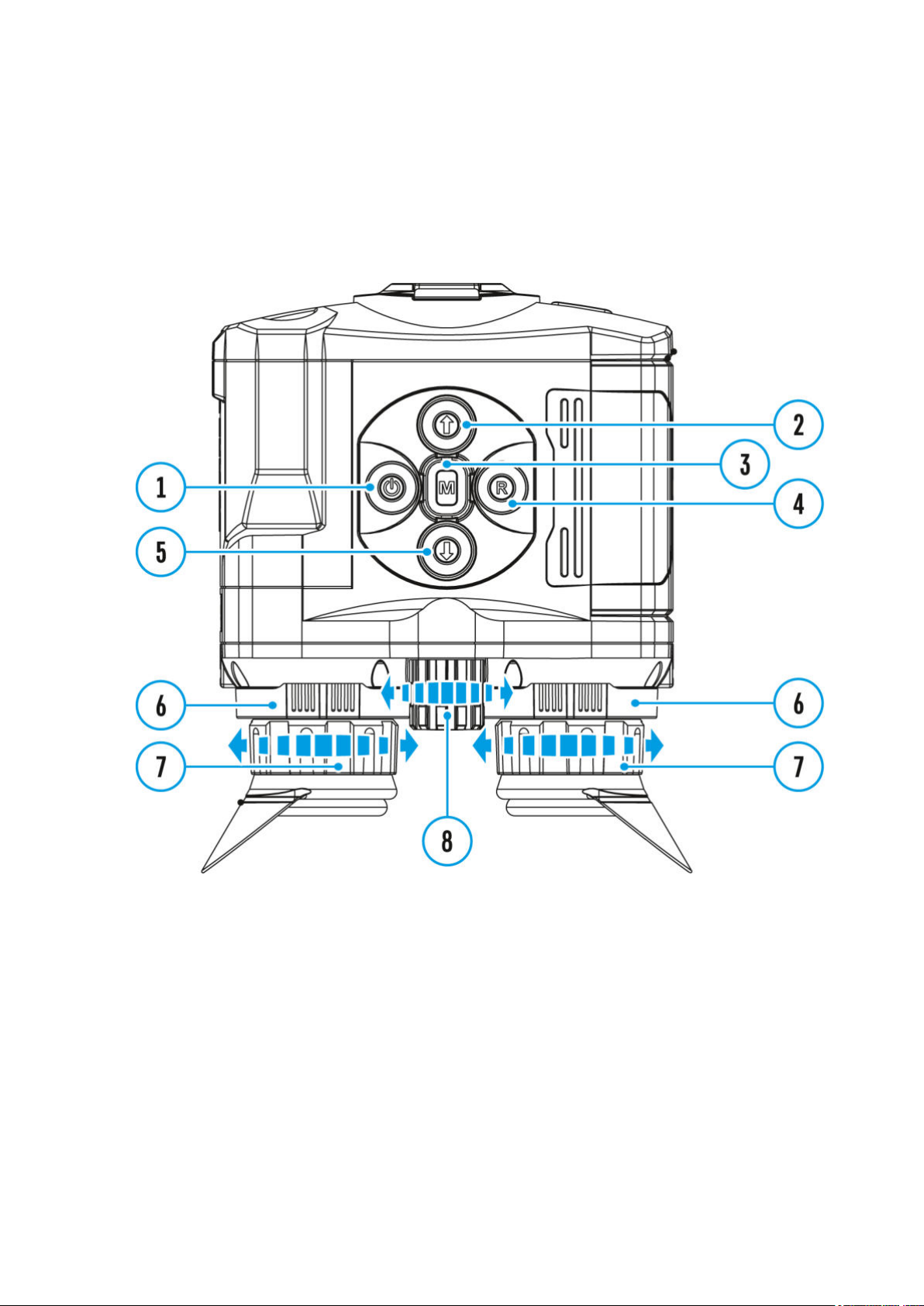

Components and Controls



10.

11.

Power ON/OFF/Calibration button

Navigation button UP

Button MENU

Recording button REC

Navigation button DOWN

Interpupillary distance adjustment rings

Diopter adjustment rings

Lens focusing ring

Battery Pack

Battery Pack latch

Tripod mount

12.

Radiator cooling system

13.

Lens cover

14.

Objective lens

15.

MicroUSB port

16.

MicroUSB cable

17.

Integrated laser rangefinder

Button Operation

Operation Button

Power device on short press

Power device off long press for 3 secs

Turn display oﬀ

Turn display on short press

Calibrate the microbolometer short press

Control discrete digital zoom short press

Change observation modes long press

Video Recorder Button

Start/pause/resume video

recording

Stop video recording long press

Switch to video / photo long press

long press for less than 3

secs

short press

Capture Photo short press

Main Menu Button

Enter main menu long press

Navigation upwards/rightwards short press

Navigation

downwards/leftwards

Conﬁrm selection short press

Exit submenu without

conﬁrming selection

Exit menu (switch to viewing

mode)

Quick Menu Button

Enter quick menu short press

Switch between quick menu

options

Increase value short press

Decrease value short press

short press

long press

short press

Exit quick menu long press

Rangefinder Button

Activate rangefinder short press

Measure distance short press

Start/stop SCAN mode long press

Safety Measures

Only use the charger supplied with the Battery Pack. The use of any

other charger may irreparably damage the Battery Pack or the charger

and may cause fire.

During long-term storage, the Battery Pack should be partially charged –

the charge level should be between 50% and 80%.

Do not charge the Battery Pack immediately after bringing it from a cold

environment to a warm one. Wait for 30-40 minutes for the Battery Pack

to get warm.

Charge the Battery Pack at a temperature from 0° C to +45° C (32° F to

+113° F), otherwise the battery life will decrease significantly.

Do not leave the Battery Pack unattended while charging.

Never use a modified or damaged charger.

Do not leave the Battery Pack with a charger connected to the power

adapter after charging is complete.

Do not expose the Battery Pack to high temperatures or an open flame.

Do not submerge the Battery Pack in water.

Do not connect an external device with a current consumption that

exceeds permitted levels.

The Battery Pack is short circuit protected; however, any situation that

may cause short-circuiting should be avoided.

Do not dismantle or deform the Battery Pack.

Do not drop or hit the Battery Pack.

When using the Battery Pack at sub-zero (sub 32°F) temperatures the

battery capacity decreases. This is normal and is not a defect.

Do not use the Battery Pack at temperatures above those shown in the

table – this may decrease battery life.

Keep the Battery Pack out of the reach of children.

Battery Charging

Accolade 2 LRFProthermal imaging binoculars are supplied with a

rechargeable Li-Ion Battery Pack IPS7 which allows operation for up to 9

hours. Please remember to charge the Battery Pack before first use.



Charging

Step 1. Install the battery into the charger

Lift the lever (C) of the charger.

Remove the protective cover from the Battery Pack.

Install the Battery Pack into the charger.

Click the lever (C).

Step 2. Сheck the current battery level

Upon installation, a green LED indicator (D) on the charger will start to

glow and begin flashing:

- once if the battery charge ranges from 0% to 50%;

- twice if the battery charge ranges from 51% to 75%;

- three times if the battery charge ranges from 76% to 100%;

If the indicator lights green continuously, the battery is fully charged.

You can remove the battery from the charger by lifting the lever (С).

If the indicator of the charger lights red continuously upon battery

installation, probably the battery's charge level is lower than acceptable

(the battery has been long in deep discharge). Keep the battery in the

charger for a long time (up to several hours), remove and re-insert it.

If the indicator starts blinking green, the battery is good.

If the indicator keeps lighting red, the battery defective. Do not use

the battery!

The LED indicator (D) will display the battery charge status:

LED Indicator Battery Charge Status

Battery is empty

Image not found or type unknown

Battery is full

Step 3. Сonnect the charger to the mains supply

Connect the Micro-USB plug of the USB cable to the port(E) of the

charger.

Connect the Micro-USB plug to the power adapter.

Insert the plug of the power adapter to the 100-240 V socket.

Battery Installation

Lift the lever (10).

Install the battery (9) all the way into the dedicated slot on the device

housing so that element F appears from below.

Fix the battery by clicking the lever (10).

External Power Supply

Show device diagram



The device can be powered with an external power supply such as Power

Bank (5 V).

Connect the external power supply to the USB port (15) of the device.

The device switches to operation from external power supply, and the

IPS7 Battery Pack will begin slowly charging.

The display will show the battery icon

percentage.

If the device operates on external power supply but the IPS7 battery is

with charge level as a

not connected, icon

When the external power supply is disconnected, the device switches

to the internal battery pack without powering off.

is shown.

Warning!Charging IPS7 / IPS14 batteries at air temperatures below 0° C

(32° F) may reduce battery life. When using external power, connect the

Power Bank to the device after it has been turned on and working for

several minutes.

Powering on and Image

Settings

Show device diagram



Open the lens cover (13).

Turn the device on with a short press of the ON/OFF (1) button.

Adjust the interpupillary distance with the rings (6) by moving the

eyepieces farther or closer to each other.

To obtain a crisp image of the icons on the display, rotate the diopter

adjustment ring (7). Once adjusted, there is no need to rotate the

diopter adjustment ring for distance or any other conditions.

To focus on the object being observed rotate the lens focusing ring (8).

Select the calibration mode: manual (M), semi-automatic (SA) or

automatic (A) in the main menu (enter the menu by long pressing the

MENU (3) button).

Calibrate the image with a short press of theON/OFF (1) button (when

calibration mode(SA) or (M) has been selected). Close the lens cap

before manual calibration.

Select the desired observation mode (Forest, Rocks, Identification

or User) by a long press of the DOWN (5) button or in the main menu.

User mode allows you to configure and save custom

To set up display brightness and contrast and continuous zoom, please

refer to the

10.

After use, press and hold down the ON/OFF (1) button to turn the

device off.

Warning!Never point the lens at intensive energy sources such as laser

radiation emitting devices or the sun. It can damage electronic components

in the device. The warranty does not cover damage arising from failure to

comply with operating instructions.

Warning!The radiator cooling system (12) becomes warm during

operation: this is normal and allows an increase in the sensitivity of the

device.

Quick Menu Functions section.

Microbolometer

Calibration

Show device diagram



Calibration eliminates image flaws (such as vertical bars, phantom images,

grainy field of view, etc.) by equalizing the microbolometer background

temperature.

There are three calibration modes: manual (M), semi-automatic (SA) and

automatic (А).

Select the desired mode in the menu option

Mode М (manual)

Calibration Mode .

Close the lens cover.

Press briefly the ON/OFF (1) button.

Open the lens cover.

Mode SA (semi-automatic)

Press briefly the ON/OFF (1)button to calibrate.

You do not need to close the lens cover (the microbolometer is closed

with the internal shutter automatically).

Mode А (automatic)

The device calibrates by itself according to the firmware algorithm.

You do not need to close the lens cover (the microbolometer is closed

with the internal shutter automatically).

In the automatic mode, the user can calibrate the microbolometer with

the ON/OFF (1) (in the SA mode) button.



Discrete Digital Zoom

Show device diagram



The device allows you to quickly increase the basic magnification (please

refer to the Magnificationline in the

times.

To operate the discrete digital zoom, press successively theDOWN (5)

button.

The digital zoom will not be saved after the device is re-started.

Specificationstable) by 2, 4 or 8

Status Bar

The status bar at the bottom of the display shows current operating statuses

via icons, including:

Color palette (shown only if the "Black Hot" palette is selected)

Observation mode

Calibration mode (in the automatic calibration mode, three seconds

before automatic calibration a countdown timer

place of the calibration mode icon).

Current full magnification (for example, 16x)

Wi-Fi connection status

Time

Power indication:

Battery charge level (if the device is powered by the Battery Pack).

External battery power indicator (if the device is powered by an

external power supply).

is shown in

Quick Menu Functions

Show device diagram



The quick menu allows change of basic settings such as display brightness

and contrast, smooth digital zoom.

Enter the menu with a short press of the Мenu (3) button.

To toggle between the functions below, press successively the Menu (3)

button.

Brightness – press briefly the UP (2)/DOWN (5) buttons to change

display brightness from 0 to 20.

Contrast

– press briefly the UP (2)/DOWN (5) buttons to change

display contrast from 0 to 20.

Image not found or type unknown

Base mode

– it allows you to select one of the three

observation modes (Forest, Rocks, Identification) as a base for the User

mode.

Smooth digital zoom

– press the UP (2)/DOWN (5) buttons to change

digital zoom from 2.5 to 20.

Smooth digital zoom is in 0.1x increments.

To exit quick menu, press and hold down the Menu (3) button or wait 5

sec for automatic exit.

Enter the Main Menu

Show device diagram



Enter the main menu with a long press of the Мenu (3) button.

Press the UP (2)/DOWN (5) buttons to switch between the menu

options.

Enter a menu option with a brief press of the Мenu (3) button.

Exit the menu with a long press of the Мenu (3) button.

Automatic exit takes place in 10 sec of inactivity (buttons are not

pressed).

General View of the Menu

Tab 1

Tab 2

Wi-Fi Activation

Show device diagram



Press and hold down the Мenu (3) button to enter the main menu.

Select the Wi-Fi Activation

(5) buttons.

Turn Wi-Fi on/off with a short press of the Мenu (3) button.

menu option with the UP (2)/DOWN

Image Detail Boost

https://www.youtube.com/embed/GNezJKveMRc

Show device diagram



The Image Detail Boost function increases the sharpness of the

contours of heated objects, which increases their detail. The result of the

function depends on the selected mode and observation conditions: the

higher the contrast of objects, the more noticeable the effect. This option is

enabled by default, but can be disabled in the main menu.

Turn on/off Image Detail Boost:

Press and hold down the Мenu (3) button to enter the main menu.

Select the Image Detail Boost

(2)/DOWN (5) buttons.

Turn Image Detail Boost on/off with a short press of the Мenu (3)

button.

menu option with the UP

Mode

Show device diagram



The devices have four observation modes of the thermal imager: Forest

(observation mode of objects within low thermal contrast conditions), Rocks

(observation mode of objects within high thermal contrast conditions),

Identification (high detalization mode), User (individual brightness and

contrast settings).

Press and hold the Menu (3) button to enter the menu.

Select the Mode

A short press of the Menu (3) button opens the menu.

Select one of the settings described below with the UP (2)/DOWN (5)

buttons.

A short press of the Menu (3) button confirms the selection.

option with the UP (2)/DOWN (5) buttons.

Forest– This is the best mode when searching and observing within

field conditions, against the background of leaves, bushes and grass. The

mode is highly informative about an object being observed as well as

landscape details.

Rocks– This is the best mode when observing objects after a sunny day

or within urban conditions.

Identification– This is the best mode when observing objects within

adverse weather conditions (fog, mist, rain and snow). It allows you to

recognize the characteristics of an object being observed more clearly.

Zoom increase may be accompanied by insignificant image graininess.

User– It allows you to configure and save custom brightness and

contrast settings, as well as one of the three modes (Forest, Rocks,

Identification) as basic.

http:////www.youtube.com/embed/Mnt5c8ZP1PA

Note: to quickly change observation modes press and hold the DOWN (5)

button.

Icon Brightness

Show device diagram



Icon brightness

Press and hold the Menu (3) button to enter the main menu.

Use the UP (2)/DOWN (5) buttons to select the Icon Brightnessicon

Press the Menu (3) button briefly to enter the submenu.

Use the UP (2)/DOWN (5) buttons to select the desired brightness

level from 0 to 10.

Press the Menu (3) button briefly to confirm the selection.

Color Modes

Show device diagram



Basic color mode is White Hot.

To select another palette:

Press and hold down the Мenu (3) button to enter the main menu.

Select the Color Modes

Press briefly the Menu (3) button to enter submenu.

Select the desired palette with the UP (2)/DOWN (5) buttons.

Confirm your selection with a brief press of the Menu (3) button.

Black Hot (white color corresponds to low temperature, black color – to

high temperature)

Red Hot

icon with the UP (2)/DOWN (5) buttons.

Red Monochrome

Rainbow

Ultramarine

Violet

Sepia

Note: to quickly change color modes press and hold the UP (2) button.

Calibration Mode

Show device diagram



There are three calibration modes: manual (M), semi-automatic (SA) and

automatic (А).

Press and hold down the Мenu (3) button to enter the main menu.

Select the Calibration Mode

buttons.

Press briefly the Menu (3) button to enter submenu.

Select the desired calibration mode with the UP (2)/DOWN (5) buttons.

Confirm your selection with a brief press of the Menu (3) button.

option with the UP (2)/DOWN (5)

More details in the section

Microbolometer Calibration.

PiP Mode

Show device diagram



Selection of the Picture in Picture Mode

Press and hold the Menu (3) button to enter the menu.

Select the PiP Mode

A short press of the Menu (3) button switches the mode on/off.

optionwith the UP (2)/DOWN (5) buttons.

Wi-Fi Settings

Show device diagram



This menu option allows you to set up your device for operation in a Wi-Fi

network.

Press and hold down the Menu (3) button to enter the main menu.

Select the Wi-Fi Settings

(5) buttons.

Press briefly the Menu (3) button to enter submenu.

Select the desired menu item with the UP (2)/DOWN (5) buttons.

Image not found or type unknown

menu option with the UP (2)/DOWN

Password Setup

This menu option allows you to set a password to access your binoculars

from an external device.

The password is used to connect an external device (i.e. smartphone) to

your thermal imager.

Press briefly the Menu (3) button to enter the Password Setup

submenu.

The default password (12345678) will appear on the screen.

Set the desired password with the UP (2)/DOWN (5) buttons.

Switch between digits with a short press of the Menu (3) button.

Save the password and exit the submenu with a long press of the

Menu (3) button.

Access Level Setup

This menu option allows you to set required access level of the Stream

Vision application to your device.

Access level Owner.The Stream Vision user has the complete access to

all device's functions.

Access level Guest. The Stream Vision user has the access only to the

real time video stream from the device.

Press briefly the Menu (3) button to enter the Access Level Setup

submenu.

Select the access level with the UP (2)/DOWN (5) buttons.

Press and hold the Menu (3)to confirm your selection and exit from

the submenu.

General Settings

Show device diagram



Press and hold down the Мenu (3) button to enter the main menu.

Select option General Settings

buttons.

Press briefly the Мenu (3) button to confirm.

The following settings are available:

Language

Selecting interface language

Select option Language

Press briefly theМenu (3) button to confirm.

with the UP (2)/DOWN (5) buttons.

with the UP (2)/DOWN (5)

Select one of the available interface languages with a short press of the

UP (2)/DOWN (5) buttons: English, French, German, Spanish, Russian.

Press briefly theМenu (3) button to confirm.

Date

Date setup

Select option Date

Press briefly the Мenu (3) button to confirm. Date format is displayed

as: YYYY/MM/DD (year/month/day)

Select the correct values for the year, month and date with a short

press of the UP (2)/DOWN (5) buttons.

Switch between digits with a short press of the Мenu (3) button.

Save selected date and exit the submenu with a long press of the

Мenu (3) button.

Time

Time setup

Select option Time

Press briefly the Мenu (3) button to confirm.

with UP (2)/DOWN (5)buttons.

with UP (2)/DOWN (5) buttons.

Select the desired time format with a short press of the UP (2)/DOWN

(5) buttons: 24 or PM/AM.

Switch to hour setup with a brief press of the Мenu (3) button.

Select hour value with a brief press of theUP (2)/DOWN (5) buttons.

Switch to minute setup with a brief press of the Мenu (3) button.

Select minute value with a brief press of the UP (2)/DOWN (5) buttons.

Save selected time and exit the submenu with a long press of the

Мenu (3) button.

Units of Measure

Selection of units of measurement

Select optionUnits of Measure

with UP (2)/DOWN (5) buttons.

Press briefly the Мenu (3) button to confirm.

Select the desired unit of measurement - meters or yards - with

UP (2)/DOWN (5)buttons.

Press briefly the Мenu (3) button to confirm.

Exit to general settings submenu takes place automatically.

Default Settings

Restore default settings

Select option Default Settings

Press briefly the Мenu (3) button to confirm.

With a short press of the UP (2)/DOWN (5) buttons select "Yes" to

restore default settings or "No" to abort.

Confirm selection with a brief press of the Мenu (3) button.

If "Yes" is selected, display will show "Do you want to restore

default settings?" and "Yes" and "No" options. Select "Yes" to

restore default settings.

If "No" is selected, action is aborted and you return to the

submenu.

The following settings will be restored to their original values before

changes made by the user:

Video recorder mode – video

Observation mode – forest

Calibration mode – automatic

with UP (2)/DOWN (5) buttons.

Language – English

Mictophone - off

Wi-Fi – off (default password)

Magnification – off (no digital zoom)

PiP – off

Color mode – White Hot

Unit of measurement – metric

Warning: date and time settings, default pixel map and remote control

activation are not restored.

Format

This item allows you to format the Flash-card (memory card) of the device

(this will delete all files from the memory card).

Select option Format

Press briefly the Мenu (3) button to confirm.

With a short press of the UP (2)/DOWN (5) buttons select "Yes" to

format the memory card or "No" to return to the submenu.

Confirm selection with a short press of the Мenu (3) button.

If "Yes" is selected, display will show "Do you want to format

memory card?" and "Yes" and"No" options. Select "Yes" to

format the memory card.

If"No" is selected, formatting is aborted and you return to the

submenu.

with UP (2)/DOWN (5) buttons.

Microphone

Show device diagram



Turning on/off Microphone

This item allows you to enable (or disable) the microphone for recording

sound during video recording.

Press and hold the Menu (3)to enter the main menu.

Select the Microphone

buttons.

To turn on the microphone, briefly press the Menu (3) button.

To turn off the microphone, briefly press the Menu (3) button.

menu item with theUP (2)/DOWN (5)



Rangefinder

Show device diagram



Menu item Rangefinder allows you to set up built-in rangefinder’s

parameters as follows:

Enter the main menu with a long press of the Menu (3) button.

Select the submenu Rangefinder

buttons.

Enter the submenu with a short press of the Menu (3) button.

Select the desired menu item with the UP (2)/DOWN (5) buttons.

with the UP (2)/DOWN (5)

Reticle Type

Select the Reticle Type

menu item with the UP (2)/DOWN (5)

buttons.

Press briefly the Мenu (3) button to enter submenu.

Select one of the three reticle shapes

buttons.

Confirm selection with a brief press of the Мenu (3) button.

Selected reticle will appear on the display.

The reticle will disappear from the display if the rangefinder is not used

longer than 4 seconds.

with the UP (2)/DOWN (5)

TPA

Function "TPA" (Target Position Angle) allows you to measure the angle of

target location (angle of elevation). When the function is activated, the

angle is shown continuously.

Select TPA

Turn TPAon/off with a short press of the Мenu (3) button.

with the UP (2)/DOWN (5) buttons.

THD

"THD" (True Horizontal Distance) function allows you to measure true

horizontal distance to a target based on the angle of elevation value.

Select THD

Turn THDon/off with a short press of the Мenu (3) button

Hereinafter the message THD will appear above the distance readings.

with the UP (2)/DOWN (5) buttons.

Remote Control

Show device diagram



This feature is not supported on devices manufactured after August

1, 2021.

Remote control activation (bought separately)

Before operating the remote control (RC), remember to activate it as follows:

Press and hold down the Menu (3) button to enter the main menu.

Select option Remote Control

Press briefly the Menu (3) button to confirm.

Display shows message "Wait" and countdown starts (30 sec), within

which hold down for two seconds any RC button.

If activation is successful, the message "Connection complete"

with the UP (2)/DOWN (5) buttons.

appears

If error occurs the message"Connection failed" appears

the procedure.

The RC is activated and ready for use.

To unlink the RC, press the Menu (3) button, wait for the countdown

to expire without pressing any RC button for 30 sec.

All remote controls previously linked to your device are now unlinked.

10.

Now you can activate your RC again or activate another RC.

. Repeat

Device Information

Show device diagram



This option allows the user to view the following information about the

device:

Full name

SKU number

Serial number

Firmware version

Hardware version

Service information

To display information, do the following:

Press and hold down theМenu (3) button to enter the main menu.

Select option Device Information

with the UP (2)/DOWN (5)

buttons.

Press briefly the Мenu (3) button to confirm.

Video Recording and

Photography

Show device diagram



Accolade 2 LRF Prothermal imaging binoculars feature video recording

and photography of the image being ranged to the internal memory card.

Before using this feature, please read the DateandTimesubsections of the

section

The built-in recorder operates in two modes - Video and Photo.

Video mode. Video recording

General Settings.

Switch to Video mode by pressing and holding the REC (4) button.

In the top left corner you will see icon

time in the format HH:MM (hours: minutes).

Start video recording with a short press of the REC (4) button.

and remaining recording

Upon start of video recording icon

recording timer in the format MM:SS (minutes : seconds) appear

disappears, and icon REC and

instead:

Pause and resume recording video with a short press of the REC (4)

button.

Stop recording video with a long press of the REC (4) button.

Video files are saved to the memory card after stopping video.

Switch between modes (Video-> Photo-> Video) with a long press of

the REC (4) button.

Photo mode.Capturing an image

Switch to the Photo mode with a long press of the REC (4) button.

Take a picture with a brief press of the REC (4) button. The image

freezes for 0.5 sec and a photo is saved to the internal memory.

In the top left corner of the display you can see: photography icon

">100" means that you can take more than 100 pictures. If the number

of available pictures is less than 100, actual amount of available

pictures (for example 98) is shown next to the icon .

Notes:

You can enter and operate the menu during video recording.

Recorded videos and photos are saved to the built-in memory card in

the format img_xxx.jpg (photos); video_xxx.avi (videos). xxx – three

digit counter for videos and photos.

Counter for multimedia files cannot be reset.

Attention!

The maximum duration of a recorded file is five minutes. After this time

expires, a video is recorded into a new file. The number of recorded files

is limited by the capacity of the device's internal memory.

Check regularly the free capacity of the internal memory, move

recorded footage to other storage media to free up space on the internal

memory card.

When the Display Off function is activated, video recording is paused.

Important!

To playback video ﬁles recorded by thermal imaging devices on macOS

based computers, we recommend that you use VLC video player or Elmedia

player.

Download links are shown below:

VLC Video Player

http://www.videolan.org/vlc/download-macosx.html

ELMEDIA Video Player

https://apps.apple.com/us/app/elmedia-multiformat-

video/id937759555?mt=12

Wi-Fi Function

The device has a function enabling wireless communication with external

devices (smartphone or tablet) via Wi-Fi.

Turn on the wireless module in the WI-Fi Activation menu option.

Wi-Fi operation is shown in the status bar as follows:

Connection status Status bar indication

Wi-Fi is off

Wi-Fi activated by the user,

Wi-Fi in the device is being

activated

Wi-Fi is on, no connection with

device

Wi-Fi is on, device connected

Your device is detected by an external device as "Accolade 2

LRF_XXXX", where XXXX – is the last four digits of device's serial number.

After entering the password(default: 12345678) on an external

appliance (see Password Setupsubsection of the

section for more information on setting a password) and connection is

established, the icon

in the status bar changes to

Wi-Fi Settings

Image not found or type unknown

Built-In Laser Rangefinder

Show device diagram



The binoculars are equipped with a built-in rangefinder (17), allowing you to

measure distance to objects up to 1000m away.

How the rangefinder works:

Turn on the device, set up image according to section

and Image Setting

Press the UP (2) or LRF (21) button on remote control - rangefinding

reticle appears; in the top right corner of the display dashes of distance

values with unit of measurement appear, i.e. the rangefinder enters the

stand-by mode.

If PiP mode is activated, the PiP window remains active upon activation

of the rangefinder.

Point the rangefinding reticle at an object and press the UP (2)button.

In the top right corner of the display you will see distance in meters (or

yards - depending on settings).

Note: if the rangefinder is idle longer than for 4 seconds, it turns off

automatically.

Powering On



Operation in SCAN mode:

To measure distance in scanning mode, hold down the UP (2) or LRF

(21)

button on remote control for longer then two seconds. Measurement

readings will be changing in real time as you point the binoculars at

different objects. Message SCAN appears in the top right corner.

To exit SCAN mode, press UP (2) or LRF (21)button again.

If measurement fails, dashes will appear on the display.

In 4 seconds of inactivity (no measurement is taken) the rangefinder

turns off, the rangefinding reticle with readings disappears from the

display.

Notes:

To select a rangefinding reticle, please see the Reticle Typesubsection

in the

To select a unit of measurement (meters or yards) go to the Units of

Measuresubsection of the



Additional Information:

Accuracy of measurement and maximum range depend on the reflection

ratio of the target surface, the angle at which the emitting beam falls on

the target surface and environmental conditions. Reflectivity is also

affected by surface texture, color, size and shape of the target. A shiny

or brightly colored surface is normally more reflective than a dark

surface.

Measuring range to a small sized target is more difficult than to a large

sized target.

Accuracy of measurement can also be affected by light conditions, fog,

Rangefinder section.

General Settingssection.

haze, rain, snow etc. Ranging performance can degrade in bright

conditions or when ranging towards the sun.

Display-Off Function

Show device diagram



The Display-Off function deactivates transmission of image to the display by

minimizing its brightness. This prevents accidental disclosure. The device

keeps running.



When the device is on, hold down theON/OFF (1) button. Display goes

out, message "Display off" appears.

To activate the display, press briefly the ON/OFF(1) button.

When you press and hold the ON/OFF(1) button, the display shows the

message "Display off" with a countdown. Pressing & holding the

button down for the duration of the countdown will power the device off

completely.

PiP Function

Show device diagram



PiP ("Picture in Picture") allows you to see a zoomed image simultaneously

with the main image in a dedicated window.

Enabling / disabling the PiP function is carried out in the main menu (see

section

Change zoom ratio in the PiP window with a short press of the DOWN

(5) button.

The zoomed image is displayed in a dedicated window, while the image

in the rest of the screen is displayed at base magnification (2.5x).

When PiP is turned on, you can operate the discrete and continuous

digital zoom. The magnification will take place only in the dedicated

window.

When PiP is turned off, the image is shown with the optical

magnification set for the PiP function.

PiP Mode).

Stream Vision

Accolade 2 LRF Pro thermal imaging binoculars support Stream Vision

technology which allows you to stream an image from the display of your

thermal imager to a smartphone or tablet PC via Wi-Fi in real time mode.

You can find further guidelines on Stream Vision

Download from Google Play

Download from App Store

Find answers to frequently asked questions about using Stream Vision

here.

Firmware Update

Stream Vision

https://www.youtube.com/embed/0BIu4rr-8IY

Download free of charge Stream Vision App on

Connect your Pulsar device to your mobile device (smartphone or

tablet).

Launch Stream Vision and go to section “My Devices”.

Select your Pulsar device and press “Check Updates”.

Wait for the update to download and install. Pulsar device will reboot

and will be ready to operate.

Important:

Google PlayorApp Store

if your Pulsar device is connected to phone, please turn on mobile data

transfer (GPRS/3G/4G) to download update;

if your Pulsar device is not connected to your phone but it's already in

the “My Devices” section, you may use Wi-Fi to download update.

Find answers to frequently asked questions about using Stream Vision here.



Is your firmware up to date?

Click



hereto check the latest firmware for your device.

Stream Vision 2

Download free Stream Vision 2 App in

Connect your Pulsar device to your mobile device (smartphone or

tablet).

Google Play orApp Store.

Launch Stream Vision 2 and go to section “Settings”.

Select your Pulsar device and press “Check firmware update”.

Wait for the update to download and install. Pulsar device will reboot

and will be ready to operate.

Important:

if your Pulsar device is connected to phone, please turn on mobile data

transfer (GPRS/3G/4G) to download update;

if your Pulsar device is not connected to your phone but is already listed

in “Settings” > “My devices” section, you may use Wi-Fi to download

update.

Find answers to frequently asked questions about using Stream Vision 2

here.

USB Connection

Show device diagram



Connect one end of the USB cable (16) to the Micro-USB(15) port of

your device, and the other end to the USB port of your PC/laptop.

Turn the device on with a short press of the ON/OFF (1) button (device

that has been turned off cannot be detected by your computer).

Your device will be detected by the computer automatically; no drivers

need to be installed.

Two connection modes will appear on the display: Power and Memory

Card (external memory).

Select connection mode with UP (2)/DOWN (5)buttons.

Confirm selection with a short press of the Menu (3) button.

Connection modes:

Power

In this mode, when a computer is used as an external power supply, the

icon

and all functions are available.

The Battery pack installed in the device is not being charged!

When disconnecting from the computer, the device will continue to

operate from the battery pack (if it is present and holding enough

charge).󰾬

appears in the status bar. The device will continue operating

Memory Card (external memory)

In this mode the device is detected by the computer as a flash card. This

mode is designed for work with the files saved in device's memory. The

device's functions are not available in this mode; the device turns off

automatically.

If video recording was in progress when connection was made,

recording stops and video is saved.

When USB is disconnected from the device where connection is in the

Memory Card mode, the device remains on the OFF state. Turn the

device on for further operation.

Wireless Remote Control

This feature is not supported on devices manufactured after August

1, 2021.

(Bought separately)

Wireless remote control (RC) duplicates the power on function, digital zoom,

rangefinder control, and menu navigation.



Brief

press

Long

press

Controller

(18)

Enter

the

quick

Enter

the

main

Increase

Button

ON (19)

Turn on

the

device /

Calibrate

the

microbolometer

Display

Off /

Turn off

the

device

Button

ZOOM

(20)

Activate

incremental

zoom

Activate

function

PiP

Button

LRF

(21)

Activate

rangefinder

Measure

distance

Activate

SCAN

mode

Clockwise

rotation

Counterclockwise

rotation

parameter,

move

upwards

Decrease

parameter,

move

downwards

Technical Inspection

It is recommended to carry out a technical inspection before each use of the

device. Check the following:

External view (there should be no cracks on the housing).

The state of the objective, eyepiece and rangefinder lenses (there

should be no cracks, spot, dust, deposits etc.).

The state of the rechargeable battery (should be charged) and the

electric contacts (should be no signs of salts, oxidation or debris).

Correct functioning of the controls.

Technical Maintenance

and Storage

Maintenance should be carried out no less frequently than twice a year, and

should consist of the following measures:

Wipe the exterior surfaces of metal and plastic parts off dust and dirt

with a cotton cloth. To avoid damage to the paint coating, do not use

chemically active substances, solvents, etc.

Clean the electric terminals of the Battery Pack and device's battery slot

using a grease-free organic solvent.

Check the objective and eyepieces lenses; rangefinder’s emitter and

receiver lenses. If required, remove dust and sand (preferably by a

noncontact method). Clean the external surfaces of the lenses with

products expressly designed for this purpose.

Always store the device in its carrying case in a dry, well-ventilated

space. Remove the Battery Pack for long-term storage.

Troubleshooting

For technical support please contact

Answers to frequently asked questions about the devices can also be found

in the FAQ section.

support@pulsar-vision.com.

The device does not turn on

Possible cause

The Battery Pack is empty.

Solution

Charge the battery pack.

The device does not operate on external

power supply

Possible cause

USB cable is damaged.

Solution

Replace USB cable.



Possible cause

The external power supply is discharged.

Solution

Charge the external power supply.

The image is blurry, with vertical stripes and

uneven background

Pulsar Accolade 2 LRF Pro, XP50 PRO User guide

Specifications and Main Features

Frequently Asked Questions

User Manual
