CAL. W540
DIGITAL QUARTZ
● Dot-matrix liquid crystal panel
● Time/calendar
● 5-channel memo function
● World time
ENGLISH
English
2
MODE CHANGE
B
A
With each press, the mode changes in the following order:
A
TIME/
CALENDAR
➡
MEMO
C
➡
WORLD TIME
➡
TIME/CALENDAR MODE
● Once the time/calendar of your area is set in the TIME/CALENDAR mode, the
times of the 33 cities covered in the WORLD TIME mode will be set automatically.
* To display the times of the cities covered in the WORLD TIME mode properly, it is
necessary to select the city representing your area and set the correct time in the
TIME/CALENDAR mode.
Press to show TIME/CALENDAR mode.
A
English
A
B
Mode name
C
➡
Current time
3
TIME/CALENDAR SETTING
Press for 1 to 2 seconds to show TIME/CALENDAR SETTING
A
▲
display.
▲
Press to select the digits to be adjusted.
A
English
▲
Set the flashing digits. (Increasing digits)
B
or
Set the flashing digits. (Decreasing digits)
C
▲
Press for 1 to 2 seconds to return to TIME/CALENDAR mode.
A
4
Selection of the digits
Seconds
12-/24-hour
indication
⇒
⇐
Minutes Hour Year
⇒
City
⇐
⇒
⇐
⇒
⇒
MonthDate
SHOWING CALENDAR DISPLAYS
With each press in TIME/CALENDAR mode, the display changes
B
in the following order:
[ Time display ]
B
[ Month & date display ]
Month Date Day
[ Day display ]
➡
➡
➡
MEMO DEMONSTRATION
● The memo registered in the memo channel No. 1 can be shown in TIME/
CALENDAR mode.
Press to show the memo registered in the memo channel No. 1.
C
▲
* The memo continues scrolling.
Press to return to TIME/CALENDAR mode.
C
English
5
MEMO MODE
● A memo of up to 40 characters can be stored in each of the 5 memo channels.
Press to show MEMO mode.
A
BA C
English
6
➡➡
Mode name
Press to select the desired memo channel.
B
CH–1
⇐
▲
* The memo scrolls once, and then, its first three characters remain displayed.
⇐
Memo channel No. Memo
CH–2 CH–3
⇐
⇐
CH–4 CH–5
⇐
With each press, restart and stop of the scroll are made alternately.
C
HOW TO INPUT THE MEMO
Press to select the desired memo channel.
B
▲
Press for 1 to 2 seconds to show MEMO INPUT display.
A
▲
With each press, the flashing character changes in order.
B
▲
or
With each press, the flashing character changes in reverse order.
C
▲
When the desired character is shown, press to register it.
A
* The flashing position moves rightward for the input of the next character.
▲
Press for 1 to 2 seconds to return to MEMO mode.
A
English
7
* To correct the characters already registered, follow the procedure below.
1) Press button A for 1 to 2 seconds to return to the MEMO mode.
2) Press button A for 1 to 2 seconds to show the MEMO INPUT display.
3) Press button A to move the flashing position so that the character you wish to
correct flashes.
4) Press button B or C to show the desired character, and press button A to register
it.
HOW TO ERASE A MEMO
Press to select the desired memo channel.
B
▲
English
8
Press for 1 to 2 seconds to show MEMO INPUT display.
A
▲
and
B
Press at the same time for 3 to 4 seconds.
C
* The display flashes and then, the
display shown at right appears and
scrolls once to indicate that the
selected memo is erased.
WORLD TIME MODE
● The time of 33 cities in different time zones throughout the world can be displayed.
● Daylight saving time can be set for each city.
Press to show WORLD TIME mode.
A
“A” (AM)/“P” (PM) in
BAC
the 12-hour indication
English
Mode mark
(airplane mark)
or
B
➡
Press to select the desired city.
C
City mark
➡
Current time of
selected city
9
CHANGEOVER BETWEEN STANDARD TIME AND DAYLIGHT SAVING TIME
Press for 1 to 2 seconds. With each press, the standard time and
A
daylight saving time of the selected city are alternately shown.
Daylight saving time mark
A
➡
➡
English
10
TIME DIFFERENCES
GMT = Greenwich Mean Time
City
mark
LON
P A R
M I L
B E R
I S T
A T H
C A I
M O W
D X B
M L E
D A C
B K K
S G N
H K G
P E K
T P E
D P S
City name
London*
Paris*
Milan*
Berlin*
Istanbul*
Athens*
Cairo*
Moscow*
Dubai
Male (Maldives)
Dhaka
Bangkok
Ho Chi Minh City
Hong Kong
Beijing
Taipei (Taiwan)
Denpasar (Bali Is.)
* The cities marked with “*” use daylight saving time (summer time).
GMT
± (hours)
± 0
+ 1
+ 1
+ 1
+ 2
+ 2
+ 2
+ 3
+ 4
+ 5
+ 6
+ 7
+ 7
+ 8
+ 8
+ 8
+ 8
City
mark
S I N
T Y O
S E L
G U M
S Y D
N O U
A K L
H N L
Y V R
L A X
P D X
C H I
N Y C
C C S
R I O
P D L
City name
Singapore
Tokyo
Seoul
Guam Is.
Sydney*
Nouméa
Auckland*
Honolulu
Vancouver*
Los Angeles*
Portland*
Chicago*
New York*
Caracas
Rio de Janeiro*
Azores Is.*
(As of April 2000)
GMT
± (hours)
+ 8
+ 9
+ 9
+ 10
+ 10
+ 11
+ 12
- 10
- 8
- 8
- 8
- 6
- 5
- 4
- 3
- 1
English
11
ViViDiGi
● is a new type of liquid crystal panel that makes possible various
colors and high contrast.
● Excellent light reflection and transmission make the display bright and clear.
● Various color options are available.
● Either the whole panel or the displayed data only can be illuminated.
* Features vary in different models.
English
12
NOTES ON USING THE WATCH
MODE CHANGE
● When the mode is changed over, the mode name or mark to indicate the selected mode
scrolls from the top to the bottom, and then, the display for the mode scrolls from right
to left.
TIME/CALENDAR MODE
[TIME/CALENDAR SETTING]
● The calendar automatically adjusts for odd and even months including February of leap
years from 2000 to 2050.
● Setting the seconds:
• With the second digits flashing, press button B or C in accordance with a time signal.
The second digits are reset to “00”.
• When the seconds count any number from “30” to “59” and button B or C is pressed,
one minute is added and the seconds are reset to “00”.
● Be sure to select the city representing your area. For the city marks and cities they
represent, see “TIME DIFFERENCES” on page 11.
● Changeover between 12- and 24-hour indications are made alternately with each press
of button B or C while the hour and minute digits are flashing. In the 12-hour indication,
only “PM” mark is displayed. There is no indication for the AM setting and in the 24hour indication.
● The flashing digits except the seconds and 12-/24-hour indication move quickly if button
English
13
B or C is kept pressed.
● If the watch is left untouched with the digits flashing, it will automatically return to the
TIME/CALENDAR mode in 1 to 2 minutes.
● Note on unusual display:
While setting the time/calendar, all the segments of the display will light up if both
buttons B and C are pressed at the same time. This is not a malfunction. Press button
A, B or C to return to the TIME/CALENDAR mode, and then set the time/calendar again.
[SHOWING CALENDAR DISPLAYS]
● When button B is pressed to change over the display, the selected display scrolls from
right to left.
● If the watch is left untouched with the month and date or the day of the week displayed,
it will automatically return to the time display in 1 to 2 minutes.
[MEMO DEMONSTRATION]

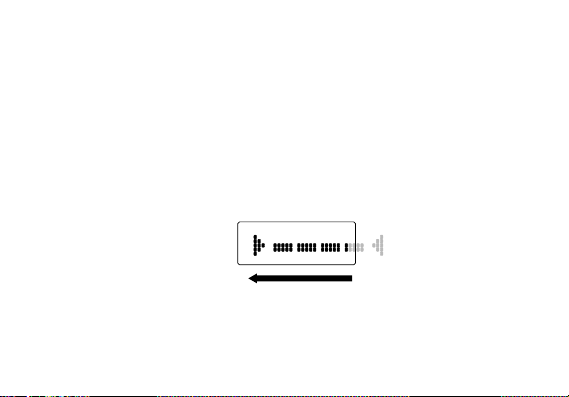

● If no memo is registered in the memo channel No. 1, the following display scrolls.
English
MEMO MODE
● A memo is displayed with “ ” at its beginning and “ ” at its end.
[HOW TO INPUT THE MEMO]
● If the watch is left untouched with the digits flashing, it will automatically return to the
14
▲
▲
MEMO mode in 1 to 2 minutes.
● The flashing character changes quickly if button B or C is kept pressed.
● Characters for the memo input and the order of appearance:
A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 1 2 3 4 5 6
7 8 9 0 ! ? @ # + / = % ♥ ~ ' " < > – _ : ; • , . (space)
WORLD TIME MODE
● When button B or C is pressed to select a city, the time of the selected city scrolls from
right to left or from left to right, respectively.
● The city selection can be made quickly if button B or C is kept pressed.
● When the time of your area is displayed in the 24-hour indication in the TIME/
CALENDAR mode, the times of the cities covered in the WORLD TIME mode are also
displayed in the 24-hour indication.
● To display the times of the cities covered in the WORLD TIME mode properly, it is
necessary to select the city representing your area and set the correct time in the TIME/
CALENDAR mode.
[CHANGEOVER BETWEEN STANDARD TIME AND DAYLIGHT SAVING TIME]
● The time difference and use of daylight saving time may change in some areas or
countries when they are so decided by the countries concerned.
● When the daylight saving time is set for the city selected in the TIME/CALENDAR mode,
the current time is advanced by one hour. When the standard time is set, the current
time is moved back by one hour.
✻
English
15
BATTERY CHANGE
2
Years
●
As the battery is inserted at the factory to check the function and performance of the
watch, its actual life once in your possession may be less than the specified period.
●
When the battery expires, be sure to replace it as soon as possible to prevent any
malfunction.
●
We recommend that you contact an AUTHORIZED PULSAR DEALER for battery
replacement.
English
● Necessary procedure after battery change
After the battery is replaced with a new one or if an abnormal display (broken digits, etc.)
appears, follow the procedure below to reset the IC.
Press and hold buttons A, B and C at the same time for 2 to 3 seconds. The display
will become blank, and the watch will return to the initial setting of “12:00'00" a.m.,
January 1st, 2000, SAT (Saturday), LON (London)” when the buttons are released.
* Before using the watch, set the time/calendar.
* Please note that all the memos registered in the memo channels will be erased after
the IC is reset.
16
Battery life : Approx. 2 years
Battery : SEIKO SR1120SW
WARNING
● Do not remove the battery from the watch.
● If it is necessary to take out the battery, keep it out of the reach of
children. If a child swallows it, consult a doctor immediately.
● Never short-circuit, tamper with or heat the battery, and never expose
it to fire. The battery may burst, become very hot or catch fire.
CAUTION
● The battery is not rechargeable. Never attempt to recharge it, as this
may cause battery leakage or damage to the battery.
English
17
TO PRESERVE THE QUALITY OF YOUR WATCH
WATER RESISTANCE
● Non-water resistant
• If the watch becomes wet, have it checked by an AUTHORIZED
PULSAR DEALER or SERVICE CENTER.
● Water resistant 5/10/15/20 bar
English
5
10/15/20
bar WR
• Do not operate the buttons when the watch is wet or in water.
If used in sea water, rinse the watch in fresh water and dry it
bar WR
completely.
• When taking a shower with the water resistant 5 bar watch, or
taking a bath with the water resistant 10, 15 or 20 bar watch, be
sure to observe the following:
* Do not operate the buttons when the watch is wet with soapy
water or shampoo.
* If the watch is left in warm water, a slight time loss or gain may
be caused. This condition, however, will be corrected when the
watch returns to normal temperature.
18
* Pressure in bar is a test pressure and should not be considered as corresponding
to actual diving depth since swimming movement tends to increase the pressure
at a given depth. Care should also be taken on diving into water.
** We recommend that you wear a PULSAR Diver’s Watch for scuba diving.
TEMPERATURES
Your watch works
+50°C
with stable accuracy
within a temperature
-5°C
range of 5° C and 35°
Temperatures over 50° C (122°
F) or below –5° C (+23° F) may
cause a slight time loss or gain
or battery leakage or shorten the
battery life.
However, the above conditions
will be corrected when the watch
returns to normal temperature.
C (41° F and 95° F).
MAGNETISM
Your watch will not be affected
by magnetism.
S
N
CARE OF CASE AND BRACELET
To prevent possible rusting of
the case and bracelet caused
by dust, moisture and
perspiration, wipe them
periodically with a soft dry
cloth.
English
19
SHOCKS & VIBRATION
Light activities will not
affect your watch, but be
careful not to drop your
watch or hit it against hard
surfaces, as this may
cause damage.
CHEMICALS
Be careful not to expose
English
case, bracelet, etc. may become
discolored, deteriorated or damaged.
20
the watch to solvents,
mercury, cosmetic spray,
detergents, adhesives or
paints. Otherwise, the
PERIODIC CHECK
It is recommended that the
2 - 3
Years
DEALER or SERVICE CENTER to
ensure that the case, buttons, gasket
and crystal seal remain intact.
PRECAUTION REGARDING
CASE BACK PROTECTIVE FILM
watch be checked once
every 2 to 3 years. Have
your watch checked by an
AUTHORIZED PULSAR
If your watch has a
protective film and/or a
sticker on the case back,
be sure to peel them off
before using your watch.
STATIC ELECTRICITY
The IC (Integrated
Circuit) used in your
watch will be affected
by static electricity
display. Keep the watch away
from close contact with objects
such as TV screens which emit
strong static electricity.
which may disturb the
LIQUID CRYSTAL PANEL
The normal life expectancy for
the liquid crystal panel of the
watch is approximately 5 years.
5 Years
read. Please contact your AUTHORIZED
PULSAR DEALER or SERVICE CENTER
if you wish to have a new panel fitted
(guaranteed one year).
After that it may decrease in
contrast, becoming difficult to
English
21
Loading...
