S64 6-port switch for 4 IP cameras
Edition: 1 from 20.12.2017
Supercedes the edition: -----------
EN**
Features:
Switch 6 ports
4 PoE ports 10/100Mb/s (data transfer and power
supply)
2 ports 10/100Mb/s (UP LINK)
30W for each PoE port, supports devices complaint
with the IEEE802.3af/at standard
Supports auto-learning and auto-aging of MAC
addresses (1K size)
LED indication
The PSD 520115 52VDC/1,15A/60W max.
power supply desktop type included
Additional assembly elements
warranty – 2 year from the production date
Example of use.
1. Technical description
1.1. General description.
S64 is a 6-ports PoE switch designed to supply IP cameras operating in IEEE 802.3af/at standard. Automatic detection
of any devices powered in the PoE standard is enabled at the 1 – 4 ports of the switch. The UP LINK ports is used for
connection of another network device via RJ45 connector. The LEDs at the front panel indicate the operation status (description
in the table below).
The PoE technology ensures a network connection and reduces installation costs by eliminating the need to supply a
separate power cable for each device. This method allows supplying other network devices, such as IP phone, wireless access
point or router.
1
Element no.
(Fig. 2)
Description
[1]
2 x UP LINK port
[2]
4 x PoE port (1÷4)
[3]
Power Socket of the DC
[4]
Additional mounting elements
1.2 Block diagram.
Fig. 1. Block diagram.
1.3. Description of components and connectors.
Table 1. (see Fig.2)
Fig. 2. The view switch'a.
2
1.4. Technical parameters.
Ports
6 10/100Mb/s ports (4 x PoE + 2 x UP LINK)
with connection speed auto-negotiation and MDI/MDIX Auto Cross
PoE power supply
IEEE 802.3af/at (1÷4 ports), 52VDC / 30W at each port *
Used pairs 4/5 (+), 7/8 (-)
Protocols, Standards
IEEE802.3, 802.3u, 802.3x CSMA/CD, TCP/IP
Bandwidth
1,6Gbps
Transmission method
Store-and-Forward
Optical indication of
operation
Switch power supply;
Link/Act;
PoE Status
Power supply
90 ÷ 264VAC 50÷60Hz / 0,5A / 230VAC
the PSD 520115 52VDC / 1,15A/60W max. power supply desktop type
Operating conditions
temperature -10°C ÷ 40°C,
relative humidity 5% - 90%, no condensation
Dimensions
W=118, H=28, D=85 [+/- 2mm]
Additional equipment
plate to be fixed surface
Net/gross weight
0,5/ 0,7kg
Protection class
EN 60950-1:2007
II (second)
Storage temperatur
-20°C ÷ 60°C
Declarations
CE
Table 2.
* The given value of 30W per port is the maximum value. The total power consumption should not exceed 48W when all PoE ports are being used.
2. Installation
2.1. Requirements
The unit should be mounted in confined spaces, in accordance with the 2nd environmental class, with normal relative
humidity (RH=90% maximum, without condensation) and temperature from -10°C to +40°C. Ensure the free flow of air around
the unit. The PSU shall work in a vertical position that guarantees sufficient convectional air-flow through ventilating holes of the
enclosure.
The load balance should be done before installation Switcha. The given value of 30W per port is the maximum value
referring to a single output. The total power consumption should not exceed 48W when all PoE ports are being used. The
increased demand for power is particularly evident in the case of cameras with heaters or infrared illuminators - when launching
these features, the power consumption increases rapidly, which may adversely affect the operation of the switch. The device is
designed for a continuous operation and is not equipped with a power-switch. Therefore, an appropriate overload protection in
the power supply circuit should be provided. The electrical system shall be made in accordance with applicable standards and
regulations.
2.2. Installation procedure
1. Connect switch to the PSD520115 52VDC power supply unit desktop type.
2. Connect the power supply to the AC 230V socket.
3. Connect the camera wires to the RJ45 connectors (PoE connectors).
4. Check the optical indication of switch operation (see Table 3).
3

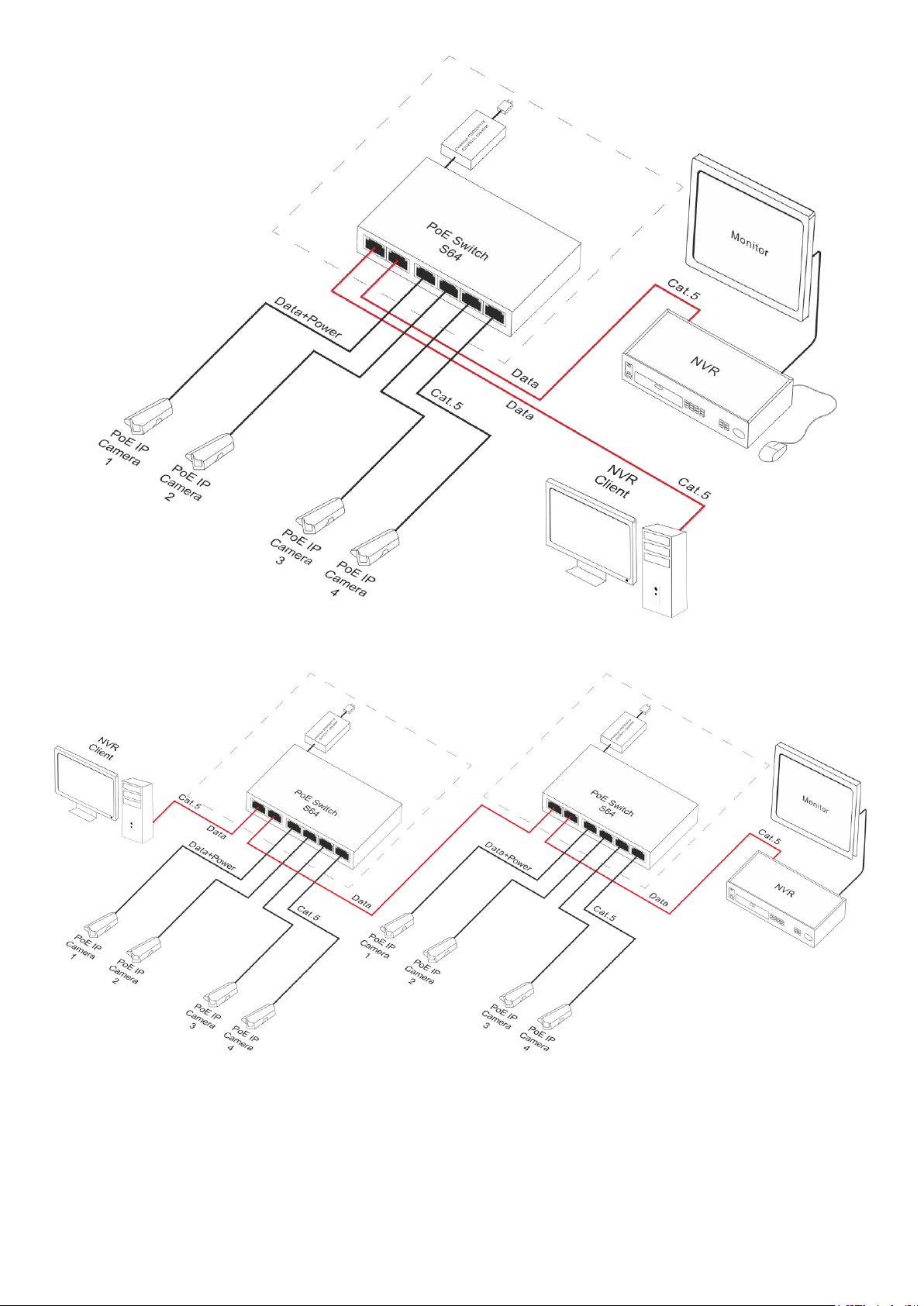

Connection schemes.
4
OPTICAL INDICATION OF THE SWITCH's POWER SUPPLY
GREEN LED LIGHT (Power)
Indication of the switch's
power supply
OFF – no power supply of the switch
ON – power supply on, normal operation
OPTICAL INDICATION AT THE PoE PORTS (1÷4)
GREEN LED LIGHT (PoE)
Indication of the PoE power
supply at the RJ45 ports
OFF- no power supply at the RJ45 port (the device is not connected or not compliant
with the IEEE802. 3af/at standard)
ON – supply at the RJ45 port
Blinking – short-circuit or output overload
YELLOW LED LIGHT (LINK)
The connection status of LAN
devices, 10MB/s or 100Mb/s
and data transmission
OFF- no connection
ON - the device is connected; 10Mb/s or 100Mb/s
Blinking – data transmission
OPTICAL INDICATION AT THE UP LINK PORTS
GREEN LED LIGHT
OFF- no connection/ the device is connected; 10Mb/s
ON – the device is connected; 100Mb/s
YELLOW LED LIGHT (LINK)
The connection status of LAN
devices, 10MB/s or 100Mb/s
and data transmission
OFF- no data transmission
ON - the device is connected; 10Mb/s or 100Mb/s
Blinking – data transmission
Pulsar
Siedlec 150, 32-744 Łapczyca, Poland
Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50
e-mail: biuro@pulsar.pl, sales@pulsar.pl
http:// www.pulsar.pl, www.zasilacze.pl
3. Operation indication.
Table 3. Operation indication
