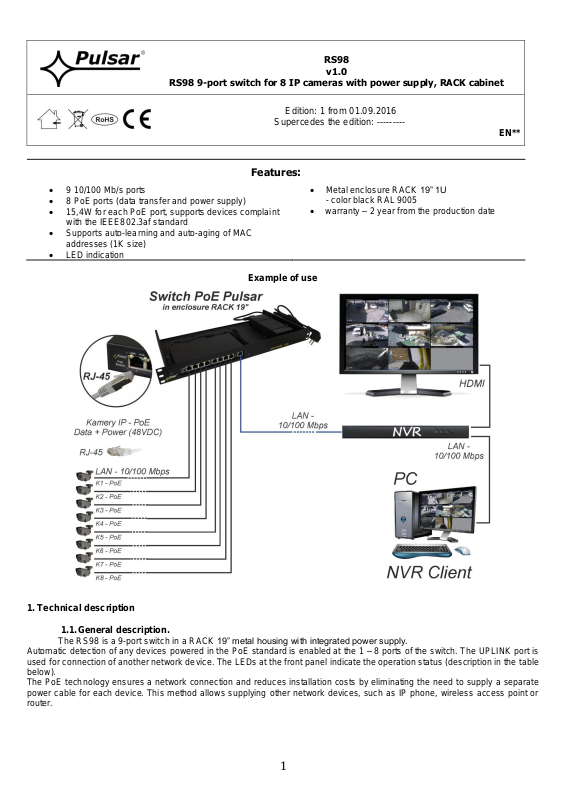

Pulsar RS98 User Manual

1

RS98

v1.0

RS98 9-port switch for 8 IP cameras with power supply, RACK cabinet

Edition: 1 from 01.09.2016

Supercedes the edition: ---------

EN**

Features:

 9 10/100 Mb/s ports
 8 PoE ports (data transfer and power supply)
 15,4W for each PoE port, supports devices complaint

with the IEEE802.3af standard

 Supports auto-learning and auto-aging of MAC

addresses (1K size)

 LED indication

 Metal enclosure RACK 19” 1U

- color black RAL 9005
 warranty – 2 year from the production date

Example of use

1. Technical description

1.1. General description.

The RS98 is a 9-port switch in a RACK 19” metal housing with integrated power supply.

Automatic detection of any devices powered in the PoE standard is enabled at the 1 – 8 ports of the switch. The UPLINK port is
used for connection of another network device. The LEDs at the front panel indicate the operation status (description in the table
below).
The PoE technology ensures a network connection and reduces installation costs by eliminating the need to supply a separate
power cable for each device. This method allows supplying other network devices, such as IP phone, wireless access point or
router.

2

Element no.

(Fig. 2)

Description

[1]

8 x PoE port (1÷8)

[2]

1 x UPLINK port

[3]

Switch mode power supply for the switch 48VDC/2,5A/120W

[4]

230V AC power cord

1.2 Block diagram.

1.3. Description of components and connectors

Table 1. (see Fig.2)

Fig. 1. Block diagram.

Fig. 2 The enclosure view.

3

Ports

9 10/100Mb/s ports (8 x PoE + 1 x UPLINK)

with connection speed auto-negotiation and MDI/MDIX Auto Cross)

PoE power supply

IEEE 802.3af (1÷8 ports), 48V DC / 15,4W at each port *

Protocols, Standards

IEEE802.3, 802.3u, 802.3x CSMA/CD, TCP/IP

Forwarding rate

10BASE-T: 14880pps/port

100BASE-TX: 148800pps/port

Bandwidth

1,6Gbps

Transmission method

Store-and-Forward

Optical indication of
operation

Switch power supply;

Link/Act;

PoE Status

Power supply

90 ÷ 264VAC 50÷60Hz / 2,5A 230VAC

Operating conditions

temperature -10°C ÷ 45°C,

relative humidity 5% - 90%, no condensation

Dimensions (W x H x D)

440 x 44,5 x 230 [mm]

Enclosure

RACK 19″ 1U, Steel plate, DC01 1,0mm color RAL 9005

Closing

screw x 1 (at the front)

Gross/Net weight

2,8/3,0kg

Protection class
EN 60950-1:2007

II (second)

Storage temperatur

-20°C ÷ 60°C

Declarations

CE

1.4. Technical parameters (Table 3.)

Table 3.

* The given value of 15.4W per port is the maximum value. The total power consumption should not exceed 96W when all PoE ports are being used.

2. Installation

2.1. Installation procedure

1. The unit should be mounted by a qualified installer, holding relevant permits and licenses (applicable and
required for a given country) for 230V/AC interference and low-voltage installations.

2. The unit should be mounted in confined spaces, in accordance with the 2nd environmental class, with normal
relative humidity (RH=90% maximum, without condensation) and temperature from -10°C to +45°C.

3. The switch shall operate in a horizontal position in order to ensure free air convection in the RACK cabinet. The
switch load balance should be done prior to installation.
The given value of 15,4W per port is the maximum value referring to a single output. The total power
consumption should not exceed 96W when all PoE ports are being used.
The increased demand for power is particularly evident in the case of cameras with heaters or infrared
illuminators - when launching these features, the power consumption increases rapidly, which may adversely
affect the operation of the switch.
The device is designed for a continuous operation and is not equipped with a power-switch. Therefore, an
appropriate overload protection in the power supply circuit should be provided. Moreover, the user should be
informed how to disconnect the power supply unit from the mains supply (usually by assigning an appropriate
fuse in the fuse box). The electrical system shall be made in accordance with applicable standards and
regulations.

2.2. Installation procedure

1. Mount the switch in a RACK 19 ” cabinet

2. Connect the plug of the power supply switch to the AC 230V socket.
Make sure that the device is installed in such a manner and place, that the free flow of air around the device
is ensured.

3. Connect the power (~230V).

4. Connect the camera wires to the RJ45 connectors (PoE connectors).

5. Check the optical indication of the switch operation.

4

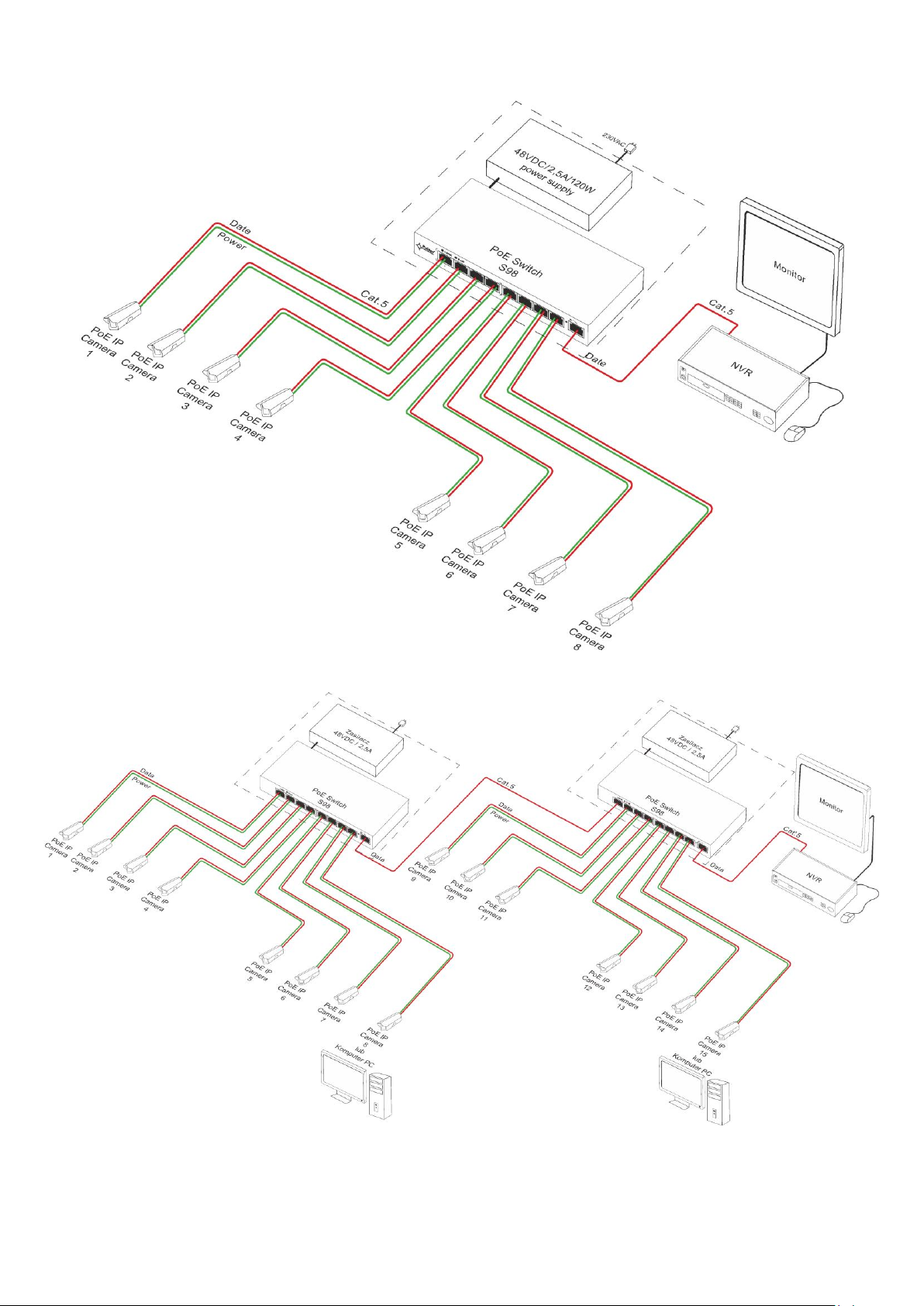

Connection schemes

5

OPTICAL INDICATION OF THE SWITCH's POWER SUPPLY

GREEN LED LIGHT (Power)
Indication of the switch's
power supply

OFF – no power supply of the switch
ON – power supply on, normal operation

OPTICAL INDICATION AT THE PoE PORTS (1÷8)

DIODA LED ZIELONA (PoE)
Indication of the PoE power
supply at the RJ45 ports

OFF- no power supply at the RJ45 port (the device is not connected or not compliant with

the IEEE802.3af standard)

ON – supply at the RJ45 port
Blinking – short-circuit or output overload

YELLOW LED LIGHT (LINK)
The connection status of LAN
devices, 10MB/s or 100Mb/s
and data transmission

OFF- no connection
ON - the device is connected ; 10Mb/s or 100Mb/s
Blinking – data transmission

OPTICAL INDICATION AT THE UPLINK PORT

GREEN LED LIGHT

OFF- no connection
ON – the device is connected ; 10Mb/s or 100Mb/s

YELLOW LED LIGHT (LINK)
The connection status of
LAN devices, 10MB/s or
100Mb/s and data
transmission

OFF- no data transmission
ON - the device is connected : 10Mb/s or 100Mb/s
Blinking – data transmission

3. Operation indication.

Table 4. Operation indication

6

GENERAL WARRANTY CONDITIONS

1. Pulsar (manufacturer) grants a two-year quality warranty for the equipment, starting from the production date.

2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (selected by the manufacturer) if the
malfunction is due to the manufacturer. It includes manufacturing or material defects, provided that such defects have been
reported within the warranty period (point.1).

3. The equipment subjected to warranty should be brought to the place of purchase or directly to the main office of the
manufacturer.

4. The warranty applies to complete equipment, accompanied by a properly filled warranty claim with a description of the defect.

5. Should the claim be accepted, the manufacturer is obliged to provide warranty repairs, at the earliest convenience, however not
later that within 14 days from the delivery to the service centre of the manufacturer.

6. The repair period mentioned in point 5 may be prolonged, if there are no technical possibilities to carry out the repairs, or if the
equipment has been conditionally accepted, due to the breaking warranty terms by the claimant.

7. All the services are carried out at the service centre of the manufacturer, exclusively.

8. The warranty does not cover the defects of the equipment, resulting from:

- reasons beyond the manufacturer's control,

- mechanical damage,

- improper storage and transport,

- use that violates the operation manual or equipment’s intended use

- fortuitous events, including lightning discharges, power failures, fire, flood, high temperatures and chemical agents,

- improper installation and configuration (failure to follow instruction).

9. The warranty is void in case of construction changes and repairs carried out by any unauthorized service center or in case of
damage or modifications to warranty stickers and serial numbers.

10. The liability of the manufacturer towards the buyer is limited to the value of the equipment determined according to the
wholesale prices suggested by the manufacturer on the day of purchase.

11. The manufacturer takes no responsibility for the defects that result from the damaging, malfunctioning or inability to operate
the equipment especially when resulting from failure to comply with the recommendations and requirements contained in the
manual.

Pulsar

Siedlec 150, 32-744 Łapczyca, Poland

Tel. [phone], Fax. [phone]

e-mail: [e-mail], [e-mail]

http:// www.pulsar.pl, www.zasilacze.pl
