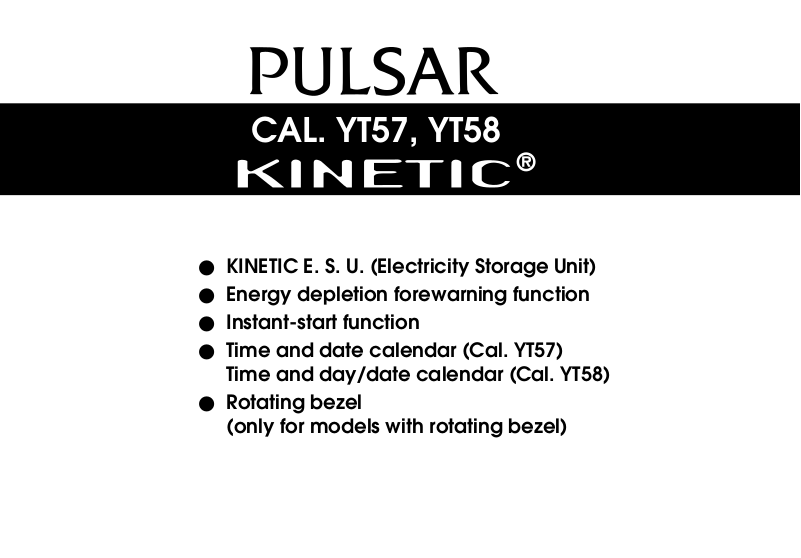

CAL. YT57, YT58
®
● KINETIC E. S. U. (Electricity Storage Unit)
● Energy depletion forewarning function
● Instant-start function
● Time and date calendar (Cal. YT57)
Time and day/date calendar (Cal. YT58)
● Rotating bezel
(only for models with rotating bezel)
DISPLAY AND CROWN
Second hand
2
[ Cal. YT57 ]
Hour hand
a: Normal position c: Second clickb: First click
Minute
hand
a b c
Date
CROWN
Hour
hand
[ Cal. YT58 ]
MON
1
Minute hand
a b c
CROWN
Day and dateSecond hand
SCREW DOWN CROWN
[for models with screw down crown]
Unlocking the crown
1 Turn Crown counterclockwise until you no
longer feel the threads turning.
2 Crown can be pulled out.
Locking the crown
1 Push Crown back in to normal position.
2 Turn Crown clockwise while pressing it lightly
until tight.
3
HOW TO CHARGE AND START THE WATCH
1 Swing the watch from side to
side.
* Swing rhythmically at a rate of
twice a second.
2 Charge the KINETIC E. S. U.
sufficiently.
3 Set the time/calendar and put
on the watch.
4
✽ Number of swings and power reserve
RESERVE
NUMBER
OF SWINGS
POWER
0
100
12 hours
300
1 day
6 months
FULL
1 When the watch stops completely, a few swings will start the
second hand moving at two-second intervals.
2 Swing the watch approximately 100 times. There will be about 12
hours of power reserve available.
* It is recommended that the watch be swung further until one day of power
is reserved. As a guideline of recharging, an additional 200 swings, about
300 swings in total, will reserve one day of power.
* If the watch is swung 200 to 250 times, about one day of power will be
newly accumulated.
3 Wear the watch on your wrist.
5
✽ Power reserve accumulated while you are walking
150 m 500 m
➡
Power reserve
✩
The second hand starts moving at one-second intervals.
✰
The illustration provides only a general guideline of the relationship between the power
reserve and the distance you walk. Actual amount of power reserve differs from person
to person.
12 hours
✩
➡
★
Wearing the watch.
1 day
✽ Precaution on see-through case-back models
If your watch has a glass case back, do not expose the case back to strong light
such as direct sunlight or an incandescent light at close range, as this may
temporarily increase the power consumption of the watch circuit, thus reducing the
power reserve in the KINETIC E. S. U. This condition, however, will be corrected
when the case back is turned away from the light.
6
FULL CHARGE OF THE KINETIC E. S. U.
● When the KINETIC E. S. U. is fully charged, the watch will keep operating for a
maximum of about 6 months without recharging the KINETIC E. S. U.
REMARKS ON THE KINETIC E. S. U.
● The electric energy generated while the watch is worn on your wrist is stored in
the KINETIC E.S.U. It is a power source completely different from conventional
batteries for watches, and therefore, this watch does not require battery
replacement.
● The KINETIC E.S.U. is a clean and environmentally friendly power source.
CAUTION
● Never install a silver oxide battery for conventional watches in place of
the KINETIC E.S.U. The battery may burst, become very hot or catch
fire.
7
ENERGY DEPLETION FOREWARNING FUNCTION
● When the second hand starts moving at two-second intervals instead of the
normal one-second intervals, the watch will run down in approximately 12 hours.
In this case, swing the watch from side to side to charge the KINETIC E. S. U.
sufficiently.
INSTANT-START FUNCTION
● When a long time has passed since the watch stopped, you can get it started
quickly with only a few swings.
● This function is available as long as the watch has been stopped for less than a
year.
* When this function is activated, the second hand will start moving at two-second
intervals. Swing the watch from side to side to charge the KINETIC E.S.U. by referring
to “Number of swings and power reserve” on page 5.
* After the second hand starts moving at one-second intervals, put the watch on your
wrist so that it will be charged further.
8
[ Cal. YT57 ]
TIME/CALENDAR SETTING
Second hand
➠
Date
➠
5
1
➠
CROWN
1 Pull out to first click and set
2
2 Pull out to second click when
3
4
3 Turn to set the desired date.
4 Turn to set the hands to the
5 Push back completely in
the previous day’s date.
the second hand is at the 12
o’clock position.
desired time.
accordance with a time signal.
9
[ Cal. YT58 ]
10
Second hand
MON
1
Day and date
CROWN
1 Pull out to first click and turn
clockwise to set the previous
3
1
➠➠
2
➠
6
day’s date.
2 Turn counterclockwise to set
the previous day of the week.
4
5
3 Pull out to second click when
the second hand is at the 12
o’clock position.
4 Turn to set the desired date
and day.
5 Turn to set the hands to the
desired time.
6 Push back completely in
accordance with a time signal.
ROTATING BEZEL (for models with rotating bezel)
● The rotating bezel can show up to 60 minutes of elapsed time.
1 Turn the rotating bezel to align
its “ ” mark with the minute
hand.
* For some models, the rotating
bezel rotates only counterclockwise.
2 Read the number on the rotating
bezel that the minute hand points
to.
Elapsed
time
➡
Start
30 minutes
have elapsed.
11
NOTES ON OPERATING THE WATCH
HOW TO CHARGE AND START THE WATCH
● To charge the KINETIC E. S. U. efficiently, swing the watch from side to side, making
an arc of about 20 cm.
●
No additional benefit is obtained by swinging the watch more quickly or with greater vigor.
● When the watch is swung, the oscillating weight in the generating system rotates to
drive the mechanism. As it rotates, it gives out a sound, which is not a malfunction.
● The watch is equipped with a system to prevent overcharge. Even if it is further swung
after being fully charged, no malfunction will result.
● It is not necessary to charge the watch fully, as it is charged automatically while it is worn
on your wrist.
● While you walk with your watch on your wrist, swinging your arm will charge the
KINETIC E.S.U. more efficiently than merely swinging the watch by hand.
● Even if the watch is worn on your arm, it will not be charged while your arm is not in
motion.
● Wear the watch daily for at least 8 hours.
● If the watch is worn for 12 hours a day, about 36 hours (one and a half days) of power
reserve will be newly accumulated every day. If the watch is worn for 12 hours a day
over a week, for example, about 10 additional days of power reserve is accumulated.
ENERGY DEPLETION FOREWARNING FUNCTION
● The watch remains accurate even while the second hand is moving at two-second
12
intervals.
INSTANT-START FUNCTION
● If the second hand starts moving at two-second intervals again soon after the watch is
put on your wrist, swing it from side to side until the second hand moves at one-second
intervals, and then, put it on your wrist again.
TIME/CALENDAR SETTING
● For Cal. YT57, do not set the date between 9:00 p.m. and 1:00 a.m. For Cal. YT58, do
not set the day/date between 9:00 p.m. and 3:00 a.m. Otherwise, the calendar may not
change properly. If it is necessary to set the calendar during that time period, first
change the time to any time outside it, set the calendar and then reset the correct time.
● When setting the hour hand, check that AM/PM is correctly set. The watch is so
designed that the calendar changes once in 24 hours.
Turn the hands past the 12 o’clock marker to determine whether the watch is set for
the A.M. or P.M. period. If the calendar changes, the time is set for the A.M. period.
If the calendar does not change, the time is set for the P.M. period.
● When setting the minute hand, advance it 4 to 5 minutes ahead of the desired time and
then turn it back to the exact minute.
● When setting the time, make sure that the second hand is moving at one-second
intervals.
● It is necessary to adjust the date at the end of February and 30-day months.
In this case, pull out the crown to the first click and turn it until the desired date appears.
13
TO PRESERVE THE QUALITY OF YOUR WATCH
WATER RESISTANCE
● Non-water resistant
• If the watch becomes wet, have it checked by an AUTHORIZED
PULSAR DEALER or SERVICE CENTER.
● Water resistant 5/10/15/20 bar
• Before using in water, be sure the crown is pushed in completely.
• Do not operate the crown when the watch is wet or in water. If used
5
bar WR
10/15/20
bar WR
in sea water, rinse the watch in fresh water and dry it completely.
• When taking a shower with the water resistant 5 bar watch, or
taking a bath with the water resistant 10, 15 or 20 bar watch, be
sure to observe the following:
* Do not operate the crown when the watch is wet with soapy water
or shampoo.
* If the watch is left in warm water, a slight time loss or gain may
be caused. This condition, however, will be corrected when the
watch returns to normal temperature.
14
* Pressure in bar is a test pressure and should not be considered as corresponding
to actual diving depth since swimming movement tends to increase the pressure
at a given depth. Care should also be taken on diving into water.
** We recommend that you wear a PULSAR Diver’s Watch for scuba diving.
TEMPERATURES
Your watch works with
+60°C
stable accuracy within a
temperature range of 5°
-10°C
C and 35° C (41° F and
Do not leave your watch in very low
temperatures below –10° C (+14° F)
for a long time since the cold may
cause a slight time loss or gain.
However, the above conditions will
be corrected when the watch returns
to normal temperature.
95° F).
MAGNETISM
Your watch will be
adversely affected by
strong magnetism. Keep
it away from close contact
S
N
with magnetic objects.
CARE OF CASE AND BRACELET
To prevent possible
rusting of the case and
bracelet caused by dust,
moisture and perspiration,
wipe them periodically
with a soft dry cloth.
15
SHOCKS & VIBRATION
Light activities will not
affect your watch, but be
careful not to drop your
watch or hit it against hard
surfaces, as this may
cause damage.
CHEMICALS
Be careful not to expose
the watch to solvents,
mercury, cosmetic spray,
detergents, adhesives or
case, bracelet, etc. may become
discolored, deteriorated or damaged.
16
paints. Otherwise, the
PERIODIC CHECK
It is recommended that the
2 - 3
Years
DEALER or SERVICE CENTER to
ensure that the case, crown, gasket
and crystal seal remain intact.
PRECAUTION REGARDING
CASE BACK PROTECTIVE FILM
watch be checked once
every 2 to 3 years. Have
your watch checked by an
AUTHORIZED PULSAR
If your watch has a
protective film and/or a
sticker on the case back,
be sure to peel them off
before using your watch.
