EN54-7A17
v.1.1
EN54 27,6V/7A/2x17Ah
power supply unit for fire alarm systems
EN**
Edition: 5 from 31.01.2019
Supersedes the edition: 4 from 12.01.2016
www.pulsar.pl EN54-7A17 RED POWER
2
TABLE OF CONTENTS
1. PSU FEATURES: .................................................................................................................................... 4
2. PACKAGE CONTENTS. ....................................................................................................................... 5
3. FUNCTIONAL REQUIREMENTS OF THE PSU. ............................................................................. 6
4. TECHNICAL DESCRIPTION. ............................................................................................................. 7
4.1. GENERAL DESCRIPTION. ....................................................................................................................................................... 7
4.2. BLOCK DIAGRAM .................................................................................................................................................................. 7
4.3. DESCRIPTION OF COMPONENTS AND POWER SUPPLY TERMINALS. ........................................................................................ 8
5. INSTALLATION. .................................................................................................................................. 11
5.1. REQUIREMENTS. ................................ ................................................................ ................................................................ . 11
5.2. INSTALLATION PROCEDURE. ............................................................................................................................................... 12
6. FUNCTIONS. ......................................................................................................................................... 13

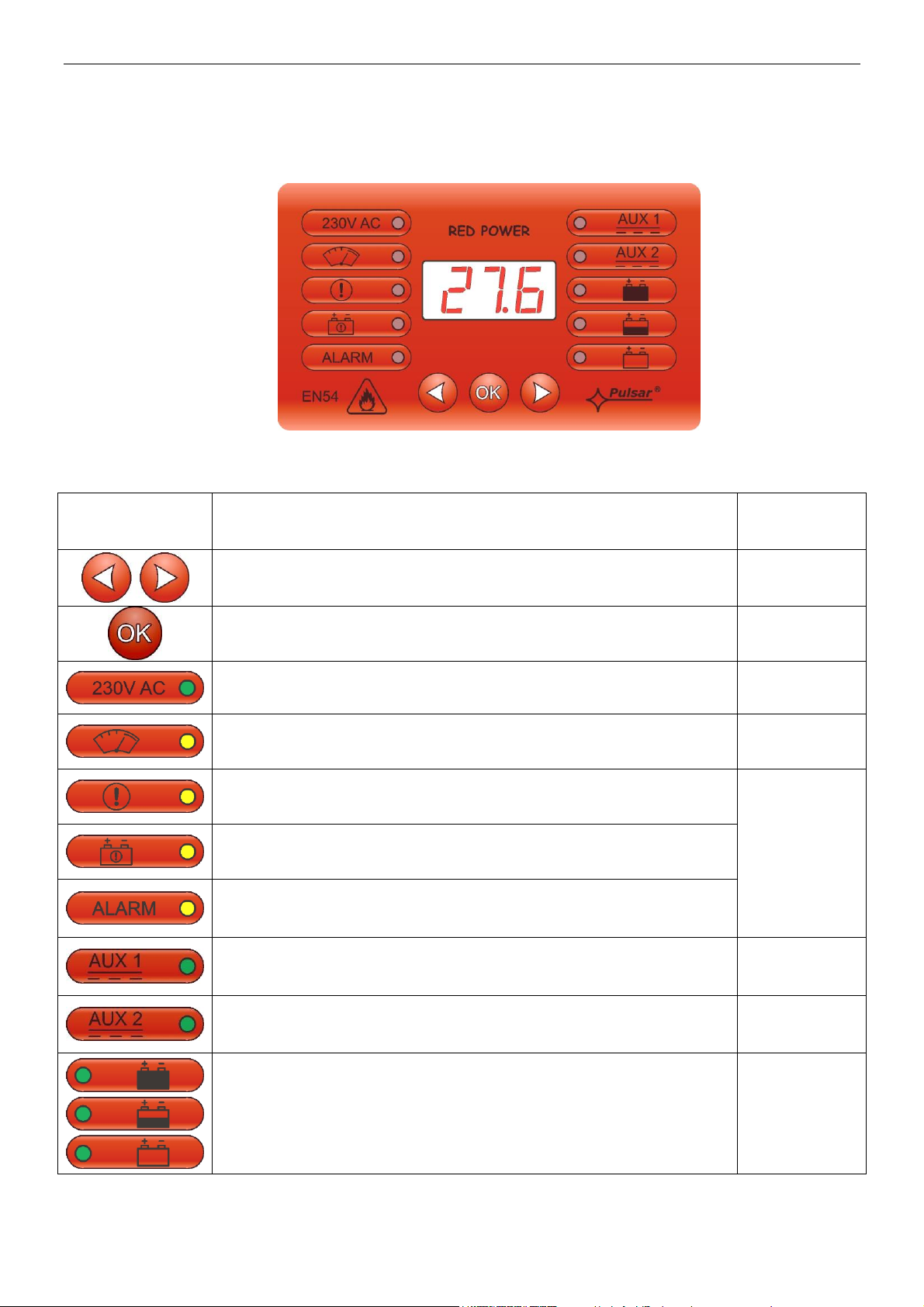

6.1. CONTROL PANEL. ............................................................................................................................................................... 13
6.2. MAIN MENU. ....................................................................................................................................................................... 14
6.2.1. Voltage indicator „Uo1”, „Uo2” ....................................................................................... 15
6.2.2. Total current of the receivers indicator „Io” ........................................................................................... 15
6.2.3. Resistance of the battery circuit indicator „bre” .................................................................................... 15
6.2.4. Battery temperature indicator „t°C” ..................................................................................................... 15
6.2.5. 230 V mains voltage indicator „UAC” .................................................................................................. 15
6.2.6. Failure history “FLh” . ............................................................................................................................ 15
6.2.7. Current failures „FLc” . ......................................................................................................................... 16
6.2.8. List of failure codes and information messages. ........................................................................................................ 17
6.3. PSU CONFIGURATION. ........................................................................................................................................................ 19
6.3.1. Performing battery test „tSt” . ................................................................................................................. 20
6.3.2. EXTo output ON/OFF„Eto” . ................................................................................................................... 21

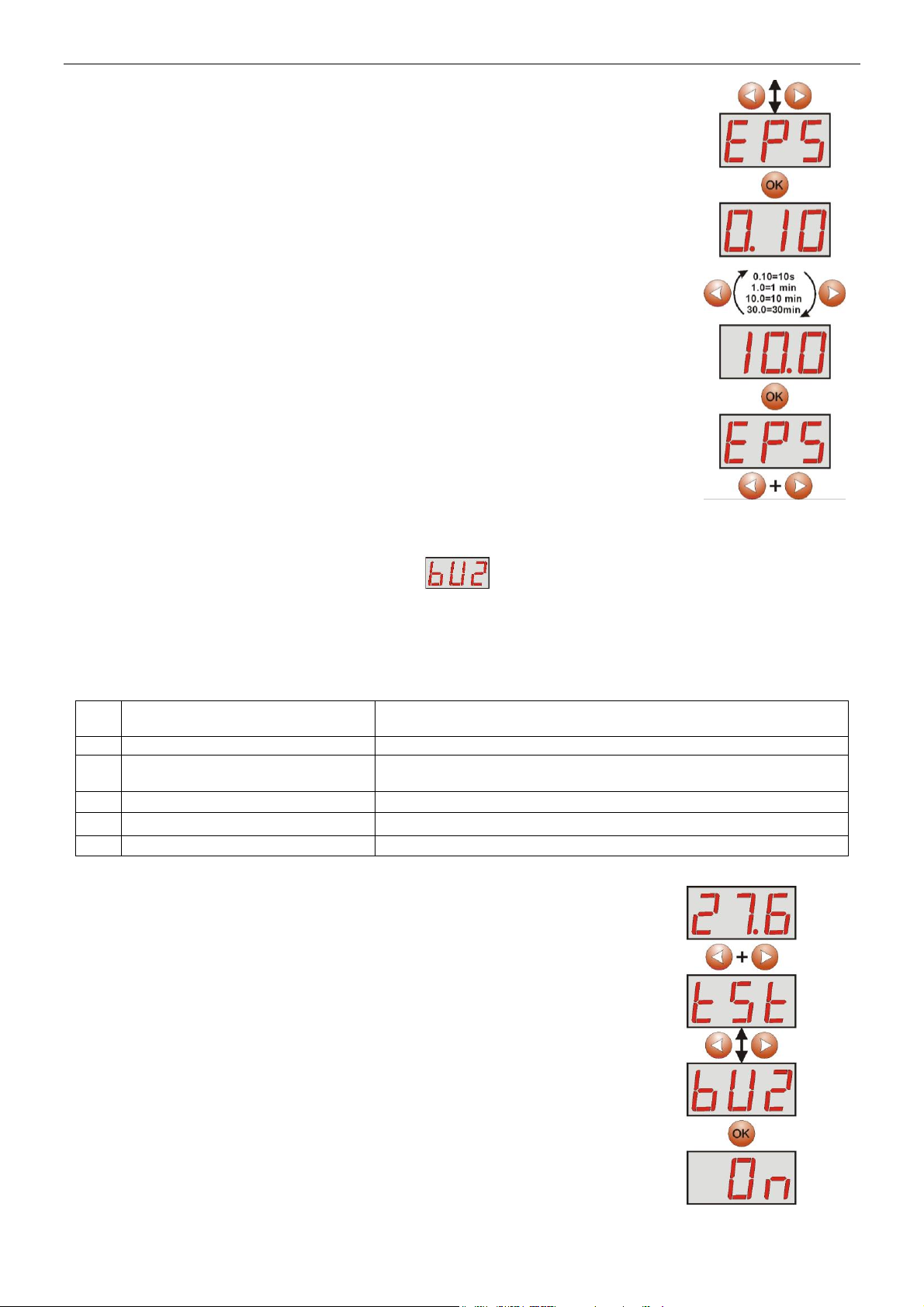

6.3.3. Setting the delay time for EPS output „EPS” . .......................................................................................... 21
6.3.4. Acoustic indication ON/OFF „bUZ" . ....................................................................................................... 22
6.3.5. LED Display Dimmer „dIS" . ................................................................................................................. 23
6.3.6. Setting the communication address Adr” applies to cooperation with PowerSecurity. .................. 24
6.3.7. Setting the transmission speed „trS” applies to cooperation with PowerSecurity.................... 24
6.3.8. Setting the parity of the transmission “trP” applies to cooperation with PowerSecurity ............... 25
6.4. TECHNICAL OUTPUTS. ........................................................................................................................................................ 26
6.5. INPUT OF COLLECTIVE FAILURE: EXTI. .............................................................................................................................. 27
6.6. INDICATION OF THE ENCLOSURE OPENING - TAMPER. ...................................................................................................... 28
6.7. INCREASING THE NUMBER OF OUTPUTS WITH OPTIONAL EN54-LB4 OR EN54-LB8 FUSE MODULES. ................................. 28
6.8. OVERVOLTAGE PROTECTION OF THE PSU OUTPUT OVP. ................................................................................................... 29
6.9. PSU OVERLOAD. ................................................................................................................................................................ 29
6.10. INDICATION OF EXCEEDING IMAX A CURRENT. ................................................................................................................. 29
6.11. SHORT-CIRCUIT OF THE PSU OUTPUT. .............................................................................................................................. 29
7. RESERVE POWER SUPPLY CIRCUIT. .......................................................................................... 30
www.pulsar.pl EN54-7A17 RED POWER
3
7.1. BATTERY DETECTION. ........................................................................................................................................................ 30
7.2. PROTECTION AGAINST SHORT-CIRCUIT OF THE BATTERY TERMINALS. ................................................................................ 30
7.3. PROTECTION AGAINST REVERSE BATTERY CONNECTION. ................................................................................................... 30
7.4. DEEP DISCHARGE BATTERY PROTECTION UVP. .................................................................................................................. 30
7.5. BATTERY TEST. .................................................................................................................................................................. 30
7.6. MEASUREMENT OF THE RESISTANCE OF THE BATTERY CIRCUIT. ........................................................................................ 30
7.7. BATTERY TEMPERATURE MEASUREMENT. .......................................................................................................................... 31
7.8. STANDBY TIME. .................................................................................................................................................................. 31
8. REMOTE MONITORING (OPTIONS: WI-FI, ETHERNET, RS485, USB). ................................ 32
8.1. COMMUNICATION VIA THE USB-TTL INTERFACE. ............................................................................................................. 32
8.2. ETHERNET NETWORK COMMUNICATION. ................................................................ ................................ ........................ 32
8.3. THE WI-FI WIRELESS COMMUNICATION. ............................................................................................................................ 33
8.4. RS485 NETWORK COMMUNICATION. .................................................................................................................................. 34
8.5. „POWERSECURITY” PROGRAM. .......................................................................................................................................... 35
9. TECHNICAL PARAMETERS. ........................................................................................................... 37
Table 12. Electrical parameters. .......................................................................................................................................... 37
Table 13. Mechanical parameters. ....................................................................................................................................... 38
Table 14. Safety of use. ................................................................................................................................ ......................... 38
Table 15. Recommended types and sections of installation cables. ..................................................................................... 38
10. TECHNICAL INSPECTIONS AND MAINTENANCE.................................................................. 39
www.pulsar.pl EN54-7A17 RED POWER
4
1. PSU features:
In accordance with standards: EN 54-4,
EN12101-10
27,6 V DC/ 7 A uninterruptible power supply
battery housing for two 17 Ah/12 V batteries
independently protected outputs AUX1 and AUX2
high efficiency 82%
low level of voltage ripple
microprocessor-based automation system
intelligent PSU overload protection
measurement of the resistance of the battery circuit
automatic temperature-compensated charging
battery test
two-stage battery charging process
accelerated battery charging
monitoring of the continuity of the battery circuit
monitoring of the battery voltage
monitoring of the battery fuse
monitoring of charging and maintenance of the
batteries
deep discharge battery protection (UVP)
battery overcharge protection
battery output protection against short-circuit and
reverse connection
monitoring of the load current
output voltage control
fuse monitoring of AUX1and AUX2 outputs
~230 V mains supply voltage measurement
„SERIAL” communication port with implemented
MODBUS RTU protocol
Power Security" is a free application for remote
monitoring of power supplies (for PC and Android
Phones)
remote monitoring (options: WiFi, Ethernet, RS485,
USB)
remote battery test (additional modules required)
cooperation with optional EN54-LB4 or EN54-LB8
fuse modules
optical indication of PSU overload OVL
acoustic indication of failure
adjustable delay for ~230 V power loss indication
relay output of collective failure ALARM
input of collective failure EXTi
controlled relay output EXTo
technical inputs/outputs with galvanic isolation
EPS technical output indicating ~230 V power loss
PSU technical output indicating PSU failure
APS technical output indicating battery failure
internal memory of PSU operating status
optical indication – LED panel
output current readings
output voltage readings: AUX1, AUX2
resistance of the battery circuit
~230 V mains voltage readings
failure codes with history
protections:
SCP short-circuit protection
OLP overload protection
OHP overheat protection
OVP overvoltage protection
Surge protection
Antisabotage protection - Tamper
closing the enclosure - lock
convection cooling
warranty - 5 years from the production date
www.pulsar.pl EN54-7A17 RED POWER
5
2. Package contents.
Power Supply Unit
User manual
Red mounting spacers – 4 pieces
Red, metal mounting brackets for hanging the power supply – 4 pieces
M8x16 mounting screws – 4 pieces
PG9 cable glands – 4 pieces
PG11 cable glands – 4 pieces
Battery serial connection cable
Keys to lock the power supply– 2 pieces
Cable tie 190x4,8 – 12 pieces
www.pulsar.pl EN54-7A17 RED POWER
6
Functional requirements
Requirements
according to
standards
PSU
EN54-7A17
External Power Supply failure indication
YES
YES
Two independent power supply outputs protected against shortcircuit
YES
YES
Temperature-compensated battery charging
YES
YES
Measurement of the resistance of the battery circuit
YES
YES
Low battery indication
YES
YES
Deep discharge battery protection
YES
YES
Protection against short-circuit of the battery terminals
YES
YES
Battery fuse failure indication
YES
YES
Charging circuit failure indication
YES
YES
Low output voltage indication
YES
YES
High output voltage indication
YES
YES
Indication of power supply failure
YES
YES
Overvoltage protection
YES
YES
Short-circuit protection
YES
YES
Overload protection
YES
YES
Output of collective failure ALARM
YES
YES
EPS technical output
YES
YES
APS technical output
YES
YES
PSU technical output
-
YES
Input of an external failure indication EXTi
-
YES
Controlled relay output EXTo
-
YES
Remote battery test
-
YES
~230 V mains supply voltage measurement
-
YES
Optical indication – LED display
-
YES
Tamper indicating enclosure opening
-
YES
3. Functional requirements of the PSU.
The buffer power supply for fire alarm systems has been designed in accordance with the following
standards:
- EN 54-4:2001 and / A2:2007 Fire detection and fire alarm systems.
- EN 12101-10:2007 Smoke and heat control systems.
www.pulsar.pl EN54-7A17 RED POWER
7
4. Technical description.
4.1. General description.
The buffer power supply has been designed for an uninterrupted supply of fire alarm systems, smoke and
heat control systems, fire protection equipment and fire automatics requiring stabilized voltage of 24 V DC (± 15%).
The PSU is fitted with two independently protected outputs AUX1 and AUX2, which supply voltage of 27,6 V DC
with a total output current:
Continuous operation
Output current Imax a=6 A
Instantaneous operation
Output current Imax b=7 A
In case of power loss, the PSU switches to battery power, providing uninterruptible power supply. The
PSU is enclosed in a metal casing (RAL 3001 - red) with battery housing for two 17 Ah/12 V batteries. The PSU
works with maintenance-free lead acid batteries made with AGM technology or gel technology.
4.2. Block diagram
The PSU has been manufactured based on a high-efficiency system of DC/DC converter. Applied
microprocessor circuit is responsible for the full diagnostics of the PSU parameters and batteries. The figure below
shows a flowchart of the power supply, along with selected functional blocks which are essential for the proper
functioning of the unit.
Fig. 1. PSU block diagram.
www.pulsar.pl EN54-7A17 RED POWER
8
Component
No.
Description
[1]
PANEL – optical indication connector
[2]
BUZZER – acoustic indication (see section 6.3.4)
[3]
V
EXT
jumper – polarization of the EXTi circuit (see section 6.5)
[4]
F
BAT
– fuse in the battery circuit, F10 A / 250 V
[5]
F
AUX1
– fuse in the AUX1 output circuit, F8 A / 250 V
[6]
F
AUX2
– fuse in the AUX2 output circuit, F8 A / 250 V
[7]
SERIAL – communication port
[8]
Z2 jumper - temporary lock of the battery test (see section 7.5)
[9]
OVP – overvoltage protection optical indication (see section 6.8)
[10]
LEDs – optical indication:
AC – AC power
AUX1 – AUX1 output voltage
AUX2 – AUX2 output voltage
OVL – PSU overload
APS – battery failure
PSU – PSU failure
ALARM – collective failure
EXTi – EXTi input status
EXTo – EXTo relay output status
LB – battery charging
[11]
Terminals:
~AC~ – AC power input
EPS FLT – technical output of AC power failure indication
open = AC power failure
closed = AC power - O.K.
PSU FLT – technical output of PSU failure indication
open = failure
closed = PSU operation - O.K.
APS FLT – technical output of battery failure
open = battery failure
closed = battery status - O.K.
ALARM – technical output of collective failure of the PSU
- relay type
CAUTION! In Fig.2 the set of contacts shows
a potential-free status of the relay, which
corresponds to power supply failure.
EXTo – controlled relay output
EXTi – input of collective failure
+BAT- – terminals for connecting the battery
+AUX1- – AUX1 power output
(+AUX1= +U, -AUX=GND)
+AUX2- – AUX2 power output
(+AUX2= +U, -AUX=GND)
[12]
TAMPER – antisabotage protection microswitch connector (see section 6.6)
[13]
Connector– for connecting the EMC filter
4.3. Description of components and power supply terminals.
Table 1. Components of the Power supply PCB (Printed Circuit Board) (Fig. 2).
Fig. 2. The view of the PSU’s PCB.
www.pulsar.pl EN54-7A17 RED POWER
9
Component
No.
Description
F
MAINS
fuse in the power supply circuit 230 V, T6,3 A / 250 V
L-N power supply connector 230 V, protective connector
Connector– for connecting the PSU.
Table 2. Components of the PCB of the EMC filter (Fig. 3).
Fig. 3. The view of the EMC filter.
www.pulsar.pl EN54-7A17 RED POWER
10
Component
No.
Description
[1]
Isolation transformer
[2]
Printed Circuit Board (see Table 1, Fig. 2)
[3]
Battery temperature sensor.
[4]
Space to install an additional module:
“INTR”, “INTE”, “INTW”
[5]
Place to install the EN54-LB4 or EN54-LB8 fuse module
[6]
TAMPER; microswitch (contacts) of antisabotage protection (NC)
[7]
EMC filter module (see Table 2, Fig. 3)
[8]
2x17 Ah batteries
[9]
Embossing for cable gland
[10]
Embossing for cable gland (WiFi antenna or cable communication interface)
[11]
Embossings for concealed wires
[12]
Lock
[13]
Battery connectors; positive: +BAT = red, negative: - BAT = black
Table 3. Elements of the PSU (Fig. 4).
Fig.4. The view of the PSU.
www.pulsar.pl EN54-7A17 RED POWER
11
5. Installation.
5.1. Requirements.
The PSU is to be mounted by a qualified installer, holding relevant permits and licenses (applicable and
required for a given country) for ~230 V in and low-voltage installations.
As the power supply is designed for a continuous operation and is not equipped with a powerswitch, therefore, an appropriate overload protection in the power supply circuit should be provided. Moreover, the
user should be informed how to disconnect the power supply unit from the mains supply (usually by assigning an
appropriate fuse in the fuse box). The electrical system shall be made in accordance with applicable standards
and regulations. The power supply should operate in a vertical position in order to provide free and
convectional air flow through ventilating holes of the casing.
As the PSU performs a periodic battery test, measuring the resistance of connections, special attention
should be paid to the proper connection of the cables to the batteries. Installation cables should be firmly
connected to the battery side terminals and to the power supply connector. If necessary, it is possible to
permanently disconnect the battery from the power supply systems by removing the F
The side walls of the housing include the embossings, which should be used to carry out installation
cables. Use a blunt instrument to make an opening for cable gland from the outside of the housing. Then, carefully
mount the cable gland, protecting the PSU from water penetration, in the opening.
BAT
fuse.
Fig. 5. The method of forming an opening for cable gland.
The PSU is fitted with PG9 and PG11 cable glands. Gland size should be chosen depending on the crosssection of the cable. Single cable gland can be used for only one wire.
Fig. 6. Recommended types and sections of installation cables PG9 and PG11 for cable glands.
www.pulsar.pl EN54-7A17 RED POWER
12
CAUTION!
Before installation, cut off the voltage in the 230 V power-supply circuit.
To switch power off, use an external switch, in which the distance between the contacts of
all poles in the disconnection state is not less than 3mm
Environmental class PN-EN 12101-10:2007
2
Operating temperature
-5 ºC...+75 ºC
Storing temperature
-25 ºC...+60 ºC
Relative humidity
20 %...90 %, no condensation
Sinusoidal vibrations during operation:
10 ÷ 50 Hz
50 ÷ 150 Hz
0,1 G
0,5 G
Surges during operation
0,5 J
Direct insolation
unacceptable
Vibrations and surges during transport
According to the PN-83/T-42106 standard
Delay time for EPS technical output
indicating AC power loss
10s
section 6.3.3
Acoustic indication
ON
section 6.3.4
LED display dimmer
OFF
section 6.3.5
EXTo output
OFF
section 6.3.2
Communication address
1
section 6.3.6
Transmission
115.2k 8E1
section 6.3.7 and 6.3.8
5.2. Installation procedure.
It is required to install an installation switch with a nominal current of min. 3A in the power supply circuits
outside the power supply unit.
1. Mount the PSU in a selected location with use of special metal expansion bolts. Do not use PVC dowels.
2. Connect the power cables (~230 V) to the L-N terminals of the PSU. The cable length inside the housing
should not exceed 10 cm. Connect the ground wire to the terminal marked with grounding symbol. Use a
three-core cable (with a yellow and green protection wire) to make the connection.
The shock protection circuit shall be done with a particular care: the yellow and green wire coat of
the power cable should be connected to the terminal marked with the grounding symbol on the
PSU enclosure. Operation of the PSU without the properly made and fully operational shock protection
circuit is UNACCEPTABLE! It can cause damage to the equipment or an electric shock.
3. Connect the receivers’ cables to the AUX1 and AUX2 output terminals on the PSU board.
4. If needed, connect the cables from the devices to the technical inputs and outputs:
- ALARM; technical output of collective failure of the PSU
- EPS FLT; technical output of AC power loss indication
- PSU FLT; technical output of PSU failure.
- APS FLT; technical output of the battery failure.
- EXTi; input of collective failure
5. Install the batteries in a designated area of the enclosure (see Fig. 4). Connect the batteries with the PSU
paying special attention to the correct polarity. Batteries must be connected in series using the special
cable (included). Attach the temperature sensor to any of the batteries with mounting tape (included).
6. Switch on the ~230 V supply. The corresponding LEDs on the power supply PCB should be ON: green AC
and green AUX1 and AUX2. Green LB LED should light up while charging.
7. Check the current consumption of the receivers, taking into account the battery charging current, so as not
to exceed the total current efficiency of the PSU (see section 4.1).
8. Once the tests are completed, close the enclosure.
Table 4. Operation parameters.
Table 5. Factory settings of the PSU.
www.pulsar.pl EN54-7A17 RED POWER
13
Description
Additional
information
- moves the pointer on the screen
- next screen selection
- selection approval
- green LED indicating ~230 V voltage
- yellow LED indicating exceeding the Imax a current or power supply
overload
section
6.9, 6.10
- yellow LED indicating PSU failure
section
6.2.3
- yellow LED indicating battery failure
- yellow LED ALARM indicating collective failure
- green LED AUX1 indicating power at the AUX 1 output of the PSU
- green LED AUX2 indicating power at the AUX 2 output of the PSU
- three green LEDs indicating approximate battery charge level
6. Functions.
6.1. Control Panel.
The PSU features a panel with buttons and LED display, enabling reading of all the available electrical
parameters. The panel buttons are used to select and confirm the parameters, which should be displayed.
Fig. 7. Control panel.
Table 6. The description of the buttons and LEDs of the LED panel.
www.pulsar.pl EN54-7A17 RED POWER
14
Symbol
Description
Additional information
AUX1 output voltage [V]
Factory setting: 27,6 V @ 20 °C
AUX2 output voltage [V]
Factory setting: 27,6 V @ 20 °C
Total current of the receivers [A]
Io = I
AUX1
+ I
AUX2
Resistance of the battery circuit [Ω]
Section 7.6
Battery temperature [°C]
Section 7.7
Mains supply voltage [V]
230 V mains supply voltage indication
Failure history
Section 6.2.6
Current failures
Section 6.2.7
6.2. Main menu.
The PSU is equipped with a menu, which allows to preview the current electrical parameters. Diagram
explaining the menu structure is presented below
Fig. 8. Menu of the display.
Table 7. The description of display symbols.
www.pulsar.pl EN54-7A17 RED POWER
15
6.2.1. Voltage indicator „Uo1”, „Uo2”
Voltage indicator displays the measured output voltage at the AUX1 and AUX2 outputs. If the voltage drops
below 26 V or exceeds 29.2 V, the PSU will indicate a failure.
The resolution of voltage measurement is 0.1 V and should be treated with caution. If a greater accuracy is
required, use a multimeter.
6.2.2. Total current of the receivers indicator „Io”
Total output current indicator displays the measured output current drawn from the AUX1 and AUX2
outputs. If the value of total current is exceeded, the power supply unit will indicate a failure.
Io = IAUX1 + IAUX2
The resolution of current measurement is 0.1 A and should be treated with caution. If a greater accuracy is
required, use a multimeter.
6.2.3. Resistance of the battery circuit indicator „bre”
Resistance of the battery circuit indicator displays the measured resistance of the battery circuit of the
PSU. The resistance value is affected by:
- The quality of the batteries
- The quality of the battery cables and connections
- The quality of the FBAT fuse
If the resistance value increases above 300 mΩ, the power supply unit will indicate a failure.
The measurement result is displayed with a resolution of 0.01 ohm.
6.2.4. Battery temperature indicator „t°C”
Battery voltage indicator displays the measured temperature of the batteries. The temperature is used by
the automatic control system for compensation of the battery charging voltage.
The measurement result is displayed with a resolution of 1°C.
6.2.5. 230 V mains voltage indicator „UAC”
230 V mains voltage indicator displays the measured mains voltage at the ~230 V mains terminals. If the
voltage drops below 195 V AC or exceeds 254 V AC, the power supply unit will indicate a failure.
The resolution of current measurement is 1 V and should be treated with caution. If a greater accuracy is required,
use a multimeter.
6.2.6. Failure history “FLh” .
The PSU remembers 30 last failures in non-volatile memory, which can be reviewed later.
In order to review the failures, use the "<" or ">" button to set the FLh parameter and confirm by pressing "OK".
The display will show the number of failure in the memory and its code. Pressing the "OK" button again will display
next failure in the memory.
The memory of the new power supply remembers the events that are the result of the efficiency tests
carried out at the production stage.
- press „<” or „>” button to set the „FLh” parameter on the display
www.pulsar.pl EN54-7A17 RED POWER
16
- press „OK” button
- number 1, indicating the number of failure in the memory (the highest priority),
will be displayed. Then, after one second, failure code will be displayed automatically
- press „OK” button
- the number 2, denoting the next number of failure in the memory, will be displayed. Then,
after one second, the next failure code will be displayed automatically
- if the memory has more failures, pressing the "OK" button will result
in displaying subsequent codes
- The „- - -„ parameter on the display marks the end of the list of failures
6.2.7. Current failures „FLc” .
In case of abnormal electrical parameters, the power supply provides optical and acoustic indication of the
failure via corresponding LED and a beeper (if not disabled).
The PSU can simultaneously indicate several failures. Thanks to this solution, codes of all failures and their
priority can be previewed in the FLc menu. In the FLc menu, each press of the "OK" button on the panel displays
the next error code that caused the failure. If there are multiple failures at the same time, pressing the "OK" button
will display the next code. The display order of failures is arranged by priority of importance. The first failures in the
display order are of the highest priority.
Section 6.2.8. summarizes all the failure codes that may occur during the power supply operation. The
individual codes are accompanied by appropriate optical indication on the panel, acoustic indication and activation
of the dedicated technical output.
- press „<” or „>” button to set the „FLc” parameter on the display
- press „OK” button
- the number 1, indicating the number of failure in the memory (the highest priority),
will be displayed. Then, after one second, failure code will be displayed automatically
www.pulsar.pl EN54-7A17 RED POWER
17
Failure
code
Information
Technical
output
activation
Causes
Additional
information
F01
AC power fail!
EPS FLT
ALARM
- No AC mains supply
- F
MAIN
fuse failure
F02
AUX1 fuse fail!
PSU FLT,
ALARM
- Blown F
AUX1
fuse
AUX2 fuse fail!
- Blown F
AUX2
fuse
F03
BAT fuse fail!
APS FLT,
ALARM
- Blown F
BAT
fuse
- Short circuit in the battery circuit
- Short circuit in the AUX output circuit
F04
Output overload!
PSU FLT,
ALARM
- PSU overload
Section 6.9
F05
Battery
undercharged!
APS FLT,
ALARM
- Spent batteries
- Undercharged batteries
Section 7
F06
High AUX1
voltage!
PSU FLT,
ALARM
- Output voltage over 29.2 V
High AUX2
voltage!
F08
Charge circuit fail!
PSU FLT,
ALARM
- The output voltage of the PSU set too low , below
26 V
- Battery charging circuit failure
F09
Low AUX1
voltage!
PSU FLT,
ALARM
- Output voltage below 26 V
Low AUX2
voltage!
F10
Low battery
voltage!
APS FLT,
ALARM
- The battery voltage has dropped below 23 V
(during battery-assisted operation
F11
Low battery volt. –
off!
APS FLT,
ALARM
- the battery voltage has dropped below 20 V
(during battery-assisted operation)
Section 7.4
F12
External input
EXTi!
ALARM
- Activation of the input of collective failure: EXTi
Section 6.5
F14
Temp. sensor
fault!
PSU FLT,
ALARM
- Faulty temperature sensor
- Temperature sensor disconnected
Section 7.7
- press „OK” button
- the number 2, denoting the next number of failure in the memory, will be displayed.
Then, after one second, the next failure code will be displayed automatically
- if the memory has more failures, pressing the "OK" button will result in displaying subsequent
codes
- The „- - -„ parameter on the display marks the end of the list of failures
6.2.8. List of failure codes and information messages.
The PSU indicates the operation status with the appropriate code. The codes are divided into two
groups,marked with the initial letters "F" or "I”.
The codes beginning with the letter "F" indicate a failure. The codes that begin with the letter "I" indicate the
correct operation of the PSU or repaired fault, involving, for example, fuse replacement: "I03 - BAT fuse replaced”.
Table 8. List of PSU failure codes.
www.pulsar.pl EN54-7A17 RED POWER
18
F15
High battery
temp.!
PSU FLT,
ALARM
- Too high ambient temperature of the PSU.
- Overloaded batteries.
- Faulty batteries.
Section 7.7
F16
No battery!
APS FLT,
ALARM
- Disconnected batteries
Section 7.1
F17
Battery fail!
APS FLT,
ALARM
- Deeply discharged batteries, voltage below 20 V
Section 7
F18
High batt. circuit
resist.!
APS FLT,
ALARM
- Spent batteries
- Loose cables connecting the batteries
Section 7.6
F19
High AC voltage!
PSU FLT,
ALARM
- Mains supply over 254 V AC
Section 6.2.5.
F20
Low AC voltage!
PSU FLT,
ALARM
- Mains supply below 195 V AC
Section 6.2.5.
F21
PSU cover
opened!
PSU FLT,
ALARM
Section 6.6
F50-
F54
Internal supply
fail!
PSU FLT,
ALARM
- service codes
F60
No
communication
PSU FLT,
ALARM
- no communication with LCD panel
F61-
F64
Control panel fail
PSU FLT,
ALARM
- service codes
F65
Access unlocked
- passwords unlocked
Message
code
Description
I00
Power supply start-up
I01
AC power back
I02
AUX fuse replaced
AUX2 fuse replaced
I03
BAT fuse replaced
I04
Battery connected
I05
Battery OK
I06
Battery temperature OK
I07
AC voltage OK
I08
EXTo output ON
I09
EXTo output OFF
I10
Battery test – START
I11
PSU cover closed
I12
Imax_a over limit
I13
Iaux decr. below Imax_a
Table 9. List of PSU message codes.
www.pulsar.pl EN54-7A17 RED POWER
19
6.3. PSU configuration.
The PSU is equipped with a configuration menu that allows to configure the settings by changing or the
activation of some of its parameters. The figure illustrating the configuration menu structure is shown below.
Fig. 9. The PSU configuration menu.
www.pulsar.pl EN54-7A17 RED POWER
20
Symbol
Description
Additional
information
Battery test – „tSt”
On – battery test activation
Sections
6.3.1 and 7.5
EXTo output – „Eto”
On – relay on
OFF – relay off
Section
6.3.2
EPS output delay – „EPS”
Setting the delay time for AC power failure indication:
0.10 - 10s (factory setting)
1.0 - 1min
10.0 - 10min
30.0 - 30min
Section
6.3.3
Acoustic indication – „bUZ”
On – acoustic indication on
OFF – acoustic indication off
Section
6.3.4
LED display dimmer
On – dimmer ON
OFF – dimmer OFF
Section
6.3.5
Communication address – „Adr”
1÷ 247 power supply address required at the time of
communication with the computer
1 – factory setting
Section
6.3.6
Transmission – „trS”
Determines the speed of communication
9.6k
:
115.2k (factory setting)
Section
6.3.7
Parity of the transmission – „trP”
Determines the method of communication
8N2
8E1 (factory setting)
8O1
Section
6.3.8
Table 10. Description of symbols.
6.3.1. Performing battery test „tSt” .
The "tSt" menu activates the test of the batteries (see section 7.5) connected to the power supply. If the
test is negative, it is indicated by the appropriate message, acoustic indication and activation of the APS FLT and
ALARM technical outputs.
- simultaneously press the „<,>” rightmost and leftmost buttons on the LED panel
- The „tSt” parameter will be displayed
- press „OK”
- The „On” parameter will be displayed
- press „OK”
- The information about activation of the battery test will be displayed
- once the test is finished, the „tSt” parameter will be displayed
- in order to return to the main menu, simultaneously press the „<,>” rightmost and leftmost
buttons on the LED panel
www.pulsar.pl EN54-7A17 RED POWER
21
6.3.2. EXTo output ON/OFF„Eto” .
Controlled relay output EXTo (external output) does not depend on the operation of the power
supply unit and can be switched independently of its work.
The EXTo output can be used for switching between controlling, resetting and supplying inputs/outputs in
low-voltage electrical circuits.
Changes in the EXTo output can be made locally from the panel (see section 6.3.2) or remotely using the
PowerSecurity application.
Information about the changes in the EXTo output is written in the event log of the PSU.
- simultaneously press the „<,>” rightmost and leftmost buttons on the LED panel
- the „tSt” parameter will be displayed
- use the „<” or „>” buttons to display the „Eto” parameter
- press „OK”
- The current status of the relay will be displayed
- use the „<” or „>” buttons to in order to set the status
On – relay on
OFF – relay off
- press „OK” – relay output status is changed
- in order to return to the main menu, simultaneously press the „<,>”
rightmost and leftmost buttons on the LED panel
6.3.3. Setting the delay time for EPS output „EPS” .
The PSU features adjustable delay for 230 V power loss indication. The delay time can be selected from
the four available ranges:
- 10s (factory setting)
- 1min
- 10min
- 30min
230 V power loss is indicated by the activation of the “EPS FLT” and „ALARM” technical output.
- simultaneously press the „<,>” rightmost and leftmost buttons on the LED panel
- The „tSt” parameter will be displayed
www.pulsar.pl EN54-7A17 RED POWER
22
No.
Description
Event
1
1 signal every 10s, battery mode
230 V power failure
2
1 signal every 10s, mains
operation
Battery failure, undercharged batteries
3
2 signals every 10s, battery mode
Low battery level
4
Fast signals, battery mode
The PSU will be disconnected because of the battery discharge
5
Constant indication
PSU failure [see section 6.2.8]
- use the „<” or „>” buttons to display the „EPS” parameter
- press „OK”
- The current status will be displayed
- use the „<” or „>” buttons in order to set the delay time
0.10 - 10s (factory setting)
1.0 - 1min
10.0 - 10min
30.0 - 30min
- confirm by pressing "OK"
- in order to return to the main menu, simultaneously press the „<,>” rightmost and leftmost
buttons
6.3.4. Acoustic indication ON/OFF „bUZ" .
Emergency situations that may arise during the operation of the PSU are
indicated acoustically. The frequency and number of signals depend on the type of event.
Table 11. Acoustic indication.
- simultaneously press the „<,>” rightmost and leftmost buttons on the LED panel
- The „tSt” parameter will be displayed
- use the „<” or „>” buttons to display the „bU2” parameter
- press „OK”
- The current status will be displayed
www.pulsar.pl EN54-7A17 RED POWER
23
- use the „<” or „>” buttons in order to set the status
On – acoustic indication on
OFF – acoustic indication off
- confirm by pressing "OK"
- in order to return to the main menu, simultaneously press the „<,>” rightmost and leftmost
buttons
6.3.5. LED Display Dimmer „dIS" .
LED display dimmer allows to dim the display if no buttons are pressed within 5 minutes.If the display is in
the blackout mode, pressing any button will "reactivate" the display.
- simultaneously press the „<,>” rightmost and leftmost buttons on the LED panel
- the „tSt” parameter will be displayed
- use the „<” or „>” buttons to display the „dIS” parameter
- press „OK”
- The current status will be displayed
- use the „<” or „>” buttons in order to set the status
On – dimmer on
OFF – dimmer off
- confirm by pressing "OK"
- in order to return to the main menu, simultaneously press the „<,>” rightmost and leftmost
buttons
www.pulsar.pl EN54-7A17 RED POWER
24
6.3.6. Setting the communication address Adr” applies to cooperation with
PowerSecurity.
All power supplies are factory-set to address 1.
All the parameters responsible for communication between the PSU and the computer, namely the
address, parity and speed should have the same settings for both the PSU and the PowerSecurity program.
Communication address allows to identify power supply units in the same communication network.
- simultaneously press the „<,>” rightmost and leftmost buttons
- The „tSt” parameter will be displayed
- use the „<” or „>” buttons to display the „Adr” parameter
- press „OK”
- The current address of the PSU will be displayed
- use the „<” or „>” buttons in order to set the address
1÷ 247 – address of the PSU during the communication with the computer
- confirm by pressing „OK”
- in order to return to the main menu, simultaneously press the „<,>” rightmost and leftmost
buttons
6.3.7. Setting the transmission speed „trS” applies to cooperation with
PowerSecurity.
All the parameters responsible for communication between the PSU and the computer, namely the
address, parity and speed should have the same settings for both the PSU and the PowerSecurity program.
The PSU has preset transmission parameters of 115200 baud 8E1; if these values were changed, they
should be restored to original settings.
- simultaneously press the „<,>” rightmost and leftmost buttons
- The „tSt” parameter will be displayed
www.pulsar.pl EN54-7A17 RED POWER
25
- use the „<” or „>” buttons to display the „trS” parameter
- press „OK”
- The information about the transmission speed will be displayed
- use the „<” or „>” buttons in order to set the required transmission speed,
- 9.6k
:
- 115.2k (factory setting)
- confirm by pressing „OK”
- in order to return to the main menu, simultaneously press the „<,>” rightmost and leftmost
buttons
6.3.8. Setting the parity of the transmission “trP” applies to cooperation with
PowerSecurity
All the parameters responsible for communication between the PSU and the computer, namely the
address, parity and speed should have the same settings for both the PSU and the PowerSecurity program.
The PSU has preset transmission parameters of 115200 baud 8E1; if these values were changed, they
should be restored to original settings.
- simultaneously press the „<,>” rightmost and leftmost buttons
- The „tSt” parameter will be displayed
- use the „<” or „>” buttons to display the „trP” parameter
- press „OK”
- The information about the parity of the transmission will be displayed on the panel
- use the „<” or „>” buttons in order to set the required communication mode,
- 8N2
- 8E1 (factory setting)
- 8O1
- confirm by pressing „OK”
- in order to return to the main menu, simultaneously press the „<,>” rightmost and leftmost
Buttons
www.pulsar.pl EN54-7A17 RED POWER
26
6.4. Technical outputs.
The PSU is equipped with galvanically isolated indication outputs changing status after a specified event:
EPS FLT – output indicating 230 V power loss.
The output indicates 230 V power loss. Under normal status – with the 230 V supply on, the output is closed. In
case of power failure, the PSU will switch the output into the open position after a time lag determined in the „EPS”
configuration menu (see section 6.3.3, Table 10).
APS FLT – output indicating battery failure.
The output indicates a failure in the battery circuit. Under normal status (during correct operation) the
output is closed. In case of failure, the PSU will switch the output into the open position. Failure can be triggered by
the following events:
- faulty batteries
- undercharged batteries
- disconnected batteries
- high resistance of the battery circuit
- battery voltage below 23 V during battery-assisted operation
- battery fuse failure
- no continuity in the battery circuit
PSU FLT – output indicating PSU failure.
The output indicates the PSU failure. Under normal status (during correct operation) the output is closed. In
case of PSU failure, it will switch into the open position. Failure can be triggered by the following events:
- U
- U
AUX1, AUX2
AUX1, AUX2
- battery charging circuit failure
- blown F
- activation of overvoltage protection OVP
- mains supply voltage over 254 V AC
- mains supply voltage below 195 V AC
- to high battery temperature (>65 °C)
- temperature sensor failure, t < -20 °C or t > 80 °C
- enclosure opening - TAMPER
- internal damage of the PSU
The technical outputs have been made with galvanic isolation between the PSU’s systems and the
attached devices.
output voltage below 26 V
output voltage over 29,2 V
AUX1
or F
fuse - exceeding the rated current of the PSU
AUX2
Fig. 10. Electrical diagram of technical outputs.
ALARM - technical output of collective failure indication.
Output indicating collective failure. In the case of failure at any EPS, APS, or PSU output or at the EXTi
input, the collective failure signal ALARM will be generated.
CAUTION! In Fig.2 the set of contacts shows a potential-free status of the relay, which
corresponds to power supply collective failure of the PSU.
www.pulsar.pl EN54-7A17 RED POWER
27
6.5. Input of collective failure: EXTi.
The EXT IN (external input) technical input indicating collective failure is intended for additional, external
devices that generate the failure signal. The voltage appearing at the EXT IN input will trigger PSU failure, storing
the information about the event in the internal memory and sending the signal about the failure to the ALARM
output.
The EXT IN technical input has been made with galvanic isolation between the PSU’s systems and the
attached devices.
Fig. 11. Electrical diagram of the EXT IN input.
The connection of external devices to the EXT IN input is shown in the electrical diagram below. OC
outputs (open collector) or relay outputs can be used as the source of the signal.
Fig. 12. Examples of connections.
In the option with external switch, the V
jumper, which polarises the EXT IN input circuit and is
EXT
required in such configuration, must be on.
The EXTi input has been adjusted to work with fuse modules generating a failure signal in case of a fuse
fault in any of output sections (see section 6.7). To guarantee a correct cooperation between the fuse module and
the EXTi input, the connections shall be made as presented in the diagram below and the V EXT jumper must be
on.
Fig. 13. Example of a connection with the fuse module EN54-LB8.
www.pulsar.pl EN54-7A17 RED POWER
28
6.6. Indication of the enclosure opening - TAMPER.
The PSU is fitted with the microswitch tamper indicating enclosure opening.
The tamper cable is not connected to the terminal in the factory settings. In order to activate tamper,
remove the jumper from tamper terminal (Fig. 2 [12]) and plug in the tamper cable.
Each opening the enclosure will generate a failure signal at the PSU FLT and ALARM technical outputs
and will save the event in the internal memory of the PSU.
6.7. Increasing the number of outputs with optional EN54-LB4 or EN54-LB8 fuse
modules.
The PSU has two independently protected outputs for connecting the AUX1 and AUX2 receivers.
If the power supply unit is connected with more receivers, then it is recommended to secure each of them with
independent fuse. This solution will protect the power supply system, while the damage to only one receiver (shortcircuit on the line) could cause damage to other receivers connected to the same output.
The solution is provided by the optional fuse module EN54-LB4, 4-channel or EN54-LB8, 8-channel, while
its mounting location is provided within the housing (see Fig. 4). The figure below shows the connection between
the power supply, fuse module and receivers.
Fig.14. The connection of fuse module.
When installing the fuse module in the PSU, power supply current consumption, used for the
calculation of standby time (see section 7.8), should be taken into account.
Depending on the version, fuse module allows to connect 4 or 8 receivers to the PSU. Output state is indicated by
green LEDs.
Blown fuse is indicated as follows:
- corresponding LED turns off: L1 for AUX1 etc.
- red LED on
- PSU technical output on (Hi-Z state)
- switching PSU relay output into voltage free status (contacts as shown in the Fig.14).
In addition, blown fuse signal is transmitted to the input of collective failure EXTi (ALARM) and saved in the
internal memory of PSU.
The PSU’s relay output can also be used for remote control, including external optical indication.
www.pulsar.pl EN54-7A17 RED POWER
29
6.8. Overvoltage protection of the PSU output OVP.
In case of voltage exceeding 30,5 V±0.5 V at the switching regulator’s output, the system cuts off
the power at the outputs to protect the battery and the receivers from damage. The outputs will be batterypowered. The activation of the protection system is indicated by the OVP yellow LED on the PCB board, and the
PSU FLT and ALARM outputs.
6.9. PSU overload.
The PSU is fitted with the LED OVL (overload) on the PCB and indicator on the LED panel,
informing about output overload. If the nominal current of the PSU is exceeded, the led turns on and the
microprocessor starts a specially implemented procedure. Depending on time and overload level,
microprocessor may disconnect the AUX1 and AUX2 outputs and switch into the battery-assisted operation.
Restart will occur after 1 minute.
PSU overload is indicated by the PSU FLT and ALARM technical outputs.
6.10. Indication of exceeding Imax a current.
Exceeding the "Imax a" output current during the power supply operation is indicated by the
microprocessor using the LED OVL light (overload) on the PCB and LED indicator light on the LED panel
of the power supply after 30 seconds.
Information about exceeding the „Imax a” current is stored in the history of events. Battery charge current is
limited in order to protect the power supply against overload.
6.11. Short-circuit of the PSU output.
In case of short-circuit of the AUX1 or AUX2 output, one of the fuses - F
permanently blown. The restoration of the voltage at the output requires the replacement of the fuse
AUX1
or F
– becomes
AUX2
www.pulsar.pl EN54-7A17 RED POWER
30
7. Reserve power supply circuit.
The PSU is fitted with intelligent circuits: battery charging circuit with the function of the accelerated
charging and battery control, which main task is to monitor the condition of the batteries and the connections in the
circuit.
If the controller detects a power failure in the battery circuit, appropriate indication and activation of the APS
FLT and ALARM technical outputs takes place.
7.1. Battery detection.
The control unit of the PSU checks the voltage at the battery terminals and, depending on the measured
values, determines the appropriate reaction:
U
below 4 V - batteries not connected to the PSU circuits
BAT
U
= 4 to 20 V - faulty batteries
BAT
U
over 20 V - batteries connected to the PSU circuits
BAT
7.2. Protection against short-circuit of the battery terminals.
The PSU is fitted with the circuit protecting against short-circuit of the battery terminals. In case of short
circuit, control circuit immediately disconnects the batteries from the rest of the power supply circuit, so the loss of
output voltage on power supply outputs is not observed. Automatic reconnection of the batteries to the PSU's
circuits is only possible after the removal of the short-circuit and correct connection of the circuits.
7.3. Protection against reverse battery connection.
The PSU is protected against reverse connection of the battery terminals. In case of incorrect connection,
the F
the fuse and correct connection of the batteries.
the battery terminals drops below 20 V±0.2 V during battery-assisted operation, acoustic indication will be activated
and the batteries will be disconnected within 15s.
restored.
electrical parameters according to the implemented measuring method.
increases above 300 mΩ or if the terminal voltage drops below 24 V.
replaced batteries.
undercharging. The protection involves blocking the ability to perform test for 60 seconds from the last activation.
The battery test will also be automatically locked when the PSU is in the operating mode, in which the battery test
is impossible. Such condition occurs, for example, during battery assisted operation or when the power supply is
overloaded.
into account the key parameters in the circuit,and once the limit value of 300m ohms is exceeded, a failure is
indicated.
fuse in the battery circuit becomes blown. The return to normal operation is possible only after replacing
BAT
7.4. Deep discharge battery protection UVP.
The PSU is fitted with the disconnection system and the battery discharge indication. If the voltage at
The batteries are reconnected to the power supply unit automatically once the ~230 V mains supply is
7.5. Battery test.
The PSU runs battery test every 5 minutes. During testing, the control unit of the PSU measures the
A negative result occurs when the battery circuit continuity is interrupted, resistance in the battery circuit
The battery test can be activated manually from the main menu (see section 6.3.1), for example to test the
The PSU is protected against too frequent performing of the battery test, which could result in
This function can be disabled by putting the Z2 jumper on the power supply board (Fig.2 [8]).
7.6. Measurement of the resistance of the battery circuit.
The PSU is checking the resistance in the battery circuit. During the measurement, the PSU driver takes
A failure may indicate considerable wear or loose cables connecting the batteries.
www.pulsar.pl EN54-7A17 RED POWER
31
7.7. Battery temperature measurement.
The PSU has a temperature sensor to monitor the temperature parameters of installed batteries. The sensor is
located near the batteries; hence, temperature readings should not be confused with the ambient temperature.
Temperature measurement and compensation of the battery charging voltage can extend the life of the
batteries.
7.8. Standby time.
Battery-assisted operating depends on battery capacity, charging level and load current. To maintain an
appropriate standby time, current drawn from the PSU in battery mode should be limited.
Required, minimum battery capacity to work with the PSU can be calculated with the following formula:
Q
= 1.25 ﴾ ﴾Id + Iz﴿ •Td + ﴾Ia + Iz﴿ •Ta + 0.05 Ic ﴿
AKU
where:
Q
– The minimum battery capacity [Ah]
AKU
1.25 – the factor related to the decrease in battery capacity due to aging
Id – the current drawn by the load during inspection [A]
Iz – PSU current consumption [A]
Td – required inspection time [h]
Ia – the current drawn by the load during an alarm [A]
Ta – alarm duration [h]
Ic – short-term output current
Rearranging the above equation, the approximate runtime of the system with two 17 Ah batteries can be
determined.
The following data can be assumed:
Id = 2,5 A
Iz = 0,078 A
Ia = 5 A
Ta = 0,5h
Ic = 7 A
The approximate runtime of the system with two 17 Ah batteries will amount to 4h 9min.
www.pulsar.pl EN54-7A17 RED POWER
32
8. Remote monitoring (options: Wi-Fi, Ethernet, RS485, USB).
The PSU has been adjusted to operate in a system that requires a remote control of the parameters in a
monitoring centre. Transmitting data concerning PSU status is possible due to an additional, external
communication module responsible for communication in Wi-Fi, Ethernet or RS485 standard. The USB –TTL
interface enables the connection between the PSU and the computer.
Different connection topologies, presented later in this chapter, are only a part of possible communication
schemes. More examples can be found in the manuals dedicated to individual interfaces.
When installing optional features in the power supply unit, power supply current consumption, used
for the calculation of standby time, should be taken into account (see section 7.8.).
8.1. Communication via the USB-TTL interface.
The easiest way of communication between the PSU and the computer is provided by the USB-TTL "INTU”
interface. This interface allows direct connection between the computer and the PSU and is recognizable by the
operating system as a virtual COM port.
Fig. 15. USB-TTL communication using the USB-TTL „INTU” interface.
8.2. ETHERNET network communication.
Communication in the Ethernet network is possible due to the additional interfaces: Ethernet „INTE” and
RS485-ETH „INTRE”, according to the IEEE802.3 standard.
The Ethernet „INTE” interface features full galvanic isolation and protection against surges. It should be
mounted inside the enclosure of the PSU.
Fig. 16. Ethernet network communication using the Ethernet „INTE” interface.
www.pulsar.pl EN54-7A17 RED POWER
33
The RS485-WiFi „INTRE” interface is a device used to convert signals between the RS485 bus and the WiFi network. For proper operation, the unit requires an external power supply in the range of 10÷30 V DC e.g.
drawn from a PSU of the EN54 series. The unit is mounted in a hermetic enclosure protecting against adverse
environmental conditions.
Fig. 17. Ethernet network communication using the RS485 „INTRE” interface.
8.3. The Wi-Fi wireless communication.
The Wi-Fi wireless communication can be implemented on the basis of additional interfaces: WI-Fi ‘INTW’
and RS485-WiFi, operating within 2,4GHz frequency band, according to the IDEE 802.11 bgn standard.
The WiFi “INTW” interface shall be mounted in a selected location inside the enclosure so that the
antenna is exposed to the outside.
Fig. 18. The Wi-Fi communication using WI-FI „INTW” interface.
www.pulsar.pl EN54-7A17 RED POWER
34
The RS485-WiFi „INTRW” interface is a device used to convert signals between the RS485 bus and the
WiFi network. For proper operation, the unit requires an external power supply in the range of 10÷30 V DC e.g.
drawn from a PSU of the EN54 series. The physical connection of the interface takes place under galvanic
isolation. The unit is mounted in a hermetic enclosure protecting against adverse environmental conditions.
Fig. 19. The Wi-Fi communication using the RS485-WIFI „INTRW” interface.
8.4. RS485 network communication.
Another type of network communication is the RS485 communication using two-wire transmission path. To
achieve this kind of data exchange, the PSU should be equipped with the additional RS485 TTL "INTR" interface,
converting data from the PSU into the RS485 standard and the USB-RS485 "INTUR" interface, converting data
from the RS485 network to the USB. Offered interfaces are galvanically isolated and protected against surges.
Fig. 20. RS485 communication using the „INTR” and „INTUR” interfaces.
www.pulsar.pl EN54-7A17 RED POWER
35
8.5. „PowerSecurity” program.
The ”Power Security” program is available on www.pulsar.pl
Its detailed description can be found in the manual.
PowerSecurity is a program designed to operate with power supplies of the PSBEN, EN54 and
EN54C/LCD series.
The graphical interface of the program has been designed so that it is convenient to combine power
supplies into groups giving the possibility of monitoring multiple parameters in one window simultaneously.
The program constantly monitors the parameters of all power supplies; in case of failures the backlight changes
accordingly in both the manager window and the Windows taskbar. In addition, the program allows you to
download the operation history of the power supply, the history of events, and visualization in the form of charts
and tables. The downloaded data can be saved.
The program also provides functionality in the form of a remote battery test. The result of the battery test
takes the form of a message.
The PowerSecurity software is a free software. Operation requires a PC with the operating system
Windows 10 or older.
The application can also be used by people who install and service power supplies. The main panel of the
program is shown below.
Fig. 21. The main panel of the "Power security" program.
www.pulsar.pl EN54-7A17 RED POWER
36
Fig. 22. The main panel of the "Power security" program - the "Synoptic board" tab.
The manager window allows you to combine monitored power supplies into groups / subgroups offering
greater control and transparency for more complex systems.
The device window can be switched between two modes: the synoptic board or the list mode. This is
especially useful when the PowerSecurity program works with a large number of power supplies.
The application enables both visualization and analysis of read data. Exceeding the permissible
parameters is signaled by a change in color of the relevant field to yellow and a flashing indicator light. It is possible
to view the current power supply parameters, historical parameters in the chart, electrical parameters, the status of
technical outputs, and to read the event log on individual tabs.
www.pulsar.pl EN54-7A17 RED POWER
37
Functional class EN 12101-10:2007
A
Mains supply
~230 V
Current consumption
1,36 A
Power frequency
50 Hz
PSU’s power
193 W
Efficiency
82%
Output voltage at
20 ºC
22,0 V÷ 27,6 V DC – buffer operation
20,0 V÷ 27,6 V DC – battery-assisted operation
Output current
Continuous operation
Output current Imax a=6 A
Instantaneous operation
Output current Imax b=7 A
Maximal resistance of the battery circuit
300mΩ
Ripple voltage
100mV p-p max.
Current consumption by the PSU
during battery-assisted operation
I = 78mA
Caution ! If the power supply is connected with the
communication interface or fuse module, additional current
consumption should be considered.
Battery charging current
1 A
Coefficient of temperature compensation of
the battery voltage
-40mV/ ºC (-5 ºC ÷ 40 ºC)
Low battery voltage indication
Ubat < 23 V, during battery mode
Overvoltage protection OVP
U>30,5 V, disconnection of the output voltage ( AUX+
disconnection), automatic return
Short-circuit protection SCP
F8 A – current limit, F
AUX
melting fuse (failure requires fuse
replacement)
Overload protection OLP
Hardware - Software
Battery circuit protection SCP and reverse
polarity connection
F10 A- current limit, F
BAT
melting fuse (failure requires fuse
replacement)
Deep discharge battery protection UVP
U<20 V (± 2%) – disconnection (+BAT) of the batteries,
TAMPER output indicating enclosure
opening
Microswitch TAMPER
Technical outputs:
- EPS FLT; indicating AC power failure
- APS FLT; indicating battery failure
- PSU FLT; indicating PSU failure
- ALARM; indicating collective failure
- type – electronic, max 50mA/30 V DC, galvanic isolation
1500V
RMS
- delay time approximately 10s/1m/10m/30m (+/-5 %) –
configured from the LED panel
- type – electronic, max 50mA/30 V DC, galvanic isolation
1500V
RMS
- type – relay: 1 A@ 30 V DC/50 V AC
CAUTION! In Fig.2 the set of contacts shows a potential-free
status of the relay, which corresponds to power supply failure.
EXTi technical input
Voltage „ON” – 10÷30 V DC
Voltage „OFF” – 0÷2 V DC
Level of galvanic isolation 1500V
RMS
EXTo relay output
1 A@ 30 V DC /50 V AC
Optical indication:
- LEDs on the PCB of the power supply unit,
- LED panel
output current readings
output voltage readings: AUX1, AUX2
resistance of the battery circuit
mains supply voltage
failure codes and history
Acoustic indication:
- piezoelectric indicator ~75 dB /0,3 m, switched from the LED
panel
9. Technical parameters.
Electrical parameters (Table 12).
Mechanical parameters (Table 13).
Safety of use (Table 14).
Recommended types and sections of installation cables (Table 15)
Table 12. Electrical parameters.
www.pulsar.pl EN54-7A17 RED POWER
38
W
H
D
Fuses:
- F
MAINS
- F
BAT
- F
AUX1
- F
AUX2
T 6,3 A / 250 V
F 10 A / 250 V
F 8 A / 250 V
F 8 A / 250 V
Additional equipment
(not included)
- USB-TTL „INTU” interface; USB-TTL communication
- RS485 „INTR” interface; RS485 communication
- USB-RS485 „INTUR” interface; USB-RS485 communication
- Ethernet „INTE” interface; Ethernet communication
- WiFi “INTW” interface; WiFi wireless communication
- RS485-Ethernet “INTRE” interface; RS485-Ethernet
communication
- RS485-WiFi “INTRW” interface; RS485-WiFi wireless
communication
Enclosure dimensions
W=420 H=420 D+D1 =102 + 8 [+/- 2mm]
W1=425 H1=425 [+/- 2mm]
Mounting
380 x 345 x Φ 6 x4 pieces (WxH)
Recommended battery model
- 2 x EP 17-12 or
- 2 x GP12170
Fitting battery
2x17 Ah/12 V (SLA) max.
400 x 180 x 95mm (WxHxD) max
Net/gross weight
9,7/10,8 kg
Enclosure
Steel plate DC01 1,2mm, color: RAL 3001 (red)
Closing
Key lock
Terminals
Mains supply: Ф0,51÷2 (AWG 24-12)
Outputs: Ф0,51÷2 (AWG 24-12)
Battery outputs BAT: Ф6 (M6-0-2,5)
Cable glands
PG9 – cable diameter Ф4÷8mm
PG11 – cable diameter Ф5÷10mm
Notes
The enclosure does not adjoin the mounting surface so that cables can be led.
Convection cooling.
Protection class EN 60950-1:2007
I (first)
Protection grade EN 60529: 2003
IP42
Insulation electrical strength:
- between input (network) circuit and the output circuits of the PSU
- between input circuit and protection circuit
- between output circuit and protection circuit
3000 V AC min.
1500 V AC min.
500 V AC min.
Insulation resistance:
- between input circuit and output or protection circuit
100 MΩ, 500 V DC
Mains supply ~230 V L-N-PE
(see Table 2 [2])
OMY 3 x 0,75 mm
2
…1,5 mm
2
AUX1, AUX2 output terminals
(see Table 1 [11])
HLGs 2 x 1,5 mm
2
…2,5 mm
2
Indication inputs/outputs
(see Table 1 [11])
YnTKSY 1 x 2 x 0,8 mm2
Additional indication lines (with optional interface)
FTP 4x2x0,5 cat. 5e
Table 13. Mechanical parameters.
Table 14. Safety of use.
Table 15. Recommended types and sections of installation cables.
www.pulsar.pl EN54-7A17 RED POWER
39
10. Technical inspections and maintenance.
Technical inspections and maintenance can be performed after disconnecting the power supply from the
power network. The PSU does not require any specific maintenance, however, its interior should be cleaned with
compressed air if it is used in dusty conditions. In case of fuse replacement, use only compatible replacement
parts.
Technical inspections should be carried out not less frequently than once per year. During the inspection,
check the batteries and run the battery test.
4 weeks after installation, re-tighten all threaded connections, see Fig. 2 [11] and Fig. 3 [2].
CAUTION!
According to the recommendations of the CNBOP and VdS institutes, the batteries should
be replaced after four years of service, regardless of their status.
www.pulsar.pl EN54-7A17 RED POWER
40
Pulsar sp.j.
Siedlec 150, 32-744 Łapczyca, Polska
Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50
e-mail: biuro@pulsar.pl, sales@pulsar.pl
http:// www.pulsar.pl, www.zasilacze.pl
WEEE MARK
According to the EU WEE Directive – It is required not to dispose of electric or electronic waste as
unsorted municipal waste and to collect such WEEE separately.
CAUTION! The power supply unit is adapted for cooperation with the sealed lead-acid batteries (SLA). After the operation
period they must not be thrown but recycled according to the applicable law
Loading...
