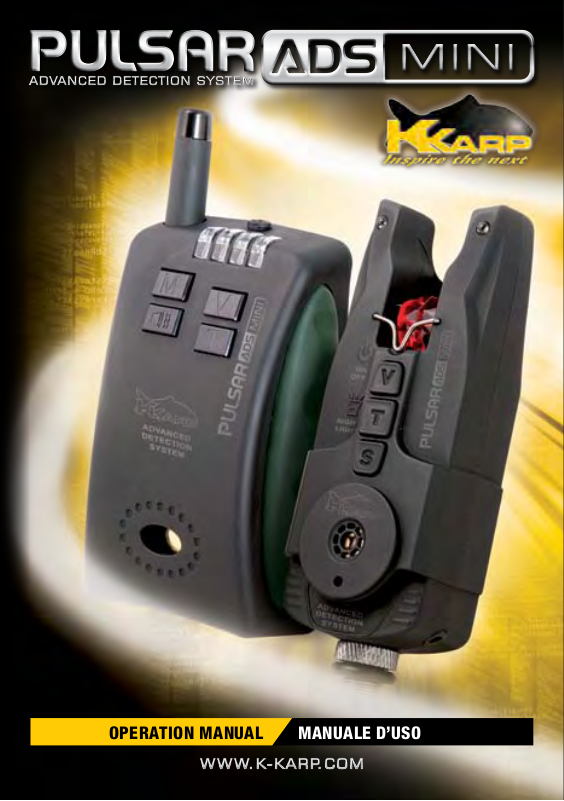

Pulsar ADS MINI Operating Instructions Manual
ADVANCED DETECTION SYSTEMADVANCED DETECTION SYSTEM
WWW.K-KARP.COMWWW.K-KARP.COM
OPERATION MANUAL MANUALE D’USO
ENgLISh
OPERATION MANUAL
PULSAR ADS MINI MAIN UNIT:
MULTICOLOR
LED
ON/ OFF
SWITCH &
VOLUME
CONTROL
SENSITIVITY
CONTROL
HIGH QUA LIT Y
CONE SPE AKER
ROD SEAT
NIGHT-LIGHT
SWITCH &
TONE CONTROL
JACK
SOCKE T
EXTRA TOUGH
SCREW
SPEcIfIcATIONS:
1. Battery Type: AAA / LR03
2. Battery Voltage: 1.5V*2
3. Standby Current: 0.040mA
4. Standby (with Night- Light)
Current: 100mA
5. Wireless Transition
Mode: AM
6. Radio Transmitter Operating
Frequency: 433MHz
BATT ERY
COMPA RTM ENT
LOCK RING
PULSAR ADS MINI REcEIvER:
LONG RANGE
ANTE NNA
LAST
RECORDED
ALERT
VIBRO &
SOUND
CONTROL
HIGH QUA LIT Y
CONE SPE AKER BELT CLIP
EASY SY NCRO
BUT TON
LONG LIFE
VOLUME
CONTROL
TONE
ADJU STMENT
LED
ON/ OFF
SWITCH
SPEcIfIcATIONS:
1. Battery Type: PP3 / 6LR61
Battery Voltage: 9V*1
2. Power off current consumption: 0mA
3. Wireless Transition
Mode: AM
4. Radio Transmitter Operating
Frequency: 433MHz
BATT ERY
COMPA RTM ENT
Thank you for purchasing the Pulsar ADS Mini Bite Detection System. Since it was introduced, the Pulsar has
set new standards for bite indication and reliability in all conditions and we are sure your purchase will prove
to be a worthwhile investment that will last you several years. Pulsar ADS Mini is a ultra-reliable, compact,
high quality, bite indicator set packed with the latest cutting edges technologies.
fEATURES:
Volume, Tone, Sensitivity & Wireless. Volume,
tone and sensitivity can be adjusted by pressing
dedicated controls, familiarise yourself with the
controls before connecting the batteries.
Run ‘N Drop Bite Detection. The alarms are able
to detect running or drop back bites, whilst the
receiver will alert you for a drop back bite with a
dedicated led and sound.
Silent & Vibro Mode. The units can be set to silent mode without the need to switch-off, while the
receiver can be set to “Sound”, “Sound+Vibro” or
“Vibration” mode.
Induction Night-Light. The led Night-Light glimmer continuously confirming that the alarm is
switched on, the function can be easily switched
On/Off by a dedicated button in front of the alarm.
Energy Saver Circuit. The Pulsars are designed to
Audible & Visual Replication. Each sound pulse
and led flash from the bite alarm is replicated exact-
reduce at minimum the battery consumption with
advanced energy saver devices.
ly at the receiver, thus to eliminate strikes on false
triggering caused by the wind and water movement.
Low Battery Warning. The Pulsars continuously
monitor the battery voltage and detects its failing
with audible/visual warnings which are also trans-
Ultra Long Range Signal. Pulsar ADS Mini con-
mitted where specified.
tains and advanced transmitter device, capable of
long distances.
Easy Syncro. Sync the units on the receiver has
never been so easy, just with the push of Syncro
button on the receiver the unique identification code
will be registered.
Multi-Channel Receiver. The receiver works with
up to four different channels, so up to four units can
be used at once.
YEARS
WARRANT
BATTERIES REQUIREMENTS:
The Pulsars ADS Mini Alarms require 2xAAA (1.5V – Alkaline LR03/MN2400) batteries.
The Pulsars ADS Mini Receiver requires 1x9V PP3 (Alkaline 6LR61) battery.
The use of good quality batteries is essential for maximum battery life and optimum performance.
Notice:
To reduce the risk of battery leakage:
• DO NOT mix old and new batteries
• DO NOT mix different battery types
• The use of rechargeable batteries is NOT recommended
• Please ensure the batteries are removed from the Pulsars during long periods without use.
• The max. battery voltage should no more than 5V for Unit and no more 10V for Receiver, otherwise, may have the internal electronics
parts damaged.
• To save energy, the Pulsar ADS Mini should be powered off in case no usage.
Memory Function. The units and the receivers remembers all personal settings
when changing batteries or turning them off.
Weather-Proof Body. The Pulsars have
been designed to be totally weatherproof
and withstand to the most rigor conditions.
2 Years Warranty. Pulsars are supplied
with a two years warranty terms as a
Y
standard.
fITTINg/REPLAcINg BATTERIES:
1. Make sure to turn off both the unit and the receiver prior to fitting or replacing batteries.
2. Take in care to gently slide downward the battery compartment to access the battery compartment. Insert the new batteries and ensure of the
correct polarity.
3. First ensure of the correct polarity and then insert the new batteries.
4. Gently slide the battery compartment cover upward and ensure it has a good seal by firmly pushing the edging of the battery cover.
