Pulsafeeder HypoPump User Manual

PULSAR®

HYPOPUMP®

SODIUM HYPOCHLORITE

METERING PUMP

Bulletin #: PS-IOM-HYP-0203-I

Installation, Operation & Maintenance Instruction

USER NOTE: This serves as additional information for Pulsafeeder PULSAR® and PULSAR Shadow® metering pumps equipped with the Automatic Valve Assembly for purging trapped gasses from the reagent head. You must also reference the latest revision of the complete PULSAR® or PULSAR Shadow® pump IOM for critical safety and operational information.

FACTORY SERVICE POLICY

If you are experiencing a problem with your Pulsafeeder pump, first review the IOM, and consult the troubleshooting guide. If the problem is not covered or cannot be solved, please contact your local PULSA Series Sales Representative or our Technical Service Department at (585) 292-8000 for further assistance.

Trained individuals are available to diagnose your problem and arrange a solution. Solutions may include purchasing a replacement unit or returning the pump or components to the factory for inspection and repair. All returns require a Return Material Authorization (R.M.A.) number to be issued by Pulsafeeder.

Certain components may be purchased for replacement. Parts purchased to correct a warranty issue may be credited after examination of the original parts by Pulsafeeder personnel. Parts returned for warranty consideration that test satisfactorily, will be sent back to the originator freight collect.

Any field modifications will void the Pulsafeeder warranty. Out-of-warranty repairs will be subject to Pulsafeeder's standard bench fees and testing costs associated with replacement components.

Notice

Information and specifications in this document are subject to change without notice.

Revision History:

Rev H (8-17-06)

- Add recommendation for use of GFCI circuit

Rev I (5-14-14)

- Moved retrofit information to section 9 “Maintenance” as a note

- Updated label drawing

be reproduced, stored in a retrieval system or transmitted in any form or any means electronic or

mechanical, including photocopying and recording for any purpose other than the purchaser’s

personal use without the written permission of Pulsafeeder, Inc.

Trademarks

PULSAR® is a registered trademark of Pulsafeeder, Inc. PULSAR HypoPump® is a registered trademark of Pulsafeeder, Inc. PULSAR Shadow® is a registered trademark of Pulsafeeder, Inc.

iii

Table of Contents

1. CONVENTIONS ...................................................................................................................................... IV

2. GENERAL SAFETY ................................................................................................................................ 1

2.1 Explosive Atmosphere Safety ................................................................................................ 1

2.2 Electrical Safety ....................................................................................................................... 1

2.3 Hydraulic Safety ...................................................................................................................... 1

3. EQUIPMENT INSPECTION ....................................................................................................................... 2

4. STORAGE 2

4.1 Short Term (0 - 12 months) ..................................................................................................... 2

4.2 Long Term (12 months or more) ............................................................................................ 2

5. OVERALL SYSTEM DIAGRAM ................................................................................................................. 3

6. INSTALLATION ...................................................................................................................................... 4

6.1 Location .................................................................................................................................... 4

6.2 Installation Notes ..................................................................................................................... 5

6.3 Electrical Wiring ...................................................................................................................... 5

7. DESCRIPTION AND OPERATION .............................................................................................................. 6

7.1 Principle of Operation ............................................................................................................. 6

7.2 General Description ................................................................................................................ 6

7.3 Operation of Manual Override Button .................................................................................. 6

8. MAINTENANCE ...................................................................................................................................... 7

8.1 Automatic Valve Assembly Removal .................................................................................... 7

8.2 Flapper Valve Replacement .................................................................................................... 8

9. TROUBLESHOOTING GUIDE ................................................................................................................... 9

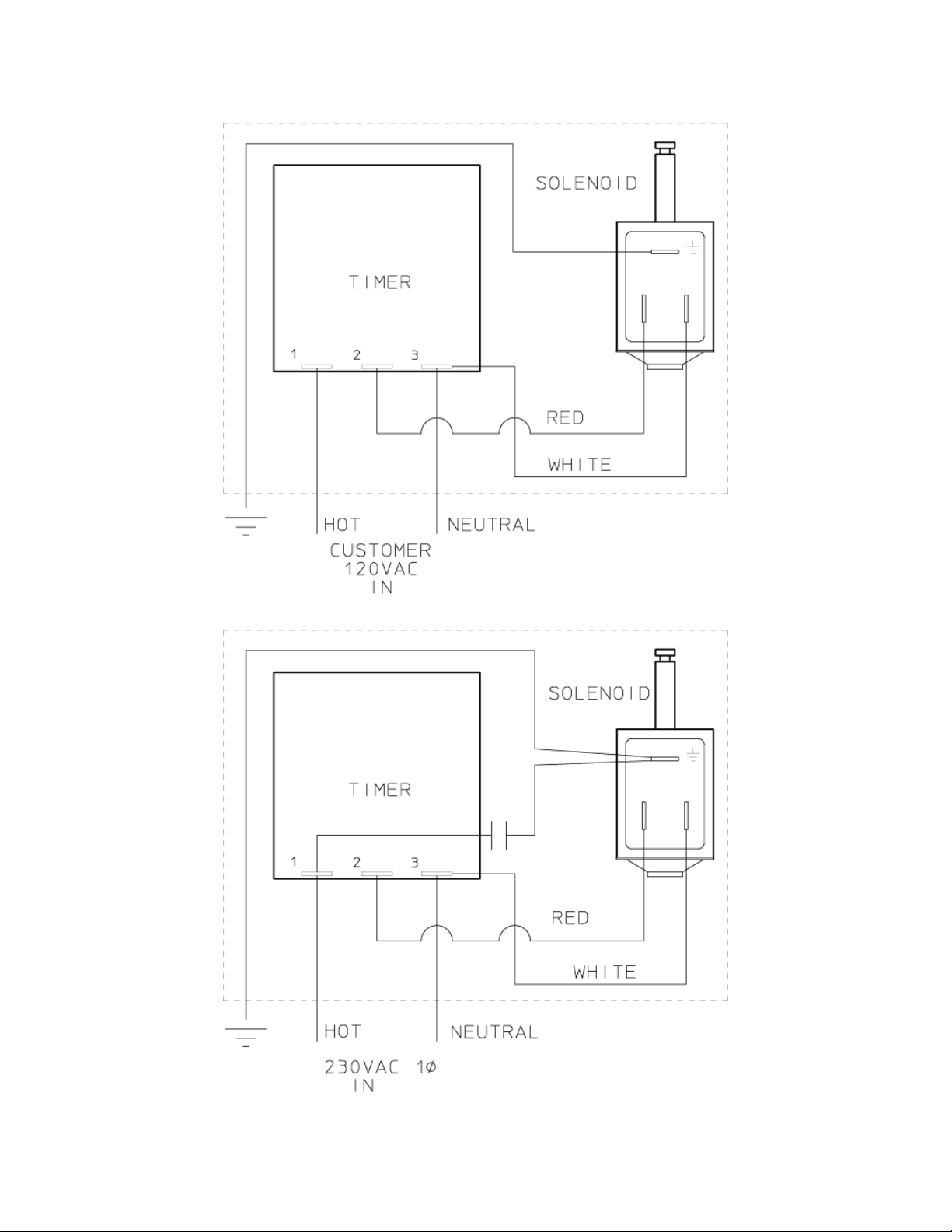

10. WIRING DIAGRAMS ............................................................................................................................... 10

1. Conventions

A WARNING DEFINES A CONDITION THAT COULD CAUSE DAMAGE TO BOTH

THE EQUIPMENT AND THE PERSONNEL OPERATING IT. PAY CLOSE ATTENTION TO ANY WARNING.

Notes are general information meant to make operating the equipment easier.

Tips have been included within this bulletin to help the operator run the equipment

in the most efficient manner possible. These “Tips” are drawn from the knowledge

and experience of our staff engineers, and input from the field.

For the remainder of this bulletin, the following Conventions are in effect.

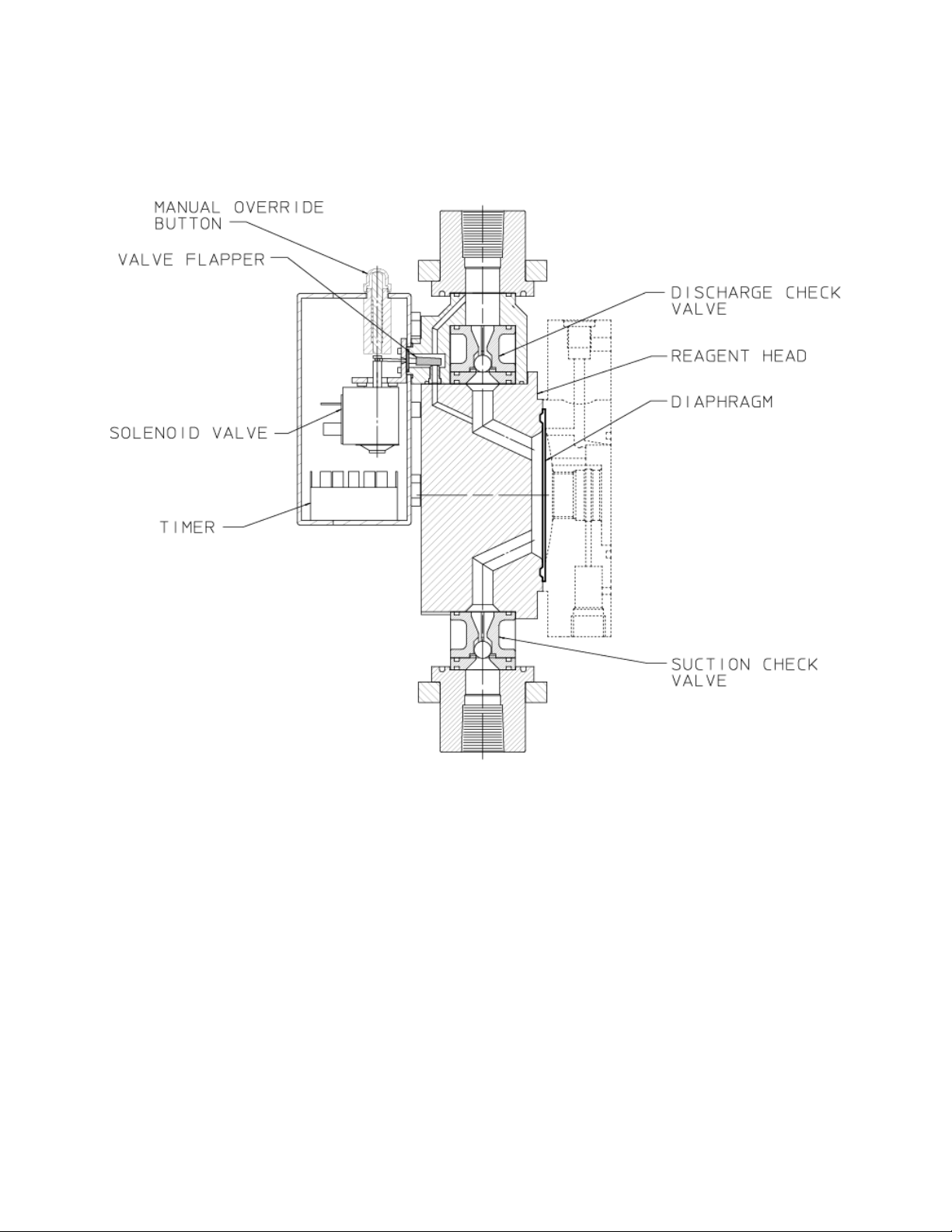

The Automatic Valve Assembly, designed for purging entrained gas from the pump reagent head, is referred to in this manual as the “AVA”.

2. General Safety

The Automatic Valve Assembly (AVA) was designed as a gas handling/priming aid for operation solely with Pulsafeeder PULSAR® and PULSAR Shadow® metering pumps. Use for any other application is considered un-safe and voids all certification markings and warranties.

2.1 Explosive Atmosphere Safety

Explosion Hazard -- Do not perform installation or maintenance of any kind on this device while circuit is live and/or the area is known to be hazardous. This unit is not intended for use in explosive or hazardous locations.

2.2 Electrical Safety

Improper application and use of the AVA can be hazardous. You are solely responsible for its use. The AVA electrical installation must conform to all relevant electrical codes. Installation and electrical

maintenance must be performed by a qualified electrician. Before installing or servicing this device, all power must be disconnected from the source at the main distribution panel.

The AVA emits electro-magnetic energy. Its use is restricted to industrial applications. You are responsible for shielding this device if necessary.

It is recommended that the AVA be powered from a Ground Fault Circuit Interrupter (GFCI) protected electrical circuit.

2.3 Hydraulic Safety

Thoroughly review and adhere to the contents of the latest version of the PULSAR® or PULSAR Shadow® Installation, Operation, Maintenance (IOM) manual for hydraulic installation of your metering pump.
