XP Adjustable Pump Shown
Tested and Certified by WQA
against NSF/ANSI 61-Section 8.
and CSA B483.1
XP Peristaltic Pump Installation, Operation
and Maintenance Manual
Fixed, Adjustable and Pulse Timer Models
REV. L PN J63031 - 1-
TABLE OF CONTENTS
1. Introduction..................................................................................................... 3
2. Safety Instructions .......................................................................................... 3
3. Technical Specifications ................................................................................. 4
4. Installation ...................................................................................................... 5
5. Operation........................................................................................................ 7
5.1. Fixed and Adjustable Speed Pumps ........................................................ 7
5.2. Adjustable Rate Pumps ........................................................................... 7
5.3. Pulse Timer Pumps ................................................................................ 9
5.4. Dry Contact Input Pumps ......................................................................... 9
5.5. General .................................................................................................... 9
6. Maintenance ................................................................................................. 10

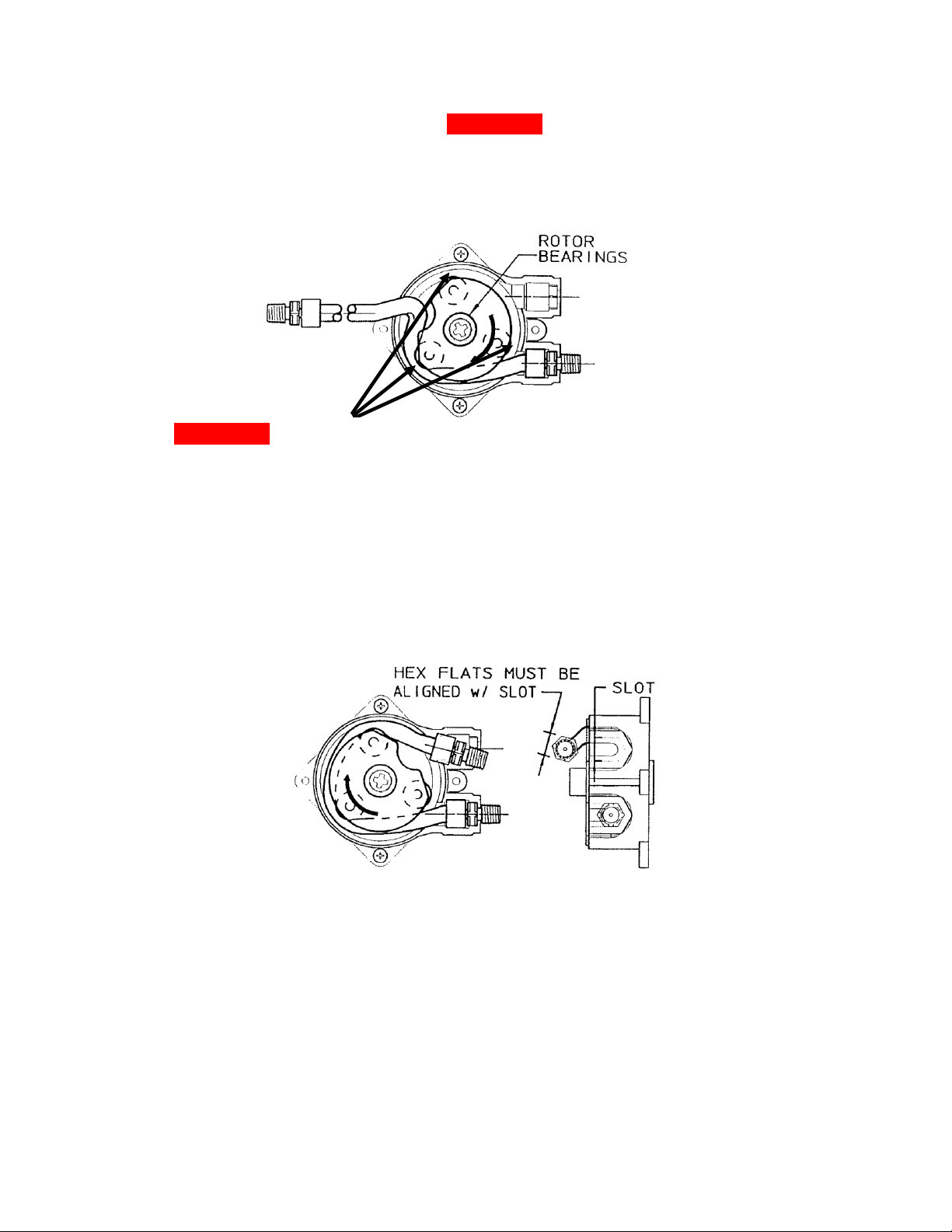

6.1. Tubing Assembly Removal .................................................................... 10
6.2. Tubing Assembly Installation and Lubrication ........................................ 12
6.3. Pools and Spas ...................................................................................... 14
7. Policies and Procedures…………………………………………… …………14
7.1. Manufacturers Product Warranty ........................................................... 14
7.2. Returns .................................................................................................. 14
7.3. Credits ................................................................................................... 15

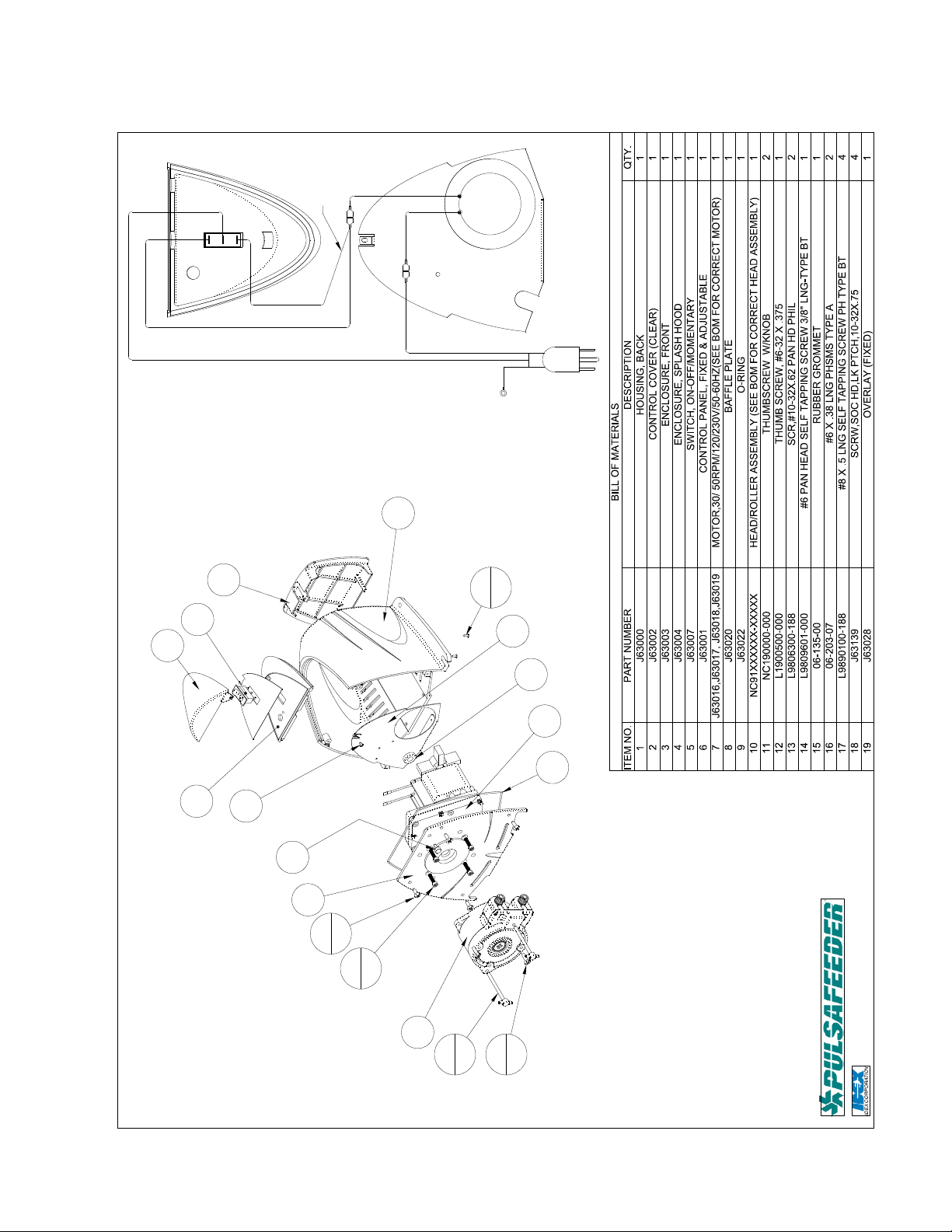

7.4. Pump Assembly Diagrams ................................ ................................ .... 16
7.5. Maintenance Record ............................................................................. 20
8.0 Parts ........................................................................................................... 21
REV. L PN J63031 - 2-
1. Introduction
Thank you for your purchase of the Chem-Tech Series XP peristaltic pump from
Pulsafeeder. We appreciate your decision to purchase a Pulsafeeder product.
Please take this time to become familiar with your pump and the number of
accessories that shipped with your product.
The shipping box contains the following items:
1. Peristaltic pump comprising of: (a) pump head and tube assembly, (b) Clear
polycarbonate splash guard with locking thumb screw, and (c) Snap-on rear
splash guard (this can be found in the sealed bag that shipped with the
product).
2. Instruction Manual.
3. Factory replacement tube
4. Suction and Discharge tubing set (15-feet of 1/4-inch or 3/8-inch OD
Polyethylene Tubing).
5. Injector Valve
6. Strainer w/ Ceramic Weight.
2. Safety Instructions
READ AND UNDERSTAND ALL INSTRUCTIONS PRIOR TO USE. Failure to
follow or understand instructions can/may lead to serious injury or death.
WARNING: Secure chemicals & metering pumps, making them inaccessible
to children & pets.
WARNING: DO NOT PUMP FLAMMABLE LIQUIDS.
WARNING: To reduce the risk of electrical shock-before maintenance, repair,
or moving always disconnect the power to the pump by unplugging from wall
outlet.
WARNING: Do not tamper with, cut the plug or ground lug off the electrical
cord. Consult a licensed electrician for proper installation.
WARNING: Always wear protective clothing, including gloves and safety eye
protection, when working on or near chemical metering pumps, consult
chemical manufacture for protective equipment recommendations.
WARNING: Always make sure the voltage on the pump data plate matches
the installation voltage before plugging the pump into a wall outlet or hooking
up to an electrical supply. If you are unsure, have a licensed electrician
inspect and install your pump.
WARNING: Always depressurize system and drain the chemical prior to
installation or maintenance.
WARNING: Read and fully understand the section on tube replacement.
Failure to do so may lead to serious injury.
WARNING: DO NOT MODIFY PUMP, as this poses a potentially dangerous
situation and voids the warranty.
WARNING: If the injection point is lower than the chemical tank and pump,
install an anti-siphon valve.
REV. L PN J63031 - 3-
WARNING: All pumps are factory tested with water. Remove tubing and
Electrical Rating
Feed Rate (GPD)
Feed Rate (LPH)
Maximum Pressure (PSI)
Maximum Pressure (Bar)
Maximum Ambient Temperature
104OF (40OC)
Pump Safety Rating
ETL,CETL, ETL
SAN
, NSF 50*, NSF 61
Enclosure Rating
NEMA 3R (IP31)
Pump Head
PVC
Pump Head Tubing
Norprene or Fluran
Injection Fitting
PVC
Strainer
Polypropylene
Suction/Discharge Tubing
Polyethylene
Pump Housing
ABS or Polycabonate/PBT/15%GF
thoroughly dry if the chemical being pumped will react with water (for
example: sulfuric acid).
WARNING: Only finger tighten plastic connections (Do not use a wrench).
WARNING: Consult licensed plumber and electrician before installation to be
sure to conform to local codes.
CAUTION: Inspect tubing regularly for cracking or deterioration and replace
as necessary. (Always wear protective clothing and safety eye protection
when inspecting tubing.)
CAUTION: KEEP FINGERS AWAY FROM ROTATING PARTS.
CAUTION: If the pump is exposed to direct sunlight, use a U.V. resistant
tubing.
CAUTION: Follow directions and warnings provided with the chemical from
the chemical manufacturer. The user is responsible for determining the
chemical compatibility with the chemical feed pump.
CAUTION: Consult with local health officials and qualified water conditioning
specialists when treating potable water
CAUTION: For accurate volume output, the pump must be calibrated under
all operating conditions.
3. Technical Specifications
Refer to the data plate located on the back of the peristaltic pump. Note that the
data plate will be located behind the back splash cover if installed. Please make
note of the Electrical Rating, Feed Rate and Maximum Pressure of the pump.
Use this information to complete the top three lines in Table 1 (below). For
example, if the Electrical Rating indicated on the data plate of the pump is
230V/60 Hz fill in the first line of the table below. Keep this information handy for
future reference and part replacement.
Figure 1 provides a quick reference for installation dimensional requirements.
Table 1: Technical Specifications
*Except 50GPD (7.9 LPH) and 80GPD (12.6 LPH) Feed Rate pumps.
REV. L PN J63031 - 4-
Figure 2: Injector Placement
Vertical
Mount
Horizontal
Figure 1: Pump Dimensions
4. Installation
NOTE: For pumps operating in swimming pool
installations the pump is to be supplied by an isolating
transformer or through a residual current device (RCD).
1. The pump can be installed either vertically or
horizontally (See Figure 2). Make sure to secure the
pump on a flat level surface that will support 50-lbs
(22kg) and secure with four .25-in (6mm) screws in the
holes provided. The guard snaps into the back of the
pump via three tangs (See Figure 1). The pump should
be mounted with no less than 1.75-in (44mm) of
clearance around the venting on both the front and the
rear of the pump. Locate the pump so there is direct
access to the power cord plug.
The pump is rated for indoor use only. For applications
that are subject to splashing make sure the pump is
mounted horizontally level with splash guard in place.
Vertical mountings require the purchase of optional
hood (J63004).
2. Verify the electrical requirements for the pump
as listed on the name plate and connect to an appropriate electrical source in
compliance with local codes for the specific application.
3. Relieve the system pressure and drain the piping run where the injection
fitting is to be installed. See Figure 2 for reference. The injection fitting must
not be installed in a dead end pipe or a deeply recessed tee. It should be
installed so as to place the tip at the center of the fluid stream as indicated
in Figure 2. The injection fitting is supplied with .25-in NPT threads. If necessary
drill a .44-in (11mm) diameter hole, and using care not to tap to deeply, tap for
.25-in NPT.
REV. L PN J63031 - 5-
4. Apply pipe tape to the injection fitting threads and install into piping system.
Figure 5: CeramicWeighted Strainer
Plastic
Sleeve
Do not remove the plastic sleeve on the tip of the fitting; it is a functional
part (See Figure 4).
CAUTION: Inspect the piping system and eliminate piping cross-connections to
prevent feeding chemical to areas not needing treatment.

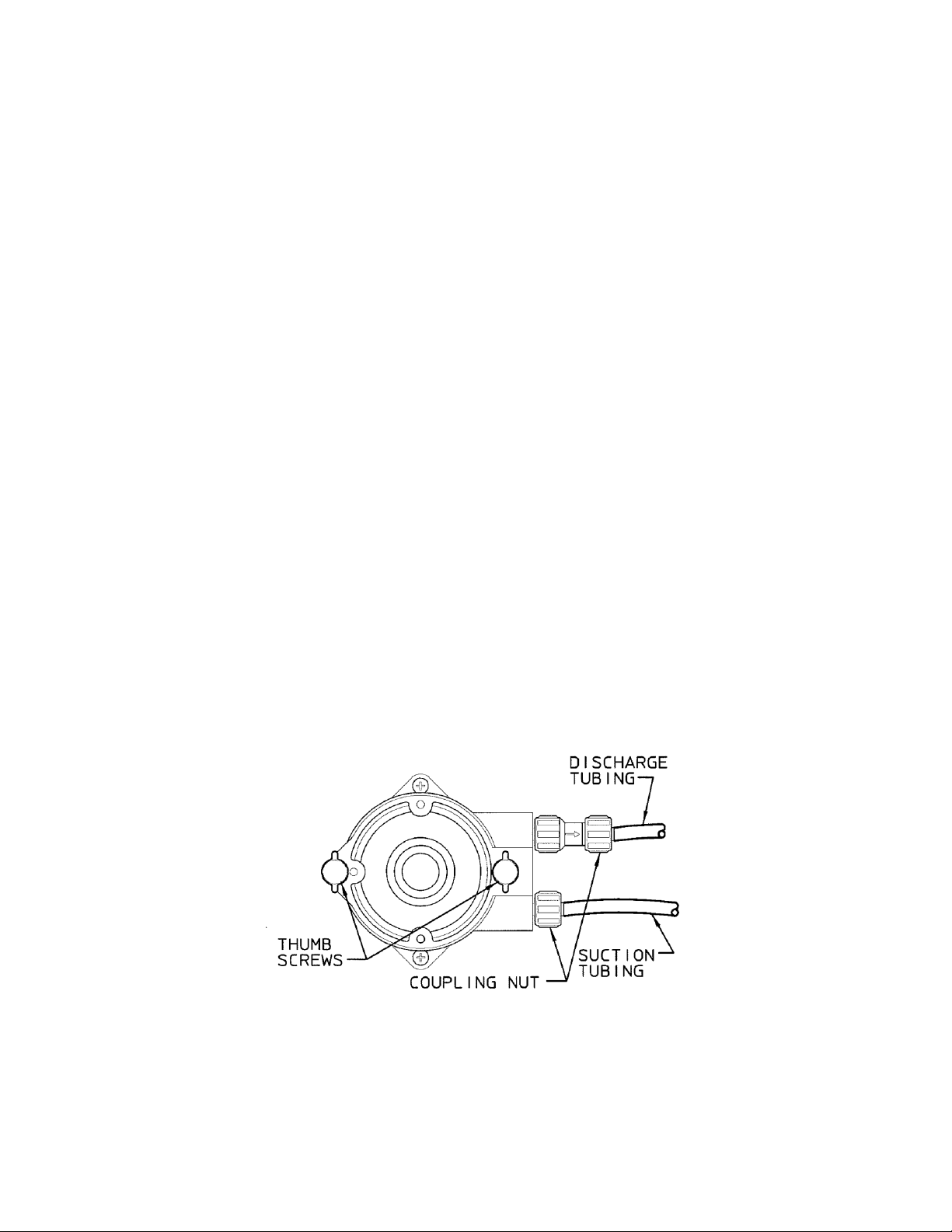

To install tubing remove the compression fitting’s coupling nut and slide onto
tubing. Place tubing onto fitting and hand tighten the coupling nut. NOTE:
Immerse tubing in hot water to soften prior to pushing on to fitting. Hand-tighten
only, do not use wrenches.
Figure 4: Injector valve
5. Referring to Figure 5, slide ceramic strainer weight on
suction tubing first, then remove the coupling nut from the
strainer and slide onto tubing. Next, push the end of the
tubing onto the strainer and hand tighten the coupling nut.
Hand-tighten only, do not use wrenches. Note: Immerse
tubing in hot water to soften prior to pushing on fitting.
6. Install the strainer so it is off the bottom of the chemical
container 1 to 2-inches (25-50mm) and measure suction
tubing length required. Cut tubing ends square and install on
suction fitting of the pump. Hand-tighten only, do not use
wrenches.
REV. L PN J63031 - 6-
5. Operation
WARNING: Always make sure the voltage on the pump data plate matches the
installation voltage before plugging the pump into a wall outlet or hooking up to
an electrical supply. If you are unsure, have a licensed electrician inspect and
install your pump.
5.1. Fixed and Adjustable Speed Pumps
CAUTION: Before plugging your pump into a wall outlet, take a moment and
locate the control panel of your pump. The control panel is located on top of the
pump underneath a removable clear polycarbonate rain guard. A simple thumb
screw secures the rain guard to the pump; its removal allows access to the
control panel. Both fixed and adjustable speed pumps are equipped with a 3position rocker switch mounted in the center of the control panel. Verify the
switch in is the neutral or off-position before plugging your pump into a wall
receptacle. (see Figure 6) Note that the image shown is for the Adjustable pump,
the Fixed-Speed pump comes with the 3-way rocker switch, only.
As previously mentioned, the rocker switch has three positions. The off-position
is the middle or neutral position of the switch. The switch also provides a
momentary-on function. By depressing and holding the switch toward the pump
head (100%), the pump becomes energized. Upon releasing the switch, the
rocker returns to the neutral, or off-position and pump operation ceases. This
function is very useful when priming and/or replacing worn tubing in the pump.
To turn the pump on, depress the rocker switch away from the pump head
(switch position “|”). The switch locks in place and the pump becomes energized
– see Figure 6 for specific functions. To turn the pump off (switch position “O”),
return the rocker switch to the middle or neutral position.
5.2. Adjustable Rate Pumps
If you purchased a pump with the adjustable feed-rate option, the control panel
on your pump includes a control knob that adjusts the pump on/off cycle time.
Rates are infinitely adjustable from 5% to 100% -- see Figure 6 for an illustration.
CAUTION: DO NOT USE THE CONTROL KNOB SET TO 0% TO TURN THE
PUMP OFF: ALWAYS TURN THE PUMP OFF AT THE ROCKER SWITCH.
REV. L PN J63031 - 7-
Relative On-Off Times
0
0.5
1
1.5
2
0% 20% 40% 60% 80% 100%
Dial Set Point (%)
Relative Time (seconds)
On-Time (seconds) Off-Time (seconds)
Continuous On
Off
Momentary On
0 to 100%
Adjustable
Feed-Rate
Rocker 3-Position Switch
Figure 6: Adjustable Feed-Rate Pump Control Panel (Note Fixed Speed
only has 3-Way Rocker Switch)
The cycle time is 2 seconds and the adjustment dial provides the setting
percentage as the amount of time that the pump is on in each 2 second cycle.
For example, a dial setting of 5% provides a 0.10-second on-time (0.05 X 2) and
corresponding 1.90-second off-time (2 – 0.10). Conversely a setting of 95%
provides a 1.90-second on-time (0.95*2) and corresponding 0.10-second (2 –
0.10) off-time. The graph below provides a convenient reference for all dial
settings in terms of on and off-times.
Note that the momentary “On” (100% switch position) by-passes the adjustable
timer setting of the pump, causing the pump to run continuously regardless of the
timer percentage setting. When released the switch returns to the “Off” position
(O).
REV. L PN J63031 - 8-
5.3. Pulse Timer Pumps
If the pump was purchased with the pulse
timer mode the pumps rate control knob
will adjust the pumps run time per pulse
input received. The timer does not
accumulate pulses that are received
during the run time. Available pulse timers
are 0.1 to 1 second, 0.2 to 10 seconds
and 1.2 to 60 seconds.
The pump is also provided with a 10 foot
(3 meter) signal cable with two bare leads.
The input is a dry contact, compatible with
contacting head type water meters and
the input has no polarity. No voltage is
permitted on the input signal.
5.4. Dry Contact Input Pumps
If the pump was purchased with the Dry Contact Input mode, the pump will be
activated and deactivated by this dry contact input. The pump is provided with
a 10 foot (3 meters) signal cable with two bare leads. The input is a dry
contact, intended to be connected to a dry contact switch, and the input has
no polarity. No voltage is permitted on the input signal. The pump will
activate and run for the full time that the switch is closed, and deactivate
when the switch opens.
5.5. General Operation
DANGER: DO NOT ATTEMPT TO FEED CHEMICALS WITHOUT FIRST
CONSULTING YOUR CHEMICAL FEEDER DEALER OR CHEMICAL
SUPPLIER. To avoid running out of chemical, follow a regular schedule of
monitoring chemical supply.
CAUTION: Inspect peristaltic tubing frequently and replace when deterioration
becomes apparent. Peristaltic tubing will eventually wear and break if neglected.
This occurrence will cause chemical spillage and a potential for personal injury or
damage to equipment. Always refer to chemical manufacturers
recommendations with regards to safety and handling of hazardous or corrosive
chemicals. Always wear protective clothing and safety glasses when working
near chemical feed systems.
WARNING: Do not expose the pump or tubing to pressure exceeding the
pressure rating on the pump nameplate.
1. Make sure the rocker switch is in the off/neutral position...
2. Fill the chemical tank with the chemical to be fed.
REV. L PN J63031 - 9-
3. Depress and hold the Momentary-On (100%) button until the chemical is
present in the discharge line up to the injection point.
4. If the pump is an adjustable model rotate the percentage knob to the desired
feed-rate setting. Turn the rocker switch to the continuous-On position.
6. Maintenance
NOTE: It is recommended that volume output be measured at initial start-up, at
every tube change, and after every 250-hours of operation. Use the flow rate
stated on your data label as a guide. More critical applications may require more
frequent verification.
NOTE: NO USER SERVICEABLE COMPONENTS ARE INSIDE THE
ENCLOSURE. IF THE POWER SUPPLY CORD BECOMES DAMAGED, IT
MUST BE REPLACED BY PULSAFEEDER, ITS REPRESENTATIVE, OR A
SIMILARLY QUALIFIED TECHNICIAN IN ORDER TO AVOID A HAZARD.
6.1. Tubing Assembly Removal
Always wear protective clothing and safety glasses when working on the
chemical pump and refer to the chemical manufacturers’ safety precautions.
1. Remove the power to the pump and place the rocker switch in the Off (“O”)
position.
2. Relieve the system pressure and the drain discharge and suction tubing.
3. Loosen coupling nuts and remove the tubing from suction and discharge
ports. See figure 7a.
Figure 7a: Pump Head Assembly with Front Cover Attached
REV. L PN J63031 - 10-
Figure 7b: Pump Head Assembly with Front Cover Removed
4. Remove the two thumb screws holding on the pump head cover and remove -
See figure 7b above.
5. Remove pump head tube assembly by removing both connector fittings and
pulling tubing straight out of the pump head. Tubing may retain a small amount
of chemical. If the rotor assembly is removed, go to step #8.
6. Remove rotor assembly by pulling straight out of pump head. NOTE bearing
lubrication every 500-hours; see section 7.1, “Tubing Assembly Installation and
Lubrication”.
7. Clean any tubing debris from the rotor assembly and pump head.
REV. L PN J63031 - 11-
Note position of
tube and rotor’s
cut-away guide
Lube all roller (3)
and bearing
surfaces (2)
P/N NC82XX3LP1-XXXXX
ROLLER ASSEMBLY
6.2 Tubing Assembly Installation and Lubrication
WARNING: When using the pump to load tubing the rocker switch must be in
the Off (“O”) position to prevent accidental motor starting. Caution must be used
to keep fingers away from rotating parts.
Figure 8: Pump Head w/ Rotor Assembly Removed
NOTE: Lubrication of rotor assembly should be performed at least once a year
(residential service). Clean front and rear rotor bearings and surfaces with a
clean shop cloth (See head assembly illustration at the end of this manual).
Lubricate with a PTFE thickened, medium viscosity, synthetic grease intended for
plastic parts. Ref. Grease Kit (P/N J30257) – see Figure 8.
1. Reinstall the rotor assembly by aligning the cross in the rotor to the drive shaft
cross and fully insert into pump head.
2. Use the 100% button and align the rotor assembly as shown in Figure 9a.
REV. L PN J63031 - 12-
Figure 9a: Rotor Alignment at Start of Tube Installation
3. Insert one connector end of the tubing assembly into the bottom retaining slot
WARNING: Note severe pinch points between rollers and pump housing
in the pump head. Insert the tube through the guide slot in the rotor. Using
caution, intermittently depress the 100% button and feed the tube around the
pump head as the guide slot rotates. WARNING: Be very careful not to get any
objects (fingers, ties, hair, etc.) close to the rotors and pump head as
severe pinch points exist, see Figure 9b. Keep hands and fingers away
from the rotor assembly while feeding the new tube.
Figure 9b: Feeding the New Tube
When the rotor is positioned as in Figure 9c, release the 100% button. Insert the
other connector into its retaining slot.
4. Align the pump head cover bearing bore with the rotor shaft and press into
place.
5. Loosely reinstall the two thumb screws.
Figure 9c: Finishing the New Tube Installation
6. Using the 100% button, run the pump for several revolutions and then fully
tighten the thumb screws hand tight.
7. Return the pump to service by following the procedures in the installation
section.
REV. L PN J63031 - 13-
6.3 Pools and Spas
Pumps carrying the “ETL Sanitation” (tested to NSF Standard-50) marks are
listed for swimming pools, spas and hot tubs, and when proper materials are
selected, are capable of handling but not limited to the following chemical
solutions:
12.0% ALUMINUM SULPHATE, 5.0% SODIUM CARBONATE,
2.0% CALCIUM HYPOCHLORITE, 10.0% SODIUM HYDROXIDE,
12.5% SODIUM HYPOCHLORITE, 10.0% HYDROCHLORIC ACID.
To meet the requirements of the “ETL Sanitation Mark” qualification, (1.) Replace
the peristaltic tubing (as described above), (2.) Grease the rotor bearing and
(3.) Oil the three rotor rollers at intervals of 500-hours operation time (actual
running time).
7. Policies and Procedures
7.1 Manufacturers Product Warranty
PULSAFEEDER warrants equipment of its manufacture to be free of defects in
material or workmanship. Liability under this policy extends for 24-months from
the date of shipment. The manufacturer’s liability is limited to repair or
replacement of any failed equipment or part which is proven defective in material
or workmanship upon manufacturers’ examination. This warranty does not
include removal or installation costs and in no event shall the manufacturers
liabilities exceed the selling price of such equipment or part.
The manufacturer disclaims all liability for damage to its products through
improper use, installation, maintenance or attempts to operate such products
beyond their functional capacity, intentionally or otherwise, or any unauthorized
repair. Replaceable elastomeric parts, including peristaltic tubing, are covered for
12 months. The manufacturer is not responsible for consequential or other
damages, injuries or expense incurred through the use of its products.
The above warranty is in lieu of any other warranty, either expressed or implied.
The manufacturer makes no warranty of fitness or merchantability. No agent of
ours is authorized to provide any warranty other than the above.
For warranty and service matters within the European Union, contact the seller
or:
Pulsafeeder, Inc
Units 12 and 13, Edison Road
Highfield Industrial Estates
Eastbourne, East Sussex BN23 6PT
REV. L PN J63031 - 14-
7.2 Returns
The Customer Service Department will issue a Return Authorization (RA) number
for all returns.
The following information will be required:
1. Billing and a ship-to address.
2. Model and serial number.
3. Contact name and phone number.
4. Reason for return.
5. Purchase order (where applicable).
6. RA number on outside of the carton.
7. Type of chemical that was pumped.
All material must be returned freight prepaid. All merchandise must be properly
packaged and free of any corrosive, toxic or otherwise hazardous chemical. All
items returned must reference Return Authorization number.
7.3 Credits
No equipment will be accepted beyond six months after date of shipment from
the factory. Only unused and undamaged equipment will be accepted for return
to stock. All credits are based on acceptance of materials as new and unused by
our inspection personnel. A restocking fee will apply. All equipment returned for
credit must have a RA number and be returned freight prepaid.
REV. L PN J63031 - 15-
XP FIXED RATE
WHT
BLK
MOTOR
BLK
BLK
U0819205
GROUND
TO
MOTOR
(GRN)
7
9
15
8
16
2
1
4
5
2
14
6
12
3
18
4
17
4
10
11
2
13
2
Appendix
7.4 Pump Assembly and Wiring Diagrams
REV. L PN J63031 - 16-
ITEM
NO.
PART NUMBER DESCRIPTION QTY
1 J63000 HOUSING, BACK 1
2 J63002 CONTROL COVER (CLEAR) 1
3 J63003 ENCLOSURE, FRONT 1
4 J63001 CONTROL PANEL, FIXED & ADJUSTABLE 1
5 J63004 ENCLOSURE, SPLASH HOOD 1
6 J63007 SWITCH, ON-OFF/MOMENTARY 1
J63013 TIMER,SOLID STATE
POTJ63013 2 MEG POT, PART OF TIMER ASSY
KNOBJ63013 KNOB
9 J63139 SCRW,SOC HD,LK PTCH,10-32X.75 4
10 J63020 BAFFLE PLATE 1
11 J63022 O-RING 1
12 J63029 OVERLAY, CONTROL PANEL (ADJUSTABLE) 1
13 NC91XXXXXX-XXXXX
HEAD/ROLLER ASSEMBLY
(SEE BOM FOR CORRECT HEAD ASSEMBLY)
1
14 NC190000-000 THUMBSCREW W/KNOB 2
15 L1900500-000 THUMB SCREW, #6-32 X .375 1
16 L9806300-188 SCR,#10-32X.62 PAN HD PHIL 2
17 L9809601-000 #6 PAN HEAD SELF TAPPING SCREW 3/8" LN G-TYPE BT 1
18 06-135-00 RUBBER GROMMET 1
19 06-203-07 #6 X .38 LNG PHSMS TYPE A 4
20 L9890100-188 #8 X .5 LN G SELF TAPPING SCREW PH TYPE BT 4
22
J63016,J63017,
J63018,J63019
MOTOR,30/ 50RPM/120/230V/50-60HZ
(SEE BOM FOR CORRECT MOTOR)
1
23 J63030 OVERLAY (ADJUSTABLE) 1
7
1
BILL OF MATERIALS
GROUND
TO
MOTOR
(GRN)
19
2
10
18
22
11
1
5
23
6
2
7
4
7
17
7
19
2
15
3
20
4
9
4
13
14
2
16
2
XP ADJUSTABLE
WHT
BLK
MOTOR
BLK
BLK
RED
WHT
BLUE
U0819189
U0819205
REV. L PN J63031 - 17-
REV. L PN J63031 - 18-
MOTOR
WHT
BLK
WHT
WHT
BLK
BLK
BLK
BLK
BLK
BLK
BLUE
RED
WHT
BLUE
RED
WHT
U0819189
U0819205
J63145
CABLE ASSY
J63132
17
16
5
9
3
11
19
4
13
2
15
2
12
18
4
14
21
6
7
5
2
23
16
8
22
10
120
4
GROUND
TO
MOTOR
(GRN)
XP ADJUSTABLE WITH DRY CONTACT
REV. L PN J63031 - 19-
Date
Maintenance Performed
7.4 Maintenance Record
REV. L PN J63031 - 20-
8. PARTS
REV. L PN J63031 - 21-
EC Declaration of Conformity
We, Pulsafeeder Inc., declare under sole responsibility that the Series XP
metering pump, to which this declaration relates, is in sole conformity with
relevant sections of the applicable EC standards and other normative documents
listed on this document. If changes are made to the product which is covered by
this declaration of conformity, the declaration of conformity is no longer valid.
- Application of Council Directive: 73/23/EEC and 93/68/EEC
- Standard to Which Conformity is Declared: IEC/EN 60335-2-41
REV. L PN J63031 - 22-
Loading...
