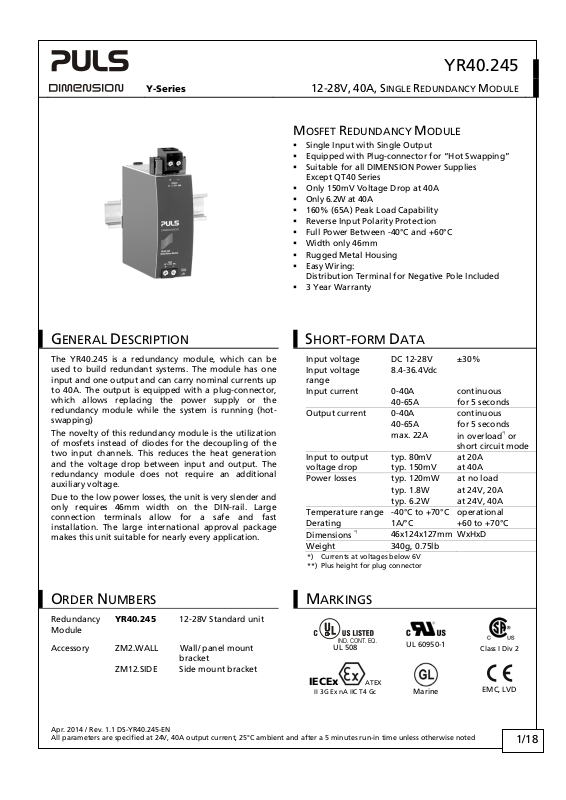

Puls YR40.245 Data Sheet

YR40.245

Y-Series

MOSFET REDUNDANCY MODULE

 Single Input with Single Output  Equipped with Plug-connector for “Hot Swapping”  Suitable for all DIMENSION Power Supplies

 Only 150mV Voltage Drop at 40A  Only 6.2W at 40A  160% (65A) Peak Load Capability  Reverse Input Polarity Protection  Full Power Between -40°C and +60°C  Width only 46mm  Rugged Metal Housing  Easy Wiring:

 3 Year Warranty

GENERAL DESCRIPTION

The YR40.245 is a redundancy module, which can be used to build redundant systems. The module has one input and one output and can carry nominal currents up to 40A. The output is equipped with a plug-connector, which allows replacing the power supply or the redundancy module while the system is running (hotswapping)

The novelty of this redundancy module is the utilization of mosfets instead of diodes for the decoupling of the two input channels. This reduces the heat generation and the voltage drop between input and output. The redundancy module does not require an additional auxiliary voltage.

Due to the low power losses, the unit is very slender and only requires 46mm width on the DIN-rail. Large connection terminals allow for a safe and fast installation. The large international approval package makes this unit suitable for nearly every application.

ORDER NUMBERS

Redundancy YR40.245 12-28V Standard unit Module

Accessory ZM2.WALL Wall/ panel mount bracket ZM12.SIDE Side mount bracket

12-28V, 40A, SINGLE REDUNDANCY MODULE

Except QT40 Series

Distribution Terminal for Negative Pole Included

SHORT-FORM DATA

Input voltage DC 12-28V ±30% Input voltage

range

8.4-36.4Vdc

Input current 0-40A continuous 40-65A for 5 seconds Output current 0-40A continuous 40-65A for 5 seconds

Input to output voltage drop

max. 22A

typ. 80mV typ. 150mV

in overload short circuit mode

at 20A

at 40A Power losses typ. 120mW at no load typ. 1.8W at 24V, 20A typ. 6.2W at 24V, 40A Temperature range -40°C to +70°C operational Derating 1A/°C +60 to +70°C Dimensions *)

46x124x127mm WxHxD

Weight 340g, 0.75lb

*) Currents at voltages below 6V **) Plus height for plug connector

MARKINGS

IND. CONT. E

UL 508

IECEx ATEX

II 3G Ex nA IIC T4 Gc

UL 60950-1

Marine

Class I Div 2

EMC, LVD

Apr. 2014 / Rev. 1.1 DS-YR40.245-EN All parameters are specified at 24V, 40A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted

1/18

YR40.245

Y-Series

12-28V, 40A, SINGLE REDUNDANCY MODULE

INDEX

Page Page

Intended Use .......................................................3

2. Installation Requirements...................................3

3. Input and Output Characteristics .......................4

4. Power Losses........................................................5

5. Lifetime Expectancy and MTBF...........................6

6. Terminals and Wiring..........................................7

7. Replacing Units while the System is Running....8

8. Functional Diagram.............................................9

9. Front Side and User Elements.............................9

10. EMC....................................................................10

11. Environment ......................................................11

12. Protection Features ...........................................12

13. Safety Features ..................................................12

The information presented in this document is believed to be accurate and reliable and may change without notice. No part of this document may be reproduced or utilized in any form without permission in writing from the publisher.

14. Dielectric Strength............................................ 12

15. Approvals.......................................................... 13

16. Physical Dimensions and Weight ..................... 14

17. Accessories ........................................................ 15

18. Application Notes............................................. 16

18.1. Recommendations for Redundancy.........16

18.2. Inductive and Capacitive Loads................16

18.3. Sidewards Installation Clearances............16

18.4. 1+1 Redundancy up to 40A...................... 17

18.5. N+1 Redundancy, Example with 120A ....17

18.6. Mounting Orientations ............................18

TERMINOLOGY AND ABREVIATIONS

PE and symbol PE is the abbreviation for Protective Earth and has the same meaning as the symbol .

Earth, Ground This document uses the term “earth” which is the same as the U.S. term “ground”.

T.b.d. To be defined, value or description will follow later.

DC 24V A figure displayed with the AC or DC before the value represents a nominal voltage with

standard tolerances (usually ±15%) included. E.g.: DC 12V describes a 12V battery disregarding whether it is full (13.7V) or flat (10V)

24Vdc A figure with the unit (Vdc) at the end is a momentary figure without any additional

tolerances included.

may A key word indicating flexibility of choice with no implied preference

shall A key word indicating a mandatory requirement

should A key word indicating flexibility of choice with a strongly preferred implementation

1+1 Redundancy Use of two identical power supplies in parallel to provide continued operation following most

failures in a single power supply. The two power supply outputs should be isolated from each other by utilizing diodes or other switching arrangements. E.g. two 10A power supplies are needed to achieve a 10A redundant system.

N+1 Redundancy Use of three or more identical power

supplies in parallel to provide continued operation following most failures in a single power supply. All power supply outputs should be isolated from each other by utilizing diodes or other switching arrangements. E.g.: To achieve a 30A redundant system, four 10A power supplies are needed in a N+1 redundant system.

ACDCAC

OUTINOUT

N+1

Redundancy

OUTINOUT

Load

1+1

Redundancy

ACDCAC

OUTINOUT

Load

Apr. 2014 / Rev. 1.1 DS-YR40.245-EN All parameters are specified at 24V, 40A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted

2/18

YR40.245

Y-Series

12-28V, 40A, SINGLE REDUNDANCY MODULE

1. INTENDED USE

This redundancy module is designed for installation in an enclosure and is intended for the general use such as in industrial control, office, communication, and instrumentation equipment.

This redundancy module can be used with any DIMENSION power supplies except the QT40 series. Do not use this redundancy module in equipment, where malfunction may cause severe personal injury or threaten

human life. This device is designed for use in hazardous, non-hazardous, ordinary or unclassified locations.

2. INSTALLATION REQUIREMENTS

This device may only be installed and put into operation by qualified personnel. This device does not contain serviceable parts. If damage or malfunction should occur during installation or operation, immediately turn power off and send unit to

the factory for inspection. Mount the unit on a DIN-rail so that the input terminals are located on the bottom and the output terminals on the

top of the unit. For other mounting orientations see de-rating requirements of chapter 18.6 in this document. This device is designed for convection cooling and does not require an external fan. Do not obstruct airflow and do

not cover the ventilation grid (e.g. cable conduits) by more than 30%! Keep the following installation clearances:

40mm on top, 20mm on the bottom, 5mm on the left and right sides are recommended when the device is loaded permanently with more than 50% of the rated output current. Increase the side clearance to 15mm in case the adjacent device is a heat source (e.g. another power supply). See chapter 18.3 for other allowed clearances when used with the PULS DIMENSION series in a 1+1 redundant configuration.

Use only power supplies with a negligible output ripple voltage in the low frequency range between 50Hz and 10kHz when used in marine applications according to the GL regulations.

WARNING

- Turn power off before working on the device. Protect against inadvertent re-powering.

- Make sure that the wiring is correct by following all local and national codes.

- Do not open, modify or repair the unit.

- Use caution to prevent any foreign objects from entering the housing.

- Do not use in wet locations or in areas where moisture or condensation can be expected.

- Do not touch during power-on, and immediately after power-off. Hot surfaces may cause burns.

Notes for use in hazardous location areas:

The redundancy module is suitable for use in Class I Division 2 Groups A, B, C, D locations and for use in Group II Category 3 (Zone 2) environments and is evaluated according to EN 60079-0:2009 and EN 60079-15:2010.

WARNING EXPLOSION HAZARDS!

Substitution of components may impair suitability for this environment. Do not disconnect the unit unless power has been switched off or the area is known to be non-hazardous.

A suitable enclosure must be provided for the end product which has a minimum protection of IP54 and fulfils the requirements of the EN 60079-15:2010.

Risk of electrical shock, fire, personal injury or death.

Apr. 2014 / Rev. 1.1 DS-YR40.245-EN All parameters are specified at 24V, 40A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted

3/18

YR40.245

Y-Series

12-28V, 40A, SINGLE REDUNDANCY MODULE

3. INPUT AND OUTPUT CHARACTERISTICS

Number of inputs - 1 Number of outputs - 1 Input voltage nom. DC 12-28V ±30% The input circuitry must meet the SELV requirements

stipulated by IEC/EN/UL 60950-1. Input voltage range - 8.4-36.4Vdc Voltage drop, input to output typ. 80mV at 20A, see Fig. 3-1 typ. 150mV at 40A, see Fig. 3-1 Input current nom. 0-40A continuous nom. 40-65A for 5 seconds max Peak input current max. 1500A for max. 1ms per input Output current nom. 40A continuous nom. 40-65A for 5 seconds max. Reverse current max. 1mA at 24V, per input, -40°C to +70°C Reverse voltage max. 40Vdc voltage applied to the output, continuously allowed Output capacitance typ. 320μF

Voltage Drop, typ

200mV 175mV 150mV 125mV 100mV

75mV

A B

50mV 25mV

0mV

Fig. 3-1 Input to output voltage drop when both inputs draw current

(typical 1+1 redundant case, when the output voltages of the two units are equal)

10A 30A

Output Current

22A

QS40

24V,40A

in overload (voltage < 6V) or short circuit mode

Output

YR40.245

Input Output

Voltage Drop

Variable

Load,

OUT

0-40A

OUT

UIN=

OUT

40A20A

Apr. 2014 / Rev. 1.1 DS-YR40.245-EN All parameters are specified at 24V, 40A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted

4/18

YR40.245

Y-Series

12-28V, 40A, SINGLE REDUNDANCY MODULE

4. POWER LOSSES

Power losses typ. typ.

DC 12V DC 24V

1.7W 1.8W at 20A

6.1W 6.2W

Standby power losses typ. 0.06W 0.12W at no output current

Fig. 4-1 Power losses when both inputs draw equal current

Power Losses, typ.

7 6 5 4 3

QS40

set to 24V

2 1 0

0510 30

Output Current

2515 20 35

at 40A

YR40.245

Input Output

Losses

Output

UIN=

Variable

OUT

Load,

0-40A

OUT

-*IIN)(

OUT

Apr. 2014 / Rev. 1.1 DS-YR40.245-EN All parameters are specified at 24V, 40A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted

5/18

YR40.245

Y-Series

12-28V, 40A, SINGLE REDUNDANCY MODULE

5. LIFETIME EXPECTANCY AND MTBF

Load conditions Lifetime expectancy

557 000h

1 576 000h

**)

MTBF

SN 29500, IEC 61709 13 290 000h 6 357 000h at 24V 40°C

Output: 20A Output: 40A

134 000h

378 000h

at 24V and 40°C

at 24V and 25°C

22 628 000h 12 238 000h at 24V 25°C

**)

MTBF

MIL HDBK 217F 381 000h 278 000h Ground Fixed GF40 (24V and 40°C) 518 000h 366 000h Ground Fixed GF25 (24V and 25°C) 1 816 000h 1 401 000h Ground Benign GB40 (24V and 40°C) 2 486 000h 1 861 000h Ground Benign GB25 (24V and 25°C)

*) The Lifetime expectancy shown in the table indicates the minimum operating hours (service life) and is determined by the lifetime

expectancy of the built-in electrolytic capacitors. Lifetime expectancy is specified in operational hours and is calculated according to the capacitor’s manufacturer specification. The manufacturer of the electrolytic capacitors only guarantees a maximum life of up to 15 years (131 400h). Any number exceeding this value is a calculated theoretical lifetime which can be used to compare devices.

**) MTBF stands for Mean Time Between Failure, which is calculated according to statistical device failures, and indicates reliability of a

device. It is the statistical representation of the likelihood of a unit to fail and does not necessarily represent the life of a product.

The MTBF figure is a statistical representation of the likelihood of a device to fail. A MTBF figure of e.g. 1 000 000h means that

statistically one unit will fail every 100 hours if 10 000 units are installed in the field. However, it can not be determined if the failed unit has been running for 50 000h or only for 100h.

Apr. 2014 / Rev. 1.1 DS-YR40.245-EN All parameters are specified at 24V, 40A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted

6/18

YR40.245

Y-Series

12-28V, 40A, SINGLE REDUNDANCY MODULE

6. TERMINALS AND WIRING

Type Screw termination

Solid wire 0.5-16mm2 0.2-16mm2 Stranded wire 0.5-10mm American Wire Gauge 22-8 AWG 22-6 AWG Max. wire diameter 5.2mm (including ferrule) 5.4mm (including ferrule) Wire stripping length 12mm / 0.5inch 12mm / 0.5inch Screwdriver 3.5x1mm slotted or Pozidrive No 2 5.5x1mm slotted or Pozidrive No 2 Recommended tightening torque 1.2Nm, 10.6lb-in 1.4Nm, 12lb-in

To connect the chassis to ground, use a ring-type terminal (ring cable lug) which is suitable for a M4 screw and connect it to the chassis ground terminal on top of the unit.

Instructions:

a) The external circuitry of all terminals must meet the safety requirements stipulated by IEC/EN/UL 60950-1: SELV. b) Use appropriate copper cables that are designed for minimum operating temperatures of:

60°C for ambient up to 45°C and 75°C for ambient up to 60°C and

90°C for ambient up to 70°C minimum. c) Follow national installation codes and installation regulations! d) Ensure that all strands of a stranded wire enter the terminal connection! e) Screws of unused terminal compartments should be securely tightened. f) Ferrules are allowed. g) Do not connect or disconnect the wires from the terminals below -25°C (-13°F).

Instructions for inserting and removing the pluggable output terminal

To avoid an accidental disconnection of the output, the plug connector is equipped with a locking system.

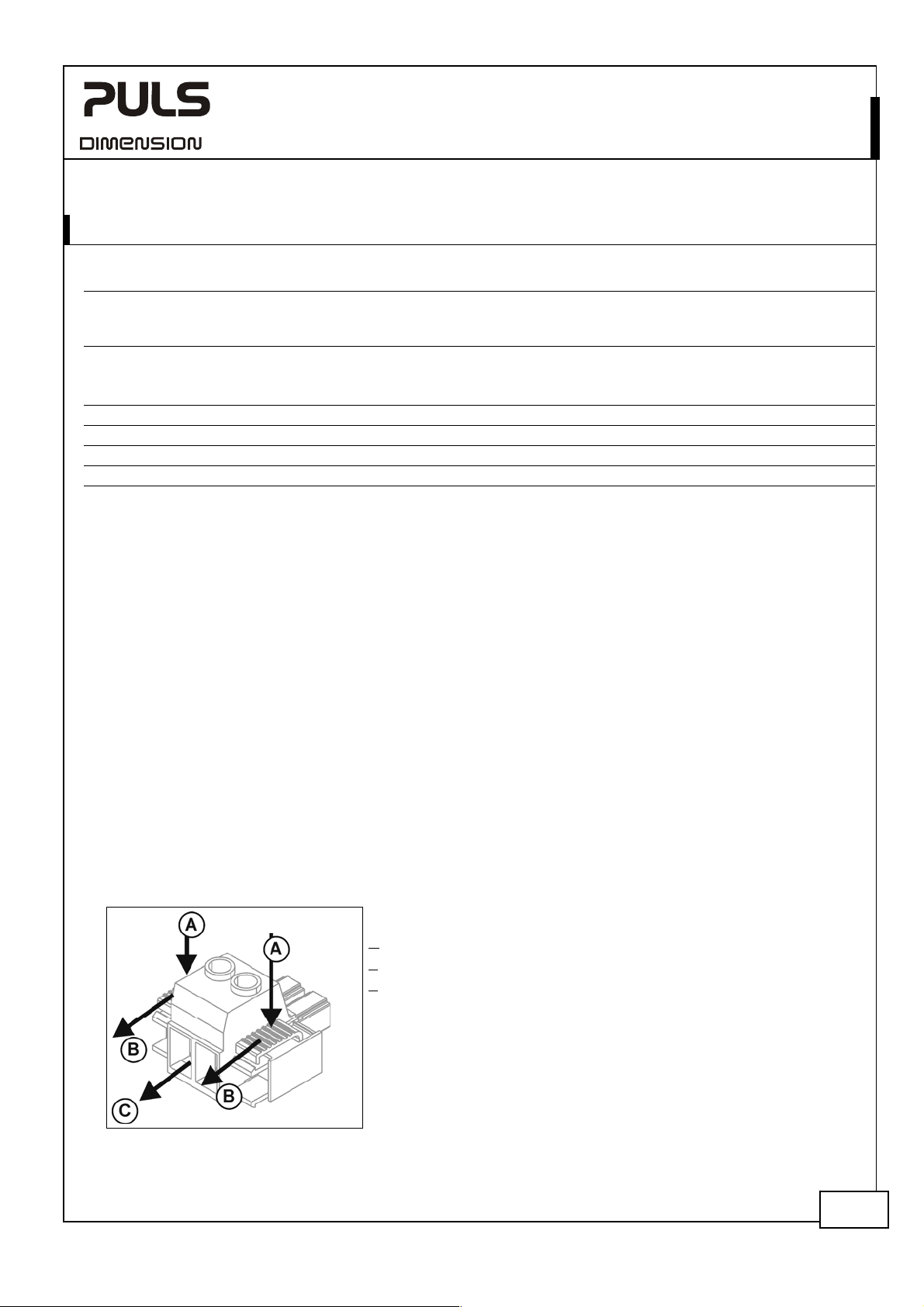

Fig. 6-1 Removing the latch mechanism

Input Output

Pluggable screw termination IP20 Finger safe construction. Suitable for field installation.

0.5-10mm2

Unlock the red sliders by pushing the tabs down

At the same time slide the tabs back

C Pull-out to unplug the connector

To insert the plug connector, reverse the procedure

IP20 Finger safe construction.

Suitable for field installation.

Apr. 2014 / Rev. 1.1 DS-YR40.245-EN All parameters are specified at 24V, 40A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted

7/18

YR40.245

Y-Series

12-28V, 40A, SINGLE REDUNDANCY MODULE

7. REPLACING UNITS WHILE THE SYSTEM IS RUNNING

Instructions:

- Switch-off circuit breaker (3a).

- Remove plug (4). The plug prevents the cables from shorting.

- Change power supply (1) or/ and redundancy module (2).

- Put the plug (4) back in.

- Turn-on the circuit breaker (3a).

- The circuit is redundant again.

To replace the right power supply or redundancy module, use the same procedure but turn off circuit breaker (3b).

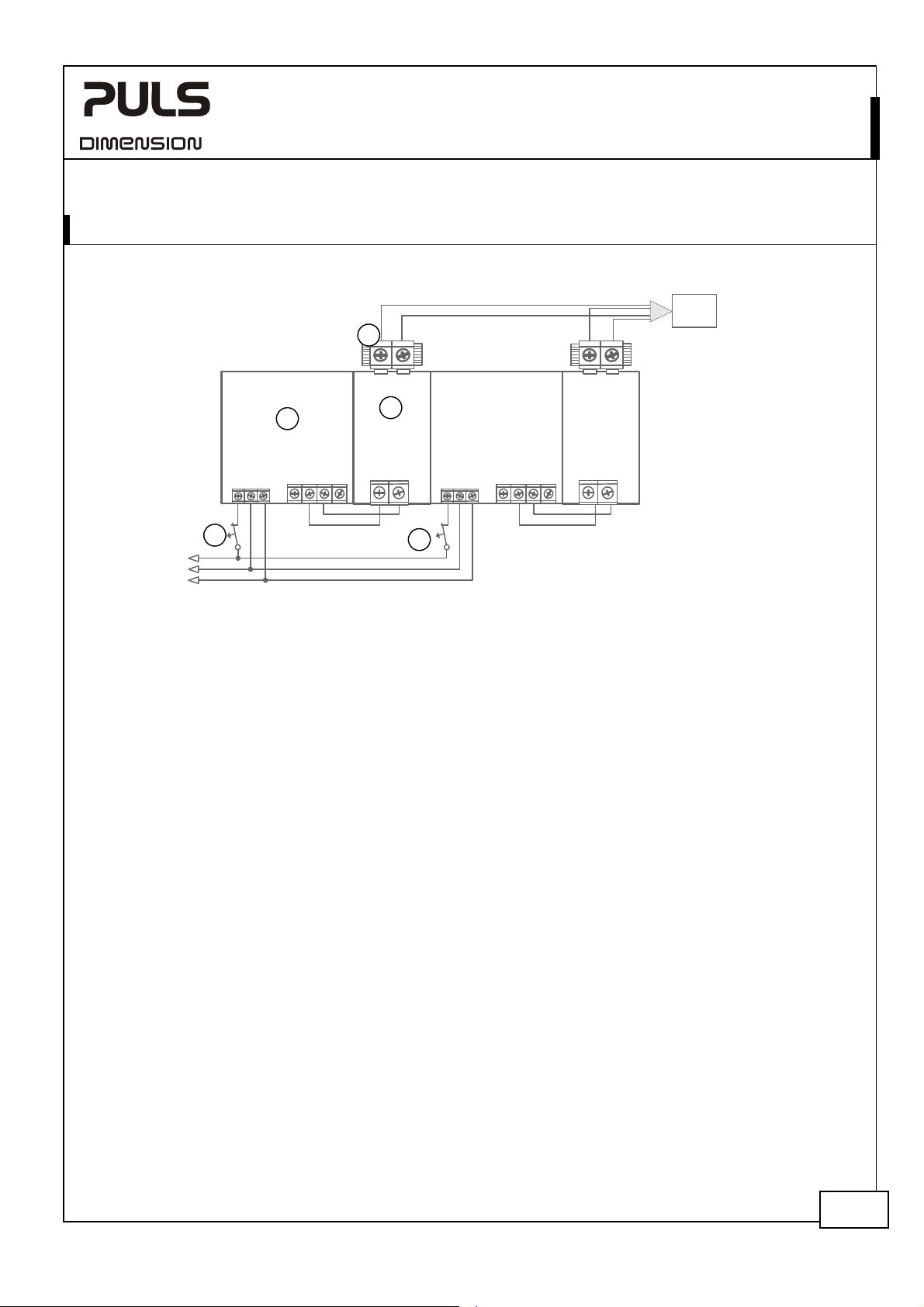

Fig. 7-1 Replacing the power supply or redundancy module while the system is running

Power Supply

DC 24V

+ +

L N PE

I I

L N

- -

Output

YR40.245

Redundancy

Module

Input

Power Supply

L N PE

+ +

DC 24V

- -

Output

YR40.245

Redundancy

Module

Input

Load

Apr. 2014 / Rev. 1.1 DS-YR40.245-EN All parameters are specified at 24V, 40A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted

8/18

YR40.245

Y-Series

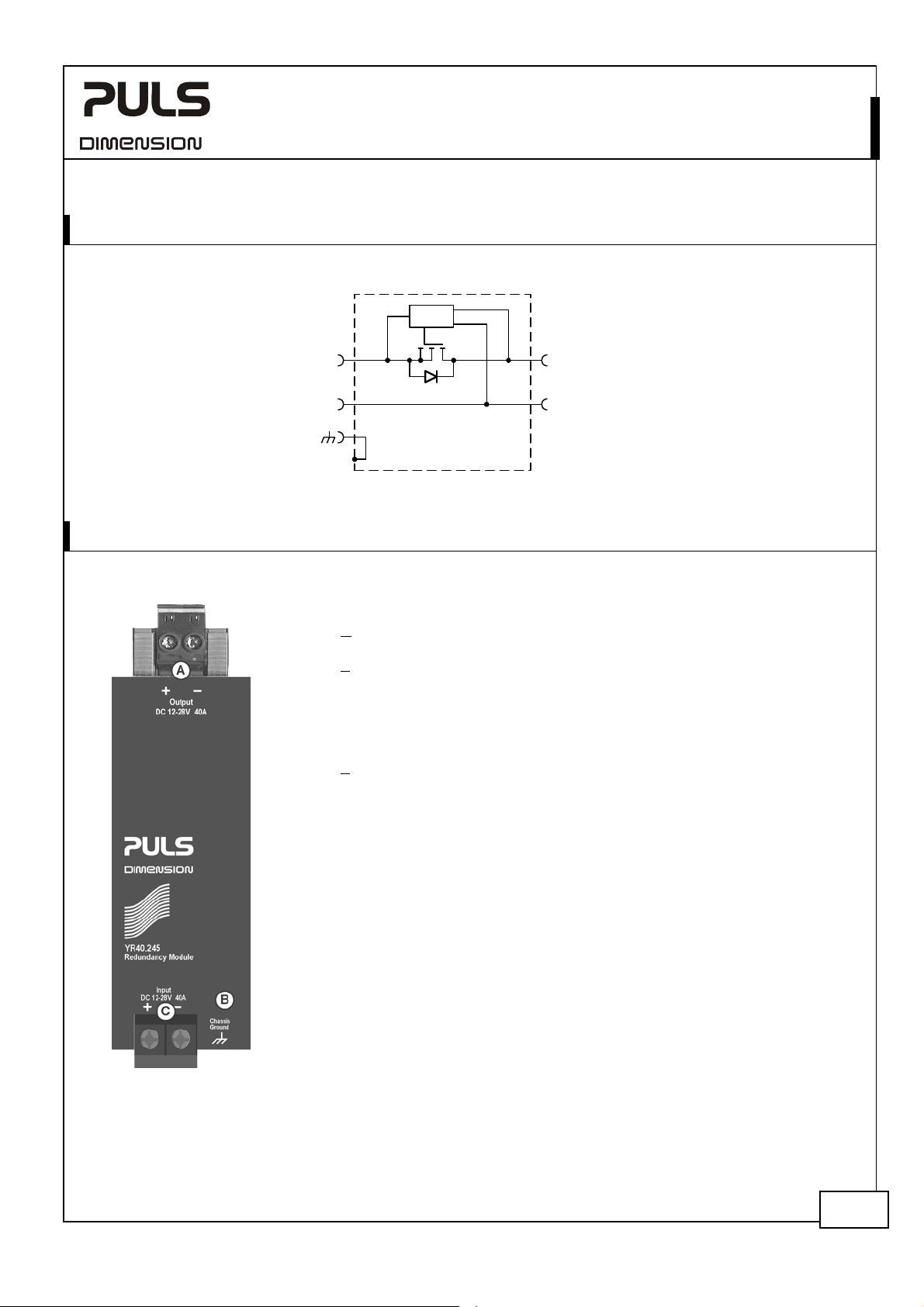

8. FUNCTIONAL DIAGRAM

Fig. 8-1 Functional diagram

Input

Chassis Ground

9. FRONT SIDE AND USER ELEMENTS

Fig. 9-1 Front side

Output Terminals (pluggable screw terminals)

B Chassis Ground Terminals

To be connected on the top side of the housing with a ring-type terminal (ring cable lug) which is suitable for a M4 screw. Connection of the chassis is optional and not required since the unit fulfils the requirements according to protection class III.

Input Terminals (screw terminals)

control

12-28V, 40A, SINGLE REDUNDANCY MODULE

Output

Apr. 2014 / Rev. 1.1 DS-YR40.245-EN All parameters are specified at 24V, 40A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted

9/18

YR40.245

Y-Series

12-28V, 40A, SINGLE REDUNDANCY MODULE

10. EMC

The redundancy module is suitable for applications in industrial environment as well as in residential, commercial and light industry environment without any restrictions. A detailed EMC report is available on request.

EMC Immunity

Electrostatic discharge EN 61000-4-2 Contact discharge

Electromagnetic RF field EN 61000-4-3 80MHz-2.7GHz 20V/m Criterion A Fast transients (Burst) EN 61000-4-4 Input lines

Surge voltage on input lines

Surge voltage on output lines

Conducted disturbance EN 61000-4-6 0.15-80MHz 20V Criterion A Power-frequency magnetic

field *)

Criterions: A: Redundancy module shows normal operation behavior within the defined limits. Notes: *) A test is not applicable according to EN 61000-6-2, since the device does not contain components susceptible to magnetic fields, e.g. hall

elements, electrodynamic microphones, etc.

EMC Emission

Conducted emission IEC/CISPR 16-1-2, IEC/CISPR 16-2-1 limits for DC power ports according

Radiated emission EN 55011, EN 55022 Class B This device complies with FCC Part 15 rules.

Operation is subjected to following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

*) For information only, not mandatory for EN 61000-6-3. Provided, that power sources connected on the inputs fulfill the requirements too.

Switching frequency

According generic standards: EN 61000-6-1 and EN 61000-6-2

8kV

Air discharge

Output lines

EN 61000-4-5 + Æ -

+/- Æ Chassis ground

EN 61000-4-5 + Æ -

+/- Æ Chassis ground

EN 61000-4-8 50Hz 30A/m Criterion A

According generic standards: EN 61000-6-3 and EN 61000-6-4

The internal auxiliary supply is generated with a boost converter. The switching frequency varies from 140kHz to 500kHz depending on the input voltage.

15kV

2kV 2kV

500V 1kV

EN 61000-6-3 fulfilled *)

Criterion A Criterion A

Apr. 2014 / Rev. 1.1 DS-YR40.245-EN All parameters are specified at 24V, 40A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted

10/18

YR40.245

Y-Series

12-28V, 40A, SINGLE REDUNDANCY MODULE

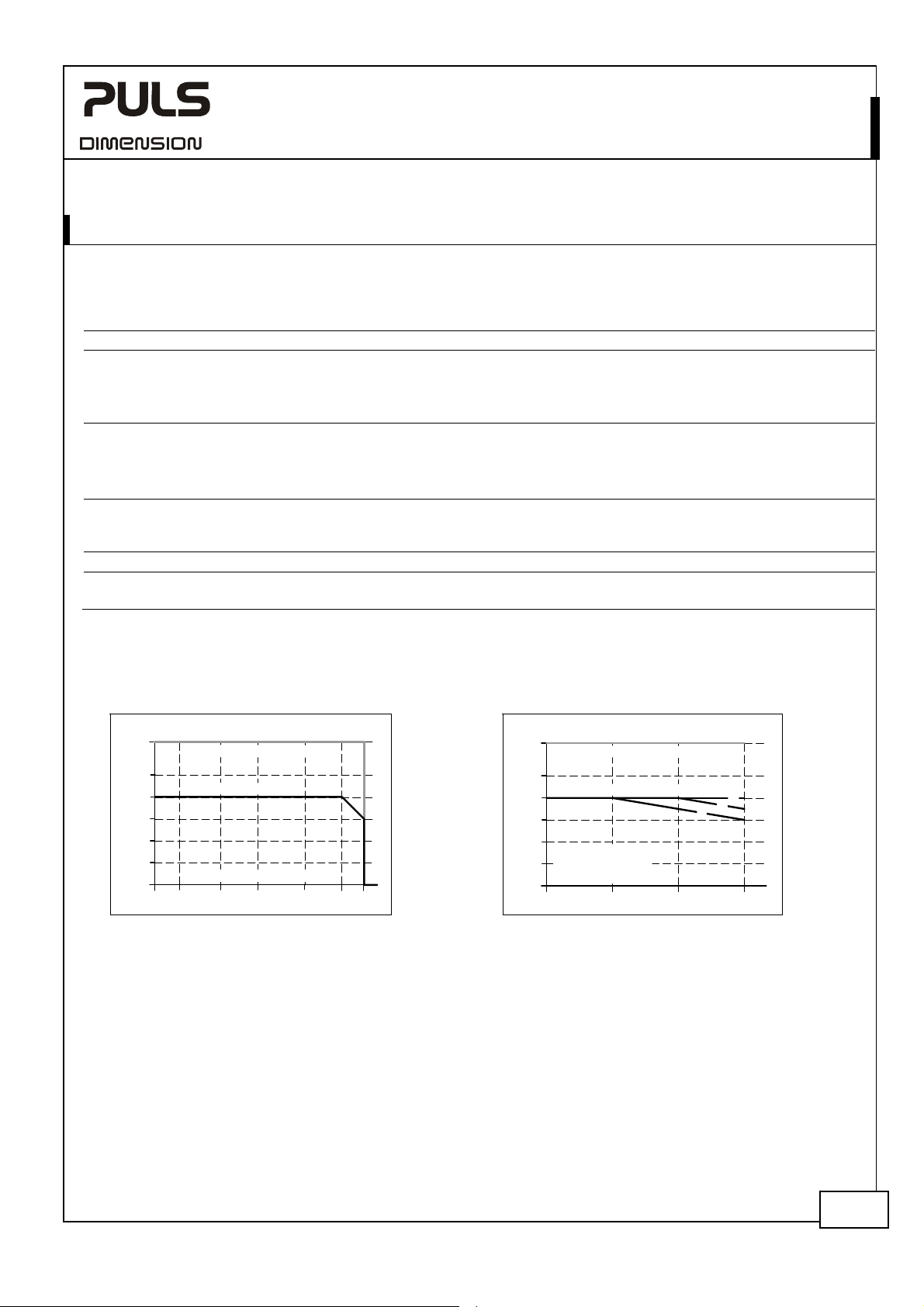

11. ENVIRONMENT

Operational temperature Storage temperature -40 to +85°C (-40°F to 185°F) for storage and transportation Output de-rating 1A / °C 60-70°C (140°F to 158°F)

**)

Humidity

5 to 95% r.H. IEC 60068-2-30

Vibration sinusoidal

***)

Shock

30g 6ms, 20g 11ms

Altitude 0 to 2000m (0 to 6 560ft) without any restrictions 2000 to 6000m (6 560 to 20 000ft) reduce output power or ambient temperature,

Altitude de-rating 2.5A/1000m or 5°C/1000m > 2000m (6500ft), see Fig. 11-2 Over-voltage category not applicable The concept of the overvoltage category is

Degree of pollution 2 IEC 62103, EN 50178, not conductive LABS compatibility The unit does not release any silicone or other LABS-critical substances and is suitable for

*) Operational temperature is the same as the ambient temperature and is defined as the air temperature 2cm below the unit. **) Do not energize while condensation is present ***) Tested in combination with DIN-Rails according to EN 60715 with a height of 15mm and a thickness of 1.3mm and standard mounting

orientation.

Fig. 11-1 Output current vs. ambient temp. Fig. 11-2 Output current vs. altitude

Allowed Output Current

65A

-40 0 20 40

-40°C to +70°C (-40°F to 158°F)

***)

2-17.8Hz: ±1.6mm; 17.8-500Hz: 2g

2 hours / axis

3 bumps / direction, 18 bumps in total

use in paint shops.

(

)

Ambient Temperature

70°C

60-25

IEC 60068-2-6

IEC 60068-2-27

see Fig. 11-2

used for equipment energized directly from the low voltage mains (IEC 60664-1 §4.3.3.2.1).

Allowed Output Current

65A

A B C

0 2000 4000

(

)

Altitude

6000m

Apr. 2014 / Rev. 1.1 DS-YR40.245-EN All parameters are specified at 24V, 40A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted

11/18

YR40.245

Y-Series

12-28V, 40A, SINGLE REDUNDANCY MODULE

12. PROTECTION FEATURES

Output over-current protection not included Reverse input polarity

protection Degree of protection IP 20 EN/IEC 60529 Penetration protection > 3.6mm e.g. screws, small parts Over-temperature protection not included Input transient protection not included Output transient protection included see EMC section Internal input fuse not included

included unit does not start when input voltage is reversed

13. SAFETY FEATURES

Input / output separation no galvanic separation Mosfet between input and output Class of protection III PE (Protective Earth) or chassis connection not required PE resistance < 0.1Ohm between housing and chassis-ground terminal

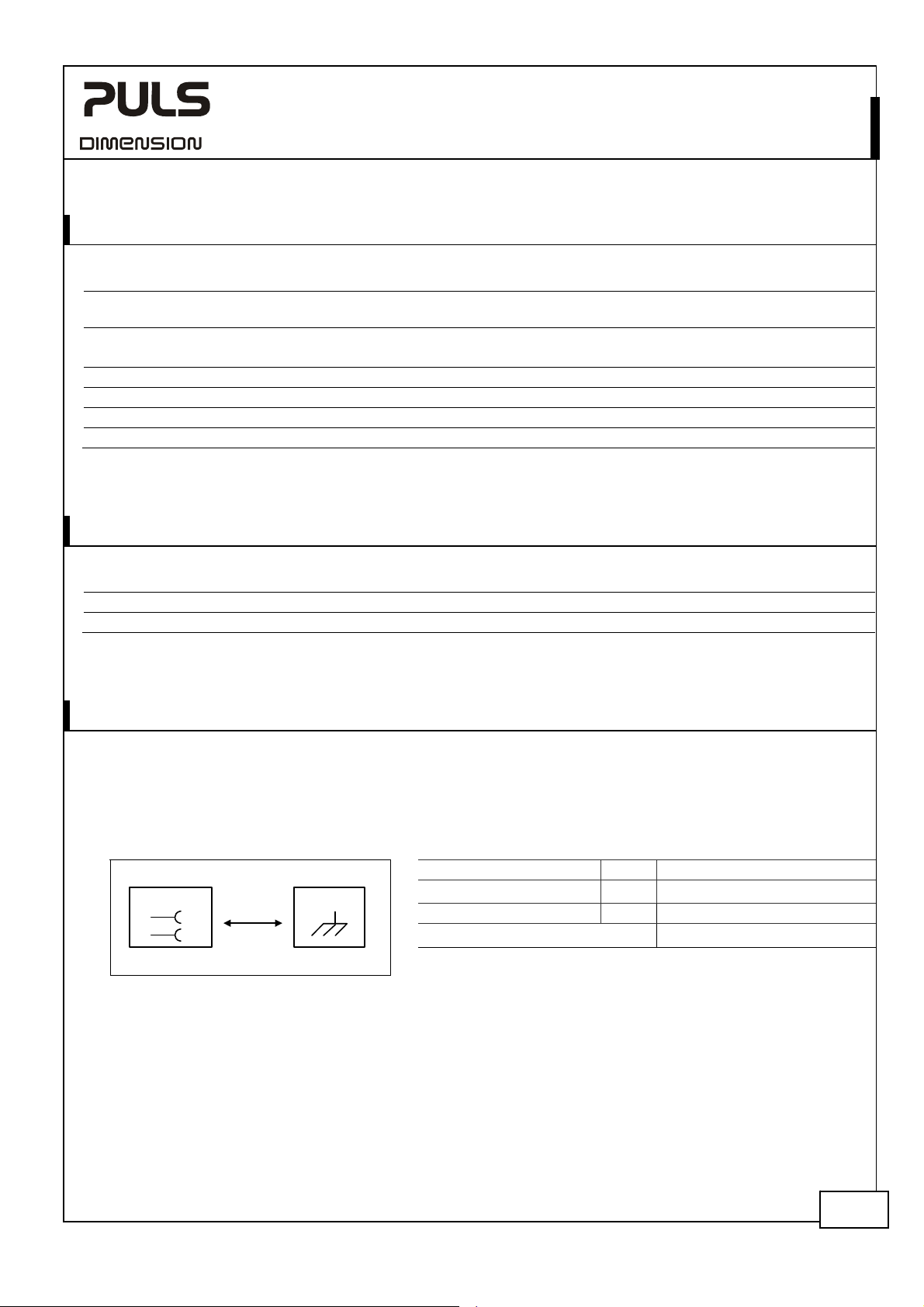

14. DIELECTRIC STRENGTH

The input and output voltages have the same reference, are floating and have no ohmic connection to ground. Type and factory tests are conducted by the manufacturer. Field tests may be conducted in the field using the appropriate test equipment which applies the voltage with a slow ramp (2s up and 2s down). Connect input/output terminals together before conducting the test. When testing, set the cut-off current settings to the value in the table below.

Fig. 14-1 Dielectric strength

In- / Output

Chassis

Type test 60s 500Vac

Factory test 5s 500Vac

Field test 5s 500Vac

Cut-off current setting > 2mA

Apr. 2014 / Rev. 1.1 DS-YR40.245-EN All parameters are specified at 24V, 40A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted

12/18

YR40.245

15. APPROVALS

EC Declaration of Conformity

EC Declaration of Conformity ATEX

IEC 60950-1

UL 508

UL 60950-1

HazLoc (Class 1 Div 2) ANSI / ISA 12.12.01-2007

ATEX EN 60079-0, EN 60079-15

IECEx IEC 60079-0, IEC 60079-15

Marine

GOST R

Y-Series

IND. CONT. EQ.

II 3G Ex nA IIC T4 Gc

IECEx

Ex nA IIC T4 Gc

12-28V, 40A, SINGLE REDUNDANCY MODULE

The CE mark indicates conformance with the

- EMC directive 2004/108/EC,

- Low-voltage directive (LVD) 2006/95/EC and

- RoHS directive 2011/65/EU. The CE mark indicates conformance with the

- ATEX directive 94/9/EC (Equipment and protection systems intended for use in potentially explosive atmospheres)

CB Scheme, Information Technology Equipment

Listed for use as Industrial Control Equipment; U.S.A. (UL 508) and Canada (C22.2 No. 107-1-01); E-File: E198865

Recognized for use as Information Technology Equipment, Level 5; U.S.A. (UL 60950-1) and Canada (C22.2 No. 60950); E-File: E137006

LISTED for use in Hazardous Location Class I Div 2 T4 Groups A,B,C,D systems; U.S.A. (ANSI / ISA 12.12.01-2007) and Canada (C22.2 No. 213-M1987)

Suitable for use in Category 3 Zone 2 locations. Number of ATEX certificate: EPS 11 ATEX 1 312 X The redundancy module must be built-in in an IP54 enclosure.

Suitable for use in Category 3 Zone 2 locations. Number of IECEx certificate: IECEx EPS 12.0032X

GL (Germanischer Lloyd) classified Environmental category: C, EMC1 Marine and offshore applications

Certificate of Conformity for Russia and other GUS countries

Apr. 2014 / Rev. 1.1 DS-YR40.245-EN All parameters are specified at 24V, 40A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted

13/18

YR40.245

Y-Series

12-28V, 40A, SINGLE REDUNDANCY MODULE

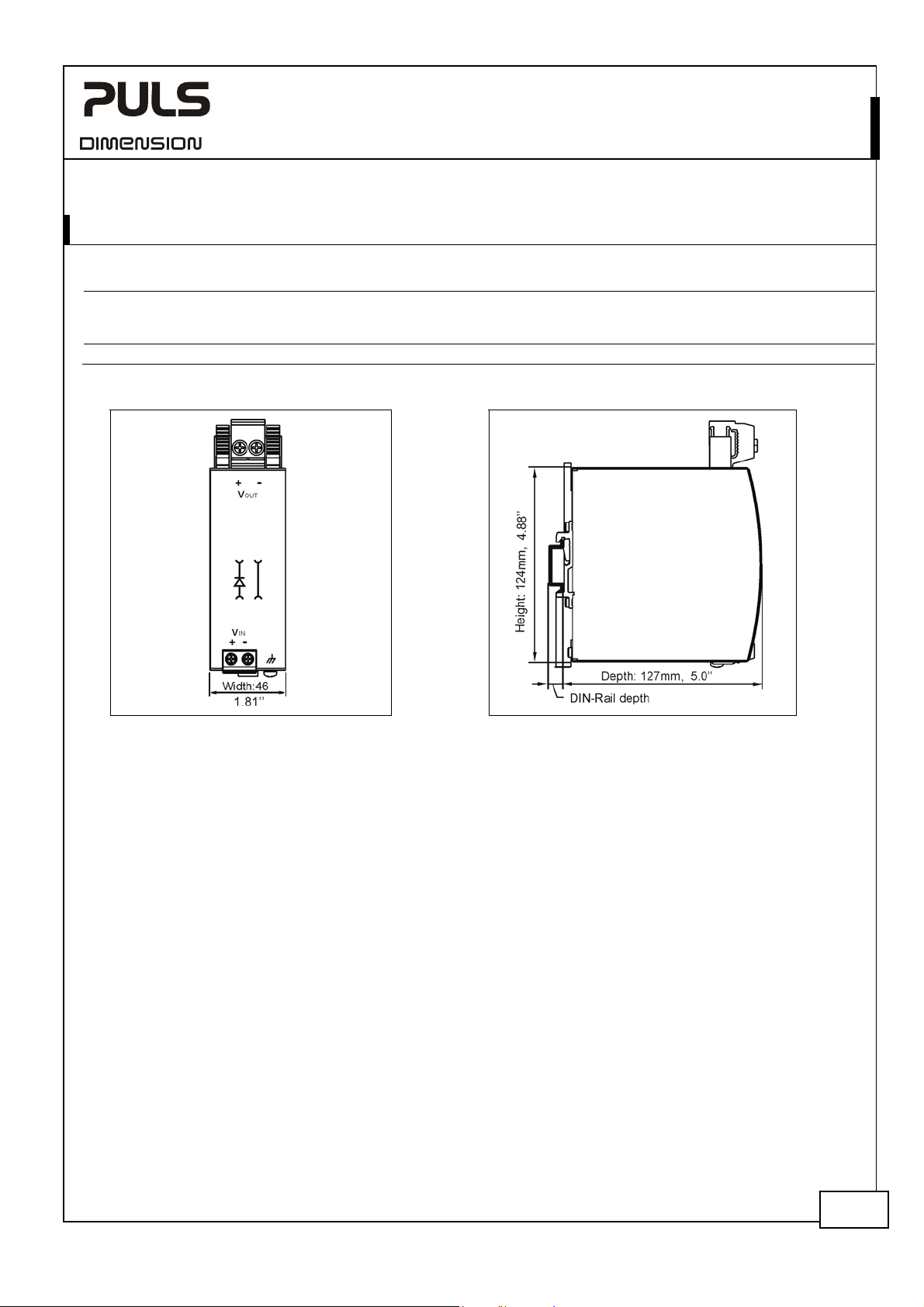

16. PHYSICAL DIMENSIONS AND WEIGHT

Weight 340g / 0.75lb DIN-Rail Use 35mm DIN-rails according to EN 60715 or EN 50022 with a height of 7.5 or 15mm.

The DIN-rail height must be added to the unit depth (127mm) to calculate the total required installation depth.

Installation clearances See chapter 2

Fig. 16-1 Front view Fig. 16-2 Side view

Apr. 2014 / Rev. 1.1 DS-YR40.245-EN All parameters are specified at 24V, 40A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted

14/18

YR40.245

Y-Series

12-28V, 40A, SINGLE REDUNDANCY MODULE

17. ACCESSORIES

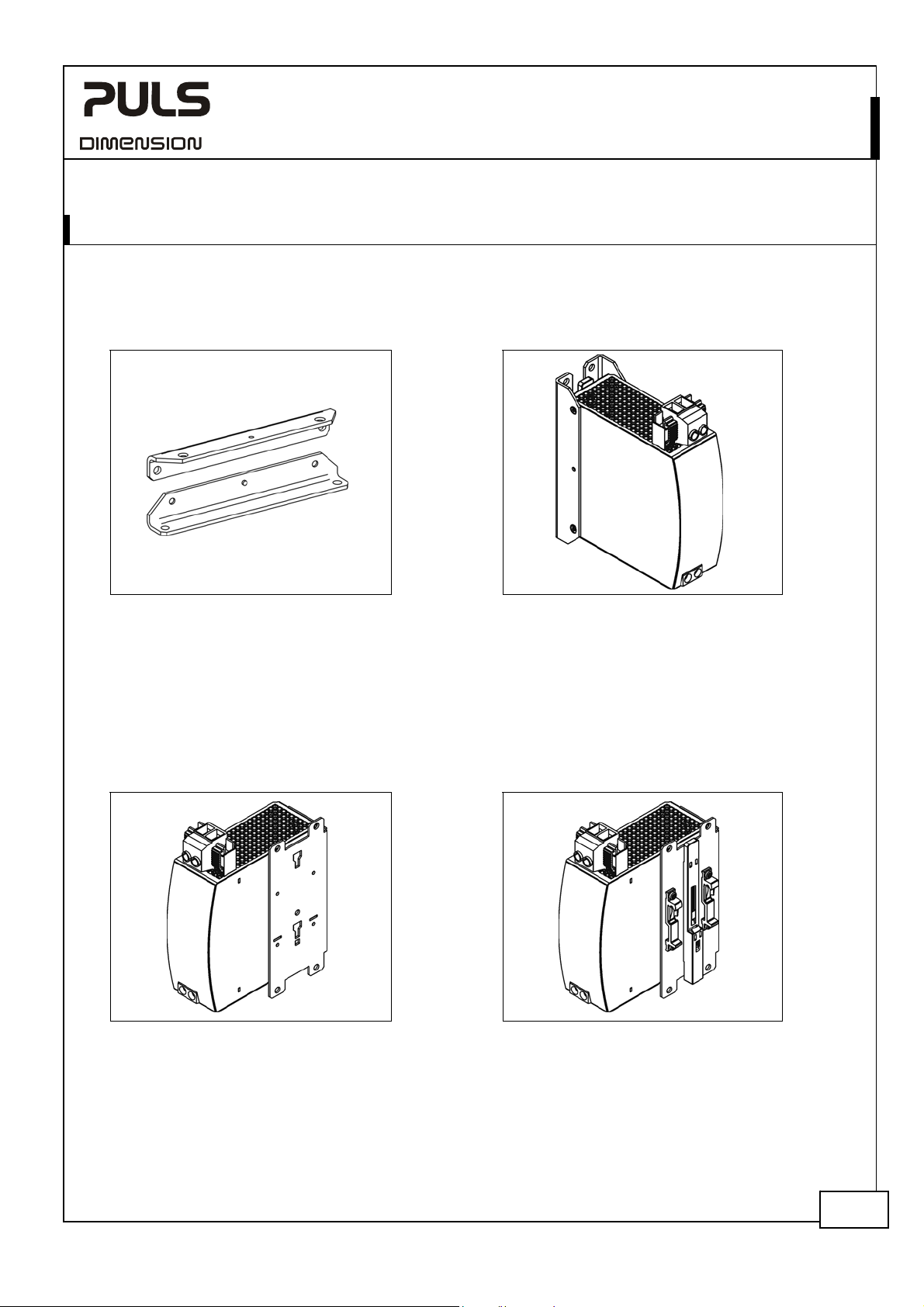

ZM2.WALL Wall mounting bracket This standard bracket is used to mount the YR40.245 redundancy module onto a flat surface without utilizing a DIN-

Rail.

Fig. 17-1 ZM2.WALL Wall mounting bracket Fig. 17-2 Assembled wall mounting bracket

ZM12.SIDE Side mounting bracket

This bracket is used to mount the YR40.245 redundancy module sideways with or without utilizing a DIN-Rail. The two aluminum brackets and the black plastic slider of the unit have to be detached, so that the steel brackets can

be mounted. For sideway DIN-rail mounting, the removed aluminum brackets and the black plastic slider need to be mounted on

the steel bracket.

ZM12.SIDE Side mounting bracket

Fig. 17-3

Side mounting with DIN-rail brackets

Fig. 17-4

Apr. 2014 / Rev. 1.1 DS-YR40.245-EN All parameters are specified at 24V, 40A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted

15/18

YR40.245

Y-Series

12-28V, 40A, SINGLE REDUNDANCY MODULE

18. APPLICATION NOTES

18.1. RECOMMENDATIONS FOR REDUNDANCY

Recommendations for the configuration of redundant power systems:

- Use separate input fuses for each power supply.

- Use three-phase power supplies to gain functional safety if one phase fails.

- When single-phase power supplies are utilized connect them to different phases or mains circuits if possible.

- Set the power supply in “Parallel-Use” mode if this feature is available

- It is desirable to set the output voltages of all power supplies to the same value.

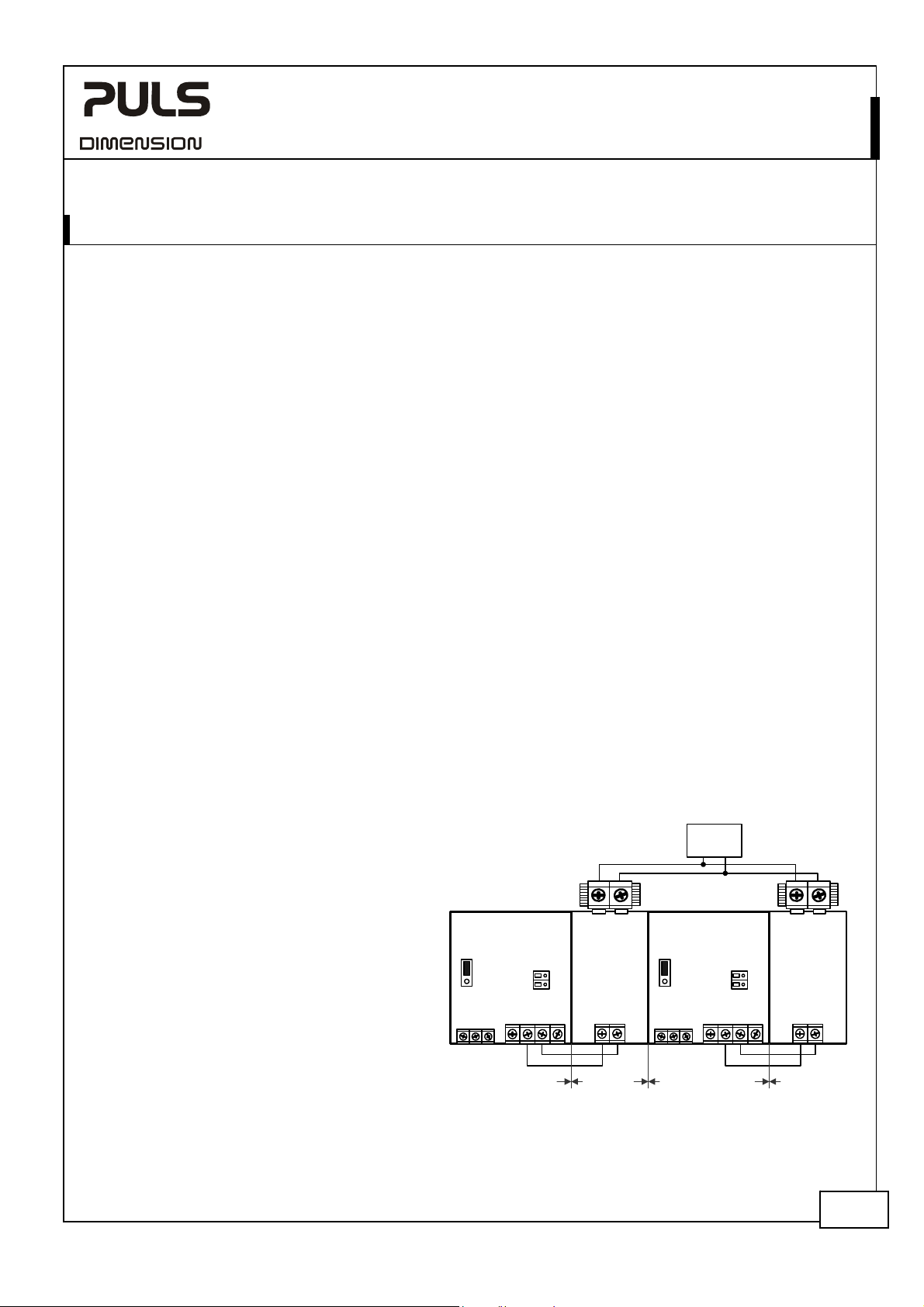

18.2. INDUCTIVE AND CAPACITIVE LOADS

The unit is designed to supply any kind of loads, including unlimited capacitive and inductive loads.

18.3. SIDEWARDS INSTALLATION CLEARANCES

The minimum clearance recommendations are defined in chapter 2. Normally, the following installation clearance are recommended: 40mm on top, 20mm on the bottom, 5mm on the

left and right sides when the device is loaded permanently with more than 50% of the rated power. Increase this clearance to 15mm in case the adjacent device is a heat source (e.g. another power supply).

The clearance between the power supplies and the redundancy module can be reduced to zero under the following conditions:

- 1+1 redundancy application with maximum 40A output current.

- The power supplies are from the PULS DIMENSION series.

- The redundancy module is placed between the two power supplies or at least on one side of the power supply.

- The output voltage is set to the same level on both power supplies.

Power Supply

Parallel Use

Single Use

AC Input

L N PE

Output

DCOK

24V, 40A

+ +

0mm 0mm 0mm

- -

YR40.245

Redundancy

Module

Input

L N PE

max.

40A

Load

Power Supply

Parallel Use

Single Use

AC Input

24V, 40A

+ +

DCOK

- -

Output

YR40.245

Redundancy

Module

Input

Apr. 2014 / Rev. 1.1 DS-YR40.245-EN All parameters are specified at 24V, 40A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted

16/18

YR40.245

Y-Series

12-28V, 40A, SINGLE REDUNDANCY MODULE

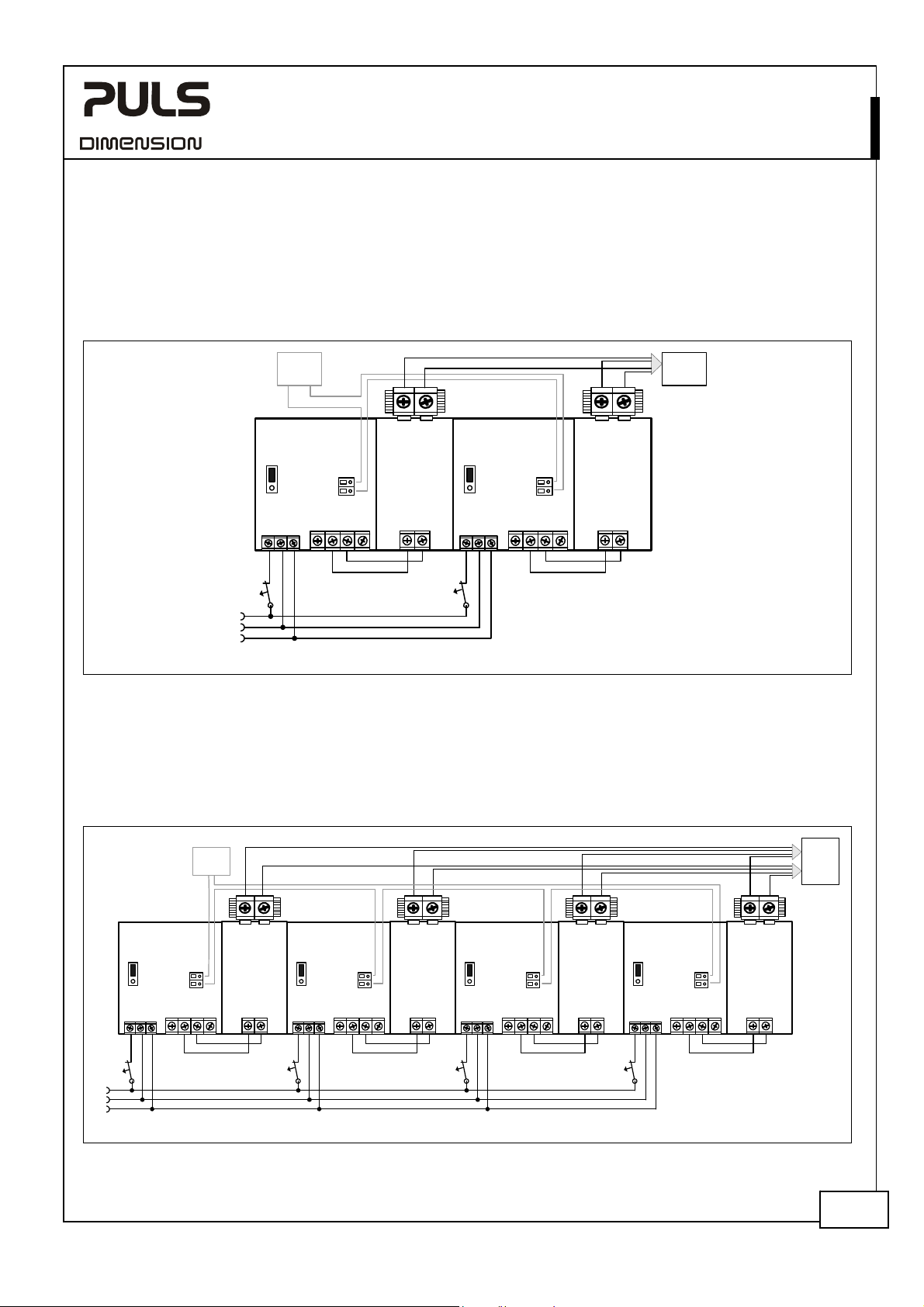

18.4. 1+1 REDUNDANCY UP TO 40A

1+1 Redundancy up to 40A requires two 40A power supplies and two YR40.245 redundancy modules.

Fig. 18-1 Wiring diagram, 1+1 Redundancy, 40A output current

Failure

Monitor

Power Supply

Parallel Use

Single Use

AC Input

L N PE

24V, 40A

+ +

DCOK

- -

Output

YR40.245

Redundancy

Module

Input

Power Supply

Parallel Use

Single Use

AC Input

L N PE

24V, 40A

+ +

DCOK

- -

Output

YR40.245

Redundancy

Module

Input

24V

40A

Load

Note: Use separate mains systems for each power supply whenever it is possible

18.5. N+1 REDUNDANCY, EXAMPLE WITH 120A

N+1 Redundancy up to 120A requires four 40A power supplies and four YR40.245 redundancy modules.

Failure

Monitor

Power Supply

DC-

24V, 40A

+ +

- -

Parallel Use

Single Use

AC Input

L N PE

Fig. 18-2 Wiring diagram, n+1 Redundancy, 120A output current

Output

YR40.245

Redundancy

Module

Input

Power Supply

Parallel Use

Single Use

AC Input

L N PE

+ +

DCOK

24V, 40A

- -

Output

YR40.245

Redundancy

Module

Input

Power Supply

Parallel Use

Single Use

AC Input

L N PE

24V, 40A

+ +

DCOK

- -

Output

YR40.245

Redundancy

Module

Input

Power Supply

Parallel Use

Single Use

AC Input

L N PE

+ +

DCOK

24V, 40A

- -

YR40.245

Redundancy

Module

Output

Input

24V 120A Load

L N

I I

Note: Use separate mains systems for each power supply whenever it is possible

Apr. 2014 / Rev. 1.1 DS-YR40.245-EN All parameters are specified at 24V, 40A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted

17/18

YR40.245

Y-Series

12-28V, 40A, SINGLE REDUNDANCY MODULE

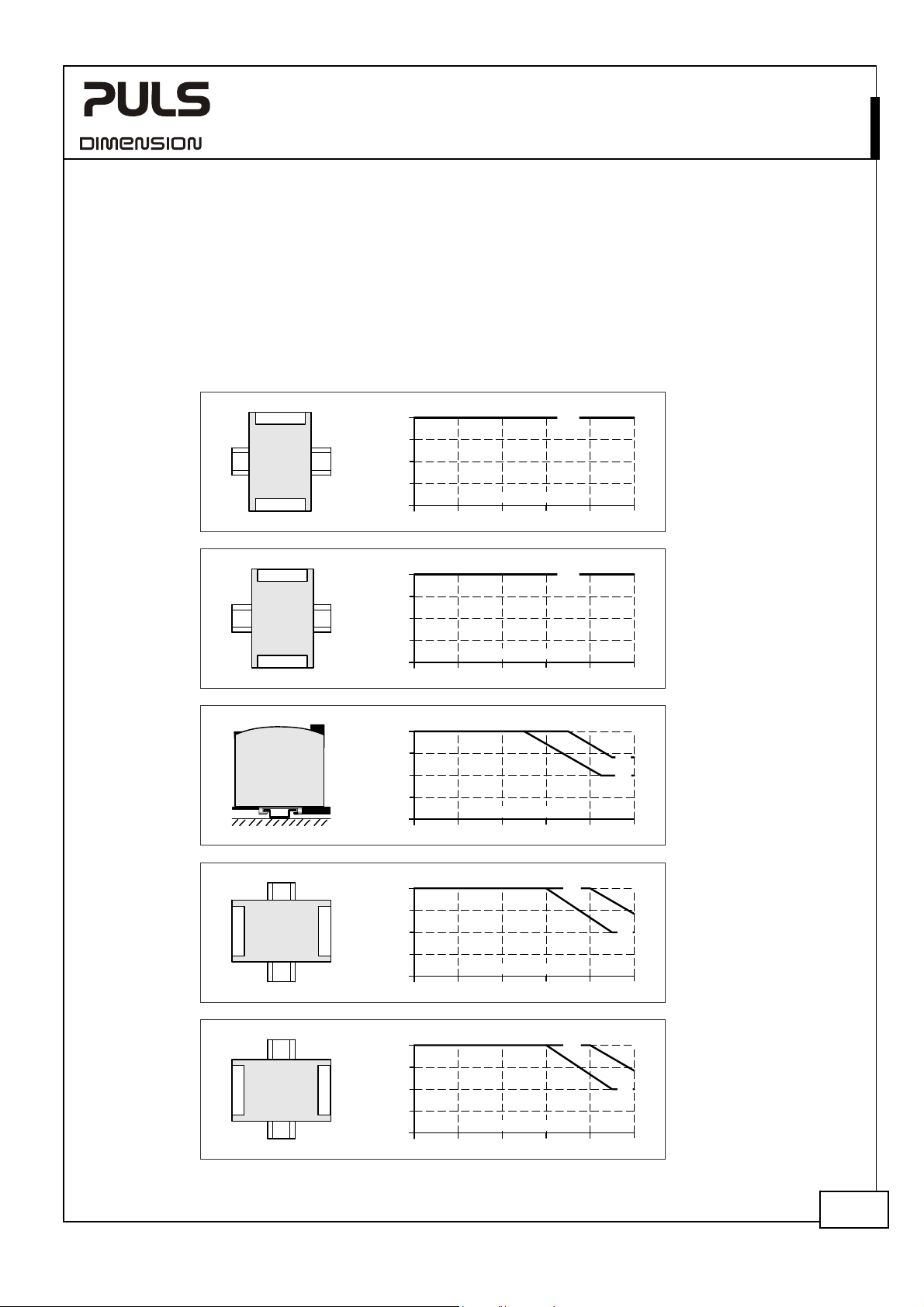

18.6. MOUNTING ORIENTATIONS

Mounting orientations other than input terminals on the bottom and output on the top require a reduction in continuous output power or a limitation in the maximum allowed ambient temperature. The amount of reduction influences the lifetime expectancy of the power supply. Therefore, two different derating curves for continuous operation can be found below:

Curve A1 Recommended output current. Curve A2 Max allowed output current (results in approximately half the lifetime expectancy of A1).

Fig. 18-3 Mounting Orientation A

(Standard orientation)

Fig. 18-4

Mounting Orientation B

(Upside down)

OUTPUT

YR40.245

Redundancy

Module

INPUT

Module

Redundancy

YR40.245

OUTPUT

Fig. 18-5

Mounting Orientation C

(Table-top mounting)

Fig. 18-6

Mounting Orientation D

(Horizontal cw)

INPUT

Redundancy

YR40.245

Module

OUTPUT

Fig. 18-7

Mounting Orientation E

(Horizontal ccw)

INPUT

OUTPUT

Module

YR40.245

Redundancy

Output Current

40A

Ambient Temperature

10 20 30 40

Output Current

40A

Ambient Temperature

10 20 30 40

Output Current

40A

Ambient Temperature

10 20 30 40

Output Current

40A

Ambient Temperature

10 20 30 40

Output Current

40A

Ambient Temperature

10 20 30 40

60°C

2 1

Apr. 2014 / Rev. 1.1 DS-YR40.245-EN All parameters are specified at 24V, 40A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted

18/18

Puls YR40.245 Data Sheet

Specifications and Main Features

Frequently Asked Questions

User Manual

1. INTENDED USE

2. INSTALLATION REQUIREMENTS

3. INPUT AND OUTPUT CHARACTERISTICS

4. POWER LOSSES

5. LIFETIME EXPECTANCY AND MTBF

6. TERMINALS AND WIRING

7. REPLACING UNITS WHILE THE SYSTEM IS RUNNING

8. FUNCTIONAL DIAGRAM

9. FRONT SIDE AND USER ELEMENTS

10. EMC

11. ENVIRONMENT

12. PROTECTION FEATURES

13. SAFETY FEATURES

14. DIELECTRIC STRENGTH

15. APPROVALS

16. PHYSICAL DIMENSIONS AND WEIGHT

17. ACCESSORIES

18. APPLICATION NOTES

18.1. RECOMMENDATIONS FOR REDUNDANCY

18.2. INDUCTIVE AND CAPACITIVE LOADS

18.3. SIDEWARDS INSTALLATION CLEARANCES

18.4. 1+1 REDUNDANCY UP TO 40A

18.5. N+1 REDUNDANCY, EXAMPLE WITH 120A

18.6. MOUNTING ORIENTATIONS
