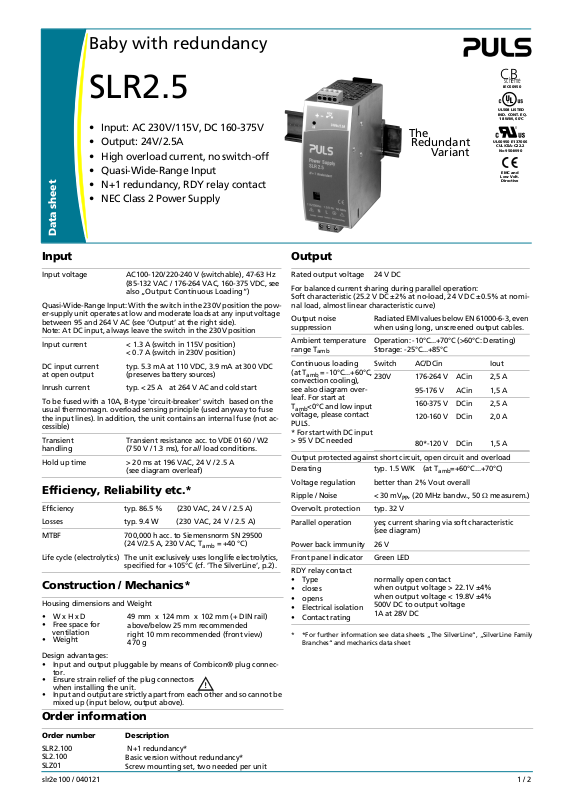

Puls SLR2.5 Data Sheet
Data sheet
Baby with redundancy
SLR2.5
• Input: AC 230V/ 115V, DC 160-375V
• Output: 24V/2.5A
• High overload current, no switch-off
• Quasi-Wide-Range Input
• N+1 redundancy, RDY relay contact
• NEC Class 2 Power Supply
The
Redundant
Variant
CB
scheme
IEC60950
UL508 LISTED
IND. CONT. EQ.
18 WM, 60°C
UL60950 E137006
CUL/CSA-C22.2
No 950-M90
EMC and
Low Volt.
Directive
Input
Input voltage AC100-120/220-240 V (switchable), 47-63 Hz
Quasi-Wide-Range Input: With the switch in the 230V position the power-supply unit operates at low and moderate loads at any input voltage
between 95 and 264 V AC (see ’Output’ at the right side).
Note: At DC input, always leave the switch in the 230V position
Input current < 1.3 A (switch in 115V position)
DC input current
at open output
Inrush current typ. < 25 A at 264 V AC and cold start
To be fused with a 10A, B-type 'circuit-breaker' switch based on the
usual thermomagn. overload sensing principle (used anyway to fuse
the input lines). In addition, the unit contains an internal fuse (not accessible)
Transient
handling
Hold up time > 20 ms at 196 VAC, 24 V / 2.5 A
(85-132 VAC / 176-264 VAC, 160-375 VDC, see
also „Output: Continuous Loading“)
< 0.7 A (switch in 230V position)
typ. 5.3 mA at 110 VDC, 3.9 mA at 300 VDC
(preserves battery sources)
Transient resistance acc. to VDE 0160 / W2
(750 V / 1.3 ms), for all load conditions.
(see diagram overleaf)
Efficiency, Reliability etc.*
Efficiency typ. 86.5 % (230 VAC, 24 V / 2.5 A)
Losses typ. 9.4 W (230 VAC, 24 V / 2.5 A)
MTBF 700,000 h acc. to Siemensnorm SN 29500
Life cycle (electrolytics) The unit exclusively uses longlife electrolytics,
(24 V/2.5 A, 230 VAC, T
specified for +105°C (cf. ’The SilverLine’, p.2).
= +40 °C)
amb
Construction / Mechanics*
Housing dimensions and Weight
• W x H x D
• Free space for
ventilation
•Weight
Design advantages:
• Input and output pluggable by means of Combicon® plug connector.
• Ensure strain relief of the plug connectors
when installing the unit.
• Input and output are strictly apart from each other and so cannot be
mixed up (input below, output above).
49 mm x 124 mm x 102 mm (+ DIN rail)
above/below 25 mm recommended
right 10 mm recommended (front view)
470 g
Order information
Output
Rated output voltage 24 V DC
For balanced current sharing during parallel operation:
Soft characteristic (25.2 V DC ±2% at no-load, 24 V DC ±0.5% at nominal load, almost linear characteristic curve)
Output noise
suppression
Ambient temperature
range T
amb
Continuous loading
(at T
convection cooling),
see also diagram overleaf. For start at
T
voltage, please contact
PULS.
* For start with DC input
> 95 V DC needed
Output protected against short circuit, open circuit and overload
Derating typ. 1.5 W/K (at T
Voltage regulation better than 2% Vout overall
Ripple / Noise < 30 mV
Overvolt. protection typ. 32 V
Parallel operation yes; current sharing via soft characteristic
Power back immunity 26 V
Front panel indicator Green LED
RDY relay contact
•Type
•closes
• opens
• Electrical isolation
• Contact rating
* *For further information see data sheets „The SilverLine“, „SilverLine Family
= -10°C...+60°C,
amb
<0°C and low input
amb
Branches“ and mechanics data sheet
Radiated EMI values below EN 61000-6-3, even
when using long, unscreened output cables.
Operation: -10°C...+70°C (>60°C: Derating)
Storage: -25°C...+85°C
Switch AC/DCin Iout
230V 176-264 V ACin 2,5 A
95-176 V ACin 1,5 A
160-375 V DCin 2,5 A
120-160 V DCin 2,0 A
80*-120 V DCin 1,5 A
=+60°C...+70°C)
amb
, (20 MHz bandw., 50 Ω measurem.)
PP
(see diagram)
normally open contact
when output voltage > 22.1V ±4%
when output voltage < 19.8V ±4%
500V DC to output voltage
1A at 28V DC
Order number Description
SLR2.100
SL2.100
SLZ01
slr2e100 / 040121 1/2
N+1 redundancy*
Basic version without redundancy*
Screw mounting set, two needed per unit
Data sheet
A
A
A
A
A
Start / Overload Behaviour
Start-up delay typ. 0.1 s
Rise time ca. 5-20 ms, depending on load
Overload Behaviour
• Special PULS Overload Design (see
right diagram)
– no disconnection, no hiccup if overloaded
– high overload current (up to 1.5 I
is gradually reduced with increasing cur-
Nom
), Vout
rent.
Advantages:
• High short-circuit current, giving large ’start-up window’: unit starts
reliably even with awkward loads (DC-DC converters, motors).
• No ’sticking’ such as can occur with fold-back characteristics
• Secondary fuses operate reliably
Further information
Further information, especially about
•EMC
• Connections
• Safety, Approvals
• Mechanics and Mounting
see page 2 of „The SilverLine“ data sheet.
For detailed dimensions
see SilverLine mechanics data sheet SLR2.5/ 5/ 10
Power wiring
GND +24V
+
–
Output characteristic (min.)
28
24
20
16
12
8
Output voltage Vout [V]
4
0
0123456
Tamb = 60°C / 45°C / 25°C / 0 °C
Output current Iout [ A]
Output Current over Input Voltage (min.)
3
2
1
>95 VDC für Start
80 375160
100 200 300 400
3
Output current Iout [A]
2
1
85
100 200 300 400
Input voltage VDCin [V]
switch at 115V
95
132 264
176
Input voltage VACin [V]
DCin
ACin
switch at 230V
SLR2.5
N
L
+
–
SLR2. 5
N
L
Hold-up time (min.)
100
90
DCin
80
70
60
50
40
30
Hold-up time [ms]
20
10
0
80 120 160 200 240 280 320
100
ACin
90
80
Iout=1,5
70
60
Iout=2,5
50
40
30
Hold-up time [ms]
20
10
0
90 120 150 180 210 24 0
Input voltage VDCin [V]
Switc h pos .
115V
Switch pos
Inpu t voltage VACin [V]
Iout=1,0
Iout=1 ,5
Iout=2 ,5
Iout=1 ,0
230V
Iout=1,5
Iout=2,5
Unless otherwise stated, specifications are valid for AC 230V input voltage, +25°C ambient temperature, and 5 min. run-in time. They are subject to change without prior notice.
