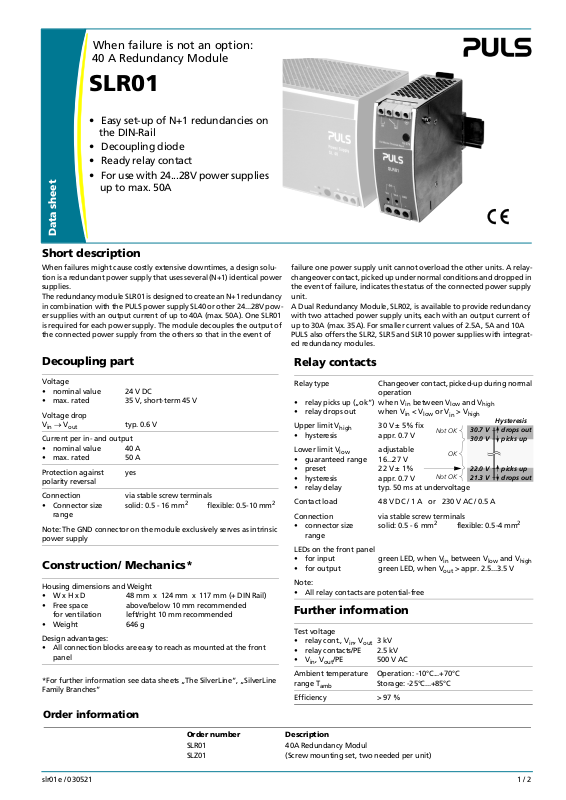

Puls SLR01 Data Sheet
When failure is not an option:
40 A Redundancy Module
SLR01
• Easy set-up of N+1 redundancies on
the DIN-Rail
• Decoupling diode
• Ready relay contact
• For use with 24...28V power supplies
up to max. 50A
Data sheet
Short description
When failures might cause costly extensive downtimes, a design solution is a redundant power supply that uses several (N+1) identical power
supplies.
The redundancy module SLR01 is designed to create an N+1 redundancy
in combination with the PULS power supply SL40 or other 24...28V power supplies with an output current of up to 40A (max. 50A). One SLR01
is required for each power supply. The module decouples the output of
the connected power supply from the others so that in the event of
failure one power supply unit cannot overload the other units. A relaychangeover contact, picked up under normal conditions and dropped in
the event of failure, indicates the status of the connected power supply
unit.
A Dual Redundancy Module, SLR02, is available to provide redundancy
with two attached power supply units, each with an output current of
up to 30A (max. 35A). For smaller current values of 2.5A, 5A and 10A
PULS also offers the SLR2, SLR5 and SLR10 power supplies with integrated redundancy modules.
Decoupling part
Voltage
• nominal value
•max. rated
Voltage drop
V
→ V
in
out
Current per in- and output
• nominal value
•max. rated
Protection against
polarity reversal
Connection
• Connector size
range
Note: The GND connector on the module exclusively serves as intrinsic
power supply
24 V DC
35 V, short-term 45 V
typ. 0.6 V
40 A
50 A
yes
via stable screw terminals
solid: 0.5 - 16 mm
2
flexible: 0.5-10 mm
Construction/ Mechanics*
Housing dimensions and Weight
•W x H x D
• Free space
for ventilation
•Weight
Design advantages:
• All connection blocks are easy to reach as mounted at the front
panel
*For further information see data sheets „The SilverLine“, „SilverLine
Family Branches“
48 mm x 124 mm x 117 mm (+ DIN Rail)
above/below 10 mm recommended
left/right 10 mm recommended
646 g
Relay contacts
Relay type
• relay picks up („ok“)
• relay drops out
Upper limit V
• hysteresis
Lower limit V
• guaranteed range
• preset
• hysteresis
•relay delay
Contact load 48 V DC / 1 A or 230 V AC / 0.5 A
2
Connection
• connector size
range
LEDs on the front panel
• for input
• for output
Note:
• All relay contacts are potential-free
high
low
Changeover contact, picked-up during normal
operation
when V
when V
30 V ± 5% fix
appr. 0.7 V
adjustable
16...27 V
22 V ± 1%
appr. 0.7 V
typ. 50 ms at undervoltage
via stable screw terminals
solid: 0.5 - 6 mm
green LED, when V
green LED, when V
between V
in
< V
in
low
or Vin > V
Not OK
Not OK
2
flexible: 0.5-4 mm
in
out
Further information
Test voltage
• relay cont., V
• relay contacts/PE
•V
, V
/PE
in
out
Ambient temperature
range T
amb
Efficiency > 97 %
3 kV
, V
in
out
2.5 kV
500 V AC
Operation: -10°C...+70°C
Storage: -25°C...+85°C
and V
low
OK
between V
> appr. 2.5...3.5 V
high
high
low
Hysteresis
drops out30.7 V
picks up30.0 V
picks up22.0 V
drops out21.3 V
and V
2
high
Order information
Order number Description
SLR01
SLZ01
slr01e / 030521 1/2
40A Redundancy Modul
(Screw mounting set, two needed per unit)
Data sheet
SLR01
Power wiring SLR01
PE
SLR01e.g. SL40
t
u
n
N
i
o
G
V
+– –
+– –
V
PE
SLR01e.g. SL40
t
u
n
N
i
o
G
V
V
Bottom view SLR01
GND +24V
D
D
Side view SLR01
117
Front view SLR01
Further information, especially about EMC, Connections, Safety, Approvals, Mechanics and Mounting,
see page 2 of „The SilverLine“ data sheet.
Unless otherwise stated, specifications are valid for AC 230V input voltage, +25°C ambient temperature, and 5 min. run-in time. They are subject to change without prior notice.
