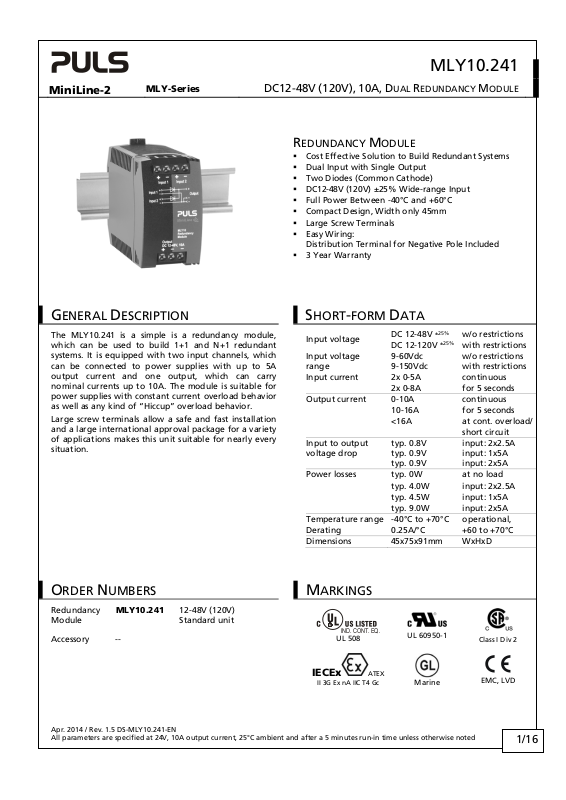

Q.
MLY10.241
MiniLine-2
MLY-Series
GENERAL DESCRIPTION
The MLY10.241 is a simple is a redundancy module,
which can be used to build 1+1 and N+1 redundant
systems. It is equipped with two input channels, which
can be connected to power supplies with up to 5A
output current and one output, which can carry
nominal currents up to 10A. The module is suitable for
power supplies with constant current overload behavior
as well as any kind of “Hiccup” overload behavior.
Large screw terminals allow a safe and fast installation
and a large international approval package for a variety
of applications makes this unit suitable for nearly every
situation.
ORDER NUMBERS
Redundancy MLY10.241 12-48V (120V)
Module Standard unit
Accessory --
DC12-48V (120V), 10A, DUAL REDUNDANCY MODULE
REDUNDANCY MODULE
Cost Effective Solution to Build Redundant Systems
Dual Input with Single Output
Two Diodes (Common Cathode)
DC12-48V (120V) ±25% Wide-range Input
Full Power Between -40°C and +60°C
Compact Design, Width only 45mm
Large Screw Terminals
Easy Wiring:
Distribution Terminal for Negative Pole Included
3 Year Warranty
SHORT-FORM DATA
Input voltage
Input voltage
range
Input current 2x 0-5A continuous
2x 0-8A for 5 seconds
Output current 0-10A continuous
10-16A for 5 seconds
Input to output
voltage drop
Power losses typ. 0W at no load
typ. 4.0W input: 2x2.5A
typ. 4.5W input: 1x5A
typ. 9.0W input: 2x5A
Temperature range -40°C to +70°C operational,
Derating 0.25A/°C +60 to +70°C
Dimensions 45x75x91mm WxHxD
DC 12-48V
DC 12-120V
9-60Vdc
9-150Vdc
<16A at cont. overload/
typ. 0.8V
typ. 0.9V
typ. 0.9V
±25%
w/o restrictions
±25%
with restrictions
w/o restrictions
with restrictions
short circuit
input: 2x2.5A
input: 1x5A
input: 2x5A
MARKINGS
IND. CONT. E
UL 508
UL 60950-1
Class I Div 2
IECEx ATEX
II 3G Ex nA IIC T4 Gc
Apr. 2014 / Rev. 1.5 DS-MLY10.241-EN
All parameters are specified at 24V, 10A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted
Marine
EMC, LVD
1/16
MLY10.241
MiniLine-2
MLY-Series
DC12-48V (120V), 10A, DUAL REDUNDANCY MODULE
INDEX
Page Page
1. Intended Use .......................................................3
2. Installation Requirements...................................3
3. Input and Output Characteristics .......................4
4. Power Losses........................................................5
5. Lifetime Expectancy and MTBF...........................6
6. Terminals and Wiring..........................................7
7. Functional Diagram.............................................8
8. Front Side and User Elements.............................8
9. EMC......................................................................9
10. Environment ......................................................10
11. Protection Features ...........................................11
12. Safety Features ..................................................11
The information presented in this document is believed to be accurate and reliable and may change without notice.
No part of this document may be reproduced or utilized in any form without permission in writing from the publisher.
13. Approvals.......................................................... 12
14. Physical Dimensions and Weight ..................... 13
15. Accessories ........................................................ 13
16. Application Notes............................................. 14
16.1. Recommendations for Redundancy.........14
16.2. Inductive and Capacitive Loads................14
16.3. Example: 1+1 Redundancy .......................14
16.4. Example: N+1 Redundancy.......................15
16.5. Example: Battery Back-up ........................15
16.6. Mounting Orientations ............................16
TERMINOLOGY AND ABREVIATIONS
PE and symbol PE is the abbreviation for Protective Earth and has the same meaning as the symbol .
Earth, Ground This document uses the term “earth” which is the same as the U.S. term “ground”.
T.b.d. To be defined, value or description will follow later.
DC 24V A figure displayed with the AC or DC before the value represents a nominal voltage with
standard tolerances (usually ±15%) included.
E.g.: DC 12V describes a 12V battery disregarding whether it is full (13.7V) or flat (10V)
24Vdc A figure with the unit (Vdc) at the end is a momentary figure without any additional
tolerances included.
may A key word indicating flexibility of choice with no implied preference
shall A key word indicating a mandatory requirement
should A key word indicating flexibility of choice with a strongly preferred implementation
1+1 Redundancy Use of two identical power supplies in parallel to provide continued operation following most
failures in a single power supply. The two
power supply outputs should be isolated
from each other by utilizing diodes or
other switching arrangements.
E.g. two 2.5A power supplies are needed to
achieve a 2.5A redundant system.
N+1 Redundancy Use of three or more identical power
supplies in parallel to provide continued
operation following most failures in a
single power supply. All power supply
outputs should be isolated from each other
by utilizing diodes or other switching
arrangements. E.g.: To achieve a 10A redundant system, five 2.5A power supplies are needed in
a N+1 redundant system.
ACDCACDCACDCACDCACDCAC
IN 1
IN 2 IN 1
OUT
N+1
Redundancy
OUT
-
+
Load
IN 2 IN 1
OUT
IN 2
DC
1+1
Redundancy
ACDCAC
IN 1
OUT
+
Load
IN 2
-
DC
Apr. 2014 / Rev. 1.5 DS-MLY10.241-EN
All parameters are specified at 24V, 10A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted
2/16
MLY10.241
MiniLine-2
MLY-Series
DC12-48V (120V), 10A, DUAL REDUNDANCY MODULE
1. INTENDED USE
This redundancy module is designed for installation in an enclosure and is intended for the general use such as in
industrial control, office, communication, and instrumentation equipment.
This redundancy module can be used with any type of power supply as long as the maximum ratings are not exceeded.
It is suitable for power supplies with constant current overload behavior as well as any kind of “Hiccup” overload
behavior.
Do not use this redundancy module in equipment, where malfunction may cause severe personal injury or threaten
human life.
This device is designed for use in hazardous, non-hazardous, ordinary or unclassified locations.
2. INSTALLATION REQUIREMENTS
This device may only be installed and put into operation by qualified personnel.
This device does not contain serviceable parts.
If damage or malfunction should occur during installation or operation, immediately turn power off and send unit to
the factory for inspection.
Mount the unit on a DIN-rail so that the input terminals are located on the top and the output terminals on the
bottom of the unit. For other mounting orientations see de-rating requirements of chapter 16.6. in this document.
This device is designed for convection cooling and does not require an external fan. Do not obstruct airflow and do
not cover the ventilation grid (e.g. cable conduits) by more than 30%!
Keep the following installation clearances:
40mm on top,
20mm on the bottom,
5mm on the left and right sides are recommended when the device is loaded permanently with more than 50% of the
rated output current. Increase the side clearance to 15mm in case the adjacent device is a heat source (e.g. another
power supply).
WARNING
- Turn power off before working on the device. Protect against inadvertent re-powering.
- Make sure that the wiring is correct by following all local and national codes.
- Do not open, modify or repair the unit.
- Use caution to prevent any foreign objects from entering the housing.
- Do not use in wet locations or in areas where moisture or condensation can be expected.
- Do not touch during power-on, and immediately after power-off. Hot surfaces may cause burns.
Notes for use in hazardous location areas:
The redundancy module is suitable for use in Class I Division 2 Groups A, B, C, D locations and for use in Group II
Category 3 (Zone 2) environments and is evaluated according to EN 60079-0:2009 and EN 60079-15:2010.
WARNING EXPLOSION HAZARDS!
Substitution of components may impair suitability for this environment. Do not disconnect the unit unless power has
been switched off or the area is known to be non-hazardous.
A suitable enclosure must be provided for the end product which has a minimum protection of IP54 and fulfils the
requirements of the EN 60079-15:2010.
Risk of electrical shock, fire, personal injury or death.
Apr. 2014 / Rev. 1.5 DS-MLY10.241-EN
All parameters are specified at 24V, 10A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted
3/16
MLY10.241
MiniLine-2
MLY-Series
DC12-48V (120V), 10A, DUAL REDUNDANCY MODULE
3. INPUT AND OUTPUT CHARACTERISTICS
Number of inputs - 2
Number of outputs - 1
Input voltage nom. DC 12-48V
Input voltage range - 9-60Vdc
Input voltage with restrictions nom. DC 12-120V
Input voltage range
- 9-150Vdc Restrictions apply, see note 3 on bottom of the table.
with restrictions
typ. 0.9V at 1x5A, see Fig. 3-3
typ. 0.9V at 2x5A, see Fig. 3-2
Input current nom. 2x 0-5A continuous
nom. 1x 0-10A continuous, see note 1
nom. 2x 5-8A for 5 seconds
Peak input current max. 125A for maximal 10ms per input
Output current nom. 10A continuous
nom. 10-16A for 5 seconds
max.
16A at continuous overload or short circuit, see note 2
Reverse current max. 0.6mA per input, -40°C to +60°C
Reverse voltage max. 200Vdc voltage applied to the output, continuously allowed
Note 1: Each input can be loaded up to 10A. At currents above 10A, the other input should not be loaded. It is preferable to parallel the two
Note 2: Ensure that the continuous output current does not exceed 16A. Check the short-circuit current of the power sources and if the
Note 3: The redundancy module can be used with input voltages up to 150Vdc with the constraint, that it can be used only as a single input
inputs in order to minimize the power loss in such cases.
power source can deliver more than 16A together, use an appropriate fuse on the output.
module at voltages above 60Vdc. Both inputs need to be connected together as shown in Fig. 3-1. Ensure proper means to protect
against touching this voltage.
Fig. 3-1 Restrictions for utilizing voltages between 60 and 150Vdc (See also Note 3)
Power Supply
AC
+
Diode Module
+
-
+
-
+
+
-
Load
>60V
-
(>60V)
DC
Power Supply
AC
(>60V)
DC
-
+
-
±25%
The input circuitry must meet the SELV requirements
stipulated by IEC/EN/UL 60950-1.
±25%
See note 3 on bottom of the table
at 2x2.5A, see Fig. 3-2Voltage drop, input to output typ. 0.8V
Power Supply Diode Module
AC
+
-
(>60V)
DC
Power Supply
AC
(>60V)
DC
+
-
+
-
+
-
Diode Module
+
-
+
-
+
-
+
Load
-
>60V
+
-
Apr. 2014 / Rev. 1.5 DS-MLY10.241-EN
All parameters are specified at 24V, 10A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted
4/16
A
A
A
A
A
MLY10.241
MiniLine-2
MLY-Series
DC12-48V (120V), 10A, DUAL REDUNDANCY MODULE
(typical 1+1 redundant case, when the output voltages of the two units are equal or set into “parallel use” mode)
Voltage Drop, typ.
1000mV
800mV
600mV
400mV
200mV
0mV
Output:
Input:
0A 2A 4A 8A
Fig. 3-2 Input to output voltage drop when both inputs draw current
A
B
A... 25°C
B... 60°C
Input, Output Current
6A
2x2A2x1A
2x4A2x3A0A 2x5
QS5.241
24V,5A
+
-
QS5.241
24V,5A
+
10
-
I1I2=
MLY10.241
I
1
A
Input 1
V
U
1
I
2
A
Input 2
V
U
2
U2U1= Voltage Drop
Fig. 3-3 Input to output voltage drop when only one input draws current
Voltage Drop, typ.
1000mV
800mV
600mV
400mV
200mV
0mV
A
B
A... 25°C
B... 60°C
Output Current
0A 2A 4A 8A
6A
QS10.241
24V,10A
+
-
Not used or
power supply
with lower
voltage
10
V
I
1
A
U
1
MLY10.241
Input 1
Input 2
Output
Output
Voltage Drop
Output
I
OUT
A
U
OUT
Output
I
OUT
A
U
OUT
V
V
Variable
Load,
0-10A
U1=
-
Variable
Load,
0-10A
U1=
-
U
OUT
U
OUT
4. POWER LOSSES
Power losses typ.
typ.
typ.
DC 24V
4.0W input: 2x2.5A
4.5W
9.0W
Standby power losses typ. 0W at no output current
Fig. 4-1 Power losses
Power Losses, typ.
10W
8W
A... 25°C
B... 60°C
A
B
6W
4W
2W
Output:
Input:
0
0A 2A 4A 8A
Input, Output Current
6A
2x2A2x1A
2x4A2x3A0A 2x5
10
input: 1x5A
input: 2x5A
Apr. 2014 / Rev. 1.5 DS-MLY10.241-EN
All parameters are specified at 24V, 10A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted
5/16
MLY10.241
MiniLine-2
MLY-Series
DC12-48V (120V), 10A, DUAL REDUNDANCY MODULE
5. LIFETIME EXPECTANCY AND MTBF
The redundancy module has two input channels which are completely independent from each other. Each control
circuit, auxiliary voltage source, or other circuitry in the module are designed separately for each input. The dual input
redundancy module can be considered as two single redundancy modules combined together in one housing. The only
common point is the circuit trace that ties the two separate circuits together at the output.
The MTBF figures below are for the entire dual input module. If the MTBF number of only one path is needed, simply
double the value from the table.
The redundancy module does not have electrolytic capacitors included. Therefore, the lifetime expectancy is extremely
high.
Input / output
current conditions
Lifetime expectancy
min. 25 years at 24V and 25°C
MTBF
**) SN 29500, IEC 61709 84 868 000h at 24V 40°C
125 266 000h at 24V 25°C
MTBF
**) MIL HDBK 217F 71 454 000h at 24Vand 40°C (Ground Benign GB40)
81 453 000h at 24Vand 25°C (Ground Benign GB25)
*) The Lifetime expectancy shown in the table indicates the minimum operating hours (service life).
**) MTBF stands for Mean Time Between Failure, which is calculated according to statistical device failures, and indicates reliability of a
device. It is the statistical representation of the likelihood of a unit to fail and does not necessarily represent the life of a product.
The MTBF figure is a statistical representation of the likelihood of a device to fail. A MTBF figure of e.g. 1 000 000h means that
statistically one unit will fail every 100 hours if 10 000 units are installed in the field. However, it can not be determined if the failed unit
has been running for 50 000h or only for 100h.
*) min. 25 years at 24V and 40°C
Input: 2x5A
Output: 10A
Apr. 2014 / Rev. 1.5 DS-MLY10.241-EN
All parameters are specified at 24V, 10A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted
6/16
MLY10.241
MiniLine-2
MLY-Series
DC12-48V (120V), 10A, DUAL REDUNDANCY MODULE
6. TERMINALS AND WIRING
Type
Solid wire 0.5-6mm2 0.5-6mm2
Stranded wire 0.5-4mm
American Wire Gauge 20-10 AWG 20-10 AWG
Max. wire diameter 2.8mm (including ferrule) 2.8mm (including ferrule)
Wire stripping length 7mm / 0.275inch 7mm / 0.275inch
Screwdriver 3.5mm slotted or
Recommended tightening torque 1Nm, 9lb.in 1Nm, 9lb.in
Instructions:
a) Use appropriate copper cables that are designed for minimum operating temperatures of:
60°C for ambient up to 45°C and
75°C for ambient up to 60°C and
90°C for ambient up to 70°C minimum.
b) Follow national installation codes and installation regulations!
c) Ensure that all strands of a stranded wire enter the terminal connection!
d) Screws of unused terminal compartments should be securely tightened.
e) Ferrules are allowed, but not required.
Input Output
screw terminals screw terminals
2
0.5-4mm2
Pozidrive No 2
3.5mm slotted or Pozidrive
No 2
Apr. 2014 / Rev. 1.5 DS-MLY10.241-EN
All parameters are specified at 24V, 10A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted
7/16
MLY10.241
MiniLine-2
MLY-Series
7. FUNCTIONAL DIAGRAM
Input 1
Fig. 7-1 Functional diagram
+
-
Input 2
+
-
8. FRONT SIDE AND USER ELEMENTS
Fig. 8-1 Front side
A
Output terminals
B Input terminals for input 1
C
Input terminals for input 2
DC12-48V (120V), 10A, DUAL REDUNDANCY MODULE
+
Output
-
-
Apr. 2014 / Rev. 1.5 DS-MLY10.241-EN
All parameters are specified at 24V, 10A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted
8/16
MLY10.241
MiniLine-2
MLY-Series
DC12-48V (120V), 10A, DUAL REDUNDANCY MODULE
9. EMC
The redundancy module is suitable for applications in industrial environment as well as in residential, commercial and
light industry environment without any restrictions. A detailed EMC report is available on request.
EMC Immunity
Electrostatic discharge EN 61000-4-2 Contact discharge
Electromagnetic RF field EN 61000-4-3 80MHz-2.7GHz 10V/m Criterion A
Fast transients (Burst) EN 61000-4-4 Input lines
Surge voltage on input lines EN 61000-4-5 + / - Æ DIN-Rail 1kV Criterion A
Surge voltage on output line EN 61000-4-5 + / - Æ DIN-Rail 1kV Criterion A
Conducted disturbance EN 61000-4-6 0.15-80MHz 10V Criterion A
Power-frequency magnetic
field *)
Criterions:
A: Redundancy module shows normal operation behavior within the defined limits.
Notes:
*) A test is not applicable according to EN 61000-6-2, since the device does not contain components susceptible to magnetic fields, e.g. hall
elements, electrodynamic microphones, etc.
EMC Emission
Conducted emission IEC/CISPR 16-1-2, IEC/CISPR 16-2-1 Class B, input lines *)
IEC/CISPR 16-1-2, IEC/CISPR 16-2-1 Class B, output lines *)
Radiated emission EN 55011, EN 55022 Class B
This device complies with FCC Part 15 rules.
Operation is subjected to following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
*) Provided, that power sources connected on the inputs fulfill the class B requirements too.
According generic standards: EN 61000-6-1 and EN 61000-6-2
8kV
Air discharge
Output lines
EN 61000-4-8 50Hz 30A/m Criterion A
According generic standards: EN 61000-6-3 and EN 61000-6-4
15kV
2kV
2kV
Criterion A
Criterion A
Criterion A
Criterion A
Apr. 2014 / Rev. 1.5 DS-MLY10.241-EN
All parameters are specified at 24V, 10A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted
9/16
MLY10.241
MiniLine-2
MLY-Series
DC12-48V (120V), 10A, DUAL REDUNDANCY MODULE
10. ENVIRONMENT
Operational temperature
Output de-rating 0.25A/°C 60-70°C (140°F to 158°F), see
Storage temperature -40 to +85°C (-40°F to 185°F) for storage and transportation
**)
Humidity
5 to 95% r.H. IEC 60068-2-30
Vibration sinusoidal
***)
Shock
15g 6ms, 10g 11ms
Altitude 0 to 2000m (0 to 6 560ft) without any restrictions
2000 to 6000m (6 560 to 20 000ft) reduce output power or ambient temperature,
Altitude de-rating 0.7A/1000m or 5°C/1000m > 2000m (6500ft), see Fig. 10-2
Over-voltage category not applicable The concept of the overvoltage category is
Degree of pollution 2 IEC 62103, EN 50178, not conductive
LABS compatibility The unit does not release any silicone or other LABS-critical substances and is suitable for
*) Operational temperature is the same as the ambient temperature and is defined as the air temperature 2cm below the unit.
**) Do not energize while condensation is present
***) Tested in combination with DIN-Rails according to EN 60715 with a height of 15mm and a thickness of 1.3mm and standard mounting
orientation.
Fig. 10-1 Output current vs. ambient temp. Fig. 10-2 Output current vs. altitude
Allowed Output Current
17.5A
t
a
15.0
12.5
10.0
7.5
5.0
2.5
0
-40 0 20 40
*)
-40°C to +70°C (-40°F to 158°F) Reduce output power above +60°C
***)
2-17.8Hz: ±1.6mm
17.8-500Hz: 2g
2 hours / axis
3 bumps / direction
18 bumps in total
use in paint shops.
o
v
r
l
e
o
d
a
s
/
h
o
r
c
t
r
c
u
i
t
i
n
o
r
m
l
a
o
m
d
e
Ambient Temperature
70°C
60-25
IEC 60068-2-6
IEC 60068-2-27
see Fig. 10-2
used for equipment energized directly from
the low voltage mains (IEC 60664-1 §4.3.3.2.1).
Allowed Output Current
17.5A
15.0
12.5
10.0
7.5
5.0
2.5
0
o
v
o
r
l
e
d
a
s
/
h
o
r
c
t
n
o
r
a
m
m
l
o
d
e
A
.
T
.
.
m
a
<
b
°
0
6
B
T
.
.
.
m
a
C
T
.
.
.
m
a
C
<
b
°
0
5
C
b
<
°
C
0
4
0 2000 4000
r
i
c
u
A
t
i
B
Altitude
6000m
C
Apr. 2014 / Rev. 1.5 DS-MLY10.241-EN
All parameters are specified at 24V, 10A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted
10/16
MLY10.241
MiniLine-2
MLY-Series
DC12-48V (120V), 10A, DUAL REDUNDANCY MODULE
11. PROTECTION FEATURES
Output over-current protection not included
Reverse input polarity protection included unit does not start when input voltage is reversed
Degree of protection IP 20 EN/IEC 60529
Penetration protection > 2.5mm e.g. screws, small parts
Over-temperature protection not included
Input transient protection not included
Output transient protection not included
Internal input fuse not included
12. SAFETY FEATURES
Input / output separation no galvanic separation 200V epitaxial diode between input and output
Safety level of output voltage The output voltage is regarded to be SELV (EN 60950-1) or PELV (EN 60204-1, EN
50178, IEC 60364-4-41) if the input voltage fulfills the requirements for a SELV
source or PELV source.
Class of protection III plastic housing, PE connection not required
Apr. 2014 / Rev. 1.5 DS-MLY10.241-EN
All parameters are specified at 24V, 10A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted
11/16
MLY10.241
MiniLine-2
13. APPROVALS
EC Declaration of Conformity
EC Declaration of Conformity
ATEX
IEC 60950-1
UL 508
UL 60950-1
HazLoc (Class 1 Div 2)
ANSI / ISA 12.12.01-2007
ATEX
EN 60079-0, EN 60079-15
IECEx
IEC 60079-0, IEC 60079-15
Marine
GOST R
MLY-Series
IND. CONT. EQ.
II 3G Ex nA IIC T4 Gc
IECEx
Ex nA IIC T4 Gc
DC12-48V (120V), 10A, DUAL REDUNDANCY MODULE
The CE mark indicates conformance with the
- EMC directive 2004/108/EC,
- Low-voltage directive (LVD) 2006/95/EC and
- RoHS directive 2011/65/EU.
The CE mark indicates conformance with the
- ATEX directive 94/9/EC (Equipment and protection systems
intended for use in potentially explosive atmospheres)
CB Scheme,
Information Technology Equipment
Listed for use as Industrial Control Equipment;
U.S.A. (UL 508) and Canada (C22.2 No. 107-1-01);
E-File: E198865
Recognized for use as Information Technology Equipment,
Level 5; U.S.A. (UL 60950-1) and Canada (C22.2 No. 60950);
E-File: E137006
LISTED for use in Hazardous Location Class I Div 2 T4 Groups
A,B,C,D systems; U.S.A. (ANSI / ISA 12.12.01-2007) and Canada
(C22.2 No. 213-M1987)
Suitable for use in Category 3 Zone 2 locations.
Number of ATEX certificate: EPS 11 ATEX 1 312 X
The redundancy module must be built-in in an IP54 enclosure.
Suitable for use in Category 3 Zone 2 locations.
Number of IECEx certificate: IECEx EPS 12.0032X
GL (Germanischer Lloyd) classified and
ABS (American Bureau for Shipping) PDA
Environmental category: C, EMC2
Marine and offshore applications
Certificate of Conformity for Russia and other GUS countries
Apr. 2014 / Rev. 1.5 DS-MLY10.241-EN
All parameters are specified at 24V, 10A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted
12/16
MLY10.241
MiniLine-2
MLY-Series
DC12-48V (120V), 10A, DUAL REDUNDANCY MODULE
14. PHYSICAL DIMENSIONS AND WEIGHT
Weight 140g / 0.31lb
DIN-Rail Use 35mm DIN-rails according to EN 60715 or EN 50022 with a height of 7.5 or 15mm.
The DIN-rail height must be added to the unit depth (91mm) to calculate the total required
installation depth.
Installation clearances See chapter 2
Fig. 14-1 Front view Fig. 14-2 Side view
15. ACCESSORIES
DIN-Rail bracket for wall or panel mount:
A suitable DIN-rail bracket is available on request.
The picture of the power supply is for representation only
Apr. 2014 / Rev. 1.5 DS-MLY10.241-EN
All parameters are specified at 24V, 10A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted
13/16
MLY10.241
MiniLine-2
MLY-Series
DC12-48V (120V), 10A, DUAL REDUNDANCY MODULE
16. APPLICATION NOTES
16.1. RECOMMENDATIONS FOR REDUNDANCY
Recommendations for the configuration of redundant power systems:
• Use separate input fuses for each power supply.
• Use three-phase power supplies to gain functional safety if one phase fails.
• When single-phase power supplies are utilized connect them to different phases or mains circuits if possible.
• Set the power supply in “Parallel-Use” mode if this feature is available
• It is desirable to set the output voltages of all power supplies to the same value.
16.2. INDUCTIVE AND CAPACITIVE LOADS
The unit is designed to supply any kind of loads, including unlimited capacitive and inductive loads.
16.3. EXAMPLE: 1+1 REDUNDANCY
1+1 Redundancy up to 2.5A requires two ML60.241 power supplies (each 2.5A output current) and one MLY10.241
redundancy module.
Note: Use separate mains systems for each power supply whenever it is possible
Fig. 16-1 Wiring diagram, 1+1 Redundancy, 2.5A output current
Voltage
Monitor
+-+
IN 2
IN 1
MLY10.241
Output
- -
+
-
Load
-
+
L
N
- -
+ +
Output
ML60
Power
Supply
Input
L N
II
+ +
Output
ML60
Power
Supply
Input
L N
- -
Apr. 2014 / Rev. 1.5 DS-MLY10.241-EN
All parameters are specified at 24V, 10A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted
14/16
MLY10.241
MiniLine-2
MLY-Series
DC12-48V (120V), 10A, DUAL REDUNDANCY MODULE
16.4. EXAMPLE: N+1 REDUNDANCY
N+1 Redundancy up to 7.5A requires four ML60.241 power supplies (each 2.5A output current) and two MLY10.241
redundancy modules.
Note: Use separate mains systems for each power supply whenever it is possible
Fig. 16-2 Wiring diagram, N+1 Redundancy, 7.5A output current
- -
+ +
Output
ML60
Power
Supply
Input
L N
II I
L
N
-
+
IN 1
MLY10.241
Output
+
+
IN 2
- -
-
+ +
Output
ML60
Power
Supply
Input
L N
- -
+ +
Output
ML60
Power
Supply
Input
L N
I
- -
-
+
+
IN 2
IN 1
MLY10.241
Output
- -
+
-
+ +
Output
ML60
Power
Supply
Input
L N
- -
Alarm
Monitor
Load
-
+
16.5. EXAMPLE: BATTERY BACK-UP
A battery back-up requires one power supply and one MLY10.241 redundancy module.
Please note:
Set output voltage of power supply to 26.5Vdc minimum to ensure, that the load current is delivered from the power
supply and not from charger (battery). Use a fuse between battery and MLY10.241!
Apr. 2014 / Rev. 1.5 DS-MLY10.241-EN
All parameters are specified at 24V, 10A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted
Fig. 16-3 Wiring diagram, 10A Battery back-up
I
L
N
PE
24V Battery
+
Battery
Charger
-
+ +
Output
ML60
Power
Supply
Input
L N
- -
+-+
IN 2
IN 1
MLY10.241
Output
- -
+
-
Failure
Monitor
Load
15/16
MLY10.241
MiniLine-2
MLY-Series
DC12-48V (120V), 10A, DUAL REDUNDANCY MODULE
16.6. MOUNTING ORIENTATIONS
Mounting orientations other than input terminals on the bottom and output on the top require a reduction in
continuous output power or a limitation in the maximum allowed ambient temperature.
Fig. 16-4
Mounting
Orientation A
(Standard
orientation)
Fig. 16-5
Mounting
Orientation B
(Upside down)
INPUT
Redundancy
Module
OUTPUT
INPUT
OUTPUT
Module
Redundancy
Fig. 16-6
Mounting
Orientation C
(Table-top
mounting)
Fig. 16-7
Mounting
Orientation D
(Horizontal cw)
OUTPUT
Module
Redundancy
INPUT
Fig. 16-8
Mounting
Orientation E
(Horizontal ccw)
INPUT
Module
Redundancy
OUTPUT
Output Current
10A
8
6
4
2
0
10 20 30 40
Output Current
10A
8
6
4
2
0
10 20 30 40
Output Current
10A
8
6
4
2
0
10 20 30 40
Output Current
10A
8
6
4
2
0
10 20 30 40
Output Current
10A
8
6
4
2
0
10 20 30 40
Ambient Temperature
Ambient Temperature
Ambient Temperature
Ambient Temperature
Ambient Temperature
50
50
50
50
50
60°C
60°C
60°C
60°C
60°C
Apr. 2014 / Rev. 1.5 DS-MLY10.241-EN
All parameters are specified at 24V, 10A output current, 25°C ambient and after a 5 minutes run-in time unless otherwise noted
16/16
Loading...
