Puls ML50.111 Data Sheet

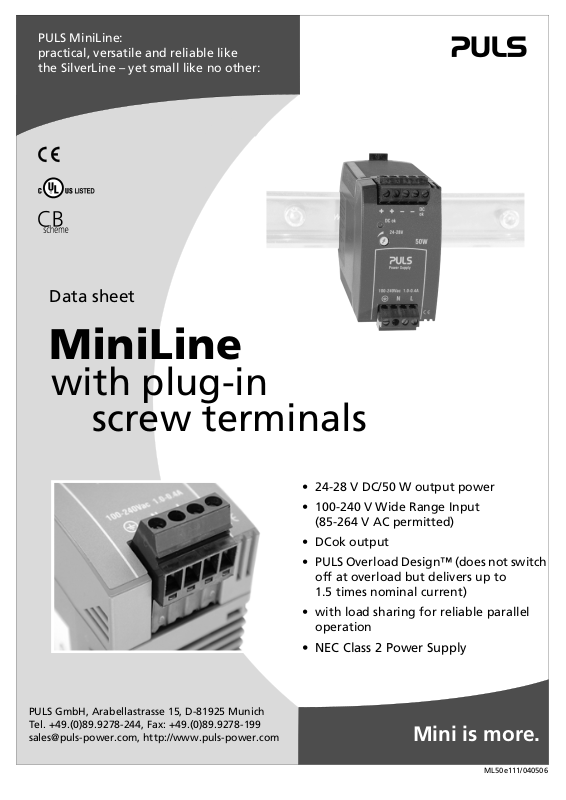

PULS MiniLine: practical, versatile and reliable like the SilverLine – yet small like no other:

Data sheet

MiniLine

with plug-in

screw terminals

• 24-28 V DC/50 W output power

• 100-240 V Wide Range Input (85-264 V AC permitted)

• DCok output

• PULS Overload Design™ (does not switch off at overload but delivers up to

1.5 times nominal current)

• with load sharing for reliable parallel operation

PULS GmbH, Arabellastrasse 15, D-81925 Munich Tel. +49.(0)89.9278-244, Fax: +49.(0)89.9278-199 sales@puls-power.com, http://www.puls-power.com

• NEC Class 2 Power Supply

Mini is more.

ML50e111/040506

Technical Data ML50.111

X Input

Input voltage AC100-240V (Wide Range), 47...63 Hz

Admiss. limits: AC 85...264V (DC 85...375V)

Input current <1.0A (@ AC 100V

<0.6A (@ 196 V AC

, 50W P

External Fusing Not required, unit provides internal fuse

(T3AH, not accessible)

Transient immunity Transient resistance acc. to VDE 0160 / W2

(750V / 1.3ms), over entire load range

Hold-up time (see diagram below)

>171ms @ AC 230V, 24V / 2.1A >97ms @ AC 196V, 24V / 2.1A >17ms @ AC 100V, 24V / 2.1A

X Efficiency, Reliability

Efficiency

Losses

MTBF (Reliability) ca. 600.000 h acc. to Siemensnorm SN 29500

Prior to shipment, every unit undergoes the following tests in order to isolate any defective units which might suffer an early failure:

• Run-in /burn-in (Full load, T

• Functional test (100 %)

typ. 88.5% (AC 230V, 24V / 2.1A) (see also diagram below) typ. 6.8W (AC 230V, 24V / 2.1A)

(24V/2.1A, AC 230V, T

= +60°C, on/off cycle)

amb

X Construction, Mechanics, Installation

Robust plastic housing (US Patent No. D442, 923S), fine ventilation grid on three housing sides to keep out small parts (e.g. screws), IP20

Dimensions and weight

• W x H x D

•Weight

Mounting orientation ,

Ventilation/Cooling

• Free space f. cooling

Easy snap-on mounting onto the DIN-rail (TS35/7,5 or TS35/15). Unit sits safely and firmly on the rail; no tools required even to remove

Connection by plug connectors, 2 terminals/output;

Connector size range – input:

• flexible/solid cable

• Wire strip length

Connector size range – output:

• flexible cable

• solid cable

• Wire strip length

Design details – for your advantage:

• Standard plugs, meet various connector families (e.g CombiCon)

• Plugs allow measurement access

45mm x 75mm x 91mm (+ DIN rail) Depth incl. connectors: 98mm (+ DIN rail) 240g

or (cf. ’Output’)

Normal convection, no fan required recom’d.: 25mm on sides with ventilation grid

mating connectors enclosed

0.5 - 2.5mm

(22-12 AWG)

Ferrules admissible, 7mm recommended

0.3 - 2.5mm

0.3 - 4mm

(28-12 AWG)

Ferrules admissible, 6mm recommended

amb

)

out

)

out

= +40°C)

X Output (incl. Logic)

Output voltage

• preset

Voltage regulation stat. ±2.5% V

Ripple/Noise <50mV

Overvoltage prot. (OVP) <40V

Output noise suppressionRadiated EMI values below EN 61000-6-3, even

Rated continuous loading

Overload behaviour PULS Overload Design™: No switch-off at over-

Protection Unit is protected against (also permanent) short-

Derating see diagram below

Parallel operation Yes; load sharing by inclined characteristic curve

Power back immunity 35V

Operation indicator Green LED (DC OK), threshold: V

DC OK output To feed a 24V relay (R

• Threshold V

DV 24-28V, adj. by front panel potentiometer 24V ±0.5% @ 2.1A

(25V at no load, see ’Parallel operation’)

(see ’Parallel operation’)

dyn. ±2% V

out

overall

out

(20MHz bandw., 50Ω measurem.)

when using long (>2m), unscreened output cables

up to 2.1A @ 24V / up to 1.8A @ 28V depending on built-in orientation, V

and T

(convection

amb

cooling); for details see derating diagram below

load/short-circuit, instead: up to 1.5 ⋅ I

rated.

So you

need no oversizing to start awkward loads.

circuit, overload and open-circuit

(∆V = -1V between I

= 0A and I

out

> 700Ω). Relay operates,

coil

out

= I

rated

= 20V

)

if output voltage exceeds threshold value Free-wheeling diode for relay is included in the power supply unit

= 20V ±4%

out

X Environmental Data, EMC, Safety

Ambient temperature range (measured 25mm below unit)

• storage, transport

• operation

Humidity max. 95% (without condensation)

Electromagnetic emissions (EME)

Electromagnetic immunity (EMI)

Safe low voltage: Prot. class/degree:

The PSU complies with all major safety approvals for EU (EN 60950, EN 60204-1, EN 50178), USA (UL 60950, E137006, UL508 LISTED, E198865), Canada (CAN/CSA-C22.2 No 60950 [CUR], CAN/CSA-C22.2 No. 14 [CUL]), CB Scheme (IEC 60950).

Further design details – for your advantage:

• All terminals are easy to reach as mounted on the front panel.

• Input and output are strictly apart from each other (below/above) and have different wire access (90°/270° wiring), so cannot be mixed up

-25°C ... +85°C

-10°C ... +70°C (for derating see diagram below)

EN 61000-6-3 (includes EN 61000-6-4) Class B (EN 55011, EN 55022)

EN 61000-6-2 (includes EN 61000-6-1)

SELV (EN60950, VDE0100/T.410), PELV (EN50178) Class I (EN60950) / IP20 (EN60529)

X Diagrams

Output characteristic V (min.)

Vout range

100-120V ACin

Output voltage Vout [V]

Product information (ML50e111/040506), Rev.: 6. May 2004. Unless otherwise stated, specifications are valid for AC 230V input voltage, +25°C ambient temperature, and 5 min. run-in time. They are subject to change without prior notice.. PULS GmbH, Arabellastraße 15, D-81925 München X Tel: +49.(0)89.9278-244, Fax: +49.(0)89.9278-199, E-Mail: sales@puls-power.com X www.puls-power.com

230V ACin

01234

Output current Io ut [A]

out/Iout

Efficiency (@ V

= 24V, typ.)

out

Efficiency [%]

0,3 0,6 0,9 1,2 1,5 1,8 2,1

Output current I out [A]

100 V ACin 120 V ACin 230 V ACin

Derating of output power

Mounting

85-150 V ACin A-a A-b A-c

150-264 V ACin A-a A-a A-b

Output power [W]

100-375 V DCin A-a A-a A-b

85-100 V DCin B-b B-b B-b

-10010 20 30 40 50 60 70

Ambient Temperature [°C]

Hold-up time with ACin (@ V

= 24V, typ. + min.)

out

120

100

Hold-up time [ms]

90,0 125,0 160,0 195,0 230,0

Input voltage V ACin [V]

Pout=50W, typ. Pout=50W, min. Pout=25W, typ. Pout=25W, min.
