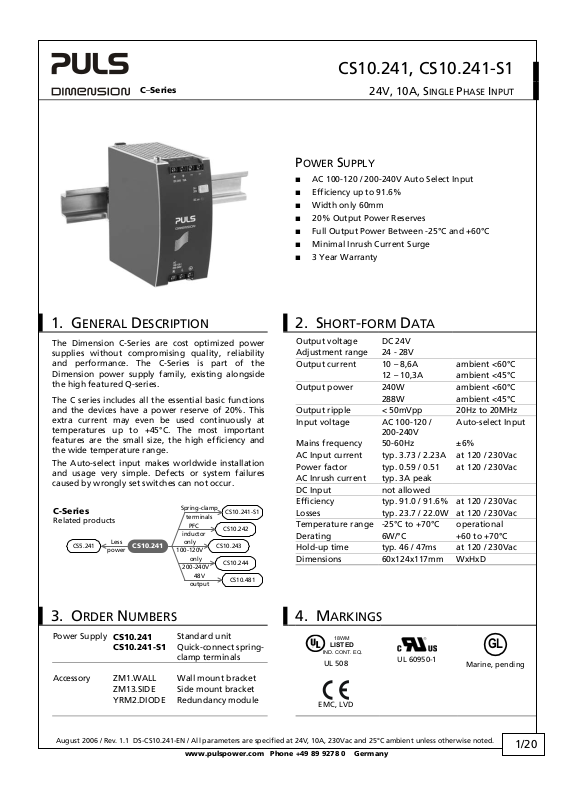

Puls CS10.241-S1 Data Sheet

C–Series

1. GENERAL DESCRIPTION

The Dimension C-Series are cost optimized power
supplies without compromising quality, reliability
and performance. The C-Series is part of the
Dimension power supply family, existing alongside
the high featured Q-series.

The C series includes all the essential basic functions
and the devices have a power reserve of 20%. This
extra current may even be used continuously at
temperatures up to +45°C. The most important
features are the small size, the high efficiency and
the wide temperature range.

The Auto-select input makes worldwide installation
and usage very simple. Defects or system failures
caused by wrongly set switches can not occur.

C-Series

Related products

Less

power

CS10.241

Spring-clamp

terminals

PFC

inductor

only

100-120V

only

200-240V

48V

output

CS10.241-S1

CS10.242

CS10.243CS5.241

CS10.244

CS10.481

CS10.241, CS10.241-S1

24V, 10A, SINGLE PHASE INPUT

POWER SUPPLY

■ AC 100-120 / 200-240V Auto Select Input

■ Efficiency up to 91.6%

■ Width only 60mm

■ 20% Output Power Reserves

■ Full Output Power Between -25°C and +60°C

■ Minimal Inrush Current Surge

■ 3 Year Warranty

2. SHORT-FORM DATA

Output voltage DC 24V
Adjustment range 24 - 28V
Output current 10 – 8,6A ambient <60°C
12 – 10,3A ambient <45°C
Output power 240W ambient <60°C
288W ambient <45°C
Output ripple < 50mVpp 20Hz to 20MHz
Input voltage AC 100-120 /

200-240V
Mains frequency 50-60Hz ±6%
AC Input current typ. 3.73 / 2.23A at 120 / 230Vac
Power factor typ. 0.59 / 0.51 at 120 / 230Vac
AC Inrush current typ. 3A peak
DC Input not allowed
Efficiency typ. 91.0 / 91.6% at 120 / 230Vac
Losses typ. 23.7 / 22.0W at 120 / 230Vac
Temperature range -25°C to +70°C operational
Derating 6W/°C +60 to +70°C
Hold-up time typ. 46 / 47ms at 120 / 230Vac
Dimensions 60x124x117mm WxHxD

Auto-select Input

3. ORDER NUMBERS

Power Supply

CS10.241
CS10.241-S1

Standard unit
Quick-connect spring­clamp terminals

4. MARKINGS

LISTED

IND. CONT. EQ.

UL 508

18WM

UL 60950-1

GL

Marine, pending

Accessory ZM1.WALL Wall mount bracket
ZM13.SIDE Side mount bracket
YRM2.DIODE Redundancy module

August 2006 / Rev. 1.1 DS-CS10.241-EN / All parameters are specified at 24V, 10A, 230Vac and 25°C ambient unless otherwise noted.

www.pulspower.com Phone [phone] Germany

EMC, LVD

1/20

C–Series

CS10.241, CS10.241-S1

24V, 10A, SINGLE PHASE INPUT

INDEX PAGE INDEX PAGE

1.

General Description ............................................1

2. Short-form Data ..................................................1

3. Order Numbers....................................................1

4. Markings ..............................................................1

5. AC-Input...............................................................3

6. Input Inrush Current Surge .................................4

7. Hold-up Time.......................................................4

8. Output .................................................................5

9. Efficiency and Power Losses................................6

10. Functional Diagram.............................................7

11. Reliability .............................................................7

12. Front Side and User Elements.............................8

13. Terminals and Wiring..........................................8

14. EMC......................................................................9

15. Environment ......................................................11

16. Protection Features ...........................................11

17. Safety .................................................................12

18. Dielectric Strength ............................................12

19. Approvals...........................................................13

20. Fulfilled Standards............................................ 13

21. Used Substances ............................................... 13

22. Physical Dimensions and Weight ..................... 14

23. Installation and Operation Instructions .......... 14

24. Accessory........................................................... 15

25. Application Notes............................................. 16

25.1. Peak Current Capability......................... 16

25.2. Charging of Batteries............................. 16

25.3. Back-feeding Loads................................ 17

25.4. Output Circuit Breakers ......................... 17

25.5. Inductive and Capacitive Loads ............. 18

25.6. Series Operation..................................... 18

25.7. Parallel Use to Increase Output Power . 18

25.8. Parallel Use for 1+1 Redundancy........... 18

25.9. External Input Protection....................... 19

25.10. Operation on Two Phases ...................... 19

25.11. Use in a Tightly Sealed Enclosure.......... 19

25.12. Mounting Orientations.......................... 20

INTENDED USE

The power supply shall only be installed and put into operation by qualified personnel.
This power supply is designed for installation in an enclosure and is intended for the general use, such as in industrial

control, office, communication, and instrumentation equipment. Do not use this device in aircraft, trains and nuclear
equipment, where malfunctioning of the power supply may cause severe personal injury or threaten human life.

TERMINOLOGY AND ABREVIATIONS

PE and symbol PE is the abbreviation for Protective Earth and has the same meaning as the symbol .

Earth, Ground This document uses the term “earth” which is the same as the U.S. term “ground”.

T.b.d. To be defined, value or description will follow later.

AC 230V A figure displayed with the AC or DC before the value represents a nominal voltage with

standard tolerances (usually ±20%) included.
E.g.: DC 12V describes a 12V battery disregarding whether it is full (13.7V) or flat (10V)
As long as not otherwise stated, AC 100V and AC 230V parameters are valid at 50Hz and AC
120V parameters are valid at 60Hz mains frequency.

230Vac A figure with the unit (Vac) at the end is a momentary figure without any additional

tolerances included.

DISCLAIMER

The information presented in this document is believed to be accurate and reliable and may change without notice.

August 2006 / Rev. 1.1 DS-CS10.241-EN / All parameters are specified at 24V, 10A, 230Vac and 25°C ambient unless otherwise noted.

www.pulspower.com Phone [phone] Germany

2/20

C–Series

CS10.241, CS10.241-S1

24V, 10A, SINGLE PHASE INPUT

5. AC-INPUT

AC input

nom. AC 100-120V /

200-240V
AC input range 90-132Vac 100-120V range, continuous operation
180-264Vac 200-240V range, continuous operation

85-90Vac Short term or with output derating
264-300Vac < 0.5s

Input frequency nom. 50 – 60Hz ±6%

AC 100V AC 120V AC 230V

Input current typ. 4.34A 3.73A 2.23A at 24V, 10A see Fig. 5-3
Power factor *) typ. 0.61 0.59 0.51 at 24V, 10A see Fig. 5-1
Crest factor **) typ. 2,61 2,83 3,3 at 24V, 10A
Start-up delay

typ. 700ms 800ms 850ms see Fig. 5-2

Rise time typ. 35ms 35ms 35ms 0mF, 24V, 10A, see Fig. 5-2

Turn-on overshoot

typ. 75ms 75ms 75ms 10mF, 24V, 10A, see Fig. 5-2

max. 100mV 100mV 100mV see Fig. 5-2
Turn-on voltage typ. 80Vac 80Vac N / A steady-state value, see Fig. 5-1
Shut-down voltage typ. 75Vac 75Vac N / A steady-state value, see Fig. 5-1

*) The power factor is the ratio of the true (or real) power to the apparent power in an AC circuit.
**) The crest factor is the mathematical ratio of the peak value to the RMS value of the input current waveform

Fig. 5-1 Input voltage range Fig. 5-2 Turn-on behavior, definitions

P

OUT

Rated input ranges

auto-select input, TN-, TT-, IT-Mains, see Fig. 5-1

Intput
Voltage

132V

no

harm

from

132 to

180V

Output Current

Range

200-

240V

264Vac180V

10 11

Output
Voltage

V

IN

Power Factor, typ.

0.65

c

a

V

0

0

1

c

a

V

0

2

1

c

a

V

0

3

2

12A

0.6

0.55

0.5

0.45

0.4

0.35
2

- 5%

Start-up

delay

5

34 6

Rise

Time

7

0

0

1

0

2

1

0

3

2

Output Current

8

11

10

9

a

V

a

V

a

V

Overshoot

c

c

c

12A

Fig. 5-3 Input current vs. output load Fig. 5-4 Power Factor vs. output load

Input
Current, typ.

6A

5

4

3

2

1

0

2

Range

100-

120V

Turn-on

Shut-down

90V

3456789

August 2006 / Rev. 1.1 DS-CS10.241-EN / All parameters are specified at 24V, 10A, 230Vac and 25°C ambient unless otherwise noted.

www.pulspower.com Phone [phone] Germany

3/20

C–Series

CS10.241, CS10.241-S1

24V, 10A, SINGLE PHASE INPUT

6. INPUT INRUSH CURRENT SURGE

An active inrush limitation circuitry limits the input inrush current after turn-on of the input voltage.
The charging current into EMI suppression capacitors is disregarded in the first milliseconds after switch-on.

Inrush current max. 10A
typ. 3A
Inrush energy

typ. 1A2s 1A2s 1A2s -25°C to +70°C

Fig. 6-1 Input inrush current, typical behavior

Input Current

Input Voltage

Output Voltage

A

AC 100V AC 120V AC 230V

10A

peak

3A

peak

10A

peak

3A

peak

-25°C to +70°C

peak

-25°C to +70°C

peak

A: Start-up delay = Inrush delay

Input: 230Vac
Output: 24V, 10A
Ambient: 25°C

Upper curve: Input current 10A / DIV
Medium curve: Input voltage 500V / DIV
Lower curve: Output voltage 20V / DIV
Time scale: 100ms / DIV

7. HOLD-UP TIME

AC 100V AC 120V AC 230V

Hold-up Time typ. 62ms 107ms 103ms 5A, 24V, see
typ. 23ms 46ms 47ms 10A, 24V, see Fig. 7-1
typ. 17ms 35ms 37ms 12A, 24V, see

Fig. 7-1 Hold-up time vs. input voltage Fig. 7-2 Shut-down behavior, definitions

Hold-up Time

120ms

100

80

60

40

20

0

85 120100 180 230Vac

a) 24V 5A typ.

a a

b) 24V 5A min.

b

c) 24V 10A typ.
d) 24V 10A min.
e) 24V 12A min.

c
d

e

Input Voltage

b

c
d
e

Intput
Voltage

Output
Voltage

Hold-up Time

Note: At no load, the hold-up time can be up to several seconds. The green DC-ok lamp is on during this time.

Fig. 7-1

Fig. 7-1

Zero Transition

- 5%

August 2006 / Rev. 1.1 DS-CS10.241-EN / All parameters are specified at 24V, 10A, 230Vac and 25°C ambient unless otherwise noted.

www.pulspower.com Phone [phone] Germany

4/20

C–Series

CS10.241, CS10.241-S1

24V, 10A, SINGLE PHASE INPUT

8. OUTPUT

Output voltage
Adjustment range
max. 30V at clockwise end position of potentiometer
Factory setting
Line regulation
Load regulation max. 100mV static value, 0A Æ 10A Æ 0A
Ripple and noise voltage
Output capacitance typ. 7 000µF
Output current nom. 12A at 24V, ambient < 45°C, see Fig. 8-1
nom. 10A
nom. 10.3A at 28V, ambient < 45°C, see Fig. 8-1

Output power nom. 288W ambient < 45°C
nom. 240W
Short-circuit current
max. 18A load impedance 100mOhm, see Fig. 8-1

Fig. 8-1 Output voltage vs. output current, typ.

Output Voltage

28V

24

20

16

12

8

4
0

04 81216

Output Current

Adjustment

Range

+60°C

+25°C

-25°C

nom. 24V
min. 24-28V guaranteed

24.1V

±0.2%, at full load, cold unit

max. 70mV 90 to 132Vac or 180 to 264Vac

max. 50mVpp 20Hz to 20MHz, 50Ohm

nom. 8.6A

at 24V, ambient < 60°C, see

at 28V, ambient < 60°C, see

Fig. 8-1

Fig. 8-1

ambient < 60°C

min. 14A load impedance 100mOhm, see Fig. 8-1

20A10621418

Peak current capability (up to several ms)

The power supply can deliver a peak current which is higher than the specified short term current. This helps to start
current demanding loads or to safely operate subsequent circuit breakers.

The extra current is supplied by the output capacitors inside the power supply. During this event, the capacitors will
be discharged and causes a voltage dip on the output. Detailed curves can be found in chapter 25.1.

Peak current voltage dips typ. from 24V to 18.5V at 20A for 50ms, resistive load
typ. from 24V to 17.5V

typ. from 24V to 12V

at 50A for 2ms, resistive load
at 50A for 5ms, resistive load

August 2006 / Rev. 1.1 DS-CS10.241-EN / All parameters are specified at 24V, 10A, 230Vac and 25°C ambient unless otherwise noted.

www.pulspower.com Phone [phone] Germany

5/20

C–Series

CS10.241, CS10.241-S1

24V, 10A, SINGLE PHASE INPUT

9. EFFICIENCY AND POWER LOSSES

AC 100V AC 120V AC 230V

Efficiency typ. 90.7% 91.0% 91.6% 10A, 24V
Power losses typ. 5.8W 8.4W 7.5W 0A
typ. 12.0W 12.3W 11.3W 5A, 24.5V
typ. 25.1W 24.1W 22.4W 10A, 24.5V
typ. 31.9W 29.6W 27.9W 12A, 24.5V

Fig. 9-1 Efficiency vs. output current at 24V Fig. 9-2 Losses vs. output current at 24V

Efficiency

92%

91

90

89

88

2

3

0

V

a

c

1

2

0

V

a

c

1

0

0

V

a

c

Output Current

2

6

12A4810

Power Losses

32W

28
24
20
16

120Vac

12

8
4
0

230Vac

100Vac

024 81012A

Fig. 9-3 Efficiency vs. input voltage, 24V, 10A Fig. 9-4 Losses vs. input voltage, 24V, 10A

Efficiency

92%

91

90

89

88

85 120 155 190 225 260

Input Voltage

Vac

Power Losses

27W

24

21

18

15

12

9

85 120

100Vac

Output Current

6

155

120Vac

230Vac

Input Voltage

190 225 260

Vac

August 2006 / Rev. 1.1 DS-CS10.241-EN / All parameters are specified at 24V, 10A, 230Vac and 25°C ambient unless otherwise noted.

www.pulspower.com Phone [phone] Germany

6/20

C–Series

10. FUNCTIONAL DIAGRAM

Fig. 10-1 Functional diagram

115/230V

Input
Rectifier
&
Inrush
Limiter

Output

Over-

Voltage

Protection

Power

Converter

L

N

Input Fuse
&
Input Filter

Auto Select

CS10.241, CS10.241-S1

24V, 10A, SINGLE PHASE INPUT

Output

Voltage

Regulator

Output

Filter

V

OUT

+
+

-

-

DC
ok

11. RELIABILITY

AC 100V AC 120V AC 230V

Lifetime expectancy min. 38 000h 50 000h 75 000h 40°C, 24V, 10A
min. 27 000h 34 000h 53 000h 40°C, 24V, 12A
min. 93 000h 99 000h 118 000h 40°C, 24V, 5A
min. 108 000h 15 years 15 years 25°C, 24V, 10A
MTBF SN 29500, IEC 61709 612 000h 638 000h 821 000h 40°C, 24V, 10A
520 000h 542 000h 698 000h 40°C, 24V, 12A
1 019 000h 1 058 000h 1 393 000h 25°C, 24V, 10A
MTBF MIL HDBK 217F 456 000h 447 000h 472 000h 40°C, 24V, 10A, Ground Benign GB40
410 000h 402 000h 425 000h 40°C, 24V, 12A, Ground Benign GB40

632 000h 628 000h 653 000h 25°C, 24V, 10A, Ground Benign GB25

The Lifetime expectancy shown in the table indicates the operating hours (service life) and is determined by the
lifetime expectancy of the built-in electrolytic capacitors.

Lifetime expectancy is specified in operational hours. Lifetime expectancy is calculated according to the capacitor’s
manufacturer specification. The prediction model allows a calculation of up to 15 years from date of shipment.

MTBF stands for Mean Time Between Failure, which is calculated according to statistical device failures, and indicates
reliability of a device. It is the statistical representation of the likelihood of a unit to fail and does not necessarily
represent the life of a product.

August 2006 / Rev. 1.1 DS-CS10.241-EN / All parameters are specified at 24V, 10A, 230Vac and 25°C ambient unless otherwise noted.

www.pulspower.com Phone [phone] Germany

7/20

C–Series

CS10.241, CS10.241-S1

24V, 10A, SINGLE PHASE INPUT

12. FRONT SIDE AND USER ELEMENTS

Fig. 12-1 Front side

Output Terminals

Screw terminals
(Spring-clamp terminals on the
CS10.241-S1)

+ Positive output

- Negative (return) output

Dual pins per pole

Input Terminals

Screw terminals
(Spring-clamp terminals
on the CS10.241-S1)

N … Neutral input
L … Line (hot) input

... PE (Protective Earth) input

Output voltage potentiometer
Open the flap to tune the output voltage.
Factory set: 24.1V

DC-on lamp (green)
On when the voltage on the output

terminals is > 21 V

13. TERMINALS AND WIRING

Type Screw terminals (CS10.241); Spring-clamp terminals (CS10.241-S1)
Solid wire 0.5-6mm
Stranded wire 0.5-4mm2
American wire gauge 20-10 AWG
Ferrules allowed, but not required
Wire stripping length 7mm / 0.275inch
Screwdriver 3.5mm slotted or Pozidrive No 2 (only for screw terminals)
Recommended tightening torque 0.8Nm, 7lb.in (only for screw terminals)

Instructions:

a) Use appropriate copper cables that are designed for an operating temperature of:

60°C for ambient up to 45°C and

75°C for ambient up to 60°C minimum.
b) Follow national installation codes and installation regulations!
c) Ensure that all strands of a stranded wire enter the terminal connection!
d) Up to two stranded wires with the same cross section are permitted in one connection point (except PE wire).
e) Do not use the unit without PE connection.

August 2006 / Rev. 1.1 DS-CS10.241-EN / All parameters are specified at 24V, 10A, 230Vac and 25°C ambient unless otherwise noted.

www.pulspower.com Phone [phone] Germany

2

8/20

C–Series

CS10.241, CS10.241-S1

24V, 10A, SINGLE PHASE INPUT

14. EMC

The CE mark is in conformance with EMC guideline 89/336/EEC and 93/68/EEC and the low-voltage directive (LVD)
73/23/EWG. A detailed EMC Report is available on request.

EMC Immunity

Electrostatic discharge EN 61000-4-2 Contact discharge

Electromagnetic RF field EN 61000-4-3 80MHz-1GHz 10V/m Criterion A

Fast transients (Burst) EN 61000-4-4 Input lines

Surge voltage on input EN 61000-4-5 L Æ N

Surge voltage on output EN 61000-4-5 + Æ -

Conducted disturbance EN 61000-4-6 0,15-80MHz 10V Criterion A

Mains voltage dips EN 61000-4-11 0% of 100Vac

Voltage interruptions EN 61000-4-11 0Vac, 5000ms Criterion C
Input voltage swells PULS internal standard 300Vac, 500ms Criterion A

Powerful transients VDE 0160 over entire load

Criterions:

A: Power supply shows normal operation behavior within the defined limits.
C: Temporary loss of function is possible. Power supply might shut-down and restarts by itself. No damages or hazards for the

power supply occur.

Switching frequency

EN 61000-6-2, EN 61000-6-1

Air discharge

Output lines

N / L Æ PE

+ / - Æ PE

40% of 100Vac
70% of 100Vac
0% of 200Vac
40% of 200Vac
70% of 200Vac

range

85kHz to 110kHz input voltage dependent

Generic standards
8kV

15kV

4kV
2kV

2kV
4kV

500V
500V

0Vac, 20ms
40Vac, 200ms
70Vac, 500ms
0Vac, 20ms
80Vac, 200ms
140Vac, 500ms

750V, 1.3ms Criterion A

Criterion A
Criterion A

Criterion A
Criterion A

Criterion A
Criterion A

Criterion A
Criterion A

Criterion A
Criterion C
Criterion C
Criterion A
Criterion C
Criterion C

August 2006 / Rev. 1.1 DS-CS10.241-EN / All parameters are specified at 24V, 10A, 230Vac and 25°C ambient unless otherwise noted.

www.pulspower.com Phone [phone] Germany

9/20

EMC Emission

Conducted emission EN 55011, EN 55022, FCC Part 15, CISPR 11, CISPR 22 Class B, input lines
EN 55022 Class A, output lines
Radiated emission EN 55011, EN 55022 Class B
Harmonic input current EN 61000-3-2 not fulfilled
Voltage fluctuations, flicker EN 61000-3-3 fulfilled

This device complies with FCC Part 15 rules.
Operation is subjected to following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.

The power supply does not fulfill the harmonic current standard EN61000-3-2.
Please note:

A power supply has to comply with EN 61000-3-2 (Standard for harmonic input current) when:

1) the end-device is used within the European Union and

2) the end-device is connected to a public mains supply with a nominal voltage ≥ 220Vac and

3) the power supply is:

- fitted in an end-device with an average input power in excess of 75W or

- fitted in an end-device with a continuous input power in excess of 75W or

- part of a lighting system.

Exceptions:
End-devices for professional applications with an input power > 1000W do not need to fulfill EN 61000-3-2.

Comments:

- The average input power must be determined in accordance with EN 61000-3-2.

- Industrial mains supplies with their own transformer are considered to be “non-public”.

- Where individual self-contained items of equipment are installed in a rack or case
(e.g. devices connected in parallel), they are regarded as being individually connected to the
mains supply. The rack or case need not be tested as a whole. Alternatively it is also permitted
to assess the whole rack or case. This is recommended for devices used in professional
applications with an input power greater than 1000W.

C–Series

EN 61000-6-4 Generic standards

CS10.241, CS10.241-S1

24V, 10A, SINGLE PHASE INPUT

August 2006 / Rev. 1.1 DS-CS10.241-EN / All parameters are specified at 24V, 10A, 230Vac and 25°C ambient unless otherwise noted.

www.pulspower.com Phone [phone] Germany

10/20

C

C–Series

CS10.241, CS10.241-S1

24V, 10A, SINGLE PHASE INPUT

15. ENVIRONMENT

Operational temperature -25°C to +70°C (-13°F to 158°F) reduce output power according
Output de-rating 3.2W/°C 45-60°C (113°F to 140°F)
6W/°C 60-70°C (140°F to 158°F)
Storage temperature -40 to +85°C (-40°F to 185°F) storage and transportation

Humidity 5 to 95% r.H. IEC 60068-2-30

Vibration sinusoidal 2-17.8Hz: ±1.6mm; 17.8-500Hz: 2g

Shock 30g 6ms, 20g 11ms

2 hours / axis

3 bumps / direction, 18 bumps in total

Do not energize while condensation is present

IEC 60068-2-6

IEC 60068-2-27

Altitude 0 to 6000m (0 to 20 000ft) Reduce output power or ambient

temperature above 2000m sea level.
Output de-rating (for altitude) 15W/1000m or 5°C/1000m above 2000m (6500ft), see Fig. 15-2
Over-voltage category III EN 50178, altitudes up to 2000m
II Altitudes from 2000m to 6000m
Degree of pollution 2 EN 50178, not conductive

Fig. 15-1 Output current vs. ambient temp., Fig. 15-2 Output current vs. altitude, 24V

Allowable Output
Current at 24V

12A

10

8

6

4

2

0

-25 0 20 40 70°

c

n

o

n

i

t

u

o

u

s

Ambient Temperature

60

s

h

r

o

t

t

e

r

m

Allowable Output
Current at 24V

12A

10

8

6

4

.

A

.

a

.

T

b

m

B

2

C

0

0 2000 4000

<

.

.

.

a

T

b

m

<

.

.

5

.

a

T

b

m

<

4

h

s

r

o

t

t

e

m

r

C

B

A

6

C

°

0

C

°

0

C

°

0

Altitude

6000m

The ambient temperature is defined 2cm below the unit.

Fig. 15-1

16. PROTECTION FEATURES

Output protection Electronically protected against overload, no-load and short-circuits
Output over-voltage protection typ. 35Vdc

max. 39Vdc

Output over-current protection electronically limited see Fig. 8-1
Degree of protection IP 20 EN/IEC 60529
Penetration protection > 3.5mm e.g. screws, small parts
Over-temperature protection yes output shut-down with automatic restart
Input transient protection MOV Metal Oxide Varistor
Internal input fuse T6.3A H.B.C. not user replaceable

Note: In case of a protection event, audible noise may occur.

August 2006 / Rev. 1.1 DS-CS10.241-EN / All parameters are specified at 24V, 10A, 230Vac and 25°C ambient unless otherwise noted.

www.pulspower.com Phone [phone] Germany

In case of an internal power supply defect, a redundant
circuitry limits the maximum output voltage. The output
shuts down and automatically attempts to restart.

11/20

C–Series

CS10.241, CS10.241-S1

24V, 10A, SINGLE PHASE INPUT

17. SAFETY

Input / output separation SELV IEC/EN 60950-1
PELV EN 60204-1, EN 50178, IEC 60364-4-41
double or reinforced insulation
Class of protection I PE (Protective Earth) connection required
Isolation resistance > 5MOhm input to output, 500Vdc
PE resistance < 0.1Ohm between housing and PE terminal
Touch current (leakage current) typ. 0.36mA 100Vac, 50Hz, TN mains
typ. 0.50mA 120Vac, 60Hz, TN mains
typ. 0.64mA 230Vac, 50Hz, TN mains
< 0.45mA 110Vac, 50Hz, TN mains
< 0.62mA 132Vac, 60Hz, TN mains
< 0.85mA 264Vac, 50Hz, TN mains

18. DIELECTRIC STRENGTH

The output voltage is floating and has no ohmic connection to ground.
To fulfill the PELV requirements according to EN60204-1 § 6.4.1, we recommend that either the + pole, the – pole or

any other part of the output circuit shall be connected to the protective earth system. This helps to avoid situations in
which a load starts unexpectedly or can not be switched off any more when unnoticed earth faults occur.

Fig. 18-1 Dielectric strength

Input

L

N

A

Earth, PE

B

C

Output

+

-

Type test 60s 2500Vac 3000Vac 500Vac

Factory test 5s 2500Vac 2500Vac 500Vac

Field test 5s 2000Vac 2000Vac 500Vac
Type tests and factory tests:

Conducted by the manufacturer. Do not repeat test in field!
Rules for field test:
Use appropriate test equipment which applies the voltage
with a slow ramp! Connect L and N together as well as all
output poles.

A B C

August 2006 / Rev. 1.1 DS-CS10.241-EN / All parameters are specified at 24V, 10A, 230Vac and 25°C ambient unless otherwise noted.

www.pulspower.com Phone [phone] Germany

12/20

19. APPROVALS

IEC 60950-1

UL 508

UL 60950-1

Marine

pending

C–Series

IECEE

CB SCHEME

18WM

LISTED

IND. CONT. EQ.

GL

ABS

CS10.241, CS10.241-S1

24V, 10A, SINGLE PHASE INPUT

CB Scheme,
Information Technology Equipment

LISTED as Industrial Control Equipment
E198865

RECOGNIZED E137006 recognized for the use in U.S.A. (UL 60950-

1) and Canada (C22.2 No. 60950)
Information Technology Equipment, Level 5

GL (Germanischer Lloyd) classified and ABS (American Bureau for
Shipping) PDA for marine and offshore applications.

Environmental category: C, EMC2

20. FULFILLED STANDARDS

EN 61558-2-17 Safety of Power Transformers

EN/IEC 60204-1 Safety of Electrical Equipment of Machines

EN/IEC 61131-1 Programmable Controllers

EN 50178 Electronic Equipment in Power Installations

21. USED SUBSTANCES

The unit does not release any silicone and is suitable for the use in paint shops.

Electrolytic capacitors included in this unit do not use electrolytes such as Quaternary Ammonium Salt Systems.

Plastic housings and other molded plastic materials are free of halogens, wires and cables are not PVC insulated.

The production material within our production does not include following toxic chemicals:
Polychlorized Biphenyl (PCB), Polychlorized Terphenyl (PCB), Pentachlorophenol (PCP), Polychlorinated naphthalene
(PCN), Polybrom Biphenyl (PBB), Polybrom Bipheny-oxyd (PBO), Polybrominated Diphenylether (PBDE), Polychlorinated
Diphenylether (PCDE), Polydibromphenyl Oxyd (PBDO), Cadmium, Asbest, Mercury, Silicia

August 2006 / Rev. 1.1 DS-CS10.241-EN / All parameters are specified at 24V, 10A, 230Vac and 25°C ambient unless otherwise noted.

www.pulspower.com Phone [phone] Germany

13/20

C–Series

CS10.241, CS10.241-S1

24V, 10A, SINGLE PHASE INPUT

22. PHYSICAL DIMENSIONS AND WEIGHT

Weight 700g / 1.54lb
DIN-Rail Use 35mm DIN-rails according to EN 60715 or EN 50022 with a height of 7.5 or 15mm.

The DIN-rail height must be added to the depth (117mm) to calculate the total required
installation depth.

Electronic files with mechanical data can be downloaded at www.pulspower.com

Fig. 22-1 Front view Fig. 22-2 Side view

23. INSTALLATION AND OPERATION INSTRUCTIONS

Mounting Orientation:

Output terminal must be located on top and input terminal on the bottom. For other orientations consult factory.

Cooling:

Convection cooled, no forced cooling required. Do not cover ventilation grid (e.g. cable conduit) by more than 30%!

Installation clearances:

40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently
with full power. In case the adjacent device is a heat source, 15mm clearance are recommended.

Risk of electrical shock, fire, personal injury or death!

Do not use the unit without proper earth connection (Protective Earth). Use the pin on the terminal block for earth
connection and not one of the screws on the housing.
Turn power off before working on the power supply. Protect against inadvertent re-powering.
Make sure the wiring is correct by following all local and national codes.
Do not open, modify or repair the unit.
Use caution to prevent any foreign objects from entering into the housing.
Do not use in wet locations or in areas where moisture or condensation can be expected.

Service parts:
The unit does not contain any service parts. The tripping of an internal fuse is caused by an internal defect. If damage
or malfunctioning should occur during operation, immediately turn power off and send unit to factory for
inspection!

August 2006 / Rev. 1.1 DS-CS10.241-EN / All parameters are specified at 24V, 10A, 230Vac and 25°C ambient unless otherwise noted.

www.pulspower.com Phone [phone] Germany

14/20

C–Series

CS10.241, CS10.241-S1

24V, 10A, SINGLE PHASE INPUT

24. ACCESSORY

ZM1.WALL Wall mounting bracket
This bracket is used to mount Dimension units onto a flat surface without utilizing a DIN-Rail. The two aluminum

brackets and the black plastic slider of the unit have to be detached, so that the two steel brackets can be mounted.

Fig. 24-1 ZM1.WALL Wall Mounting Bracket Fig. 24-2 Assembled Wall Mounting Bracket

ZM13.SIDE Side mounting bracket
This bracket is used to mount Dimension units sideways with or without utilizing a DIN-Rail. The two aluminum

brackets and the black plastic slider of the unit have to be detached, so that the steel brackets can be mounted.
For sideway DIN-rail mounting, the removed aluminum brackets and the black plastic slider need to be mounted on

the steel bracket.

Fig. 24-3 ZM13.SIDE Side Mounting Bracket Fig. 24-4 Side Mounting with DIN-rail brackets

August 2006 / Rev. 1.1 DS-CS10.241-EN / All parameters are specified at 24V, 10A, 230Vac and 25°C ambient unless otherwise noted.

www.pulspower.com Phone [phone] Germany

15/20

C–Series

CS10.241, CS10.241-S1

24V, 10A, SINGLE PHASE INPUT

25. APPLICATION NOTES

25.1. PEAK CURRENT CAPABILITY

Solenoids, contactors and pneumatic modules often have a steady state coil and a pick-up coil. The inrush current
demand of the pick-up coil is several times higher than the steady state current and usually exceeds the nominal
output current (including the PowerBoost) The same situation applies, when starting a capacitive load.

Branch circuits are often protected with circuit breakers or fuses. In case of a short or an overload in the branch
circuit, the fuse needs a certain amount of over-current to trip or to blow. The peak current capability ensures the
safe operation of subsequent circuit breakers.

Assuming the input voltage is turned on before such an event, the built-in large sized output capacitors inside the
power supply can deliver extra current. Discharging this capacitor causes a voltage dip on the output. The following
two examples show typical voltage dips:

Fig. 25-1 Peak load 20A for 50ms, typ. Fig. 25-2 Peak load 50A for 5ms, typ.

24V

20A

Output
Voltage

18.5V

24V

50A

Output
Voltage

12V

Output

0A

10ms/DIV

Peak load 20A (resistive) for 50ms

Output voltage dips from 24V to 18.5V.

Current

0A

Peak load 50A (resistive) for 5ms

Output voltage dips from 24V to 12V.

1ms/DIV

25.2. CHARGING OF BATTERIES

The power supply shall not be used to charge batteries. Choose Q-Series for charging batteries.

Output
Current

August 2006 / Rev. 1.1 DS-CS10.241-EN / All parameters are specified at 24V, 10A, 230Vac and 25°C ambient unless otherwise noted.

www.pulspower.com Phone [phone] Germany

16/20

C–Series

CS10.241, CS10.241-S1

24V, 10A, SINGLE PHASE INPUT

25.3. BACK-FEEDING LOADS

Loads such as decelerating motors and inductors can feed voltage back to the power supply. This feature is also called
return voltage immunity or resistance against Back- E.M.F. (Electro Magnetic Force).

This power supply is resistant and does not show malfunctioning when a load feeds back voltage to the power
supply. It does not matter, whether the power supply is on or off.

The maximum allowed feed back voltage is 35Vdc. The absorbing energy can be calculated according to the built-in
large sized output capacitor which is specified in chapter 8.

25.4. OUTPUT CIRCUIT BREAKERS

Standard miniature circuit breakers (MCBs) can be used for branch protection. Ensure that the MCB is rated for DC
voltage, too. The following tests show which circuit breakers the power supply typically trips.

Circuit breakers have huge tolerances in their tripping behavior. Therefore, these typical tests can only be used as a
recommendation or for comparing two different power supplies. Furthermore, the loop impedance has a major
influence on whether a breaker trips or not. Two tests were performed, representing typical situations:

Test 1: Short circuit with S1 on the power supply end of the cable (loop impedance approx. 20mOhm)

Fig. 25-3 Branch protectors, test circuit 1

Circuit

Power

Supply

AC

DC

Breaker

I

+

S1

-

+

Load

-

Test 2: Short circuit with S1 on the load end (additional impedance included; represents longer load wire length).

Fig. 25-4 Branch protectors, test circuit 2

Circuit

Power

Supply

AC

DC

Breaker

I

+

-

R

+

S1 Load

-

Example:
Which wire gauge must be used to trip a B-Characteristic circuit breaker with a rating of 6A? The load wire length is
21m.

Answer: A 6A B-Characteristic circuit breaker requires a loop impedance of less than 180mOhm (test results). The wire
length table shows that up to 25.1m wire with a cross section of 2.5mm
than 2.5mm

2

shall be used.

82mOhm

180mOhm
220mOhm

Parameters:
Input voltage: 230Vac, load current: 0A

The following circuit breaker tripped during the test:

A- or Z- Characteristic:: equal or smaller 25A
B- Characteristic: equal or smaller 16A
C- Characteristic: equal or smaller 13A

Parameters:
Input voltage: 230Vac, load current: 0A

The following circuit breaker tripped during the test:

A- or Z- Characteristic:: ≤ 16A and R= 82mOhm
B- Characteristic: ≤ 6A and R= 180mOhm
C- Characteristic: ≤ 4A and R= 220mOhm

What does this resistance mean in wire length?

2

0.5mm

0.7mm2 1.0mm2 1.5mm2 2.5mm2 4.0mm2

2.3m 3.2m 4.6m 6.9m 11.4m 18.3m

5.0m 7.0m 10.0m 15.0m 25.1m 40.1m

6.1m 8.6m 12.3m 18.4m 30.6m 49.0m

2

are below 180mOhm. A wire not smaller

August 2006 / Rev. 1.1 DS-CS10.241-EN / All parameters are specified at 24V, 10A, 230Vac and 25°C ambient unless otherwise noted.

www.pulspower.com Phone [phone] Germany

17/20

C–Series

CS10.241, CS10.241-S1

24V, 10A, SINGLE PHASE INPUT

25.5. INDUCTIVE AND CAPACITIVE LOADS

The unit is designed to supply any kind of load, including unlimited capacitive and inductive loads.

25.6. SERIES OPERATION

The power supply can be put in series to increase the output voltage.

Fig. 25-5 Schematic for series operation

Unit A

AC

Unit B

AC

DC

DC

+

-

+

-

+

Load

-

Earth

Instructions for use in series:

a) It is possible to connect as many units in series as needed,

providing the sum of the output voltage does not exceed
150Vdc.

b) Voltages with a potential above 60Vdc are not SELV any

more and can be dangerous. Such voltages must be installed

with a protection against touching.
c) For serial operation use power supplies of the same type.
d) Earthing of the output is required when the sum of the

output voltage is above 60Vdc.
e) Keep an installation clearance of 15mm (left/right) between

two power supplies and avoid installing the power supplies

on top of each other.

Avoid return voltage (e.g. from a decelerating motor or

Note:
battery) which is applied to the output terminals.

25.7. PARALLEL USE TO INCREASE OUTPUT POWER

The power supply shall not be used in parallel to increase the output power.

25.8. PARALLEL USE FOR 1+1 REDUNDANCY

Power supplies can be paralleled for 1+1 redundancy to gain a higher system availability. Redundant systems require
a certain amount of extra power to support the load in case one power supply unit fails. The simplest way is to put
two C-Series power supplies in parallel. In case one power supply unit fails, the other one is automatically able to
support the load current without any interruption. This simple way to build a redundant system has two major
disadvantages:

- The faulty power supply can not be recognized. The green LED will still be on since it is reverse-powered from
the other power supply.

- It does not cover failures such as an internal short circuit in the secondary side of the power supply. In such a ­virtually nearly impossible - case, the defective unit becomes a load for the other power supplies and the output
voltage can not be maintained any more.

This can only be avoided by utilizing decoupling diodes which are included in the decoupling module YR2.DIODE or
redundancy module YRM2.DIODE.

Recommendations for building redundant power systems:
a) Use separate input fuses for each power supply.
b) Monitor the individual power supply units. A DC-ok lamp and a DC-ok contact is included in the redundancy

module YRM2.DIODE. This feature reports a faulty unit.

c) When possible, connect each power supply to different phases or circuits.

August 2006 / Rev. 1.1 DS-CS10.241-EN / All parameters are specified at 24V, 10A, 230Vac and 25°C ambient unless otherwise noted.

www.pulspower.com Phone [phone] Germany

18/20

C–Series

CS10.241, CS10.241-S1

24V, 10A, SINGLE PHASE INPUT

25.9. EXTERNAL INPUT PROTECTION

The unit is tested and approved for branch circuits up to 20A. External protection is only required if the supplying
branch has an ampacity greater than this. In some countries local regulations might apply. Check also local codes and
local requirements.

If an external fuse is necessary or utilized, a minimum value is required to avoid undesired tripping of the fuse.

B-Characteristic C-Characteristic

Ampacity max.

min.

20A 20A
10A 6A

25.10. OPERATION ON TWO PHASES

Fig. 25-6 Schematic for two phase operation

L1

L3

L2

max.

+10%

240V

Power Supply

L

Fuse

N

PE

AC

internal

fused

DC

Instructions for two phase operation:
a) A phase to phase connection is allowed as long as the

supplying voltage is below 240V

+10%

.

b) Use a fuse or a circuit breaker to protect the N input. The

N input is internally not protected and is in this case
connected to a hot wire.

Appropriate fuses or circuit breakers are specified in section 25.9
“External Input Protection”.

25.11. USE IN A TIGHTLY SEALED ENCLOSURE

When the power supply is installed in a tightly sealed enclosure, the temperature inside the enclosure will be higher
than outside. The inside temperature defines the ambient temperature for the power supply.

Results from such an installation:
Power supply is placed in the middle of the box, no other heat producer inside the box
Enclosure: Rittal Type IP66 Box PK 9519 100, plastic, 180x180x165mm

Load: 24V, 8A; (=80%) load is placed outside the box
Input: 230Vac
Temperature inside the box: 48.9°C (in the middle of the right side of the power supply with a distance of 2cm)
Temperature outside the box: 23.3°C
Temperature rise: 25.6K

August 2006 / Rev. 1.1 DS-CS10.241-EN / All parameters are specified at 24V, 10A, 230Vac and 25°C ambient unless otherwise noted.

www.pulspower.com Phone [phone] Germany

19/20

C–Series

CS10.241, CS10.241-S1

24V, 10A, SINGLE PHASE INPUT

25.12. MOUNTING ORIENTATIONS

Mounting orientations other than input terminals on the bottom and output on the top require a reduction in
continuous output power or a limitation in the max. allowed ambient temperature. The amount of reduction
influences the lifetime expectancy of the power supply. Therefore, two different derating curves for continuous
operation can be found below:

Curve A1 Recommended output current.
Curve A2 Max allowed output current (results approx. in half the lifetime expectancy of A1).

Fig. 25-7

Mounting
Orientation A

Standard
Orientation

Fig. 25-8

Mounting
Orientation B
(Upside down)

OUTPUT

Power

Supply

INPUT

INPUT

Supply

Power

OUTPUT

Fig. 25-9

Mounting
Orientation C

(Table-top
mounting)

Fig. 25-10

Mounting
Orientation D

(Horizontal cw)

Supply

INPUT

OUTPUT

Power

Fig. 25-11

Mounting
Orientation E

(Horizontal ccw)

OUTPUT

Power

INPUT

Supply

Output Current

12A

9

9

3

0

Ambient Temperature

10 20 30 40

Output Current

12A

9

6

3

0

Ambient Temperature

10 20 30 40

Output Current

12A

9

6

3

0

Ambient Temperature

10 20 30 40

Output Current

12A

9

6

3

0

Ambient Temperature

10 20 30 40

Output Current

12A

9

6

3

0

Ambient Temperature

10 20 30 40

A

1

60°C

50

A

2

A

1

50

A

2

A

1

50

A

2

A

1

50

A

2

A

1

50

60°C

60°C

60°C

60°C

August 2006 / Rev. 1.1 DS-CS10.241-EN / All parameters are specified at 24V, 10A, 230Vac and 25°C ambient unless otherwise noted.

www.pulspower.com Phone [phone] Germany

20/20
