TM-75/76 High-Resolution CCD Camera
69-0088
Rev. A
Operation Manual
Imaging Products
Notice
The material contained in this manual consists of information that is proprietary to PULNiX America, Inc., and may only be
used by the purchasers of the product. PULNiX America, Inc. makes no warranty for the use of its product and assumes no
responsibility for any errors which may appear or for damages resulting from the use of the information contained herein.
PULNiX America, Inc. reserves the right to make changes without notice.
Microsoft, Windows 98, Windows 95, Windows NT, and Windows Explorer are either registered trademarks or trademarks
of Microsoft Corporation in the United States and/or other countries.
Warranty
All of our solid-state cameras have a full three-year warranty. If any such product proves defective during this warranty
period, PULNiX America, Inc. will repair the defective product without charge for parts and labor or will provide a replacement in exchange for the defective product. This warranty shall not apply to any damage, defect or failure caused by
improper use or inadequate maintenance and use.
Certifications
CE Compliance
The TM-75/76 camera has been certified to conform to the requirements of Council Directive 89/336/EC for electromagnetic compatibility and to comply with the following European Standards:
Immunity: EN50082-2/1995
Emissions: EN55011/EN61326-1, Class A
All PULNiX products bearing the CE mark have been declared to be in conformance with the applicable EEC Council
Directives. However, certain factory-installed options or customer-requested modifications may compromise electromagnetic compatibility and prohibit use of the CE mark. Please note that the use of interconnect cables that are not properly
grounded and shielded may affect CE compliance.
Contact PULNiX Applications Engineering Department for further information regarding CE compliance.
FCC
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at his own expense.
ARNING
W
Changes or modifications to this unit not expressly approved by the party responsible
for FCC compliance could void the user’s authority to operate the equipment.
TM-75/76 Operation Manual
Printing:June 27, 2001
PULNiX America, Inc.
1330 Orleans Drive
Sunnyvale, CA 94089
Tel:(408) 747-0300
Tel:(800) 445-5444
Fax:(408) 747-0880
E-mail: imaging@pulnix.com
www.pulnix.com
R
E
M
U
G
L
R
®
I
I
S
F
T
D
E
E
R
PULNiX AMERICA, INC.
REGISTERED TO ISO-9001
FILE #A3942
TM-75/75 High-Resolution CCD Camera
i
Table of Contents
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1 Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.3 Functional Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.4 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.5 Interfacing to Frame Grabbers. . . . . . . . . . . . . . . . . . . . . 3
1.6 System Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.1 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.1.1 Unpacking Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.1.2 Components List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.1.3 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.2 Camera Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.2.1 Connector Pin Configurations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.2.2 Power Supply and Power Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2.3 Attaching the Video Output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2.4 Attaching the Camera Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2.5 Auto-Iris Lens Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2.6 Monitor Display Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.1 Mode Switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.1.1 Mode Selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.1.2 Internal Shutter Speed Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.1.3 Field and Frame Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.2 Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.2.1 Standard Interlace Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.2.2 Cyclic (Continuous) Shutter Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.2.3 External Sync Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.2.4 Reset-Restart Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.2.5 External Shutter Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.2.6 Non-Interlace Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4 TM-75/76 External Signals . . . . . . . . . . . . . . . . . . . 13
4.1 External HD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.2 External VD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.3 Reset-Restart VD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.4 External Trigger (TRIG) and Internal Sampling Clock . . . . 14
4.5 Trigger Pulse for Pulse-Width Shutter Control. . . . . . . . . 15
4.6 Trigger Pulse for Snapshot Shutter Control
(Donpisha Mode... No Delay Shutter). . . . . . . . . . . . . . . 15
5 Operation Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.1 No Shutter Cyclic (Continuous Sync) Operation . . . . . . . . 16
5.2 High-Speed Continuous (Cyclic) Shutter . . . . . . . . . . . . . 16
5.2.1 Field Mode Integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.2.2 Continuous Shutter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.3 Snapshot Reset-Restart Shutter (Donpisha Shutter) . . . . . 18
TM-75/76 High-Resolution CCD Camera
ii
Table of Contents
5.4 Pulse Position Reset-Restart Shutter . . . . . . . . . . . . . . . 19
5.5 Pulse Width Control Reset-Restart Shutter . . . . . . . . . . . 20
6 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.1 Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . 22
6.1.1 Symptom: No Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.2 Troubleshooting Flowchart . . . . . . . . . . . . . . . . . . . . . . 23
6.3 Troubleshooting Flowchart 2 . . . . . . . . . . . . . . . . . . . . . 24
6.4 Information and Support Resources . . . . . . . . . . . . . . . . 25
7 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7.1 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7.1.1 Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7.1.2 Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7.1.3 C-Mount Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7.2 Spectral Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
7.2.1 Timing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
TM-75/76 High-Resolution CCD Camera
FIGURE 1. TM-75/76 System Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . 3

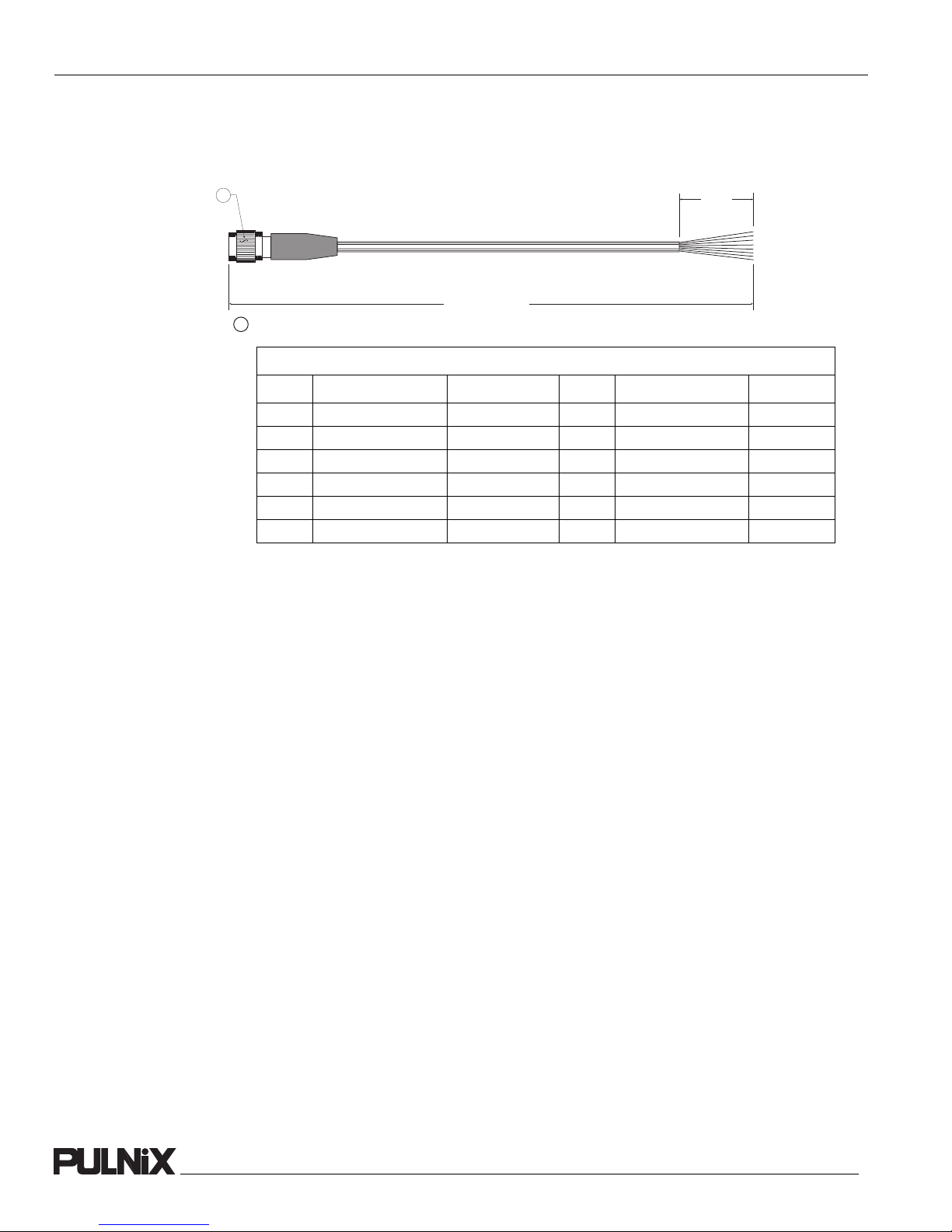

FIGURE 2. 12P-02S Interface Cable (optional). . . . . . . . . . . . . . . . . . . . . . . . . 6
FIGURE 3. Field/Frame Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
FIGURE 4. External Vd Delay Timing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
FIGURE 5. HD and Reset-Restart (Vd) Relationship . . . . . . . . . . . . . . . . . . . 14
FIGURE 6. External Trigger Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
FIGURE 7. Proper Pulse Width Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
FIGURE 8. Improper Pulse Timing for Width Control . . . . . . . . . . . . . . . . . . 15
FIGURE 9. No Shutter Field/Frame Integration . . . . . . . . . . . . . . . . . . . . . . . 16
iii
List of Figures
FIGURE 10. Field Mode Integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
FIGURE 11. Continuous Shutter Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
FIGURE 12. Donpisha Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
FIGURE 13. Pulse Position Reset-Restart Timing . . . . . . . . . . . . . . . . . . . . . . . 19
FIGURE 14. Pulse Position Odd Field Timing . . . . . . . . . . . . . . . . . . . . . . . . . . 19
FIGURE 15. Position Shutter Even Field Timing . . . . . . . . . . . . . . . . . . . . . . . . 20
FIGURE 16. Pulse Width Shutter: Asynchronous Timing . . . . . . . . . . . . . . . . . 20
FIGURE 17. Pulse Width Shutter: Continuous Timing . . . . . . . . . . . . . . . . . . . 21
FIGURE 18. Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
FIGURE 19. Front End Detail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

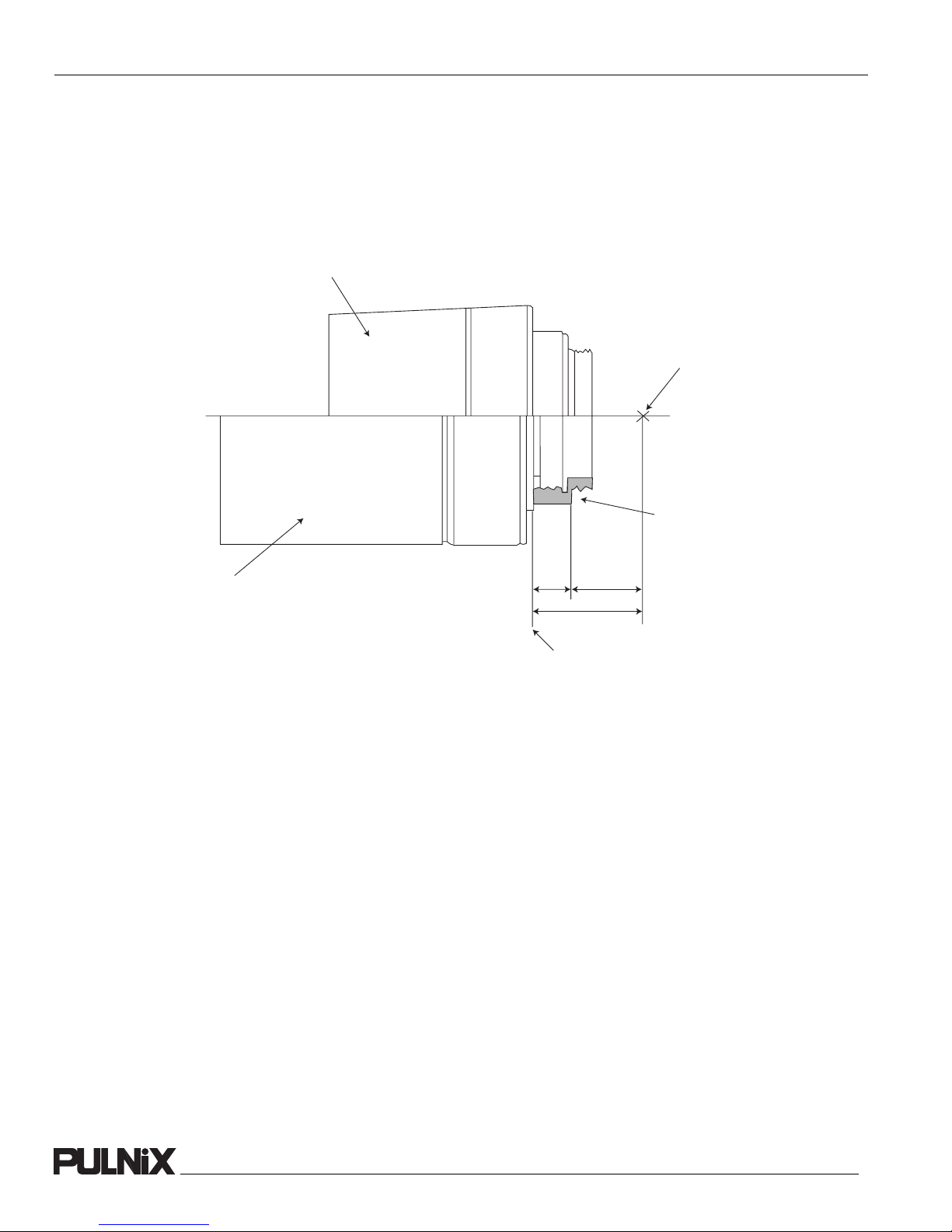

FIGURE 20. Combination With “CS-Mount” Camera . . . . . . . . . . . . . . . . . . . 28
FIGURE 21. Spectral Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
FIGURE 22. TM-75 Timing Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
FIGURE 23. TM-76 Timing Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
TM-75/76 High-Resolution CCD Camera
iv
List of Tables
TABLE 1. 12-Pin Connector Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
TABLE 2. Shutter Speed Control and Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
TABLE 3. TM-75/76 Product Specifications Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
TM-75/76 High-Resolution CCD Camera
June 20, 2001
TM-75/76 High-Resolution CCD Camera
Operation Manual
1 Introduction
1.1 Product Description
The TM-75 is specifically designed to be a replacement for SONY’s XC-75 camera. It is an inexpensive
yet high-quality camera that meets a variety of application requirements. This miniaturized high-
resolution camera features an advanced Hyper-HAD
many standard and optional features at a very affordable price. A CCIR-format model, the TM-76, is
also available.
1.2 Features
•
•
•
•
*
interline transfer 1/2" CCD imager, and offers
Variable electronic shutter
The substrate drain-type shutter mechanism provides a superb picture at various speeds without
smearing. The electronic shutter rate can be adjusted from 1/60 to 1/10,000 (1/29,100 in some
operating modes) in discrete steps.
Miniaturized and lightweight
The use of a CCD image sensor in the video camera module and mini C-mount lenses make it
possible to produce a very compact, lightweight and robust camera small enough to operate just
like a remoted head.
High sensitivity
The TM-75/76 camera is one of the most low-light sensitive 1/2" CCD cameras available today.
This feature is especially important when using the faster shutter speeds. It requires only 1.0 lux of
minimum illumination and 0.5 lux minimum illumination at maximum gain. In general, this allows
the use of a higher lens F-value while providing a greater field depth and sharper images.
Reset-restart and external trigger mode
*. Hyper-HAD is a trademark of SONY Corporation.
TM-75/76 High-Resolution CCD Camera
Page 2
Introduction
The camera can be reset at random timing to restart. It will also take an external trigger signal to
control shutter and reset timing for asynchronous image capturing.
•
Low lag/high resistance to image burning
Because the CCD is highly resistant to image burning, the camera may be exposed to bright objects
for a long period of time. Because a “smear” phenomenon may occur when shooting a very bright
object, an infrared cutoff filter is standard to obtain a clear picture.
•
AGC/MGC selection, manual gain control and gamma adjustment
These adjustments, which are particularly important in vision system applications, are adjustable
via internal switches.
•
Genlock circuit
A genlock circuit is built in to accept external sync for applications in which external sync is
required.
•
High resistance to magnetic field and vibration/mechanical shock
The CCD imager’s rugged design allows it to withstand strong vibration and shock with little or no
noise appearing in the picture. Since the TM-75/76 is not influenced by a magnetic field, it will
produce stable images even when placed next to objects such as electric furnaces, welding
machines or NMR scanners.
Quick start-up and low power consumption
•
Image capture can begin within a fraction of a second after turning on the camera. The power
consumption is only 2.3W, 190mA @12V.
Camera mounting flexibility
•
The TM-75/76 has tapped M3 holes on the top and bottom. A tripod mount is available as an
optional accessory.
Three-year warranty
•
The CCD solid-state image sensor allows the camera to maintain a superior performance level
indefinitely while requiring virtually no maintenance. PULNiX backs all of the TM series cameras
with a three-year warranty.
Warning: Unscrewing the camera cover or opening the camera in any way
1.3 Functional Options
•
Optical Filter Removal (OP3-2) (TM-75/76 comes with an IR cut filter as standard equipment).
Glassless CCD Imager (OP21)
•
•
DC Coupled (OP72)
•
NIR CCD
1.4 Applications
The miniature size of the TM-75/76 camera eliminates the need for a remoted imager camera in all but
the most confined spaces. This camera fits easily, both physically and functionally, into all types of
machine vision, automated inspection, and related applications. Other uses include remotely piloted
vehicles, miniature inspection devices, surveillance, microscopes, and medical equipment.
TM-75/76 High-Resolution CCD Camera
will void this warranty unless prior written approval is
obtained from the factory.
1.5 Interfacing to Frame Grabbers
The TM-75/76 camera can be connected to a frame grabber using either the 12-pin connector or the
BNC connector on the rear panel of the camera.
1.6 System Configuration
Figure 1 (below) presents a typical system configuration for the TM-75.
Page 3
Introduction
FIGURE 1.
TM-75/76 System Configuration
Power
Ext. Sync
Trigger
VIdeo Output*
AGC MGC
GAIN
VIDEO
Computer with
Frame Grabber
Board
POWER
* Video Output is the same as BNC connector
Monitor
TM-75/76 High-Resolution CCD Camera
Page 4
Installation
2 Installation
2.1 Getting Started
The following instructions are provided to help you to set up your video camera system quickly and
easily. We suggest that you read through these instructions before unpacking and setting up your camera
system.
2.1.1 Unpacking Instructions
We recommend that you save the original packing cartons for the cameras and lenses in case you need to
return or exchange an item.
We also recommend that you bench-test any equipment being sent to another location for field
installation to assure that everything is fully operational as a system.
2.1.2 Components List
Please begin by checking your order against the Components List (below) to assure that you have
received everything as ordered, and that nothing has been overlooked in the packing materials. If any
item is missing, please contact your PULNiX representative immediately.
TM-75/76 camera
•
•
TM-75/76 data sheet
TM-75/76 operation manual (if ordered)
•
2.1.3 Accessories
Following is a list of additional accessories or equipment that may be recommended or required for your
particular application. Please check with your PULNiX representative before installing your video
system to determine what you might need.
Power Cable: 12P-02S Interface Cable
•
•
Power Supply: PD-12UU, PD-12UE, and K series
•
Tripod mount: 32-2000 (AT-34)
2.2 Camera Setup
2.2.1 Connector Pin Configurations
The TM-75/76 has a 12-pin connector for power input. In general, Pin #1 is
Ground and Pin #2 is +12V DC. The other pins handle a number of other input
and output functions, as shown in the table below.
TM-75/76 High-Resolution CCD Camera
3
2
4
1
9
10
11 12
5
8
7
6
Page 5
Installation
TABLE 1.
12-Pin Connector Configuration
Pin Description Pin Description
1 GND (power) 7 VD Input
2 +12V DC 8 GND
3 GND (analog) 9 TRIG Input
4 Video Out 10 N/C
5 GND (digital) 11 N/C
6 HD Input 12 GND (digital)
Note: External sync and trigger
2.2.2 Power Supply and Power Cable
2.2.2 (a) Power Supplies
PULNiX recommends the following power supplies:
K25-12 110V AC/12V DC 2.1A power supply (OEM type)
K50-12 110V AC/12V DC 4.2A power supply (OEM type)
PD-12UU 100-240V AC/12V DC 1.2A universal voltage power supply,
US plug
PD-12UUP PD-12UU with12-pin connector US plug
PD-12UE PD-12UU European plug
PD-12UEP PD-12UU with 12-pin connector European plug
If you are providing power through the 12-pin connector, the PD-12UUP power supply is available with
the 12-pin mating connector already attached to the leads from the power supply. The PD-12UU power
supply can be connected to the PULNiX power cable via a terminal strip or directly.
When wiring the PD-12UU power supply directly, please note the following:
• The lead ends must be twisted together and tin soldered for strength and electrical continuity.
• Shrink tubing or a similar insulator should be used to prevent exposed leads from touching.
• The +12V lead is marked with a red stripe or white lettering; be sure not to reverse the leads.
• All connections must be properly insulated to prevent shorting.
2.2.2 (b) PULNiX Power Cables
If you are using PULNiX power cables, such as the 12P-02S, please refer to the appropriate pin-out
diagram. The color coded leads use Gray for Ground and Yellow for +12V DC.
TM-75/76 High-Resolution CCD Camera
Page 6
Installation
FIGURE 2. 12P-02S Interface Cable (optional)
1
PC-12P (Hirose Part #10A-10P-12S/PC12P)
1
Pin# Lead Color Function Pin# Lead Color Function
1 Gray GND 7 Black coax VD Input
2 Yellow +12V DC 8 White coax shield GND
3 Red coax shield GND 9 White coax TRIG Input
4 Red coax Video 10 Brown N/C
5 Orange coax shield GND 11 Blue N/C
6 Orange coax HD Input 12 Black coax shield GND
2,000mm± 10mm
(2 Meters)
12P-02S Interface Cable
Flying
Leads
32mm
Note: Make sure that the unused leads are not touching and that there is no possibility that the
leads could short due to exposed wires.
2.2.2 (c) “K” Series Power Supplies
The “K” series power supplies are designed primarily for OEM users who will be mounting the power
supply inside a protective enclosure. For use in exposed situations, the PD-12UU series power supplies
are recommended. Follow the directions below to connect a “K” series power supply.
1. Attach the 110V line cord to the two terminals marked “AC.” Do not plug the cord into a 110V AC
socket until you have completed steps 2 and 3.
2. Attach the Gray and Yellow leads of the power cable to the Ground and 12V DC terminals, respec-
tively.
3. Replace the plastic terminal guard on the power supply.
2.2.2 (d) Building Your Own Power Cable
Consult the pin-out for the camera purchased. Connect the Ground and +12V power leads of the PD12UUP power connector to Pin #1 and Pin #2, respectively (power must be DC regulated, and of
sufficient current to properly power the camera).
2.2.2 (e) Attaching the Power Cable to the Connector
The 12-pin connector is keyed and will only fit in one orientation. Follow these directions to properly
attach the power cable to the camera connector:
1. Rotate the connector while applying slight pressure until the keyways line up.
2. Press the connector into place until firmly seated.
TM-75/76 High-Resolution CCD Camera
Page 7
Installation
3. Plug the power cord into the 110V AC socket (or the proper AC line). This will power the camera
up.
2.2.3 Attaching the Video Output
Most users utilize the BNC connector for video output from the camera. Connect the output from the
camera to the input of your monitor, VCR, or switching device. The input of the monitor should be
balanced for 75Ω termination. Standard RG-59 type coaxial cable should carry a full video signal for up
to 500 feet.
To output the video and input the power and sync to a camera over a single cable, use the PULNiX
multi-conductor cables, such as the 12P-02S, etc. The mini coaxial leads in PULNiX multi-conductor
cables are designed for short runs of no longer than 100 feet.
Note: Make sure that no extraneous wires are visible which could cause a short.
2.2.4 Attaching the Camera Lens
The TM-75/76 camera accepts 1/2" or larger format size C-mount lenses. To attach the C-mount lens to
the camera, carefully engage the threads and rotate the lens clockwise until it firmly seats on the
mounting ring. Do not force the lens if it does not seat properly. Please note that some lenses with
extremely long flangebacks may exceed the mounting depth of the camera.
2.2.5 Auto-Iris Lens Setup
Auto-iris lenses with full video input can be used with the PULNiX TM-75, although this camera model
does not come equipped with auto-iris output.
Note: Make sure that the power is removed from the camera before connecting or disconnecting
the auto-iris lens. There is a small chance that the auto-iris lens could be damaged by
plugging or unplugging it while the camera is powered up.
Power down the camera before installing the auto-iris lens. To install the auto-iris lens in a PULNiX
camera for which the auto-iris input is not supplied, wire the signal (video) on the lens into the terminal
1 Vp-p video output on the camera.
Point the camera at a light area and then quickly towards a darker area. If everything is working
properly, the iris should adjust for the light change.
2.2.6 Monitor Display Mode
For monitoring real-time video, connect the video output to a video monitor or other device.
TM-75/76 High-Resolution CCD Camera
Page 8
Operation
3 Operation
3.1 Mode Switches
3.1.1 Mode Selection
NO Mode Switch Function
OFF ON
1 Cyclic/Async Cyclic Async Select continuous sync or async
2 FRM/FLD Frame Field Frame mode and Field mode
3 F1 OFF ON Function selection for Trigger mode
4 F2 VD R-R External VD or R-R mode selection
TO FRONT
GAMMA
1.0
0.45
SHUTTER
4
5
3
6
2
1
0
F
E
B
D
C
7
A
MODE
O
N
1
8
9
234
Factory Set is:
Gamma=1.0
Mode switch ON/OFF Mode
1 OFF Cyclic
2 OFF Frame mode
3 OFF No TRIG mode
4 OFF External HD, VD Mode
Shutter = 0 No shutter
TM-75/76 High-Resolution CCD Camera
3.1.2 Internal Shutter Speed Control
TABLE 2. Shutter Speed Control and Function
Mode SW Rotary SW Shutter Speed Trigger
F1 NO. Second H lines
OFF 0 No shutter
OFF 1 1/60 261.5
OFF 2 1/100 157.5
OFF 3 1/120 130.5
OFF 4 1/250 62.5
OFF 5 1/500 31.5
OFF 6 1/1,000 15.5
OFF 7 1/1,500 10.5
OFF 8 1/2,000 7.5
OFF 9 1/2,800 5.5
OFF A 1/3,500 4.5
OFF B 1/4,500 3.5
OFF C 1/6,000 2.5
OFF D 1/10,000 1.5
OFF E 1/29,000 0.5
Page 9
Operation
ON D
ON E RR Position Variable >0.5 Positive
ON F RR Width Variable >2.5 Positive
a. Snapshot mode is similar to Donpisha mode.
Snapshot
a
Variable >0 Positive
Note: In order to enable Reset-Restart sync pulse, F2 function selection must be ON. Normal
external VD is detected automatically when F2 is OFF. In this mode, if there is no external
VD, internal VD is automatically generated.
3.1.3 Field and Frame Modes
The standard factory setting for the TM-75/76 camera is FRAME MODE. The field and frame
integration mode is selectable using the #2 switch of the mode switch inside the camera. The frame
integration is used to separate all CCD pixels. The exposure of Odd and Even fields generates the full
frame image shown in Figure 3, “Field/Frame Diagram,” on page 10.
TM-75/76 High-Resolution CCD Camera
Page 10
Operation

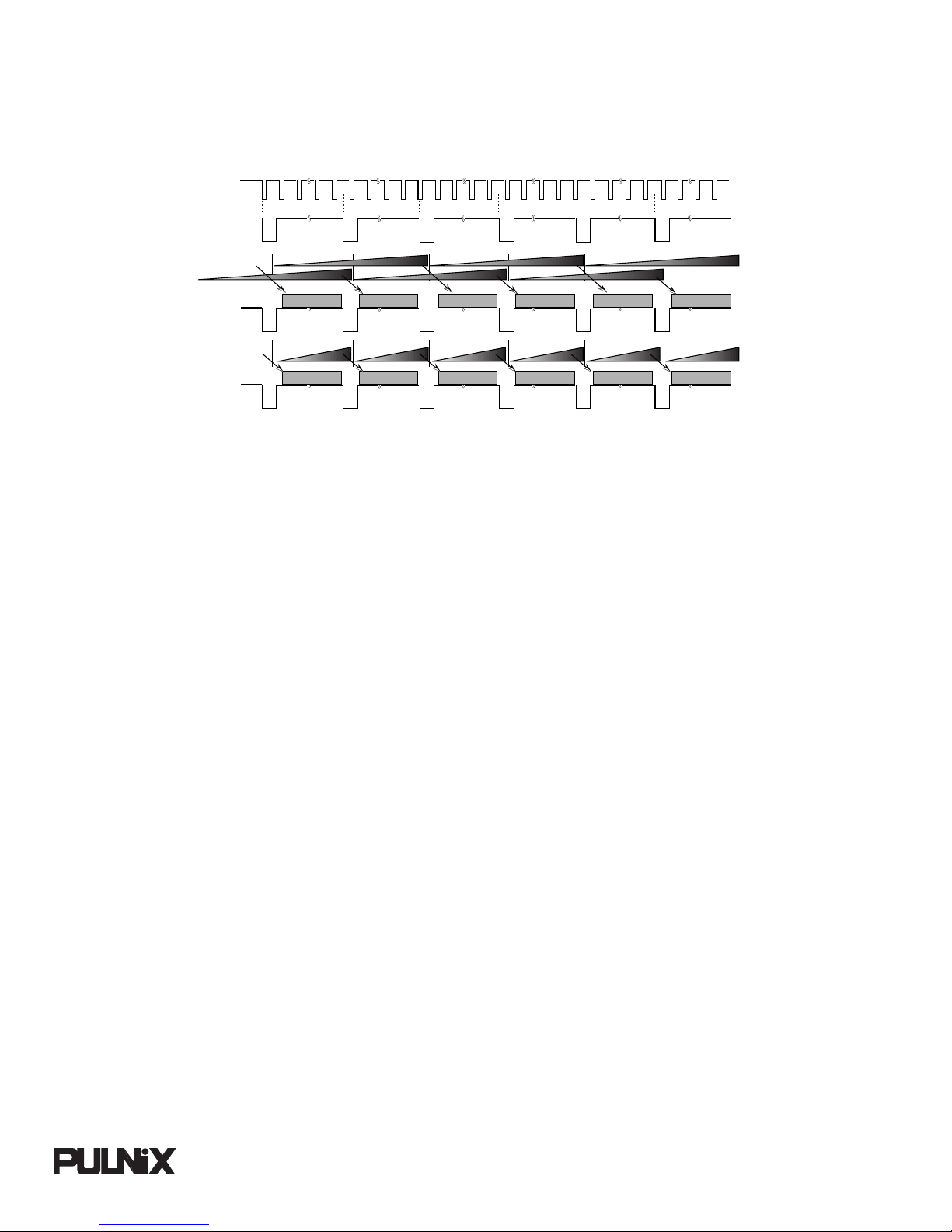

FIGURE 3. Field/Frame Diagram
2
261 262
263
23
1
HD
262
261
524
264
23 1
525
1
263
524
264
525
3 261
262
263
524
264
525
VD
Frame Integration
Field Integration
Odd
Field
Odd Odd OddEven Even Even
Odd Odd OddEven Even Even
Even
Field
Odd
Field
Even
Field
Odd
Field
Even
Field
3.1.3 (a) Field Mode
In Field mode, two horizontal rows are scanned simultaneously. At each interlace scan, the scanned
pairs are changed. Thus the sensitivity of the CCD is doubled for one field of integration. When
compared to Frame mode, in which each horizontal row is scanned separately, Field mode obtains the
same sensitivity in half the time period. The field integration is done by combining two pixel rows
(binning) together and each pair alternates as interlace scan is generated. Row 1 is binned with row 2,
and row 3 is binned with row 4. In Field 2, row 2 is binned with row 3, row 4 with row 5, and so on. The
field mode is very effective in shutter mode since the pixel sensitivity is doubled for field integration (1/
60 sec) and equals with frame mode (one row at 1/30 sec). Since shutter mode is only one field output
per shutter and darker than normal image, two-row binning is effective. This mode also reduces interlace
moire when a sharp horizontal pattern is observed.
Moire is unnoticeable because of alternating two-row scanning. The vertical resolution in Field mode is
not as good as that in Frame mode, but it is sufficient to view the full vertical resolution of the TV
format.
Note: 1. Since only one field are output in the Field mode, it cannot provide full frame resolution
in strobe lighting applications.
2. The TM-76(CCIR) is 1/50 sec. for Field and 1/25 sec. for Frame mode.
3.1.3 (b) Frame Mode
In Frame mode, each horizontal row is scanned as interlace scanning. The integration of each pixel is
one frame period. In Frame mode, vertical pixel resolution is good, and the exact location is obtained. In
comparison with Field mode, however, Frame mode has the disadvantage of showing vertical Moire.
Frame mode should be used in applications that need strobe lighting, because full frame resolution is
achieved in this mode. For higher pixel definition such as gauging and sub-pixel interpolation, Frame
mode operation is recommended.
TM-75/76 High-Resolution CCD Camera
3.2 Operating Modes
Besides normal operation, the TM-75/76 supports the following versatile operations that can be
selected:
• Standard Interlace Mode
Field integration Mode
Frame Integration Mode
• External Sync Mode
• Interlace Scan Mode
• Non-interlace Scan Mode
• Reset-Restart Mode with Electronic Shutter
Trigger Width Mode
Trigger Position Mode
Snapshot Mode (Donpisha Mode)
3.2.1 Standard Interlace Mode
Page 11
Operation
See Section 5, “Operation Mode,” for setting and operation of modes.
3.2.1 (a) Field Mode and Frame Mode
The field and frame integration mode is selectable. The frame integration is used to separate all CCD
pixels and the exposure of Odd and Even fields generate the full frame image shown in the figure below.
3.2.1 (b) Field Mode Binning
The field integration is done by combining two pixel rows (binning) together, each pair alternating as
interlace scan is generated. Row 1 is binned with row 2, and row 3 is binned with row 4. In Field 2, row
2 is binned with row 3, row 4 with row 5, and so on.
3.2.2 Cyclic (Continuous) Shutter Mode
With rotary switch shutter control, the TM-75/76 operates at the internally predefined shutter speeds.
Each field output is exposed for the same period. The shutter control varies the substrate discharge
timing. The duration between the shutter pulse and transfer gate timing (9.5H from VD leading edge for
EIA, 14.5H for CCIR) decides the exposure time. The following four cyclic shutter modes are available:
• High-Speed Cyclic Shutter mode
• Trigger Position Reset/Restart Shutter mode
• Trigger Width Reset/Restart Shutter mode
• Snapshot Reset/Restart Shutter mode
Contact PULNiX for timing charts of various cyclic shutter modes.
TM-75/76 High-Resolution CCD Camera
Page 12
Operation
3.2.3 External Sync Mode
TM-75/76 accepts standard RS-170 external sync, which is defined as horizontal sync (HD) and vertical
sync (VD). The phase-locked loop jitter is designed to be the minimum (< 5ns) in this category using the
latest PLL chip. The wide capture range enables the camera to operate at an extended temperature range
(optional) of -35°C to 65°C. HD and VD input is TTL level and the input impedance is 75Ω.
3.2.4 Reset-Restart Mode
The camera can be reset asynchronously using EXT VD. In this mode, the camera needs multiple VD
pulses to output valid images, depending on whether it is set to Field or Frame mode. Usually, the first
field (Field mode) or the first frame (Frame mode) are garbage because of previous signal residuals prior
to reset. A frame grabber has to know which frame or field to capture. External HD also must be applied
for this operation.
3.2.5 External Shutter Control
The shutter speed or exposure can be controlled with external pulse (TRIG) in this mode. In
combination with Reset-Restart Pulse (EXT VD), the camera can be externally controlled for imagecapture timing as well as for exposure time.
This is an excellent application for capturing multiple images (two fields of images) of indexing objects
under various lighting or brightness conditions. When Frame mode is selected, the full vertical
resolution is achieved by taking two fields of shutter images, whether or not you are using an electronic
shutter.
3.2.6 Non-Interlace Operation
With non-interlace external sync, the camera operates at non-interlace scanning. External VD for TM-75
must be generated at integer of 262H ± 8H (Standard interlace is 262.5 H). For the TM-76, it must be
312H ±8H, and the interlace scan is 312.5H.
TM-75/76 High-Resolution CCD Camera
4 TM-75/76 External Signals
This section explains how the external signals (HD and VD) and shutter trigger signal (TRIG) must be
fed in External sync (HD, VD sync) and Reset-Restart operation.
4.1 External HD
When external HD is supplied to pin #6 of the 12-pin connector, the TM-75/76 automatically switches
the clock to phase-lock to the external clock via HD PLL (phase lock loop). The PLL detects the leading
edge of external HD and Phase compare with the internal HD. Then PLL circuit generates internal clock
to phase-lock with the external clock. Therefore, the leading edges of both external and internal HD are
in exactly the same position. The PLL capture range is ±5% of fHD (=15.734KHz: EIA, 15.625: CCIR).
It is, however, advisable to stay within ±1% of fHD frequency to assure the best PLL jitter
characteristics. Without the presence of external HD, the TM-75/76 maintains the internal sync. The
input impedance of external HD and VD is 75Ω at factory set. A high-impedance option is also
available.
4.2 External VD
Page 13
TM-75/76 External Signals
The TM-75/76 interface circuit deliberately delays external VD by two pixel clock (14 nsec) to ensure
the stable reset of VD in relation to external HD.

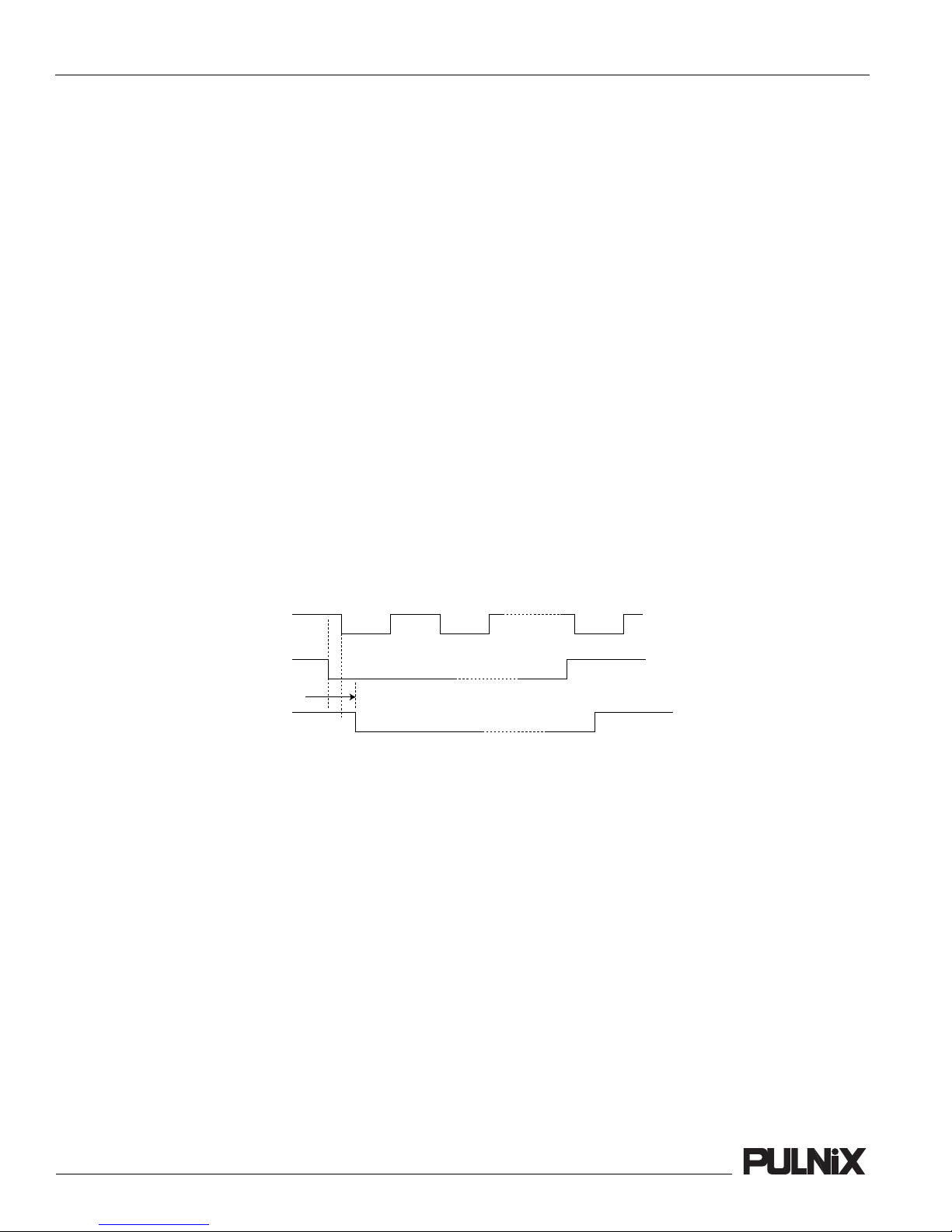

FIGURE 4. External Vd Delay Timing
EXT HD
EXT VD (R.R.)
Internal VD
For HD, VD external sync operation, apply VD to pin #7 of the 12-pin connector. The input impedance
is 75Ω. The VD reset range is from 244H to 1023.5H. For normal RS-170 operation, the VD must be
interlace scan at 262.5H (59.94 Hz = 16.7 msec). At 525H, it generates one full frame timing. The
integer (i.e. 262) reset makes non-interlace sync operation. Half H number (i.e. 262.5) makes interlace
scanning.
Note: The TM-76 vertical scan is 625H. VD is defined as 312.5H (50Hz).
4.3 Reset-Restart VD
For Reset-Restart VD operation, VD is asynchronous in relation to any previous VD. Depending on
field or frame mode, however, once the first VD is asynchronously set, consecutive VD must be
generated to obtain proper images. I n general, the first field in field mode or the first frame in frame
mode is not usable because they are previous images prior to reset. A frame grabber has to know which
frame or field to capture. External HD must be applied for this operation.
Two-pixel delay
TM-75/76 High-Resolution CCD Camera
Page 14
TM-75/76 External Signals
For External HD, VD sync mode or Reset-Restart mode selection, please refer to Section 3.1.1, “Mode
Selection,” on page 8. Mode switch F2 must be set to ON for R-R mode and keep it OFF for normal HD,
VD external sync mode.

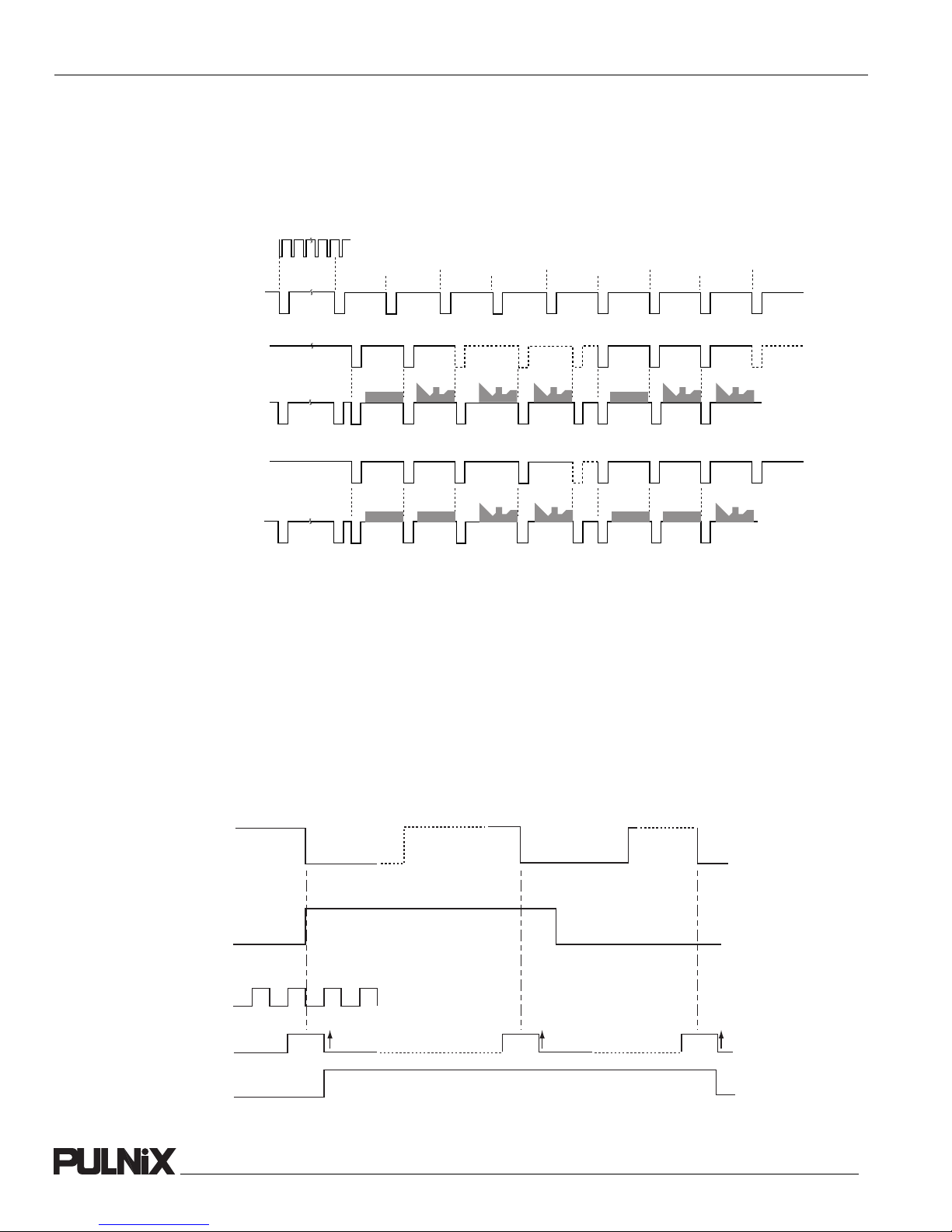

FIGURE 5. HD and Reset-Restart (VD) Relationship
Odd
Field
EXT. HD for PLL
Even
Field
(Relationship with HD and Reset-Restart VD affects Odd or Even field output)
Odd
Field
Even
Field
Odd
Field
Even
Field
Field Mode VD
(Min. 2 pulses)
Field Mode
Video
Invalid image Invalid image
Good image
(one field only)
Field Images
(alternate different fields)
Frame Mode VD
(Min. 4 pulses)
Frame Mode
Video
Invalid images
Good images
(one full frame)
4.4 External Trigger (TRIG) and Internal Sampling Clock
To ensure stable operation without the influence of jitter, the TM-75/76 samples shutter trigger pulse
(TRIG) by internal sampling clock (LCLK) and detects the low to high level change of TRIG. The
sampling occurs only at HD leading edge timing to generate the internal TRIG as shown below.
Therefore, the external TRIG pulse must be wider than 1H (64 µsec) for pulse width and pulse position
shutter control. All trigger pulse modes must work with Reset-Restart VD, which is described in
Section 5, “Operation Mode,” The TRIG input is pin #9 of the12-pin connector and the input impedance
is 100Ω.
Odd
Field
Even
Field
Good image
Odd
Field
Even
Field
FIGURE 6. External Trigger Timing
EXT. HD
EXT. TRIG
PIXEL CLOCK
LCLCK
INTERNAL TRIG (NORMAL)
TM-75/76 High-Resolution CCD Camera
Sampling
4.5 Trigger Pulse for Pulse-Width Shutter Control
In pulse width shutter control mode, the leading edge and trailing edge of TRIG must be synchronized
with external HD. The duration must be longer than 1H. If TRIG does not meet these conditions, the
exposure time may vary depending on the trigger position in one field to another field.

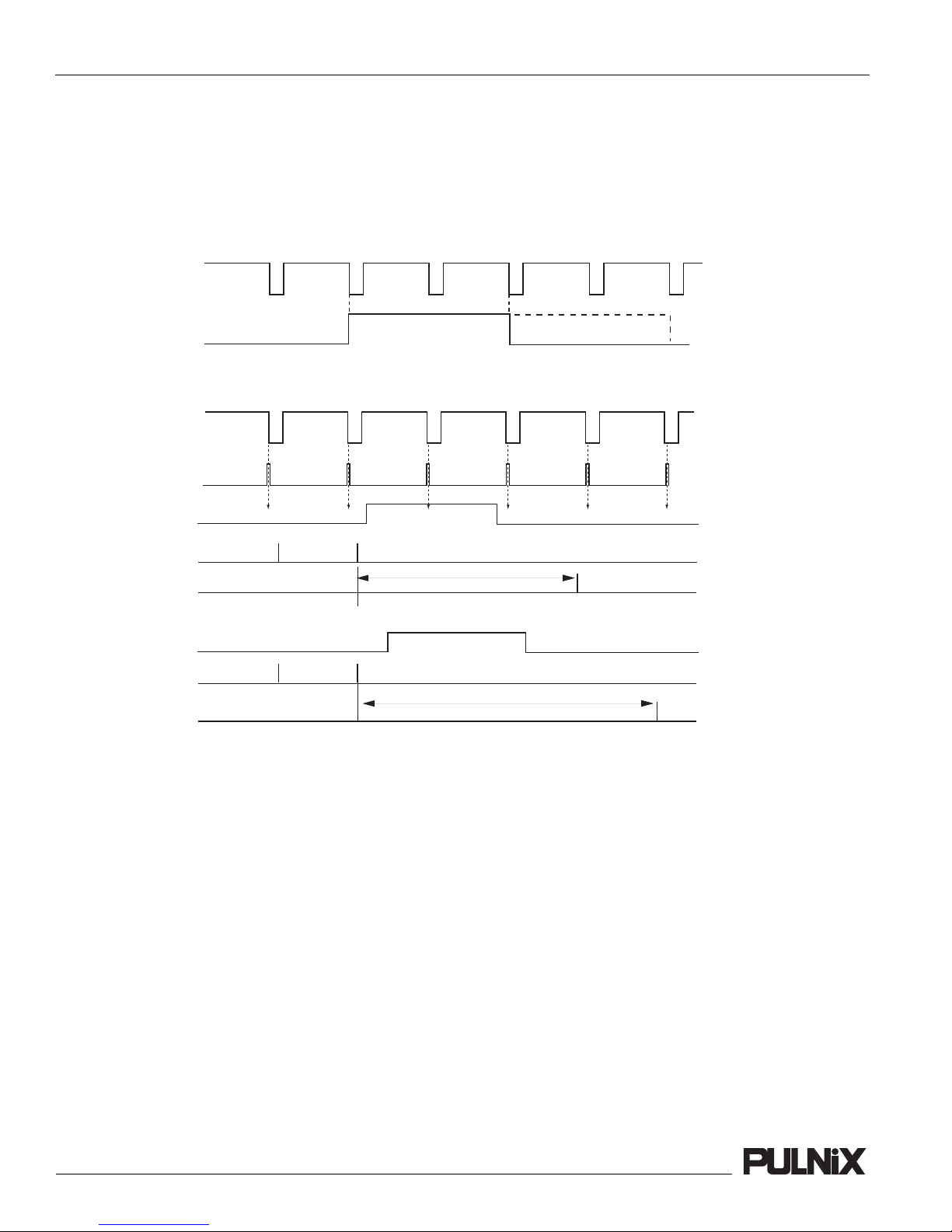

FIGURE 7. Proper Pulse Width Control
EXT. HD
TRIG
FIGURE 8. Improper Pulse Timing for Width Control
EXT. HD
LCLCK
Sampling
TRIG A
Page 15
TM-75/76 External Signals
DISCHARGE
TRANSFER GATE
TRIG B
DISCHARGE
TRANSFER GATE
Exposure Time A
1H delay after detection of falling edge
Exposure Time B
1H delay after detection of falling edge
4.6 Trigger Pulse for Snapshot Shutter Control (Donpisha Mode... No Delay Shutter)
For snapshot mode (Donpisha shutter), the TRIG pulse width can be wider than just 2 pixel clocks wide
(>150nsec) since this mode only requires pixel clock data strobing. The internal TRIG is generated at
any random point and stays high until transfer gate pulse is completed.
TM-75/76 High-Resolution CCD Camera
Page 16
Operation Mode
5 Operation Mode
5.1 No Shutter Cyclic (Continuous Sync) Operation
In Cyclic operation mode, the camera generates its own synchronization signal by itself. It continuously
(cyclically) transfers photo charge at every VD (Vreset) in internal or external HD, VD sync mode.
Since no discharge occurs, the one full frame (1/30 sec or 1/25 sec) is the exposure time for both fields
in frame accumulation mode. In frame mode, single shot strobing or LED flash can generate a full frame
resolution with frame (two fields) image capturing. In field mode, the accumulation is for 1/60 or 1/50
sec but by taking two fields (one frame) full frame resolution can be achieved. However, strobe lighting
only generates one field image.
FIGURE 9. No Shutter Field/Frame Integration
HD
1
23
2
261 262
263
262
261
524
264
23 1
525
1
263
524
264
525
3 261
262
263
524
264
525
VD
Frame Integration
Field Integration
Odd
Field
Odd Odd OddEven Even Even
Odd Odd OddEven Even Even
Even
Field
5.2 High-Speed Continuous (Cyclic) Shutter
5.2.1 Field Mode Integration
Field mode integration is implemented by scanning two rows together (binning) and each pair alternates
as interlace scan is generated. In Field 1, row 1 is binned with row 2, row 3 with row 4,and so on.
In Field 2, the pairs change to row 2 and 3, 4 and 5 and so on. This field mode accumulation is effective
for electronic shutter applications as it generates twice as sensitive an image as frame mode. The
electronic shutter output is always one field image per shutter.
Odd
Field
Even
Field
Odd
Field
Even
Field
TM-75/76 High-Resolution CCD Camera
FIGURE 10. Field Mode Integration
Page 17
Operation Mode
FIELD 1 FIELD 2
1
2
3
4
5
6
7
5.2.2 Continuous Shutter
In this shutter mode, the camera generates its own sync signal and continuously (cyclically) carries out
the internal shutter operation set by rotary switch. The discharge and transfer repeats in every field at a
predefined shutter speed. The discharge pulses occur in every horizontal line (in blanking) and stop at a
predefined shutter timing in one field. The duration between the last discharge and transfer determines
the exposure time.
FIGURE 11. Continuous Shutter Timing
Line 1
Line 1
Line 2
Line 2
Line 3
Line 3
Line 4
262 262
VD
Discharge Pulse
Transfer Gate
Accumulation
(Exposure)
Video
TM-75/76 High-Resolution CCD Camera
Page 18
Operation Mode
5.3 Snapshot Reset-Restart Shutter (Donpisha Shutter)
FIGURE 12. Donpisha Timing
In this mode the shutter trigger pulse (TRIG) should be 150 nsec (two pixel clock) or wider. Snapshot
mode is similar to Pulse Position mode. However the leading edge of TRIG pulse in snapshot mode
immediately produces discharge pulse without delay (means Donpisha= no delay) and starts exposure,
which enables very high speed shutter up to over 1/1,000,000 sec (1 µsec exposure). It can, in theory, go
to a 70 nsec exposure time.
The transfer (read out) occurs at 9.5H (TM-76 is 14.5H) line from VD (R-R VD) leading edge.
TRIG pulse timing can be anywhere. However, when the pulse is generated during active video period,
white noise of the pulse location may appear (faster than 1/1000 sec shutter is inside Vertical blank
period and no noise will be seen).
EXT. VD (R-R)
9.5H (EIA), 14.5H (CCIR)
TRIG
Discharge
Transfer Gate
Accumulation
(Exposure)
Video
VD (R-R)
TRIG
DISCHARGE
150nsec Min.
1.9µsec
EXPOSURE
TRANSFER
9.5H (EIA), 14.5H (CCIR)
TM-75/76 High-Resolution CCD Camera
5.4 Pulse Position Reset-Restart Shutter
The shutter trigger pulse (TRIG) is required to be wider than 1H (>70 µsec) for this operation. Like
continuous shutter mode, the last discharge pulse occurs as external shutter control. The position is
determined at 1H after the detection of the TRIG pulse edge. The transfer (read out) occurs at 9.5H
(14.5H for the TM-76) from reset-restart VD leading edge. The minimum exposure time is 0.5H (34.4
µsec). Because the shutter operation is synchronized with an internal horizontal clock, a stable exposure
time is assured even though TRIG is applied with minor variation relative to the HD timing. In order to
avoid flickering between each field exposure, it is advisable to synchronize the TRIG with reset-restart
VD. If one frame (two fields) of shutter images are required, the TRIG pulse must be synchronous to the
interlace scanning relationship.
FIGURE 13. Pulse Position Reset-Restart Timing
EXT. VD (R-R)
9.5H (EIA), 14.5H (CCIR)
EXT. TRIG
HD
INTERNAL
TRIG
Page 19
Operation Mode
Discharge
Transfer Gate
Accumulation
(Exposure)
Video
FIGURE 14. Pulse Position Odd Field Timing
HD
ODD Field Relationship
VD (Internal)
Shortest Exposure Example: 8H for EIA, 13H for CCIR
EXT. TRIG
INTERNAL TRIG
DISCHARGE
Exposure Time: = (9.5H -1H) - 8 H=0.5H (EIA)
= (14.5H-1H) -13H=0.5H (CCIR)
TRANSFER
Min. Exposure (1/2H)
9,5H (EIA), 14.5H (CCIR)
TM-75/76 High-Resolution CCD Camera
Page 20
Operation Mode
FIGURE 15. Position Shutter Even Field Timing
HD
VD (Internal)
EXT. TRIG
INTERNAL TRIG
DISCHARGE
TRANSFER
EVEN FIELD RELATION SHIP
Shortest exposure time example: 8H (EIA), 13H (CCIR)
Exposure Time: = (9.5 H - 0H) - 8H = 0.5H (EIA)
= (14.5H-0H) - 13H = 0.5H (CCIR)
9,5H (EIA), 14.5H (CCIR)
Min. Exposure (1/2H)
5.5 Pulse Width Control Reset-Restart Shutter
The shutter Trigger (TRIG) pulse is required to be wider than 1H (70µsec). The minimum exposure time
in this mode is 2.5H (1/6200 sec). In this mode, the position of TRIG does not have to be synchronized
with Reset-Restart VD (Ext. VD) and it can be asynchronous trigger with moving object. The exposure
is set by rising edge and falling edge of TRIG pulse, which can be any timing (asynchronous). The video
output is, however, synchronous with R-R VD. Since the vertical shift register must wait for completion
of TRIG and next VD, only one field of image is valid after TRIG pulse. If continuous shutter control is
required with pulse width control, the TRIG falling edge must be within 9.5 H (14.5H for TM-76) from
each VD leading edge. To avoid any image flickering between odd and even field, the TRIG pulse is
required to synchronize with HD and Reset-Restart VD.
FIGURE 16. Pulse Width Shutter: Asynchronous Timing
R-R VD
Missing VD
TRIG (pulse width)
DISCHARGE
EXPOSURE
TRANSFER GATE
11H 11H
V SHIFT REGISTER
VIDEO
no VD,
no clock
TM-75/76 High-Resolution CCD Camera
Stop clock
Stop clock
FIGURE 17. Pulse Width Shutter: Continuous Timing
TRIG falling edge must be within 9H(EIA), 14H(CCIR) from VD
R-R VD
Page 21
Operation Mode
TRIG (pulse width)
DISCHARGE
EXPOSURE
TRANSFER GATE
V SHIFT REGISTER
VIDEO
9H (EIA), 14H (CCIR)
V Clock starts at
10H(EIA), 15H(CCIR)
TM-75/76 High-Resolution CCD Camera
Page 22
Troubleshooting
6 Troubleshooting
6.1 Problems and Solutions
Following are troubleshooting tips for common problems. In general, problems can easily be solved by
following these instructions. If the following remedies fail to offer a solution to your problems, please
contact a PULNiX representative.
6.1.1 Symptom: No Video
Remedies: Check that the following are properly connected and operational.
• Power supplies
• Power cables
• Main power source
• Shutter control
• Async mode
• Lens
TM-75/76 High-Resolution CCD Camera
6.2 Troubleshooting Flowchart
Page 23
Troubleshooting
1. No Power
2. No Video Output
Start
DC12V exists at pin#2
of 12-pin connector?
YES
DC-DC outputs at
power board exist?
YES
End
Start
Power ON?
YES
NO
NO
NO
Power supply or power cable problem
Power board failure.
Any short circuit or damaged components?
Check Step 1
Composite
Video exists at
BNC?
NO
Sync exists?
YES
Shutter
normal?
YES
External sync or
Trigger applied?
YES
CDS output?
YES
CCD output?
YES
End
YES
NO
NO
NO
NO
NO
Monitor or BNC cable defect
Video output failure
Mode setting problem
See External sync problem section
Signal board problem
CCD or Timing Gen board or
CCD driver problem
TM-75/76 High-Resolution CCD Camera
Page 24
Troubleshooting
6.3 Troubleshooting Flowchart 2
3. External Sync Problem
Start
External HD and VD
exist at pin 6 and 7 of
12-pin connector?
YES
PLL
Locking
YES
stable?
YES
VD locks?
YES
VD is set to standard
or Reset-restart?
YES
NO
NO
NO
NO
NO
External sync or cable problem
Frequency capture range, PLL circuit problem
PLL jitter, Termination,
Noisy external sync
Sync reset problem
Mode selection error
TRIG exists?
YES
TM-75/76 High-Resolution CCD Camera
End
NO
Check TRIG input and timing
6.4 Information and Support Resources
For further information and support:
Phone: (408) 747-0300
(800) 445-5444
(800) 3-PULNIX (24-hour message access)
Fax: (408) 747-0660
E-mail: imaging@pulnix.com
Mail: PULNiX America Inc.
Sales Department
1330 Orleans Drive
Sunnyvale, CA 94089
ATTN: Video Applications
Web Site: www.pulnix.com
Page 25
Troubleshooting
TM-75/76 High-Resolution CCD Camera
Page 26
Appendix
7 Appendix
7.1 Specifications
TABLE 3. TM-75/76 Product Specifications Table
7.1.1 Product Specifications
Model TM-75(EIA) TM-76(CCIR)
Imager 1/2" Interline transfer CCD, HAD type
Pixels 768(H) x 494 (V) 752 (H) x 582 (V)
Cell size 8.4µm x 9.8µm 8.6µm x 8.3µm
Scanning 525 lines EIA 625 lines CCIR
Sync Internal/External auto switch
fH=15.734 KHz ±5%,
fV=59.94 Hz ±5%
Pixel clock 14.318 MHz 14.1875 MHz
TV resolution 570(H) x 350(V) 560(H) x 420(V)
S/N Ratio 56dB min. AGC off
Min. illumination 0.5 lux (F=1.4)
Video output 1.0 Vp-p composite video, 75Ω
AGC ON/OFF
Gamma Default: 1.0 (linear) or 0.45
Lens mount C-mount
Power requirement 190 mA, 11-15V
Operating temp. -10°C to +50°C
Vibration & Shock Random Vibration: 7Grms/10-2000 Hz, Shock: 70G
Size 29.0mm x 44.0mm x 62.3mm
1.14" x 1.73" x 2.45"
Weight 104grms (3.7 oz.)
Power cable 12P-02S (optional)
Power supply K25-12V, PD-12UE, PD-12U, PD-12UEP,
PD-12UUP or PD-12UU
Functional options Optical Filter Removal (3-2); DC Coupled (7-2); Glassless CCD
Imager (21); NIR CCD; Adjustable backfocus front end
Accessories See current price list.
Internal/External auto switch
fH=15.625 KHz ±5%,
fV=50.00 Hz ±5%
TM-75/76 High-Resolution CCD Camera
7.1.2 Physical Dimensions
FIGURE 18. Physical Dimensions
ø27.5 (ø1.08)
29.0 (1.14)
AGC MGC
Page 27
Appendix
GAIN
POWER
VIDEO
44.0 (1.73)
1"–32 UNC
7.1.3 C-Mount Specifications
The TM-75/76 lens mount is standard C-mount.
7.1.3 (a) Front End Detail
FIGURE 19. Front End Detail
18.17 (0.715)
18.17 (0.715)
7.4 (0.29)
12.4 (0.49)
2X
26.0 (1.02)
4X M3
EFFECTIVE
IMAGE AREA
32.2 (1.27) 25.0 (0.98)
Image plane
91.1 (3.59)
71.0 (2.80)
56.0 (2.20)
25.0 (0.98)
4X M2
SCREW THREAD:
1"-32UNC
FILTER
GASKET
ICX038DLA
IMAGER
IMAGER P W B
TM-75/76 High-Resolution CCD Camera
Page 28
Appendix
FIGURE 20. Combination With “CS-Mount” Camera
7.1.3 (b) C-Mount Custom Options
There are two custom options available, as follows:
• CS-Mount Front End
CS-Mount Lens
Focal Point
5mm Extension Ring
C-Mount Lens
5
12.5
17.526
Flange Surface of
C-Mount
The flange-back length of the CS-Mount is 12.5mm versus 17.526 of the C-Mount. The shorter flangeback length of the CS-Mount allows room for the stripe filter incorporated in the color camera.
Additionally, the shorter flange-back length allows for reduction of the effective diameter of the first
lens and reduces the number of lens elements. The common C-Mount lens is completely compatible
with a CS-Mount camera when a 5mm extension ring is inserted between the lens and the camera.
• Backfocus adjustable front end
For close-up and specific backfocus requirements, this front end comes with an adjustable C-mount
ring.
TM-75/76 High-Resolution CCD Camera
7.2 Spectral Response
FIGURE 21. Spectral Response
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
Relative Sensitivity
0.2
0.1
0
400
500
600 700 800 900 1000
Page 29
Appendix
1100 1200
Wavelength (nm)
TM-75/76 High-Resolution CCD Camera
Page 30
Appendix

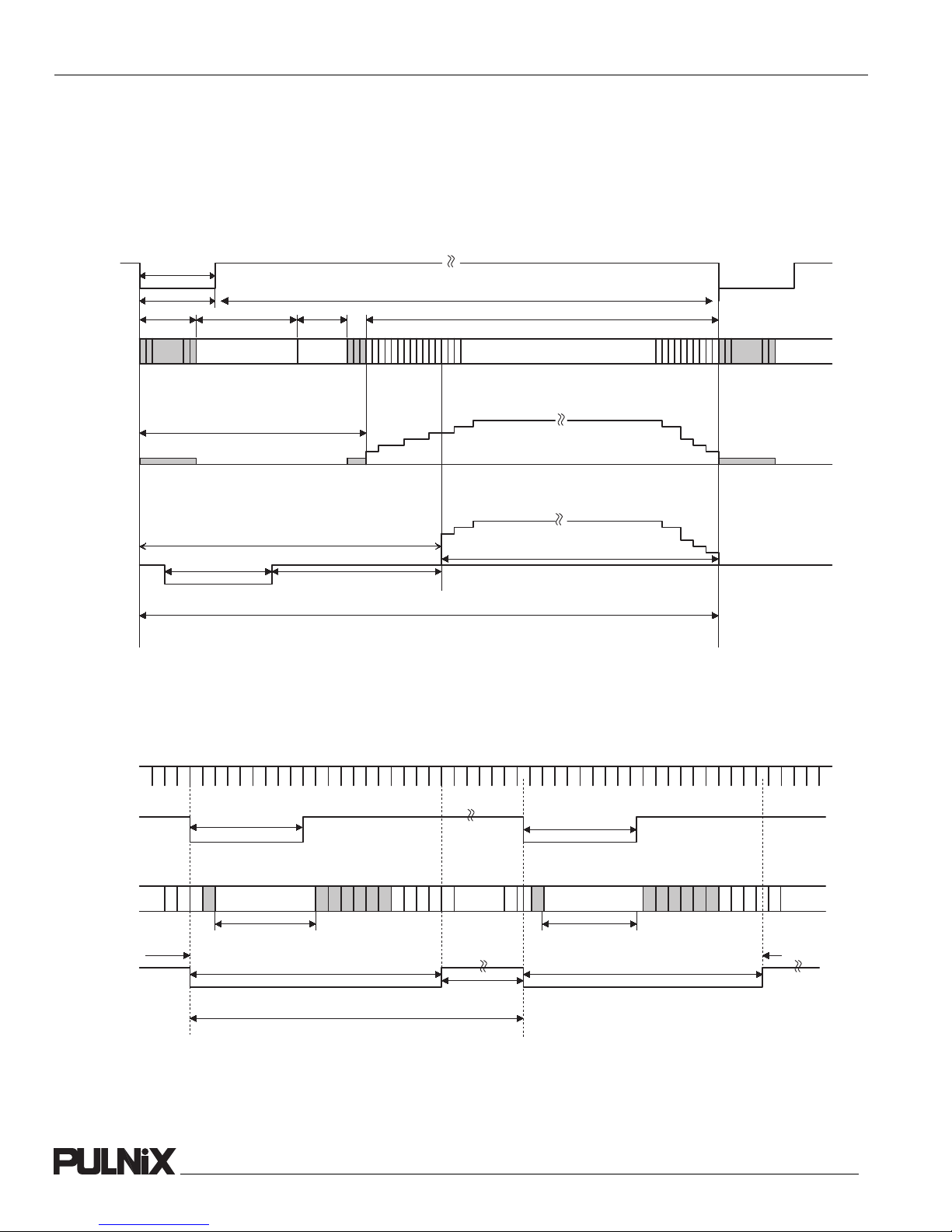

FIGURE 22. TM-75 Timing Chart
7.2.1 Timing
TM-75 Timing
HD
6.36usec
91
40
B1
B2
CCD
O.B O.B
CCD
Signal
Composite Video
21
B39
B40
H SYNC
4.89 usec
77 22
142
H BLANK
70
819
3
D1
B1B2B31234567891011121314
D22
15
DummyBlank
768
Active pixels
758
759
760
761
762
763
764
765
766
768
B1
B2
B39
B40
Active Image Area
154
Active Image Area 756
63
910 (63.56 usec) 1 H (Horizontal Line)
HD
VD
CCD
Video Output
490
492
494
9H
OB
8H
20H
262.5H (One Field)
TM-75/76 High-Resolution CCD Camera
B1B2B3B4B5B613579
O.B.
Active Image
242.5H
9H
491
493.5
B1B2B3B4B5B6246810
9H
20H
V BLANKV BLANK
242.5H
Active Image
FIGURE 23. TM-76 Timing Chart
Page 31
Appendix
TM-76 Timing
HD
6.36usec
91
40
B1
B2
CCD
O.B O.B
CCD
Signal
Composite Video
21
B39
B40
H SYNC
4.89 usec
91 22
156
H BLANK
70
817
3
D1
B1B2B31234567891011121314
D22
15
DummyBlank
752
Active pixels
743
744
745
746
747
748
749
750
751
752
B1
B2
B39
B40
Active Image Area
167
Active Image Area
741
76
908 (64.0 µsec) 1 H (Horizontal Line)
HD
VD
CCD
Video Output
9H
578
580
582
OB
B1B2B3B4B5B613579
4579
4581
O.B.
14H
Active Image
25H
287.5H
9H
B1B2B3B4B5B6246810
O.B.
15H
25H
287.5H
Active Image
V BLANKV BLANK
312.5H (One Field)
TM-75/76 High-Resolution CCD Camera
Page 32
Appendix
TM-75/76 High-Resolution CCD Camera
Imaging Products
PULNiX America, Inc.
1330 Orleans Drive
Sunnyvale, CA 94089
Email: imaging@pulnix.com
Tel: 408-747-0300
Tel: 800-445-5444
Fax: 408-747-0660
www.pulnix.com
69-0088
Rev. A
Loading...
