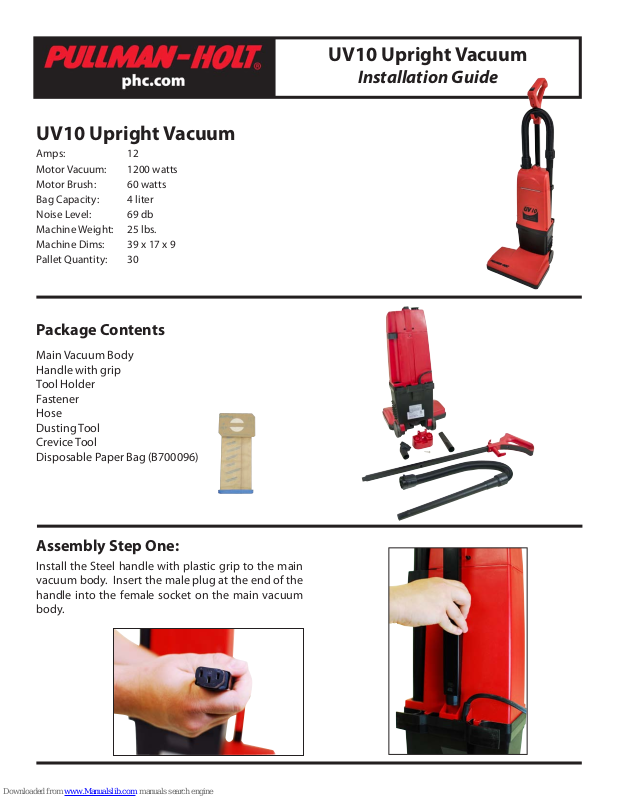

Page 1
UV10 Upright Vacuum
Amps: 12
Motor Vacuum: 1200 watts
Motor Brush: 60 watts
Bag Capacity: 4 liter
Noise Level: 69 db
Machine Weight: 25 lbs.
Machine Dims: 39 x 17 x 9
Pallet Quantity: 30
Package Contents
UV10 Upright Vacuum
Installation Guide
Main Vacuum Body
Handle with grip
Tool Holder
Fastener
Hose
Dusting Tool
Crevice Tool
Disposable Paper Bag (B700096)
Assembly Step One:
Install the Steel handle with plastic grip to the main
vacuum body. Insert the male plug at the end of the
handle into the female socket on the main vacuum
body.
Page 2
UV10 Upright Vacuum
Installation Guide
Assembly Step Two:
Align the tool holder by hand to the handle and main vacuum body. Use a screwdriver and fastener to attach
the tool holder and handle to the main vacuum body. IMPORTANT: FOR THE LID MECHANISM TO WORK PROPERLY, BE SURE TO ALIGN THE TWO HOLES IN THE TOOL HOLDER WITH THE TWO PINS ON THE HINGED LID.
Assembly Step Three:
Connect vacuum hose. Press tabs on plastic cu on hose end to attach cu to inlet mounted on hinged lid.
Questions? (800) 237-7582Eective 01/30/13
