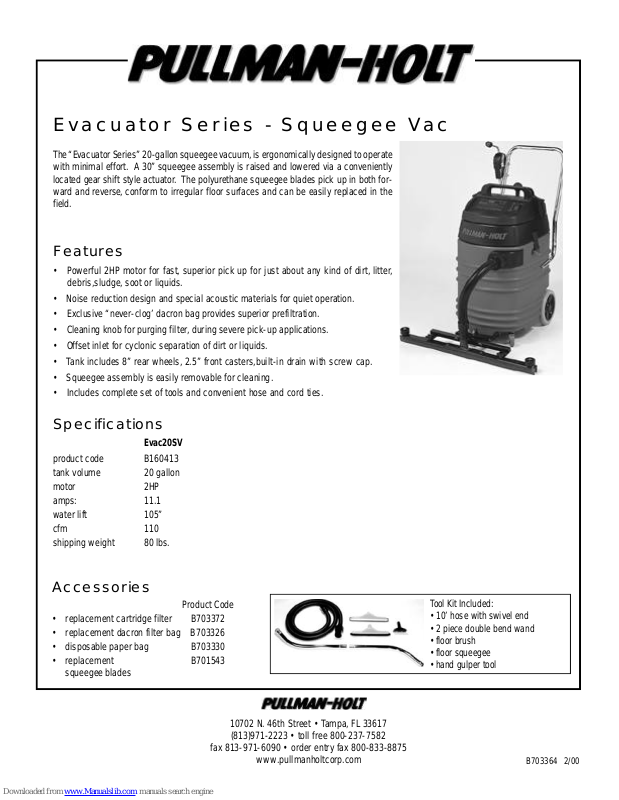

Evacuator Series - Squeegee Vac
The “ E vacuator Series”20-gallon squeegee va c u u m ,is ergonomically designed to opera t e
with minimal effort. A 30” squeegee assembly is raised and low e red via a conveniently
located gear shift style actuator. The polyurethane squeegee blades pick up in both forwa rd and re v e r s e, c o n f o rm to irregular floor surfaces and can be easily replaced in the
f i e l d .
Features
• Powerful 2HP motor for fast, superior pick up for just about any kind of dirt, litter,
debris,sludge,soot or liquids.
• Noise reduction design and special acoustic materials for quiet operation.
• Exclusive “never-clog’ dacron bag provides superior prefiltration.
• Cleaning knob for purging filter,during severe pick-up applications.
• Offset inlet for cyclonic separation of dirt or liquids.
• Tank includes 8” rear wheels, 2.5” front casters,built-in drain with screw cap.
• Squeegee assembly is easily removable for cleaning.
• Includes complete set of tools and convenient hose and cord ties.
Specifications
Evac20SV
product code B160413
tank volume 20 gallon
motor 2HP
amps: 11.1
water lift 105”
cfm 110
shipping weight 80 lbs.
Accessories
Product Code
• replacement cartridge filter B703372
• replacement dacron filter bag B703326
• disposable paper bag B703330
• replacement B701543
squeegee blades
Tool Kit Included:
•10’ hose with swivel end
•2 piece double bend wand
•floor brush
•floor squeegee
•hand gulper tool
10702 N. 46th Street • Tampa,FL 33617
(813)971-2223 • toll free 800-237-7582
fax 813-971-6090 • order entry fax 800-833-8875
www.pullmanholtcorp.com
B703364 2/00
