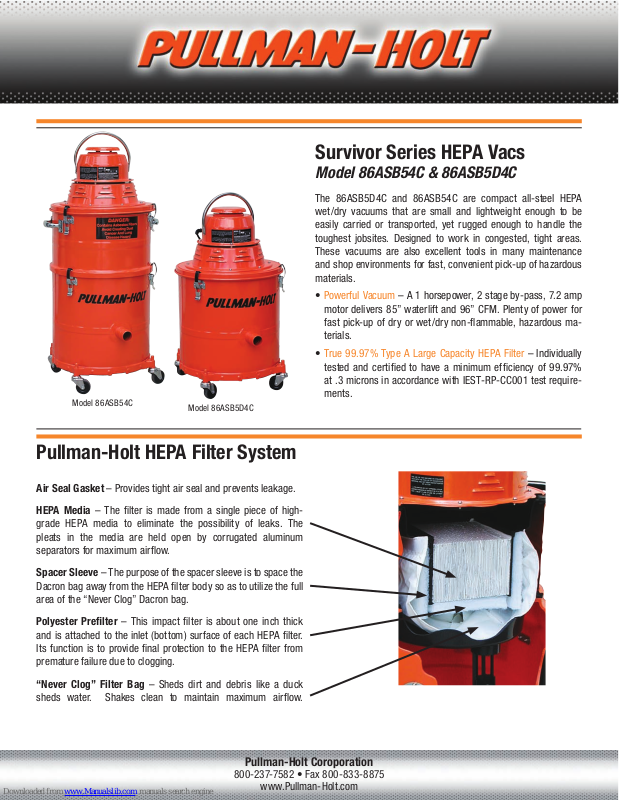

Page 1
Model 86ASB54C
Survivor Series HEPA Vacs
Model 86ASB54C & 86ASB5D4C
The 86ASB5D4C and 86ASB54C are compact all-steel HEPA
wet/dry vacuums that are small and lightweight enough to be
easily carried or transported, yet rugged enough to handle the
toughest jobsites. Designed to work in congested, tight areas.
These vacuums are also excellent tools in many maintenance
and shop environments for fast, convenient pick-up of hazardous
materials.
• Powerful Vacuum – A 1 horsepower, 2 stage by-pass, 7.2 amp
motor delivers 85” waterlift and 96” CFM. Plenty of power for
fast pick-up of dry or wet/dry non-flammable, hazardous materials.
• True 99.97% Type A Large Capacity HEPA Filter – Individually
tested and certified to have a minimum efficiency of 99.97%
at .3 microns in accordance with IEST-RP-CC001 test requirements.
Model 86ASB5D4C
Pullman-Holt HEPA Filter System
Air Seal Gasket – Provides tight air seal and prevents leakage.
HEPA Media – The filter is made from a single piece of high-
grade HEPA media to eliminate the possibility of leaks. The
pleats in the media are held open by corrugated aluminum
separators for maximum airflow.
Spacer Sleeve – The purpose of the spacer sleeve is to space the
Dacron bag away from the HEPA filter body so as to utilize the full
area of the “Never Clog” Dacron bag.
Polyester Prefilter – This impact filter is about one inch thick
and is attached to the inlet (bottom) surface of each HEPA filter.
Its function is to provide final protection to the HEPA filter from
premature failure due to clogging.
“Never Clog” Filter Bag – Sheds dirt and debris like a duck
sheds water. Shakes clean to maintain maximum airflow.
Pullman-Holt Coroporation
800-237-7582 • Fax 800-833-8875
www.Pullman-Holt.com
Page 2
Survivor Series HEPA Vacs
Model 86ASB54C & 86ASB5D4C
Included Attachments & Accessories:
Specifications:
86ASB54C 86ASB5D4C
Style: wet/dry dry
horsepower: 1 1
waterlift: 85” 85”
cfm: 96 96
recovery capacity: 5 gallon .75 bu
shipping weight: 49 lbs. 38 lbs.
product code: B160420 B160419
Features:
Model 86ASB54C:
Tool Kit (B160056)
5’ two-piece metal wand (B521007)
10’ X 1.5” crushproof hose (B000311)
14” floor brush tool (B527095)
14” floor squeegee tool ( B527094)
17” crevice tool (B701615)
3” round dusting tool (B000394)
Replacement Filters
Polyester prefilter 3 each (B527302)
Disposable paper filter bags 3 each
(B700408)
Disposable Poly Bags
3 each (B524263)
Model 86ASB5D4C:
Tool Kit (B160450)
5’ two-piece metal wand (B521007)
10’ X 1.5” crushproof hose (B000311)
14” floor brush tool (B527095)
17” crevice tool (B701615)
3” round dusting tool (B000394)
Replacement Filters
Polyester prefilter 3 each (B527302)
Disposable paper filter bags 3 each
(B700408)
Disposable Poly Bags
3 each (B524263)
Complete HEPA Filter Assembly consisting of air
seal gasket, polyester prefilter, spacer sleeve
and Dacron filter bag (B526520)
Wet pickup adapter with reliable float shut-off
(B260089)
Each Pullman-Holt HEPA filter is tested and
certified to provide a minimum efficiency of
99.97% at .3 microns based on IEST-RPCC001 test requirements.
10702 N. 46th Street • Tampa, FL 33617
800-237-7582 • Fax 800-833-8875
www.Pullman-Holt.com
High efficiency 2-ply enclosed, disposable paper
filter bag acts as the primary filter to trap and
hold dry material for easy handling and disposal.
(B700408)
B200675 6/07
