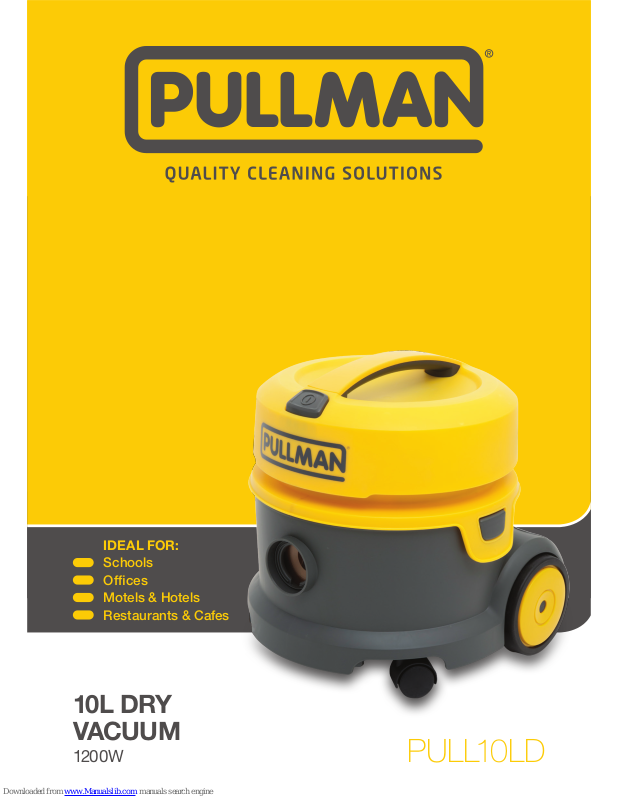

10L DRY
VACUUM
1200W
IDEAL FOR:
Schools
Offices
Motels & Hotels
Restaurants & Cafes
PULL10LD
Always switch off the cleaner and remove the plug from the electricity power supply before cleaning
your appliance, when not in use or attempting any maintenance task. The cleaner must only be
connected to an AC power supply at the voltage shown on the rating label. This cleaner should only
be used for its intended purpose as described in this instruction manual. Never operate the vacuum
cleaner without filters and dust bag.
1. This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
2. Children should be supervised to ensure that
they do not play with the appliance.
3. To prevent electrical shock, do not immerse
the appliance, power cord or power plug into
water or other liquids.
4. To prevent electrical shock, do not use the
vacuum cleaner outdoors or on
wet surfaces.
5. Always check the power cord before use, the
power cord and the plug should be in a good
condition and must not be damaged. If the
power supply cord is damaged or defective,
it must be replaced by the manufacturer, its
service agent or similarly qualified persons in
order to avoid a hazard.
6. Do not unplug by pulling on the power cord.
To unplug, grasp the plug not the power
cord. Use only Australian and New Zealand
electrical safety approved extension cords.
7. Do not pull or carry the appliance by the
power cable, use the power cable as a
handle or pull the power cable around
shaft edges or corners. Avoid running the
appliance over the power cable.
8. Ensure the appliance is switched off
before unplugging.
9. Do not handle or operate the appliance
with wet hands and follow electrical safety
precautions at all times.
10. Extreme caution should be exercised when
using the appliance on stairs.
11. Do not attempt to change the attachments
while the appliance is plugged in to mains
power supply. Switch off and remove
plug from mains power supply. Use only
manufacturer’s recommended accessories.
12. Do not operate the vacuum cleaner too
close to the heaters, radiators and other
hot surfaces.
13. Do not use the appliance to pick up
flammable items or combustible liquids (i.e.
gasoline, hot ashes cigarettes, matches,
explosive materials or anything burning) or
use in areas where such substances and
items may be present.
14. Do not use the appliance to pick up toxic
materials (i.e. chlorine bleach, ammonia).
15. Ensure the appliance is disconnected from
the main power supply before connecting the
hose to the unit.
16. Do not operate or use the appliance without
dust bag and filters in place.
17. Before vacuuming, remove any large or sharp
objects from the floor or cleaning surface in
order to prevent damage to the filter.
SAFETY PRECAUTIONS AND WARNING:
IMPORTANT
WHEN USING YOUR VACUUM CLEANER, BASIC PRECAUTIONS SHOULD ALWAYS
BE OBSERVED, INCLUDING THE FOLLOWING;
2
18. If the hose inlet, gulper floor tool or the
chrome tube is blocked, switch off the
cleaner straight away and remove from the
main power. First clear the blocked object
before attempting to start the cleaner
vacuum again.
19. Do not leave the appliance unattended when
it is connected to a mains power supply.
20. Before carrying out any maintenance service
or cleaning the filters, always switch off the
vacuum cleaner and disconnect the plug
from power supply.
21. Keep ends of the hose, chrome tube and
other openings away from your face and
body.
22. Do not use the vacuum cleaner if it is
damaged or breaks down. Check the
electrical cable regularly for defects. If
connection cables or electrical contacts
damaged, have them replaced immediately.
23. Never clean the vacuum cleaner or any of
the electrical parts, especially the electrical
connections with water or liquid cleaners.
24. Never attempt to make any modifications
electrically to the vacuum cleaner.
25. Always store the appliance indoors in a cool
and dry place.
26. Do not pickup water, dry use only.
27. Damage caused by improper use or by not
observing the instructions in this manual will
void warranty.
BEFORE YOU BEGIN
1. Do not operate the vacuum cleaner too close to heaters, radiators, and other
hot surfaces.
2. Before inserting the plug into the wall, make sure your hand is dry.
3. Before turning on the vacuum cleaner, remove any large or sharp objects from
the floor or cleaning surface in order to prevent damage to the filter.
4. When you want to pull the plug from the wall, do not use the power cable, gently
pull the plug from the power socket.
5. If the hose inlet or chrome tube are blocked, you should switch off the cleaner
straight away and remove from mains power. First clear the blocked substance
before attempting to start the vacuum cleaner again.
This machine is equipped with a cord and plug. In the event that either of these parts get damaged,
it must be repaired by a qualified technician.
3
PULLMAN 10L DRY PULL10LD
KNOW YOUR PRODUCT
Technical Information
Model: PULL10LD
240V ~ 50HZ
PM A X: 1200W
PNOM: 1100W
9.
13.12.
10.
6.
2.
11.
8.
1. Hose Inlet
2. Carry Handle
3. Power Cord (not shown)
4. Hose Assembly with Handle
5. On/Off Switch
6. Connection Latches
7. Canister
8. Castor Wheel
9. Rear Wheel
10. 2pc Tub es
11. Gulper Floor Tool
12. Crevice Tool
13. Dusting Brush
1.
7.
5.
4.
4
ASSEMBLY (WITH HOSE)
3. Connect the tube to the desired
cleaning accessory.
1. Connect the handle to the first tube.
2. Connect the first tube to the second tube.
5
PULLMAN 10L DRY PULL10LD
ASSEMBLY (WITH HOSE)
5. Once assembled as per diagram, start the
cleaner by pressing the On/Off switch.
4. Insert the hose end into the hose inlet. Turn
clockwise to lock the hose in place.
6
ASSEMBLY
Note: If the bleed valve remains open, turn off the vacuum cleaner, remove the
mains plug, and check the hose and accessories for blockages, check to make
sure that the bag is not full (if found replace with a new one).
Variable Suction Control
Slide the regulator on handle to adjust the
suction power.
Part 3
Safety Valve
When the air path of the cleaner is blocked, safety valve will function automatically prevent the motor
over heating.
7
PULLMAN 10L DRY PULL10LD
ACCESSORIES
Fitting the Dusting Brush and Crevice Tool
To fit the accessories to the tube, gently insert the
tube into the top of the dusting brush or crevice tool.
Dusting Brush – ideal for cleaning furniture, curtains
and upholstery
Crevice Tool – ideal for cleaning in tight spaces
Crevice Tool
Dusting Brush
The gulper floor tool is ideal for
cleaning on carpets and hard
floors.
8
OPERATION
Dry Vacuum Cleaning
ATTENTION: BEFORE ANY MAINTENANCE AND CLEANING – ENSURE THE
MACHINE IS TURNED OFF AND THE POWER CABLE IS DISCONNECTED FROM
THE MAINS POWER SUPPLY.
1. Ensure the HEPA filter is always fitted before the cleaner is used.
2. This cleaner should be used with a dust bag.
3. Please ensure dust bag is fitted properly before use.
4. Once the dust bag is full we recommend a new dust bag be fitted.
MAINTENANCE
Dust Bag Cleaning and Replacing
1. Lift the latches to release and open the top
cover, take out the dust bag.
9
PULLMAN 10L DRY PULL10LD
MAINTENANCE (CONTINUED)
Replacing the HEPA Filter
1. Turn the HEPA filter anticlockwise until it can be
lifted from the canister lid.
2. Replace with a new HEPA filter and turn
clockwise to secure.
NOTE: REGULARLY CHECK THE HOSE,
TUBE AND ACCESSORIES TO ENSURE
THEY ARE NOT BLOCKED.
2. If dust bag is full, replace with a new dust bag.
3. Position dust bag back into cleaner and make
sure the opening of the bag aligns with the
hose inlet.
NOTE: THE SEAL RING AROUND DUST
BAG OPENING SHOULD COVER THE HOSE
INLET CONNECTOR INSIDE THE CANISTER.
10
TROUBLESHOOTING
CUSTOMER CARE
TROUBLE POSSIBLE CAUSE REMEDY
Suction weakens or
cleaner runs hot
Clogged filter Brush dirt from filter. If condition
continues, change filter.
Air leak Check all fittings for tight fit (floor tool,
hoses, etc.). Check that tank cover is
sealed properly.
Obstruction in hose
or floor tool
Check floor tool, hose, etc. for
obstructions, and remove if present.
For customer service or product enquiries please contact AU 1800 815 270 NZ 0800 282 288
PRODUCT NUMBER PRODUCT DESCRIPTION
31220504 Hose Assembly
31154849 Crevice Tool
32200955 HEPA Filter
32440355 Dust Bag 5pk
33500414 Castor Wheel
33500415 Rear Wheel Assembly Set
33400189 Cloth Dust Bag
31300751 2pc Tub es
SPECIFICATIONS
Watts: 120 0W
Capacity: 7L
Filtration: HEPA
Tube: 2pc
Hose Length: 1.8 M
Power Cable Length: 8M
Net Weight: 6.6kg
11
PULLMAN 10L DRY PULL10LD
Electrical Home-Aids Pty. Ltd.
ABN 62 007 539 577
Ground Level, Building 3, Brandon Business Park
530 Springvale Road, Glen Waverley, Victoria 3150
Pullman is a registered trademark.
Contact International Cleaning Solutions Pty. Ltd. for your
nearest authorised service centre on
AU 1800 815 270 NZ 0800 282 288.
customerservice@godfreys.com.au
V2 04/2017
Your Pullman cleaner has a
one year parts and labour
warranty against product
defects and failures when the
product is used in accordance
with the terms and conditions
of this warranty statement.
The cleaner must be operated in accordance with
these instructions. This cleaner is not designed for
the collection of vitreous building material including
particle board, construction products and similar
products such as wood/fibres, cement, fillers,
fibre glass etc or excessive or frequent sand. The
infrequent pick-up of these materials in these
circumstances may be harmful to your cleaner
and may void the manufacturer’s warranty.
Accessories and consumables including dust
bags and filters, unless defective in manufacture,
are not subject to this warranty. In order to prolong
the life of accessories and consumables, regular
care and maintenance is recommended.
When properly used and cared for, your cleaner
will render excellent service; refer to the instruction
manual for further details, as misuse or failure to
follow the instructions makes this warranty void.
In the event of service or advice being needed,
please contact Electrical Home-Aids Pty Ltd, ABN
62 007 539 577, Ground Level, Building 3 Brandon
Business Park, 530 Springvale Rd, Glen Waverley,
VIC 3150. Customer Care: 1800 815 270.
The decision to repair or replace the cleaner is at
the sole discretion of Electrical Home-Aids Pty Ltd.
If Electrical Home-Aids Pty Ltd decide to repair or
replace the cleaner, it will do so at its own cost.
Electrical Home-Aids Pty Ltd is unable to accept
responsibility under this warranty for any repair
work not carried out by an authorised International
Cleaning Solutions Service Agent or from the use
of non-genuine parts. If any part is no longer
available or manufactured, Electrical Home-Aids
Pty Ltd will replace it with a genuine functional
replacement part. This warranty does not apply
to the cost of replacing any parts of the product
due to normal wear and tear, alterations, improper
installation, physical abuse, misuse or accidental
damage. Any transportation costs involved in the
repair of defective parts shall be borne by the
claimant.
If proof of purchase cannot be provided at the time
of a warranty claim or service, any work carried
out on the cleaner is chargeable. The repair or
replacement of the cleaner under this warranty
does not extend the original period of warranty.
The benefits conferred by this warranty are in
addition to all other rights and remedies in respect of
the product as outlined under the Competition and
Consumer Act and other State and Territory laws.
“Our goods come with guarantees that cannot
be excluded in the Australian Consumer Law.
You are entitled to a replacement or refund for a
major failure and for compensation for any other
reasonably foreseeable loss or damage. You are
also entitled to have the goods repaired or replaced
if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.”
Conditions of warranty
Loading...
