PUK HYDROBOULEVARD 01, HYDROBOULEVARD 02, HYDROBOULEVARD 03 Assembly And Operating Instructions Manual
ASSEMBLY AND OPERATING INSTRUCTIONS:
COD. 609001
COD. 609003
COD. 609005
Made in Italy
COD. 609001
COD. 603003
220mm
600mm
Ø170mm
HYDROBOULEVARD 01 180 LED
-Power consumption : 10W
-Voltage :220/240V 50/60Hz
-Color Temperature : 3000K or 4000K
-Lumen output: 800lm
-Lens Type : 180° beam
-Insulation class: 1
-IP protection: IP65
-Gross weight: 4kg
HYDROBOULEVARD 02 180 LED
-Power consumption : 10W
-Voltage :220/240V 50/60Hz
-Color Temperature : 3000K or 4000K
-Lumen output: 800lm
-Lens Type : 180° beam
-Insulation class: 1
-IP protection: IP65
-Gross weight: 5kg
Ø170mm
COD. 603005
HYDROBOULEVARD 03 180 LED
-Power consumption : 10W
-Voltage :220/240V 50/60Hz
-Color Temperature : 3000K or 4000K
-Lumen output: 800lm
1000mm
-Lens Type : 180° beam
-Insulation class: 1
-IP protection: IP65
-Gross weight: 7 kg
Ø170mm
Attenzione: La sicurezza dell’apparecchio è garantita solo con l’uso appropriato delle seguenti istruzioni pertanto è necessario conservarle
Warning: the safety of this fixture is guaranteed only if you comply with these instructions remember to conserve in a safe place.
Achtung: die sichereit des gerates wird nur durch sachmasse befolgung nachtehender asweisungen gewahrleistet; ihre aufbewahling ist deshalb sehr wichting.
Attention: la secutie de l’appareil n’est garantie qu’en cas d’utilization correcte des instructions stivante; il faut par consequent les conserver
Recommendations
1) verify that the equipment used to connect our devices to enjoy
all the guarantees required under European law;
2) use the cables, connectors and quality materials for electrical wiring;
3) Products with IP65/68 degree make the wiring / connections with accessories
provide the same degree IP of the selected product (available in the catalog);
4) In the case of installations outside is not recommended to install the power supplies in the
formwork and / or in the junction box without adequate protection;
-Read the instructions for installation and commissioning.
-Pass the instructions to the customer for safekeeping.
-Do not remove the type plate of the luminaire.
-Please note the national installation and accident prevention regulations during installation.
-The installation must be performed only by a trained electrical specialist.
-Damaged cables may only be changed by trained electrical personnel.
-For improper installation or any subsequent change to the luminaire no liability is accepted.
-The light source of this lamp may be replaced only by the manufacturer or an authorized service technician or a similarly qualified person.
-LED lamps (without IP67 protection) must not be cleaned.
-Clean the luminaire regularly with a smooth damp cloth. Only use solvent-free cleaning agents. Attention: previously cut off the mains supply and allow
system to cool down.
-To protect the surface from dirt and fingerprints, we recommend the use of protective gloves during installation.
-The disposal of the system must be carried out on the disposal of electronic products in accordance with the EU Directive WEEE (Waste Electronical and
Electronic Equipment).
-In order to answer technical queries, please contact our project management respectively our worldwide branches and distributors
THE WARRANTY IS FALLING IN THE FOLLOWING CASES:
1) Malfunctions due to improper use of the product, modifications, repairs
inadequate, negligence on the part of the installer / electrician, failure to
assembly instructions and / or data plate;
2) Installations in plants not comply with the general safety;
3) Damage caused by natural causes such as lightning, fire or flooding;
4) Damage caused by wiring / connections with IP degree lower than the selected product.
5) Damage occurring during shipment of the product. In these cases the damage
will be to charge and notify the carrier;
6) The warranty covers only the integrity of the product and NOT any costs of removal
of the same;
INSTALLATION
-THE MAINTENANCE MUST BE MADE BY A QUALIFICATE ELECTRICIAN
-SWITCH-OFF THE POWER SUPPLY BEFORE CARRYING OUT ANY MAINTENANCE OPERATIONS
The luminaire is supplied by us with LED illuminator already installed with built in SELV power supply.
The cable and the fixture must not be tampered with for any reason.
-it is essential to do a frequent cleaning of the glass and of the outer surface of the fixture to avoid build up of mud and dirtiness resulting in dangerous overheating due to uncorrect light and heat dissipation. Clean carefully the glass screen removing limestone deposits by means of a scraper.

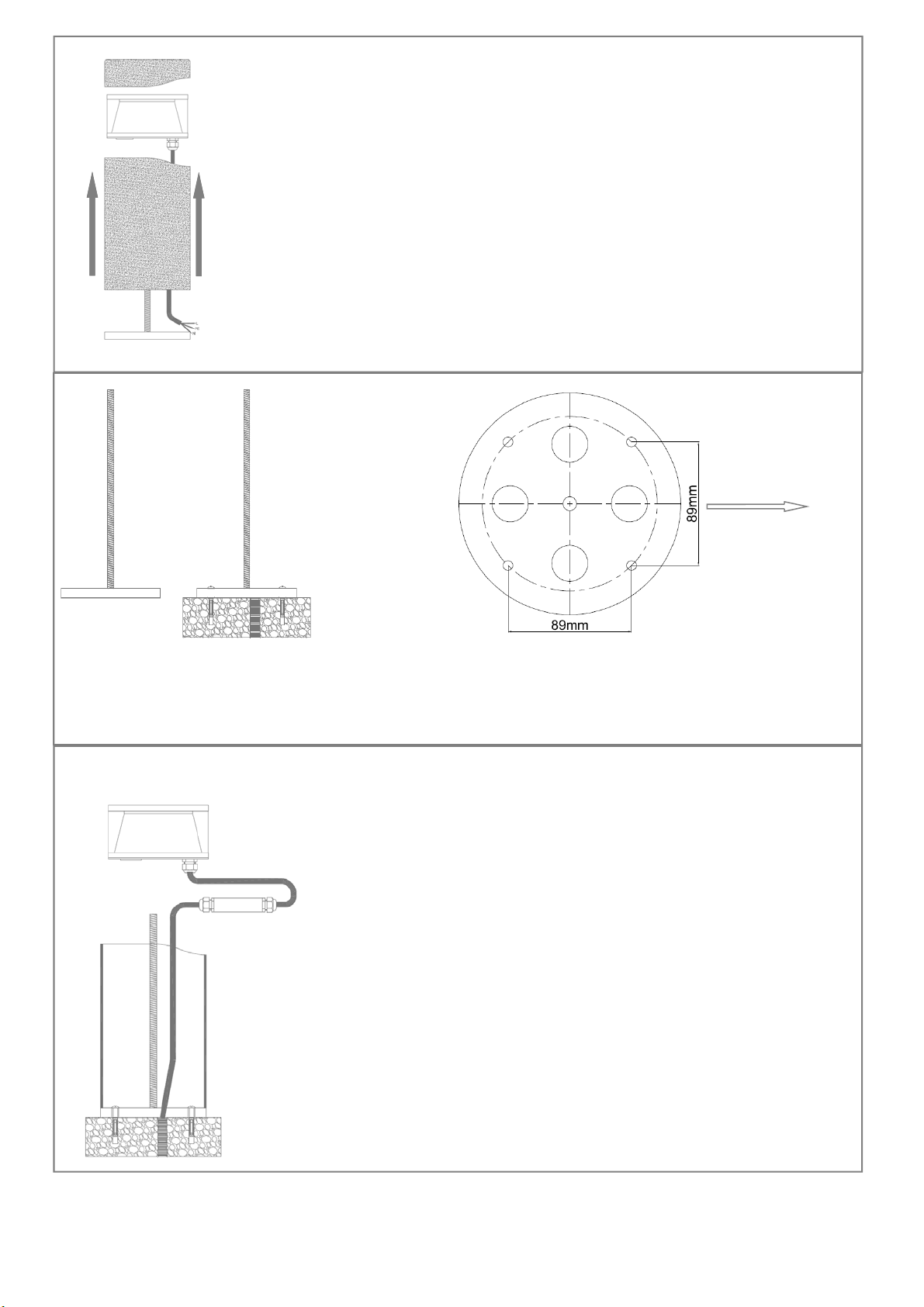

1– remove the head of lamp by pushing and rotating it
2– remove the fixing nut by unscrewing it
3– remove the luminaire and the aluminium cylinder
Light beam direction
4– choose the correct position of the lamp in the feeding point and fix it to the floor using
expansion bolt like “fischer” (not included in the package), pay attention to the symmetrical
position of the base holes like the picture
5– make the adeguate connection (L-N-PE) respecting the
outdoor electrical connection rules, by using devices with
the correct IP protectin (example of cable connector see catalog)

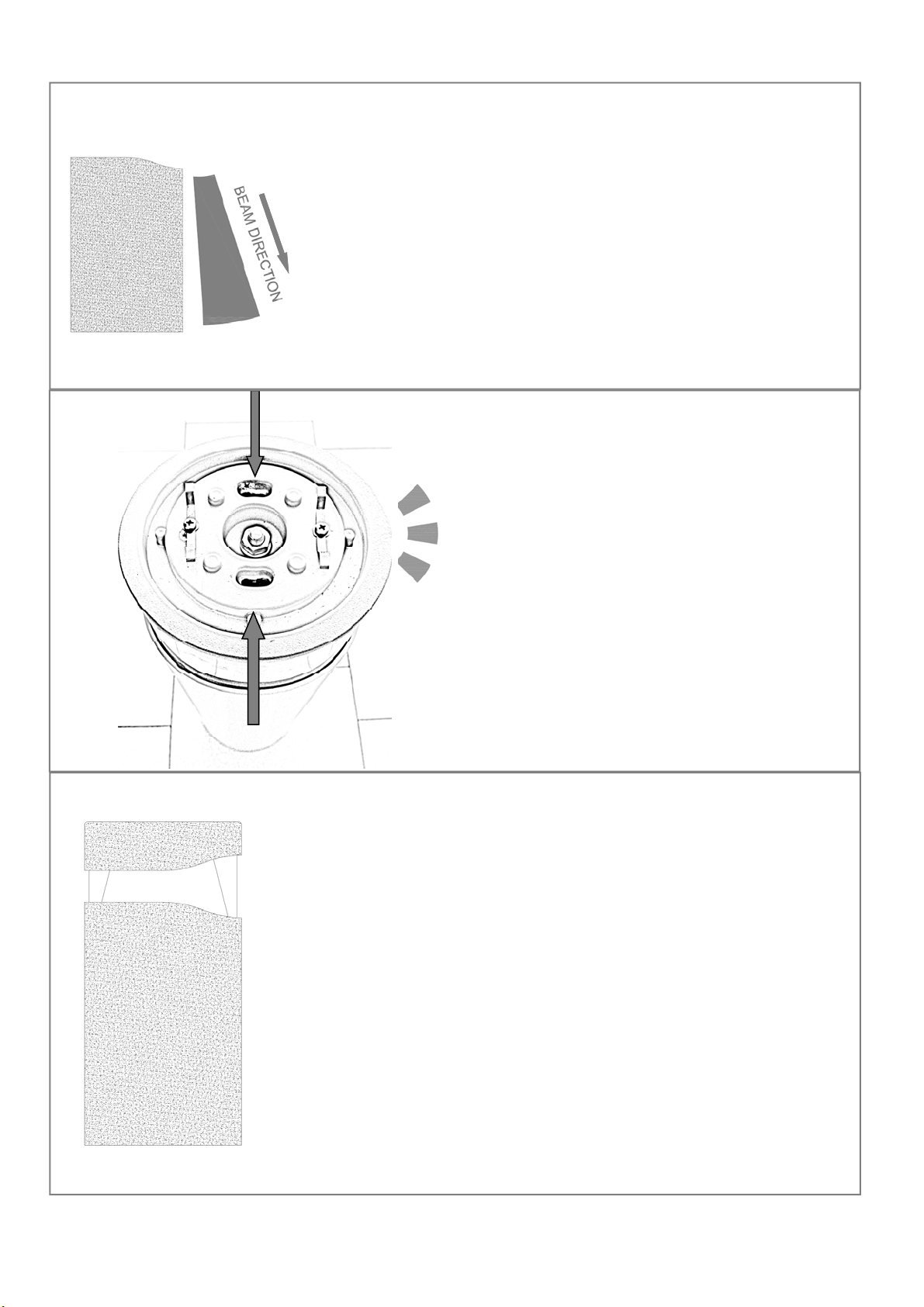

6– repositioning the lamp cylinder pay attention to
the correct position of the light beam.
The low wave of cylinder will be the direction of
light beam
7– insert the luminaire in the cylinder and pay attention to the correct symmetrical position of head cup
fixing holes (must be perpendicural to the light beam
direction) fix it by screwing the nut
8– reassemble the lamp cover by obtaining the correct position of the light beam
