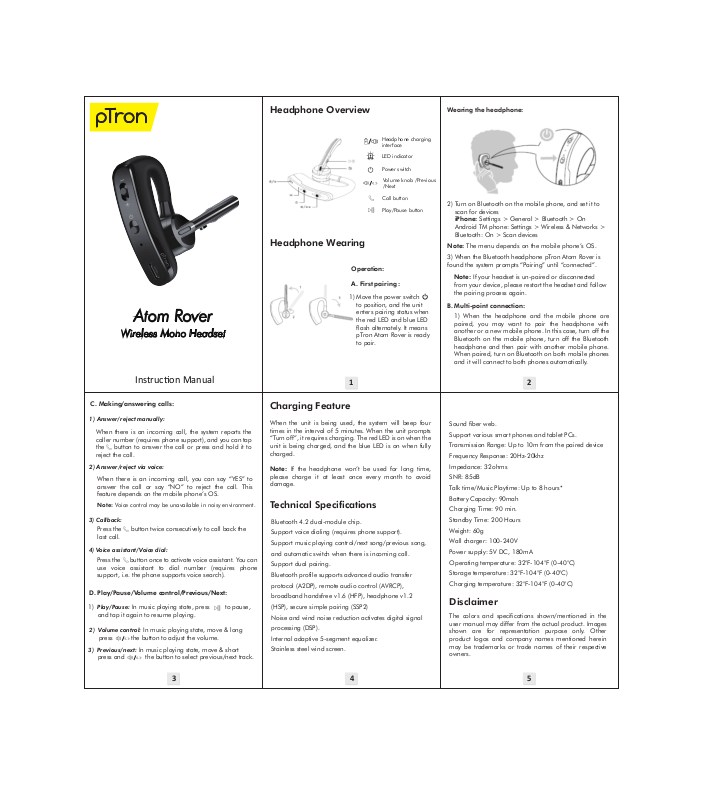

pTron Atom Rover User manual
r
o
n
pT
Atom Rover
Wireless Mono Headset
Headphone Overview
Headphone Wearing
Operation:
A. First pairing :
1) Move the power switch
to position, and the unit
enters pairing status when
the red LED and blue LED
flash alternately. It means
pTron Atom Rover is ready
to pair.
Headphone charging
interface
LED indicator
Power switch
Volume knob /Previous
/Next
Call button
Play/Pause button
Wearing the headphone:
2) Turn on Bluetooth on the mobile phone, and set it to
scan for devices
iPhone: Settings > General > Bluetooth > On
Android TM phone: Settings > Wireless & Networks >
Bluetooth: On > Scan devices
Note: The menu depends on the mobile phone’s OS.
3) When the Bluetooth headphone pTron Atom Rover is
found the system prompts “Pairing” until “connected”.
Note: If your headset is un-paired or disconnected
from your device, please restart the headset and follow
the pairing process again.
B. Multi-point connection:
1) When the headphone and the mobile phone are
paired, you may want to pair the headphone with
another or a new mobile phone. In this case, turn off the
Bluetooth on the mobile phone, turn off the Bluetooth
headphone and then pair with another mobile phone.
When paired, turn on Bluetooth on both mobile phones
and it will connect to both phones automatically.
Instrucon Manual
C. Making/answering calls:
1) Answer/reject manually:
When there is an incoming call, the system reports the
caller number (requires phone support), and you can tap
the button to answer the call or press and hold it to
reject the call.
2) Answer/reject via voice:
When there is an incoming call, you can say “YES” to
answer the call or say “NO” to reject the call. This
feature depends on the mobile phone’s OS.
Note: Voice control may be unavailable in noisy environment.
3) Callback:
Press the button twice consecutively to call back the
last call.
4) Voice assistant/Voice dial:
Press the button once to activate voice assistant. You can
use voice assistant to dial number (requires phone
support, i.e. the phone supports voice search).
D. Play/Pause/Volume control/Previous/Next:
1) Play/Pause: In music playing state, press to pause,
and tap it again to resume playing.
2) Volume control: In music playing state, move & long
press the button to adjust the volume.
3) Previous/next: In music playing state, move & short
press and the button to select previous/next track.
Charging Feature
When the unit is being used, the system will beep four
times in the interval of 5 minutes. When the unit prompts
“Turn off”, it requires charging. The red LED is on when the
unit is being charged, and the blue LED is on when fully
charged.
Note: If the headphone won’t be used for long time,
please charge it at least once every month to avoid
damage.
Technical Specifications
Bluetooth 4.2 dual-module chip.
Support voice dialing (requires phone support).
Support music playing control/next song/previous song,
and automatic switch when there is incoming call.
Support dual pairing.
Bluetooth profile supports advanced audio transfer
protocol (A2DP), remote audio control (AVRCP),
broadband handsfree v1.6 (HFP), headphone v1.2
(HSP), secure simple pairing (SSP2)
Noise and wind noise reduction activates digital signal
processing (DSP).
Internal adaptive 5-segment equalizer.
Stainless steel wind screen.
4 53
21
Sound fiber web.
Support various smart phones and tablet PCs.
Transmission Range: Up to 10m from the paired device
Frequency Response: 20Hz-20khz
Impedance: 32ohms
SNR: 85dB
Talk time/Music Playtime: Up to 8 hours*
Battery Capacity: 90mah
Charging Time: 90 min.
Standby Time: 200 Hours
Weight: 60g
Wall charger: 100-240V
Power supply: 5V DC, 180mA
Operating temperature: 32°F-104°F (0-40°C)
Storage temperature: 32°F-104°F (0-40°C)
Charging temperature: 32°F-104°F (0-40°C)
Disclaimer
The colors and specifications shown/mentioned in the
user manual may differ from the actual product. Images
shown are for representation purpose only. Other
product logos and company names mentioned herein
may be trademarks or trade names of their respective
owners.
