www.PTN-electronics.com
TPHD405PT-WPI
Scaler Wall Plate HDBaseT Transmitter
All Rights Reserved
Version: TPHD405PT-WPI_2014V1.0
User Manual
Scaler Wall Plate HDBaseT Transmitter
PTN Electronics Limited www.PTN-electronics.com
SAFETY PRECAUTIONS
To insure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material for
possible future shipment
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install thi s
product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the ho usi ng m ay resul t in f ir e, e lec tric al s ho ck, or equipment damag e. I f
an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as norm al ele ctri cal wastes.
Scaler Wall Plate HDBaseT Transmitter
PTN Electronics Limited www.PTN-electronics.com
NOTICE: Please read this user manual carefully before using this product.
Pictures shown in this manual are for reference only, different model and
specifications are subject to real product.
This manual is for operation instruction only, not for any maintenance usage. The
functions described in this version are updated till August 2014. Any changes of
functions and param eter s since then w ill be inf orme d separa tely. Please refer t o the
dealers for the latest details.
This manual is copyright PTN Electronics Limited. All rights reserved. No part of
this publication may be copied or reproduced without the prior written consent of
PTN Electronics Limited.
All product function is valid till 2014-08-14.
Scaler Wall Plate HDBaseT Transmitter
PTN Electronics Limited www.PTN-electronics.com
Contents
1. Introduction ................................................................................................................. 1
1.1 Introduction to T PH D405PT-WPI
....................................................................... 1
1.2 Features ............................................................................................................ 1
1.3 Package List
...................................................................................................... 1
2. Panel D escript ion ........................................................................................................ 2
2.1 Front Panel
........................................................................................................ 2
2.2 Side Panel ......................................................................................................... 3
2.3 Rear Panel
......................................................................................................... 3
3. System Connection ..................................................................................................... 4
3.1 Usage Precautions
............................................................................................ 4
3.2 System Diagram ................................................................................................ 4
3.3 Connection Procedure
....................................................................................... 5
3.4 Energizing WP8 ................................................................................................. 6
3.5 PoC Solution
...................................................................................................... 6
3.6 Application ......................................................................................................... 6
4. Control Modes
............................................................................................................ 7
4.1 IR control ........................................................................................................... 7
4.2 RS232 Control
................................................................................................... 7
4.2.1 Installation/uninstallation of RS232 Control Software .............................. 7
4.2.2 Basic Settings
.......................................................................................... 7
4.2.3 RS232 Communication Commands ........................................................ 8
5. Specification
............................................................................................................. 12
6. Panel Drawing .......................................................................................................... 13
7. Troubleshooting & Maintenance
............................................................................... 14
8. After-sales Service .................................................................................................... 15
Scaler Wall Plate HDBaseT Transmitter
PTN Electronics Limited 1 www.PTN-electronics.com
1. Introduction
1.1 Introduction to TPHD405PT-WPI
TPHD405PT-WPI is a Decora style transmitter that inst alls i n a dou ble-gang w all plate to
provide a convenient interface for HDMI / VGA input sources. It has 1 HDMI IN, 1 VGA
IN and 1 HDBT OUT with PoC. It supports VGA with full HD scaler, and HDMI 1.4 with
4k& 3D, input signals support auto-switching. The HDBaseT output supports 60m UHD
video transmission with PoC, enables bi-directional I R and R S232 com mun ication
between TPHD405P T-WPI and remote device.
With its PoC solution, TPHD405PT-WPI can be energized by far-end PoC receiver.
1.2 Features
Selectable HDMI/ VGA with audio input
Support VGA output resolution up to 1920x1200
High bandwidth: 10.2Gbps
In-built scaler function, support scaling HDMI/ VGA signals to match the native
resolution of the display
Transmit HDMI signals up to 4K
Compliant with HDMI 1.4, support 1080p 3D
HDCP compliance, equipped with HDCP auto-tracking solution
Provides auto-switching capability
Support multiple control methods including front panel buttons, IR, and RS232,
support bi-directional IR & RS232 pass-through control.
Supports firmware upgrading via USB.
Energize WP8 with a DC 12V power output
Powered by local power pack or PoC connection up to 60m
Aluminium design for elegant and better cooling
1.3 Package List
1 x TPHD405PT-WPI
4 x Screws (for TPHD405PT-WPI)
3 x Pluggable Term ina l Block s (1 2-pin block, 1 3-pin block, and 1 4-pin block)
1 x Face Plate (Selectable)
4 x Screws (for the face plate)
1 x Power Adapter (DC 12V 2A , selectable)
1 x User Manual
Scaler Wall Plate HDBaseT Transmitter
PTN Electronics Limited 2 www.PTN-electronics.com
Notes：Please confirm if the product and t he accessories are all in cluded, if not, pl ease
contact with the dealers.
2. Panel Description

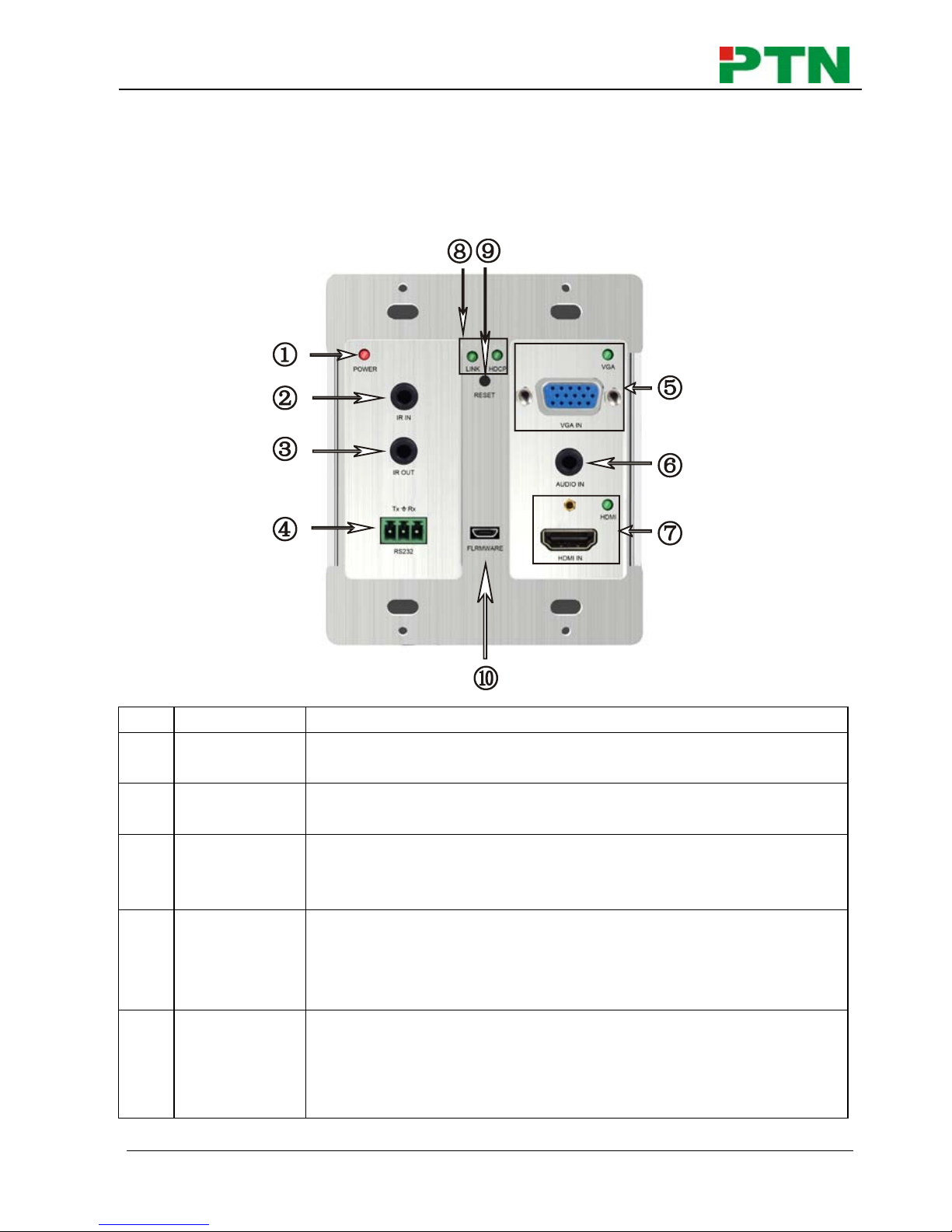

2.1 Front Panel
No.
Name
Description
①
Power
indicator
Illuminates red when power on
② IR IN
Connect with IR receiver, receive IR signals sent from the IR
Emitter connected to the far-end receiver
③ IR OUT
Connect with IR Emitter, IR signals emitted from the IR emitter
are received by the IR receiver connected to the far-end
receiver.
④ RS232
Serial port, 3-pin pluggable terminal block, connects with the
control terminal to control the TPHD405PT-WPI, supports
bi-directional RS232 control (send contr ol signal fr om lo cal or
receive control signal sent from far-end devices).
⑤ VGA IN
Connect with VGA source device.
The indicator:
illuminate yellow when there is VGA signal input
illuminate green when the signal source is chosen as input
Scaler Wall Plate HDBaseT Transmitter
PTN Electronics Limited 3 www.PTN-electronics.com
source
turn off when there is no VGA input signal
⑥ AUDIO IN
Connect with the audio output socket of VGA source device,
deliver synchronou s audio source w ith VG A signal source when
choosing VGA as source signal.
⑦ HDMI IN
Connect with HDMI source device.
The indicator will illuminate yellow when there is VGA signal
input and illuminate green when the signal source is chosen as
input source.
⑧
LINK
&HDCP
LINK: T wisted Pair Link status indicator, illuminate green
when successfully connected.
HDCP: HDCP compliance indicator, illuminate green when
the source signals is with HDCP; blink when it is not with
HDCP; and turn off when there is no source signal.
⑨ RESET
Press the button to reboot TPHD405PT-WPI.
⑩ FIRMWARE
USB port, used for firmware update
Plug a flash disk or other storage device with update file
(MERGE.bin), and send command 50698% to updat e fir mware.
2.2 Side Panel
① HDBT OUT: RJ45 port, connect with receiver via a CAT5e/6 cable to deliver Audio/
Video signals, support PoC.
Note: TPHD405PT-WPI support unidirectional PoC, i.e. it can be energized by far-end
receiver but it can’t energize far-end receiver.
2.3 Rear Panel
Scaler Wall Plate HDBaseT Transmitter
PTN Electronics Limited 4 www.PTN-electronics.com
No.
Name
Description
① Power In
Power in port, 2-pin pluggable termi nal blo ck, connect with DC
12V power adapter
② Power Out
Power out port, connect with WP8 to energize it with a 12V
power output
③ RS232
Serial port, connects with a far-end receiver, supports
bi-directional RS232 control (send contr ol signal fr om lo cal or
receive control signal sent from far-end devices).
Note: Pictures shown in this manual are for reference only, different model and
specifications are subject to real product.
3. System Connection
3.1 Usage Precaution s
1) System should be installed in a clean environment and has a prop temperat ur e and
humidity.
2) All of the power switches, plugs, sockets and power cords should be insulated and
safe.
3) All devices should be connected before power on.
3.2 System Diagram
Scaler Wall Plate HDBaseT Transmitter
PTN Electronics Limited 5 www.PTN-electronics.com
3.3 Connection Procedure
Step1. Connect HDMI source device (e.g. Blue-r ay DVD) to HDMI input ports of
TPHD405PT-WPI with HDMI cable. Connect a VGA source device (e.g. PC) to
the VGA input port of TPHD405PT-WPI with VGA cable.
Step2. Connect a TPHD402PR to the HDBT port on the rear panel with twisted pair.
Step3. Connect a HDMI display to the HDMI OUT port of TPHD402PR.
Step4. Connect a control terminal to the RS232 port on the front panel of TPHD402PR.
Step5. Both TPHD405PT-WPI and TPHD402PR have IR IN and OUT. When one model
is used for IR signal receiver, the IR signal must be sent out by the other model.
For example: When “IR IN” of TPHD405PT-WPI connects with an IR receiver,
the IR transmitter must connect to IR OUT of TPHD402PR.
The IR signal can be transmitted bi-directionally between TPHD405PT-WPI
and TPHD402PR.
Step6. Connect control device (e.g. PC) to RS232 port of TPHD405PT-WPI or
TPHD402PR (bi-directional RS232 control, either is available).
Step7. Connect DC 24V power adaptor to the power port of TPHD402PR,
TPHD405PT-WPI is able to get power from TPHD402PR with PoC solution.
IR Remote
B
l
ue-
r
a
y
T
P
HD
4
0
2
PR
TP
H
D
40
5P
T
-
WP
I
PC
Projector
Rs232
Scaler Wall Plate HDBaseT Transmitter
PTN Electronics Limited 6 www.PTN-electronics.com
Note: TPHD405PT-WPI supports unidirectional PoC, i.e, TPHD405PT-WPI can get
power from far-end PoC devices with PoC function while it can’t energ iz e far-end PoC
devices when the power supply is connected to TPHD405PT-WPI.

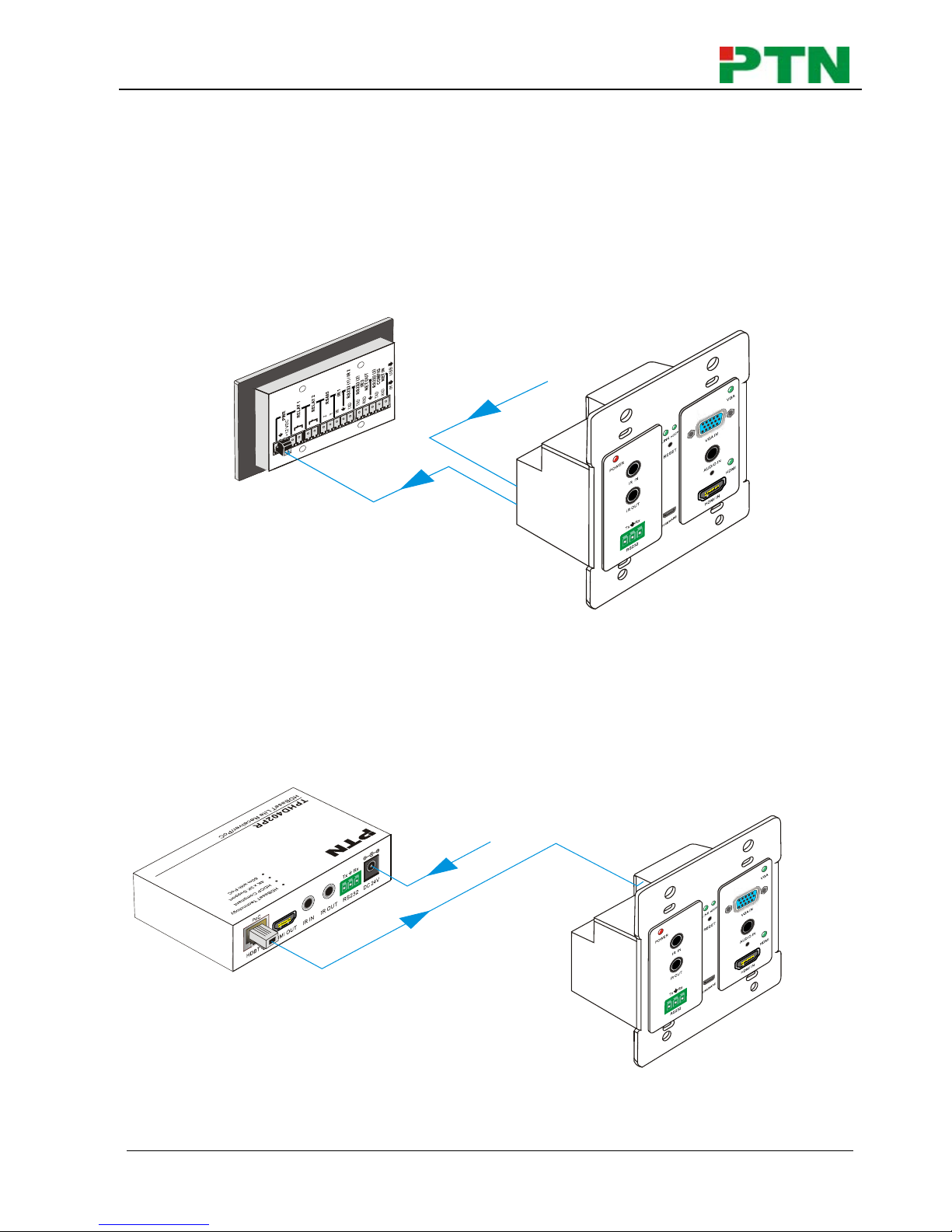

3.4 Energizing WP8
TPHD405PT-WPI has a 12V power output port on the rear panel. Connect the 12V
power output port of TPHD405PT-WPI to the power port of WP8 (refer to the following
figure), TPHD405PT-WPI is capable of energizing WP8.
3.5 PoC Solution
TPHD405PT-WPI supports PoC, which allows several terminals share the same power
supply and eliminates the need for extra power supply at the remote nodes.
Connect a DC 24V power adapter to the power port of TPHD402PR, TPHD405PT-WPI
can be energized synchronously with PoC solution, see the picture below:
3.6 Application
TPHD405PT-WPI has a goo d application in various occasions, such as computer realm,
DC 12V IN
DC 12V OUT
WP
8
T
P
H
D
4
0
5
P
T-
W
P
I
T
P
H
D
4
0
5
P
T
-W
P
I
P
o
C
DC 24V
T
P
H
D
4
0
2P
R
Scaler Wall Plate HDBaseT Transmitter
PTN Electronics Limited 7 www.PTN-electronics.com
monitoring, conferen ce room, big screen displaying, television education, command &
control center and smart hom e etc.
4. Control Modes
4.1 IR control
TPHD405PT-WPI provides an IR IN/ IR OUT s ocket for connection to IR receiver/ IR
Transmitter to attain bi-directional IR transmission with the far-end receiver.
Control far-end device from local
Control TPHD405PT-WPI or far-end display device from local by the IR remote of
far-end display. IR control signal will be received by IR IN socket, and converted to
corresponding IR output socket of the far-end receiver.
Control local device from remo te
Control local source device from remote via corresponding IR rem ot e. The control signal
will be transmitted via the IR OUT socket.
4.2 RS232 Control
As RS232 can be transmitted bi-directionally between TPHD405PT-WPI and
TPHD402PR, so it is able to control a third party RS232 device from local or control
TPHD405PT-WPI from remote.
4.2.1 Installation/uninstallation of RS232 Control Software
When to control a third party RS232 device, the baud
rate of this device should be 2400, 4800, 9600, 19200, 38400, 57600 or 115200.
Installation: Copy the control software file to the computer connected with
TPHD405PT-WPI.
Uninstallation: Delete all the control softw ar e files in corres pondi ng file path.
4.2.2 Basic Settings
First, connect TPHD405PT-WPI with all input devices and output devices needed, then
to connect it with a computer which is installed with RS232 control software.
Double-click the software icon to run this software.
Here we take the software CommWatch.exe as example. The i con is sh owed as below:
The interface of the control software is showed as below:
Scaler Wall Plate HDBaseT Transmitter
PTN Electronics Limited 8 www.PTN-electronics.com
Please set the parameters of COM number, bound rate, data bit, stop bit and the parity
bit correctly, and then you are able to send command in Command Sending Area.
4.2.3 RS232 Communication Commands
Communication protocol: RS232 Communication Protocol
Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none
Command Function Feedback Example
Switch Commands
50701%
Switch to HDMI input Switch to HDMI
50704%
Switch to VGA input Switch to VGA
50770%
Enable auto-switching Auto Switching
50771%
Disable auto-switching Manual Switching
Resolution Commands
Parameter Configuration area
Monitoring area, indicates if the
command sent works.
Command Sending area
Scaler Wall Plate HDBaseT Transmitter
PTN Electronics Limited 9 www.PTN-electronics.com
50619%
Change the resolution to 1360X768
HD
Resolution: 1360x768
50626%
Change the resolution to 1024X768
XGA
Resolution: 1024x768
50627%
Change the resolution to 1280X720
720P
Resolution: 1280x720
50628%
Change the resolution to 1280X800
WXGA
Resolution: 1280x800
50629%
Change the resolution to 1920X1080
1080P
Resolution: 1920x1080
50620%
Change the resolution to1920X1200
WUXGA
Resolution: 1920x1200
50621%
Change the resolution to1600X1200
UXGA
Resolution: 1600x1200
Setup Commands
502xx%
Set the brightness to xx. XX ranges
from 00 to 99
Brightness: xx
503xx%
Set the contrast to xx. XX ranges
from 00 to 99
Contrast: xx
504xx%
Set the saturation to xx. XX ranges
from 00 to 99
Saturation: xx
505xx%
Set the sharpness to xx. XX ranges
from 00 to 99
Sharpness: xx
50606%
Auto-adjust the input parameter VGA Input Auto
50607%
Adjust the color temperature
Color Temperature: xx (xx
can be medium, warm, user,
or cool)
50608%
Set the aspect ratio
Aspect Ratio: xx (xx can be
16:9, 4:3, or auto.)
50614%
Set the picture mode Picture Mode: xx (xx can be
Scaler Wall Plate HDBaseT Transmitter
PTN Electronics Limited 10 www.PTN-electronics.com
dynamic, standard, mild, or
user.)
50699%
Check the system version Version Vx.x.x
50779%
Switch to RS232 mode 1, enable
scaler to control far-end devices
RS232 Mode 1: RS232
Control Scaler & Remote
50780%
Switch to RS232 mode 2, enable
far-end devcices to control scaler
RS232 Mode 2:RS232 &
Remote Control Scaler
50790%
Set the HDCP status of HDMI output
socket to Active
HDCP Active
50791%
Set the HDCP status of HDMI output
socket to On
HDCP On
50792%
Set the HDCP status of HDMI output
socket to Off
HDCP Off
50698%
Software update
50617%
Reset to factory default
Inquire Commands
50632%
Check the output resolution Resolution: xx
50633%
Check the picture mode Picture Mode: xx
50793%
Check HDCP status
HDCP Off
HDCP On
HDCP Active
50635%
Check the image aspect ratio Aspect Ratio: xx
50636%
Check the brightness Brightness: xx
50637%
Check the contrast Contrast: xx
50638%
Check the saturation Saturation: xx
50639%
Check sharpness Sharpness: xx
50640%
Check the color temperature Color Temperature: xx
Adjustment Commands
50678%
Enable screen output adjusting Enter Output Position Adjust
50679%
Disable screen output adjusting Exit Output Position Adjust
Scaler Wall Plate HDBaseT Transmitter
PTN Electronics Limited 11 www.PTN-electronics.com
50670%
Move the image to left Output Position Adjust X xx
50671%
Move the image to right Output Position Adjust X xx
50672%
Move the image up Output Position Adjust Y xx
50673%
Move the image down Output Position Adjust Y xx
50674%
Stretch left from left side (increase
image width)
Output Width Adjust xx
50675%
Pull right from left side (decrease
image width)
Output Width Adjust xx
50676%
Stretch upwards from bottom side
(decrease image height)
Output Height Adjust xx
50677%
Stretch downwards from bottom side
(increase image height)
Output Height Adjust xx
EDID Commands
50772%
EDID pass-through EDID: bypass mode
50773%
Set EDID data to 1080P PCM
2.0ch
EDID:1080P&PCM 2ch
50774%
Set EDID data to 1080P Dolby 5.1 EDID:1080P&5.1ch
50775%
Set EDID data to 1080P3D Dolby
5.1
EDID:1080P3d&5.1ch
50776%
Set EDID data to 1080i PCM 2.0ch EDID:1080i&PCM 2ch
50777%
Set EDID data to 4K*2K PCM
2.0ch
EDID:4K&PCM 2ch
50778%
Check EDID data
EDID:1080P&PCM 2ch
EDID:1080P&5.1ch
EDID:1080P3d&5.1ch
EDID:4K&PCM 2ch
50799%
Program EDID file, send EDID data
within 10s
Waiting for edid within 10
secs!
Note:
1. Commands with grey background are for VGA sources only.
2. EDID commands are for HDMI sources only.
Scaler Wall Plate HDBaseT Transmitter
PTN Electronics Limited 12 www.PTN-electronics.com
5. Specification
Audio
Input
Input Signal 1 HDMI, 1 VGA, 1 AUDIO, 1 IR, 1 RS232
Connector
1 19-pin Type A HDMI female; 1 15-pin VGA; 1 3.5mm
stereo jack; 1 3.5mm IR socket;1 3-pin pluggable terminal
block
Output
Output Signal 1 HDBaseT, 1 IR
Connector 1 RJ45; 1 3.5mm IR socket
Transmission Mode HDBaseT
Video
Frequency
Response
20Hz~20KHz
Impedance ＞10Ω
SNR >85db@20Hz~20KHz
General
Resolution
VGA: 800 x600, 1024 x 768, 1280 x 800,1280 x 1024,
1440 x 900,1600 x 1200, 1920 x 1080, 1920 x 1200;
HDMI: 4Kx2K, 1080p 3D,
1080P(HD)/1080i/720P/576P/576i/480P/480i
Transmission
Distance
1080P≤60M (PoC)
4Kx2K≤40M (PoC)
Bandwidth 10.2Gbps
HDMI Standard Support HDMI1.4 and HDCP
Power Supply DC 12V 2A; 9.6W
Temperature -10 ~ +40℃
Humidity
10% ~ 90%
Chassis Dimension
Decora style two gang
Dimension (W*H*D)
104.5 x 89 x 44 mm
Weight 0.29Kg
Scaler Wall Plate HDBaseT Transmitter
PTN Electronics Limited 13 www.PTN-electronics.com
6. Panel Drawing
VGA IN
HDMI IN
VGA
HDMI
AUDIO IN
FIRMWARE
IR IN
IR OUT
POWER
RS232
RxTx
LINK HDCP
RESET
PoC IN
HDBT OUT
12V
Tx Rx
OUT
RS232
12V
IN
104.22 mm
68.90 mm
88.72 mm
46.00 mm
Dual Input Wall Plate HDBaseT Transmitter
PTN Electronics Limited 14 www.PTN-electronics.com
7. Troubleshooting & Maintenance
Problems Causes Solutions
Color losing or no video
signal output in HDMI
display
The connecting cable s may
not be connected correctly
or it may be broken
Check whether the cables
are connected correctly
and in working condition.
No HDMI signal output in
the device while local
HDMI input is in normal
working state
Output image with
snowflake
POWER indicator doesn’t
work or no respond to any
operation
Loose or failed power cord
connection
Ensure the power cord
connection is good
Cannot control the device
by control device (e.g. a
PC) through RS232 port
Wrong RS232
communication parameters
Make sure the RS232
communication parameters
are correct.
Static becomes stronger
when connecting the video
connectors
bad grounding
Check the grounding and
make sure it is connected
well.
Cannot be controlled
through RS232 port or front
panel buttons
The unit may have already
been broken
Send it to authorized
dealer for repairing.
If your problem persists after following the above troubleshooting steps, seek further
help from authorized dealer or our technical support.
Scaler Wall Plate HDBaseT Transmitter
PTN Electronics Limited 15 www.PTN-electronics.com
8. After-sales Service
If there appear some problems when running TPHD405PT-WPI, please check and deal
with the problems reference to this user manual. Any transport costs are borne by the
users during the warranty.
1) Product Limited Warranty: PTN warrants that its products will be free from defects
in materials and workmanship for three years, which starts from the first day you
buy this product (The purchase invoice shall prevail).
Proof of purchase in the form of a bill of sale or receipted invoice which is evidence
that the unit is within the Warranty period must be presented to obtain warranty
service.
2) What the warranty does not cover:
Warranty expiration.
Factory applied serial number has been altered or removed from the product.
Damage, deterioration or malfunction caused by:
Normal wear and tear
U se of suppli es or parts not m eetin g our specific at i ons
No certificate or invoice as the proof of warranty.
The product model showed on the warranty card does not match with the
model of the product for repairing or had been altered.
Damage caused by force majeure.
Servicing not authorized by PTN
A ny other causes which does not relate t o a product defect
Delivery, installation or labor charges for installation or setup of the product
3) Technical Support: Email to our after-sales depart ment or make a call, plea se
inform us the following information about your cases.
Product version and name.
Detailed failure situations.
The formation of the cases.
Remarks: For any questions or problems, please try to get help from your local
distributor, or email PTN at:
support@PTN-electronics.com.
www.PTN-electronics.com
PTN Electronics Limited
Tel: +86-755-2846 1819
Fax: +86-755-8471 7796
Email: info@PTN-electronics.com
Website: www.PTN-electronics.com
Loading...
