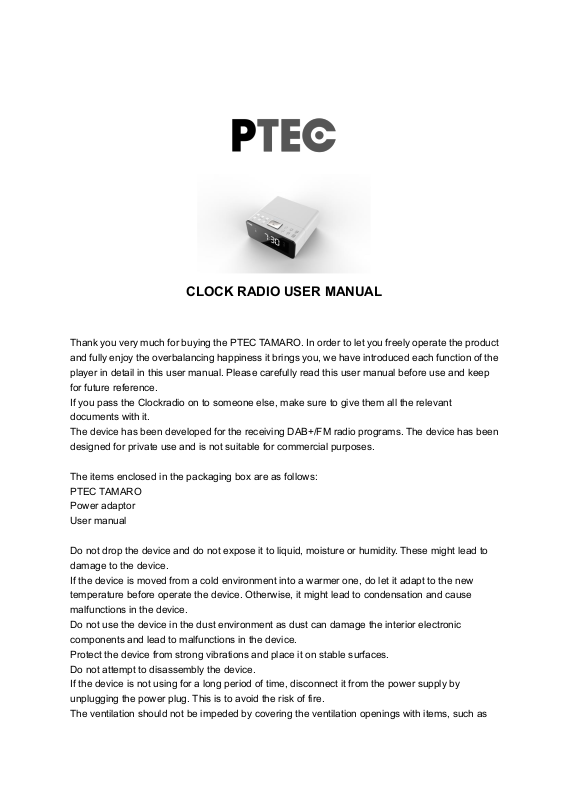

PTEC TAMARO User Manual

CLOCK RADIO USER MANUAL

Thank you very much for buying the PTEC TAMARO. In order to let you freely operate the product

and fully enjoy the overbalancing happiness it brings you, we have introduced each function of the

player in detail in this user manual. Please carefully read this user manual before use and keep

for future reference.

If you pass the Clockradio on to someone else, make sure to give them all the relevant

documents with it.

The device has been developed for the receiving DAB+/FM radio programs. The device has been

designed for private use and is not suitable for commercial purposes.

The items enclosed in the packaging box are as follows:
PTEC TAMARO
Power adaptor
User manual

Do not drop the device and do not expose it to liquid, moisture or humidity. These might lead to

damage to the device.

If the device is moved from a cold environment into a warmer one, do let it adapt to the new

temperature before operate the device. Otherwise, it might lead to condensation and cause

malfunctions in the device.

Do not use the device in the dust environment as dust can damage the interior electronic

components and lead to malfunctions in the device.
Protect the device from strong vibrations and place it on stable surfaces.
Do not attempt to disassembly the device.

If the device is not using for a long period of time, disconnect it from the power supply by

unplugging the power plug. This is to avoid the risk of fire.

The ventilation should not be impeded by covering the ventilation openings with items, such as

newspapers, table-cloths, curtains, etc.
No naked flame sources, such as lighted candles, should be placed on the apparatus.

Risks associated with high volumes

Listening the device with headphones, always reduce the volume before put on the headphones.

After the headphones are positioned properly, increase the volume to the desired level.
To prevent possible hearing damage, do not listen at high volume for long periods.

1.Features/Technical Specifications

Mode: DAB (174-240MHz), FM (87.5-108 MHz), Bluetooth.
LCD display: black background white fonts
Input voltage: AC: 100V-240V 5.9V 2A
Output power: 2*2W
Bluetooth: V4.2

2.Main keys

1. LCD Screen

2. Telescopic antenna

3. DC IN

4. Headphone socket

5. USB charge (only for charge 5 V / 1A )

6. ON/OFF button

7. Menu / Info button

8. Standby / Mode button

9. Alarm

10. Vol- button

11. Vol+ button

12. Sleep button

13. Snooze / Dimmer button

14. Previous button
15 . Preset 1 button

16. Next button

17. Preset 1 button

18. Enter button

19. Preset 3+ button

20. Battery compartment

3. Switch On/Off radio

Initial use

Before operation, please make sure that VOLTAGE mentioned on the Standby supply is same as

the voltage of your local area. Use the supplied mains adaptor to connect the device to a

household mains socket.

Connect the mains adaptor to the DC jack, fully extend the telescopic antenna, plug in and switch

on at the mains. “Welcome to Digital Radio” will be shown on the screen and the

clock( 00:00)(Time is not set) will flash in the display. (Initial use or after “Factory reset”, pls set the

time, long press Menu/Info in working mode, then Enter button to set Settings –Time/Date”, or

press “Standby /mode” button to scan the radio.

When DAB mode is activated for the first time, a scan will automatically commence or will play the

last station before the unit was turned off.

Press “Mode/ Standby” button repeatedly to switch between DAB, FM and Bluetooth.
Long press “Mode / Standby” button into Standby mode.

4. DAB function
