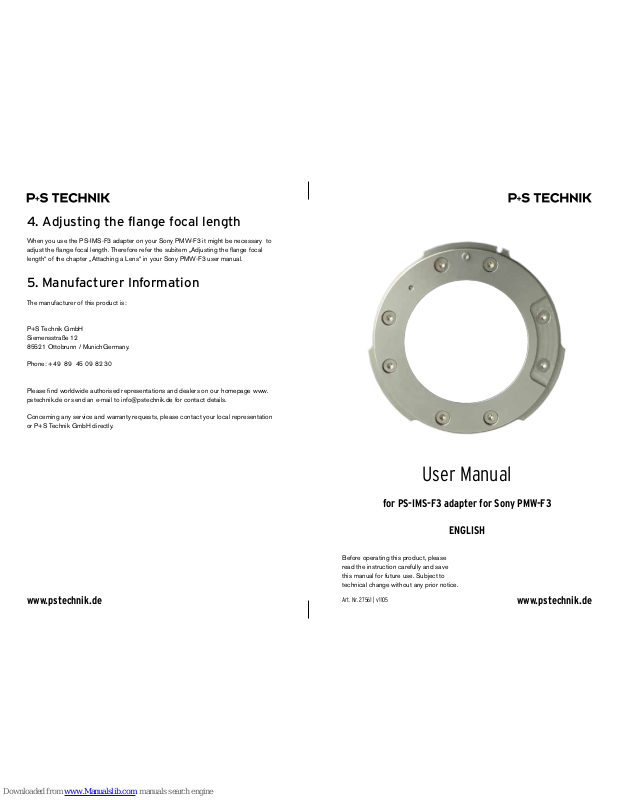

P+S Technik PS-IMS-F3 User Manual

4. Adjusting the flange focal length

When you use the PS-IMS-F3 adapter on your Sony PMW-F3 it might be necessary to
adjust the flange focal length. Therefore refer the subitem „Adjusting the flange focal
length“ of the chapter „Attaching a Lens“ in your Sony PMW-F3 user manual.

5. Manufacturer Information

The manufacturer of this product is:

P+S Technik GmbH
Siemensstraße 12
85521 Ottobrunn / MunichGermany.

Phone: [phone]

Please find worldwide authorised representations and dealers on our homepage www.
pstechnik.de or send an e-mail to [e-mail] for contact details.

Concerning any service and warranty requests, please contact your local representation
or P+S Technik GmbH directly.

User Manual

for PS-IMS-F3 adapter for Sony PMW-F3

ENGLISH

Before operating this product, please
read the instruction carefully and save
this manual for future use. Subject to
technical change without any prior notice.

Art. Nr. 27561 | v1105

www.pstechnik.de www.pstechnik.de

1. About

The PS-IMS-F3 adapter is designed to make the P+S TECHNI K IMS (Intercangeable
Mount System) useable for the Sony F3 mount.

The PS-IMS-F3 adapter is designed to be assembled with an IMS Mount once and to be
left there. For using different IMS Mounts on the Sony F3 Mount P+S TECH NIK recom­mends to equip every single IMS Mount with a seperate PS-I MS-F3 adapter.

2. Delivery Content

Pos.No. Art.No. Description Amount

1 #27560 Flange Sony FZ-IMS 1

2 #27559 Clamping plate 2

3 #21838 Screws M3 x 6 A2 8

4 #10528 Fixation screw (pin) already mounted 2

3. Assembling Instructions

Necessary tools: The only tool you need is an Allen Key 2,0 (metric)

1) Put the IMS Mount on the Flange.
Verify the pin fits into the IMS Mount

2) Put one Clamping Plate into the
Flange

3) Hold Clamping Plate, IMS Mount and
Flange together and turn them around

4) Move the Clamping Plate in the
Flange until the holes in the Flange are
aligned with the holes in the Clamping
Plate

5) Put one screw into a hole and tighten
it lightly to fix IMS Mount, Flange and
Clamping Plate

6) Repeat Steps 2 to 6 to assemble the
second Clamping Plate

7) Add the remaining 6 screws and
tighten them crosswise

3

4

1

2
