Psion UHFCAQNEO Users Manual

Mississauga, Ontario

Canada

Installation Instruction

Important: All Approval and safety information is outlined in the ‘NEO Handheld-computer User Manual’ – part number

8100157. This manual is available on our website www.psion.com

http://community.psionteklogix.com/home/default.aspx

.

Important:

The NEO with the RFID option must not be held closer than 20 cm from the rest of the body. This product

must not be used in a holster or on a belt-clip.

Easily installable expansion modules for the NEO allow you to customise this hand-held to meet your specific mobile
computing requirements. This chapter outlines how to install the RFID Module UHF-CAQ-A5-NEO.
Before installing a module in the NEO, all power sources must be turned off.

• Remove the batteries. If your unit is using AC power, disconnect it:

through the community website

THE INFORMATION CONTAINED IN THIS DOCUMENT IS CONFIDENTIAL AND IS THE EXCLUSIVE INTELLECTUAL PROPERTY OF PSION INC. IT MAY ONLY BE USED FOR THE PURPOSE FOR
WHICH IT IS SUPPLIED AND MUST NOT BE REPRODUCED, STORED OR DISSEMINATED TO THIRD PARTIES BY ANY MEANS, IN WHOLE OR IN PART, WITHOUT THE EXPRESS WRITTEN
PERMISSION OF PSION INC.

MATERIALS AND PROCESSES USED TO PRODUCE THIS PART OR ASSEMBLY MUST COMPLY WITH EUROPEAN DIRECTIVE 2002/95/EC, RESTRICTION OF HAZARDOUS
SUBSTANCES (RoHS), AND REGULATION (EC) No: 1907/2006, REGISTRATION, EVALUATION, AUTHORISATION AND RESTRICTION OF CHEMICALS (REACH), OR LATEST VERSION
THEREOF.

TITLE: PX3082 – RFID Module UHF-CAQ-A5-NEO DRAWN BY: Benjamin Li mongi

http://plm.ad.psion.com/Windchill/Library/Templates/Installation Instruction_Portrait_Template.doc

DATE:
07/04/2011

A

DRAWING NO.

SHEET 1 OF 7

SIZE

REV.

A.0

• Remove the rubber cover to reveal the expansion port:

Rubber cover

• Remove also the black Mylar mask to ensure a proper connection:

Mylar mask

• Once the Mylar mask is removed your extension port should look like the picture below:

You can now install the RFID Module UHF-CAQ-A5-NEO.

PART NUMBER:

SHEET 2 OF 7

REV:

A.0

• Installing the RFID Module:

The RFID Module UHF-CAQ-A5 includes:

Î 1 UHF add-on CAQ-A5
Î 2 screws M2x8

1. Snap the RFID module UHF-CAQ-A5-NEO using the upper mounting slots

2. Fasten firmly the Plastic back pack to the NEO using the two M2X8MM screws

M2X8MM screws

P/N 9010741

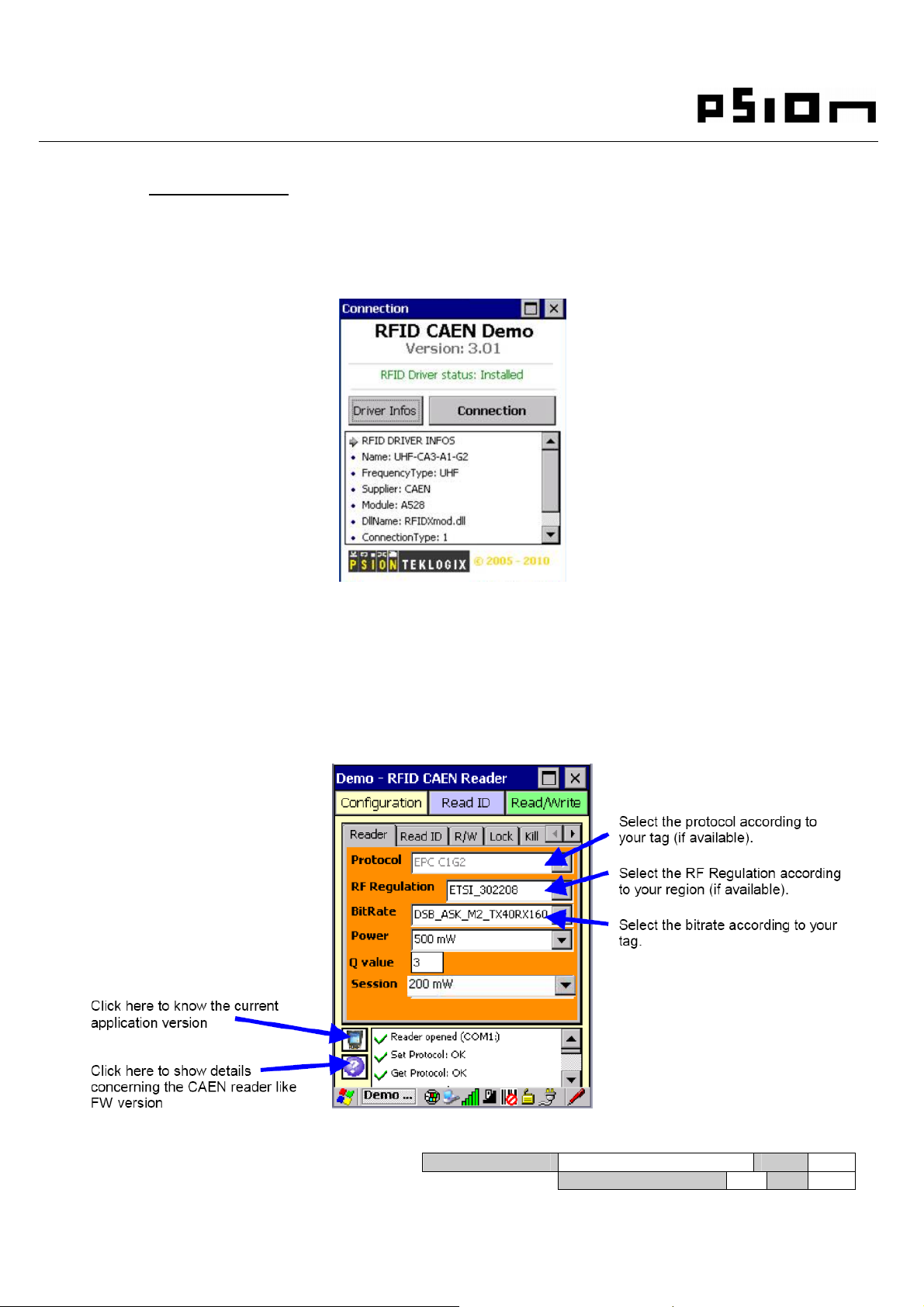

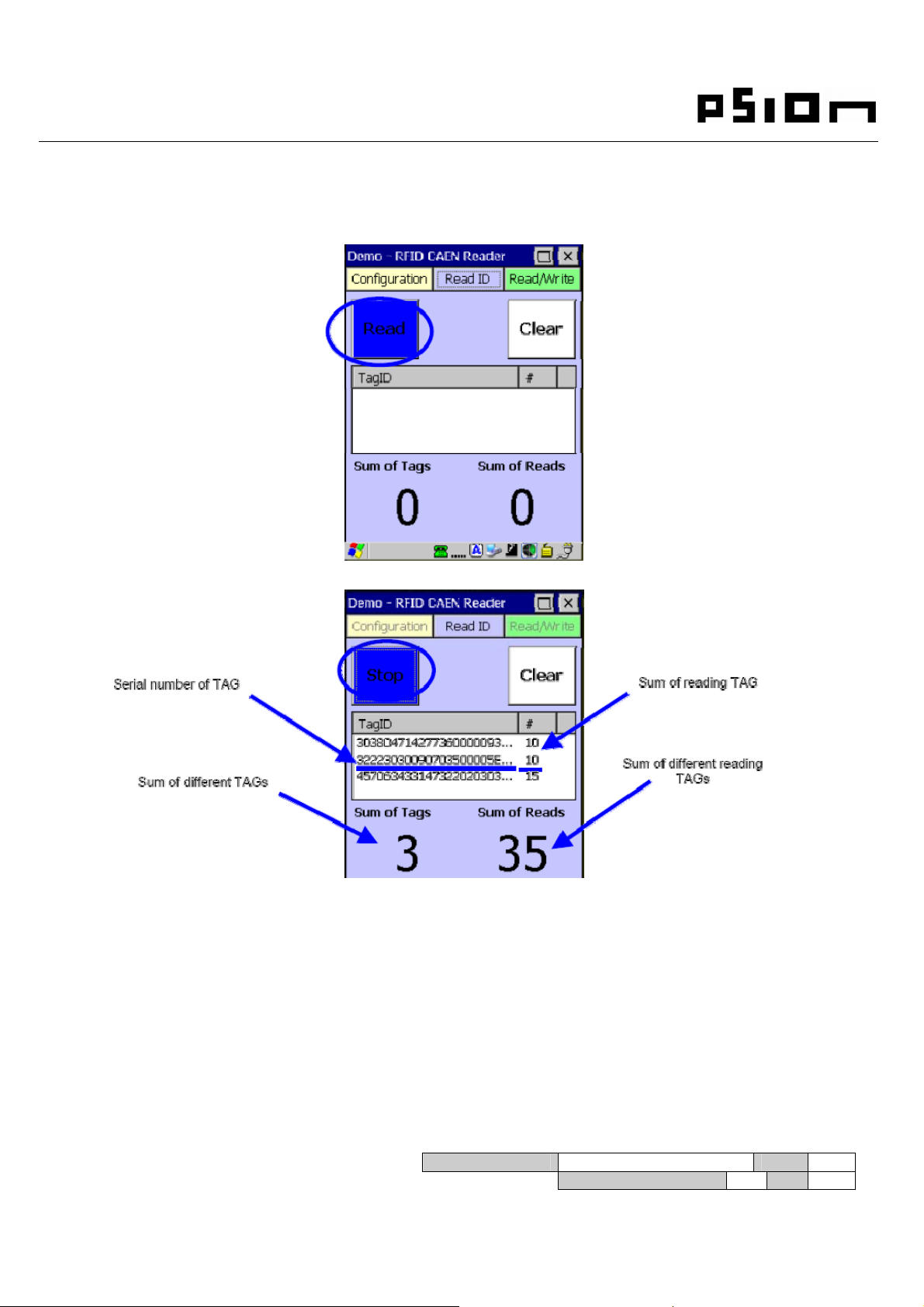

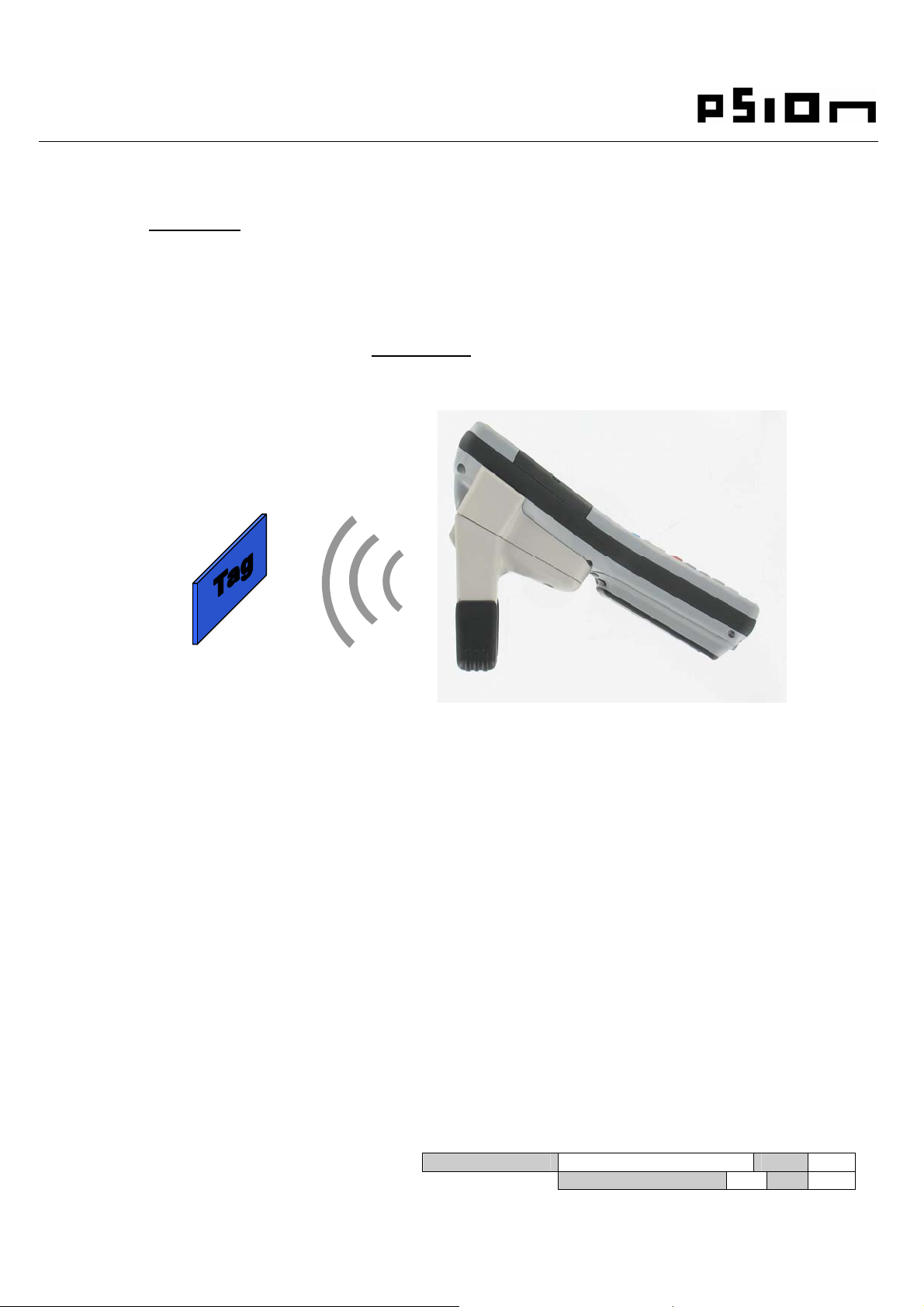

PART NUMBER:

SHEET 3 OF 7

REV:

A.0
