WORKABOUT PRO G2 RFID MODULE UHF-CA3-AC5-GPRS

EXPANSION MODULE INSTRUCTIONS

Important:

User Manual’ – part number 8100140A. This manual is available on our website www.psionteklogix.com
through the Psion Teklogix community website.

Easily installable expansion modules for the WORKABOUT PRO allow you to customise this hand-held to
meet your specific mobile computing requirements. This chapter outlines how to install the RFID Module
UHF-CA3-AC5-GPRS.
Before installing a module in the WORKABOUT PRO G2, all power sources must be turned off.

• Remove the batteries. If your unit is using AC power, disconnect it.

WAP C G2 WAP S G2

All Approval and safety information is outlined in the ‘Workabout pro G2 Handheld-computer

• Slide the switch to position OFF to shut off internal battery power.

With the power shut down, you can install the RFID Module UHF-CA3-AC5-GPRS.

• Installing the GPRS Radio Module

The GSM/GPRS (model RA3030-G2) radio module includes a radio and an antenna, and includes a SIM
card holder. The SIM card, required to use the radio, is sold separately.
This radio module requires an end-cap with a protrusion to accommodate the antenna.

The GSM/GPRS expansion module aligns with mating connectors in the WORKABOUT PRO:

April 07, 2010

DPD A00515 A00 Sheet 1 of 12

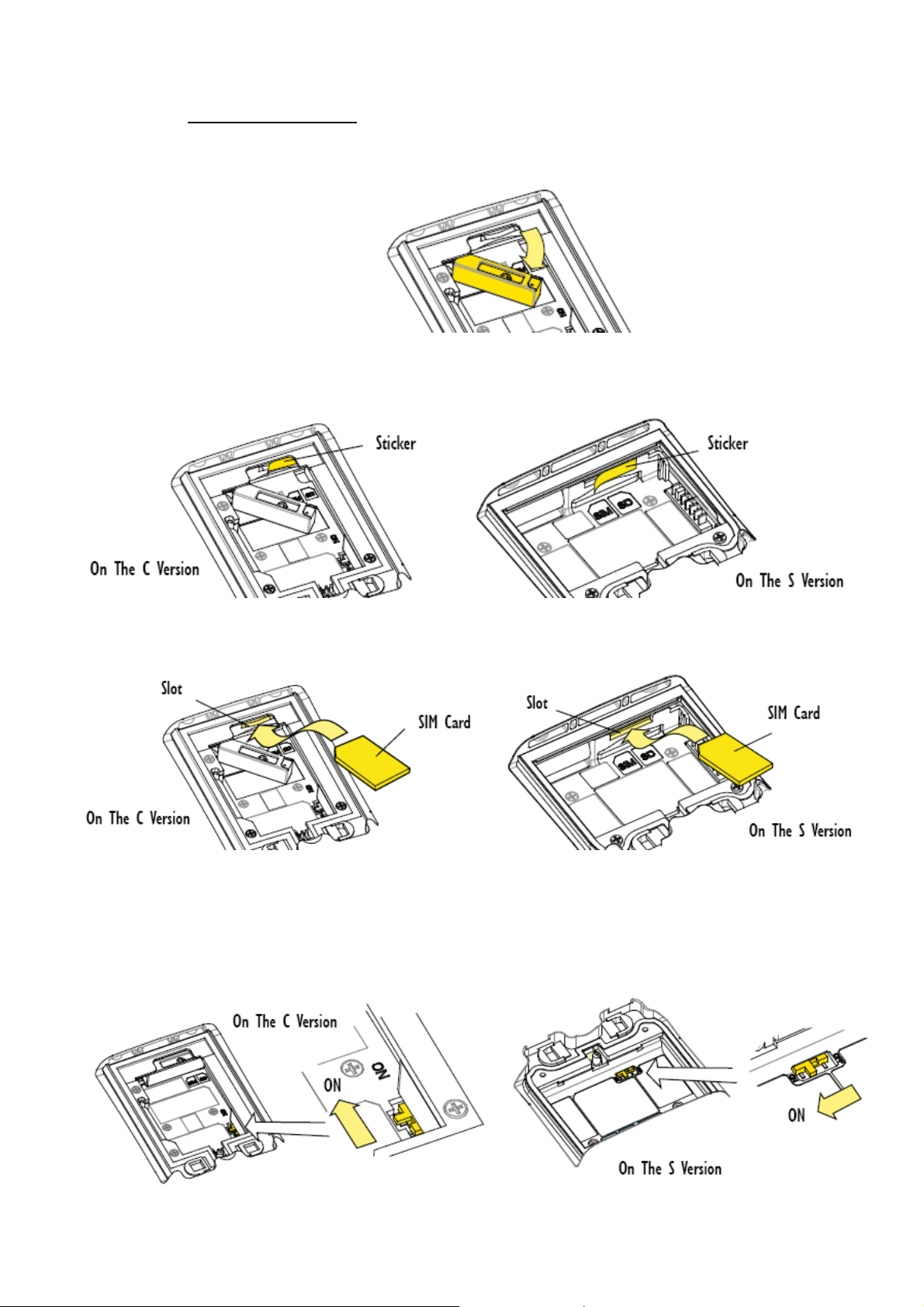

1. Slide the SIM Card holder under the edge of the WORKABOUT PRO case until it meets the

Power connector

2. Align the 100-pin expansion connector and the header pins on the expansion module with the

3. Align the four mounting tabs on the expansion module with the four screw holes in the internal

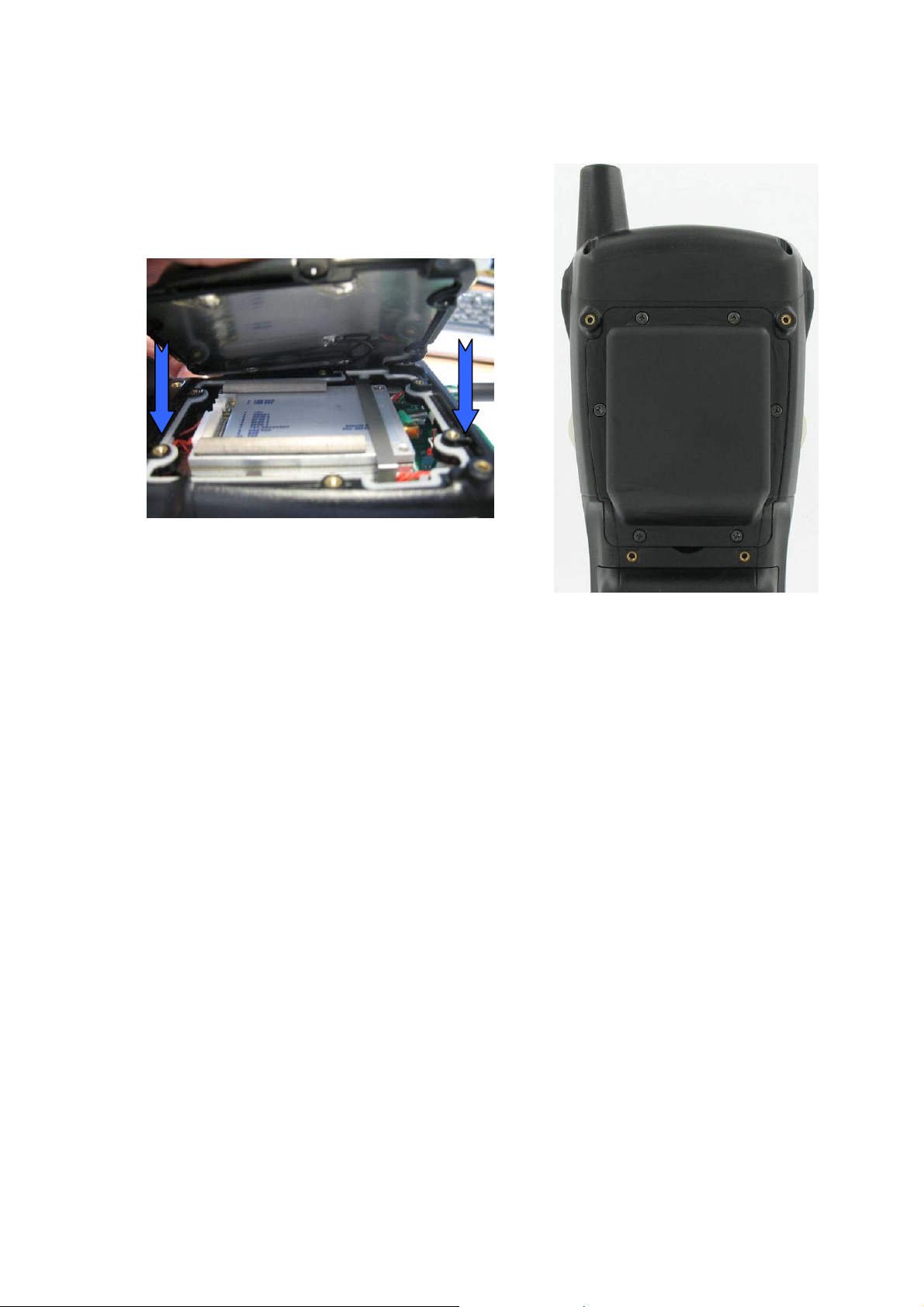

4. Apply slight pressure above the 100-pin connector to snap the module into place.

5. Remove the scanner flex cable from the WORKABOUT PRO.

6. Tuck the antenna cable through the frame.

7. Remove the antenna screw indicated in the Figure below before inserting the GPRS antenna.

inside of the SIM Card slot :

expansion connector and the header connector on the main logic board of the WORKABOUT
PRO.

frame inside the WORKABOUT PRO :

April 07, 2010

DPD A00515 A00 Sheet 2 of 12

8. Set the antenna into place. The antenna slides in along the frame.

9. Use the long screw provided to fasten the antenna to the frame

10. Snap the antenna cable onto the antenna

• Installing the RFID Module:

The RFID Module includes a RFID module UHF-CA3-GPRS (an electronic interface board + RFID
Coupler) and RFID circular antenna UHF-AC5.

Electronic

Interface

Board

Standoff

RFID Coupler

Stopper

RFID Circular Antenna

April 07, 2010

DPD A00515 A00 Sheet 3 of 12

1. Remove the screw indicated in the Figure below before inserting the electronic interface
board.

Remove this screw

2. Set the interface board into place. The interface board slides in along the frame.

3. Use the long screw and the standoff provided to fasten the interface board to the frame.

4. Connect the USB cable of the Interface board on the USB connector of the WAP.

USB Cable

USB Connector

April 07, 2010
