WORKABOUT PRO RFID MODULE HF-T2-A1 EXPANSION MODULE INSTRUCTIONS

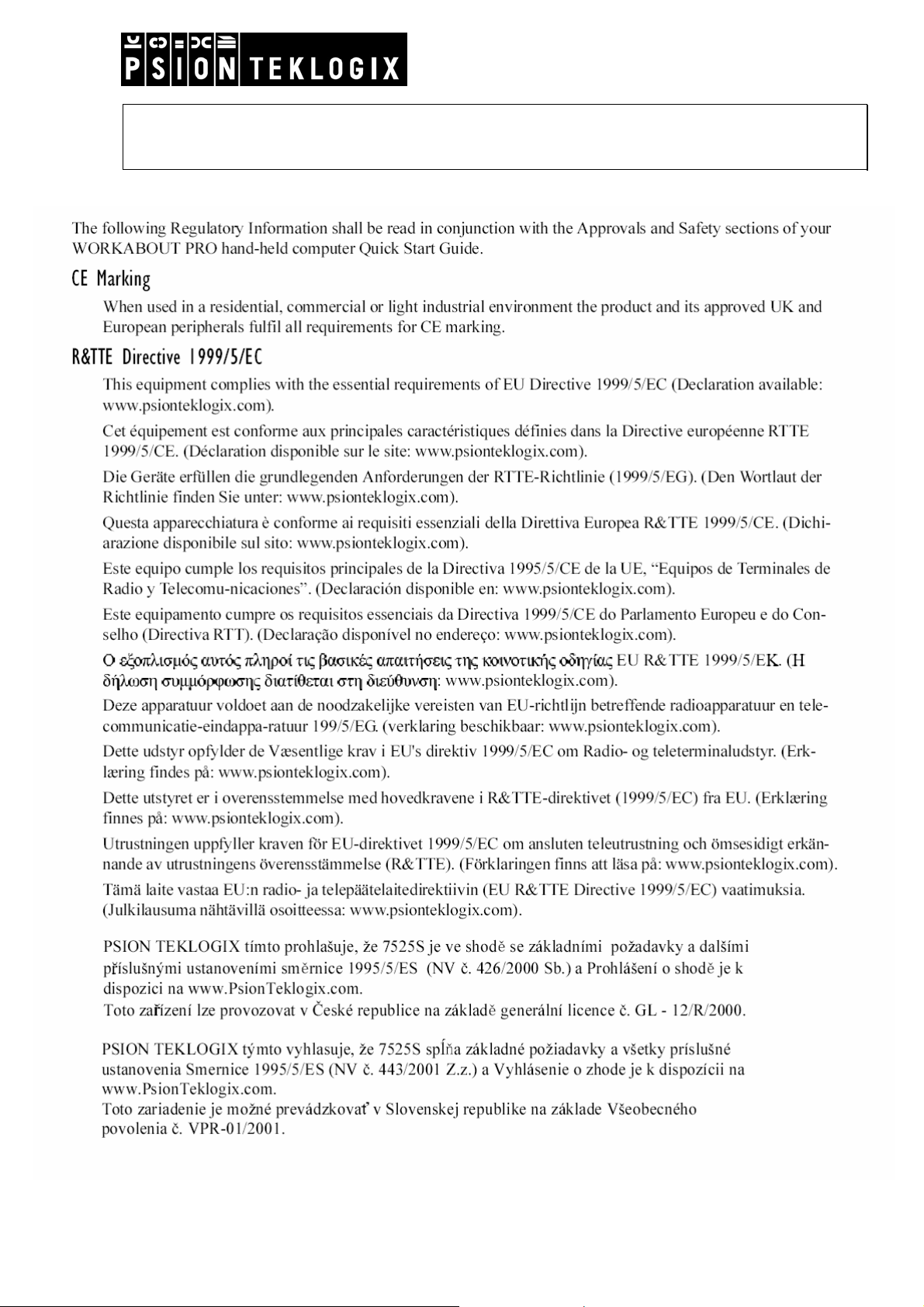

Important: All Approval and safety information is outlined in the ‘Workabout pro
Handheld-computer User Manual’ – part number 8000024. This manual is available on
our website www.psionteklogix.com through the Teknet extranet
Easily installable expansion modules for the WORKABOUT PRO allow you to customise this hand-held to
meet your specific mobile computing requirements. This chapter outlines how to install the RFID Module
HF-T2-A1 (this module is composed of one RFID Coupler HF-T2 and one RFID Antenna HF-A1).
Before installing a module in the WORKABOUT PRO, all power sources must be turned off.
• Remove the batteries. If your unit is using AC power, disconnect it.
• Remove the End cap at the top and the back plate of the WORKABOUT PRO.
• Slide the SW1401 switch to the left to shut off internal battery power.
With the power shut down, you can install the RFID Module HF-T2-A1.
• Remove and discard the two screws on the bottom of the metal frame.
• Put the RFID Coupler HF-T2 in the same alignment of the expansion connector on the
WORKABOUT PRO. Apply slight pressure to snap the module into place on the hand-held.
• Use four new screws (M2 x 6 mm) provided to secure the module in place.
April 8, 2005
DPD A00063 A20 Sheet 1 of 4
• Remove and discard the two screws on the top of the metal frame.
• Slide the RFID Antenna HF-A1 under the metal frame (with the spiral pattern facing up).
• Connect the RFID Antenna HF-A1 to the RFID Coupler HF-T2.
• Use two new screws (M2 x 12mm) provided to secure the antenna on the metal frame.
• Slide the SW1401 switch to the right to turn power back on.
• Replace the end-cap, back plate and batteries.
For detailed instructions, pleased refer to the WORKABOUT PRO Hand-Held Computer User Manual and
to the RFID MODULE HF-T2-A1 User manual. These manuals are available on our website
www.psionteklogix.com
through the Teknet extranet
April 8, 2005
DPD A00063 A20 Sheet 2 of 4
