Psion AIR200X Users Manual

WORKABOUT PRO RFID MODULE LF-AIR200-G2-XMOD

EXPANSION MODULE INSTRUCTIONS

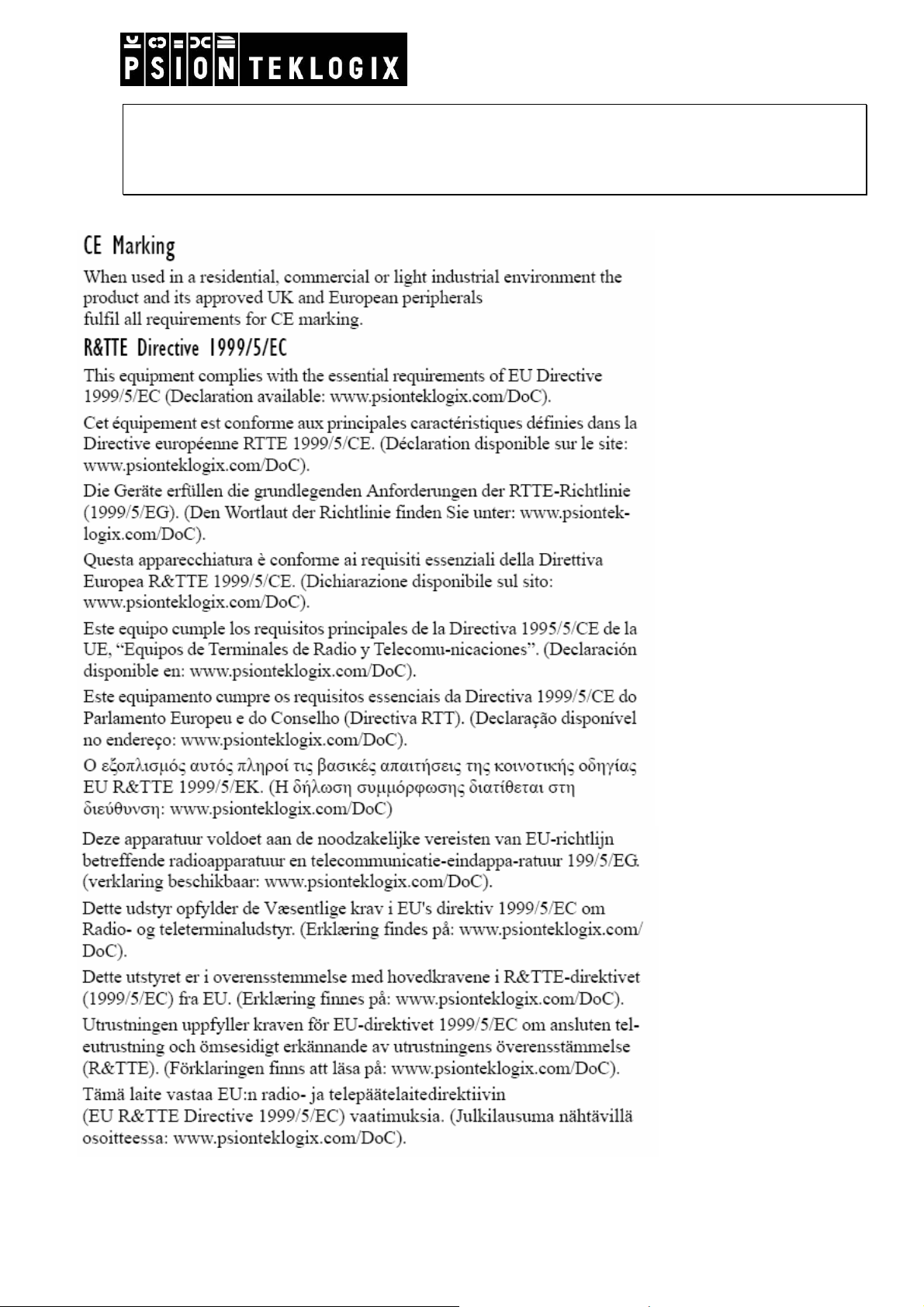

Important: All Approval and safety information is outlined in the ‘Workabout pro G2
Handheld-computer User Manual’ – part number 8100140A. This manual is available on
our website www.psionteklogix.com through the Teknet extranet

Installation of the RFID Module LF-AIR200-G2-XMOD:

Easily installable expansion modules for the WORKABOUT PRO allow you to customise this hand-held to
meet your specific mobile computing requirements. This chapter outlines how to install the RFID Module
LF-AIR200-G2-XMOD and the external RFID Antenna LF-AEA120-G2.

Before installing a module in the WORKABOUT PRO G2, all power sources must be turned off.

• Remove the batteries. If your unit is using AC power, disconnect it.

• Slide the switch to position OFF to shut off internal battery power.

With the power shut down, you can install the RFID Module LF-AIR200-G2-XMOD.

• Remove and discard the two screws on the bottom of the metal frame.

• Put the adapter board in the same alignment of the expansion connector on the WORKABOUT

PRO. Apply slight pressure to snap the module into place on the hand-held.

October 23, 2007

DPD A00332 A00 Sheet 1 of 7

• Use four screws provided to secure the module in place.

• Stick the RFID Module LF-AIR200-G2-XMOD to the WORKABOUT PRO, as shown.

• Fix it with the 2 added washers and screws.

• Fix the four screws on the top of the end cap.

October 23, 2007

DPD A00332 A00 Sheet 2 of 7

• Slide the switch to the position ON to turn power back on.

• Replace the back plate and batteries.

For detailed instructions, pleased refer to the WORKABOUT PRO Hand-Held Computer User Manual.
These manuals are available on our website

www.psionteklogix.com through the Teknet extranet

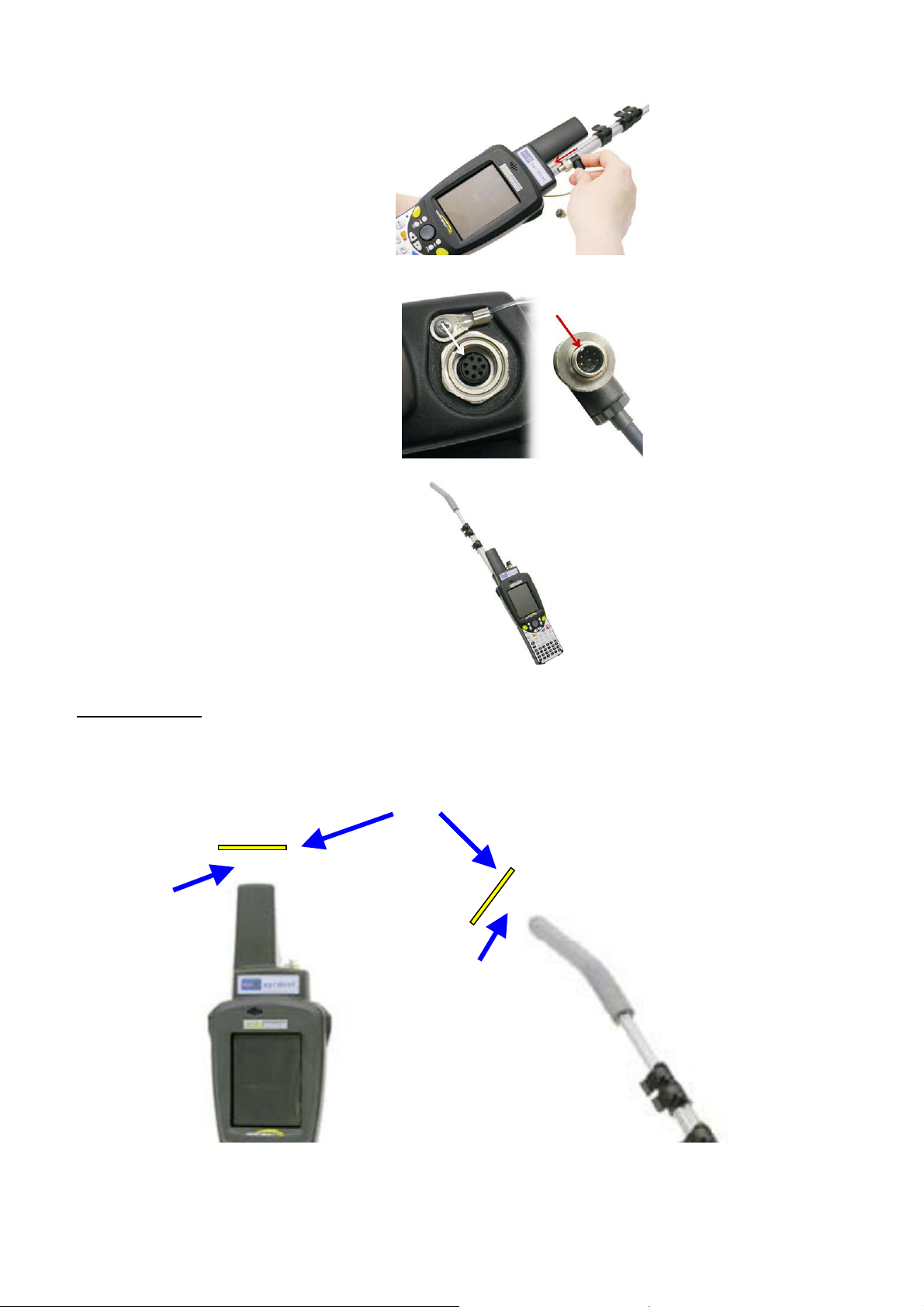

Installation of the external RFID Antenna LF-AEA120-G2:

• The RFID Antenna LF-AEA120-G2 can easily be fixed to the reader by a so called Binder plug.

• Hook the mounting plate of the AEA120 into the bottom of the Workabout PRO. Fit both together,

so that the screw holes match.

• Bolt the AEA120 to the Workabout.

• Screw the silver cap off from the socket.

October 23, 2007

DPD A00332 A00 Sheet 3 of 7
