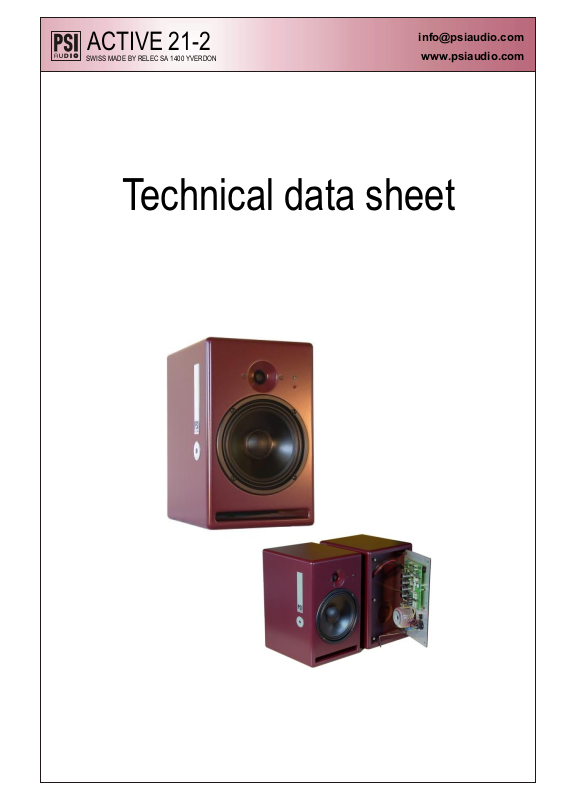

Page 1
ACTIVE 21-2
SWISS MADE BY RELEC SA 1400 YVERDON
Technical data sheet
www.psiaudio.com
Page 2
ACTIVE 21-2
SWISS MADE BY RELEC SA 1400 YVERDON
Technical data sheet
*C P R: Compensated Phase Response system.
*A O I: Adaptive Output Impedance system.
www.psiaudio.com
AOI
HP
PWR
AMP.
CPR*
Puissance RMS
Power RMS
Puissance programme
Program power
Impédance d'entrée
Input Impedance
Sensibilité pour 100 dB @ 1m
Sensivity for 100 dB @ 1m
Rapport signal sur Bruit
Signal to Noise Ratio
Saturation d'entrée
Input Overload
Niveau max. continu, 1m
Continuous Max SPL, 1m
Niveau max. programme, 1m
Program Max SPL, 1m
Réponse à -6 dB
Response at -6dB
Tolérances
Tolerances
Distorsions THD
Distortion THD
Phase tolérances
Phase tolerances
Dispersion (B.R. 4 - 16 kHz) à -6 dB
Dispersion (P.N. 4 - 16 kHz) at -6 dB
Système
System
Fréquence de coupure
Crossover frequency
Dim. basses Ext. / Membrane
Woofer's dim. Ext. / Diaphragm
Dim. aigues Ext. / Membrane
Tweeter's dim. Ext. / Diaphragm
Connecteurs
Connectors
Signal entrée
Signal input
Matériaux du boîtier
Box Material
Dimensions boîtier L x H x P mm
Dimensions cabinet W x H x D mm
Poids net
Net Weight
Tension de secteur
Voltage
Consommation
Power Consumption
Humidité Moy / Max
Mean / Max Humidity
Température externe
External Temperature
100+50 W
150 W
Sym, 10k Ohms
0.775 V
-96 dBA
24 Vpp
108 dB (single)
119 dB (pair)
43 - 23000 Hz
±2 dB (48Hz - 20kHz)
< 1.4% (52Hz-15kHz)
±45° (190Hz - 20kHz)
90° x 90° (H x V)
2 Way(s)
2.0 kHz
Ø 215 mm / Ø 170 mm
Ø 100 mm / Ø 25 mm
1 x XLR F / 3P
1=GND, 2=(+), 3=(-)
MDF
250 x 400 x 300
13.1 Kg
115/230V (50-60Hz)
10 - 100 VA
< 75% / < 90%
5 - 40 °C
INPUT
1=Gnd
2=Hot
3=Cold
MAINS EMI LP ON/OFF FUSE TRAFO RECT. REG.
[dB]
+10
0
-10
-20
-30
20
[Deg]
+540
+450
+360
+270
+180
+90
0
-90
-180
20
[%]
10
5
2
1
0.5
0.2
0.1
20
[dB]
130
120
110
100
90
31
25
[Q]
10
5
2
1
31
25
115/220V
SPL@1m Active 21-2
50
50
50
405063
405063
LEVELROLL OFF
HP LP
100
200
Hi. ± 45V.
LIMITER
Low ± 18V.
500
ACOUSTIC PHASE Active 21-2
200
100
500
THD Active 21-2
200
100
500
Max Continuous SPL 1m 21-2
80
100
125
200
250
315
160
500
400
Directivity Factor Active 21-2
80
100
125
200
250
315
160
500
400
PSI Active 21-2 V © RELEC SA all data subject to change without prior notice.
AOI
TEMP.
SENS
LP
PWR
AMP.
LIMIT
POWER
-10dB Roll Off
1k
2k
1k
2k
1k
2k
1k
630
800
630
800
2k
1k6
1k25
1k
2k
1k6
1k25
5k
5k
5k
4k
5k
2k5
2k5
6k38k10k
3k15
4k
5k
6k38k10k
3k15
20k [Hz]
10k
20k [Hz]
10k
20k [Hz]
10k
16k
12k5
16k
12k5
Page 3
SATELLITE 21-225
SWISS MADE BY RELEC SA 1400 YVERDON
Technical data sheet
Sytem setup
L R
LEVEL
IN 1
IN 2
LINK 1
LINK 2
-10dB
ROLL
OFF
www.psiaudio.com
CAL
-10dB
ROLL
OFF
Impédance d'entrée
Input Impedance
Saturation d'entrée
Input Overload
Sensibilité pour 100 dB @ 1m
Sensivity for 100 dB @ 1m
Rapport signal sur Bruit
Signal to Noise Ratio
Niveau max. continu, 1m
Continuous Max SPL, 1m
Niveau max. programme, 1m
Program Max SPL, 1m
Réponse à -6 dB
Response at -6dB
Tolérances
Tolerances
Distorsions THD
Distortion THD
Fréquence de coupure
Crossover frequency
Sym, 5k Ohms
24 Vpp
0.775 V
-96 dBA
115 dB
121dB
28 - 23000 Hz
±2.0 dB (30Hz - 20kHz)
< 1.6% (30Hz-20kHz)
95Hz / 2 kHz
A21/2 A21/2SUB A225/1
System Response
[dB]
+10
[dB]
130
120
110
100
0
-10
-20
-30
20
90
SPL@1m SUB A225/1 A21-2(- 10 dB Roll Off) SUM
50
31
405063
25
80
200
100
Max Continuous SPL 1m 1xSUB225/1 & 2x21-2
100
125
200
250
315
160
1k
500
500
630
800
400
2k
1k
2k
1k6
1k25
5k
4k
5k
2k5
6k38k10k
3k15
20k [Hz]
10k
16k
12k5
PSI Actives 21-2 V & SUB 225/1 I © RELEC SA all data subject to change without prior notice.
Page 4
ACTIVE 21-2
SWISS MADE BY RELEC SA 1400 YVERDON
Mounting
90
Technical data sheet
www.psiaudio.com
All dimensions are in mmAll dimensions are in mm
150
50
4 x M6
175
(Omnimount®)
(120 series)
Front
250
Bottom view Side view
Acoustical axis
125
70
Gravity
center
400
Front
200
Minimum well-aired space
300
250
Front view
PSI Actives 21-2 V © RELEC SA all data subject to change without prior notice.
