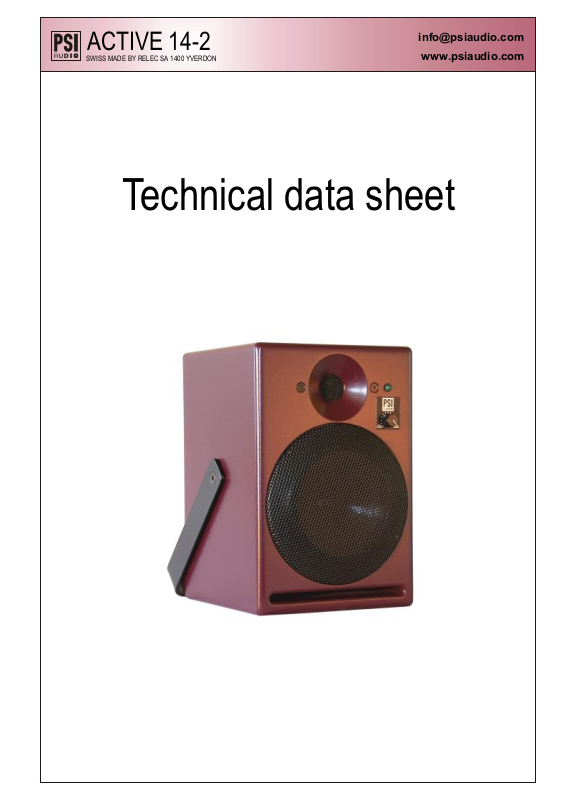

ACTIVE 14-2
SWISS MADE BY RELEC SA 1400 YVERDON
Technical data sheet
www.psiaudio.com
Page 2
ACTIVE 14-2
SWISS MADE BY RELEC SA 1400 YVERDON
Technical data sheet
*C P R : Compensated Phase Response system.
*A O I : Adaptive Output Impedance system.
LEVEL
INPUT
1=Gnd
2=Hot
3=Cold
MAINS EMI LP ON/OFF FUSE TRAFO RECT. REG.
ROLL OFF
115/220V
HP LP
Hi. ± 45V.
LIMITER
Low ± 18V.
www.psiaudio.com
AOI
HP
PWR
AMP.
CPR*
AOI
LP
PWR
AMP.
POWER
Puissance RMS
Power RMS
Puissance programme
Program power
Impédance d'entrée
Input Impedance
Sensibilité pour 100 dB @ 1m
Sensivity for 100 dB @ 1m
Rapport signal sur Bruit
Signal to Noise Ratio
Saturation d'entrée
Input Overload
Niveau max. continu, 1m
Continuous Max SPL, 1m
Niveau max. programme, 1m
Program Max SPL, 1m
Réponse à -6 dB
Response at -6dB
Tolérances
Tolerances
Distorsions THD
Distortion THD
Phase tolérances
Phase tolerances
Dispersion (B.R. 4 - 16 kHz) à -6 dB
Dispersion (P.N. 4 - 16 kHz) at -6 dB
Système
System
Fréquence de coupure
Crossover frequency
Dim. basses Ext. / Membrane
Woofer's dim. Ext. / Diaphragm
Dim. aigues Ext. / Membrane
Tweeter's dim. Ext. / Diaphragm
Connecteurs
Connectors
Signal entrée
Signal input
Matériaux du boîtier
Box Material
Dimensions boîtier L x H x P mm
Dimensions cabinet W x H x D mm
Poids net
Net Weight
Tension de secteur
Voltage
Consommation
Power Consumption
Humidité Moy / Max
Mean / Max Humidity
Température externe
External Temperature
70+30 W
100 W
Sym, 10k Ohms
0.775 V
-96 dBA
24 Vpp
101 dB (single)
112 dB (pair)
58 - 22000 Hz
±2.5 dB (68Hz - 18kHz)
< 1.8% (75Hz-15kHz)
±45° (260Hz - 16kHz)
100° x 100° (H x V)
2 Way(s)
3.5 kHz
Ø 144 mm / Ø 102 mm
Ø 70 mm / Ø 20 mm
1 x XLR F / 3P
1=GND, 2=(+), 3=(-)
MDF
162 x 242 x 170
5 Kg
115/230V (50-60Hz)
7 - 70 VA
< 75% / < 90%
5 - 40 °C
[dB]
+10
-10
-20
-30
[Deg]
+540
+450
+360
+270
+180
+90
-90
-180
[%]
0.5
0.2
0.1
[dB]
130
120
110
100
[Q]
SPL@1m Active 14-2
0
20
50
200
100
500
-10dB Roll Off
1k
2k
5k
20k [Hz]
10k
ACOUSTIC PHASE Active 14-2
0
1k
20
10
5
2
1
20
50
50
200
100
200
100
500
THD Active 14-2
500
2k
1k
2k
5k
5k
20k [Hz]
10k
20k [Hz]
10k
Max Continuous SPL 1m 14-2
90
31
405063
405063
80
100
125
200
250
315
160
400
Directivity Factor Active 14-2
80
100
125
200
250
315
160
400
25
10
5
2
1
31
25
1k
2k
4k
500
630
800
1k6
1k25
1k
500
630
800
2k
1k6
1k25
5k
2k5
2k5
6k38k10k
3k15
4k
5k
6k38k10k
3k15
16k
12k5
16k
12k5
PSI Active 14-2 V © RELEC SA all data subject to change without prior notice.
Page 3
SATELLITE 14-225
SWISS MADE BY RELEC SA 1400 YVERDON
Technical data sheet
www.psiaudio.com
Sytem setup
L R
LEVEL
CAL
IN 1
IN 2
LINK 1
LINK 2
Impédance d'entrée
Input Impedance
Saturation d'entrée
Input Overload
Sensibilité pour 100 dB @ 1m
Sensivity for 100 dB @ 1m
Rapport signal sur Bruit
Signal to Noise Ratio
Niveau max. continu, 1m
Continuous Max SPL, 1m
Niveau max. programme, 1m
Program Max SPL, 1m
Réponse à -6 dB
Response at -6dB
Tolérances
Tolerances
Distorsions THD
Distortion THD
Fréquence de coupure
Crossover frequency
Sym, 5k Ohms
24 Vpp
0.775 V
-96 dBA
108 dB
114 dB
28 - 22000 Hz
±2.5 dB (30Hz - 18kHz)
< 1.8% (30Hz-15kHz)
95Hz / 3.5 kHz
-10dB
ROLL
OFF
A14-2
System Response
[dB]
+10
[dB]
130
120
110
100
0
-10
-20
-30
20
90
SPL@1m
50
31
405063
25
80
SUB A225/1 A14-2(- 10 dB Roll Off) SUM
200
100
Max Continuous SPL 1m 1xSUB225/1 & 2x14-2
100
125
200
250
315
160
SUB A225/1
1k
500
1k
500
630
800
400
1k25
-10dB
ROLL
OFF
A14-2
2k
2k
1k6
5k
4k
5k
2k5
6k38k10k
3k15
20k [Hz]
10k
16k
12k5
PSI Actives 14-2 V & SUB 225/1 I © RELEC SA all data subject to change without prior notice.
Page 4
ACTIVE 14-2
SWISS MADE BY RELEC SA 1400 YVERDON
Mounting
1 x UNC 3/8’’
like mic stand
Technical data sheet
www.psiaudio.com
All dimensions are in mm
85
242
Front
121
Front
162
Bottom view Side view
Acoustical axis
80
70
Minimum well-aired space
170
150
Front view
PSI Actives 14-2 V © RELEC SA all data subject to change without prior notice.
