PSI PR9 User Manual

Download

Page 1

User Manual PR9

PR9

8707-009-xxxxx

Page 2

Acknowledgements

EPSON is a Trademark of Seiko Epson Corporation. IBM is a Trademark of International Business Machines Corporation. ProPrinter is a Trademark of International Business Machines Corporation. Oki is a Trademark of Oki Electric Industry Co., Ltd. Olivetti is a Trademark of Olivetti S.p.A..

A Publication of PSi Matrix GmbH Hommeswiese 116c D 57258 Freudenberg Federal Republic of Germany

April 2017

Great care has been taken to ensure that the information in this handbook is accurate and complete. However, should any errors or omissions be discovered or should any user wish to make suggestions for improving this handbook, please feel encouraged to send us the relevant details.

The contents of this manual are subject to change without notice. Copyright © by PSi Matrix GmbH. All rights strictly reserved. Reproduction or issue to third parties in any form is not permitted without written authorization from the publisher.

Page 3

Safety Regulations

The printer R 9 fulfill the safety regulations according to DIN EN 60950-1 for computer systems.

The mains cable must be connected to a ground protected wall-socket. The selected voltage of the printer needs to fit to the local voltage.

The power plug must be easily accessible at any time so that it can be disconnected immediately in case of danger or for maintenance purposes.

Comme le câble de secteur sert de dipositif d'arrêt-urgence, sa connexion à l'imprimante doit être tout le temps accessible.

Before installing the printer, check the surrounding conditions in which the printer will be placed (see next page, Operating Environment).

During a thunderstorm you should never attempt to connect or disconnect any data transfer cables.

The power supply should only be opened and checked by authorized personnel. Repairs

and maintenance

may only be attempted by authorized personnel as well. Repairs done inappropriately may cause damage and severe danger for the user.

General Installation Precautions

To ensure optimum printer functionality and to avoid making service calls for problems that are not directly caused by the product itself, bear in mind the information provided in the following sections.

Electrical Power Supply

Make sure that the electrical wall outlet to which the printer is connected has a valid ground and that it is able to supply the power needed by the machine. A wall outlet without ground can cause functional problems and can be a safety hazard. Do not plug the printer to electrical wall outlets that are already being used by equipment that could cause electrical noise and excessive voltage fluctuations (fans and air conditioners, large photocopiers, lift motors, TV radio transmitters and signal generators, high frequency safety devices, and so on).

Common office equipment (calculating machines, typewriters, small photocopiers, terminals and personal computers) can share the same outlet as long as they do not cause excessive electrical noise.

Page 4

Environmental Conditions

The environmental conditions in which the product can work properly referring to a normal airconditioned office environment (environmental temperature of 15 up to 35 °C, relative humidity of between 15 and 85%).

During machine storage and operation, make sure that condensation does not form as the result of extreme environmental variations. Dust, dirt and smoke can cause the parts in motion to wear excessively, short circuits (in the presence of a high degree of humidity). High temperatures and low humidity can cause problems due to static electricity.

Safety Regulations

Locating the Machine

 The printer must be installed on a flat, vibration free surface.  Do not position the machine near air conditioning systems, heat sources or in direct

sunlight.

 Do not obstruct the printer's ventilation slots.  If the printer is installed in a cabinet, make sure that it has good ventilation so as to

avoid

overheating.

 Install the printer in a position so that paper jams can be cleared easily.

Work Environment

An environment that is too cold, hot or humid could be the cause of certain malfunctions. The machine must not be positioned near air conditioning system vents or exposed to direct sun light. Make sure that the machine's internal ventilation slots are not blocked, especially if the printer is installed in furniture.

Printer Operating Condition

Check that the internal parts of the machine have no dirt deposited or residue of paper or ink that could interfere with the performance of the printer's different components. Make sure there is no internal damage caused by the insertion of documents with metal clips, staples, pins or similar. Ensure that the parts specified are correctly lubricated.

Page 5

Safety Regulations ................................................................................................................................. 3

About this Manual ................................................................................................................................. 6

Preface .................................................................................................................................................. 7

Getting Started ...................................................................................................................................... 8

4.1 Unpacking ...................................................................................................................................................... 8

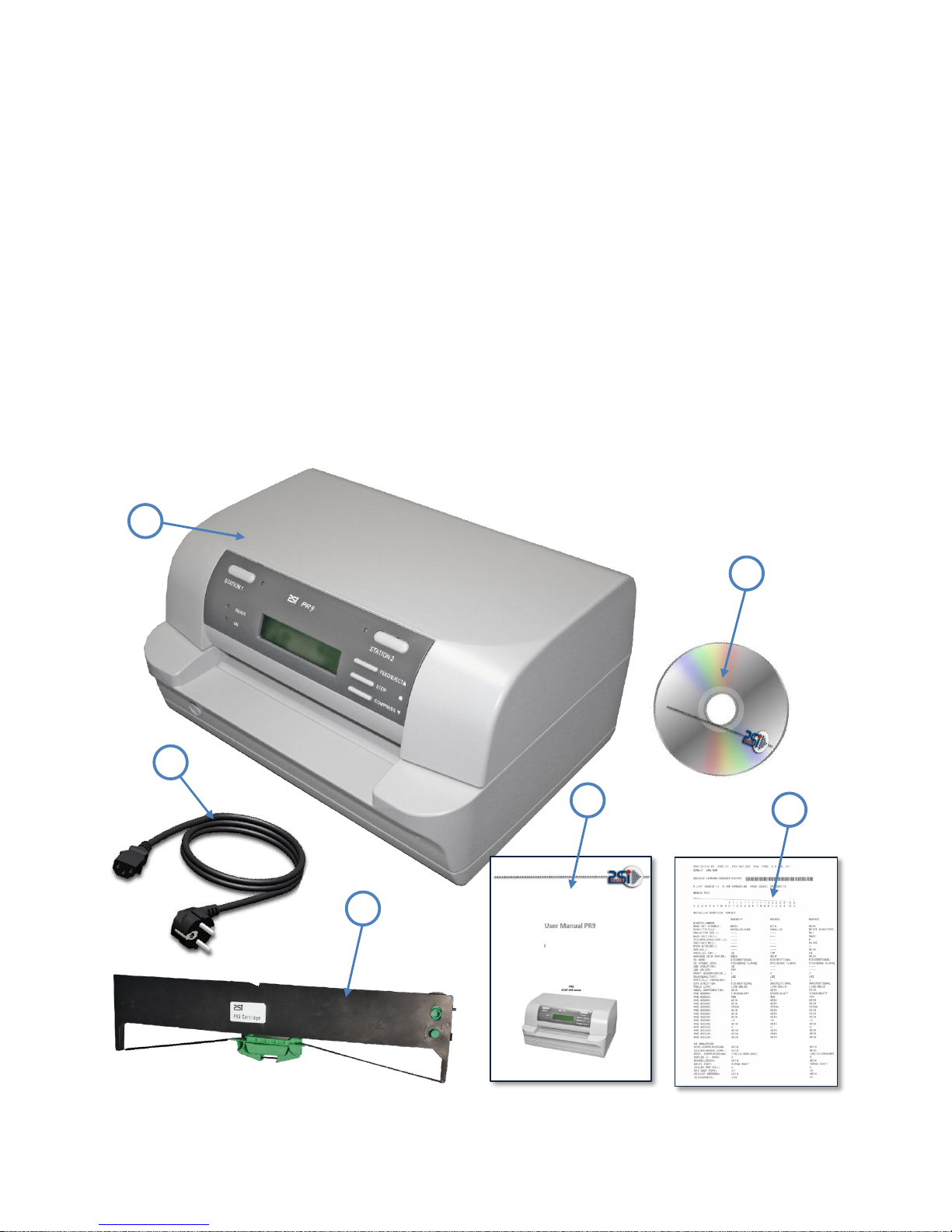

4.1.1 Delivery Contents Printer PR 9 ....................................................................................................................... 8

4.1.2 Requirements to the location of the printer Environmental Conditions ........................................................ 2

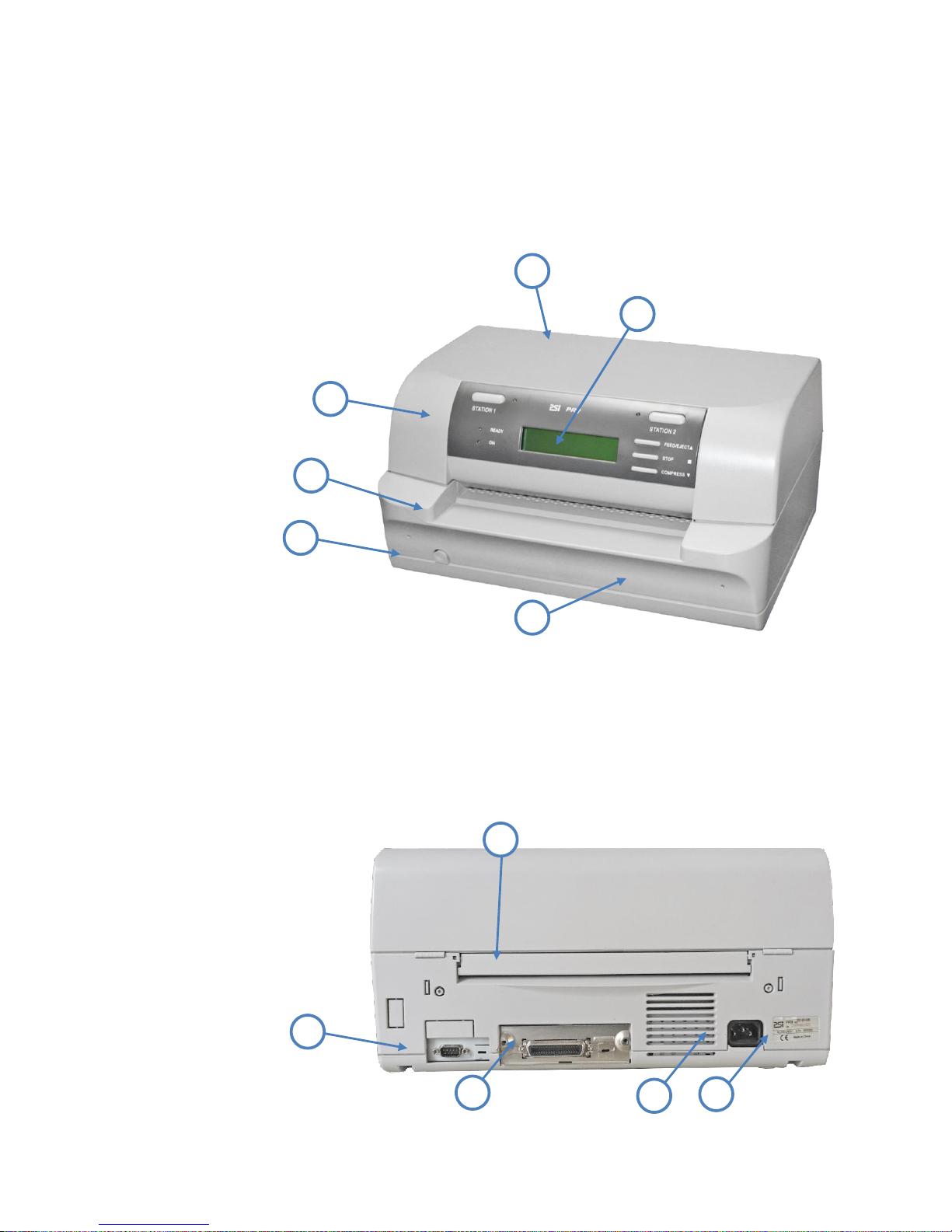

4.1.3 A First Look at the Printer .............................................................................................................................. 3

4.1.4 Front View ..................................................................................................................................................... 3

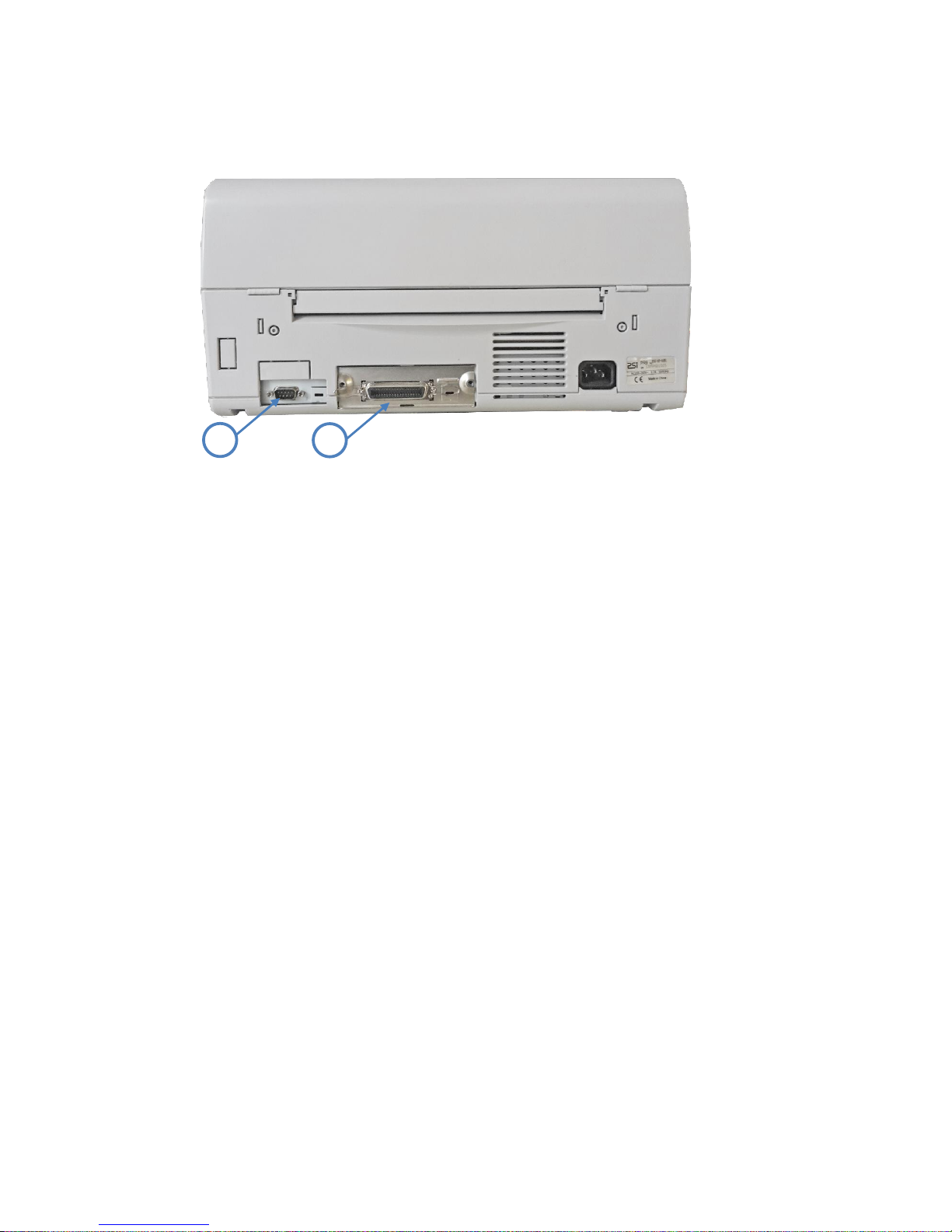

4.1.5 Rear View ...................................................................................................................................................... 3

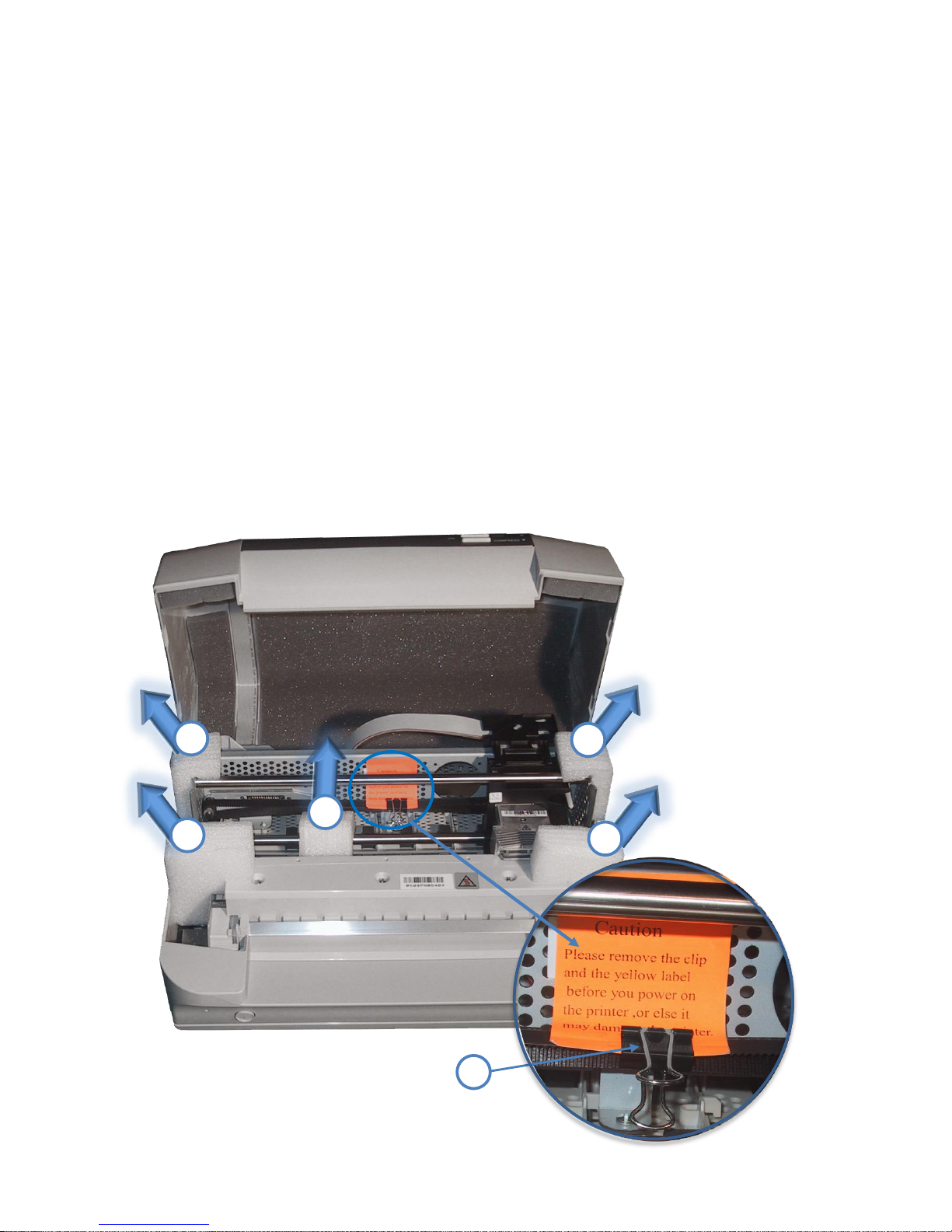

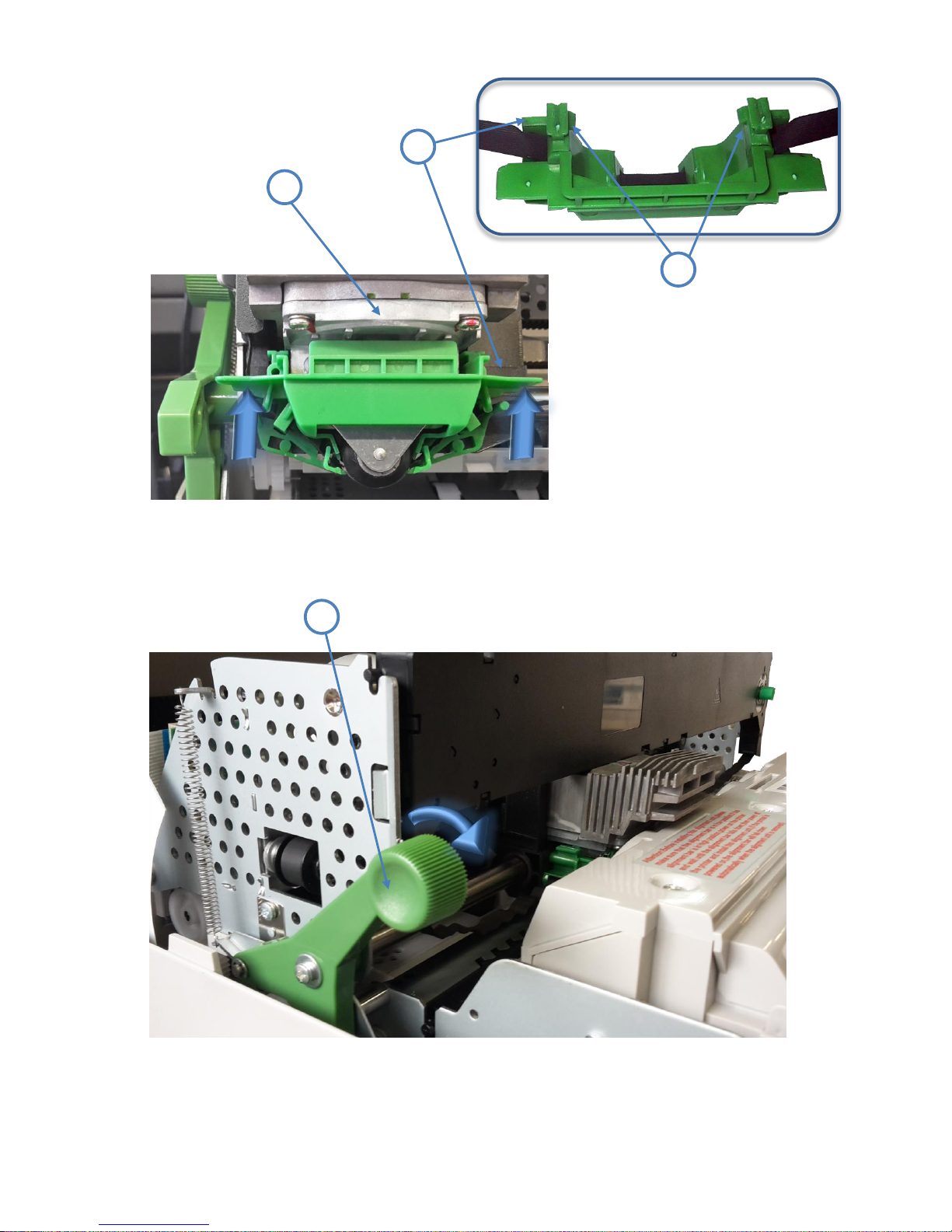

4.1.6 Remove Transport Lock ................................................................................................................................. 4

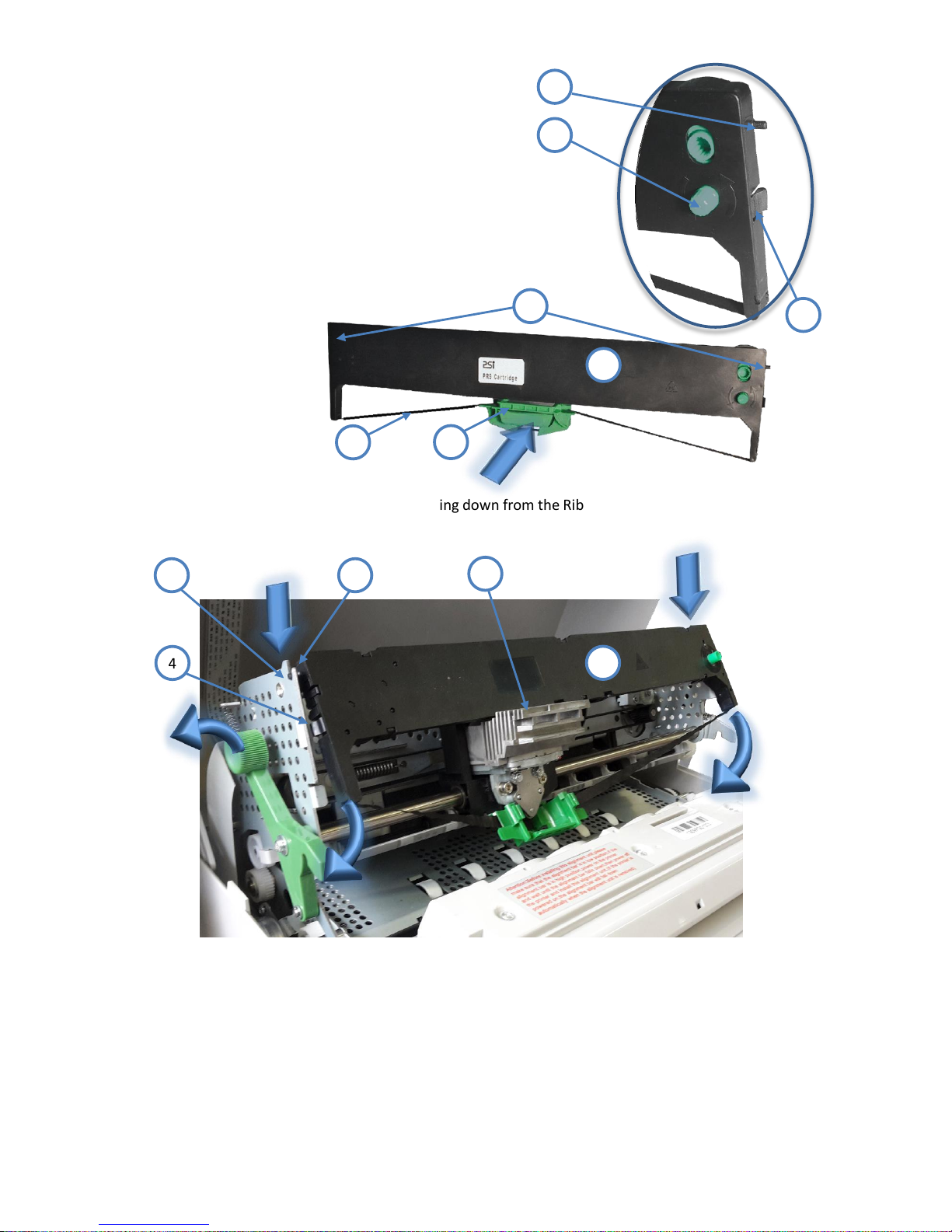

4.1.7 Ribbon Installation ........................................................................................................................................ 5

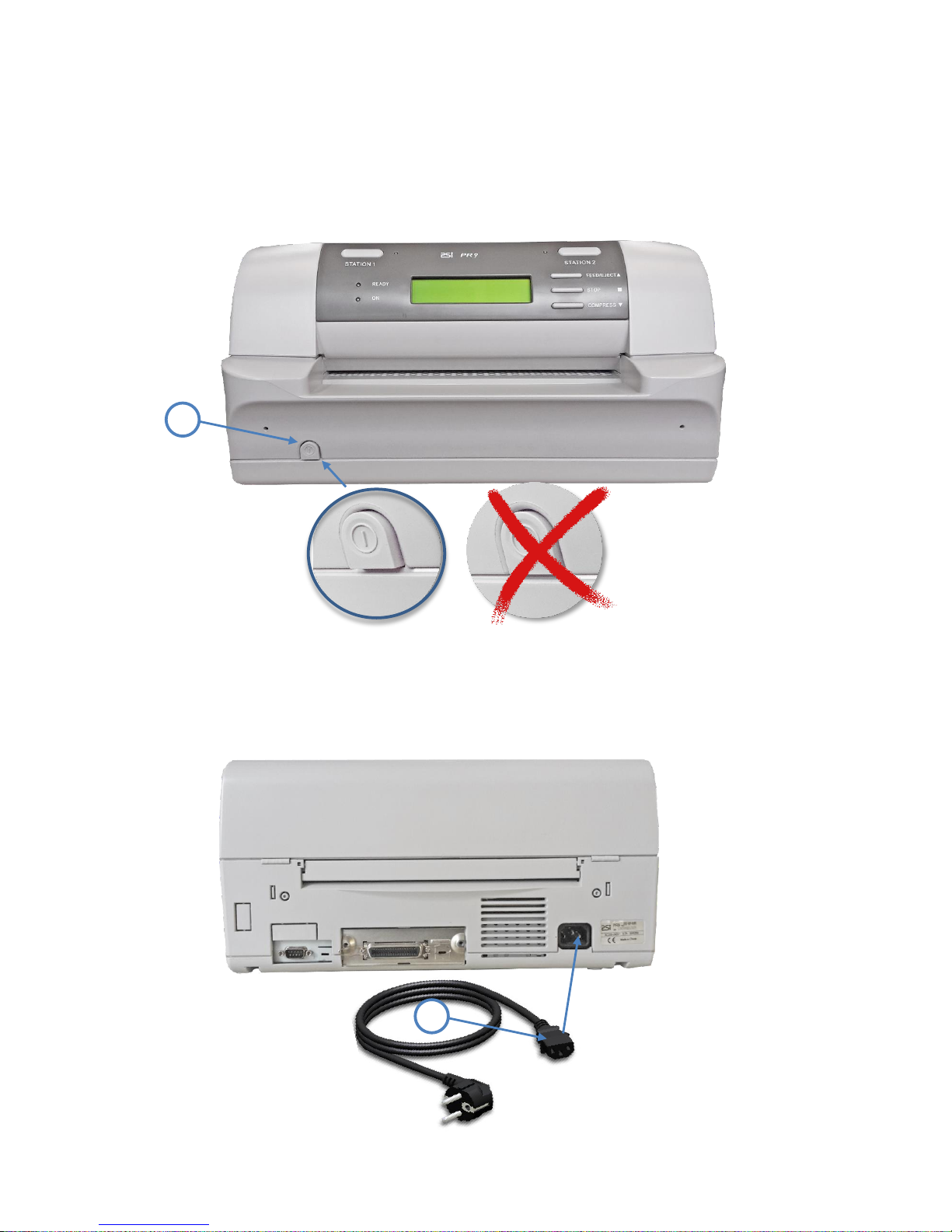

4.1.8 Mains Connection and Power On................................................................................................................... 7

4.1.9 Print Test ....................................................................................................................................................... 9

4.1.10 Selftest .......................................................................................................................................................... 9

4.1.11 Selftest Printing Contents ............................................................................................................................ 10

4.1.12 Dr. Grauert (print a letter) ........................................................................................................................... 11

4.1.13 Connection to the System ........................................................................................................................... 12

4.1.14 Serial/Parallel Interface ............................................................................................................................... 12

4.1.15 Installing the Printer Drivers ....................................................................................................................... 12

Printer Operation .................................................................................................................................. 1

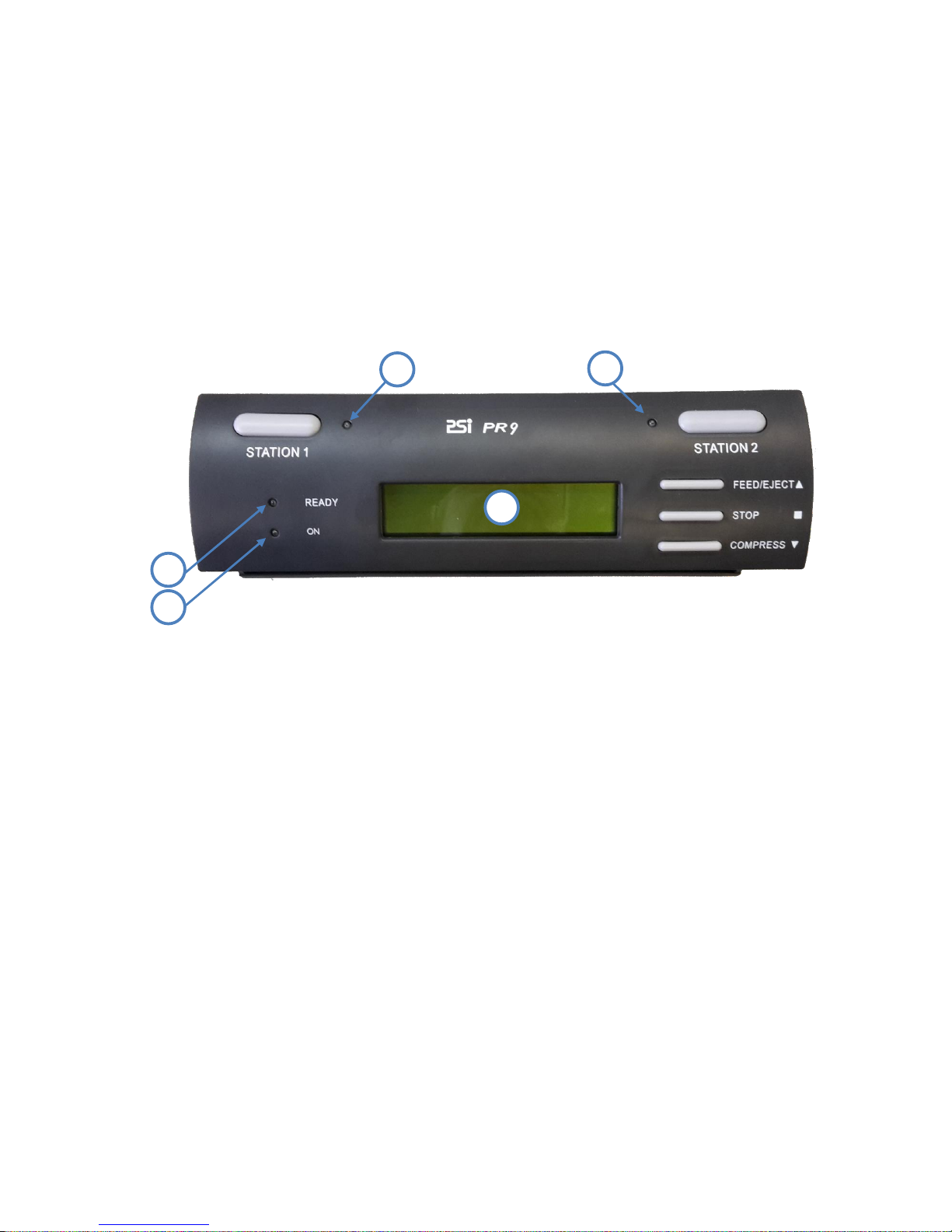

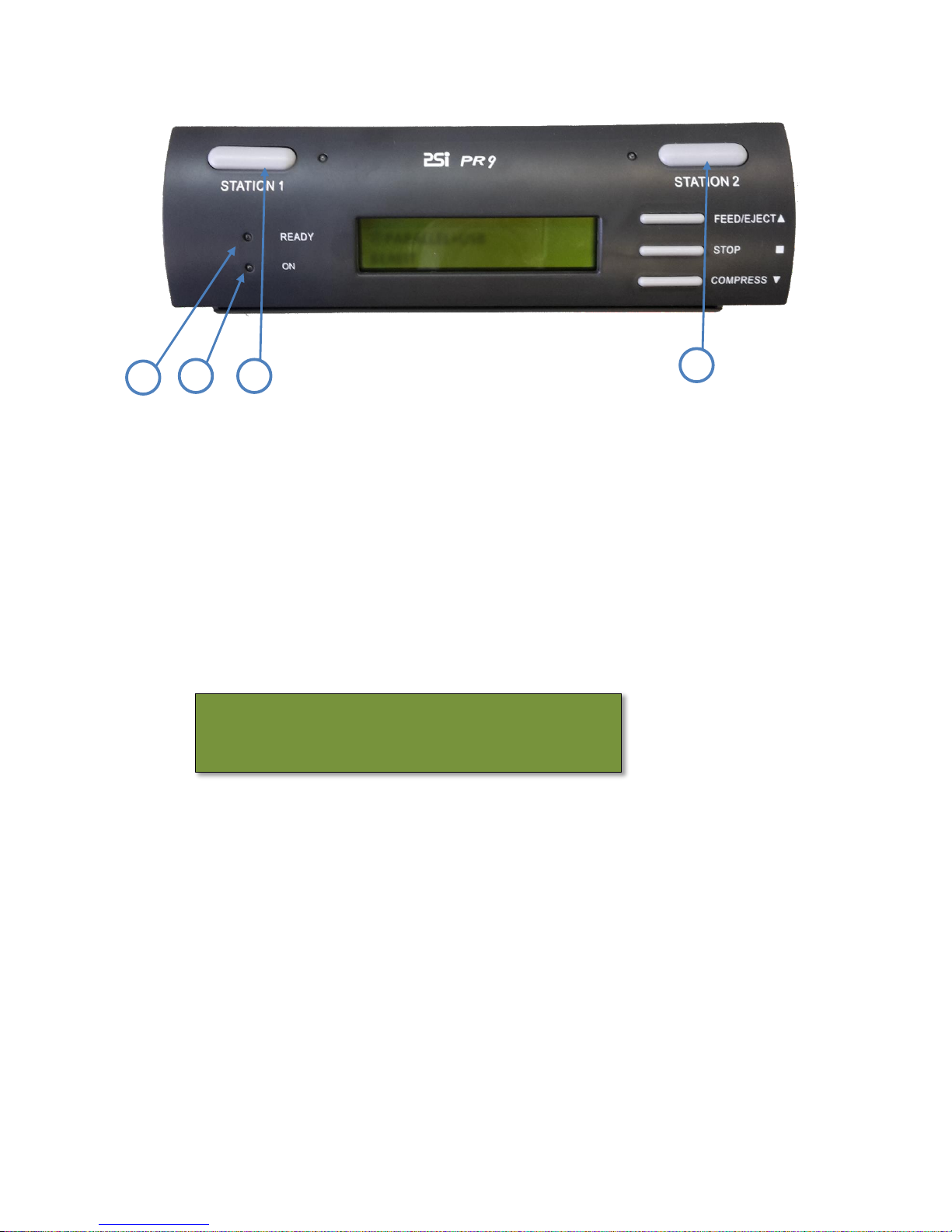

5.1. Operator Panel ............................................................................................................................................... 1

5.2. Function Keys ................................................................................................................................................. 2

5.3. Liquid Crystal Display (LCD) ............................................................................................................................. 4

5.4. Load Print Medium ......................................................................................................................................... 5

5.5. Menu Mode .................................................................................................................................................... 5

5.6. To Confirm a Macro Selection and Save the Settings ...................................................................................... 6

5.7. The PR 9 Emulations ....................................................................................................................................... 6

Configuring the Printer .......................................................................................................................... 1

6.1. What is Configuration? ................................................................................................................................... 2

6.2. Standard Configuration .................................................................................................................................. 3

6.3. Explanation of the printout on the previous pages .......................................................................................... 4

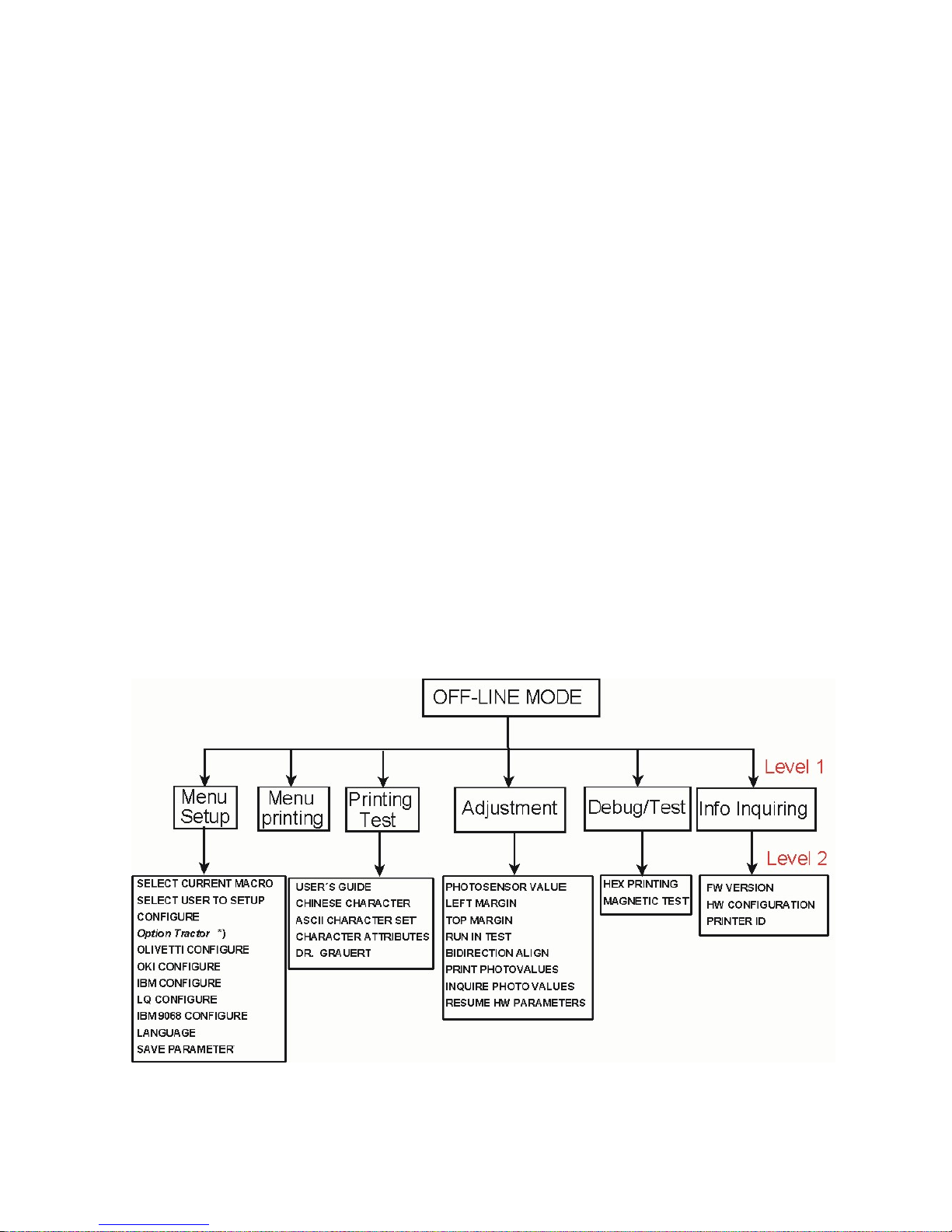

6.4. Menu Structure............................................................................................................................................... 4

6.5. How to use the Key in the Menu Mode ........................................................................................................... 5

6.6. The emulations of PR 9 ................................................................................................................................... 5

6.7. Menu Setup Description .................................................................................................................................. 5

6.8. SELECT CURRENT MACRO ............................................................................................................................... 6

6.9. SELECT USER TO SETUP ................................................................................................................................... 6

6.10. CONFIGURE .................................................................................................................................................... 6

6.11. OLIVETTI CONFIGURE .................................................................................................................................... 10

6.12. Option Horizontal Magnetic Stripe Reader / Writer (MSRW) CONFIGURE ..................................................... 14

6.13. OKI CONFIGURE ............................................................................................................................................ 15

6.14. IBM CONFIGURE ........................................................................................................................................... 18

6.15. LQ CONFIGURE ............................................................................................................................................. 21

6.16. IBM 9068 CONFIGURE ................................................................................................................................... 24

6.17. LANGUAGE ................................................................................................................................................... 26

6.18. SAVE PARAMETERS ....................................................................................................................................... 26

6.19. PRINTING TEST ............................................................................................................................................. 26

6.20. USER'S GUIDE ............................................................................................................................................... 26

6.21. CHINESE CHARACTER .................................................................................................................................... 26

6.22. ASCII CHARACTER SET ................................................................................................................................... 26

6.23. CHARACTER ATTRIBUTES .............................................................................................................................. 26

6.24. Dr. GRAUERT ................................................................................................................................................ 26

6.25. ADJUSTMENT ............................................................................................................................................... 27

6.26. PHOTOSENSOR VALUE .................................................................................................................................. 27

Page 6

6.27. LEFT MARGIN ............................................................................................................................................... 28

6.28. TOP MARGIN ................................................................................................................................................ 28

6.29. RUN IN TEST ................................................................................................................................................. 29

6.30. BIDIRECTIONAL ALIGNMENT ADJUSTMENT ................................................................................................... 29

6.31. PRINT PHOTO VALUES .................................................................................................................................. 30

6.32. INQUIRE PHOTO VALUES .............................................................................................................................. 30

6.33. RESUME HARDWARE PARAMETERS .............................................................................................................. 31

6.34. DEBUG / TEST ............................................................................................................................................... 32

6.35. DATA BACKUP MODE.................................................................................................................................... 32

6.36. PRINTING SAVED DATA ................................................................................................................................. 33

6.37. PRINTING LAST DATA ................................................................................................................................... 33

6.38. PRINTING FLASH DATA ................................................................................................................................. 33

6.39. DIRECTLY DUMP ........................................................................................................................................... 34

6.40. MAGNETIC TEST ........................................................................................................................................... 34

6.41. INFO INQUIRING .......................................................................................................................................... 34

6.42. FW Version ................................................................................................................................................... 35

6.43. HW Configuration ......................................................................................................................................... 35

6.44. Printer ID ...................................................................................................................................................... 35

Maintenance ......................................................................................................................................... 1

7.1. Preferred Material ......................................................................................................................................... 1

7.2. Cleaning Surrounding Areas ........................................................................................................................... 1

7.3. Remove the Ribbon ........................................................................................................................................ 1

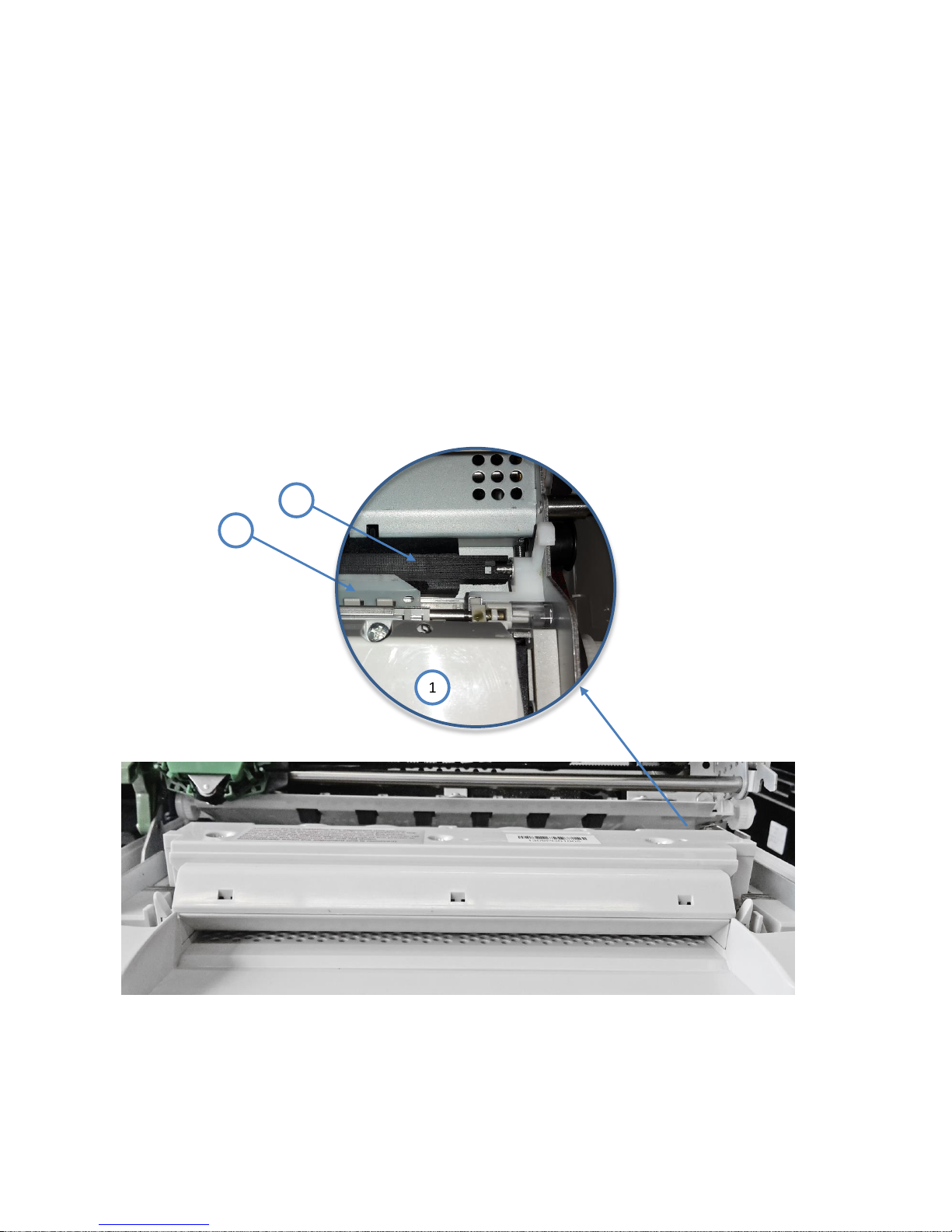

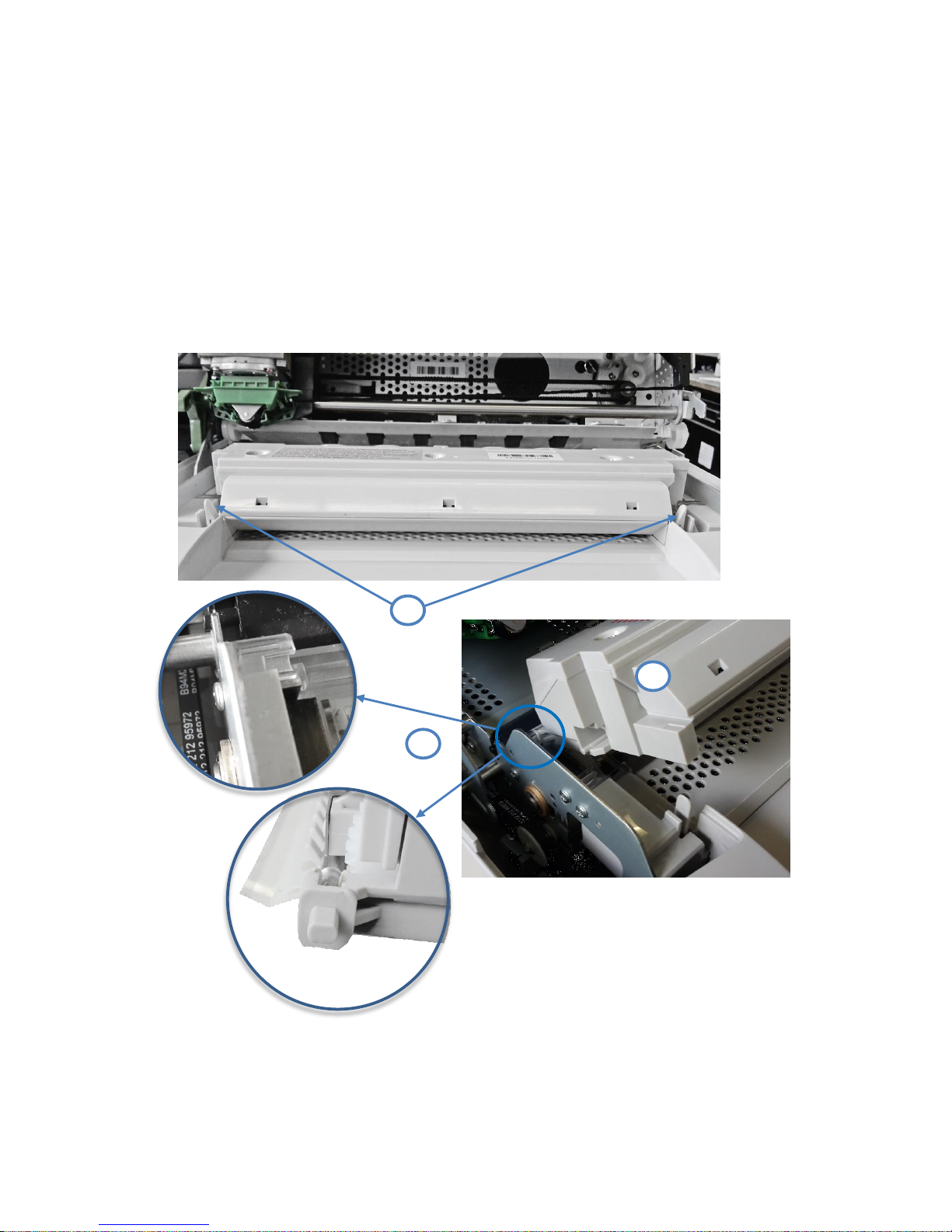

7.4. Remove the Alignment Unit ............................................................................................................................ 2

7.5. Cleaning Procedure ........................................................................................................................................ 3

7.6. Install the Alignment ...................................................................................................................................... 3

Options ................................................................................................................................................. 1

8.1. Optional Devices ............................................................................................................................................ 1

Technical Data ....................................................................................................................................... 1

9.1. Technical Specification.................................................................................................................................... 1

9.2. Document Specification and Technical Instruction .......................................................................................... 3

9.3. Cut sheets and multi-copy paper ..................................................................................................................... 3

9.4. Passbook (open) ............................................................................................................................................. 4

Interface Description ............................................................................................................................. 1

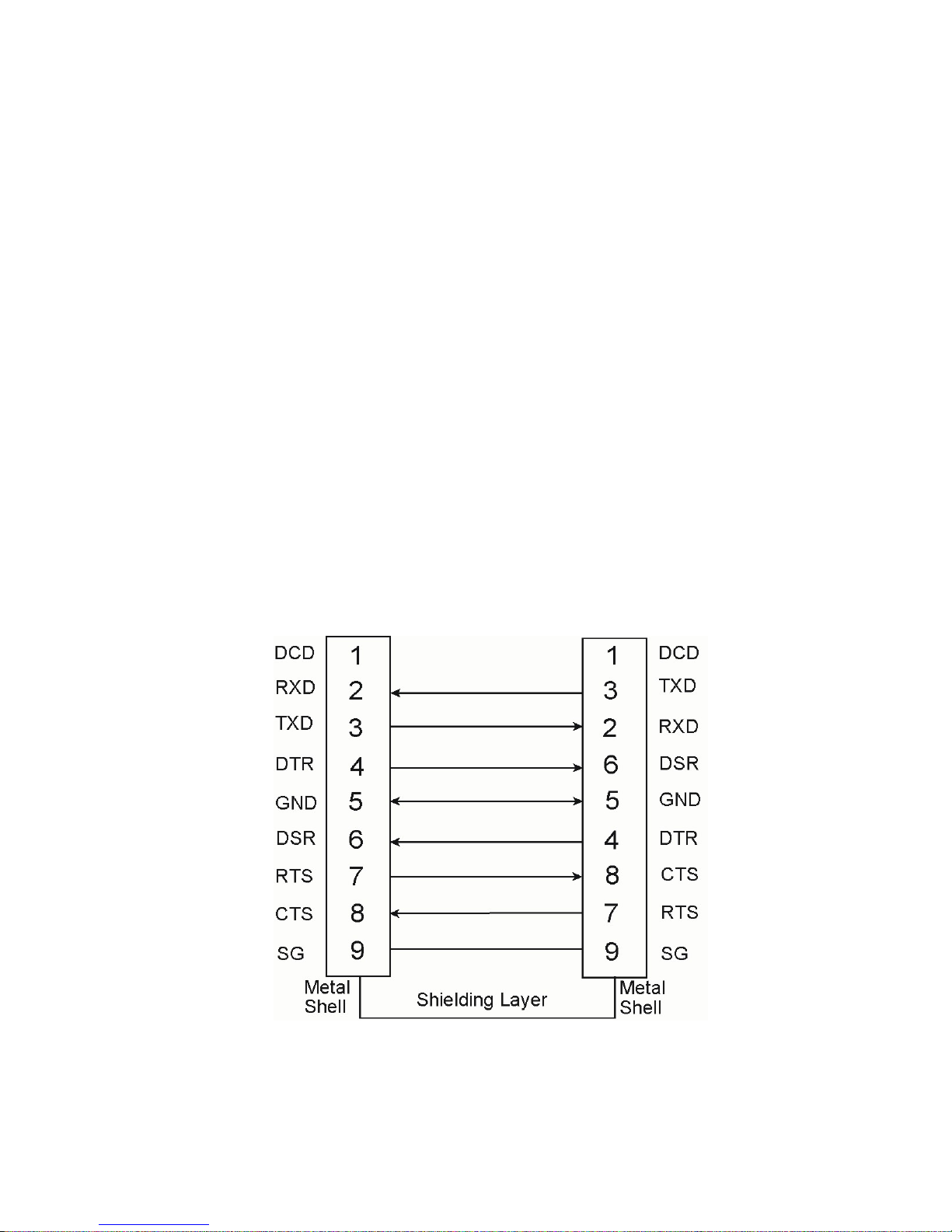

10.1 Serial Interface ............................................................................................................................................... 1

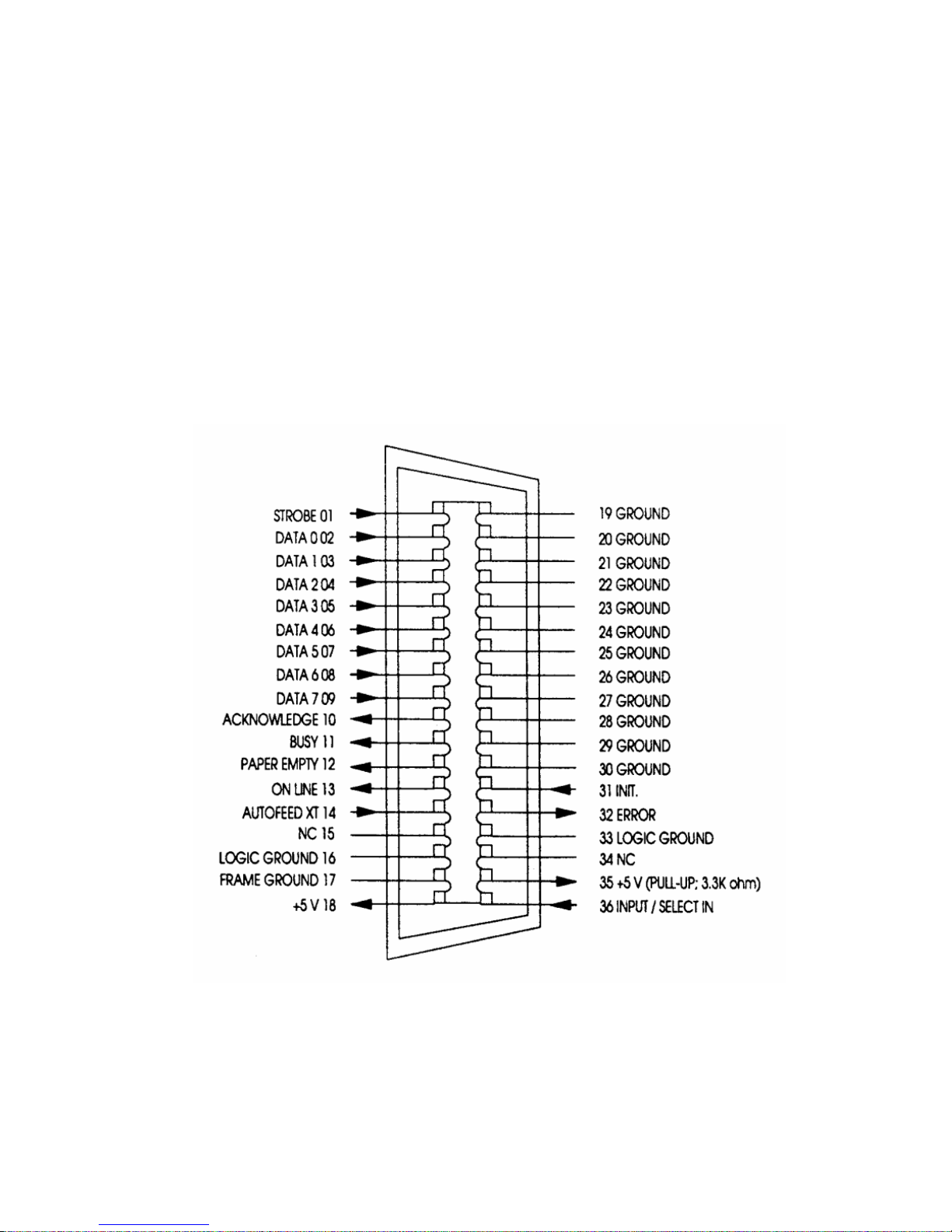

10.2 Parallel Interface ............................................................................................................................................ 2

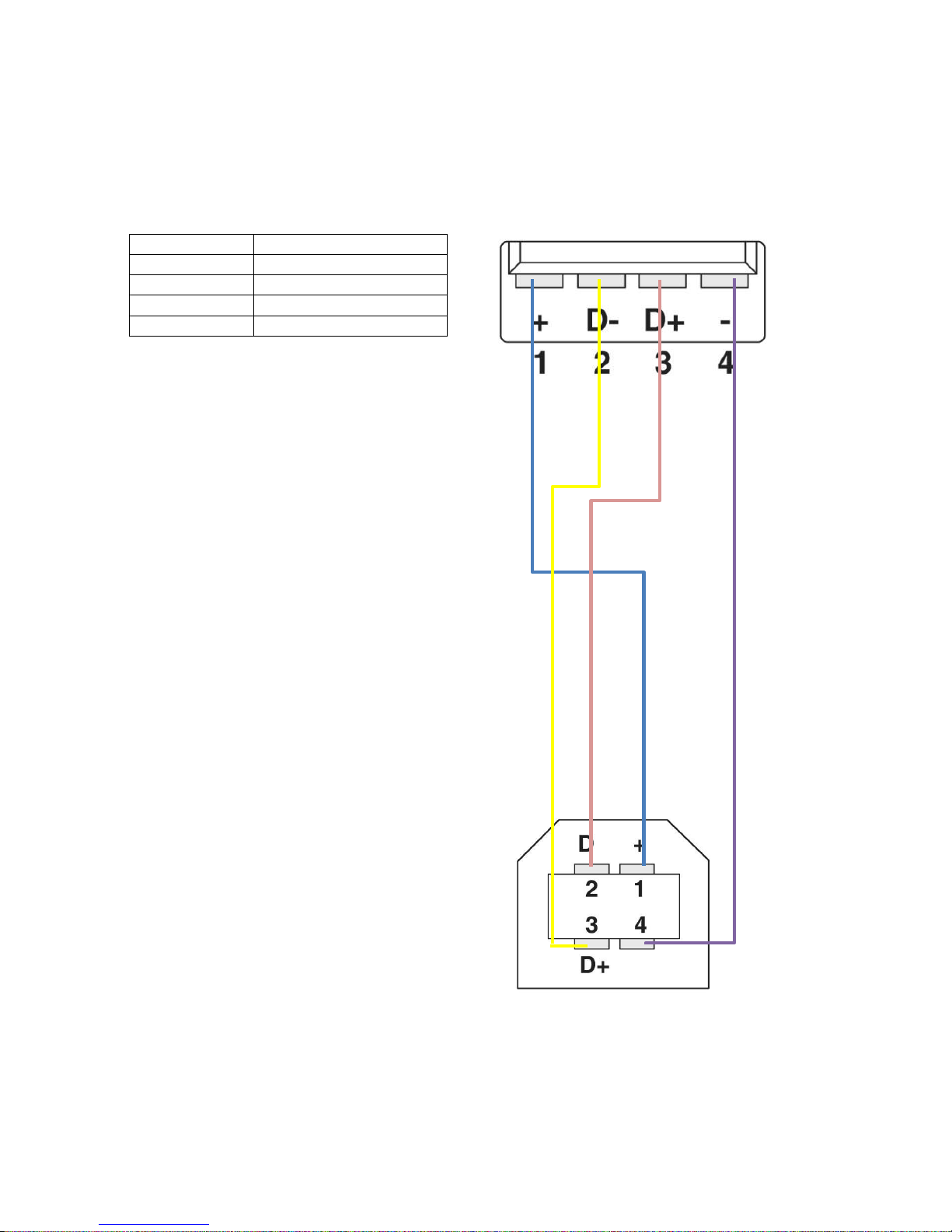

10.3 USB Interface ................................................................................................................................................. 3

Firmware update ................................................................................................................................... 1

Troubleshooting .................................................................................................................................... 1

12.1 Power-related Problems ................................................................................................................................. 1

12.2 Uncompleted Power On ................................................................................................................................. 1

12.3 Ribbon or Carriage-related Problems ............................................................................................................. 1

12.4 Paper-related Problems ................................................................................................................................. 2

12.5 Print-related Problems ................................................................................................................................... 2

12.6 No Printout .................................................................................................................................................... 3

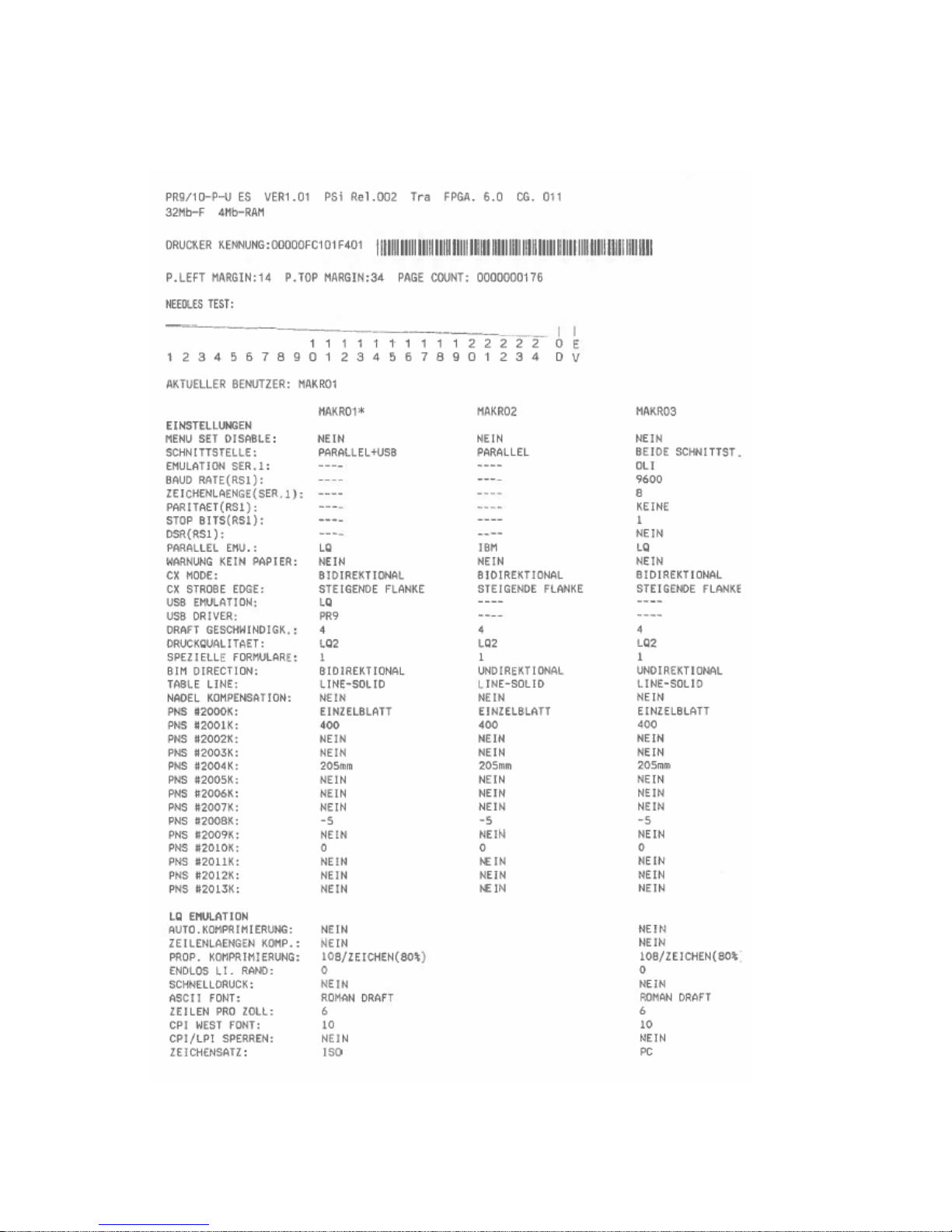

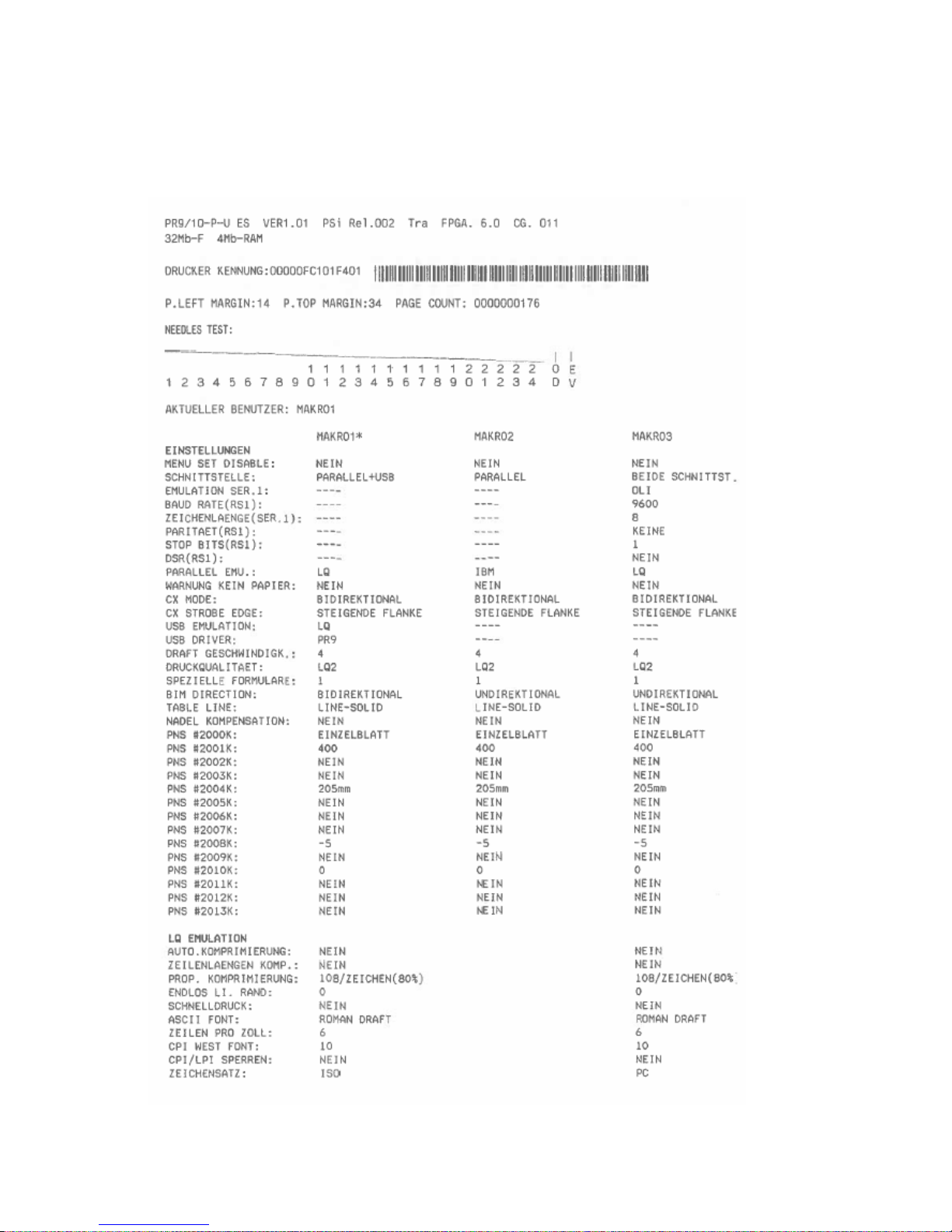

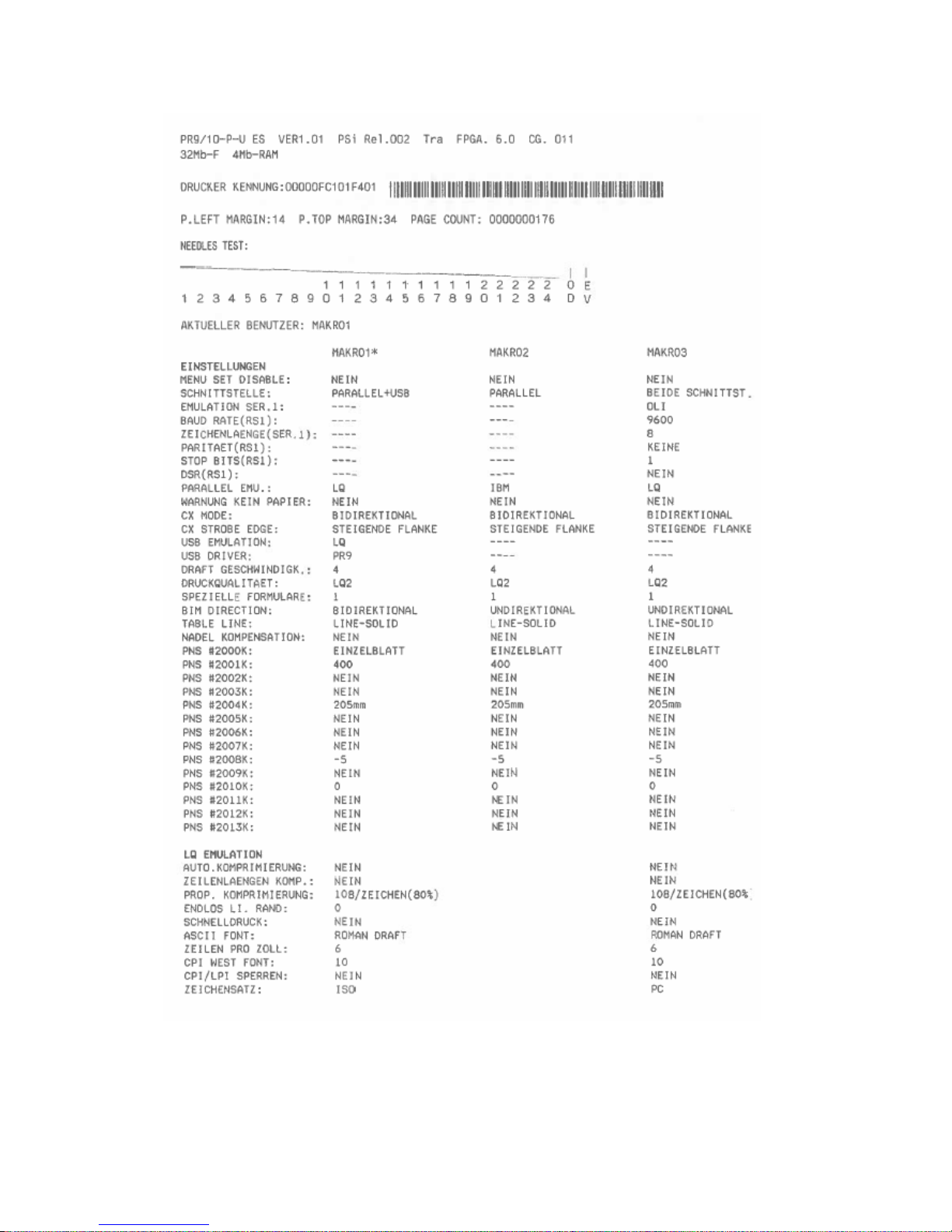

12.7 Printout of the Complete Configure Settings .................................................................................................. 3

Appendix A Code Pages ....................................................................................................................... 1

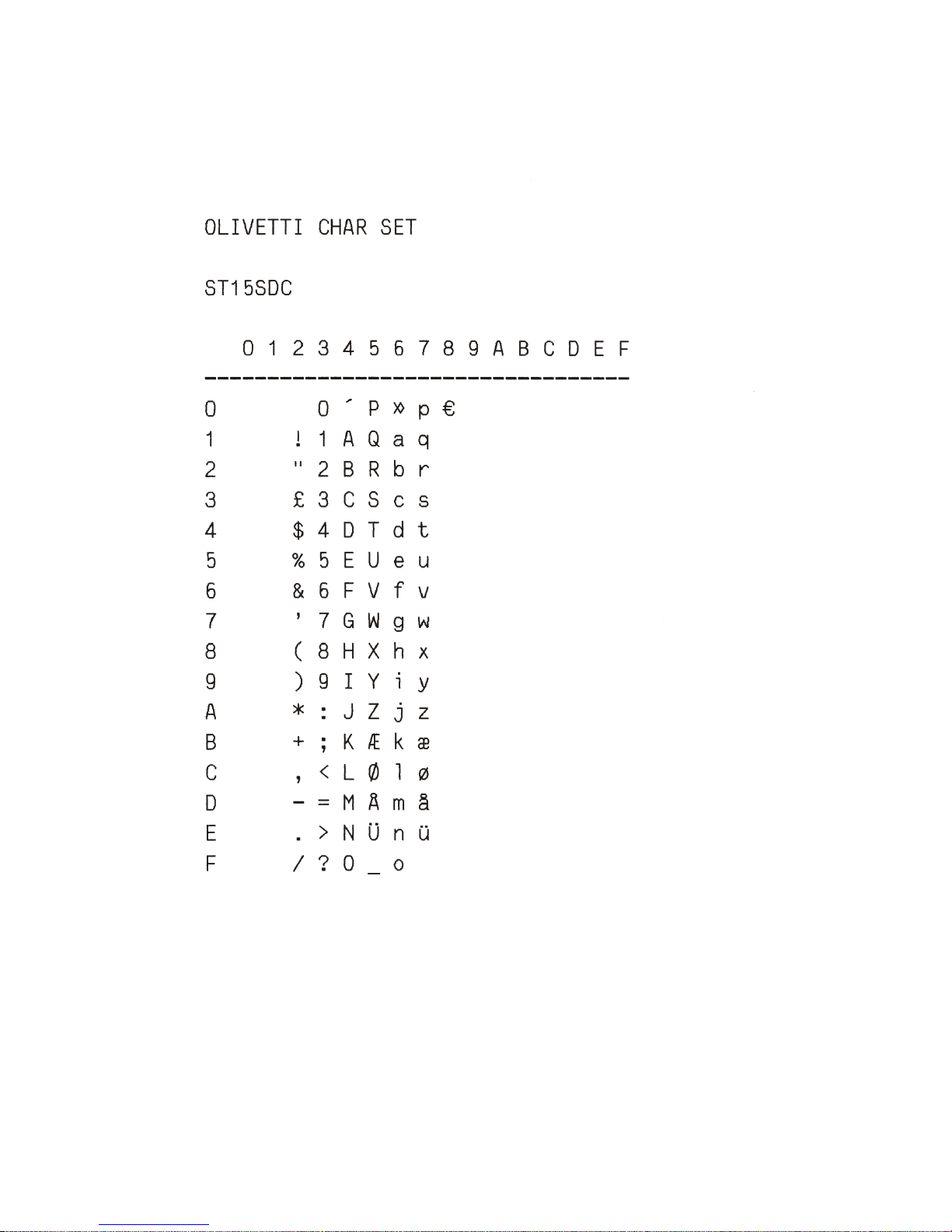

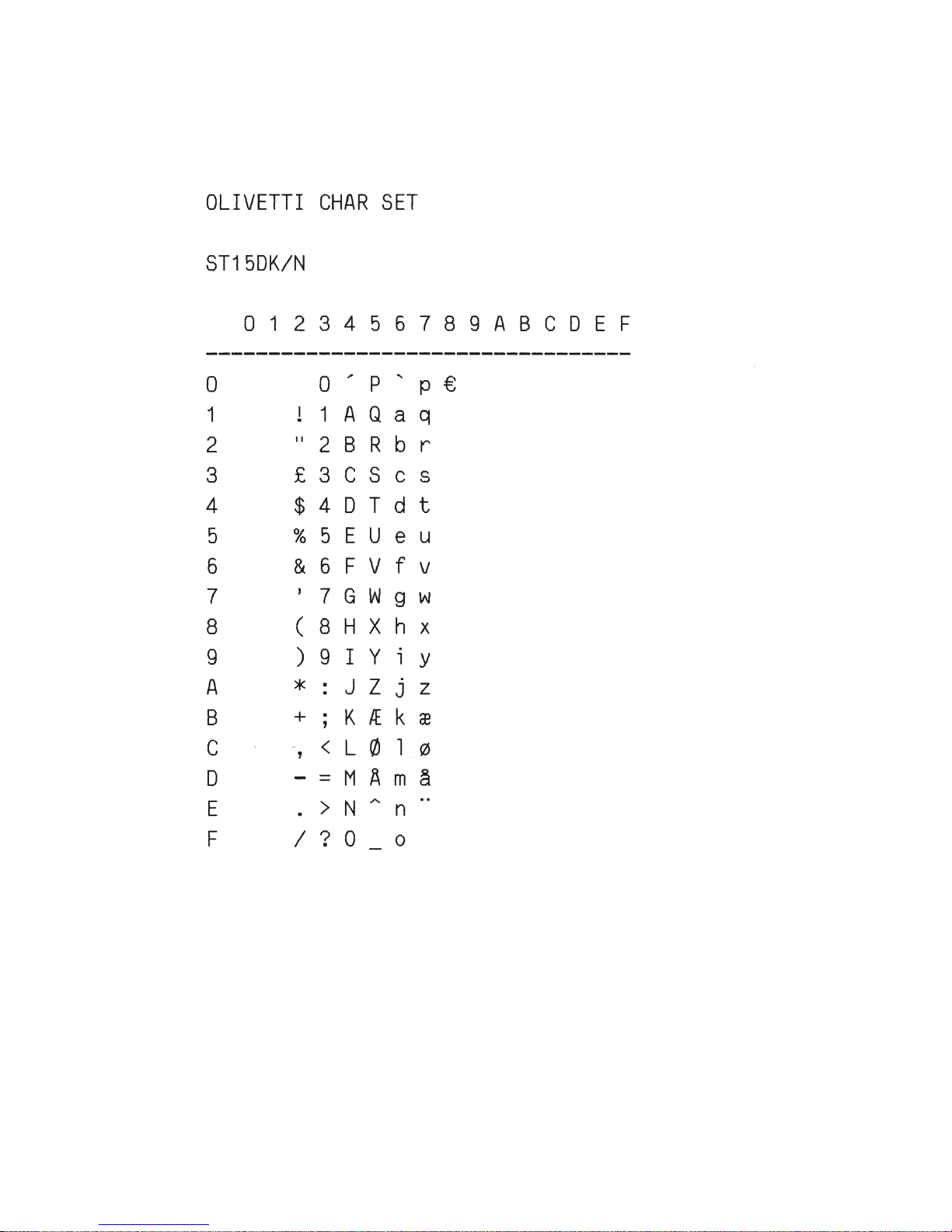

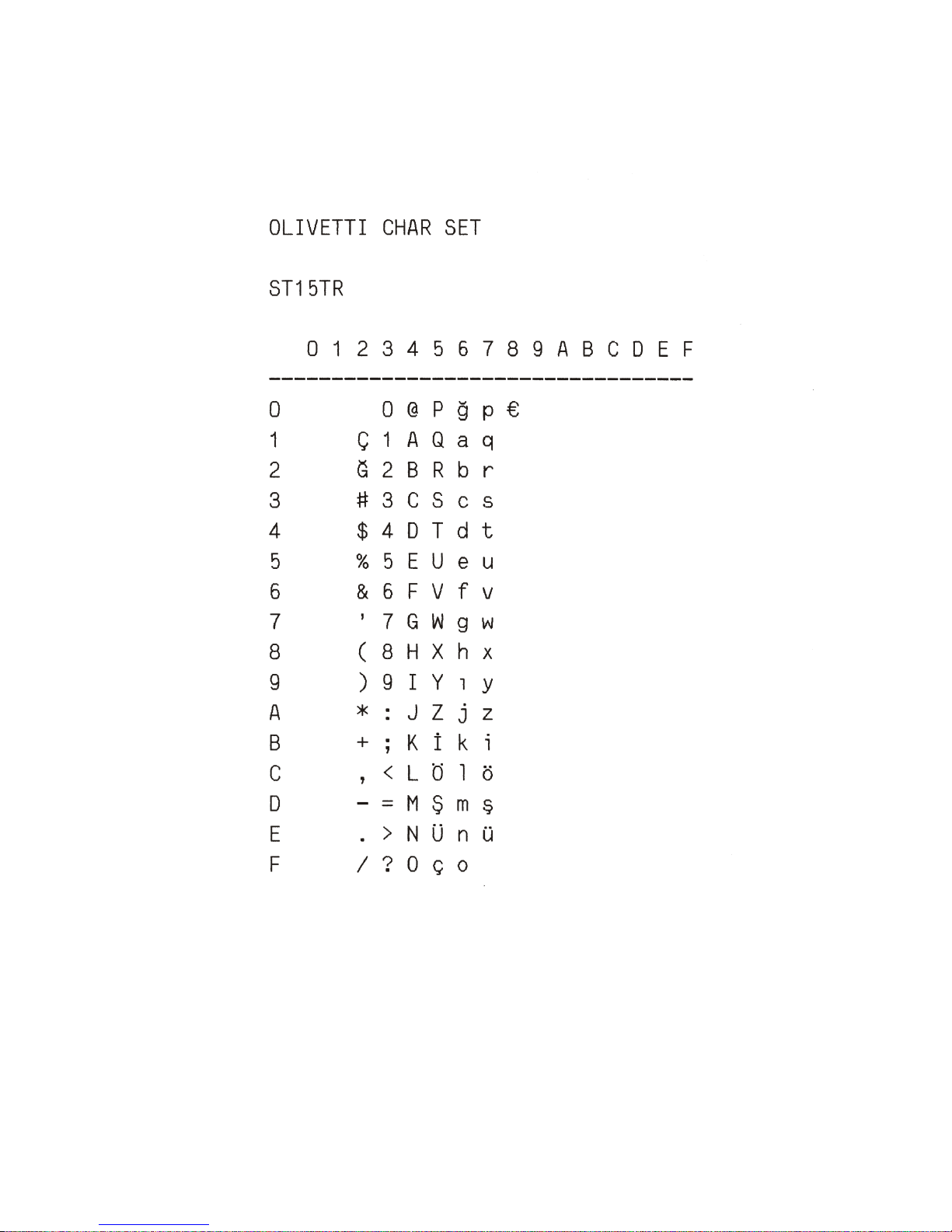

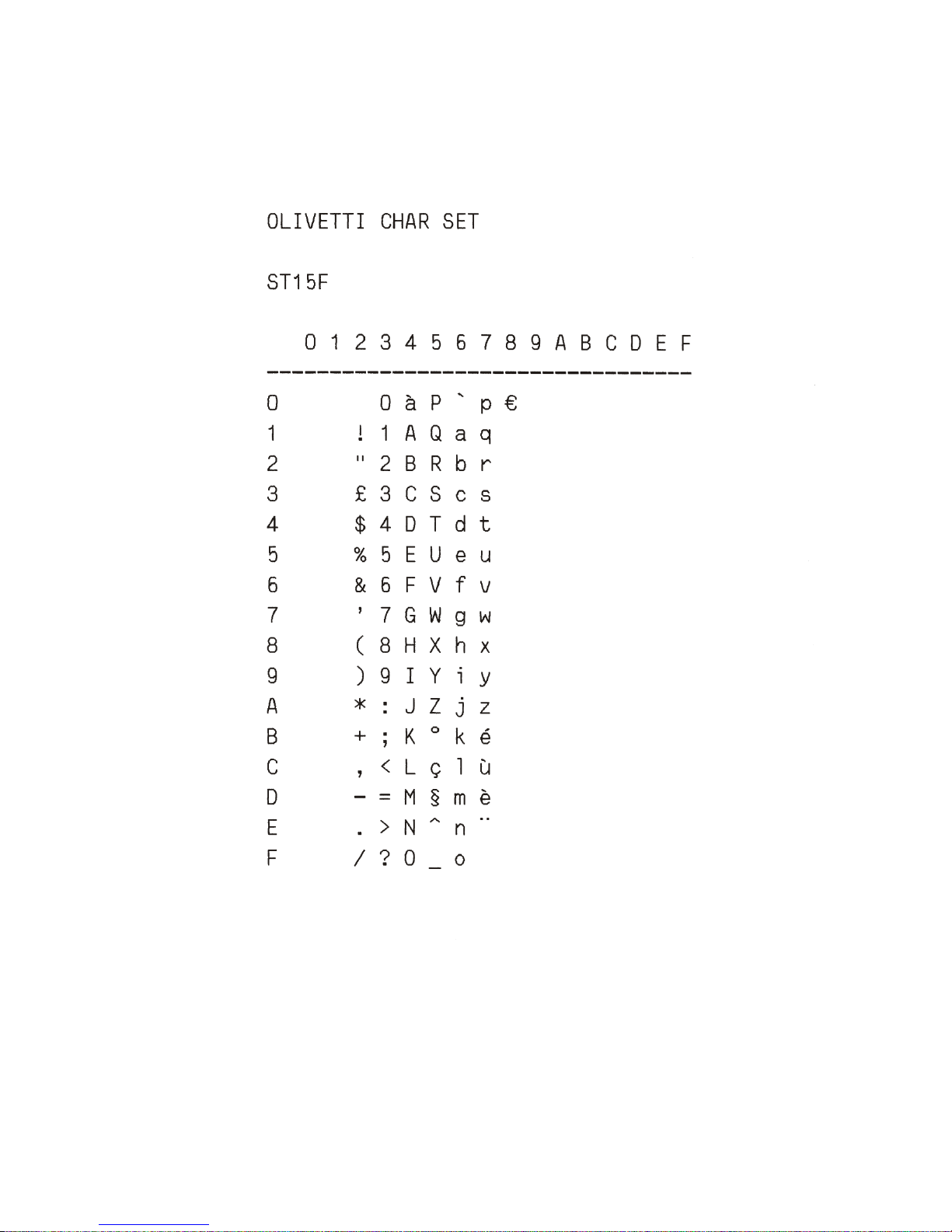

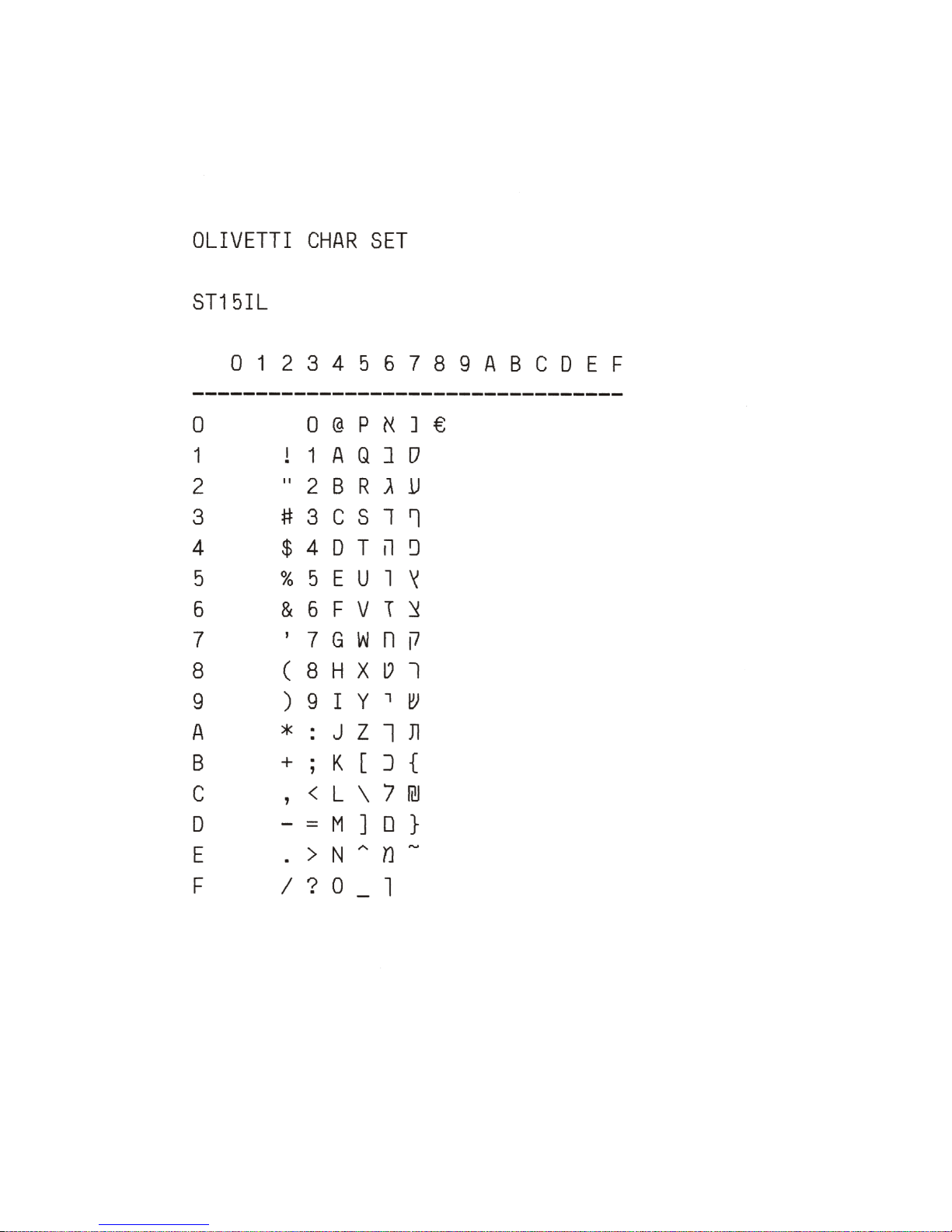

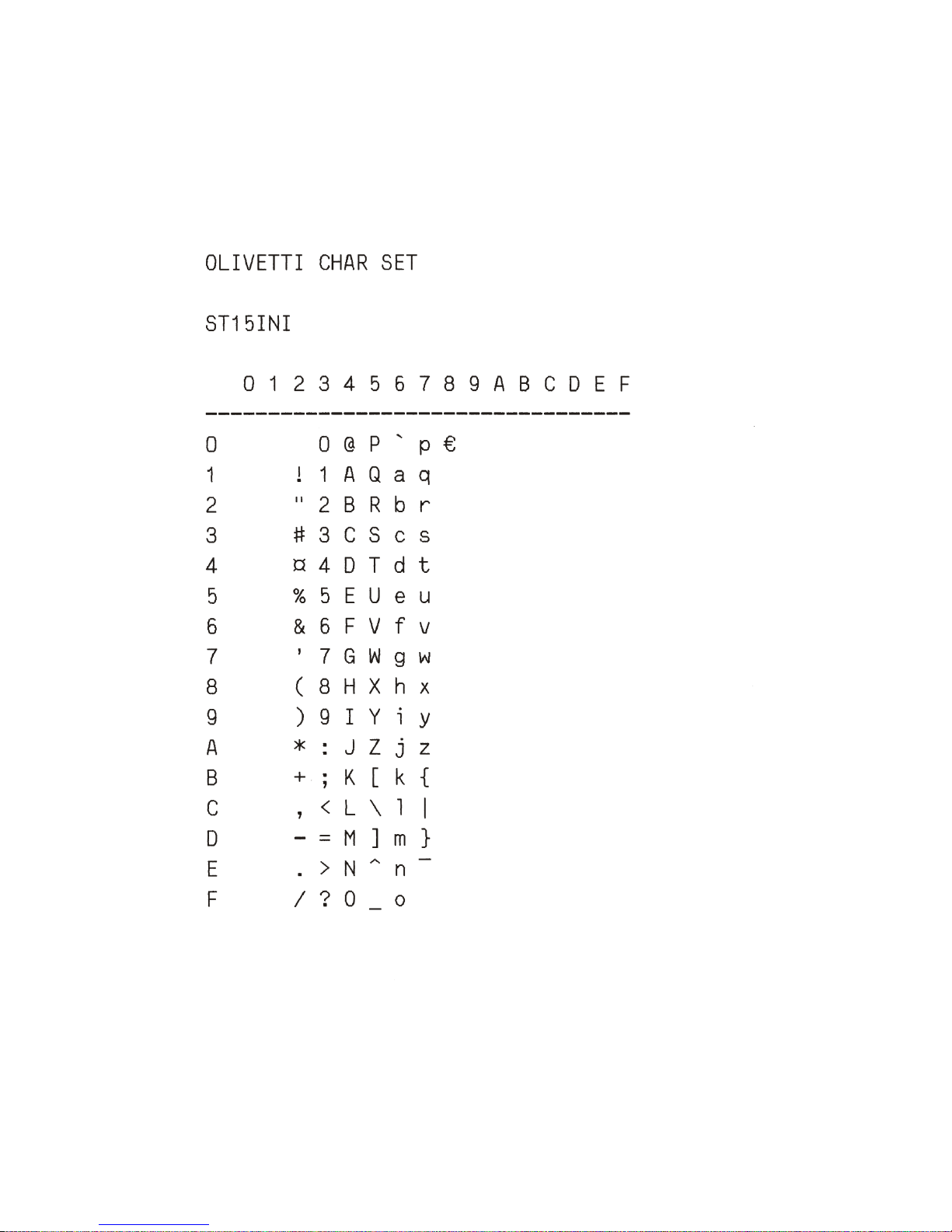

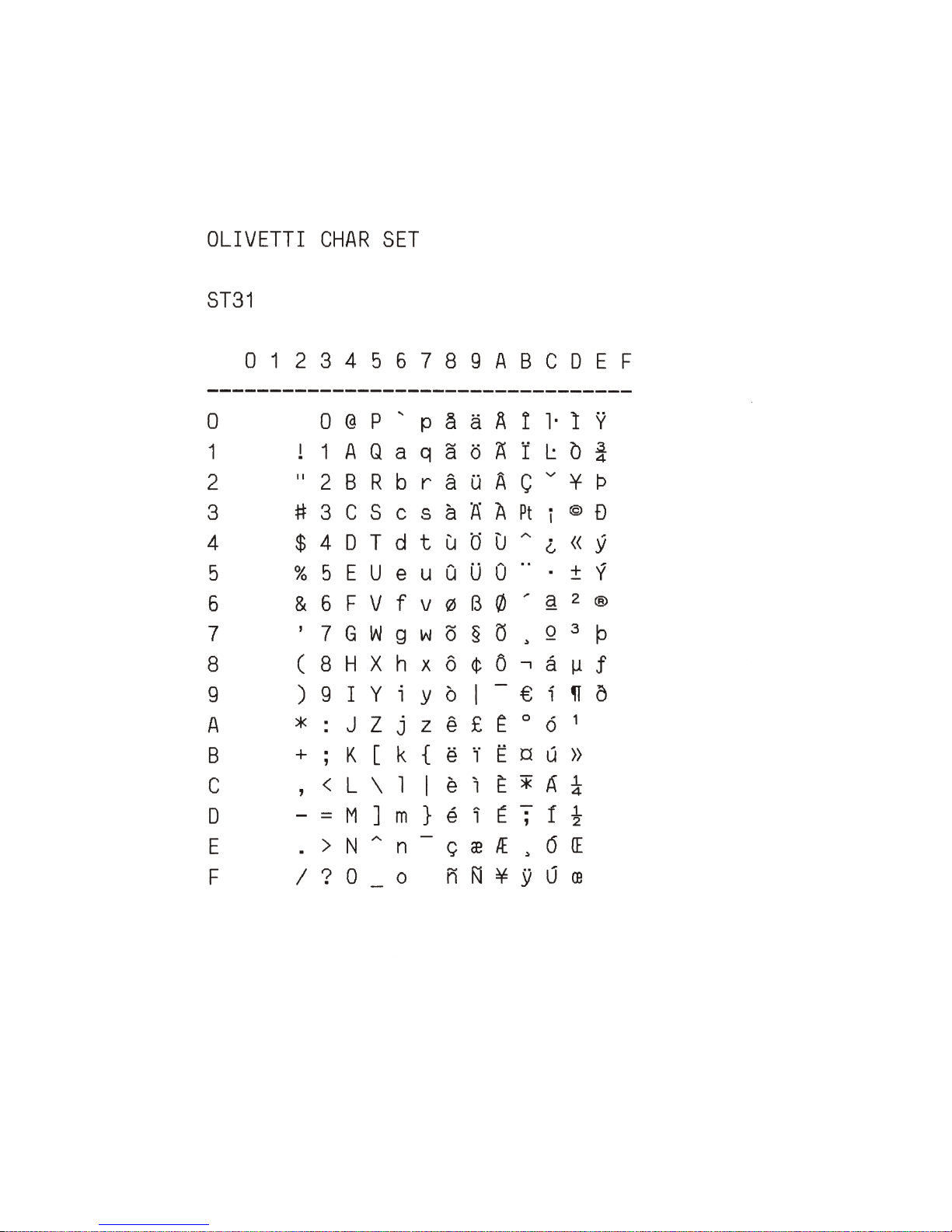

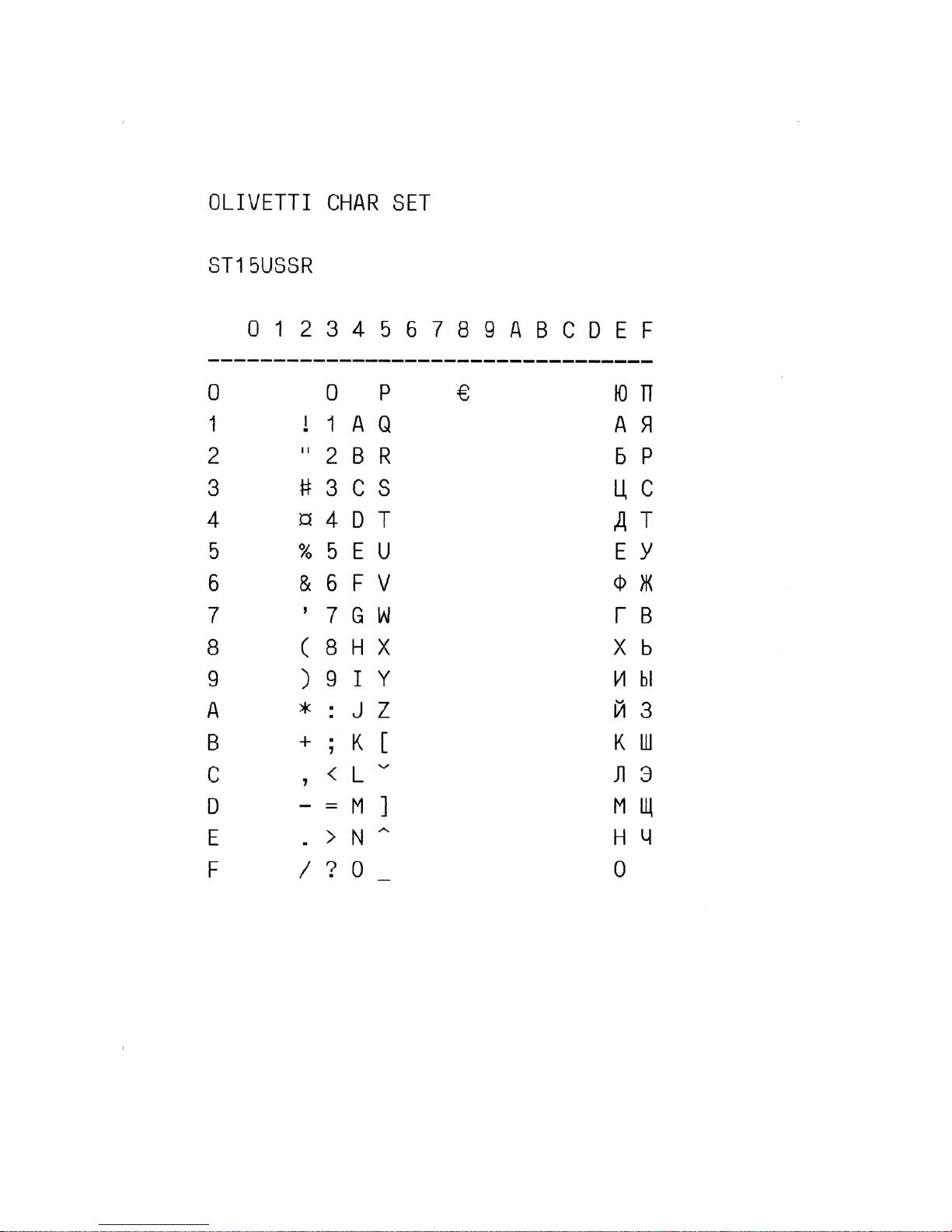

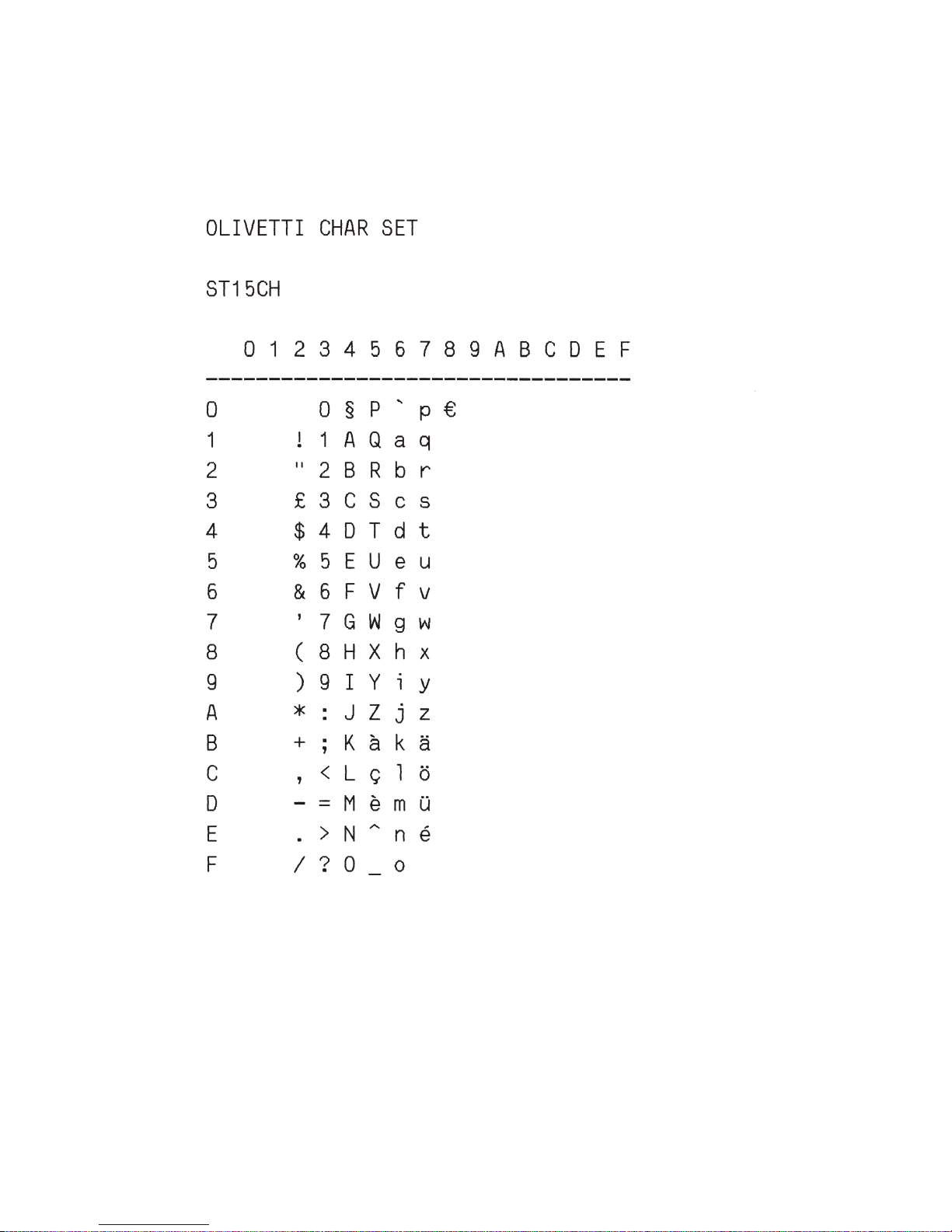

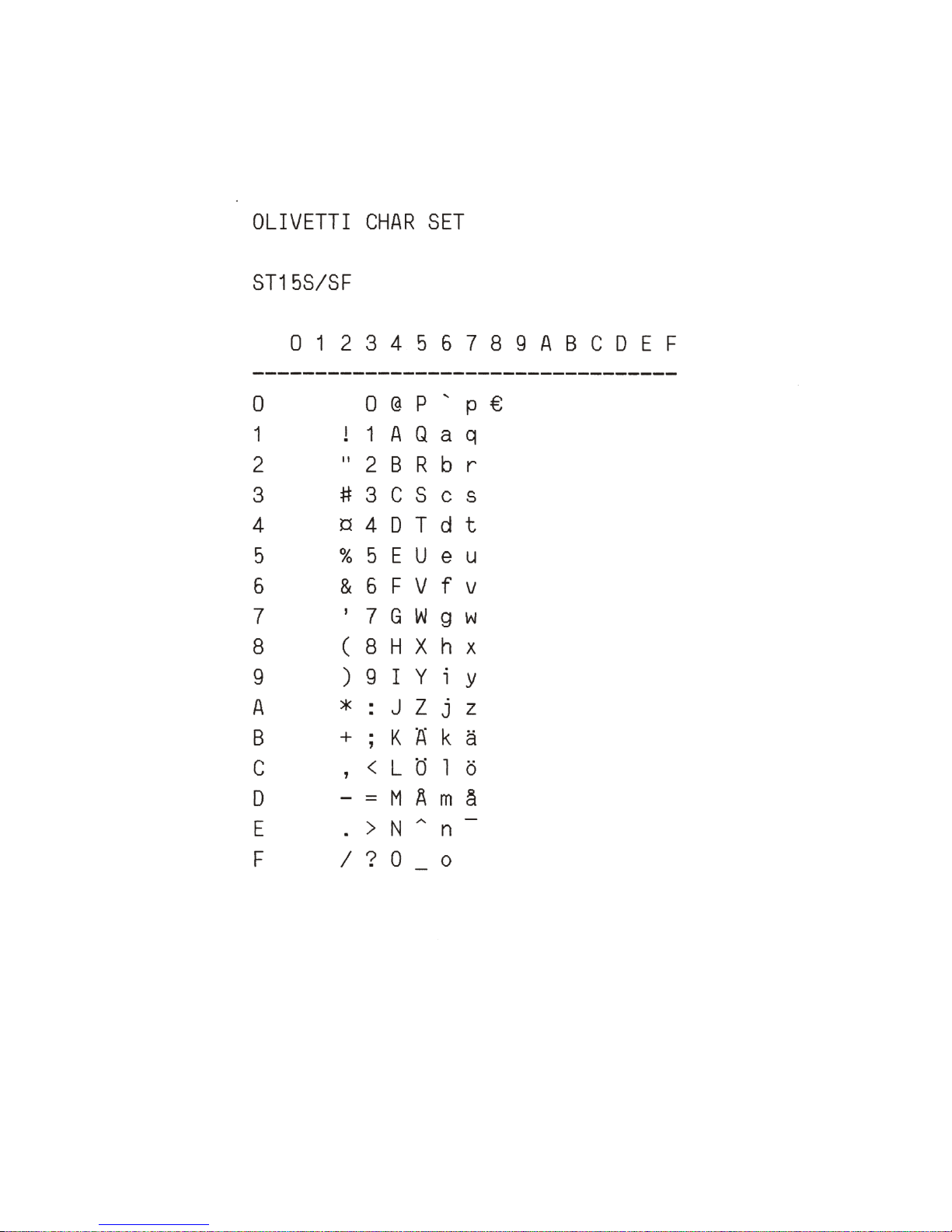

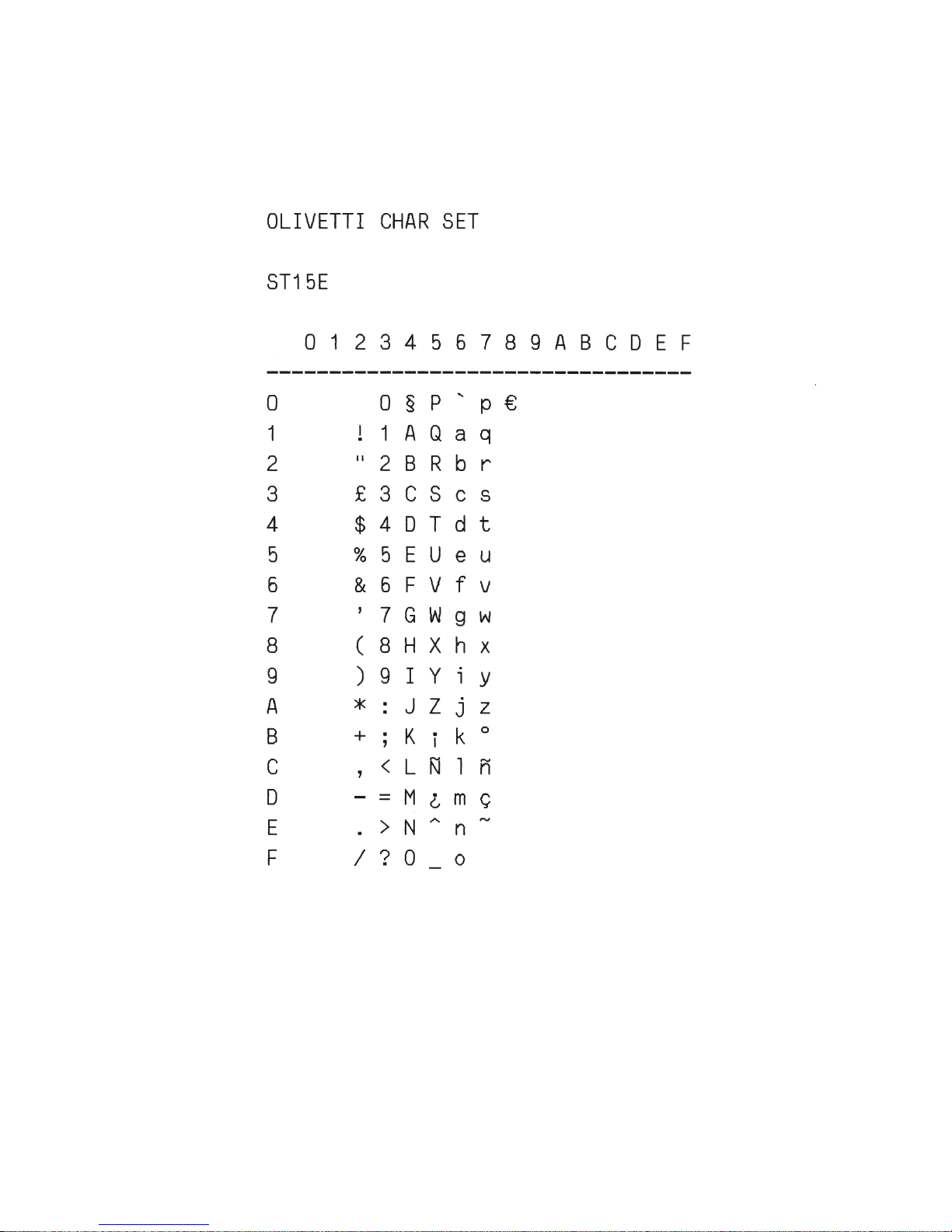

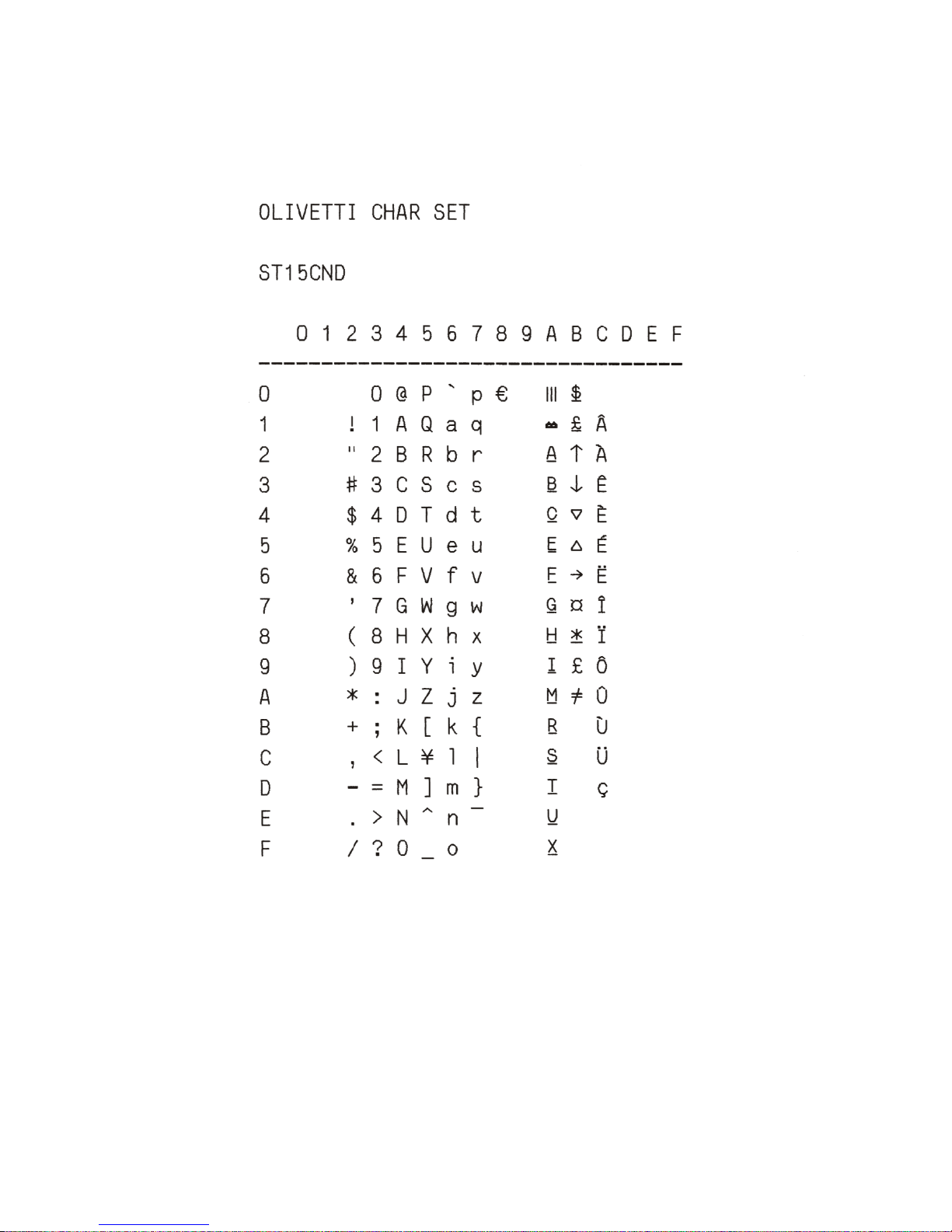

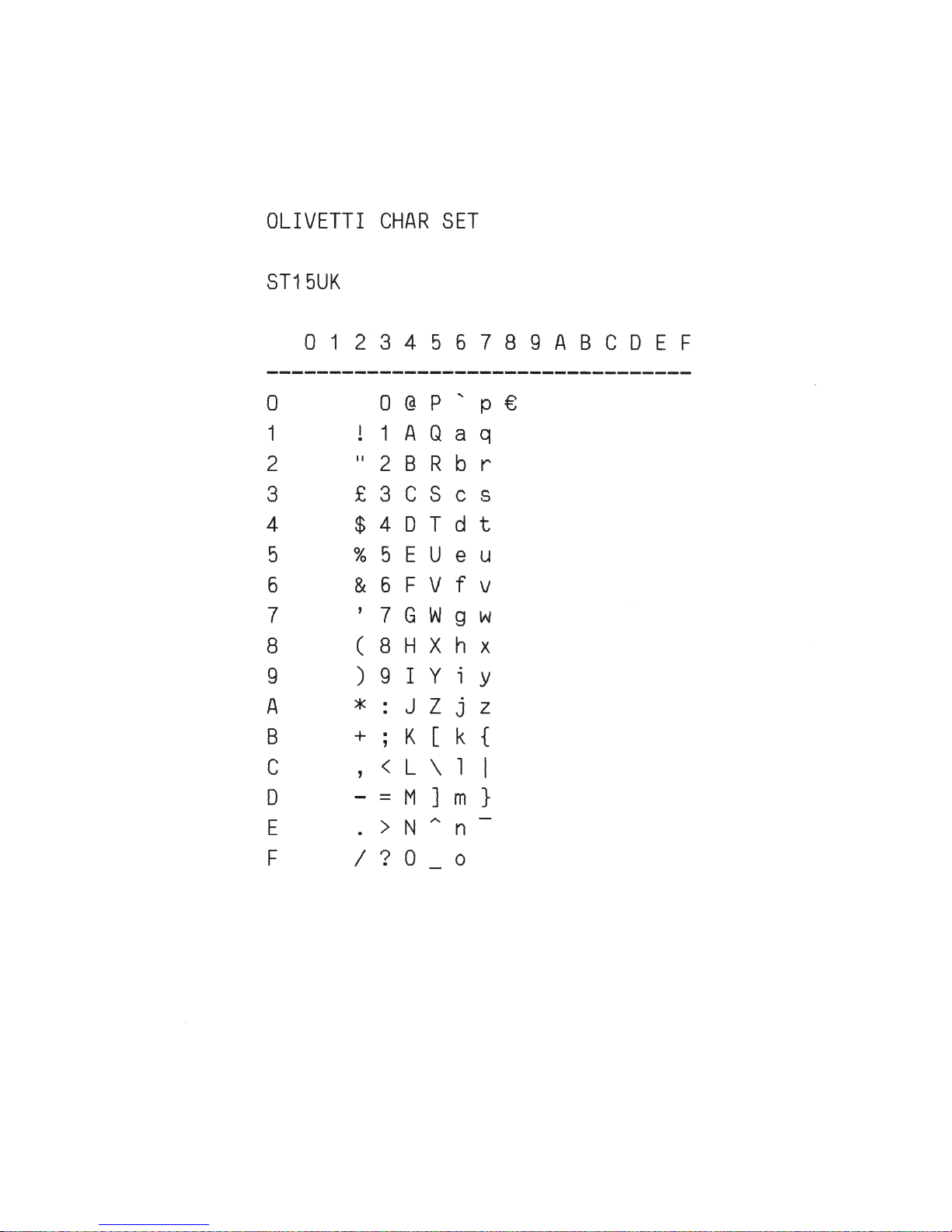

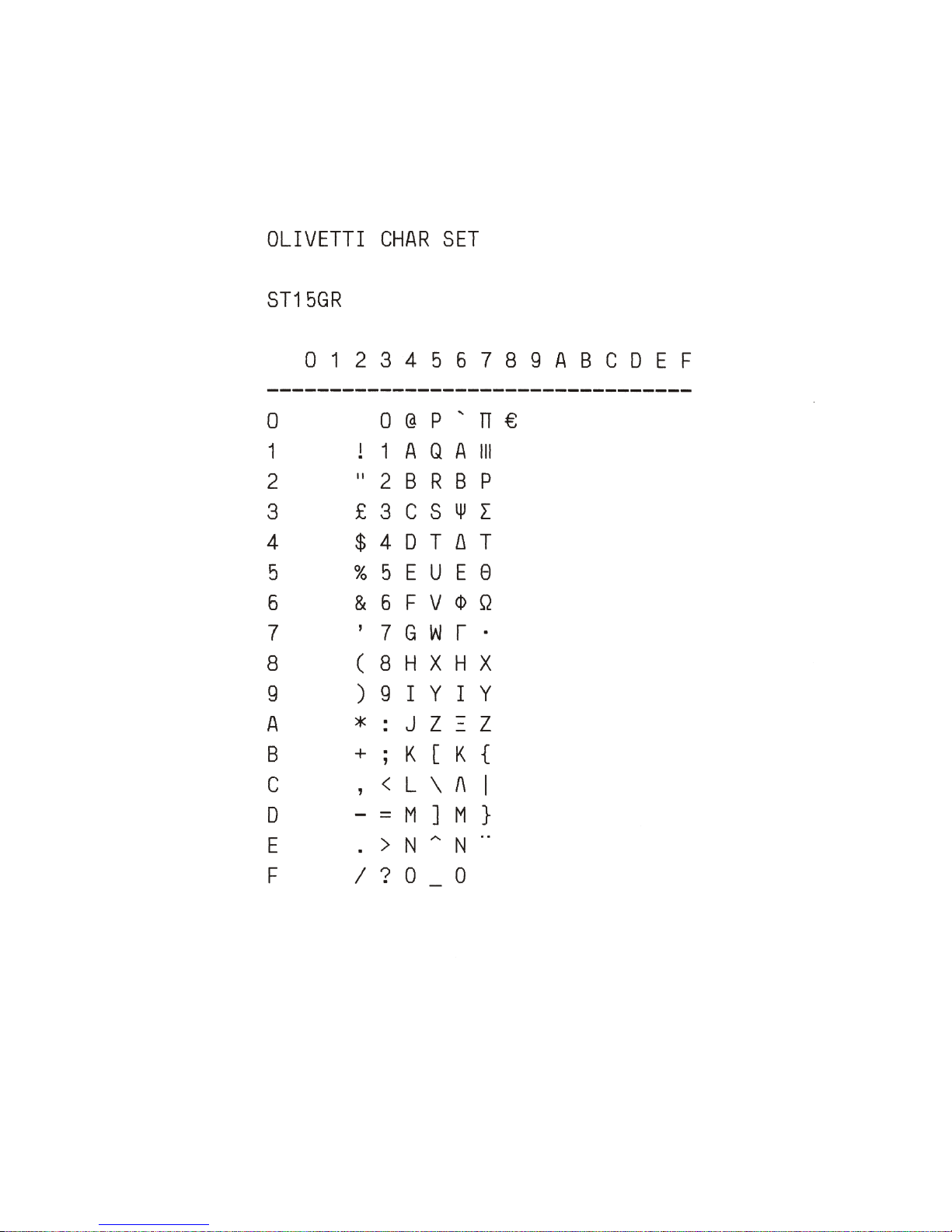

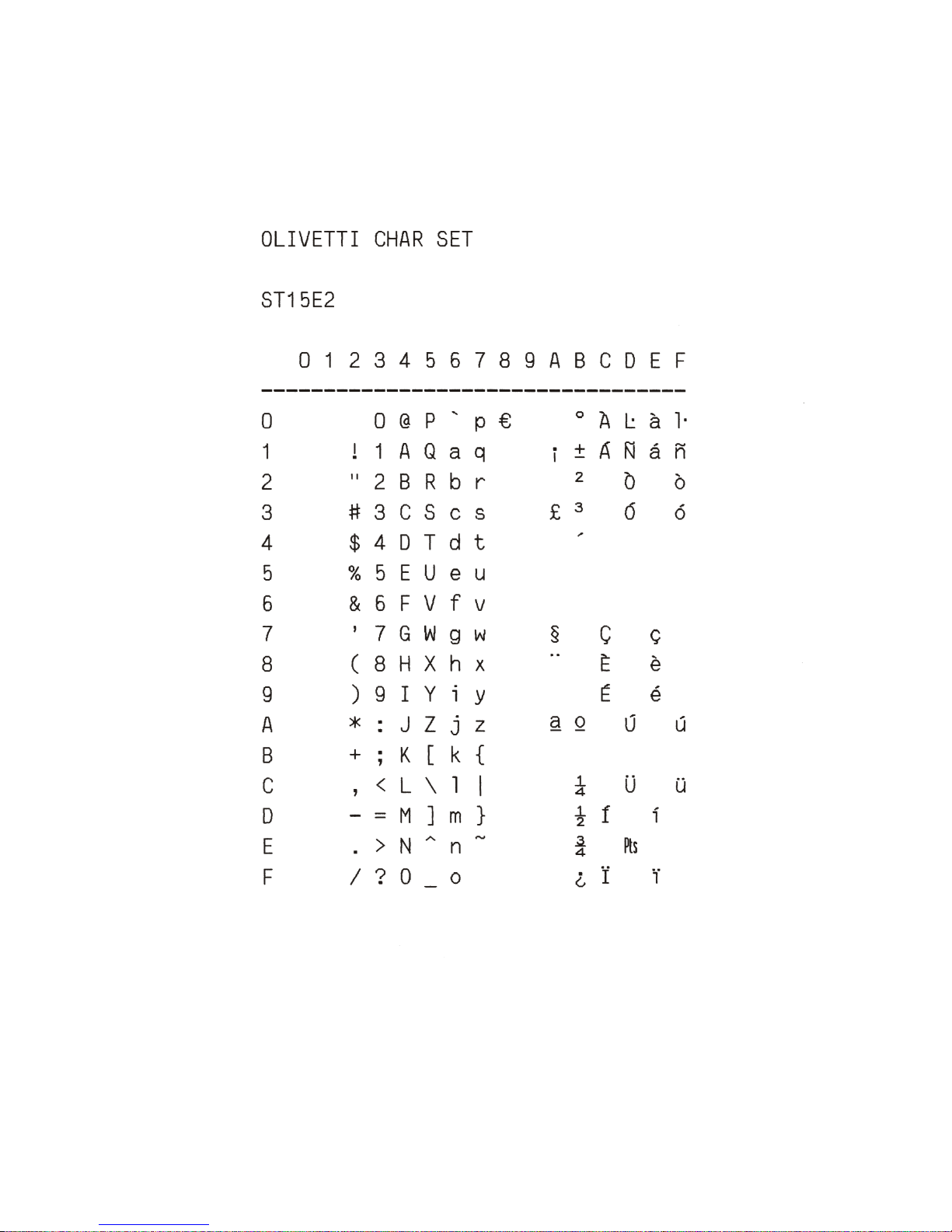

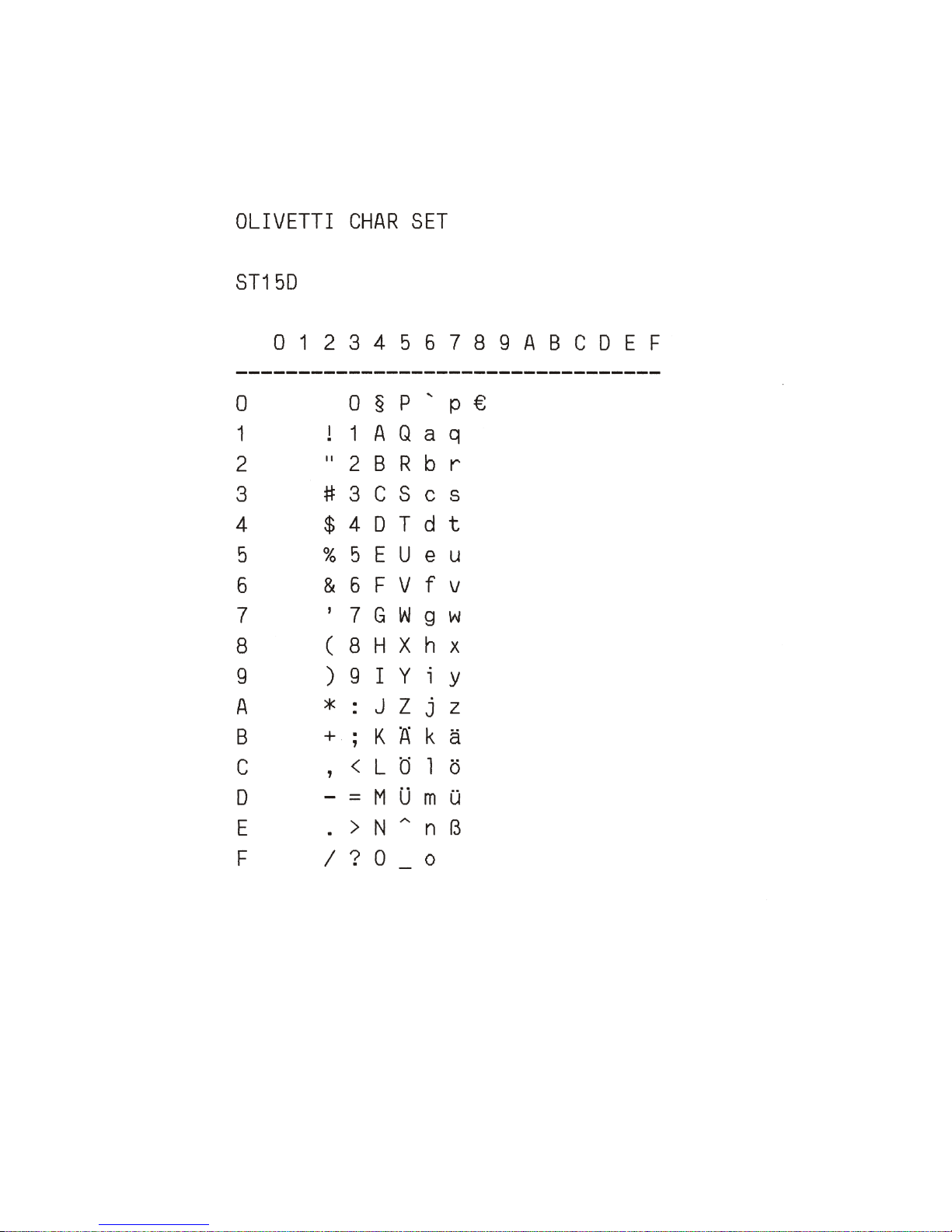

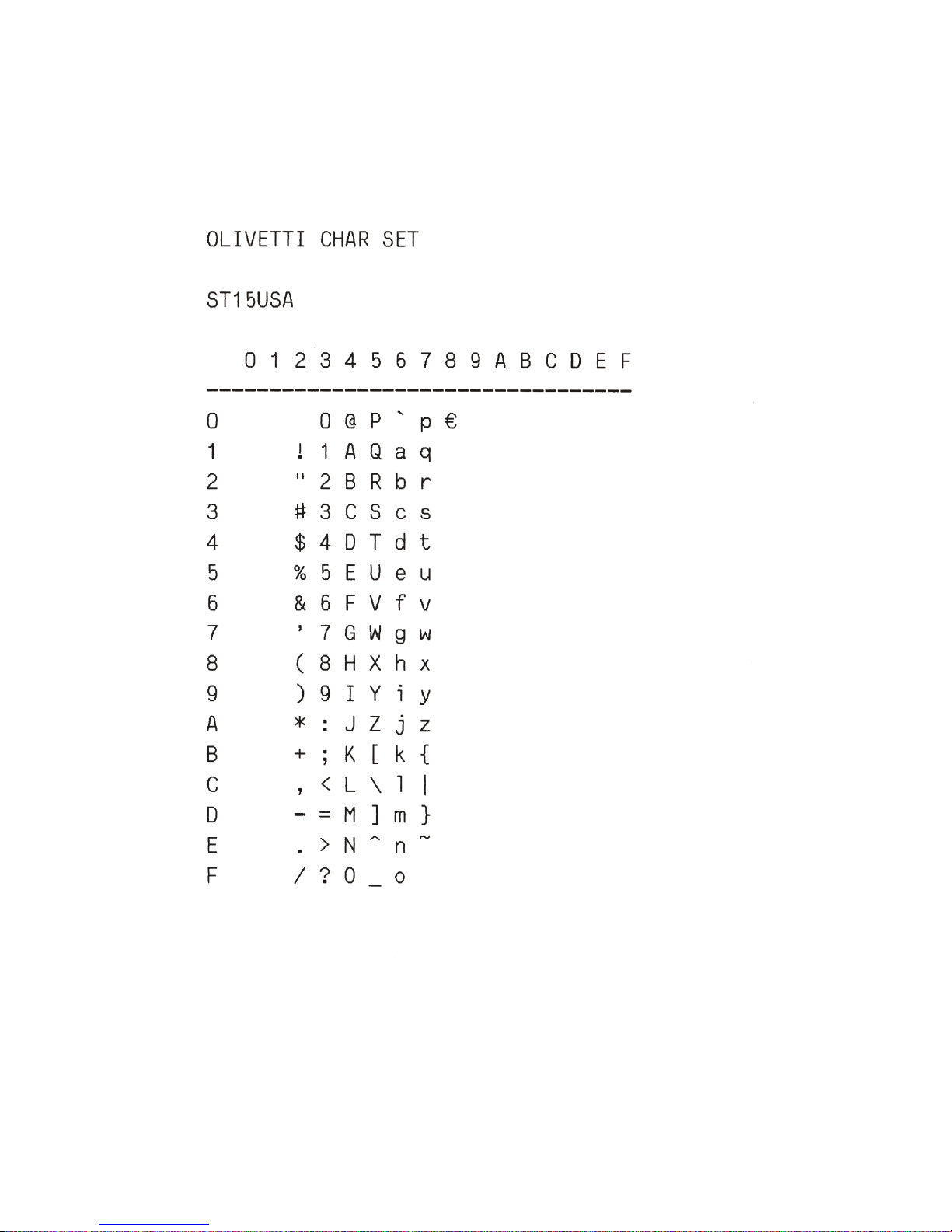

A.1 Olivetti Character Sets .................................................................................................................................... 2

A.2 OCR-A Character Sets .................................................................................................................................... 56

A.3 OCR-B Character Sets .................................................................................................................................... 58

Appendix B OKI-Emulation Commands ................................................................................................. 1

Conventions: ............................................................................................................................................................. 1

B.1 Command Index (By Hex Code) ....................................................................................................................... 2

B.2 Command Description (by function) ............................................................................................................... 6

B.3 Basic Operations ............................................................................................................................................. 6

B.4 Margins .......................................................................................................................................................... 8

Page 7

B.5 Line Feed ........................................................................................................................................................ 9

B.6 Print Position................................................................................................................................................ 10

B.7 Print Pitches ................................................................................................................................................. 11

B.8 Print Attributes ............................................................................................................................................. 13

B.9 Tabulation .................................................................................................................................................... 18

B.10 D.2.8 Graphics .............................................................................................................................................. 19

B.11 Bar Code Mode ............................................................................................................................................. 20

B.12 Other Functions ............................................................................................................................................ 21

B.13 Ignored Commands ...................................................................................................................................... 24

B.14 Chinese Mode ............................................................................................................................................... 26

B.15 Ignored Commands in Chinese Mode ............................................................................................................ 32

B.16 Hex - Decimal Conversion Table ................................................................................................................... 33

Appendix C IBM ProPrinter X24 and IBM ProPrinter II Commands ......................................................... 1

Conventions: ............................................................................................................................................................. 1

C.1 Command Index ............................................................................................................................................. 2

C.2 Command Description (by function) ................................................................................................................ 4

C.2.1 Basic Operations ........................................................................................................................................... 4

C.2.2 Margins ......................................................................................................................................................... 6

C.2.3 Line feed ....................................................................................................................................................... 7

C.2.4 Print Pitches ................................................................................................................................................ 10

C.2.5 Print Attributes ........................................................................................................................................... 11

C.2.6 Tabulation ................................................................................................................................................... 16

C.2.7 Graphics ...................................................................................................................................................... 18

C.2.8 The BIM graphic commands are: ................................................................................................................. 19

C.2.9 Alternate Graphics Mode (AGM) (ProPrinter X24) ....................................................................................... 21

C.2.10 Downloading Customized Characters (DLL) .................................................................................................. 23

C.2.11 Other Functions ........................................................................................................................................... 28

C.2.12 Hex - Decimal Conversion Table .................................................................................................................. 30

Appendix D EPSON LQ-Emulation Commands ....................................................................................... 1

D.1 Command Index (By Code) .............................................................................................................................. 2

D.2 Command Description (by function) ................................................................................................................ 7

D.3 Basic Operations ............................................................................................................................................. 7

D.2.1 Margins ......................................................................................................................................................... 8

D.2.2 Line Feed ..................................................................................................................................................... 10

D.2.3 Print Position............................................................................................................................................... 12

D.2.4 Print Pitches ................................................................................................................................................ 13

D.2.5 Print Attributes ........................................................................................................................................... 14

D.2.6 Tabulation ................................................................................................................................................... 19

D.2.7 Graphics ...................................................................................................................................................... 21

D.2.8 Other Functions ........................................................................................................................................... 23

D.2.9 Ignored Commands ..................................................................................................................................... 24

D.2.10 Chinese Mode ............................................................................................................................................. 27

Note: This mode is the power on mode. ................................................................................................................. 29

D.2.11 Hex - Decimal Conversion Table .................................................................................................................. 33

Appendix E OLIVETTI Emulation Commands ........................................................................................ 1

Conventions: ............................................................................................................................................................. 1

E.1 Control Commands ......................................................................................................................................... 2

E.1.1. Chinese Mode Control Commands ................................................................................................................. 2

E.1.2. Medium Control Commands .......................................................................................................................... 2

E.1.3. Character Spacing Commands ....................................................................................................................... 2

E.1.4. Character Attribute Commands .................................................................................................................... 3

E.1.5. Typing Control Commands ............................................................................................................................. 4

E.1.6. BMP Commands ............................................................................................................................................ 4

E.1.7. User Defined Character Commands ............................................................................................................... 5

E.1.8. Printer State Control Commands ................................................................................................................... 5

Page 8

E.1.9. Bar Code Control Commands ......................................................................................................................... 6

E.1.10. Equipment Set Commands ............................................................................................................................ 6

E.1.11. Hex - Decimal Conversion Table .................................................................................................................... 7

Page 9

About this Manual

This manual covers the printer in combination with an interface module.

The interface is an integral part of the printer, and the type of interface used significantly influences the behaviour or operation of the printer.

The structure of this manual is such that the operator is led step-by-step through the various procedures. It starts with the unpacking and setting-up, moves on to detailed instructions for operating the printer and ends with the mounting of options.

The manual is divided into the following chapters:

Getting Started

This chapter covers the unpacking and setting-up of the printer and the installation of the ribbon cassette. By the end of this chapter the printer should be fully functional and tested in its primary form. It is not yet connected to the host computer system and no options are mounted.

Operating the Printer

This chapter discusses in great detail the operation of the operator panel, all menu functions, and the general operation of the menu.

Configuring the Printer

This chapter explains how to configure the printer so that it can communicate with the corresponding system environment. Then this chapter thoroughly describes the printer's operating controls. In the last part you will find tables with the possible values of the menu items. In this chapter you will also find a detail explanations of individual menu items.

Maintenance

This chapter shows how to clean the printer and how to remove the Alignment Unit.

Options

This is a description of the available options, the Tractor Unit and the USB Port.

Technical Data

All technical details or data about the printer can be found here.

Interface Description

This chapter gives hints about possibilities to connect the printer to the various computer systems and explains particularities depending on the version of the operating system. Additionally, cable connection is illustrated.

Firmware Update

PSi will advise users to update the printer’s firmware irregularly to strengthen PR 9’s functions.

Page 10

Preface

Trouble Shooting and Diagnostics

Suggests how to identify and correct simple problems.

Appendix

Character Set Table All printer supported character sets are listed in this chapter.

Oki Emulation Commands Quick reference for Oki Printer Emulation.

IBM ProPrinter Emulation Commands Quick reference for IBM ProPrinter X24 and IBM ProPrinter II Emulation.

EPSON LQ Emulation Commands Quick reference for EPSOM LQ Emulation.

OLIVETTI Emulation Commands Quick reference for Olivetti Emulation.

Conventions Used in this Guide The following conventions are used:

Bold Headlines and important information.

Note: Contains special advice to facilitate handling.

Caution: Contains important information to prevent damage of the equipment.

[STOP ] Key functions are always depicted in brackets.

Abbreviations and Acronyms

DRAFT Draft Quality HSD High Speed Draft LCD Liquid Crystal Display LED Light Emitting Diode LQ Letter Quality MACRO User defined group (1 up to 3) of stored parameter NLQ Near Letter Quality PH Print Head

Page 11

VIII

Getting Started

4.1 Unpacking

Check each item against the check list detailed below. Contact your supplier immediately if any item is missing or damaged.

4.1.1 Delivery Contents Printer PR 9

Check each item against the check list detailed below. Contact your supplier immediately if any item is missing or damaged.

1. Printer PR 9 (1)

2. Power Cord (2)

3. PR 9 Cartridge (Ribbon Cassette) (3)

4. Printout of the User's Manual (4)

5. Printout of the default menu configuration (5)

6. CD-ROM with a PDF format of the User's Manual and additional information (6)

3 2 6

Page 12

1-2

4.1.2 Requirements to the location of the printer

Environmental Conditions

This printer is designed to be installed in a typical office environment. We claim that customer must follow these operation explanation as below for printer’s well working status and safety of operator:

 Install the printer in an area away from any heat source, air conditioner, or strong

airflow.

 Avoid installing the printer where it is exposed to moisture or heat (eg. direct sunlight).  Avoid installing the printer in a dusty or humid environment.  Do not put printer to the high temperature, shake or wet environment. And no exposure

direct sunlight. For example boiler, humidifier or fridge.

 Position the Printer on a stable level surface.

Preconditions for Installation

 Place the printer on the stand or a table.  When processing fanfold paper always place the printer with its front edge slightly off

the

edge of the table.

Power Requirements

 No special wiring is required. A typical office wall outlet is sufficient. Make sure that the

electrical wall outlet to which the printer is connected has a valid ground and that it is able to supply the power needed by the machine.

 Do not plug into the same wall outlet other equipment besides the printer such as

coffee machines, copy machines, or air conditioners.

Page 13

1-3

Getting Started

4.1.3 A First Look at the Printer

4.1.4 Front View

 Top Cover (1)  Operator Panel (2)  Display (3)  Front Paper Feeding Platform (4)  Power Switch (5)  Bottom Frame (6)

4.1.5 Rear View

 Serial Interface Connector (7)  Option Interface Board Slot (8) for detail see chapter 5 Options  Rear Paper Feeding Path (9)  Power Cord Socket (10)  Electrical Label (11) 

1 2 3

Page 14

1-4

Getting Started

4.1.6 Remove Transport Lock

Note: Please do not connect the printer's power cord at this moment, otherwise the

printer may be damaged permanently.

 Open the top cover (1) first.  Remove the black iron clip (2) and yellow label, from the print head carriage.  Take out the four foam-rubber cushions (3) which on the both sides of carriage.  Remove the foam-rubber cushions (4) to the front by lifting up.

Re-packing Information

To ensure maximum protection when transporting the printer, always:

 Remove the mains cable.  Remove the ribbon cassette.  Reposition the transport lock.  Pack the printer in its original packing material and ship in its original package.

Page 15

1-5

Getting Started

4.1.7 Ribbon Installation

 Take out the ribbon Cassette (1) from plastic wrapping bag.

Details of the Ribbon Cassette (1):

 Active Wheel (2)  Fixation Pin (3)  Fixation Block (4)  Ribbon (5)  Ribbon Guide (6)

Installing:

 Power the printer on.  Remove the Ribbon Guide (6) by sliding down from the Ribbon Cassette (1).  Open top cover.

 Swivel the green print unit lift handle (9) backwards to lift the print unit entirely.  Move print head (10) to the center.  Insert the fixation pins (3) at the both ends of ribbon cassette (1) into the slots (11) at

both ends

of print unit frame.

 Try to push ribbon cassette (1) by rotation as shown in the picture above.  Press the ribbon cassette fixation block (4) into both ends slot of print unit until you

hear a

“CLICK!!!”.

2 3 4 1 3

Page 16

1-6

Getting Started

 Insert ribbon guide (6) into print head (10) and press it up to make sure that the two

taps (12) on the ribbon guide (6) have been fixed.

 Move the print head (10) to the right and left side until the ribbon is tight.

 Swivel the green print unit lift handle (9) to let print unit back to its normal Position.  Close top cover.

CLICK!!!

Page 17

1-7

Getting Started

4.1.8 Mains Connection and Power On

WARNING: Before plug the power cord into the electrical wall outlet and power on the

printer, voltage rating

indicated on the electrical data plate must be checked to correspond to the local mains.

Note: Power switch (3) must be in off position.

 Connect the printer to the mains using the power cord (2).  First connect the cable to the power cord socket (1) and then to the mains.  Do not plug into the same wall outlet other equipment besides the printer such as

coffee machines, copy

machines, or air conditioners.

Page 18

1-8

Getting Started

The operator can press down front power switch (3 in figure before) to power on printer now.

After power on:

 The ON (1) indicator will be light up  After a short delay the READY (2), STATION 1 (3), and STATION 2 (4) indicator will

be all lighted.

 Several seconds later the print head start initialization action. You hear a sound of the

movement.

 Only ON indicator will be light after initialization has been finished.

Note: Any printing medium in the printer paper path will be ejected. The display shows the message:

*) The interface and the associated emulation is dependent on your order.

PARALLEL+USB BEREIT

1 2 3

PARALLEL+USB BEREIT

Page 19

1-9

Getting Started

4.1.9 Print Test

4.1.10 Selftest

The following steps show which keys to use to start a test printout.

KEY / or action DISPLAY

[STATION 2]

and

[COMPRESS ] (synchronously)

OFF-LINE MODE

MENU SETUP

[COMPRESS ]

OFF-LINE MODE MENU PRINTING

[STOP ] MENU PRINTING INSERT A4 SHEET

After feeding an A4 paper the printer will start MENU PRINTING process automatically if the operator put the PRINTING; WAITING... print medium into the paper feeding path. The user needn’t align the print medium with the left or right border of the printer. The printer itself will look after the alignment.

If printing finished, printer will eject paper. MENU PRINTING PRINTING; WAITING...

[STATION 2] MENU PRINTING FINISH; PRESS STAT2

[STATION 2] OFF-LINE MODE MENU PRINTING

[STATION 2]

and

[COMPRESS ] (synchronously)

PARALLEL+USB

ON-LINE

Note: A sample of the Menu Printing you will find on the next page.

After feeding an A4 paper the printer will start if the operator put the into the paper feeding path. The user needn’t align the print medium with the left or right border of the printer. The printer itself will look after the alignment.

If printing finished, printer will eject paper. PRINTING; WAITING...

Page 20

Getting Started

4.1.11 Selftest Printing Contents

For different menu setup configuration, there will be different printed out self test printing contents. Concerning your printer’s menu configuration please refer to printer packing enclosed sheet.

1-10

Page 21

Getting Started

1-11

4.1.12 Dr. Grauert (print a letter)

The following steps show which keys to use to start a test printout.

KEY / or action DISPLAY

[STATION 2]

and

[COMPRESS ]

OFF-LINE MODE

(synchronously) MENU SETUP

[

]

OFF-LINE MODE MENU PRINTING

[COMPRESS ]

OFF-LINE MODE PRINTING TEST

[STOP ] PRINTING TEST

USER'S GUIDE

[COMPRESS ]

PRINTING TEST

up to the message Y Dr. Grauert [STOP ] Dr. Grauert

INSERT A4 SHEET

After feeding an A4 paper the printer PRINTING TEST processes the printing. PRINTING; WAITING...

If printing finished, printer will eject paper. PRINTING TEST

FINISH, PRESS STAT2

[STATION 2] PRINTING TEST

Dr. Grauert

[STATION 2]

and

[

]

PR9 SERIAL1 OLIVETTI

(synchronously) ON-LINE

Eilzustellung

Norddeutsche Farbwerke KG Herrn Dr. Grauert Große Elbstraße 64

2000 Hamburg 4

Org. III 5/37

H-A

4 34

22.04.75

17.04.75

Volkmann

Vordruckgestaltung für den allgemeinen Schrift- verkehr, für das Bestell- und Rechnungswesen E i l t

Sehr geehrter Herr Dr. Grauert,

Sie können das Schreiben der Briefe, Bestellungen, Rechnungen usw. sowie das Bearbeiten des Schriftguts rationalisieren, wenn die Vordrucke Ihres Unternehmens den folgenden Normen entsprechen:

DIN 676 Geschäftsbrief; Vordrucke A4 DIN 677 -; Vordruck A5 DIN 679 Geschäftspostkarte; Vordrucke A6

DIN 4991 Vordrucke im Lieferantenverkehr; Rechnung DIN 4992 -; Bestellung (Auftrag) DIN 4993 -; Bestellungsannahme (Auftragsbestätigung) DIN 4994 -; Lieferschein/Lieferanzeige DIN 4998 Entwurfsblätter für Vordrucke

Diese Normen enthalten alle Einzelheiten für den sinnvollen und zweckmäßigen Aufdruck. Wenn dazu bei der Beschriftung genormter Vordrucke DIN 5008 'Regel für Maschinenschreiben' beachtet wird, entstehen übersichtliche und werbewirksame Schriftstücke.

Die beifgefügten 6 Mustervordrucke zeigen, daß das Beachten der Normen die künstlerische und werbewirksame Gesta ltung der Vor- drucke nicht ausschließt.

Da wir uns auf die Herstellung genormter Vordrucke spezialisiert haben, können wir besonders billig liefern. Eine Probestellung wird Sie und Ihre Geschäftsfreunde von den Vorteilen überzeugen.

Mit bester Empfehlung NORAG Druckerei und Verlagshaus KG

Herrmann Anlagen

Mustervordrucke

Page 22

1-12

Printer Operation

4.1.13 Connection to the System

4.1.14 Serial/Parallel Interface

 Switch the printer and the computer OFF.  Connect the interface cable coming from the computer to the printer's standard

RS232 C

serial (1) port or to the optional Centronics Parallel (2) port.

 Interface

Dual Interface

 Baud-Rate (RS1)

9600 BPS

 Bits/Characters (RS1)

8 bit

 Parity (RS1)

None

 Stop Bits (RS1)

 DSR (RS1)

After powering the printer ON both interfaces, serial and parallel, are available for data transfer due to the shared mode. The port to which data is sent becomes active automatically.

4.1.15 Installing the Printer Drivers

 You will find the printer drivers on the CD-ROM.

Page 23

Printer Operation

PriP

5-1

Printer Operation

5.1. Operator Panel

The Operator Panel

 controls the set-up for communication with the host computer;  controls various parameter settings;  allows manual control of the paper handling;  gives information about the printer's status.

1 Two lines Liquid Crystal Display (LCD) Display

The LCD Display (1) indicates the current status of the Printer. If any error occurs (e.g. PLEASE CLOSE COVER) the corresponding error message will be displayed. The green LED (2) lights only if the Printer is powered on and in the On-line Mode.

Light Emitting Diode (LED)

2 Online LED 3 Ready LED (flashing if receiving data) 4 Station 1 LED (user 1 active; only lighting up if a second serial Interface is

installed and a special software is working) 5 Station 2 LED (user 2 active; only lighting up if a second serial Interface is installed and a special software is working)

Page 24

Printer Operation

5-2

5.2. Function Keys

The five function keys operate differently in the on line or off line mode. Please refer to the following table for details when pressing the function keys.

If the Printer is powered on, the display shows in line two ON-LINE and the green LED (2) lights. The Printer is in the On-line Mode and ready to receive and print data.

On-line Mode / Off-line Mode

In this mode only the [STOP key is active and the green LED (2) lights. By pressing the key the Printer changes into the Off-line Mode or back into the On-line Mode .

Menu-Mode

To set the Printer into the Menu-Mode, press the [STATION 2] and [

] together. Depending on

the state of the Printer the four right hand keys have multiple functions. For further information see paragraph 2.5 Menu-Mode.

Function Key

On-line

Off-line

Menu-Mode

[STATION 1]

 assign Printer to

user 1 (only active if a second serial Interface is installed and with OLIVETTI emulation)

[STATION 2]

Menu-Mode = SKIP

 assign Printer to

user 2 (only active if a second serial Interface is installed and with OLIVETTI emulation)

 hold down the key

during power on, after the Printer resets, insert A4 sheet, the Printer will print current menu parameters

 press together with

[ ] to change into Menu- Mode

 press together with

[ ] to

change from the MenuMode into the On-line Mode

 go back to the next

higher Menu level if there is one, or leave the Menu mode without saving

[FEED/EJECT ]

Menu-Mode = UP or LEFT depending on the actual menu level

 Feed or eject paper

epending on the printing

process

 select in the Menu-

Mode the previous item in the highest menu level

 go up to the next

item

in a selected group

[STOP )

Menu-Mode = ACCEPT

 stop printing and

change to

Off-line Mode

change to Online Mode and continue printing

 O.k. or confirm the

actual

item

Page 25

Printer Operation

PriP

5-3

Function Key

On-line

Off-line

Menu-Mode

[STOP

Menu-Mode = ACCEPT

 stop printing and

change to

Off-line Mode

change to Online Mode and continue printing

 O.k. or confirm the

actual

item

[COMPRESS ]

Menu-Mode = DOWN or RIGHT depending on the actual menu level

 activates or cancels

compression printing

 select the following

item in the highest menu levelgo down to the next item in a selected group

[STATION 2] together with

[COMPRESS ]

 change into the

Menu-Mode

 go back into the

On-line

Mode

[STATION 2] together with

[STOP ]

 in “Data backup”

mode of

HEX PRINTING, the

 Printer will save the

8K data which it received lately in flash memory

[FEED/EJECT ]

together with

[ ]

 in “Data backup”

mode of HEX PRINTING, the Printer will clear all received data which it backs up.

Page 26

Printer Operation

5-4

5.3. Liquid Crystal Display (LCD)

The LCD indicator gives information about the status of the Printer. In general it can be distinguished between:

 ONLINE messages  OFFLINE messages  Menu Information

The LCD has two lines with 20 characters per line. After power on the display shows for example:

 in the upper line: the head line with Selected Macro and the actual Interface  in the second line: the status.

 CX+USB ON-LINE

After pressing the [STOP ] key you get the OFF-LINE message.

 CX+USB OFF-LINE

After entering the MENU MODE by pressing the [STATION 2] and [COMPRESS ]

keys together the

Printer displays:

OFF-LINE MODE MENU SETUP

You can enter the Menu Mode from the On-line or Off-line Mode.

In this state it is possible to use all four keys at the right hand side of the Operator Panel in the way as described in the table in paragraph 2.2 Function Keys.

Page 27

Printer Operation

PriP

5-5

5.4. Load Print Medium

The Printer can deal with single sheet, checks, multi copy carbon paper, passbook and credit card. The Printer will start inserting the sheet automatically when the operator puts the print medium into paper feeding path. Users needn’t bother aligning the print medium with the left or right border of the Printer. The Printer itself aligns automatically.

Note: As soon as the auto alignment process starts after you put in a medium, please

release the medium.

Note: To avoid both poorer printing quality and jam when using a passbook, please make

sure there is no curl or tear on the passbook. In addition, when printing a new passbook, please fold it toward the opposite direction to flatten it before inserting it into the Printer.

5.5. Menu Mode

All selectable features are accessible via the operator panel and combined in the Printer MENU. This feature provides:

 easy configuration (language, etc.)  quick parameter changes  activation of test functions

There are six entry points in the highest level:

 MENU SETUP

Set up the Menu parameters for various modules (common configuration and different emulation) and the important Save function is included.

 MENU PRINTING

Printout of the Menu which is in use.

 PRINTING TEST

A printout of the user's guide, the ASCII character sets, Chinese character set, and character attributes is possible.

 ADJUSTMENT

 DEBUG TEST

Include printing the current settings of the photoelectric sensor, re- setting up the photoelectric sensor and printing the new settings, setting up the left margin, setting up the top margin, alignment adjusting for bi-direction print, and run-in printing etc. A Hexdump-Function is available and a soft test for reading a magnetic stripe.

 INFO INQUIRY

Inquire current parameters settings of both software and hardware, including the version (version number, nonstandard issue tag, special simulation etc.), a hardware configuration (characters generators, optional interface connections, a scanner, the sprocket), PCB ID, firmware check sum etc.

Page 28

5-6

Printer Operation

5.6. To Confirm a Macro Selection and Save the Settings

 Press [STOP ] key; the confirmed value will now be shown in the head line.

MENU SETUP SELECT CURRENT MACRO

 Press [STOP ] key again.

SELECT CURRENT MACRO MACRO1



Now it is possible to scroll up or down with the

[FEED/EJECT ]

[COMPRESS ]

key.

 Save the selected item immediately by pressing the [STOP ] key again.  The display shows:

SELECT CURRENT MACRO SAVING, PLEASE WAIT

 After the saving procedure the Printer changed to the On-line Mode.

5.7. The PR 9 Emulations

The printer PR 9 will be delivered with four different Emulations

 OKI Emulation  EPSON LQ-1600k Emulation  IBM ProPrinter X24 Emulation  P.P.II Emulation  IBM 4722 Emulation

Note: Depending on the selected Emulation you must also select the corresponding

Printer Driver.

Page 29

Configuration the printer

6-1

Configuring the Printer

Main Functions and Entry Points into the Menu The following Main Functions are available:

 Menu Setup

With this function you are able to modify the parameters of the printer configuration.

 Menu Printing

Printout of the Printer ID, a Needle Test and the parameter setting of the three Macros.

 Printing Test

The printing of User’s Guide, ASCII character set, Chinese character set, character attributes, Dr. Grauert (print a letter).

 Adjustment

Printing current photosensor parameters, reset photosensor parameters and printing; adjust left margin, top margin and bi-direction printing, run-in printing, inquire photosensor value, reset hardware parameters.

 Debug / Test

Hex printing (include: data backup, printing backup data, directly dump), magnetic stripe operation (include read and write).

 Info Inquiring

Inquiry the current setting parameters of software or hardware, including a version (version number, special version tag, special emulation, FPGA Version, etc.), hardware configuration (character’s generators, optional interface, scanner, sprockets), printer ID.

Page 30

Configuration the printer

6-2

6.1. What is Configuration?

This chapter describes how to use the operator panel and menu settings to set up or configure your printer, so that the printer and your computer system can communicate correctly with each other.

Communication between the two requires that both, the computer operating system and the printer have the same communication settings or features. The most important of those are:

 bit/character,  baud rate,  parity,  stop bits,  DSR.

You may also need to change some of the printer's other features depending on your hardware and application requirements, for example:

 special forms  paper handling.

The MENU mode allows you to access the configuration memory. All settings of the printer are stored in this memory and can be printed. The possible settings are described in detail on the following pages.

The standard parameter setting can be printed by using the function PRINT MENU. The following steps show which keys to use to start this printout.

KEY / or action 2 Line DISPLAY [STATION 2] and

[COMPRESS ]

OFF-LINE MODE

(synchronously) MENU SETUP

[COMPRESS ]

OFF-LINE MODE MENU PRINTING

[STOP ] MENU PRINTING

INSERT A4 SHEET

Insert the paper MENU PRINTING PRINTING;

WAITING...

[STATION 2] MENU PRINTING FINISH; PRESS STAT2

[STATION 2] OFF-LINE MODE MENU PRINTING

[STATION 2]

and

[COMPRESS ]

PR9 SERIAL1 OLIVETTI

(synchronously) ON-LINE

Page 31

Configuration the printer

6-3

6.2. Standard Configuration

The standard configuration (factory setting) is reflected in the following printout.

Note:

An asterisk

(’)

behind MACRO indicates the active macro.

Page 32

Configuration the printer

6-4

6.3. Explanation of the printout on the previous pages

In the headline behind the term VER2 the revision level of the printer's firmware can be found.

Then, following the Printer Identification and in the next line a needle test. The next part of the printout is a

list of the MACRO settings. In this case MACRO 1 is marked with an asterisk (*) which identifies it as the active macro.

Note: A “Macro“ is a summary of application specific parameter settings for a user. It is

possible to have a

total of three macros, each with a different summary of VALUE settings for different applications.

Whenever you make modifications in the active macro without saving them you will find the new settings under the heading CURRENT USER. Unless they are saved, the modifications will stay active only until the printer is switched off. When the printer is switched on again the macro settings marked with the asterisk will be reactivated.

Note: The CURRENT USER will be selected by MACRO 1, MACRO 2, or MACRO 3.

6.4. Menu Structure

Press [STATION 2] and [COMPRESS ]

together to start the Menu-Mode in Off-line operation.

The Menu Mode starts with MENU SETUP in level 1.

Page 33

Configuration the printer

6-5

6.5. How to use the Key in the Menu Mode

If you want to enter a menu setup, you should press down [STATION 2] and [

]

key

simultaneously in on-line mode, entering the off-line mode and then selecting MENU SETUP .

During the Menu Mode the key’s definition is as following:

upwards; it may cycle to the previous item from the first one.

downwards; it may cycle to the following item from the last one.

accept the selected item or value

go back to the previous menu level or back to the top level.

The LCD display shows on the first line the current level, and on the second line the next level.

6.6. The emulations of PR 9

The PR 9 printer offers the following emulations:

 OLIVETTI Including the option Magnetic Stripe Reader / Writer  OKI  IBM  LQ  IBM 9068  IBM 4722

You can modify the emulation you need by entering the corresponding menu setup.

6.7. Menu Setup Description

MENU SETUP was classified into 10 modules

 SELECT CURRENT MACRO

 SELECT USER TO SETUP

 CONFIGURE

 OPTION TRACTOR

 OLIVETTI CONFIGURE

 OKI CONFIGURE

 IBM CONFIGURE

 LQ CONFIGURE

 IBM 9068 CONFIGURE

 LANGUAGE

 SAVE PARAMETERS

To modify various modules’ parameters you should enter a corresponding module. Before modifying printer parameters, please select the desired macro first. The current macro is the one to be changed.

*) only for PR 9 with Tractor Option

Page 34

Configuration the printer

6-6

6.8. SELECT CURRENT MACRO

The printer stores up to three user settings in MACRO 1 up to MACRO 3. Use the [STOP ] key to activate this function. The active macro is displayed first. Press the [COMPRESS ]

key until you find the macro for your application and selected it with the [STOP ] key. The printer will save the selected macro immediately. After the procedure the printer changes into the ON-LINE mode and will now work with the new settings.

6.9. SELECT USER TO SETUP

With the module SELECT USER TO SET UP you have the choice between MACRO 1, MACRO 2, and MACRO 3. Select the macro witch should be changed.

Note: If you have selected all new items and have these confirmed with the [STOP ] key,

don't forget to

activate the module SAVE PARAMETERS.

6.10. CONFIGURE

The following items can be modified according to the PR 9 parameters.

Note: In the different emulations the items shown are not equal. The option’s which are

printed in bold

indicate the actual setting.

CONFIGURE

Parameter

Option

Explanation

Note

RESUME DEFAULT VALUE

YES

Select resume default value or not, If select YES, jump to SAVE PARAMETERS the parameters will be resumed the default value if pressing [STOP ] to confirm.

This option is mainly used to resume the default value when the menu parameters have been changed in disorder.

INTERFACE

DUAL

INTERFACE

SERIAL1 CX

Select the interface you want to use.

DUAL or CX will be selected only if an optional interface card is installed.

RS1 EMULATION

OLIVETTI

OKI

IBM

LQ1600K IBM 9068 IBM 4722

Select your RS1 emulation

Page 35

Configuration the printer

6-7

CONFIGURE

Parameter

OEN

MODIFY RS1 CONFIG

N O

Y E

I f Y E

BAUD RATE (RS1)

2 4 0 0

C o n t r

O n l y d

BITS/CHARACTER (RS1)

87 N u m

O n l

PARITY (RS1)

N O N

T h e

O n l

STOP BITS (RS1)

12 N u m

O n l

DSR (RS1)

N O

S E R

O n l

CX EMULATION

I B M L Q

T h e e m

CX STROBE EDGE

R I S

DRAFT SPEED

NOSe

LQ TYPE

N L Q

S e l

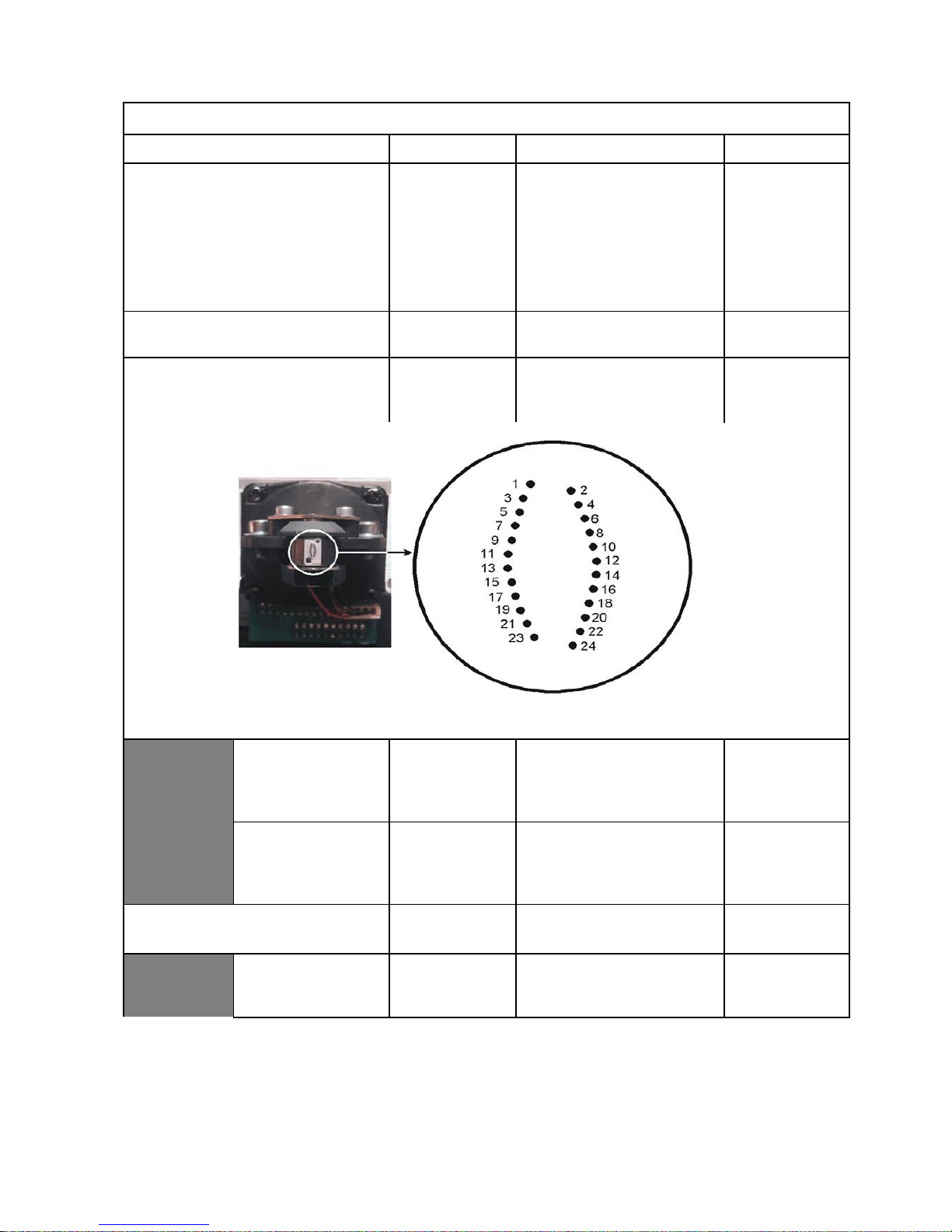

NEEDLES SWITCH

YES

YES = activated No = ignored

Page 36

Configuration the printer

6-8

CONFIGURE

Parameter

Option

Explanation

Note

SPECIAL FORMS

YES

YES reduce the speed of paper handling, and add some special management to support special forms, e.g. thin paper, paper with different thickness.

BIM DIRECTION

UNIDIRECTION

BIDIRECTION

Select printing direction for graphics.

NEEDLE COMPENSATION

YES

Select needle compensation or not when the needle is broken.

Needle Position

HS COMPENSATION

NO YES

Select heigh speed compensation or not

Only displayed if NEEDLE COMPENSATION is set to YES

BROKEN NEEDLE NO.

up to 24

Choose the one needle from needle 1 up to needle 24 for compensation.

Only displayed if NEEDLE COMPENSATION is set to YES

PNS SELECTION

YES

Whether the following PNS items are valid or not.

PNS #2000K

SINGLE SHEET

205 mm 220 mm

The selection will influence the ejection of the paper. Single Sheet means A4

Only displayed if PNS SELECTION is set to YES

Page 37

Configuration the printer

6-9

CONFIGURE

Parameter

Option

Explanation

Note

PNS #2001K

400

selectable: 200 up

to 1000 in steps

of 100

Digital filter (CX STB)

Only displayed if PNS SELECTION is set to YES

PNS #2002K

Yes

reserved

Only displayed if PNS SELECTION is set to YES

PNS #2003K

Yes

reserved

Only displayed if PNS SELECTION is set to YES

PNS #2004K

205 mm

YES NO

145 mm

Printhead moves out of paper with vertical movement or not NO, the print head never moves out of paper edge. 145 mm / 205 mm, the print head moves out of the paper if the paper width is less than 145 or 205 mm. YES the print head always moves out of the paper.

Only displayed if PNS SELECTION is set to YES

PNS #2005K

ERROR

Only displayed if PNS

SPACE

SELECTION

CHAR1

is set to YES

CHAR2

IGNORE

Page 38

Configuration the printer

6-10

6.11. OLIVETTI CONFIGURE

The following items can be modified according to the OLIVETTI parameters.

Note: In the different emulations the items shown are not equal. The option’s which are

printed in bold

indicate the actual setting.

OLIVETTI CONFIGURE

Parameter

Option

Explanation

Note

EMULATION

PR9

PR40+

Select your printer

TOF PR40 LIKE

YES

Selecting the top margin.

NO, the physical top margin of 4.23 mm. YES, 7.4 mm

TOF = Top Of Form

PRINTING MODE

CHINESE

LATIN BIG-

5 UNICODE

Select the printing mode

HIGH SPEED PRINTING

YES

A4 SHEET

FANFOLD PAPER

Selecting high speed printing mode.

NO = no draft mode. A4 SHEET = always draft

mode when the paper is A4 Sheet. FAN FOLD PAPER = always draft mode when the paper is fan fold paper. YES: = the print mode always is draft.

CPI

10, 12, 12.9, 15,

16.6, 17.1, 18, 20, 30

Defines the number of characters printed per inch.

XPI LOCKED

NO LOCKED

CPI LOCKED LPI

LOCKED CPI+LPI

NO = CPI and/or LPI are changeable. LOCKED = no change possible

LPI

5 6 8

Defines the number of lines per inch.

CHARACTER DEFINITION

OCR-A OCR-B

DRAFT

Selecting the font quality: draft, letter quality, OCR-A, or OCR-B.

LR+CR

YES

YES: LF = LF + CR NO: LF = LF

Page 39

Configuration the printer

6-11

OLIVETTI CONFIGURE

Parameter

Option

Explanation

Note

LEFT MARG. (1/60")

-6 up to +6

To adjust the left margin more to left or right in units of 1/60" inch (about 4 mm).

TOP MARG. (1/60")

-6 up to +6

To adjust the top margin more up or down in units of 1/60" inch (about 4 mm).

TOF = Top Of Form

FAN FOLD LEFT MARG.

0 up to 7

Select the left margin for the columns of fan fold paper in n/10 inches.

Only displayed if a PR 9 printer with Tractor Unit is in use.

CHARACTER SET

OLIVETTI

IBM/PC

Selecting the character set as Olivetti or IBM/PC.

IBM CHARACTER SET

ISO

Selecting the IBM character set as PC or ISO.

Only displayed if IBM/PC in Character

Set is selected.

PC CHARACTER SET

437(INT)

210(GR)

220(E)

850(LATIN 1)

851(GREEK)

852(LATIN 2)

855(CYRILLIC)

857(LATIN 5)

858(LATIN EURO)

860(P)

862(IL)

863(CAN. FR.)

864(ARABIC)

865(NORDIC)

866(CYRILLIC)

DK/N

1252(PC-WIN

LATIN1)

1250(PC-WIN

LATIN2)

CHINA

CHN2

990(PC-886-BG)

991(PC-GBR)

Selecting your code page of

Only displayed if PC in

ISO CHARACTER SET

CPOLUNIX

ISO 8859/15

ISO 8859/1 ISO 8859/2 ISO 8859/5 ISO 8859/6 ISO 8859/7 ISO 8859/8

Only displayed if IBM in IBM Character Set is selected.

Page 40

Configuration the printer

6-12

OLIVETTI CONFIGURE

Parameter

Option

Explanation

Note

OLI CHARACTER SET

ST15CND ST15CIBC

ST15DK/N

ST15IL ST15F

ST15UK ST15D

ST15GR

ST15INT

ST15ITA ST15P

ST15USSR

ST15SDC

ST15E ST15E2

ST15S/SF

ST15CH ST31

ST15TR

ST15USA

ST15YU

ST15ARABIC

Selecting your code page of the OLIVETTI character set.

Only displayed if

OLIVETTI in Character Set is selected.

BIM DEFAULT DPI

Setting the default DPI (dot per inch) of the graphic printing under 8 needles graphics.

VERT. RESOLUTION

1/216 1/240

Setting the vertical resolution as 1/216 inch or 1/240 inch.

LINE LENGTH

80 90 94

Selecting the line length in the unit of characters number of 10 cpi

RESET WHEN EJECT

YES

NO = no reset YES = the printer will be reset

when eject a form.

COMPRESS

16.6

17.1

Setting the CPI which command ESC > sets

16.6 = 16.6 CPI

17.1 = 17.1 CPI

see Control Codes

PNS SELECTION

YES

Whether the following PNS items is valid.

PNS #2020K

YES

NO = normal passbook printer mode. YES = journal printing mode.

Only displayed if PNS SELECTION is set to YES. Relative with the PNS7010K of PR2E.

PNS #2021K

YES

Process of invalid code: NO = command error if invalid code is received; YES = ignore the invalid code.

Only displayed if PNS SELECTION is set to YES. Relative with the PNS7011K of PR2E.

Page 41

Configuration the printer

6-13

OLIVETTI CONFIGURE

Parameter

Option

Explanation

Note

PNS #2022K

YES

Setting the bottom margin (Bottom of Form).

NO = normal mode; YES = PR 9 feed paper to the

max position when the current vertical position is right for the bottom limit, but the feed paper value exceed the bottom limit. And PR9 report ESC r X when it receive the command ESC j.

Only displayed if PNS SELECTION is set to YES.

Relative with the PNS7015K of PR2E.

see Control Codes

PNS #2023K

YES

Selecting the special function of the command ESC ! sp

nnn; NO = same as PR2, the space

setting of the full corner characters is same as half corner characters. YES = the space setting of the full corner characters is double as half corner characters.

Only displayed if PNS SELECTION is set to YES.

Relative with the PNS7014K of PR2E.

PNS #2024K

YES

NO = normal mode; YES = ASCII characters printing and the graphic printing in a same line are enabled.

Only displayed if PNS SELECTION is set to YES. Relative with the PNS7016K of PR2E.

PNS #2025K

YES

reserved

Only displayed if PNS SELECTION is set to YES.

PNS #2026K

YES

reserved

Only displayed if PNS SELECTION is set to YES.

Page 42

Configuration the printer

6-14

6.12. Option Horizontal Magnetic Stripe Reader / Writer (MSRW) CONFIGURE

The following items can be modified according to the MSWR parameters.

Note: You will find the following parameter after the last parameter of OLIVETTI

CONFIGURE.

OPTION HOR. MSRW CONFIGURE

Parameter

Option

Explanation

Note

END SENTINEL

C F

Selecting the end control of the magnetic record, the selectable end sentinel is character C or F Position adjust: each step is

0.4 mm.

Only for PR9/K with the version 1.07 or higher.

DISPLACEMENT

STANDARD

Selecting the position

Only for PR9/K with

+10

displacement of the

the version 1.07 or

+20

magnetic record.

higher.

POSITION ADJUST

-7 up to +7

Select the adjusted value for the vertical position of the magnetic record when reading the magnetic stripe.

Only for PR9/K with the version 1.07 or higher.

RETRY

135

Selecting the retry value for reading the magnetic stripe.

Only for PR9/K with the version 1.07 or higher.

STRIPE HANDLE

NORMAL

FAST

Selecting the stripe handle mode. NORMAL = measure the width of a passbook when reading the magnetic stripe every time. FAST = measure the width of a passbook only one time. The next reading procedures are using the founded width.

Only for PR9/K with the version 1.07 or higher.

Page 43

Configuration the printer

6-15

6.13. OKI CONFIGURE

The following items can be modified according to the OKI parameters.

Note: In the different emulations the items shown are not equal. The option’s which are

printed in bold

indicate the actual setting.

OKI CONFIGURE

Parameter

Option

Explanation

Note

AUTO COMPRESSION

YES

Determine whether automatically condense current line for printing, when current line length exceeds the allowed line length.

LINE LENGTH COMPRESS

YES

Determine whether the line width to compress.

COMPRESS PROPORTION

101/LINE (85%) 108/LINE (80%) 115/LINE (75%) 123/LINE (70%) 133/LINE (65%) 144/LINE (60%) 157/LINE (55%) 170/LINE (50%)

Select the proportion of automatically on the condensation mode.

FAN FOLD LEFT MARG.

0 up to 7

Select the left margin for the columns of fan fold paper in n/10 inches.

Only displayed if a PR 9 printer with Tractor Unit is in

PAPER EMPTY WARNING

YES

NO = blocking of the parallel port, when there is no paper in the PR 9.

YES = no blocking

ONE BYTE BUFFER

YES

NO = the parallel port is not set into a one byte buffer. YES = the parallel port is set into a one byte buffer.

PRINTING MODE

CHINESE

LATIN

BIG5

UNICODE

Select the printing mode

LATIN, BIG5, and UNICODE = West Font

ASCII CHARACTER SET

ROMAN

GW GB

MINCHO

Select the character set

Page 44

Configuration the printer

6-16

OKI CONFIGURE

Parameter

Option

Explanation

Note

HIGH SPEED PRINTING

YES

A4 SHEET

FAN FOLD PAPER

Selecting high speed printing mode.

NO = no draft mode. A4 SHEET = always draft mode when

the paper is A4 Sheet. FAN FOLD PAPER = always draft mode when the paper is fan fold paper. YES: = the print mode always is draft.

XPI LOCKED

NO LOCKED CPI

LOCKED LPI

LOCKED CPI+LPI

NO = CPI and/or LPI are changeable. LOCKED = no change possible

LPI

Determines the number of

lines per inch.

CHARACTER DEFINITIONS

DRAFT

Select printing in draft or LQ mode.

LR+CR

YES

YES: LF = LF + CR NO: LF = LF

CR+LF

YES

NO: CR = CR YES: CR = CR + LF

LEFT MARG. (1/6")

-1 up to +18

Adjust the left margin in units of 1/6 inch.

LEFT MARG. (1/60")

-6 up to +6

To adjust the left margin more to left or right in units of 1/60 inch (about 4 mm).

TOP MARG. (1/6")

-1 up to +6

Adjust the top margin in units of 1/6 inch.

TOF = Top Of Form

TOP MARG. (1/60")

-5 up to +5

Adjust the top margin in units of 1/60 inch (about 4 mm).

TOF = Top Of Form

LINE LENGTH

Set line length in units of

characters number of 10

characters per inch (CPI).

RESET WHEN EJECT

YES

NO = no reset YES = the printer will be reset when

eject a form.

PNS SELECTION

YES

Whether the following PNS items is valid.

Page 45

Configuration the printer

6-17

OKI CONFIGURE

Parameter

Option

Explanation

Note

PNS #2060K

YES

Process of command

ESC % 9 n1 n2 NO: when n2 = 0 set line

spacing to zero. YES: when n2 = 0 ignore this command.

Only displayed if PNS SELECTION is set to YES. Relative with the PNS7020K of PR2E.

PNS #2061K

YES

Process of command HT(09) NO: execute LF+CR if H-TAB is not valid. YES: ignore this command

Only displayed if PNS SELECTION is set to YES. Relative with the PNS7021K of PR2E.

PNS #2062K

YES

Determine whether to reset automatically line condensation when Form Feed command executed.

NO = reset YES = not reset

Only displayed if PNS SELECTION is set to YES.

PNS #2063K

YES

Determine whether to ignore all the code 0x20 at the end of line.

NO = Ignore 0x20 YES = not ignore any code

Only displayed if PNS SELECTION is set to YES.

Page 46

Configuration the printer

6-18

6.14. IBM CONFIGURE

The following items can be modified according to the IBM parameters.

Note: In the different emulations the items shown are not equal. The option’s which are

printed in bold indicate the actual setting.

IBM CONFIGURE

Parameter

Option

Explanation

Note

EMULATION

IBM X24

IBM PPII

Select your printer emulation

AGM

YES

NO = ignore AGM graphic

printing YES = AGM graphic printing is active

AGM is only for IBM X24 printers valid.

PRINTING MODE

LATIN

IBM5550

BIG5

UNICODE

CHINESE

Select the printing mode

LATIN, IBM5550, BIG5, and UNICODE = West Font

ASCII CHARACTER SET

OPTION 1

OPTION 2 LATIN

MINCHO

ROMAN

Select the character set

HIGH SPEED PRINTING

YES

A4 SHEET

FAN FOLD PAPER

Selecting high speed printing mode.

NO = no draft mode. A4 SHEET = always draft

mode when the paper is A4 Sheet. FAN FOLD PAPER = always draft mode when the paper is fan fold paper.

YES: = the print mode always

CPI

Defines the number of

characters printed per inch.

17.1

XPI LOCKED

NO LOCKED CPI

LOCKED LPI

LOCKED CPI+LPI

NO = CPI and/or LPI are changeable. LOCKED = no change possible

LPI

Defines the number of lines

printed per inch.

Page 47

Configuration the printer

6-19

IBM CONFIGURE

Parameter

Option

Explanation

Note

CHARACTER DEFINITION

DRAFT

Selecting the printing quality.

LF+CR

YES

YES: LF = LF + CR NO: LF = LF

CR+LF

YES

NO: CR = CR YES: CR = CR + LF

LEFT MARG. (1/6")

-1 up to +18

To adjust the left margin more to left or right in units of 1/60 inch (about 4 mm).

LEFT MARG. (1/60")

-6 up to +6

To adjust the left margin in units of 1/6 inch.

TOP MARG. (1/60")

-6 up to +6

Adjust the top margin in units of 1/60 inch (about 4 mm).

TOF = Top Of Form

FAN FOLD LEFT MARG.

0 up to 7

Select the left margin for the columns of fan fold paper in n/10 inches.

Only displayed if a PR 9 printer with Tractor Unit is in use.

IBM CHARACTER SET

ISO

Select PC character set or

ISO character set.

PC continued with PC

CHARACTER SET; ISO continued with ISO CHARACTER SET.

PC CHARACTER SET

437(INT)

210(GR)

220(E)

850(LATIN 1)

851(GREEK) 852(LATIN 2) 855(CYRILLIC)

857(LATIN 5)

858(LATIN EURO)

860(P)

862(IL)

863(CAN. FR.)

864(ARABIC) 865(NORDIC)

866(CYRILLIC)

DK/N

1252(PC-WIN LATIN1) 1250(PC-WIN LATIN2)

CHINA

CHN2

990(PC-866-BG

991(PC-GER)

Select the code page of the

Only displayed if IBM

PC character set.

CHARACTER SET

is set to PC.

Page 48

Configuration the printer

6-20

IBM CONFIGURE

Parameter

Option

Explanation

Note

ISO CHARACTER SET

CPOLUNIX

8859/15

8859/1 8859/2 8859/5 8859/6 8859/7 8859/8 8859/9

Select the code page of the

Only displayed if IBM

ISO character set.

CHARACTER SET

is set to ISO.

PC TABLE

TABLE 1

TABLE 2

Select the PC Table 1 or Table 2

BOF IBM-PP LIKE

YES

Setting the bottom margin

NO = 2.3 mm YES = 10 mm

BOF = Bottom Of Form

TOP IBM PP LIKE

YES

Setting the top margin. NO the physical top margin (adjustable) YES = 7.4 mm

TOF = Top Of Form

ZERO SLASH

YES

Select the printout of 0 (0x30 = zero) YES = the 0 will be printed with a slash on it (e.g. 0/ ).

LINE LENGTH

80 90 94

Setting the line length in unit of character of 10 CPI.

INSERT MODE

DIRECT

PR2 LIKE

Selecting the paper insert mode. DIRECT = PR9 insert paper directly when paper alignment. PR2 LIKE = PR9 insert paper when printing data is received, it is same procedure as PR2.

PAGE LENGTH

11 12

Setting the page length in the units of an inch.

RESET WHEN EJECT

YES

NO = no reset YES = the printer will be reset

when eject a form.

COMPRESS

16.6

17.1

Setting CPI which command SI set.

16.6 = 16.6 CPI

17.1 = 17.1 CPI

PNS SELECTION

YES

Whether the following PNS item is valid or not.

PNS #2080K

NO YES

NO = Double height printing and bold printing are permissible in any print pitch.

Only displayed if PNS SELECTION is set to YES.

Relative to the PNS4001K of PR2E.

Page 49

Configuration the printer

6-21

6.15. LQ CONFIGURE

The following items can be modified according to the LQ parameters.

Note: In the different emulations the items shown are not equal. The option’s which are

printed in bold

indicate the actual setting.

LQ CONFIGURE

Parameter

Option

Explanation

Note

AUTO COMPRESSION

YES

Determine whether automatically condense current line for printing, when current line length exceeds the allowed line length.

LINE LENGTH COMPRESS

YES

Determine whether the line width to compress or is fixed by the menu setting.

COMPRESS PROPORTION

101/LINE (85%)

108/ LINE (80%)

115/ LINE (75%) 123/ LINE (70%) 133/ LINE (65%) 144/ LINE (60%) 157/ LINE (55%) 170/ LINE (50%)

Select the proportion of the automatic line condensation.

FAN FOLD LEFT MARG.

0 up to +7

Select the left margin for the 80 columns fan fold paper in steps of 1/10 inch.

PAPER EMPTY WARNING

YES

NO = blocking of the parallel port, when there is no paper in the PR 9.

YES = no blocking

PRINTING MODE

LATIN

BIG5

UNICODE

CHINESE

Select the printing mode

LATIN, BIG5, and UNICODE = West Font

ASCII CHARACTER SET

ROMAN

MINCHO

Select the character set

HIGH SPEED PRINTING

YES

A4 SHEET

FAN FOLD PAPER

Selecting high speed printing mode.

NO = no draft mode. A4 SHEET = always draft

mode when the paper is A4 Sheet. FAN FOLD PAPER = always draft mode when the paper is fan fold paper.

Page 50

Configuration the printer

6-22

LQ CONFIGURE

Parameter

Option

Explanation

Note

LPI

5 6 8

Defines the number of lines

CPI OF CJK FONT

5 6

6.7

7.5

printed per inch.

Select CPI of Chinese character.

CPI OF WEST FONT

12 15 17 20

Select CPI of ASCII character.

XPI LOCKED

NO LOCKED

CPI LOCKED LPI

LOCKED CPI+LPI

NO = CPI and/or LPI are changeable. LOCKED = no change possible

CHARACTER SET

ISO

Select PC character set or

ISO character set.

PC continued with PC

CHARACTER SET; ISO continued with ISO CHARACTER SET.

PC CHARACTER SET

437(INT)

210(GR)

220(E)

850(LATIN 1)

851(GREEK) 852(LATIN 2) 855(CYRILLIC)

857(LATIN 5)

858(LATIN EURO)

860(P)

862(IL)

863(CAN. FR.)

DK/N

1252(PC-WIN LATIN1)

1250(PC-WIN LATIN2)

CHINA CHN2

990(PC-866-BG

991(PC-GER)

Select the code page of the PC character set.

Only displayed if IBM CHARACTER SET is set to PC.

ISO CHARACTER SET

CPOLUNIX

8859/15

8859/1 8859/2 8859/5 8859/6 8859/7 8859/8 8859/9

Select the code page of the ISO Character set

Only displayed if IBM CHARACTER SET is set to ISO.

Page 51

Configuration the printer

6-23

LQ CONFIGURE

Parameter

Option

Explanation

Note

CHARACTER DEFINITION

DRAFT

Selecting the printing quality.

DRAFT = no Letter Fonts possible. LQ = change with ESC K or ESC x possible

LF+CR

YES

YES: LF = LF + CR NO: LF = LF

CR+LF

YES

YES: CR = LF + CR NO: CR = CR

LEFT MARG. (1/60")

-6 up to +6

To adjust the left margin more to left or right in units of 1/60 inch (about 4 mm).

TOP MARG. (1/6")

-1 up to +6

Adjust the top margin in units of 1/6 inch.

TOF = Top Of Form

TOP MARG. (1/60")

-5 up to +5

Adjust the top margin in units of 1/60 inch (about 4 mm).

TOF = Top Of Form

ZERO SLASH

YES

Select the printout of 0 (0x30 = zero)

YES = the 0 will be printed

LINE LENGTH

80 90 94

Setting the line length in unit of character of 10 CPI.

RESET WHEN EJECT

YES

NO = no reset YES = the printer will be reset

when eject a form.

PNS SELECTION

YES

Whether the following PNS item is valid or not.

PNS #2100K

YES

YES = Reset automatically line condensation when Form Feed command executed.

Only displayed if PNS

SELECTION is set to YES.

PNS #2101K

YES

NO = ignore 0x20 at the end of a line. YES = don't ignores 0x20

Only displayed if PNS

SELECTION is set to YES.

PNS #2102K

YES

YES = Process of the horizontal and vertical movement command:

Only displayed if PNS SELECTION is set to YES.

Page 52

Configuration the printer

6-24

6.16. IBM 9068 CONFIGURE

The following items can be modified according to the IBM 9006 parameters.

Note: In the different emulations the items shown are not equal. The option’s which are

printed in bold

indicate the actual setting.

IBM 9068 CONFIGURE

Parameter

Option

Explanation

Note

PRINTER ID

Selecting the printer ID:

1D = 4748

1E = 9055-001

SERIAL PROTOCOL

EFFECTIVE CTS/FDD

NO CTS/FDD

Selecting the serial communication interface with the host system. EFFECTIVE CTS/FDD = CTS/FDD active. NO CTS/FDD = CTS without FDD.

FDD = Finance Device Driver

HIGH SPEED PRINTING

YES

Selecting high speed printing mode.

NO = no draft mode. YES: = the print mode always is

draft.

LEFT MARG. (1/60")

-6 up to +6

To adjust the left margin more to left or right in units of 1/60 inch (about 4 mm).

TOP MARG. (1/60")

-6 up to +6

To adjust the top margin in units of 1/60 inch (about 4 mm).

TOF = Top Of Form

BOF ADJUST (0.5 mm)

-10 up to +10

Adjust the bottom margin in units of 0.5 mm

BOF = Bottom Of Form

FEED ADJUST (1mm/10")

-10 up to +5

Adjustment when the form feed 10 inch, 0.5 inch

This item will be valid with the release $

2.09.

FAN FOLD LEFT MARG.

0 up to 7

Select the left margin for the 80 columns fan fold paper in steps of 1/10 inch.

LPI

Defines the number of lines

printed per inch.

UNIDIRECTION PRINT

EFFICIENCY

IGNORE

Select the printing direction for graphics or ignore.

LF+CR

YES

YES: LF = LF + CR NO: LF = LF

Page 53

Configuration the printer

6-25

IBM 9068 CONFIGURE

Parameter

Option

Explanation

Note

CR+LF

YES

YES: CR = LF + CR NO: CR = CR

COUNTRY CODE PAGE

BIG5

UNICODE

IBM-PC

BG18030

GBK

GB2312

Select the printing mode

CPI OF COMPRESS

17.1 18

Setting CPI in condensed mode which command SI set.

17.1 = 17.1 CPI 18 = 18 CPI

CPI

12 15

Defines the number of characters printed per inch.

XPI LOCKED

NO LOCKED CPI

LOCKED LPI

LOCKED CPI+LPI

NO = CPI and/or LPI are changeable. LOCKED = no change possible

LINE LENGTH

82.5 94

Setting the line length in unit of character of 10 CPI.

RESET WHEN EJECT

YES

NO = no reset YES = the printer will be reset

when eject a form.

IGNORE ERROR

YES

NO = invalid code results are

going into error. YES = an invalid code will be ignored.

BEEP WARNING

BEEP ON

BEEP OFF

Select the alarm sound when an end of document is detected or ignore the beep sound.

PNS SELECTION

YES

Whether the following PNS item is valid or not.

PNS #2120K

YES

NO = normal bottom margin limit. YES = special bottom margin limit

Only displayed if PNS

SELECTION is set to YES.

PNS #2121K

YES

reserved

Only displayed if PNS SELECTION is set to YES.

Page 54

Configuration the printer

6-26

6.17. LANGUAGE

The operator panel may display its messages in two languages. Select one out of the following: ENGLISH, GERMAN or CHINESE.

6.18. SAVE PARAMETERS

Any desired changes to the default settings can be saved here. After power on the new settings are activated.

While this function is operating the display shows the message

 SAVING, PLEASE WAIT and then  SAVED, RESTART PR 9. Now the printer changed into the ON -LINE mode.

6.19. PRINTING TEST

There are five test printouts available:

 U ser's Guide  Chinese Characters  Ascii Character Set  C haracter Attributes  Dr. Grauert (print a letter)

6.20. USER'S GUIDE

In the User's Guide you will find detail information. So it is possible to print out the User's Guide by your self. If this function is selected, the printer asks for A4 sheets. After inserting an A4 sheet the printer starts the print-out. With the [STATION 2] key it is possible to skip the selection.

6.21. CHINESE CHARACTER

With this selection are three prints possible:

 Printing All Fonts  Print Two Byte Font  Print Four Byte Font

6.22. ASCII CHARACTER SET

The stored ASCII character sets are:

 GB  ROMAN  CHINESE 1  CHINESE 2  INT 437  CANADIAN FRENCH  OCR A  OCR B

6.23. CHARACTER ATTRIBUTES

All included character attributes are printed here.

6.24. Dr. GRAUERT

This test printout produces a standard letter (ECMA-132) which can be used for measuring the printer's throughput.

Page 55

Configuration the printer

6-27

6.25. ADJUSTMENT

Adjustment can be used to adjust and check some built-in parameters of the printer. It may enhance the print performance. Sometimes, it’s possible to improve the rationality of the page layout according to the practical environment. The printer has been adjusted corresponding to factory standard before it is delivered.

Warning: The user who wants to adjust these parameters of the printer should be a professional engineer or be guided by a professional engineer.

User usually should not change the settings. If the printer has to be adapted, the user should have already well understood the involved parameters. Or else the printer may miss normal function. The following introduce the adjustable parameters.

These parameters below allow manipulation on operator panel:

 Photosensor Value  Left Margin  Top Margin  Run In Test  Alignment Adjustment for Bi-directional Printing  Printing Photosensor Value  Inquire Photosensor Values  Resume HW Parameters

6.26. PHOTOSENSOR VALUE

All the photo sensor value has been adjusted to correct values in the factory, but after using it for many days, some unexpected change may happen for some reason, such as using unacceptable paper. In order to make the printer work correctly, please adjust the photo sensor value again.

After entering adjustment, you have to do the following steps:

Key or action

Two line display

Select Adjustment

ADJUSTMENT PHOTOSENSOR VALUE

[STOP ]

There is a noise of the rollers and the green lamp of Station 2 light up

PHOTOSENSOR VALUE INSERT SHEET; PRESS 

insert paper and press

[STOP ]

PHOTOSENSOR VALUE INSERT SHEET; PRESS 

The printer insert the paper and start the setup of the photo sensor.

Paper eject after adjustment.

PHOTOSENSOR VALUE END. PRESS  TO PRINT

[STOP ]

PHOTOSENSOR VALUE INSERT A4 SHEET

Insert paper;

after print the values the paper will be eject

PHOTOSENSOR VALUE FINISH; PRESS STAT 2

[STATION 2]

ADJUSTMENT PHOTOSENSOR VALUE

[STATION 2]

Note: The adjustment is only active during power on.

OFF-LINE MODE ADJUSTMENT

[STATION 2]

and

[

]

together to

leave the off-line mode

SAVE PARAMETERS  ACCEPT ST2 = IGNORE

Page 56

Configuration the printer

6-28

The new values of adjustment to be default settings can be saved now or ignore the new values. After saving and power OFF and ON the new adjustment is still activated.

6.27. LEFT MARGIN

The

[FEED/EJECTkey reduce the current value (left margin is moving to the left side) and the

[COMPRESS ]

key increases the current value (moving to the right side).

After entering adjustment, you have to do the following steps:

6.28. TOP MARGIN

The

[FEED/EJECT ]

key reduce the current value (top margin is moving upwards) and the

[COMPRESS ]

key enlarge the current value (moving downwards).

After entering adjustment, you have to do the following steps:

Key or action

Two line display

Select Adjustment

ADJUSTMENT PHOTOSENSOR VALUE

[ ]

until LCD shows

ADJUSTMENT LEFT MARGIN

to select

LEFT MARGIN 17



= LEFT



= RIGHT

Press

[FEED/EJECT

•]

[

]

to find the new left margin.

The range is from zero up to 133 in units of 1/120 inch.

LEFT MARGIN 20



= LEFT



= RIGHT

Insert

an A4 sheet to control the setting. The printer will insert the paper

automatically, print the current margin and eject the paper.

LEFT MARGIN (20)



= LEFT



= RIGHT

to accept

LEFT MARGIN SAVE PARAMETERS

Display after saving

ADJUSTMENT LEFT MARGIN

Key or action

Two line display

Select Adjustment

ADJUSTMENT PHOTOSENSOR VALUE

[COMPRESS ]

until LCD shows

ADJUSTMENT TOP MARGIN

to select

TOP MARGIN 030



= UP



= DOWN

Press

[FEED/EJECT ]

[COMPRESS]

to find the new top margin.

The range is from zero up to 214 in units of 1/180 inch.

TOP MARGIN 042



= UP



= DOWN

Insert an A4 sheet to control the setting. The printer will insert the paper

automatically, print the current margin and eject the paper.

TOP MARGIN (042)



= UP



= DOWN

to accept

TOP MARGIN SAVE PARAMETERS

Display after saving

ADJUSTMENT TOP MARGIN

Page 57

Configuration the printer

6-29

6.29. RUN IN TEST

After selecting the Run in Test the printer will insert a sheet and start nonstop printing.

Note: Use Bidirectional Alignment Adjust to correct an offset in the vertical lines.

6.30. BIDIRECTIONAL ALIGNMENT ADJUSTMENT

After selecting the Bidirectional Alignment it is possible to align the printing of vertical lines.

*) The displayed line is depending on the selected Interface.

Key or action

Two line display

Select Adjustment

ADJUSTMENT PHOTOSENSOR VALUE

[COMPRESS ]

until LCD shows

ADJUSTMENT RUN IN TEST

[STOP ]

to select

The yellow Ready lamp lights up.

RUN IN TEST PLEASE INSERT SHEET

The printer starts printing horizontal lines after inserting a paper.

RUN IN TEST NO: 00 printing, finish: 00

Now it is possible to stop printing by pressing the [STOP ] key.

RUN IN TEST NO: 00 printing, finish: 00

[STOP ]

continued printing

RUN IN TEST NO: 00 printing, finish: 00

Power off the printer to leave the continued printing.

Key or action

Two line display

Select Adjustment

ADJUSTMENT PHOTOSENSOR VALUE

[COMPRESS ]

until the LCD shows:

ADJUSTMENT BIDIRECTION ALIGN

[STOP ] to select

The yellow Ready and green Station 2 lamp lights up.

BIDIRECTION ALIGN RESULT OF ALL SPEED

Press the [STOP ] key

BIDIRECTION ALIGN INSERT A4 SHEET

The printer starts printing vertical lines after inserting a paper.

BIDIRECTION ALIGN FINISH; PRESS STAT2

[STATION 2]

BIDIRECTION ALIGN RESULT OF ALL SPEED

Now press

[FEED/EJECT ]

[COMPRESS ]

until you can select the font and CPI

which you want to align (e.g. DRAFT 12 CPI).

BIDIRECTION ALIGN DRAFT 12CPI

Press the key to accept the selection.

BIDIRECTION ALIGN 000



= LEFT



= RIGHT

Use the

[FEED/EJECT ]

[COMPRESS ]

key for alignment (e.g. left 5 times). If

you are going to the right the numeric value will be indicated by an minus sign (e.g. -

005).

BIDIRECTION ALIGN 005



= LEFT



= RIGHT

Insert an A4 sheet and the printer starts a control print of your selection.

BIDIRECTION ALIGN 005



= LEFT



= RIGHT

Press the [STOP ] key to accept and save your selection.

DRAFT 12CPI SAVE PARAMETERS

Now you can select an other font for alignment or leave the function.

BIDIRECTION ALIGN DRAFT 12CPI

If you want to leave the off-line mode press [STATION 2] and

[COMPRESS ]

together.

SAVE PARAMETERS ACCEPT ST2 = IGNORE

Because the parameters are saved, press [STATION 2] to ignore.

PARALLEL+USB *) ON-LINE

Page 58

Configuration the printer

6-30

6.31. PRINT PHOTO VALUES

With the selecting of Print Photo Values you can start a print out photo sensor values.

*) The displayed line is depending on the selected Interface. Ex

ample of the Print Photo Values:

6.32. INQUIRE PHOTO VALUES

The inquiry of the photosensor can be classified into

 Photo Value-set and  Photo Value-actual.

Key or action

Two line display

Select Adjustment

ADJUSTMENT PHOTOSENSOR VALUE

[COMPRESS ]

until the LCD shows:

ADJUSTMENT PRINT PHOTO VALUES

[STOP ]

to select

The yellow Ready and green Station 1 lamp lights up.

PRINT PHOTO VALUES INSERT A4 SHEET The printer starts printing the values after inserting a paper.

PRINT PHOTO VALUES FINISH, PRESS STAT2

[STATION 2]

ADJUSTMENT PRINT PHOTO VALUES

If you want to leave the off-line mode press [STATION 2] and

[COMPRESS ]

together.

SAVE PARAMETERS  ACCEPT ST2 = IGNORE

Press [STATION 2] to ignore.

PARALLEL+USB *) ON-LINE

Sensor

No Paper

Paper Ref.

Level

Current

Valid

Paper Pres. 1

1023

0015

0519

0040

Paper Pres. 1

1023

0016

0519

0040

Paper Allin. 1

1023

0013

0518

0048

Paper Allin. 2

1023

0000

0511

0048

Paper Allin. 3

1023

0001

0512

0056

Paper Allin. 4

1018

0001

0509

0056

Paper Edge

0965

0059

0095

0120

Page 59

Configuration the printer

6-31

For both selections you can inquire 7 class photosensor values



Paper Intro1



Paper Intro2



Paper Alline 1



Paper Alline 2



Paper Alline 3



Paper Alline 4

 Paper Edge

You can check each photosensor value by pressing

[

]

(means move downwards) or

[FEED/EJECT

•]

(means upwards).

Now you can select other operations you want.

6.33. RESUME HARDWARE PARAMETERS

All standard default settings of the firmware will be restored. The contents of the Page Counter will not be changed, but all other settings are reset.

*) The displayed line is depending on the selected Emulation.

Key or action

Two line display

Select Adjustment

ADJUSTMENT PHOTOSENSOR VALUE

[COMPRESS ]

[FEED/EJECT ]

until the LCD shows:

ADJUSTMENT INQUIRE PHOTO VALUES

[STOP ]

to select

INQUIRE PHOTO VALUES PHOTO VALUE SET

For inquire press

[STOP ]

continue with

[COMPRESS ]

[FEED/EJECT ]

to check various values

INTRO CUR VOL. 0260

Press [STATION 2]

to exit

INQUIRE PHOTO VALUES PHOTO VALUE SET

Key or action

Two line display

Select Adjustment

ADJUSTMENT PHOTOSENSOR VALUE

[ ]

until the LCD shows:

ADJUSTMENT RESUME HW PARAMETERS

to select

The yellow Ready and green Station 1 and Station 2 lamp lights up.

RESUME HW PARAMETERS

■

ACCEPT ST2 = IGNORE

Press

to accept

ADJUSTMENT RESUME HW PARAMETERS

or [STATION 2] to ignore

OFF-LINE MODE ADJUSTMENT

If you want to leave the off-line mode press [STATION 2] and

[ ]

together.

SAVE PARAMETERS

■

ACCEPT ST2 = IGNORE

Press [STATION 2] to ignore.

PR9 SERIAL1 OLIVETTI *) ON-LINE

Page 60

Configuration the printer

6-32

6.34. DEBUG / TEST

The Debug / Test parameter defines the execution of control sequences when Hex- printing has been activated. The incoming or stored data from the host are printed in hex mode. This is an excellent help for the programmer.

The Debug/ Test mode is arranged into two groups:

 Hex Printing  Magnetic Test

In the Hex Printing mode we will find five groups:

 Data Backup Mode  Printing Saved Data  Printing Last Data  Printing Flash Data  Directly Dump

The HEX print is divided into three groups:

1. the transmission code first with five bytes

2. values of the data in HEX

3. ASCII code of the printed data

0 & C * C * C * C * C *

6.35. DATA BACKUP MODE

The Data Backup Mode is using the buffer of the printer. All receiving data from the host are saved first. To get data printed select after saving the data the function Printing Saved.

Note: The new to be saved data will overwrite the saved data before.

*) The displayed line is depending on the selected Interface.

Key or action

Two line display

Select Debug / Test

DEBUG/TEST HEX PRINTING

[COMPRESS ]

HEX PRINTING DATA BACKUP MODE

[STOP ] to select You hear a short beep.

The receiving data from the host will be stored in the buffer of the printer.

HEX PRINTING WAITING FOR DATA ...

HEX PRINTING OPERATE NATURALLY

[STOP ] to stop hex printing

HEX PRINTING OPERATE NATURALLY

If you want to leave the off-line mode press [STATION 2] and

[COMPRESS ]

together.

SAVE PARAMETERS

■

ACCEPT ST2 = IGNORE

Press [STATION 2] to ignore.

PARALLEL+USB *) ON-LINE

Page 61

Configuration the printer

6-33

6.36. PRINTING SAVED DATA

All before in the buffer of the printer saved data can be printed in HEX format with this function.

Note: The saved data are printed with two bytes first (in the sample in bold), which

indicates the length of the saved

data.

Sample:

00000

00 0C

07 0D 07 0D 07 0D 07 0D 07 0D

0 &

C * C * C * C * C *

6.37. PRINTING LAST DATA

All last used and in the buffer of the printer saved data can be printed in HEX format with this function.

6.38. PRINTING FLASH DATA

All in the flash saved data can be printed in HEX format with this function.

Key or action

Two line display

Select Debug / Test

DEBUG/TEST HEX PRINTING

[COMPRESS ]

until the LCD shows:

HEX PRINTING PRINTING SAVED DATA

[STOP ]

to accept

The green Station 2 lamp is flashing.

HEX PRINTING INSERT A4 SHEET

The printer starts printing vertical lines after inserting a paper.

HEX PRINTING PRINTING, WAITING...

After printing and eject the page the LCD shows:

HEX PRINTING POWER OFF OR OTHERS

Key or action

Two line display

Select Debug / Test

DEBUG/TEST HEX PRINTING

[COMPRESS ]

until the LCD shows:

HEX PRINTING PRINTING LAST DATA

[STOP ]

to accept

The green Station 2 lamp is flashing.

HEX PRINTING INSERT A4 SHEET

The printer starts printing vertical lines after inserting a paper.

HEX PRINTING PRINTING, WAITING...

After printing and eject the page the LCD shows:

HEX PRINTING POWER OFF OR OTHERS

Key or action

Two line display

Select Debug / Test

DEBUG/TEST HEX PRINTING

[ ]

until the LCD shows:

HEX PRINTING PRINTING FLASH DATA

to accept

The green Station 2 lamp is flashing.

HEX PRINTING INSERT A4 SHEET

The printer starts printing vertical lines after inserting a paper.

HEX PRINTING PRINTING, WAITING...

After printing and eject the page the LCD shows:

HEX PRINTING POWER OFF OR OTHERS

Page 62

Configuration the printer

6-34

6.39. DIRECTLY DUMP

The receiving data from the host will not stored first in the buffer of the printer. They will be printed directly after being received by the printer.

Note: The directly printed data are printed without the two bytes first. So there is no

indication of the length of

the printed data.

Sample:

00000 07 0D 07 0D 07 0D 07 0D 07 0D 07 0D C * C * C * C * C * C *

Key or action

Two line display

Select Debug / Test

DEBUG/TEST HEX PRINTING

[ ]

until the LCD shows:

HEX PRINTING DIRECTLY DUMP

to accept

The green Station 2 lamp is flashing.

HEX PRINTING INSERT A4 SHEET

The printer starts printing vertical lines after inserting a paper.

HEX PRINTING PRINTING, WAITING...

After printing and eject the page the LCD shows:

HEX PRINTING POWER OFF OR OTHERS

Note: During the Directly Dump process, if the printer ejects paper automatically, it

indicate that the printing has been finished, but if the printer do not eject paper automatically, press [FEED/EJECT ] key to eject the paper.

Caution: The performance in the two different modes is different. In the Data Backup

Mode, the printer not only prints in HEX, but also execute the programmer correctly (the bell will sound six times). But in the Directly Dump, the printer just prints in HEX.

6.40. MAGNETIC TEST

The Magnetic Test is for the optional Magnetic Stripe Reader / Writer. It works only for the PR 9/K with the firmware version 1.07 or higher.

Note: The optional Magnetic Stripe Reader / Writer in a special version and not used in

Europe.

6.41. INFO INQUIRING

You get information of the current setting parameters of software or hardware. This information is important for the system engineer and service staff.

You can select the following parameter:

 FW VERSION  HW CONFIGURATION  PRINTER ID

Page 63

Configuration the printer

6-35

FW VERSION VER2.09 T7FPGA:2.4

HW CONFIGURATION GB18030 CX

PRINTER ID 00000AECE8AD01

6.42. FW Version

The parameter firmware version shows:

 version number  special version tag e.g.:

Note: In this sample indicates VER2.09 the version number (firmware release), and T7 the

special version tag.

6.43. HW Configuration

The parameter hardware configuration gives information over:

 characters generators  optional interface e.g.:  scanner (only with Magnetic Test)

6.44. Printer ID

The display shows the identification of the printer:

e.g.:

Page 64

Configuration the printer

6-1

Maintenance

7.1. Preferred Material

The following materials and cleaning lubricants are recommended when maintaining the printer:

 Lint-free soft cloth

 Light vacuum cleaner.

7.2. Cleaning Surrounding Areas

The user should clean the printer every six months. If you experience paper feed problems or if the print head carriage movement is hampered, cleaning should be carried

out more often.

Maintenance work of PR 9 printer is very simple, all you need to do is:

 remove the ribbon and  remove the Alignment Unit to clean printer regularly.

Note: Before doing the cleaning, please switch off the printer and unplug the power cord

first. Don't use alcohol, liquor or brushes with hard hair to clean the printer. Be careful not to let water and other liquid flow into the inner of printer.

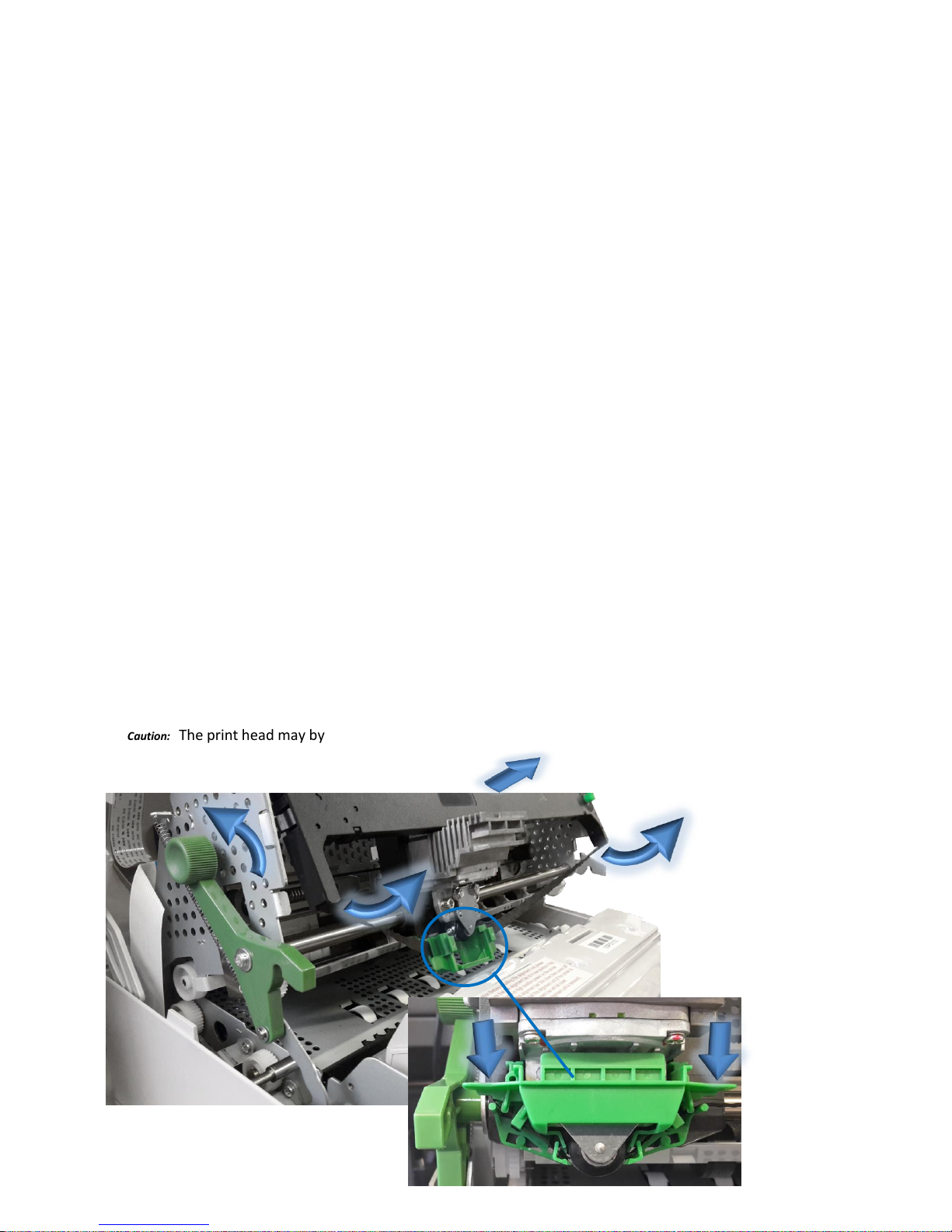

7.3. Remove the Ribbon

 Power the printer on.  Open the top cover; the print head (2) is moving to the center.  Step 1: swivel the green print unit lift handle (1) backwards to lift the print unit entirely.  Step 2: loosen the green ribbon guide (3) by pressing downwards.  Step 3: lift the ribbon cassette (4) by rotation as shown in the picture below.  Step 4: take the ribbon cassette (4) out of the printer.  Power the printer off.

Caution: The print head may by very hot immediately after printing.

Page 65

Maintenance

7-2

7.4. Remove the Alignment Unit

 Power the printer off  Open the Top Cover  Swivel the green print unit lift handle (see the photo on the page before) backwards to

lift the print unit

entirely.

 Press both Levers (2) to the outside of the printer  Swivel the Alignment Unit up to about < 35°. Now the Pins (3) on both sides of the

Alignment Unit (1)

are in the correct position.

 Lift the Alignment Unit (1) out of the printer.

Note: Both pins (3) are flatten and so is it only possible to take out the Alignment Unit in

an angle of < 35°!

2 1 3

Page 66

Maintenance

6-3

7.5. Cleaning Procedure

 Thoroughly brush and vacuum all accessible areas to any paper flock and dust.  Clean the black platen’s surface, the transport rollers.  Clean also the rollers on the lower side of the Alignment Unit.  Clean the covers and operator panel with damp, lint-free cloth. Do not use some

cleaning solvents or

excessive amount of water.

7.6. Install the Alignment

 Mount the Alignment Unit. Execute the removing procedure in reverse sequence.

Attention: Take care that the foil (2) at the rear side of the Alignment Unit (1) will not be

damaged and is flat

over the Print Bar (3)!

Page 67

Options

8-1

Options

8.1. Optional Devices

Following optional devices can be provided:

 Serial interface port 2  USB interface (in preparation)

Add the second interface port Printer has basic configuration of one standard serial and parallel communication interface. At the rear of printer there is a second interface installation slot, this slot is be used in the standard Version by the parallel interface. A special version of PR 9 can be provide without the parallel interface port.

This slot can be used than for option boards and cards as below:

 Second serial interface board and USB interface board  Second serial interface board or  USB interface board

Note: When printer equipped with second or more other data communication interface

boards, interface

working mode can be selected by menu setup configuration.

 Working with single communication port  Printer can only work according to the interface mode and emulation selected by

menu configuration,

even if printer has been equipped with more interface boards.

 Working with dual-port  If printer has been equipped with option interface board, operator can set up printer

working mode

to be dual-port mode through the operator panel to meet different usage requirement.

 If printer has been installed second serial port board and USB interface board, there

are only two serial ports( first serial port and second serial port) can work synchronously. Under this configuration, printer can check witch port is active. Any one of these two ports, if its data has been received, printer will be under the control of this port, and be kept in this state till this port task is end. Two ports are independent. And two ports have the same configuration except emulation mode.

 Emulation mode can be shifted by commands.  If printer has been installed with second parallel interface board and configured as

dual-port activity, it will check witch port buffer has data. If any one of these two ports detect data has been received, printer will be under the control of the port and it will be kept in this state till port task is end. Dualport functionality and corresponding parameters can be selected though operator panel. Under the especial circumstance, each port can has its own emulation mode, and using commands can shift emulation mode.

 If printer hardware configuration has two interface and the setup item interface in

the menu is UAL then it can print out two interface corresponding emulation configuration in self-test sheet. Printer can set which port to be active and emulation mode according to host communication port

Page 68

Technical Data

9-1

Technical Data

9.1. Technical Specification

Paper Path:

 Flatbed technology

Printhead:

 Number of needles: 24  Needle Diameter: 0.25 mm  Needle Material: tungsten carbide  Needle alignment: staggered two lines, 12+12  Matrix form: diamond-shaped  Multi-copy print: 1+6  Thermal protection: PTC  Life of print head: >600 million dots/needle

Font:

 Latin character: HSD, Draft, Roman, Sans Serif, Italic, OCR-A, OCR-B, E13B.  Chinese character: GB18030 (SONG Style), UNICODE and BIG-5 traditional Chinese

character.

Barcodes:

EAN 8, EAN 13, UPC-A, UPC-E, Code 39, Code 128, Codabar, 2 of 5 industrial, 2 of 5 interleaved

Character Set:

 Chinese character: GB18030  ASCII character: 54 codepages

CPI:

 Chinese character:  5CCPI, 6CCPI, 6.9CCPI, 7.5CCPI, 8.3CCPI, 8.5CCPI, 9CCPI, 10CCPI  ASCII character:  10CPI, 12CPI, 13.8CPI, 15CPI, 16.6CPI, 17.1CPI, 18CPI, 20CPI

LPI:

1/5”, 1/6”, 1/8”, n/72”, n/180”, n/216”, n/240”, n/360”

Printing Speed:

Form Feed Speed: 32 cm/s

Alignment Speed: <0.3 s

HSD

Draft

NLQ

Chinese Character (CCPS)

200

150

ASCII Character (CPS)

360

300

150

100

Page 69

9-2

Technical Data

Graphics Dot Matrix Density:

Machine ID: each machine has an unique ID Number.

Diagnose:

 Self-diagnose,  Hex print,  Remote interrupt by interface,  Remote intelligence service by interface,  Self-test when power on.

Ribbon Cassette:

 Ribbon: black fabric  Ribbon Length: 18 m  Ribbon Width: 7 mm  Useful ribbon Life: 5 million characters (HSD)

Machine Character:

 Dimensions: 398 x 296 x 215 mm (W x D x H)  Weight: 9.0 kg (Basic Model)

Electric Character:

 Rated Voltage: 220 VAC ± 10%  Frequency: 50 HZ / 60 HZ  Power Consumption: operating approx. 170 W (max), 15 W Standby

Environment:

 Temperature: 5 - 35° C  Humidity: 15 - 85% (no frost)  Noise level: < 54 dBA acc. to ISO 7799

Quality Characteristics:

 MTBF: >=10,000 hours  EMC and radio interference character: acc. to CCC.

 9

60 DPI, 72 DPI,

80 DPI,

96 DPI,

120 DPI,

240 DPI

 24

60 DPI, 120 DPI,

180 DPI,

240 DPI,

360 DPI

Page 70

Technical Data

9-3

9.2. Document Specification and Technical Instruction

Paper Input:

 Front Side with automatic alignment:  Cut sheets or multi-copy paper (1 original + 6 copies)  Horizontal or vertical passbook

Rear Side with optional Tractor Option:

 Fan Fold paper (1 original + 6 copies)

Paper Output:

 front side

9.3. Cut sheets and multi-copy paper

Minimum maximum Paper width: 80 mm 245 mm Paper length: 70 mm 450 mm Paper weight:

Cut sheets: 45 g/m² 160 g/m²

Note: With setting SPECIAL FORM to YES, you can print thin paper above 35 g/m²).

 Form set of action paper: 40 g/m² 60 g/m²

Thickness of single sheet: Form set of action paper 0.06 mm 0.28 mm

 first sheet 40 g/m² 60 g/m²  other sheets 40 g/m² 60 g/m²  last sheet 40 g/m² 60 g/m²  Weight of carbon 20 g/m² 34 g/m²  total set 380 g/m²  otal thickness: 0.7 mm  Multi copy gluing: At the top or on the right or left side

Margins of Documents:

(measured from the character’s bottom):

 PR 9 emulation = 4.3 mm  IBM PP II = 4.3 mm

 The min distance from the last basic printing line to the page bottom margin: 5 mm (0.2 inch)  Left and right margin value of document: min 3.1 mm ± 0.3 mm

Page 71

9-4

Technical Data

9.4. Passbook (open)

minimum maximum

 Paper width: 90 mm 245 mm  Paper length: 85 mm 220 mm  Cover thickness: 0.2 mm 0.5 mm  maximal thickness with open book: 2.2 mm  Type of Binding Thread-binding, without metal staples or clips

Note: New or folded passbooks have to be flatting before put it into a printer!

Margins of Passbooks:

 Minimal left and right margin = 3.1 mm ± 0.3 mm  Min distance between last basic line character above the horizontal binding = 5 mm

 Min distance between last basic line character below the horizontal binding = 8 mm  Distance between character and vertical binding = 5.08 mm

Printing Media Character:

 Input media manual  Margin align automatically  Max thickness 2.2 mm  Max width 245 mm

 Standard of top of page of document and passbook

 Min value of document rear (measured from the character bottom):  PR 9 emulation = 3.1 mm  BM PP II = 10 mm

 Min rear value of the passbook page:  5 mm

Page 72

Interface Description

10-1

Interface Description

10.1 Serial Interface

Standard PR 9 has one asynchronous V24 RS232C serial interface with 9 cores connected to the host.

Technical Character:

The following parameters can be modified in SET-UP:

 BAUD RATE: 2400, 4800, 9600, 19200 (bit/s)  BITS/CHARACTER: 7 or 8 bits  STOP BITS: 1 or 2 bits  PARITY: none, even or odd.  DSR: YES or NO

Communication Cable:

 HOST: 9 PINS (DB-9S)  PRINTER: 9 PINS (DB-9S)

This protocol uses the following signal lines:

 Receive Data (RXD)  Transmit Data (TXD)  Data Terminal Ready (DTR)  Projective Ground (GND)

 Data Set Ready (DSR)  Clear To Send (CTS)  Ready To Send (RTS)

 Signal Ground (SG)

Host System Printer

Page 73

Interface Description

10-2

10.2 Parallel Interface

The PR 9 parallel interface according to IEEE 1284-1994 standard, support SPP, nibble, byte protocol. Instruction of parallel interface as follows:

Technical Character:

 Compatibility: CENTRONICS  Logic circuit: TTL  Data format: 7 or 8 bits  Logic level: 0 - 5 V  Connector: 36 pins

All the input and output signal was connected to a 5V voltage by a 2.2k ohm resistance Interface signal:

Page 74

Interface Description

10-3

10.3 USB Interface

 USB-Connector Type B  Type: terminal  Reference standard: Universal Serial Bus  Transmission speed: 12 Mbps

Anschluss

Funktion

VCC (+5V)

GND

(+) Data

(-) Data

Page 75

Firmware Update

11-1

Firmware update

PSi will advise users to update the printer’s firmware irregularly to strengthen PR 9’s functions and will offer the necessary firmware file to users (usually the firmware file is named flash.mot).

To update PR 9’s firmware please follow the steps below:

 Copy the firmware file flash.mot to a Personal Computer.  Connect PR 9 to one of the PC’s parallel ports (usually LTP1 port), and power on the

PC.

 Connect a 220-V power line to the PR 9 printer.  Press the [STOP ] key and push the power button together to power on the PR 9.

 Do not release the [STOP ] key until the current firmware’s edition is displayed on the

printer’s LCD.

PR 9 VERx xx TX

 Hold on to press the [STOP ] key until LCD shows as:

RELEASE STOP KEY

 After LCD’s displaying become stable, you can release the key and the LCD will display

“PROGRAM UPDATE”.

 Copy the firmware file flash.mot binary to the PC’s parallel port, which is connected to the PR

9. Usually we suggest the user to use the command under MS-DOS like this:

c:\>copy flash.mot lpt1 /b

 Now the downloading process will begin.

UPDATE BUSY

 During the downloading process PR 9’s LCD will display how many bytes the printer has

received.

PROGRAMMING 13BB0

 The whole downloading process will last about three minutes. After updating is finished

successfully, LCD shows:

 Now the PR 9 will automatically reset after downloading process finished.  Firmware upgrading finished after PR 9’s automatically resetting finish, and PR 9 can be used

normally.

Warning: Power off during the process of firmware upgrading is forbidden, otherwise the

printer will be

destroyed.

PROGRAM UPDATE

UPDATE O.K.

Page 76

Troubleshooting

12-1

Troubleshooting

How to Use This Section

There are some examples, which will help you to solve the printer troubles that may occur during use. Warning: If there are mechanical or electrical troubles, don’t repair by yourself. Ask your service center for help. If you cannot find the troubles in the following pages, please contact your local service office for

technical support.

 Find the category in which your problem occurs. The problem categories are:  Power-related Problems  Uncompleted Power On  Ribbon or Carriage related Problems  Paper-related Problems  Print-related Problems  No Printout  Find the symptom description that most closely matches the printer symptom.  Try the first suggestion under that heading.  If the suggestion does not cure the problem, try the next suggestion.  If none of the suggestions enable you to continue printing, or if the fault is not listed,

contact your

service office.

12.1 Power-related Problems

 The power indicator does not come on when power is switched on.  Check that the power cord and plug are securely fitted to the printer and to an electrical outlet.  Ask for the power connector connections to be verified.  Ask for the building electrical supply to be verified.

12.2 Uncompleted Power On

After you powered on the printer, the print head does not return to the left edge, which means the

printer did not finish the internal self test.

 Check whether the component used to protect the print head and the sponge have

been

removed or not.

 Check if there is any object which is blocking the motor.  Check whether the top cover is closed or not.  Restart the printer to try again.  Check whether the print head moves smoothly or not.  S heck whether the ribbon box is settled correctly or not.

12.3 Ribbon or Carriage-related Problems

Ribbon Problems

 Make sure that the ribbon is:

o Stretched correctly; o Not worn thin or dry;

o Not torn or damaged in any other way; o Not jammed. o If the ribbon box is damaged, replace it with a new one.

Page 77

Troubleshooting

12-2

Carriage does not move smoothly

 Examine the paper pathway. Remove any obstructions. Check that all packing

material is

removed.

 Examine the carriage area for obstructions. Remove where necessary.

12.4 Paper-related Problems

The printer does not accept the sheet

 S Check whether the document is within specifications or not  S Check whether the document is inserted and aligned correctly or not

Fanfold Paper is not positioned at perforation for tear-off feature

 Select the correct form length using the Set-up feature.  Reset top of form by performing a Parking function.

Paper tears or jams

 Examine the paper path; remove any obstructions.

 Paper is ropy, such as crimp.  Multi-carbon does not bond well together.  Too thick, too thin or too many sheets of paper.  There is residue of paper or fibre on the printing media.  Paper with clip or pin (which would damage the printer seriously)

Paper jam with printer including the optional Tractor Unit

 Is the fanfold paper too loose or too taut between the tractors?  If the holes in the paper are deformed at their outer edges, the paper is too taut.  If the paper rises between the tractors, it is too loose.  Readjust the tractor spacing so that the paper lies smoothly but without any tension.  Ensure that the paper is horizontally aligned on the pins.

12.5 Print-related Problems

Note: The PR 9 printer has the function of overheating protection. If overheating protection

will be active the printer may slow down printing speed or even stop printing after a long time printing (until print head’s temperature returns normal). This function can prevent print head from being destroyed if print head is over heated.

Print faint or of poor quality.

 Have you used the correct paper? See Chapter 6 Technical Data which contains

a full specification of the paper you can use. Replace the paper if it does not match the specification.

 Make sure that the ribbon is stretched correctly.  Does the ribbon need changing? Replace it with a new ribbon if necessary.  Is the ribbon cartridge properly installed? Adjust as necessary.

Characters do not print evenly or are not uniform in pitch

 Examine the paper pathway for dirt or other obstruction that may cause the gap

between

print head and platen to vary. Remove the obstruction.

 Incorrect installation of ribbon box or the ribbon tied.

Part of printed text is missing (loss of data)

 If you are using Serial communication check the buffer control setting in

Set-up.

 Check the data flow control setting on the host computer.

Dot Missing

 If white lines appear on characters at certain fixed position, there are probably several needles

broken or crooked. When this happens, please contact your printer supplier to replace the damaged printhead.

Page 78

Troubleshooting

12-3

Note: Please avoid printing on the edge of the paper! It may cause printer needle broken.

12.6 No Printout

Self-test printout does not start

 Make sure that you have closed the cover.  Check if paper is loaded in the printer.  Check if ribbon cassette is installed correctly on printer.

Printing does not start

 Check if the physics and logic connection between printer and host system are

correct and at least one

LED should be light.

 Check if LCD displays ON LINE and check if the communication interface

parameters have been set up

correctly.

 Make sure that the printer is connected to the host computer.  Make sure that connectors are properly fixed at

both ends.

 Make sure that the printer is receiving data from the host computer.  Make sure that the correct protocol is enabled.  Make sure that you have selected the correct port (if the automatic feature has not

been selected).

 Make sure that paper is loaded.  Make sure that the ribbon is installed.  Examine the ribbon path. Does the ribbon pass in front of the whole print head?  Adjust the ribbon if necessary.

12.7 Printout of the Complete Configure Settings

The following steps show which keys to use to start the printout.

KEY / or action DISPLAY

[STATION 2]

and

[COMPRESS ]

OFF-LINE MODE

(synchronously) MENU SETUP

[COMPRESS

OFF-LINE MODE MENU PRINTING

[STATION 1] INSERT A4 SHEET

After feeding an A4 paper the printer will start MENU PRINTING process automatically. PRINTING; WAITING...

If a page is finished, printer will eject paper and need MENU PRINTING an other sheet until the print out is finished. PRINTING; WAITING...

[STATION 2] MENU PRINTING

FINISH; PRESS STAT2

[STATION 2] OFF-LINE MODE

MENU PRINTING

Press

[STATION 2]

and

[COMPRESS ]

synchronously to go back to

ON-LINE.

Note: A sample of the print out you will find on the next pages.

Page 79

Troubleshooting

12-4

Page 80

A-1

Appendix A Code Pages

Code page of PR 9

Under OLIVETTI Emulation: set code page by changing menu configuration or command

ESC [ nnn on line.

nnn

OLIVETTI Character

Set

IBM/PC Character Set

nnn

PC Character Set

nnn

ISO Character Set

“000”

International (see 010)

“700”

PC-437 International

“600”

ISO 8859/1 Latin 1

“010”

ST15INI International

“701”

PC-220 Spain 2

“602”

ISO 8859/9 Latin 5

“020”

ST15D Germany

“710”

PC-865 North Europe (Sweden)

“605”

ISO 8859/2 Latin 2

“030”

ST15P Portugal

“711”

PC- DK/N Denmark / Norway

“615”

ISO 8859/5 Slavic

“040”

ST15E Spain

“712”

PC-DK Denmark

“617”

ISO 8859/15

“050”

ST15DK/N Denmark / Norway

“720”

PC-860 Portugal

“620”

ISO 8859/6 Arabia

“060”

ST15F French

“730”

PC-863 Canada (French)

“623”

ISO 8859/7 Greece

“070”

ST15ITA Italy

“740”

PC-850 Latin 1

“625”

ISO 8859/8 Hebrew

“080”

ST15S/SF, Sweden/Finland

“741”

PC-858 Europe

“680”

OLI-UNIX

“090”

ST15CH Swiss

“742”

PC-857 Latin 5

“100”

ST15UK Britain

“750”

PC-852 Latin 2

“110”

ST15USA America

“770”

PC-851 Greece

“140”

ST15GR Greece **

“771”

PC-210 Greece *

“150”

ST15IL Israel **

“780”

PC-855 Slavic

“170”

ST15E2 Spain 2**

“781”

PC-862 Israel

“180”

ST15USSR

“782”

PC-864 Arabia

“200”

ST15YU Yugoslavia *

“783”

PC-866 Slavic

“410”

ST31 * *

“640”

PC-WIN Latin 1

“500”

ST15CND Canada**

“645”

PC-WIN Latin 2

“510”

ST15SDC SDC

“910”

CHINA

“520”

ST15TR Turkey**

“911”

CHN2

“530”

ST15ARABIC

“912”

PC-866-BG(Bulgaria)

“540”

ST15CIBC

“913”

PC-Ger.(Germany)

Page 81

A-2

Appendix A Code Pages

A.1 Olivetti Character Sets

Page 82

A-3

Appendix A Code Pages

Page 83

A-4

Appendix A Code Pages

Page 84

A-5

Appendix A Code Pages

Page 85

A-6

Appendix A Code Pages

Page 86

A-7

Appendix A Code Pages

Page 87

A-8

Appendix A Code Pages

Page 88

A-9

Appendix A Code Pages

Page 89

A-10

Appendix A Code Pages

Page 90

A-11

Appendix A Code Pages

Page 91

A-12

Appendix A Code Pages

Page 92

A-13

Appendix A Code Pages

Page 93

A-14

Appendix A Code Pages

Page 94

A-15

Appendix A Code Pages

Page 95

A-16

Appendix A Code Pages

Page 96

A-17

Appendix A Code Pages

Page 97

A-18

Appendix A Code Pages

Page 98

A-19

Appendix A Code Pages

Page 99

A-20

Appendix A Code Pages

Page 100

A-21

Appendix A Code Pages
