Great care has been taken to ensure that the information in this handbook is accurate and complete.
However, should any errors or omissions be discovered or should any user wish to make suggestions
for improving this handbook, please feel encouraged to send us the relevant details.
The contents of this manual are subject to change without notice.

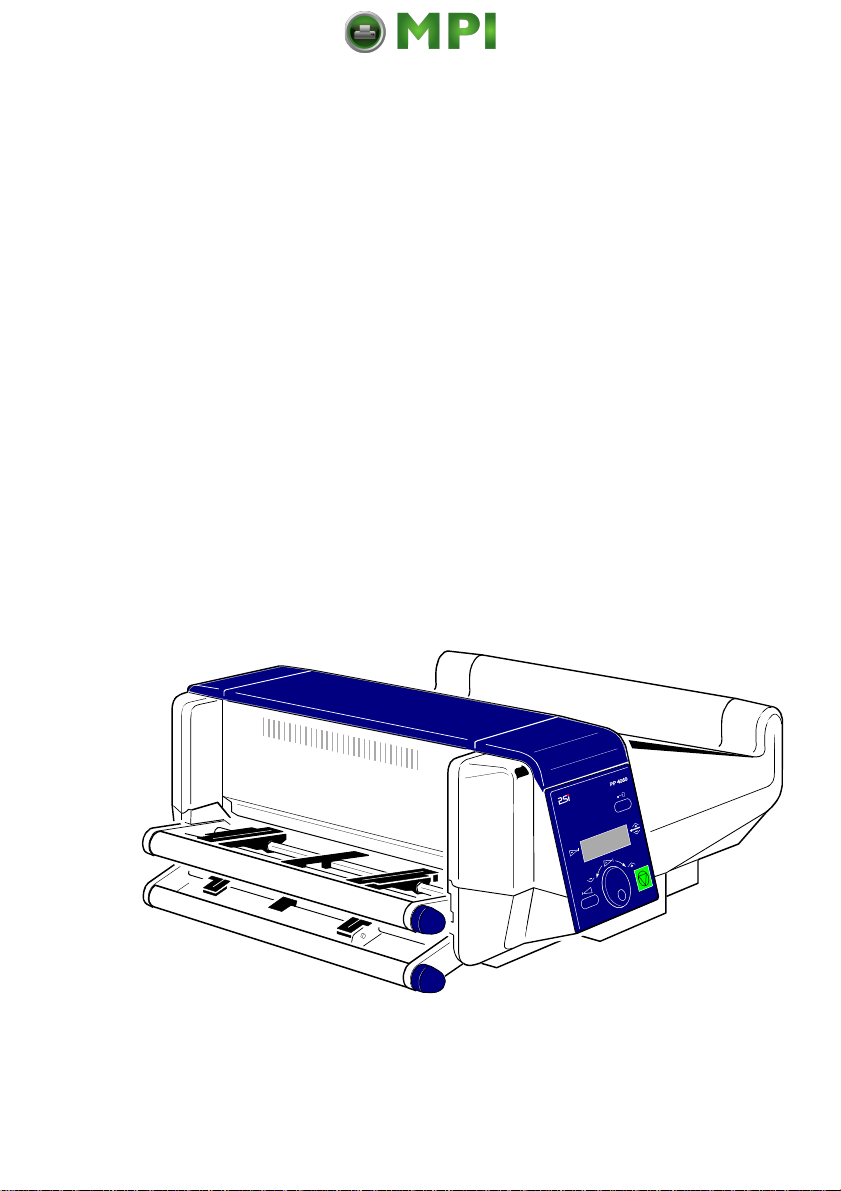

The LED printer PP 4050/PP4060 and the intelligent Paper Stacker iPS
4050E fulfils the safety regulations according to IEC 60950-1 for information
technology equipments.
Note: The commercial name of the iPS 4050E is iPS 4050).
The mains cable must be connected to a ground protected wall-socket. The
printer's voltage has to be in accordance with the local mains voltage.
The power plug must be easily accessible at any time so that it can be
disconnected immediately in case of danger or for maintenance purposes.
Before installing the printer, check the surrounding conditions in which the
printer is intended to be used (see next page, Operating Environment).
During thunderstorm you should never attempt to connect or disconnect any
data transfer cable.
The power supply should only be opened and checked by authorized
personnel. Maintenance beyond the descriptions of chapter 5 may only be
attempted by authorized personnel. Repairs done inappropriately may seriously
jeopardize the user's safety.
We certify that the equipment at issue,
Type: Printer PP 4050/PP 4060 and the intelligent Paper Stacker iPS 4050E
c
orresponds to the laws and regulations ruling electromagnetic compatibility of
appliances (2014/30/EU) and, therefore, fulfils the requirements for conformity
marking with the CE-sign.
To guarantee that the device stays within the limits according to the approval
regulations for conducted and radiated emission (EN 55022, Class B) and
immunity (EN 55024) in any case shielded interface cables are to be used only.
This equipment has been tested and found to comply with the limits for a
Note:
CLASS A digital device pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference in wich case the user will be required
to correct the interference at his own expense.
Changes and modifications not explicitly allowed by the equipment's
manufacturer could void the user's authority to operate the equipment.
Operating Environment
Avoid installing the printer where it is exposed to moisture or heat (eg. direct
sunlight).
The printer is designed to operate in a wide range of environmental conditions.
$
Temperature: + 15C to + 35C (+59F to + 95F)
$
Humidity: 25% to 55%
For best performance, store and use fanfold paper at 19 to 23 C (68 to
73F) and a relative humidity of 33 to 47 percent.
Note: In case of higher values for temperature and humidity the print quality
To avoid an overload of the electric circuit support (particularly for 100 to
Note:
110 or 110 to 120V) connect the power-supply plug of the printer into a
separate protected power wall socket.
Power Consumption
$
Operating power< 1.200 Watt average; (<1.650 W peak during
Warming Up)
$
Operating current< 100 Watt
$
Power save
45 W
Safety Regulations
Notes:
Slots and openings in the printer's housing are provided for
ventilation. Always ensure that these openings are not obstructed.
Also ensure that the cables of the printer do not interfere with the
output paper path.
During the printing process ozone will be produced. Take care that
the printer is standing in a room with good ventilation. The limt of
ozone concentration should be 0,1 ppm (0,2 mg/m ). Note that the
3
specific gravity of ozone is higher than that of air.
The intelligent Paper Stacker iPS 4050E can only be used in conjunction with
the printer PP 4050 or PP 4060.
Caution:
Connector not located in limited Power Source! Only for connecting
Paper Stacker (iPS 4050E). Refere to User´s Manual.

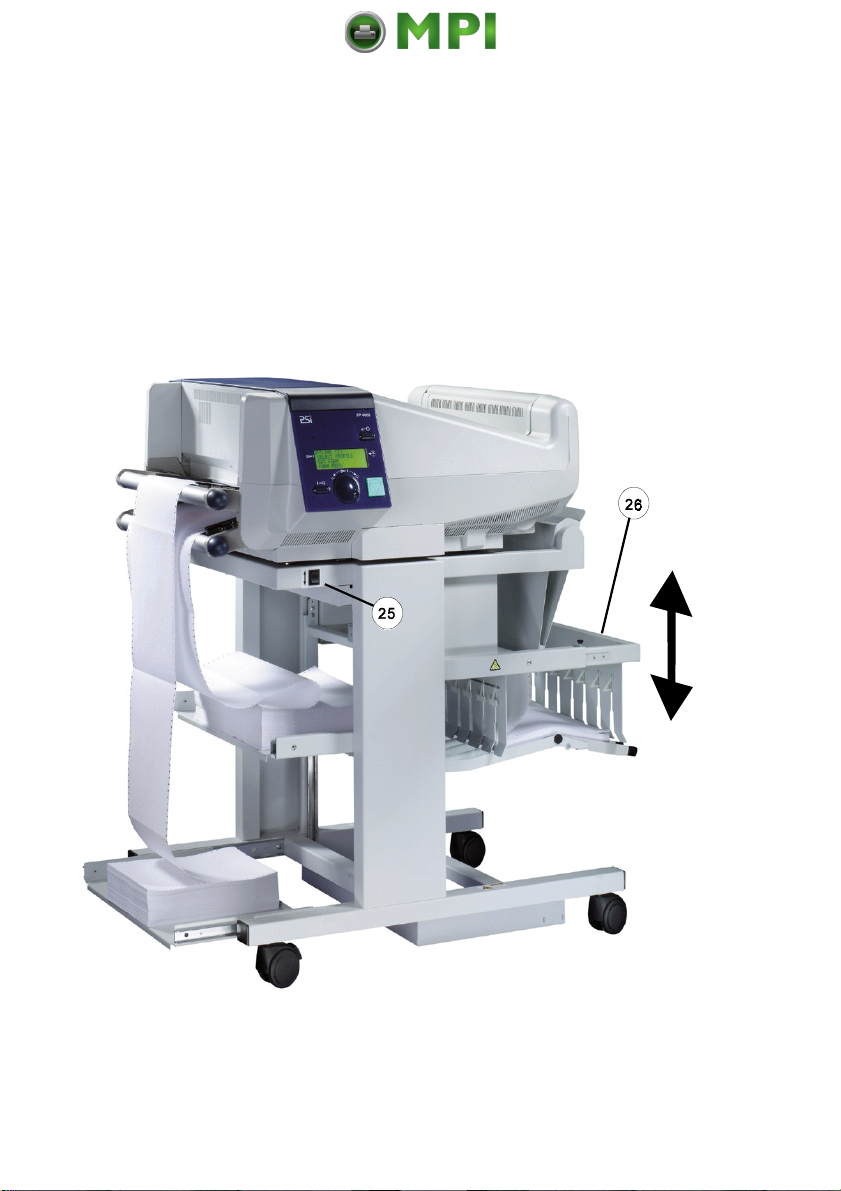

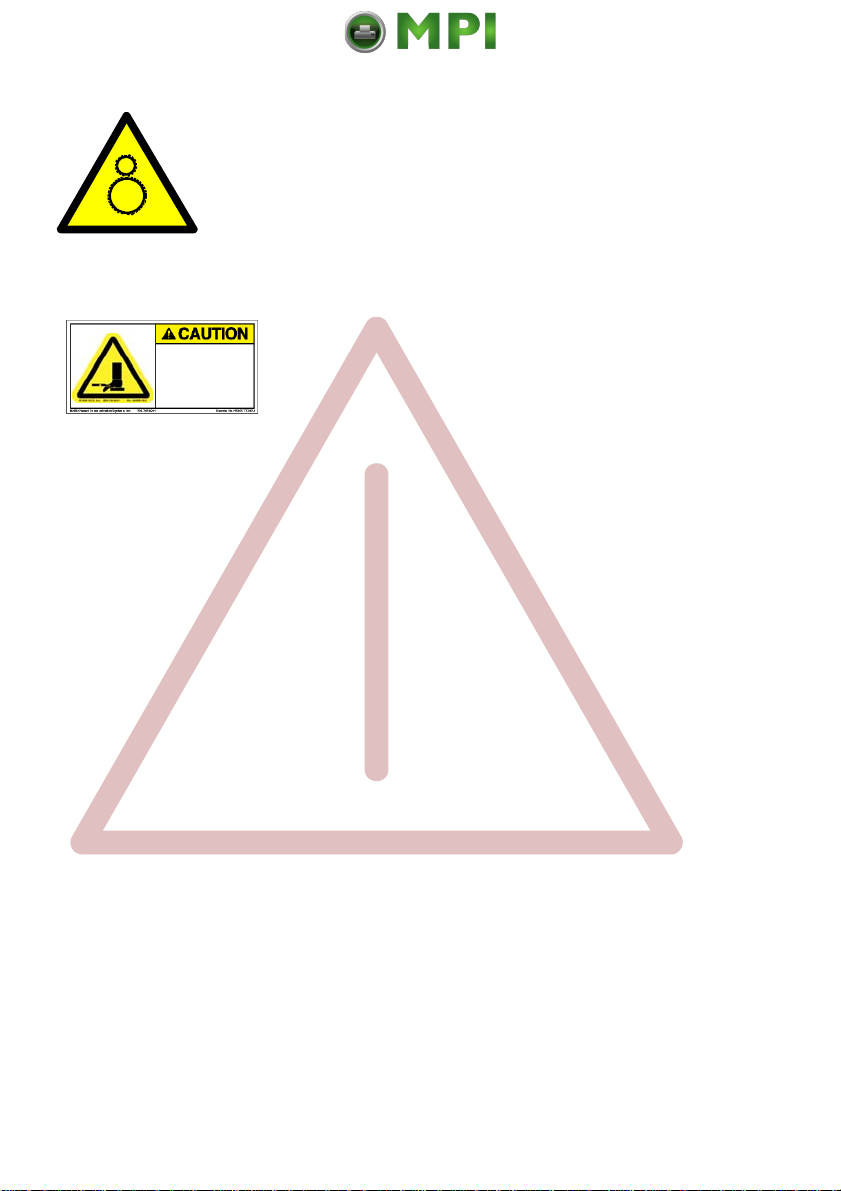

Caution, the chain of the motor to move the paper exit tray
up and down will start automatically or after pushing the
key at the front side of the table.
Caution, the paper exit tray moves up and down
automatically or after pushing the key at the front
oving lift can crush.
eep feet clear.
ee instructions manua
side of the table. Keep your feet clear when the
paper exit tray moves down. Ensure that the cables
at the rear of the printer do not interfere with the
paper path within the stacker.
The feet of the laser printer PP 4050 / PP 4060 should be positioned into the
depressions of the stacker's table.
Open windows, airing, and also draught disturb the paper flow!
This manual covers the printer in combination with the interface module, the
Personality Module. The Personality Module (PM) is an integral part of the
printer which determines the functionality of the printer especially regarding the
user and system interface.
The structure of this manual is such that the operator is led step-by-step
through the various procedures. Starting with unpacking and installation of the
consumables it moves on to setting-up configuration parameters and ends with
the mounting of options.
The manual is divided into the following chapters:
1. Installing the Printer and intelligent Paper Stacker

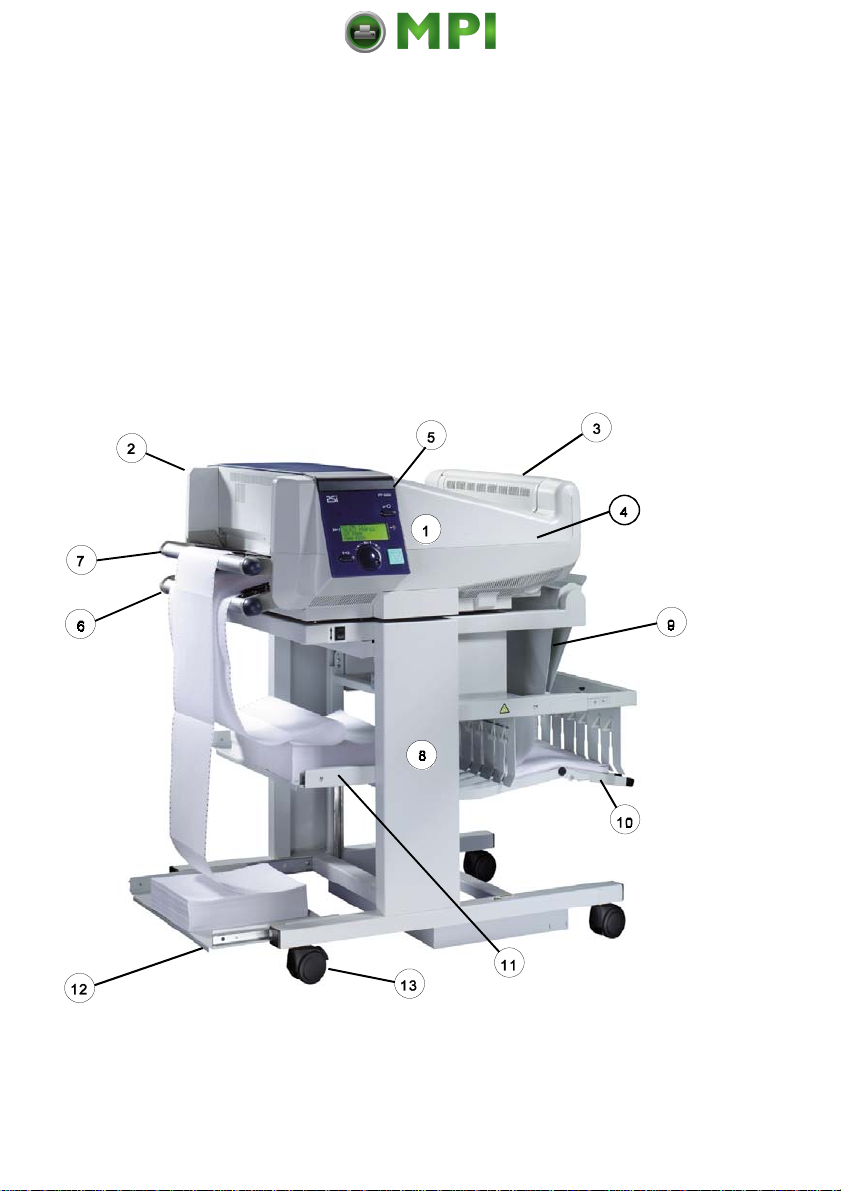

This chapter covers the information about the basic elements of the printer.
The next steps show how to power on the printer, the handling of the tractor
cassettes, inserting fanfold paper, and how to operate the intelligent Paper
Stacker iPS 4050.
2. Operating the Printer
This chapter discusses in great detail the operation of the control panel, all
menu functions, and the general operation of the menu.
3. Configuring the Printer
This chapter explains how to use the Profiles and to configure the printer so
that it can communicate with the corresponding system environment.
Furtheron this chapter includes a view of the Menu Structure and thoroughly
describes in a short form the printer's operating controls. .
This appendix describes command extension of PCL5 and PJL in section 1
and 2. The Bar code Programming is decribed in section 3. These command
structures are valid for a PP 4050 / PP4060 Laser P
The PP 4050 / PP 4060 printer has a special feature to save power. After a
specified period of inactivity, the printer changes to a low power state. When a
print job is received, the printer resumes the operating mode. This function is
c
hangeable in the Configuration Menu with the item POWER SAVE. Standard
setting is 15 minutes.
Conventions Used in this Guide
The following conventions are used:
BoldHeadlines and important information.
Note:
Caution:
Contains special advice to facilitate handling.
Contains important information to prevent damage
of the equipment.
[ENTER]Key functions are always depicted in brackets or
indicated by the corresponding symbol e.g. .
The use of LEFT and RIGHT always assumes you are viewing the front i.e. the
control panel of the printer. For instance, the paper input is at the LEFT side of
the printer.
XVI
Page 19
1. Installing the Printer and intelligent Paper Stacker
In this chapter the preconditions are described concerning the environment, the
physical prerequisites, and the demand for space which are required for
installation of the printer.
1.1.1 Environmental conditions
$
Temperature and Humidity
The following table shows the values of temperature and relative humidity
which are specified for the printer and its consumables.
Temperature Relative Humidity
Print operation *+ 19 to + 23°C33 to 47%
Optimum range+ 68 to + 73°F
Print operation+ 15 to + 30°C25 bis 55%
Extended range+ 56.5 to + 86°F
Transport and Storage- 20 to + 40°Cmax. 95%
of the printer- 4 to + 104°F(at + 40°C or + 104°F)
Transport and Storage- 20 to + 40°C max. 95%
of the consumables **- 4 to + 104°F(at 40°C or 104°F)
Storage of fanfold+ 19 to + 23°C33 to 47%
paper+ 68 to + 73°F
*The photoeletrical process in a laser printer is influenced by the climatic
conditions of the environment. The herewith specified values define a
climate in which an optimal print quality is ensured. Operating the printer
outside this range may lead to a reduction of the print quality.
** It is recommended to store the consumables at a cool and dark location.
$
Altitude
The printer can be used at an altitude up to 2,135 m (7,000 ft.).
1-1
Page 20
Installing the Printer and the intelligent Paper Stacker
In general there are no restrictions concerning air circulation. However, it is
to be observed that the air flow does not move the fanfold paper heavily at
the paper entry and paper exit of the printer and such may lead to paper
jams.
In conjunction with the paper stacking system care has to be taken that the
air flow does not disturb a proper operation of the stacker.
$
Impact of Light and Sunshine
Since the printer is equipped with a light-sensitive photoconductor drum and
optical sensors it shall in generally not be installed at a location which is
exposed to sunlight. If not otherwise possible window shades have to
provide for the necessary protection.
The printer must never be installed such that its right side (paper
Note:
exit) points to a window.
If the top cover is opened to clear a paper jam or to perform maintenance
actions sunbeams would directly fall onto the photoconductor drum and
would permanently destroy its surface after an impact period of about 1
minute.
$
Acoustical Noise
The upper limits of the acoustical noise are shown below.
$
Print Operation < 55 dB(A)
$
Stand-by<
48 dB(A)
$
Power Dissipation
If an interruption of a print operation occurs the printer can enter the Power
Save mode when for a certain period of time whose duration is selected at
the operator panel the printer does not perform any further operation. In this
mode most of the printer´s subsystems are disconnected from power. The
operating mode is resumed when the printer receives further data from the
host system.
ModePower Consumption
Operating < 1,200 Watt average
The printer´s weight is 112 kg (247 lbs.) with all consumables included.
The printer and the optional intelligent paper stacker both together weigh
164 kg (361 lbs.).
$
Dimensions
PrinterPrinter incl. Stacker System
Width810 mm; 32.9 inch1.040 mm; 40.9 inch
Height350 mm; 13.8 inch1.140 mm; 44.9 inch
Depth780 mm; 30.7 inch 780 mm; 30.7 inch
$
Accessability
To facilitate the handling of the printer (and the stacking system) by the
operator the below mentioned distances around the printer should be met
minimally:
$
Front700 mm / 27.6 inch
$
Rear140 mm / 5.5 inch
$
Left480 mm / 18.9 inch
$
Right400 mm / 15.8 inch

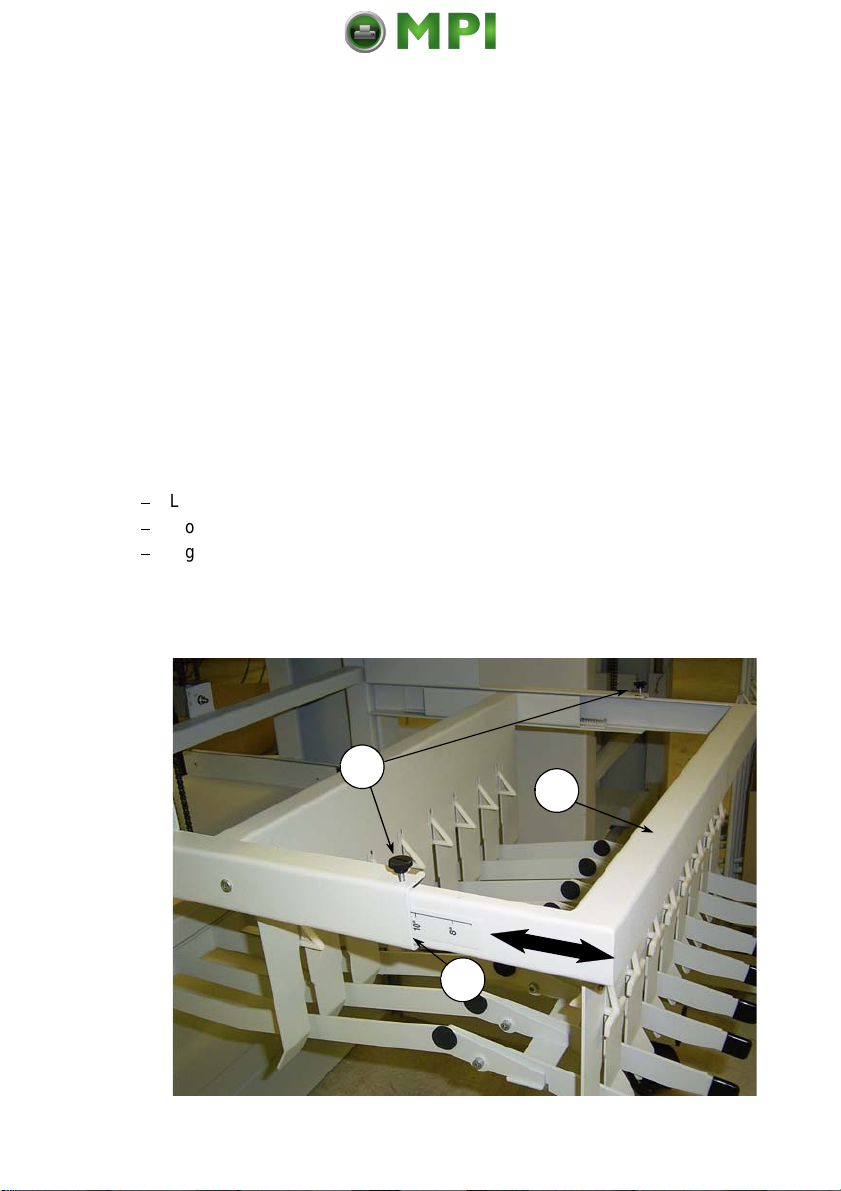

The intelligent paper stacker is equipped with castors which allow to
Note:
move the entire configuration to an empty space in case of maintenance
activities.
$
Preconditions for Installation
Floors and doors must be wide enough that the printer can pass them;
corners and angles must be large enough such that the printer can be
turned if necessary. For example a door must be 80 cm (31.5 inch) wide
minimally.
Elevators must be able to carry the printer and the personnel who transport
it. Doors of the elevators must be wide enough that the printer can pass
them.
It must be ensured that the floor space where the printer is to be installed
does not exceed the following horizontal inclinations:
$
from the front to the rear+
$
from the left to the right+
1
2
It must be safeguarded that an approved mains voltage wall socket is
available which provides for correct and sufficient current; the mains cord
must extend to the wall socket.
1-3
Page 22
Installing the Printer and the intelligent Paper Stacker
1.3 Unpacking the intelligent Paper Stacker iPS 4050
1.3.1 Check delivery for completeness
When unpacking, check contents of delivery by item against the list detailed
below. Contact your delivery agent immediately if any item is missing or
damaged.

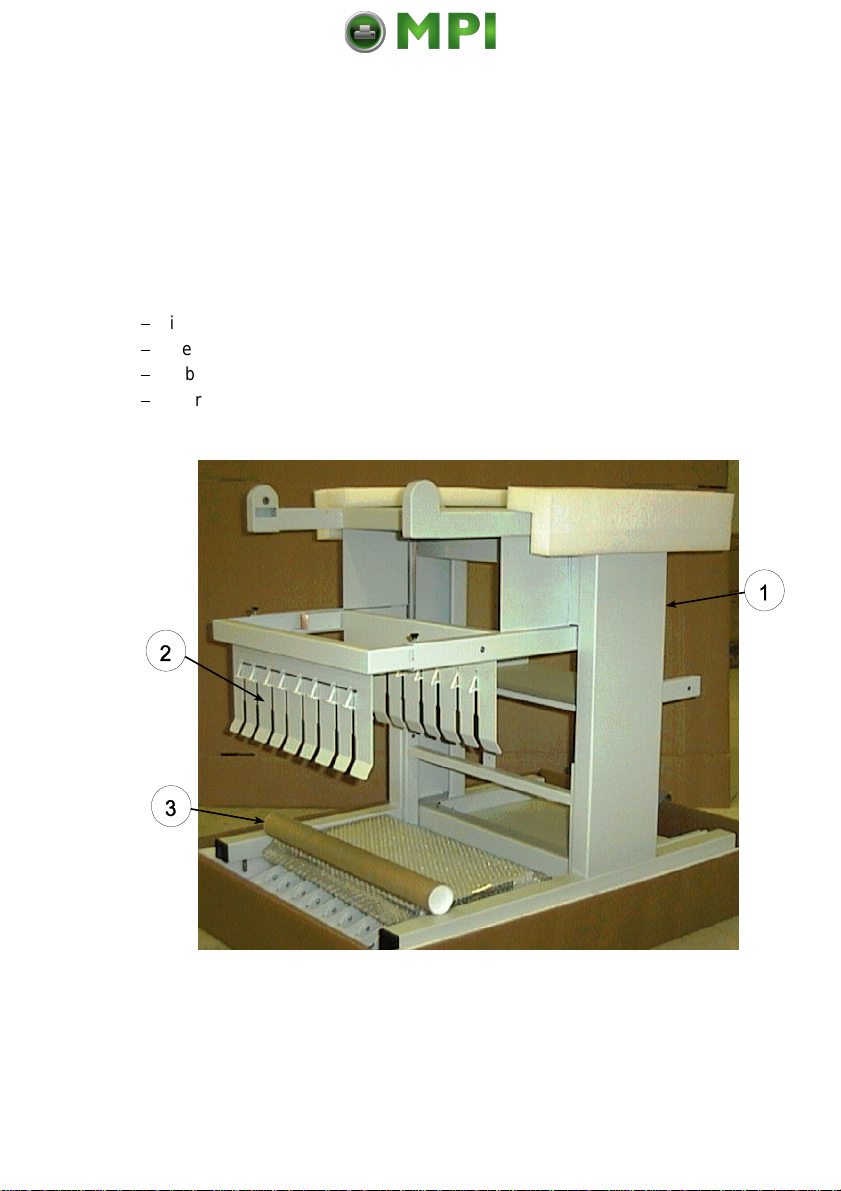

The iPS 4050/4060 package should contain the following:
$
iPS 4050/4060 basic unit (1)
$

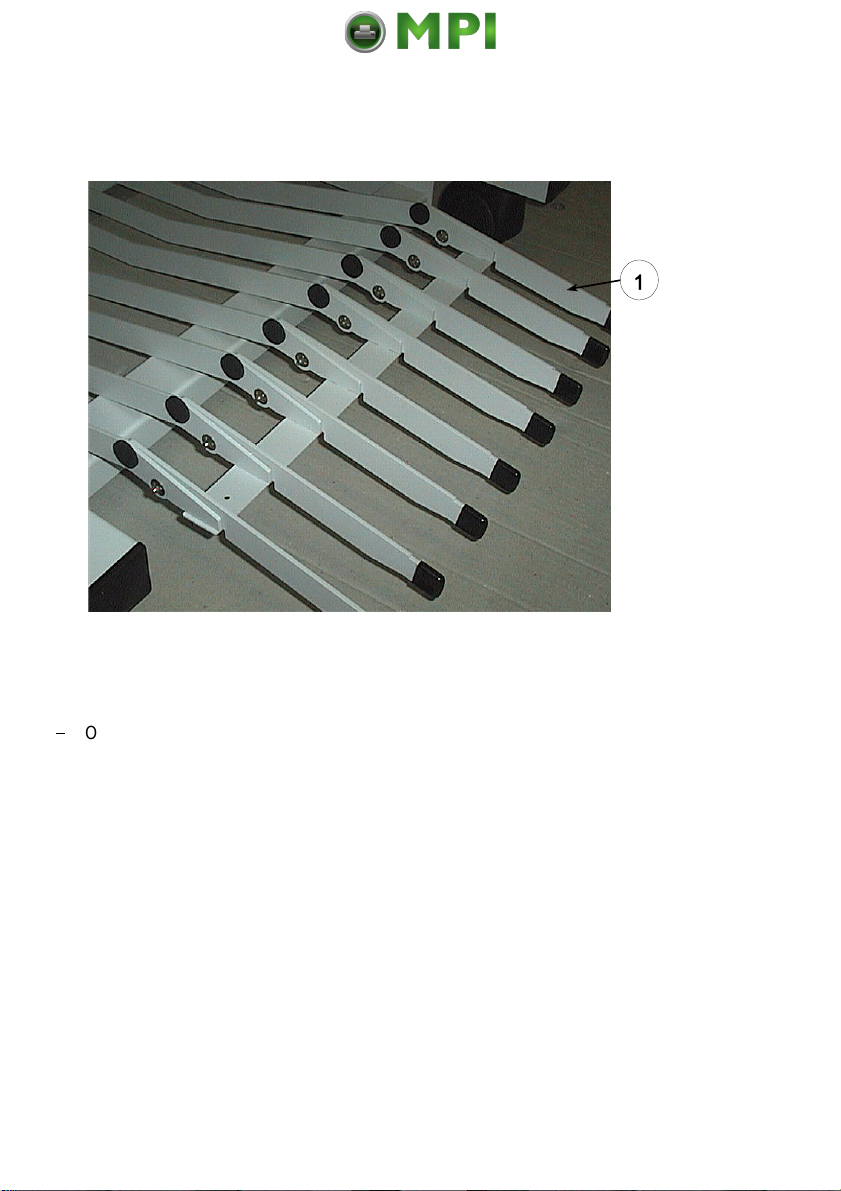

Pendulum (2)
$
a box with the left and right Paper Guide (3)
$
four Castors
Remove the transport locks and mount the four castors.
Note:
Observe that the two castors with locking lever are mounted at
paper entry side.
1-5
Page 24
Installing the Printer and the intelligent Paper Stacker

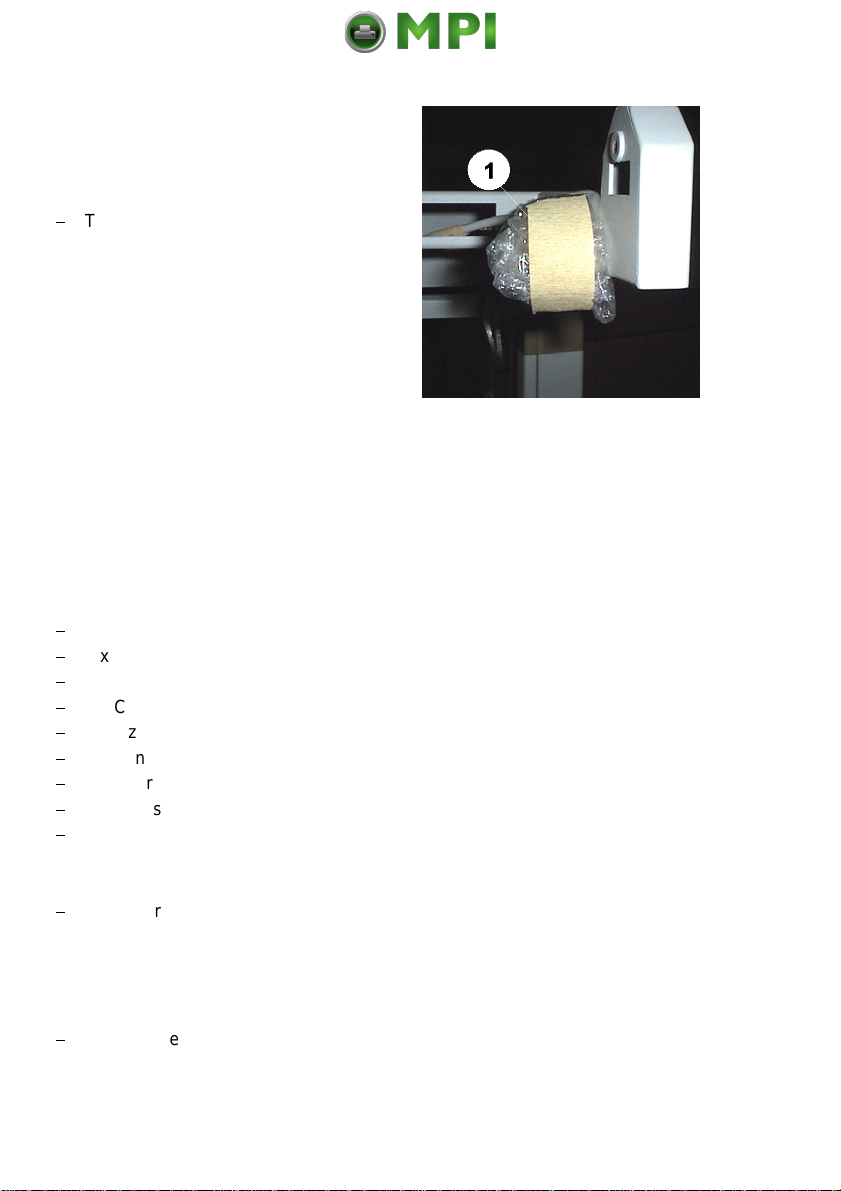

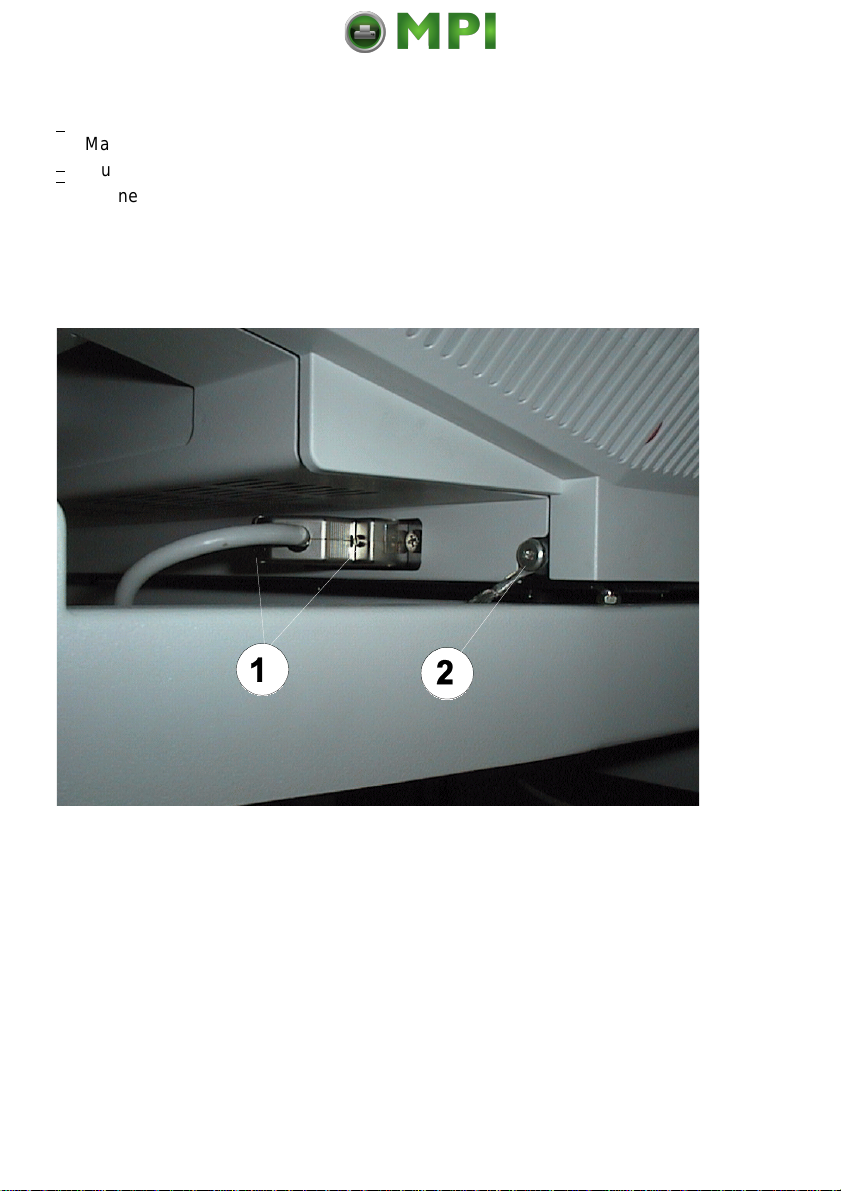

The interface connector and protective
ground cable are packed into a
plastic bag (1).
1.4Installing the Printer
1.4.1 Check delivery for completeness
When unpacking, check contents of delivery by item against the list detailed
below. Contact your delivery agent immediately if any item is missing or
damaged

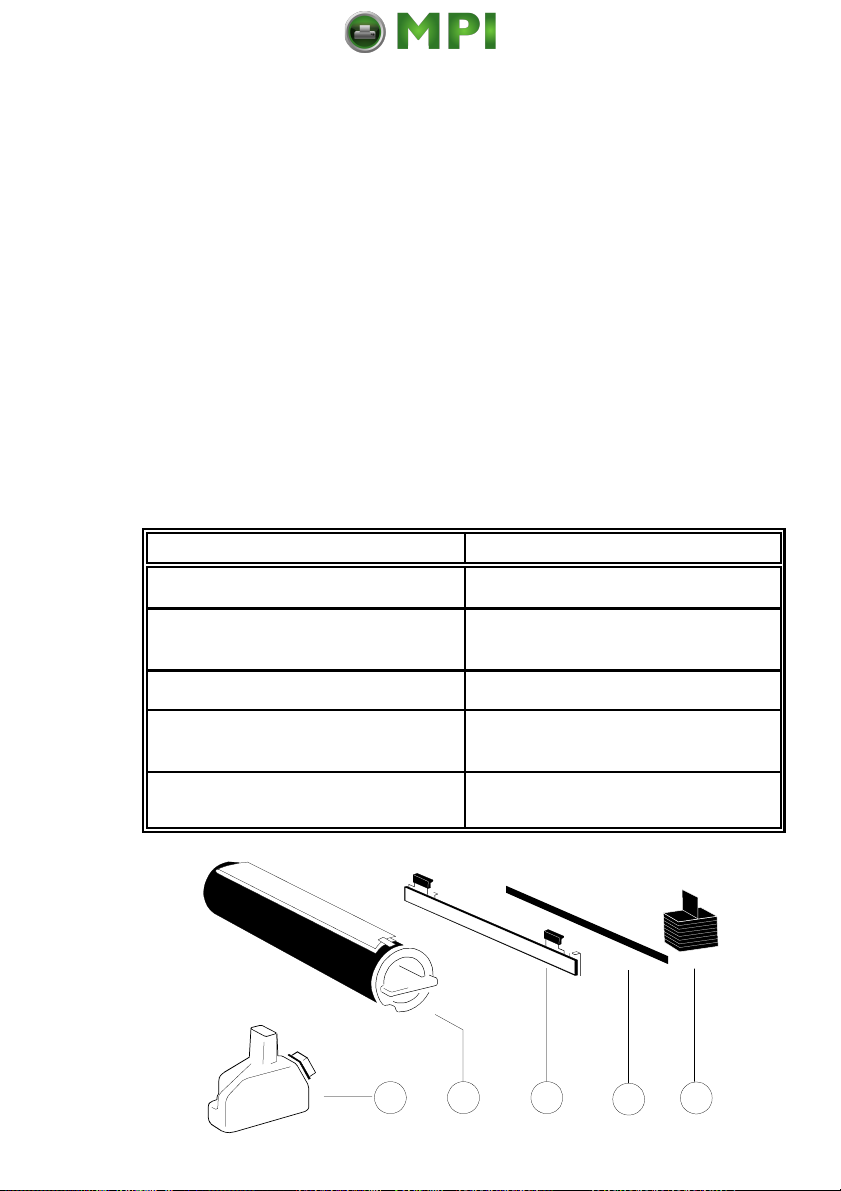

The Starter Kit package should contain the following:
$
1 x Developer Unit incl. Toner Cartridge
$
2 x Tractor Cassettes
$
1 x PC-Cartridge
$
1 x Cleaner Felt
$
1 x Ozone Filter
$
1 x Toner Cartridge
$
1 x User´s Manual
$
1 x Mains Cable
$
1 x Waste Toner Bottle
1.4.2 P
$
ut the Printer onto the inteligent Paper Stacker (iPS 4050)

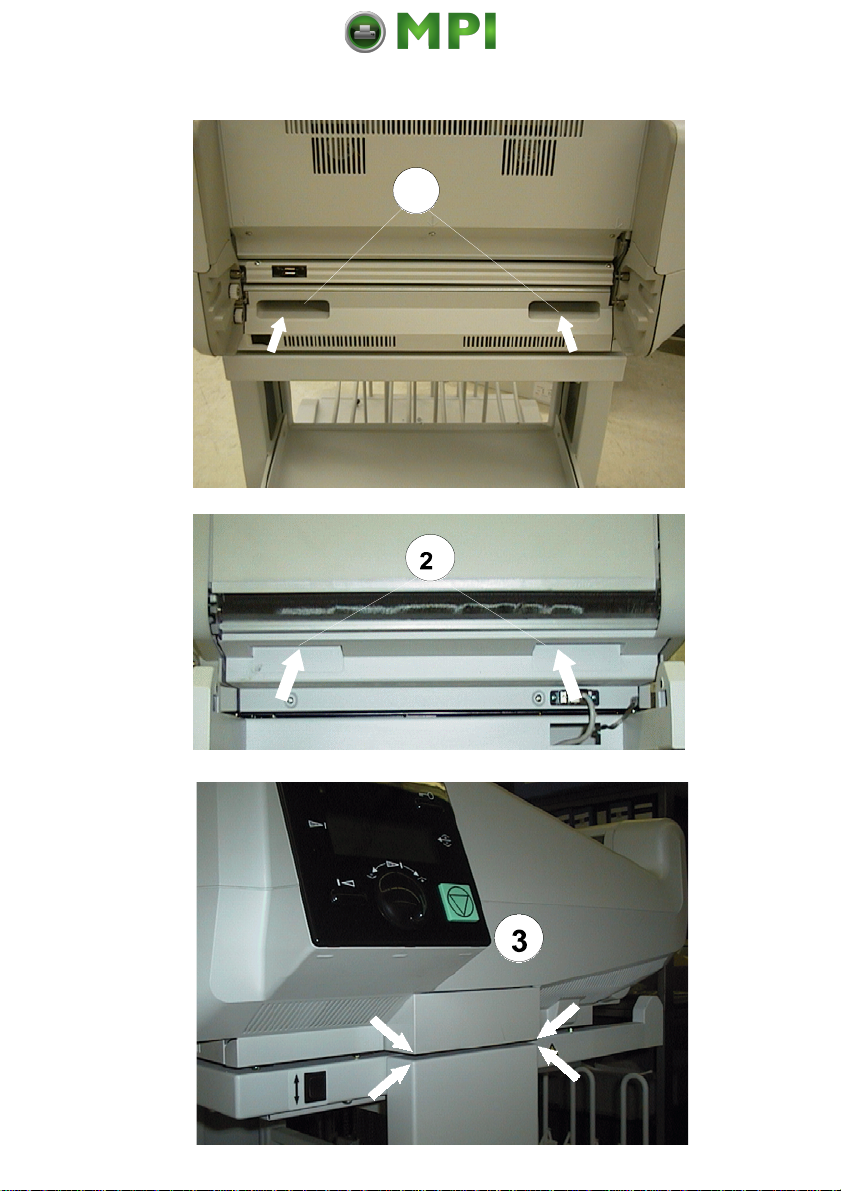

Lift the printer from the pallet using the transport grip points on the left (1)
and the right side (2) of the printer and put it onto the iPS 4050.
Note:
Do not attempt to lift the printer in any other manner!
$
Position the printer properly (3) into the depressions and make sure the side
covers adequately clear the iPS 4050 frame when opened.
1-6
Page 25
Installing the Printer and the intelligent Paper Stacker

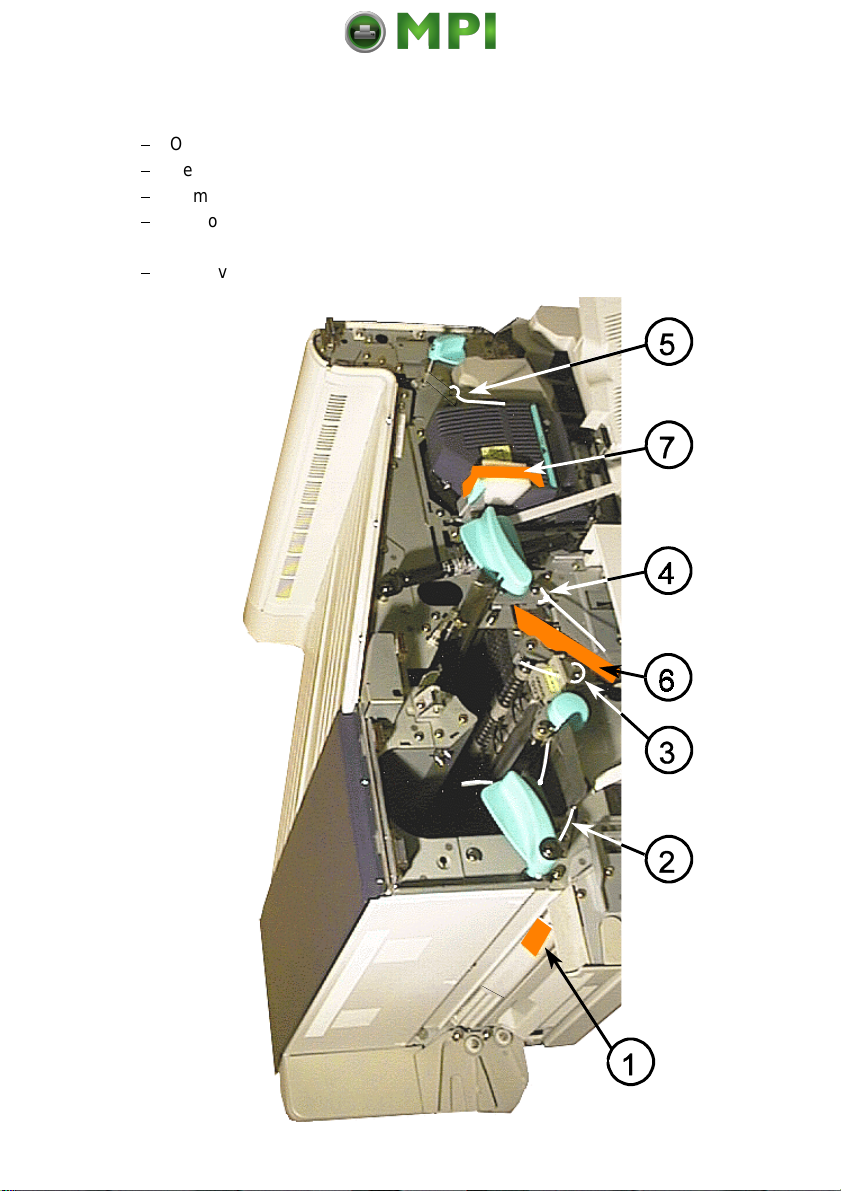

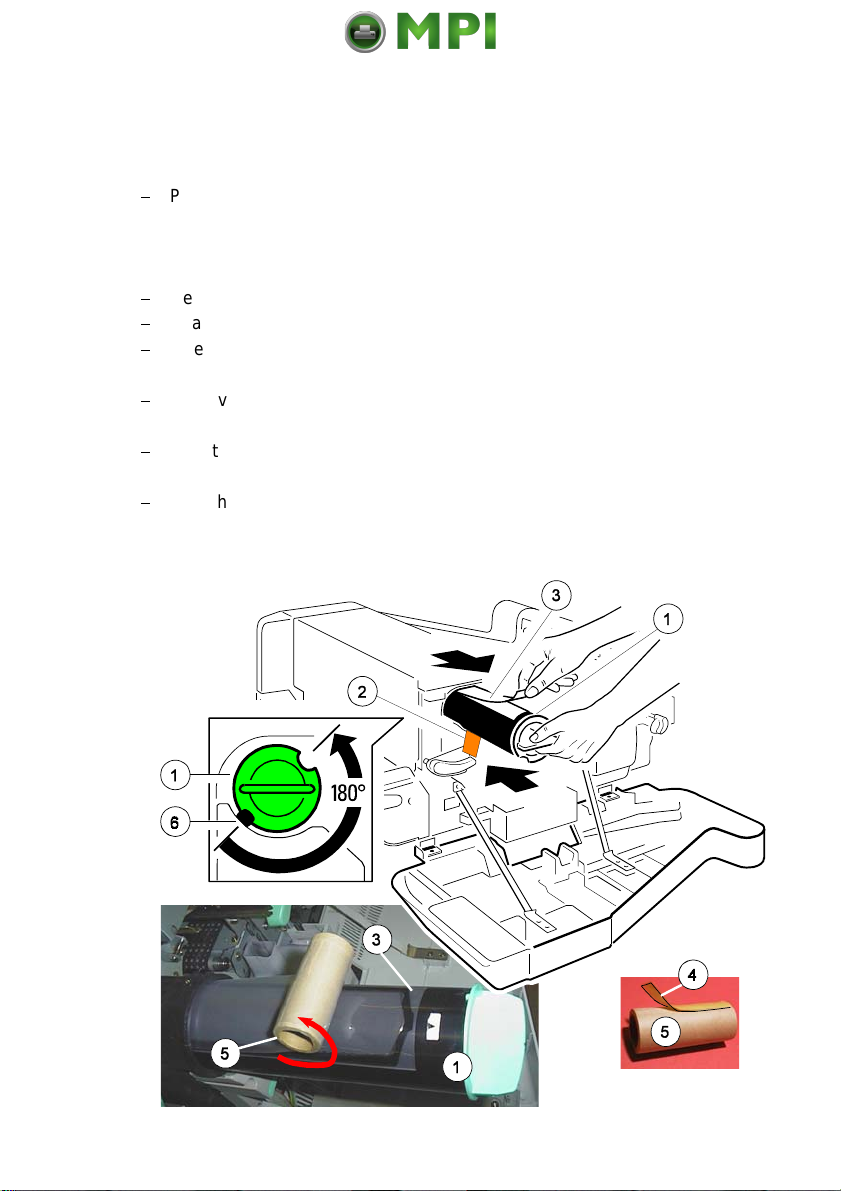

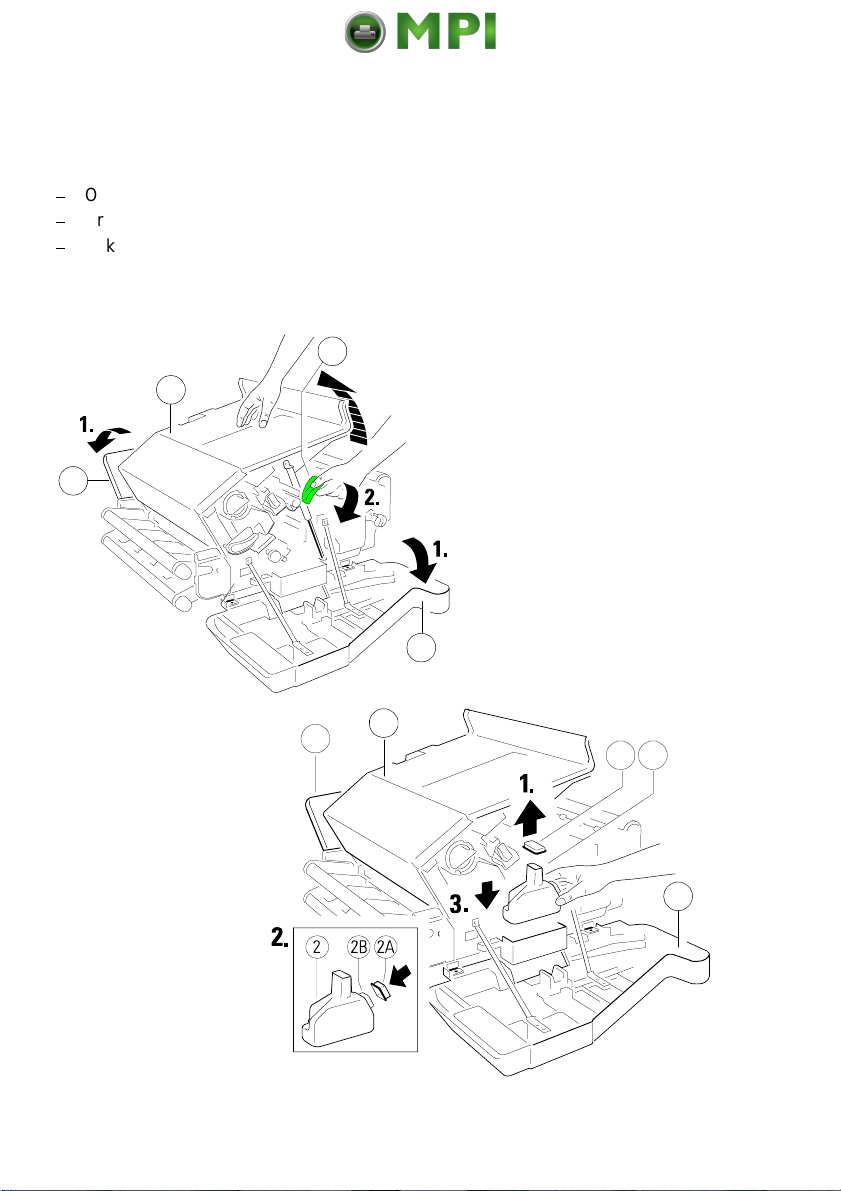

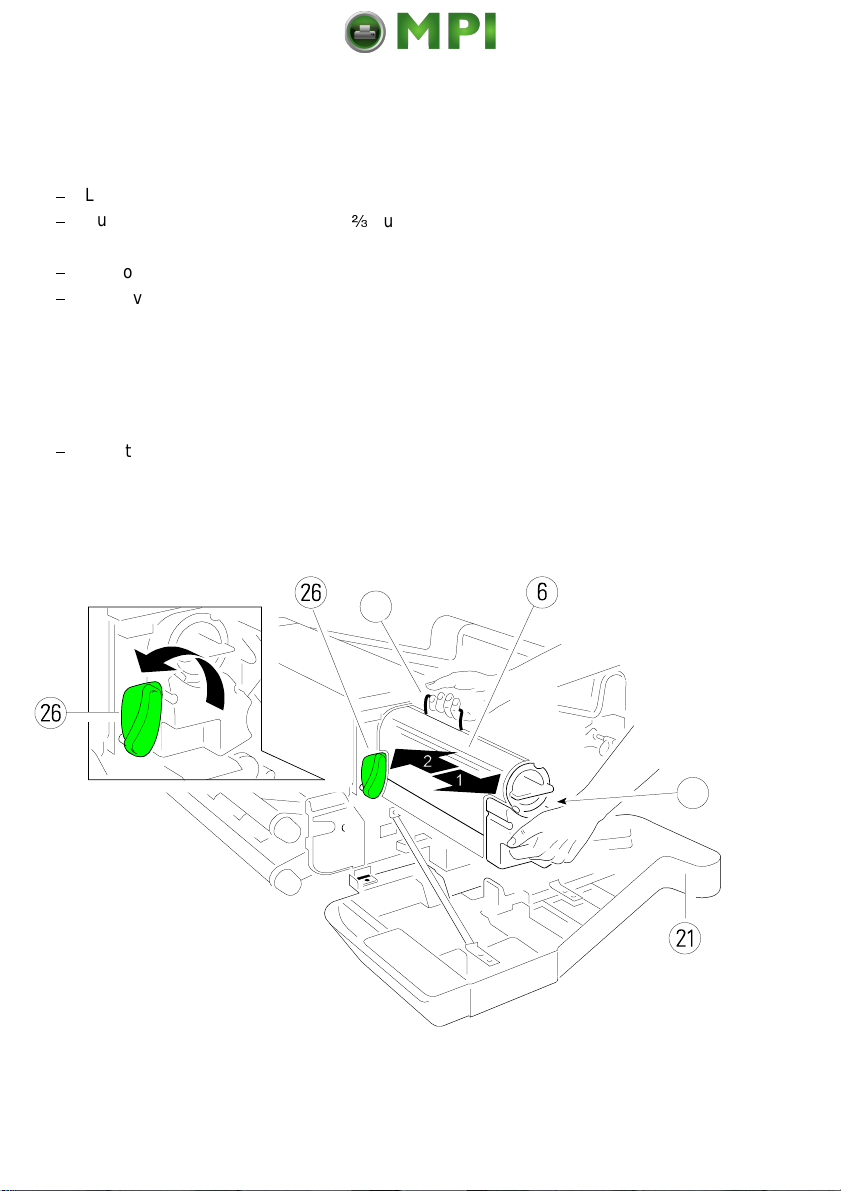

Pull the Toner Cartridge (1) completely off the developer.
An orange tape (2) is visible which is fixed to a foam block that closes
Note:
the toner entrance into the developer.
$
Remove the foam block (2) from the Developer Unit.
$
Shake the Toner Cartridge several times.
$
Insert the Toner Cartridge (1) approximate 10 cm, illustrated below, with the
attached plastic seal (3) pointing to the top .
$
Remove the stripe (4) from the cardboard roll (5) and fix it at the begin of the
plastic seal tape (3) .
$
Turn the cardboard roll (5) to roll up the plastic seal (3) until the seal is
entirely removed and push the toner cartridge until it is fully inserted.
$
Turn the Toner Cartridge (1) counter clockwise by about 180 degrees until it
is fully engaged.
The cover of the Toner Cartridge (1) must be locked by the screw (6).
Note:
1-13
Page 33

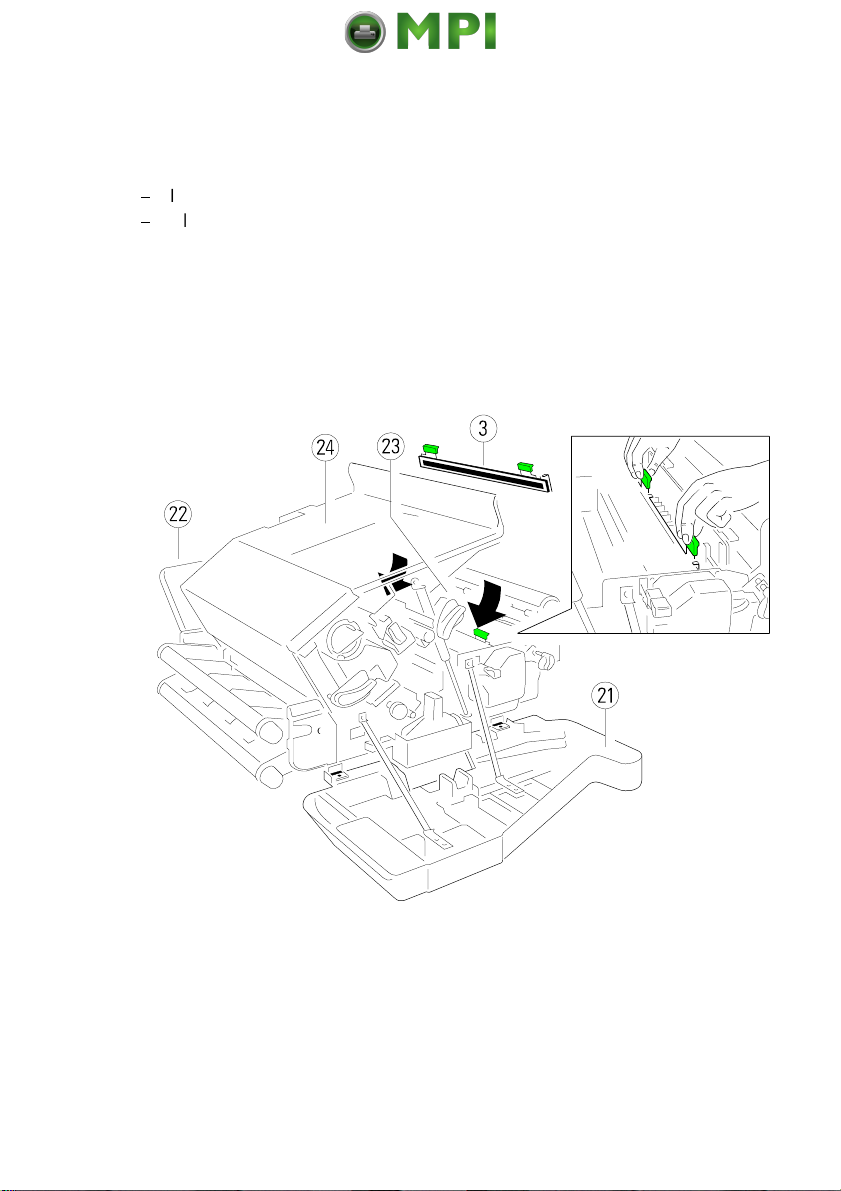

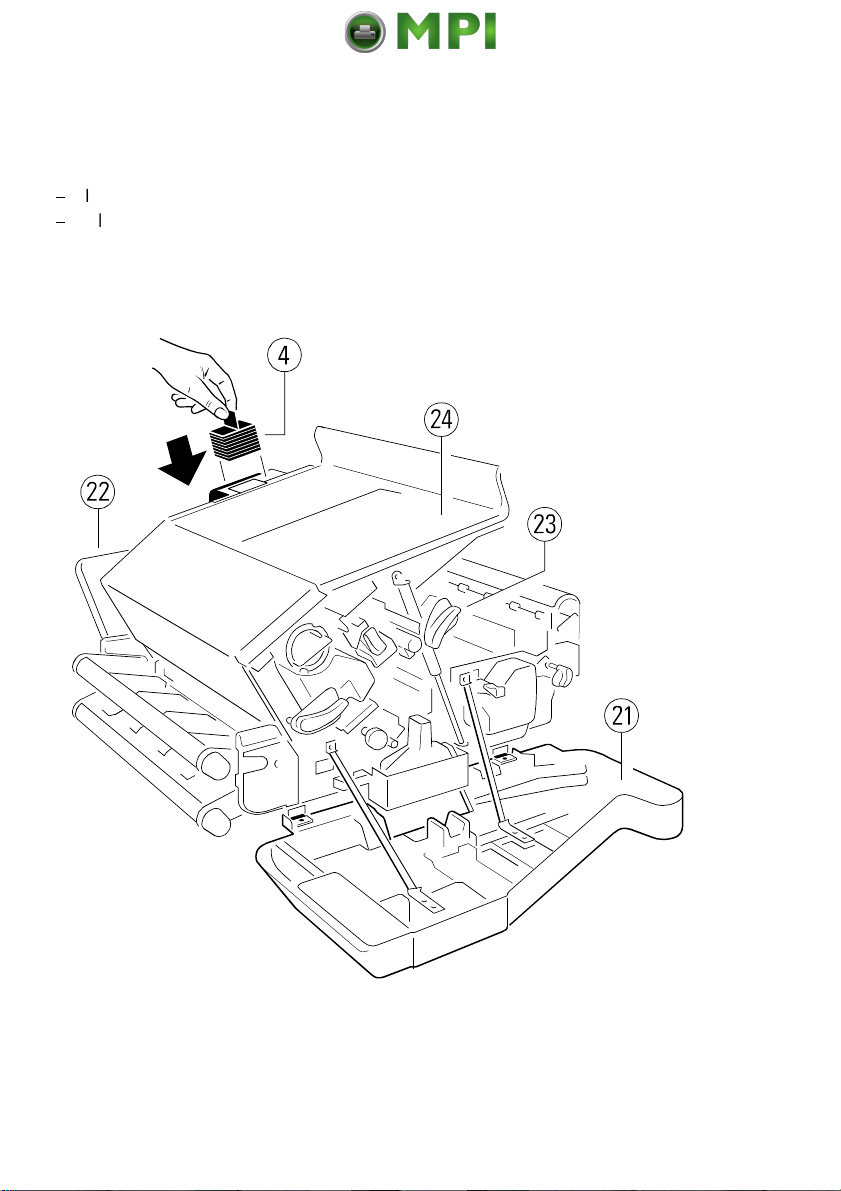

2122242A22421
23
22
Installing the Printer and the intelligent Paper Stacker

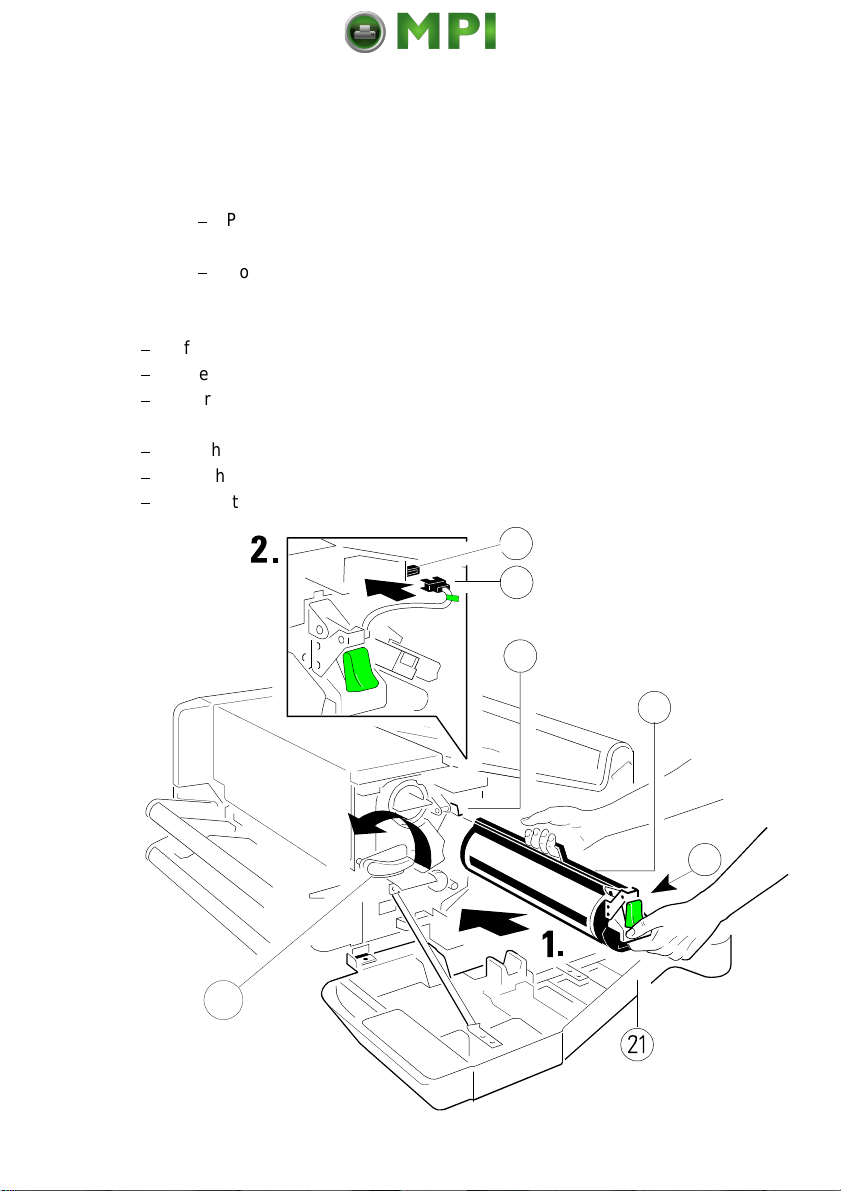

The Photoconductor (1) is in the Starter Kit package 2
Note: -
$$$
$$$
The Photoconductor is very light-sensitive, so it is wrapped in a
lightproof foil.
Please do not touch the green part of the Photoconductor with your
$
fingers. Oil and dirt degrade the print quality.
$
sunlight any longer than necessary.
Lift the lever (2) upwards to unlock the Developer Unit.
Carefully remove the drum from its foil container.
Insert the Photoconductor (1) by using the upper and lower iron band guides
and push it into the printer until you hear a
Attach the electrical connector (3) to position (4).
Find the orange adhesive tape (5) on the waste toner exit and remove it.
Secure the Developer Unit by pressing down the lever (2).
(OPC)
Photoconductor to room lighting or
.
click
1-17
Page 37

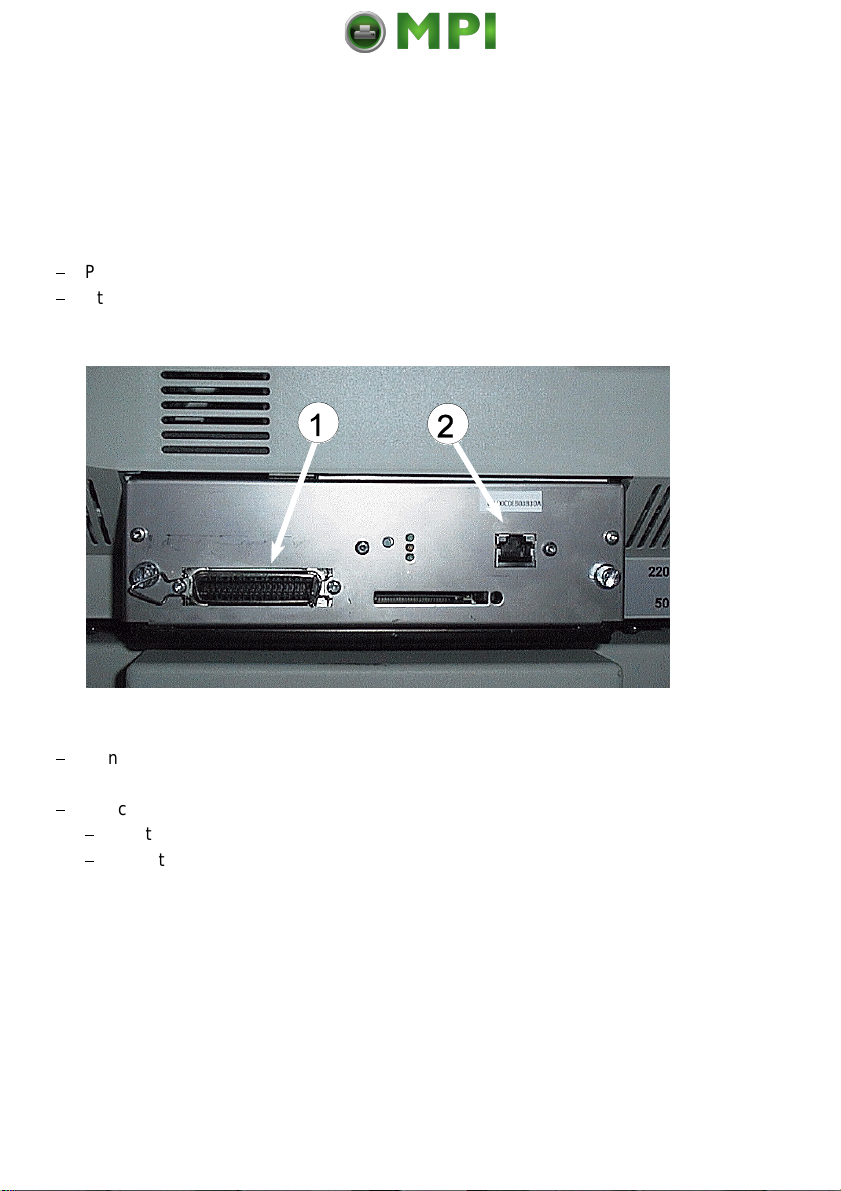

Installing the Printer and the intelligent Paper Stacker
After a short delay the message WARMING UP in line 4 will disappear.
If an arror message is displayed please refer to section 6.2 Error
Note:
Messages.

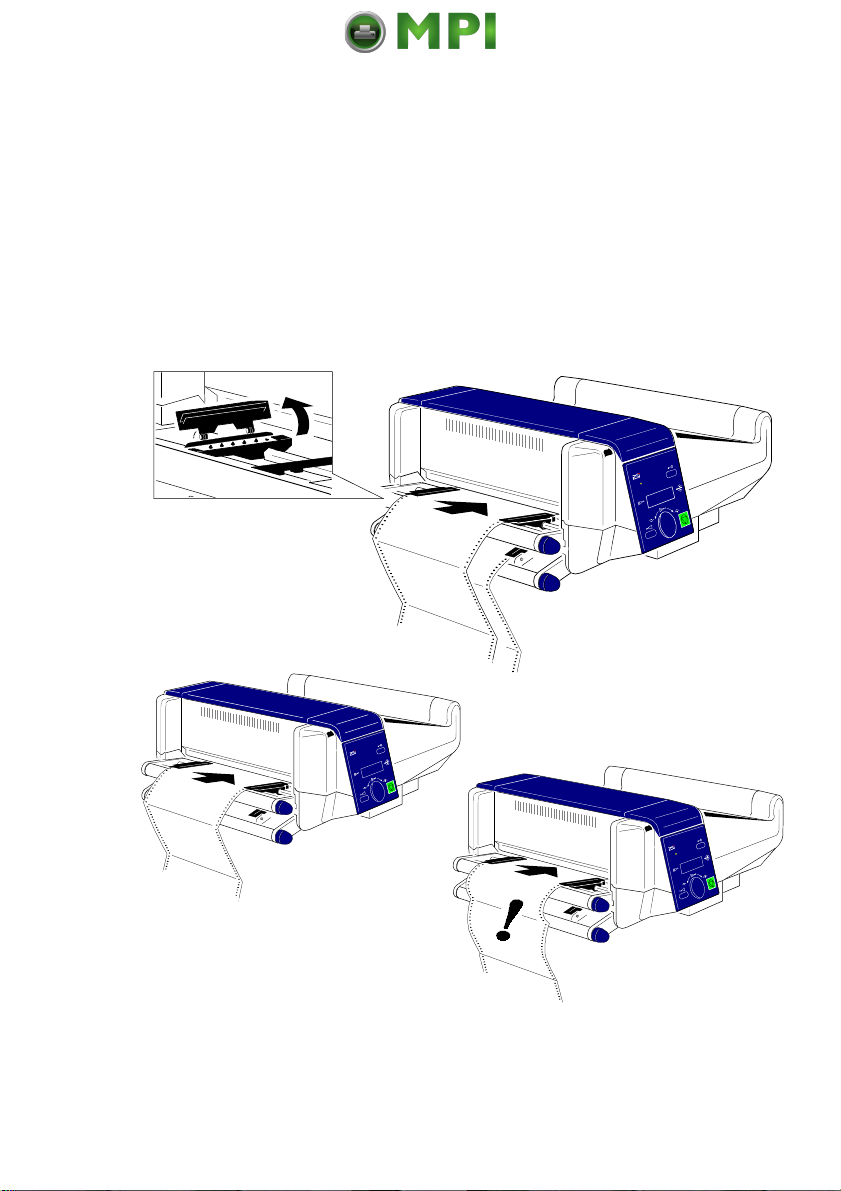

1.8Handling the Tractor Cassettes
The printer has two tractor cassettes for fanfold paper, the LOWER
TRACTOR cassette and the UPPER TRACTOR cassette. The tractor cassettes
are in the Starter Kit Package 1 and 2
If the printer is used without the intelligent Paper Stacker, align the printer with
the front edge of the table. Ensure that the cables at the paper exit do not block
the paper path.

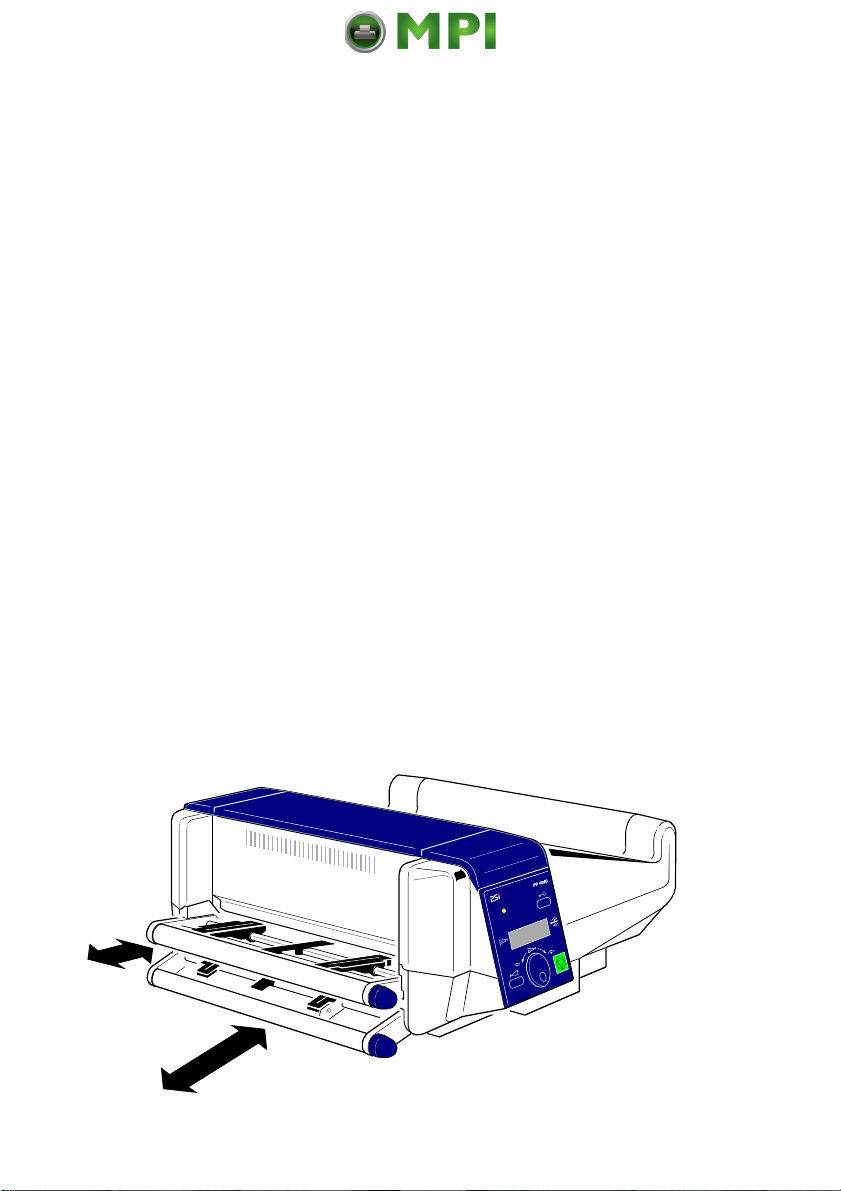

Simply slide the tractor cassettes forward into the respective guides (see
illustration). Remove the tractor cassettes by lifting and pulling them toward you.
Take out the UPPER TRACTOR before inserting paper into the LOWERTRACTOR. If more than two different fanfold papers are to be processed, it is
useful to work with additional tractor cassettes. Such an additional tractor
cassette can be preloaded with paper and quickly mounted into the printer as
required.
1-20
Page 40
Installing the Printer and the intelligent Paper Stacker

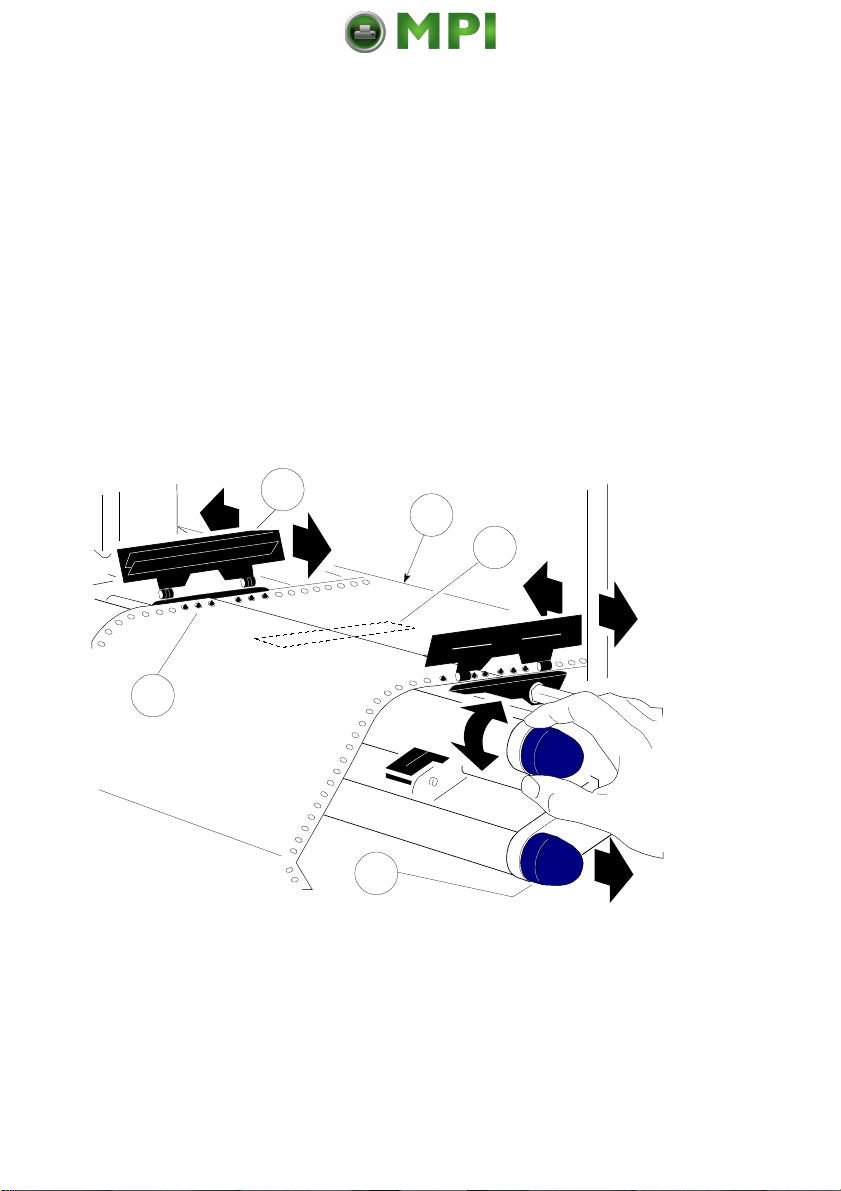

Insert the paper as shown in the illustration; the top edge of the paper must be
close to the paper guide. (About three transport punches behind the last
transport pin of the tractor.)
Check that the fold points outwards behind the first page (default setting for
SELECT FOLD = POSITIVE). If not tear off one page or change the setting for
SELECT FOLD to NEGATIVE (see chapter 4 Explanation of Individual Menu
Items).

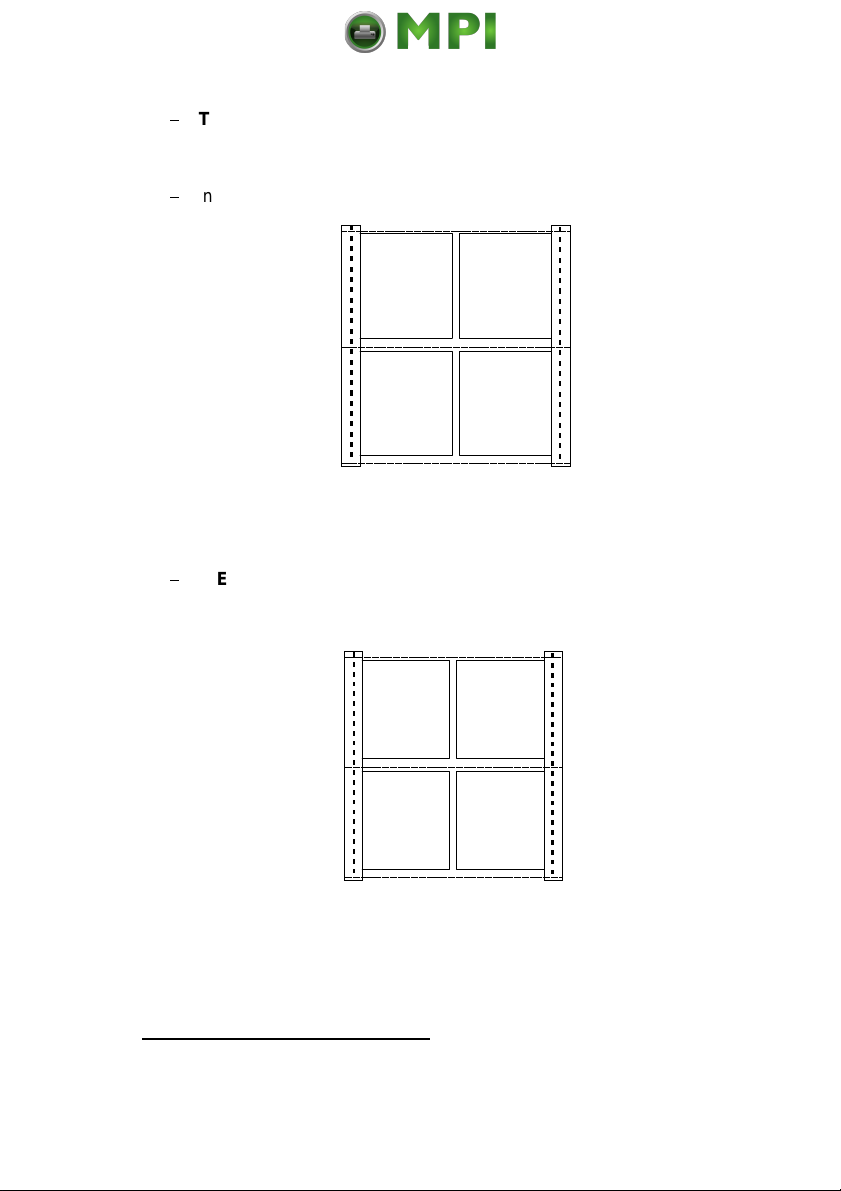

Fold = POSITIVE
Fold = NEGATIVE
Paper must only be inserted while the printer is powered on!
Note:
1-21
Page 41
1819212220
Installing the Printer and the intelligent Paper Stacker
1.10 Operating the intelligent Paper Stacker iPS 4050
Correct operation of the stacker is only ensured if the fold behind the first page
is positive i.e. the fold points towards the operator. If the fold is negative (it
points to the printer) the first page must be torn off.
The before mentioned procedure is only necessary for inserting new
Note:
paper (e.g. a new pile of paper or newly inserting the paper after paper
jam). See also chapter
1.9 Inserting Fanfold Paper
on the previous
page.

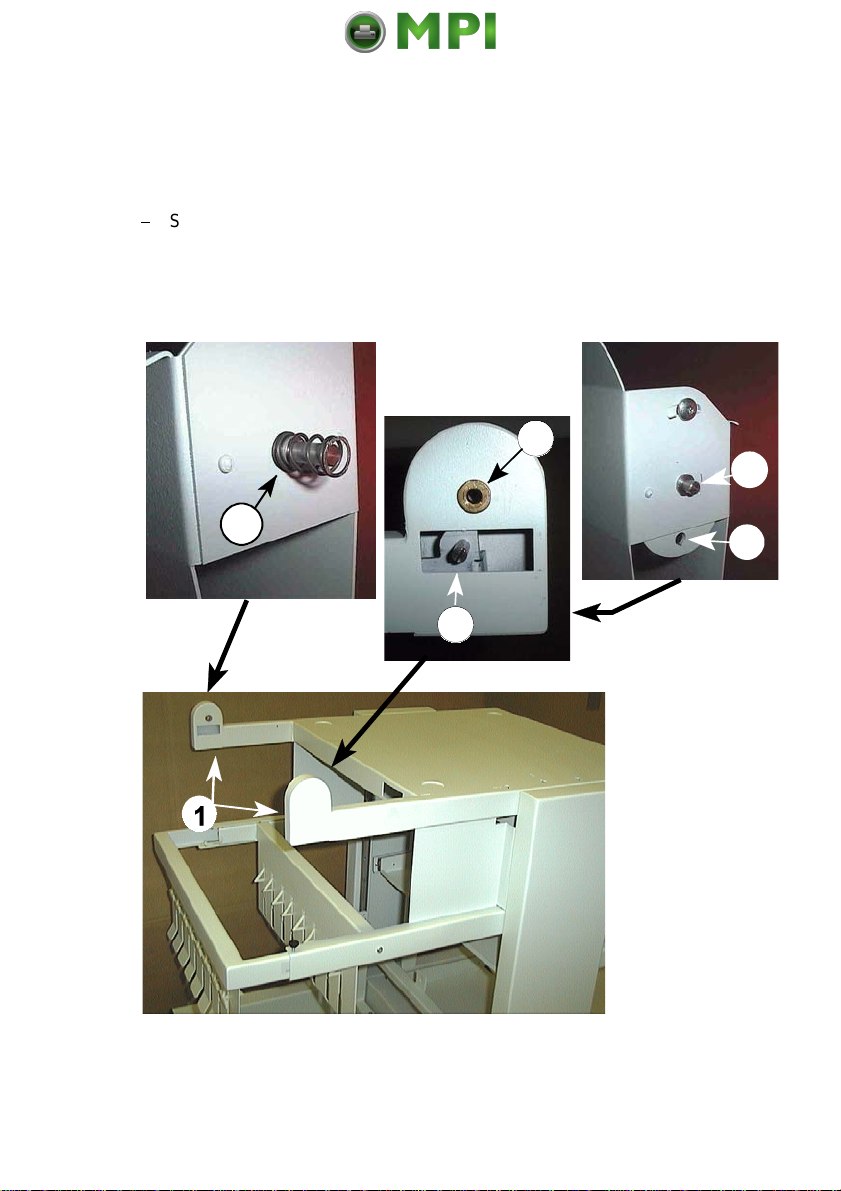

1.10.1 Adjusting the Paper Exit Tray
To stack the paper precisely the intelligent Paper Stacker needs to be adjusted
to the paper length. This is done by means of the metal frame at the rear. To set
the paper length perform the following steps:
Loosen the two adjustment screws (1).
$
Move the frame (2) until the required length is visible on the ruler (3).
$
Tighten the adjustment screws (1).
$
The adjustment range for the paper length is from 7 inch up to 17 inch.
Note:
1-23
Page 43
Installing the Printer and the intelligent Paper Stacker
There is a switch (25) at the front of the table (below the operator panel) which
causes the paper exit tray (26) to move up and down.
Move the paper exit tray down and remove the paper. Before the next print job
is processed, the paper exit tray is lifted automatically into the operating position.
1-24
Page 44
2
Printer Operation
2.1
Control Panel

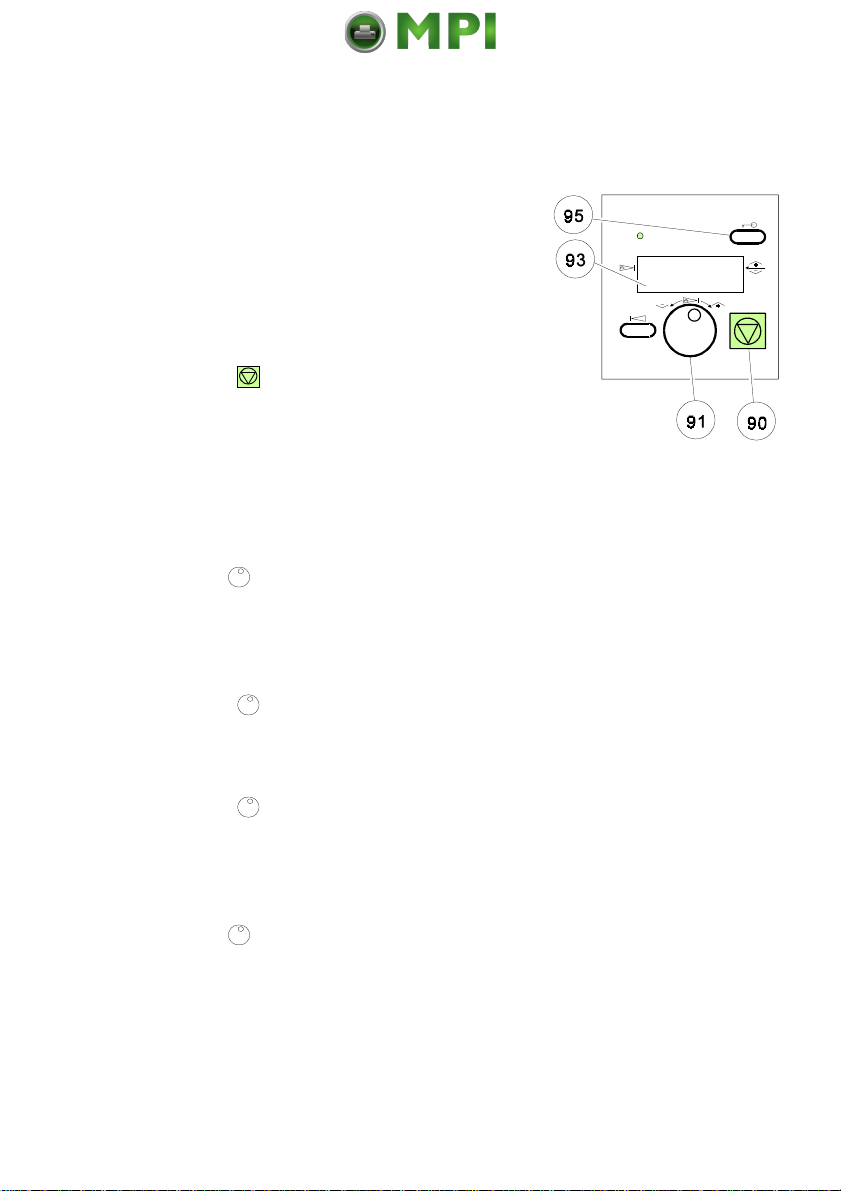

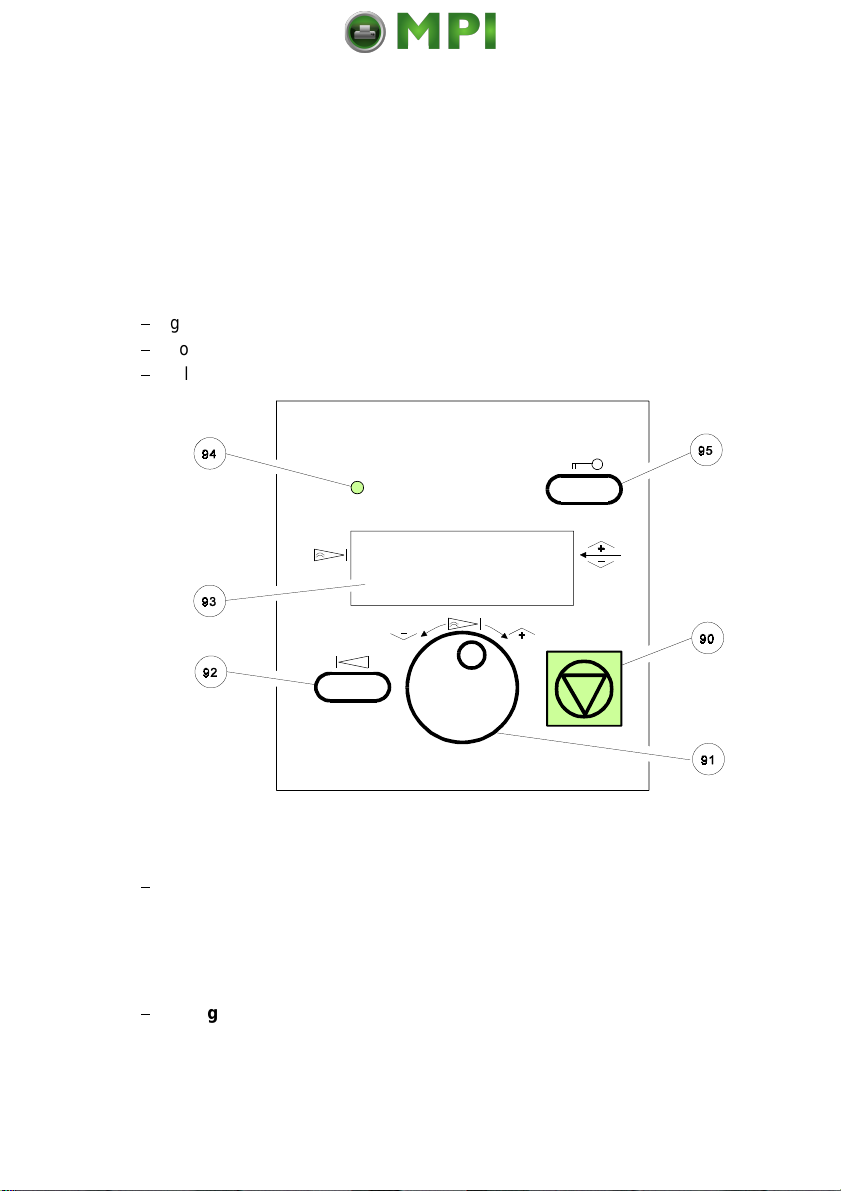

The control panel
$
gives information about the printer status
controls various parameter settings
allows manual control of the paper handling
2.1.1 Description of the two Indicators
The 4-line Liquid Crystal Display (LCD)
(93) indicates the current status of
the printer. If any error occurs (e.g. COVER OPEN) the resulting error
message will be displayed. While configuring the printer menu settings and
parameters appear on the display.
The green indicator lamp
(94) is lit if the printer is supplied with power by
This chapter describes how to use the control panel and menu to set up or
configure your printer so that the printer and your computer system can
communicate correctly with each other.
The important menus are:
$
SELECT PROFILE
$
CHANGE PROFILE
$
PAPER MENU
$
PCL MENU or HEXDUMP MENU
$
GENERAL MENU
$
BASIC SETTINGS
$
CONFIG. MENU
$
TEST MODE
$
TEST MENU
$
INFO MENU
3.1.1 Profiles
All parameters which characterise a print job and its corresponding form (e.g.
SOURCE, PAPER LENGTH, DESTINATION, FUSER TEMP.) are contained in
one profile. In total 50 PROFILEs are available and can be either programmed
via the operator panel
There are two items in the OFFLINE MENU which deal with profiles, SELECT PROFILE to activate a profile and CHANGE PROFILE to define its contens. All
parameter settings via the operator panel. The number of the actually selected
profile is shown in the first line of the operator panel. After switching on the
printer the last selected profile will be active.
The function RECALL FACTORY in the CONFIG. MENU is setting all
parameters of all profiles to the factory default values.
Different applications use also different settings. All these settings for an
application are collected in a PROFILE. Up to 50 Profiles are available. For
example: Application A needs fanfold paper cut into single sheets with a top
margin of one, application B processes fanfold paper in a batch with a top
margin of six. Simply by pressing SELECT PROFILE the Profile containing the
information for the specific application requirements can be activated.
3.1.2 Basic Printer Settings
All parameters which characterise general printer features and functions can be
defined in the menu mode BASIC SETTINGS and the submenu CONFIG.
MENU.
3.1.3 Test Mode
$
The TEST MENU allows running of various self tests and configuration print
outs.
$
The INFO MENU allows the print out of all release informations of the
printer.
The factory default configuration can be printed within the TEST MENU and is
shown on the following page.
The upper part of the SELFTEST printout shows the actual selections and
parameter values.
Main functions appear in the first line of each menu block.
Second and following lines show the selection at subfunction level and the
selected parameters behind the "=" sign.
Below the menu section on the test page information is given about the
hardware and software configuration of the printer and stacker is given:
$
FLASH memory size for printer firmware and fonts
$
memory size (DRAM)
$
Printer and Stacker firmware version
$
Panel version
$
available emulations
The rest of the page is filled up with a diagonal test pattern. The black frame
around the test page reflects the actual paper format. The default format is 12
inch for paper length and 16 inch for image width.

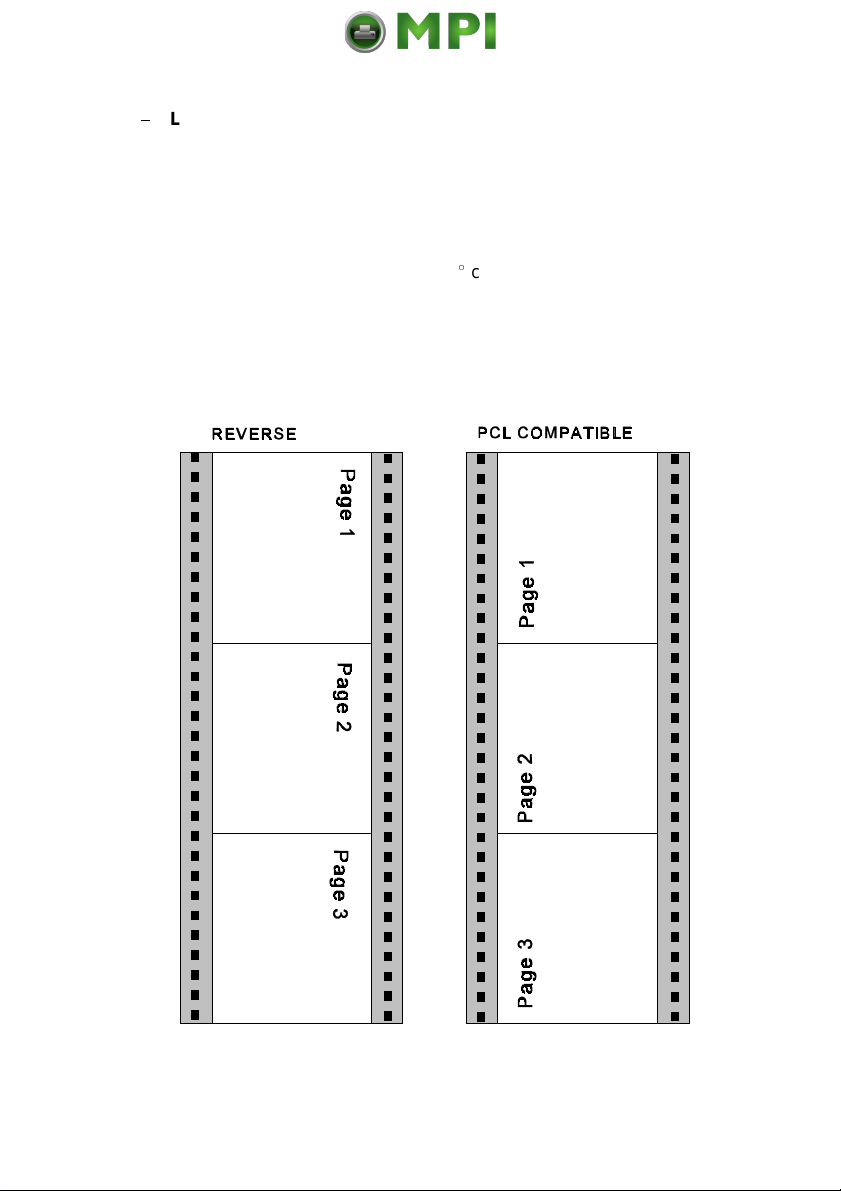

LANDSCAPE MODE= REVERSEPERF. SKIP= OFF
ORIENT. MODE= FIXED$$ COMMANDS= OFF
PAPER EXTENDED= NO
PAPER SELECTION= ONLY PJL
PAPER PATH SELECT.= RECOGNIZE
FUSER TEMP.= LOW
TONER DENSITY= MIDDLE
VER SHIFT= 0/100 INCH
HOR SHIFT= 0/100 INCH
CUT SHIFT= 0/100 INCH
INIT LINE REGISTR.= 1
TRACTOR POOL= ONSECOUND= 0
RECALL FACTORY= NO
RESET DEVELOP. INFO = NO
RESET OPC INFO= NO
RESET FUSER INFO= NO
DEVELOPER INFO= XX% USED
OPC INFO= XX% USED
FUSER INFO= XX% USED
To printout the contents of all 50 Profiles use the same sequence as described
in paragraph 3.2.1 How to Start the SELF TEST up to point 6.
After selecting CONFIG. PRINT, the printer starts to print all 50 Profiles.
Sample of PROFILE 1
--- Configuration (Default) ---> Profile 1 ---
PAPER MENUPCL MENU *)GENERAL MENU
PAPER= CUSTOM FONT NUMBER= 0 EMULATION= PCL
PAPER LENGTH= 12 INCH PITCH= 10.00 **) AUTO FORM FEED= OFF
TWO-UP-MODE= OFF SYMBOL SET= ROMAN-8 AUTOMATIC CUT= OFF
LENGTH FACTOR= 1 LINE SPACING= 6 LINES / INCH JOB SEPARATION= OFF
STCK. PAPER WIDTH = 18.00 INCH TOP MARGIN= 0 LINES TRACTOR CHANGE CUT = ON
IMAGE WIDTH= 17.00 INCH LEFT MARGIN= 0 COLUMNS REPRINT LAST PAGE = OFF
SOURCE= LOWER RIGHT MARGIN= MAXIMUM
DESTINATION = BOTTOM TEXT LENGTH= 72 LINES
ORIENTATION= PORTRAIT PERF. SKIP= OFF
LANDSCAPE MODE= REVERSE $$ COMMANDS= OFF
ORIENT. MODE= FIXED
PAPER EXTENDED= NO
PAPER SELECTION= ONLY PJL
PAPER PATH SELECT. = RECOGNIZE
FUSER TEMP.= MIDDLE
TONER DENSITY= MIDDLE
VER SHIFT= 0/100 INCH
HOR SHIFT= 0/100 INCH
CUT SHIFT= 0/100 INCH
REGISTRATION CURVE = 1
CONFIG. MENU
POWER SAVE= 15 MIN
KEEP TEMP. HIGH= 1,0 MIN
ALARM BELL= ON
LANGUAGE= ENGLISH
MENU ACCESS= ALL
HOST CHANNEL= PARALLEL ONLY
TRACTOR POOL= ON
RECALL FACTORY= NO
RESET DEVELOP. INFO = NO
RESET OPC INFO= NO
RESET FUSER INFO= NO
*) Depending on setting of EMULATION in the GENERAL MENU (see
TEST PRINT) either PCL MENU or HEXDUMP MENU is indicated.
**) This value is depending on selected FONT NUMBER;
for FONT NUMBER 0, 39 - 44 = PITCH and
for FONT NUMBER 1 - 38 = POINT SIZE
See Paragraph 3.4 Menu Structure for the different entry points and Chapter
4 Explanation of individual Menu Items !
The following table show menu modes, submenus and parameters.
Precondition is: Access to all menu items is alloved. (MENU ACCESS = ALL)
Otherwise restrictions are to observed.
SELECT PROFILE
Entry Point =
PARAMETERVALUE
SELECT PROFILE1*
SELECT PROFILE
2
..
50(Max 50 Profiles are possible)
A asterisk (*) after the value indicates the actual setting!
1 = No correction
2 = Displacement on the first 2 pages by 0,5 mm
3 = Displacement on the first 2 pages by 1,0 mm
4 = Displacement on the first 2 pages by 1,5 mm
5 = Displacement on the first 5 pages up to 0,5 mm
6 = Displacement on the first 5 pages up to 1,0 mm
WEEKDAYMonday up to Sunday
DAY1 ... 31
MONTHJANUARY up to DECEMBER
YEAR2000 ...
HOUR0 .. 24
MINUTE1 ... 59
SECOND1 ... 59
BASIC SETTINGS ---> CLOCK MENU
TEST MENU
Entry Point =
Test MenuFunction / Action
TEST MODE ---> TEST MENU
PANEL TESTCheck up of the Operator Panel display
SELF TESTPrintout of the actual settings
CONT SELF TESTMore pages with the actual settings
CONFIG. TESTPrintout of all 50 Profiles
PCL TYPE LISTPrint out of the resident Typeface List
PRINTER TYPE60 means PP 4060
ENGINE IDPrint out of the actual Engine Firmware revision
FIRMWARE VERSIONPrint out of the actual PPOS revision
STACKER VERSIONPrint out of the actual Stacker Firmware
PANEL VERSIONPrint out of the actual Operator Panel
DEVELOPER INFOUsage grade in % of the total life cycle of the
OPC INFOUsage grade in % of the total life cycle of the OPC
FUSER INFOUsage grade in % of the total life cycle of the
TEST MODE ---> INFO MENU
Firmware revision
Developer
Fuser
Page 70
4-1
4
Explanation of Individual Menu Items
In
OFFLINE
mode
$
the different PROFILES can be programmed,
the BASIC SETTINGS can be configured,
and the printer can be set into the TEST MODE.
Note:
All following functions are in the
OFFLINE
mode selectable by turning
the quick set up wheel
(see also chapter
2.1.3 Function Keys
).
SELECT PROFILE
To activate one out of
50
possible set up parameter blocks called
Profiles
,
for quickly changing the application specific printer set up.
CUT FORM
By pressing
the cut function will be activated. The paper is moving
depending on the selected paper length to the cut position. After cutting it
moves backwards to the print position.
FORM FEED
After pressing
the last printed page will move depending on the selected
paper length to the tear off position.
After loding a new batch of paper it is also possible to insert empty pages
into a print job.
By pressing
one empty page is inserted. If you need more empty pages
wait until the movement of the form is finished and press

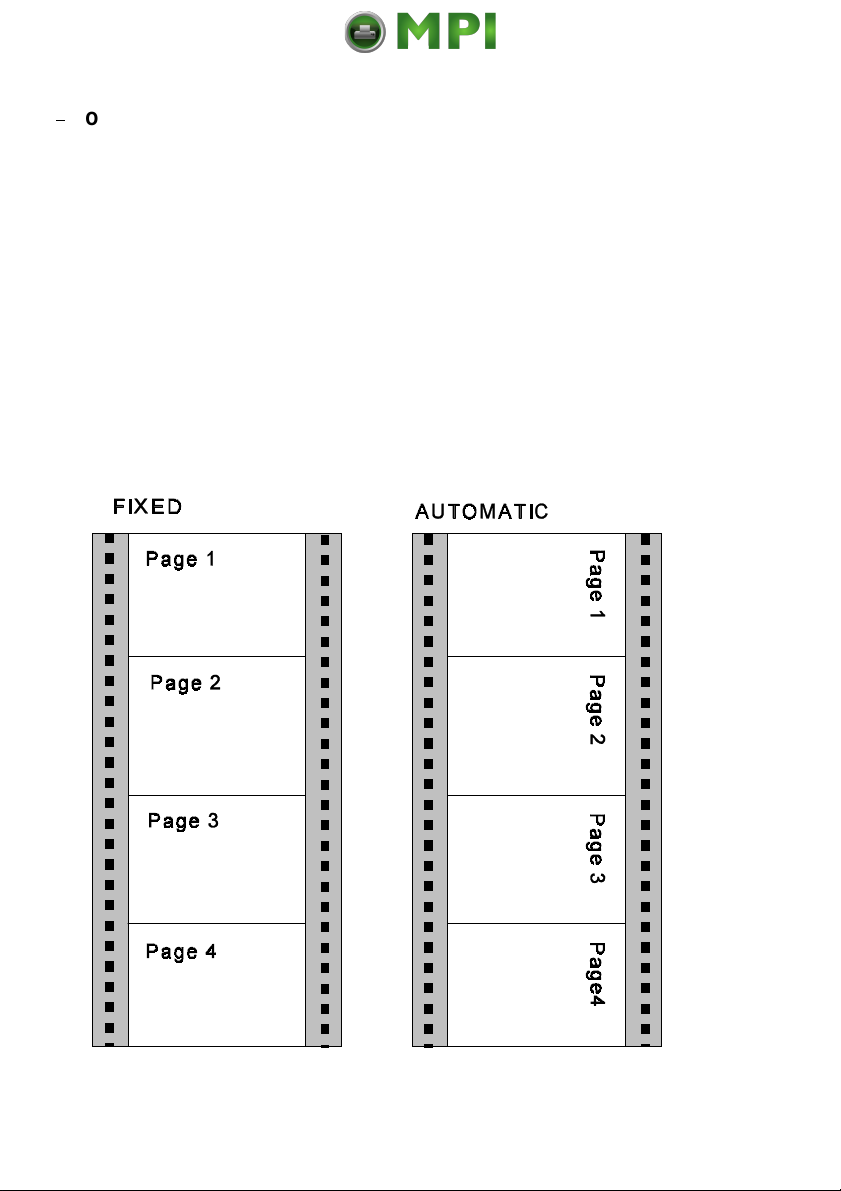

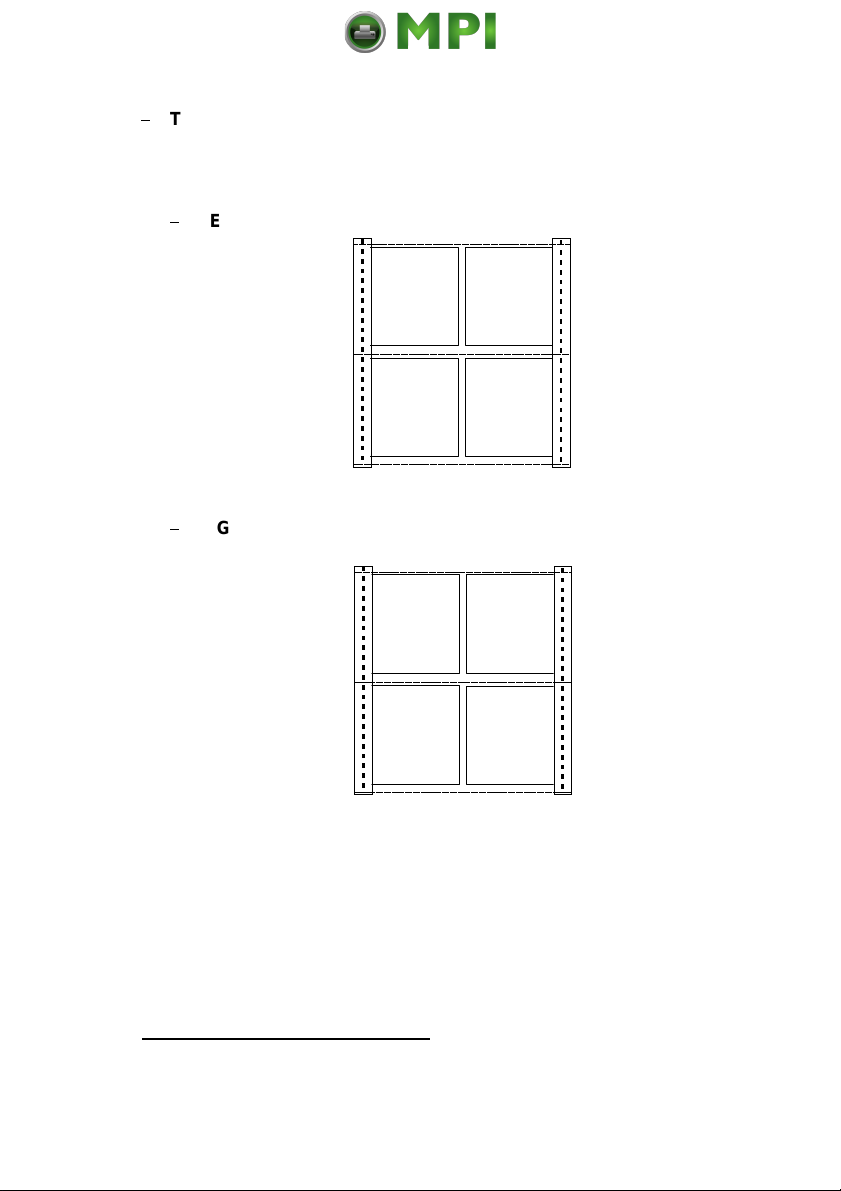

Selecting the paper format (A4, LETTER, CUSTOM) from the host can be
done with PCL or PJL commands. The execution of this commands can be
influenced by the parameter PAPER SELECTION.
RECOGNIZE
-A change of
PAPER
is possible via interface by
means of PCL- or PJL-commands.
ONLY PJL
IGNORE
-Only via PJL-command (default)
-Any command to change the paper format will be
ignored; the paper format can only be modified via
the operator panel.
PAPER SELECTION
Note:
RECOGNIZE
or
by the printer driver needs the setting
ONLY PJL
.
The PSi printer driver for Windows® uses PCL and PJL
sequences.
PAPER PATH SELECT.
$
(Paper Path Selection)
With this parameter it is possible to recognize or ignore the change of the
parameter
SOURCE
RECOGNIZE
RECOGNIZE
and
DESTINATION
via the interface. Factory default is
.
-A change of the parameters
DESTINATION
is possible via interface by means
SOURCE
and/or
of PCL- or PJL-commands. (See Appendix A
).
IGNORE
Source and Exit Selection
-Any command to change the parameter will be
ignored.
Paper
Page 83
Explanation of Individual Menu Items
4-14
$
FUSER TEMP.
(Fuser Temperatur)
This parameter allows to adapt the fuser temperature to media properties.
Default level is
MIDDLE
(about 180
C) .
Other selections are:
-
HIGH
(for thick paper and labels; about 190
C)
-
LOW
(for thin paper; about 160
C)
Fuser temperature adjustment is necessary when temperature sensitive
formsets (e.g. labels) are printed.
The parameter covers a range of
50...+50/100 of an inch, where "-" is up
the page and "+" is further down the page. The default value is zero.
Note:
If it is not required to cut exactly through the perforation then the paper
should be cut about 0.5 mm
below the perforation
. If the paper is cut
above the perforation the remaining paper can be easily bent and cause
a paper jam.
Do not cut through a label as the blade would get dirty
This parameter allows to adjust the toner density. The range is between 1 and 9,
default setting is 5. The Brightness value controls the dimmer value of the LED
head.
Note: The density will be changed immediately and is directly visible
$
VER SHIFT (VERTICAL SHIFT)
$
HOR SHIFT (HORIZONTAL SHIFT)
The parameters VER SHIFT and HOR SHIFT allow to precisely position the
print image vertically (50...+200/100) and horizontally (50...+50/100). The
adjustment can be done in steps of 1/100 inch (0.25 mm); factory default
value of both parameters is zero.
$
CUT SHIFT (Vertical Positioning for Cutting Device)
This parameter is meant to shift the cut position.
Page 84
Explanation of Individual Menu Items
4-15
$
The conditions inside the printer for feeding of the first pages of a fanfold
paper starting from paper load or paper parking position for paper
transportation is different during continuous printing. If not compensated, it
may lead to an extension of the total line registration tolerance.
The function shall be used to compensate this effect and precisely position
the print out even at the very beginning of a print job.
There are five patterns available.
Effects of the patterns:
A correction by means of pattern 2 to 6 shifts the print image to the bottom
(in direction of the middle of the paper).
Pattern 1:
No correction
Pattern 2:
Displacement on the first 2 pages by 0,5 mm
Pattern 3:
Displacement on the first 2 pages by 1,0 mm
Pattern 4:
Displacement on the first 2 pages by 1,5 mm
Pattern 5:
Displacement on the first 5 pages up to 0,5 mm
Pattern 6:
Displacement on the first 5 pages up to 1,0 mm
The compensation values apply to a paper length of 11 inch. For page
length different to 11 inch the printer automatically adapts the values
accordingly.
Typically, pattern 3 has the best correction result for standard paper of a
weight of 70 - 90 g/m² and a paper width of 9 up to 17 inch. If ever required
pattern 5 or 6 should be applied for thick paper of 120 g/ m² and above.
How to find the best adjustment:
Step 1
Use the parameter
VER SHIFT
to properly align the line
registration for the 10
and all following pages.
th
Step 2
Select one of the patterns above for proper alignment of the line.

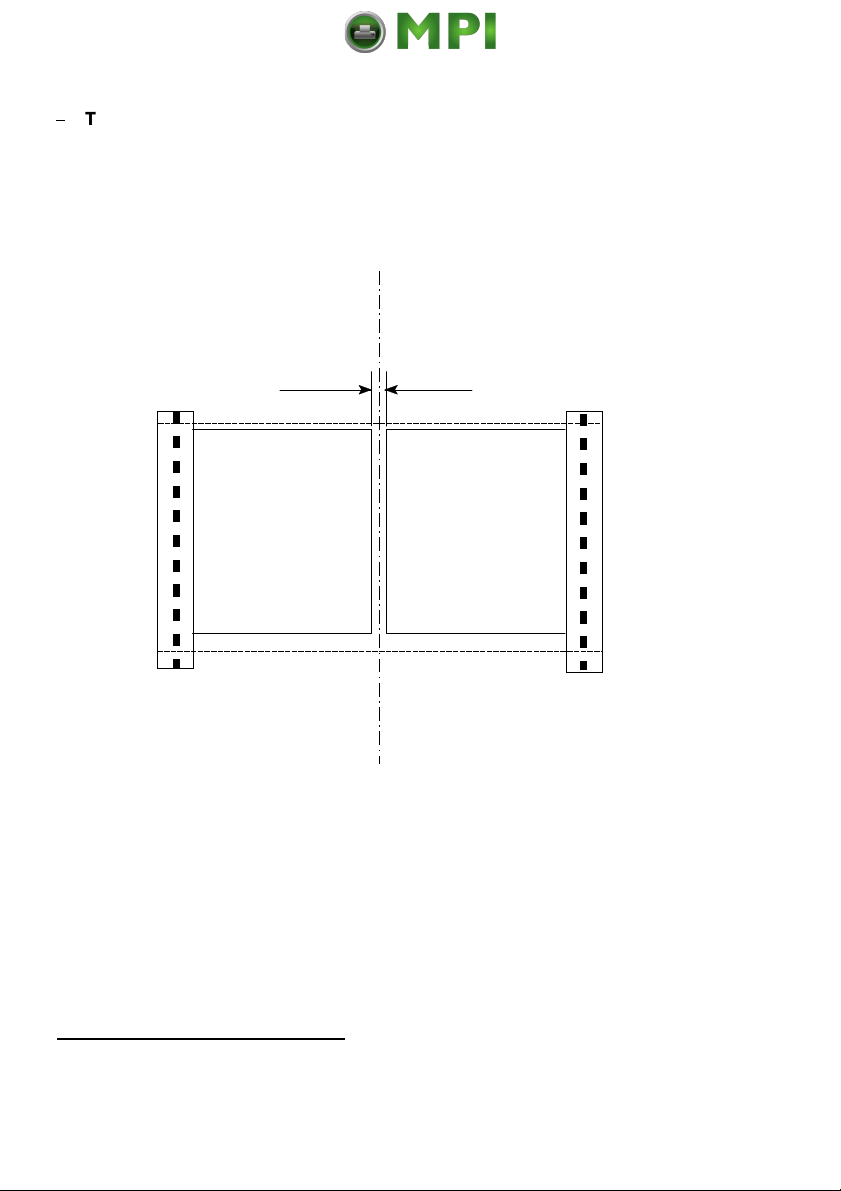

This parameter adjusts the overlapping of both LED heads in printer models
with procuct numbers 8707 400 030xx, 8707 410 030xx and 8707 410 032xx
If an overlapping is visible in the printout the user has the possibility to shift the
overlapping point in an unprinted area.
The position on the paper can be adjusted horizontally in the +/- range of
7 inch (177.8 mm) with steps of 1/10 inch (2.5 mm).
4.2.2 PCL MENU
Definition of the parameters for character presentation on a page.
The PCL MENU will only be displayed if EMULATION = PCL is selected
Note:
in the GENERAL MENU.
FONT NUMBER
$
The font number selects one of the 57 PCL typefaces as the default font
within the PCL emulation. A printout of the PCL TYPE LIST can be started
within the TEST MENU. Default is font no. 0 (COURIER)
PITCH
$
Pitch defines the character size for FONT NUMBER 0 and 39 to 44. Any
value from 0.44 to 99.99 CPI can be selected.
Default value is 10.00 characters per inch.
POINT SIZE
$
For FONT NUMBER 1 to 38 character scaling is defined as point size.
Values can be selected from 4.00 to 999.75 PT in steps of 0.25.
Default value is 12.00 PT.
FONT NUMBER 45 to 56 are not scalable, neither the menu item
Note:
PITCH nor POINT SIZE is applicable.
Page 86
Explanation of Individual Menu Items
4-17
$
SYMBOL SET
Symbol Set means a code table of characters and symbols.
Factory default is the ROMAN-8 symbol set. One of the following 38 different
Sets can be choosen being the standard set in PCL.
The HEXDUMP MENU defines the execution of control sequences when the
HEXDUMP mode has been activated.
Note:
The HEXDUMP MENU will only be displayed if EMULATION in the
GENERAL MENU is set to HEXDUMP.
UEL COMMAND
$
Universal Exit Language commands can be set to
RECOGNIZE
or
IGNORE
That means this code can be executed in HEXDUMP mode or the command
is ignored and printed out as hex code. UEL commands are part of the
Printer Job Language (PJL).
.
Page 89
Explanation of Individual Menu Items
4-20
4.2.4GENERAL MENU
AUTOMATIC CUT
If the printdata does not fill a complete page or if there is no Form Feed
command (HEX 0C) at the end of a page this page is not printed out. The
page remains in the printer memory if this parameter is set to
OFF
and is
printed when the page is fed manually. Such a not completed page is
automatically printed out and cutted after a selectable time period at the end
of a print job. (Break in datastream) The time period can be set from
1 to 120
second
(see also AUTO FORM FEED). The time out will also be activated at
Configuration of the basic operating parameters for a print job.
$
EMULATION
The Emulation determines the printer's set of command codes.
Default emulation is PCL (PCL5E).
The function HEXDUMP is useful to analyze the data received by the printer.
Control codes are not executed, instead all data including command codes
are printed out in hexadecimal format and as ASCII characters. Any noneprintable character, such as CR, is represented as a dot (.) in the ASCII list.
$
AUTO FORM FEED
If the printdata does not fill a complete page or if there is no Form Feed
command (HEX 0C) at the end of a page this page is not printed out. The
page remains in the printer memory if this parameter is set to
OFF
and is
printed when the page is fed manually. Such a not completed page is
automatically printed out after a selectable time period at the end of a print
job. (Break in datastream) The time period can be set from
1 to 120 second
(see also AUTOMATIC CUT). The time out will also be activated at the end of
the print job.
$
Page 90
Explanation of Individual Menu Items
4-21
$
JOB SEPARATION
Many application programs terminate a printjob with the PJL command
EOJ
.
The firmware is supporting this command as well and allows to link the EOJ
recognition to the set up parameter
JOB SEPARATION
(ON /
OFF
) in the
GENERAL MENU.
If set to
ON
and the last page of a job is printed, a cut is performed, printing
is stopped and the paper is removed into the parking position.
This setting means that neither
automatic feeding into the cut position, and no automatic cutting is
performed. It is appropriate for batch output of continuous forms.
TRACTOR CHANGE CUT
$
The automatic cut function after selecting a new
to UPPER) or a new
to
. Factory default is
OFF
DESTINATION
(e.g. from BOTTOM to TOP) can be set
SOURCE
(e.g. from LOWER
Page 91
Explanation of Individual Menu Items
4-22
$
REPRINT LAST PAGE
Dependent on the defined paper length the very last page(s) of a pile of
fanfold paper may be printed weak.
The function
REPRINT LAST PAGE
(ON/OFF) in
GENERAL MENU
allows a
reprinting or it surpresses the recovery of the last pages. Factory default is
REPRINT LAST PAGE = OFF
.
After inserting a new form the printer automatically recovers the misprinted
In the Configuration Menu general settings for the printer´s operation are
defined.
POWER SAVE
$
The time until the power save mode is entered can be set to 15, 30, 45,
MIN
$
or
; factory default is
OFF
The printer doesn´t switch into the POWER SAVE mode.
OFF
15 MIN
.
In power save mode the printer switches off the fuser lamps, the fans, and
motors. Power dissipation in POWER SAVE mode is
messsage
00 POWER SAVE
is displayed. A new print job causes the
less than 45 watt
POWER SAVE mode to be left.
60
. The
If there are no new messages to be displayed within the next
15 minutes
panel light is switched off as well. This function is independent of the
choosen POWER SAVE time.
KEEP TEMP. HIGH
$
(Keep Fuser Temperature High)
The fuser temperature will not be lowered if a break between print jobs is
shorter than the selected time period; factory default is
minutes.
1.0
Possible values are:
ALWAYS, 0.5
If paper is still in the fuser and a time period 3.5 minutes is selected
Note:
up to 60 minutes in steps of
the fuser temperature will be lowered after
reasons. This happens also in case
minutes.
0.5
three
ALWAYS
minutes for safety
has been selected.
the
Page 93
Explanation of Individual Menu Items
4-24
$
The menu
CONFIG MENU
has been extended by the new function
MENU ACCESS
, defining the access rights to various submenus. The
access rights could defined being
ALL, PROFILE ONLY
, or
NONE
. The
locked submenus aren’t displayed on the panel. However, configuration
changes by means of PJL commands are possible.
The access rights can be changed with the following combination of operator
panel keys:
Choose the new access right in
MENU ACCESS
.$Choose the option and save it with the key [
] .$Press
ESCAPE
[
] within the next two seconds.
Save with the key [
] once more.
Note:
A wrong key sequence results in cancelling the current trial and the
Any error that occurs during a print operation is reported by a corresponding
error message on the display, additionally the buzzer in the operator panel
electronics is activated and the panel LED flashes. The signals can be
stopped by either pressing any key on the panel or by opening the cover.
The default setting is ON. To disable this function set the value to
The two short signals during power on are always active.
Note:
LANGUAGE
$
OFF
Selects the language of the menu.
Default is
ENGLISH;
available are:
ENGLISH, FRANCAIS, ESPANOL and DEUTSCH (German)
$
MENU ACCESS
.
$
$
Page 94
Explanation of Individual Menu Items
4-25
$
HOST CHANNEL
the following types are available:
PARALLEL ONLY
I/O EXTENSION
(Default)
The selection
PARALLEL ONLY
means that only the Centronics port can
receive data.
If
I/O EXTENSION
is selected only the optional channel can be used e.g.
Ethernet.
TRACTOR POOL
Paper is alternately inserted the lower and upper tractor i. e. the printer
changes automatically from one tractor to the other in case of paper empty.
The empty tractor cassette can be reloaded and thus will be ready for the
next automatic change if needed. The pool function requires the same type of
paper to be used in both tractor cassettes.
RECALL FACTORY
By calling up
RECALL FACTORY
in
CONFIG. MENU
all menus, including all
profiles are reset to the factory defaults. This function needs to be confirmed
by the additional prompting YES/NO to prevent unintended reset of all
Use this point to check all Operator Panel display functions.
SELF TEST
$
This selection starts the printout of the test page with the actual configuration
settings of the actual Profile and diagonal character test (see Paragraph
3.2.1 How to Start the SELF TEST
)
CONT SELF TEST
$
(Continuous Selftest)
If this function is selected the printer continuously prints the test page (see
SELF TEST) until the key is pressed.
CONFIG. PRINT
$
(Configuration Print)
This selection starts a printout of all Profiles with the information about the
PAPER MENU, PCL MENU, GENERAL MENU, and the CONFIG. MENU
Page 97
Explanation of Individual Menu Items
4-28
$
PCL TYPEFACE LIST
By activating the PCL TYPEFACE LIST a printout of all available PCL
Typefaces is started including information about the scalability and
