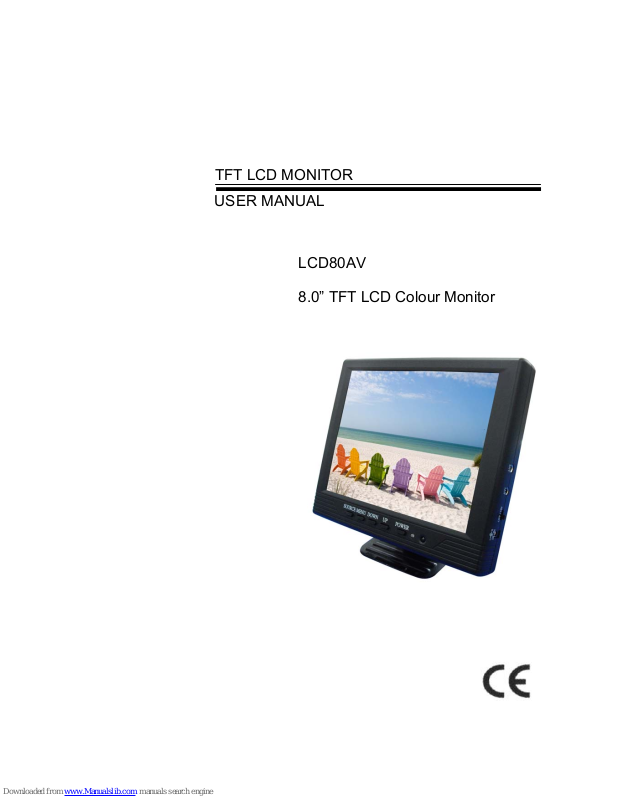

TFT LCD MONITOR
USER MANUAL
LCD80AV
8.0” TFT LCD Colour Monitor
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT
TO RAIN OR MOISTURE.
DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.
CAUTION:
Explanation of Graphical Symbols
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended
to alert the user to the presence of un-insulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the product.
Precautions
Safety------------------------------------- Installation---------------------------------------
Should any liquid or solid object fall into the
Do not install the unit in an extremely hot or
humid place or in a place subject to excessive dust
or mechanical vibration.
The unit is not designed to be waterproof.
Exposure to rain or water may damage the unit.
Cleaning------------------------------------
Clean the unit with a slightly damp soft cloth.
Use a mild household detergent. Never use strong
solvents such as thinner or benzene as they might
damage the finish of the unit.
Retain the original carton and packing materials
for safe transport of this unit in the future.
cabinet, unplug the unit and have it checked
by the qualified personnel before operating it
any further.
Unplug the unit from the wall outlet if it is not
going to be used for several days or more.
To disconnect the cord, pull it out by the plug.
Never pull the cord itself.
Allow adequate air circulation to prevent
internal heat built-up. Do not place the unit on
surfaces(rugs, blankets, etc.) or near materials
(curtains, draperies) that may block the
ventilation holes.
1
Safety Precautions
Federal Communications Commission (FCC) Statement
This Equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
●
You are cautioned that changes or modifications not expressly approved
by that party responsible for compliance could void your authority to
operate the equipment.
2
This device complies with Part 15 FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received including interference
that maybe undesired.
2
Table of Contents
● Warning...................................................................................................... 1
● Safety Precautions..................................................................................... 2
● Table of Contents...................................................................................... 3
● Features..................................................................................................... 4
● Operating Instruction.................................................................................. 5
● OSD Architecture........................................................................................ 7
● Specification............................................................................................... 9
● Appendixes................................................................................................ 10
● Remote Control.......................................................................................... 11
3
Features
LCD80AV
● Display Pixels 800X600
● Compatible with VGA (640X480), SVGA (800X600)
● Brightness: 250 cd/㎡
● Contrast Ratio: 500:1.
● ACC,AGC and DCGC (Digital Chroma Gain Control)
● View of 120°/140°, vertical and horizontal.
● LCD response time of 25ms.
● Video input support NTSC / PAL standard.
● Built-in speaker.
● Support IR remote controller.
4
Operating Instructions
LCD80AV
1. Power
Monitor power ON / OFF.
2. 3. Adjust
Increase or decrease the value on OSD menu.
UP: Increase value on the OSD Menu.
DOWN: Decrease value on the OSD Menu.
4. Item
OSD menu selection.
5. Menu
Select input signal from AV1, AV2, or PC.
LED:
Power on---LED Green Light
Power off---LED Red Light
IR:
For Remote control
5
Operating Instructions
LCD80AV
1: DC12V INPUT
2: Main Power SW
3: AV1 INPUT
4: AV2 INPUT
5: VGA INPUT
6
Connection
A. Audio Function
7
Contrast:
Permits adjustment for contrast between light or dark areas of
the picture.
Example:
Brightness:
Adjusts the overall picture shade and brightness.
Tip: Use the Brightness to make details in the dark areas
of the picture to be just visible, and Contrast to
“brighten” the picture without causing noises and
foreheads to turn white.
Hue:
Adjust all the colors on the screen, but is most noticeable to
the eye in reds and yellows, and is also usually set for
pleasing face tones.
Note: Appears in NTSC mode only.
Saturation:
Adds coloring to the black and white picture content (of a
colour signal), and is usually set for viewer's preference in
colour saturation.
Sharpness:
Sets the desired sharpening enhancement to the picture.
Mirror setting:
Hit R/L key to rotate.
8
PC Mode Function:
Under Image mode:
Press the MENU button to bring up the OSD menu.
Press UP/DOWN to increase or decrease value on the OSD menu.
Hit R/L key to Auto Tune: Automatically selects the optimal settings for image parameters.
Contrast: Adjusts foreground white level of the screen image.
Brightness: Adjusts background black level of the screen image.
H-Position: Controls the picture horizontal position.
V-Position: Controls the picture vertical position.
Clock: Adjust the internal pix clock lag in order to optimize the screen image.
Phase: Adjust the internal clock time lag in order to optimize the screen image.
Reset All: Returns all controls back to factory setting.
9
Specification
Model LCD80AV
LCD Panel
8.0” TFT LCD
Display Colors
262K
Display area
162X121.5 mm
Resolution
800X600
Brightness
250cd/㎡
Contrast Ratio
500:1 typ.
Response Time
25 ms (Tr + tf)
View angle ( L/R/U/D )
70/70/50/70
Video input
2CH A/V Input 1.0vp-p at 75 and 1CH VGA input
Audio input
Mono 30mv~100mvp-p/ Speakerx1, 2Wmax
Video/Audio connector
Min phone jack/Mini plug to RCA plug adapter /D-Sub 15pin
Operating
Power ON/OFF OSD Control Function (IR)
Power Supply
DC12V/0.5A
Power Consumption
6 W
Dimension
200x165x30mm
Weight
675g
Temperature
Operating:0~50℃/Storage:-20~70℃
Humidity
20%~80%
10
Specification
A. TROUBLE SHOOTING
Problems:
Package List
A. LCD Monitor x 1
B. User Manual x 1
C Remote Control (optional)
D. AC Adaptor x 1
E. Stand x 1
11
