PSB Imagine Loudspeakers, Imagine Imagine B, Imagine T, Imagine B, Imagine C Specification

Imagine

Imagination is a good beginning—a great
beginning. However, it takes so much more. It takes
expertise, experience, a unique combination of
listening skills and listening discipline. It also
takes the courage and conviction to design
what’s best, rather than merely to follow fashion
trends or high-tech “breakthroughs.” Only then
can imagination become reality: the PSB

Imagine loudspeakers.

Of course, it helps that PSB Speakers has
been doing this for a long time — over thirty
five years. Founder Paul Barton and the PSB
team are well known around the world for
fundamental loudspeaker research, studies
of acoustics, and investigations of listener­perception. The resulting generations of highly
rational yet elegantly sensual loudspeakers have
set the standard for high-performance value.

Imagine T Tower

Quite simply, this is what PSB does best:
produce the most natural, dynamic, and
accurate sound at the lowest possible cost.
Often, surprisingly low. Take the flagship PSB
Synchrony line which has garnered all but
universal acclaim. Though far from inexpensive,
Synchrony has time and again been compared
to speakers costing two, three, even five times
as much, by the globe’s most demanding and
experienced audio critics.

PSB has taken the hard-won knowledge and
technical accomplishments it achieved in
that rigorous and costly three-year development
process to create four models of refreshingly
affordable speakers that reach remarkable
heights of performance.

Now we invite you to use your imagination.

Imagine a new method of cabinet

construction combining the precision of
computer-controlled machining with the
irreplaceable touch of hand craftsmanship.

Imagine seamless, unbroken surfaces

making beautiful forms, compound-curved
on every vertical face and heavily internally
braced, yielding supremely solid, acoustically
inert enclosures.

Imagine an all-new family of purpose-

designed drivers resulting in clear midrange
presence, uncluttered bass, extended
smooth highs, and high power handling.

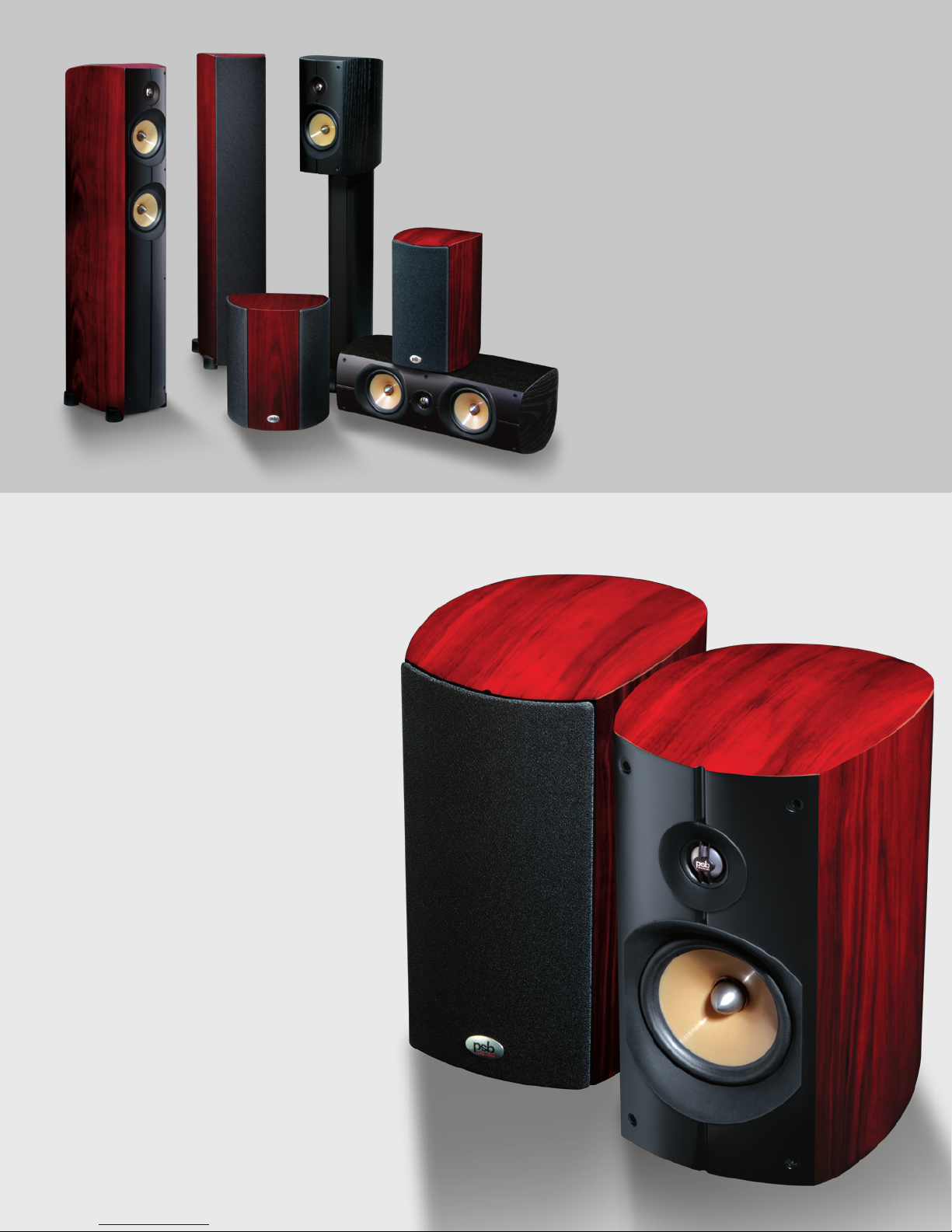

Left to right: Imagine Tower, Imagine Surround,
Imagine Bookshelf and Imagine Center Channel.

Imagine B Bookshelf

Imagine “cathedral” matched wood veneers

and timbre-matched designs to ensure the
best in looks and sonics.

Imagine a tower and center channel that

enables a modest degree of system tuning
to accommodate individual room acoustics,
speaker set up, or listener preference.

Imagine PSB’s relentless attention to the hundreds

of small details necessary to make music and
movies truly come alive.

Make imagination reality: Let your ears experience
PSB Imagine.

PSB Imagine C Center Channel and Imagine S
Surround Speaker. Below, Imagine B Bookshelf
rear view.

Technical Highlights

• Innovative 7-layer laminated construction yields impressively solid, acoustically inert Imagine enclosures.
The result: dramatically clean, “fast” bass and uncolored midrange—and visually elegant curved forms.

• Proprietary titanium-dome tweeter’s light yet stiff diaphragm and “over-hung” voice-coil, with a computer­optimized magnetic circuit for singularly smooth, extended response that remains distortion-free even at
very high acoustic levels.

• Unique woofer design combines serious low-frequency power with exceptional midrange accuracy.
Proprietary ceramic-filled polypropylene cones, a uniquely aerodynamic molded basket, and a
specialized, distortion-reducing magnetic design are just three of their secrets.

• Smoothly radiused, unblemished front surfaces are more than merely beautiful: they virtually eliminate
mid-and high-frequency diffractions, maximizing transient realism and treble “air.”

• Heavy gold-plated quad terminals ensure full signal transfer and can be bi-wired and bi-amped.

(Except Imagine S, whose separately addressable inputs permit discrete-channel rear/side surround connections to each speaker.)

Frequency Range

Response

On Axis @ 0°±3dB
On Axis @ 0°±1 1/2dB
Off Axis @ 30°± 1 1/2dB
LF Cutoff -10dB

Sensitivity

Anechoic Chamber
Listening Room

Impedance

Nominal
Minimum

Input Power

Recommended
Program

Acoustic Design

Tweeter (Nominal)

Woofer (Nominal)

Crossover

Internal Volume

Design Type

Imagine T

Tow e r

38-23,000Hz
42-20,000Hz
42-10,000Hz
35Hz

88dB
90dB

4 Ohms
4 Ohms

20 - 200 Watts
200 Watts

1" (25mm)
Titanium Dome
with Ferrofluid

2 x 5 1/4" (135mm)
Polypropylene Cone,
Rubber Surround

1,800Hz, LR4, 800Hz

1.0 cu ft (29 liter)

Dual Port Bass Reflex

Imagine B

Bookshelf

52-23,000Hz
55-20,000Hz
55-10,000Hz
48Hz

87dB
89dB

4 Ohms
4 Ohms

20 - 150 Watts
150 Watts

1” (25mm)
Titanium Dome
with Ferrofluid

5-1/4” (135mm)
Polypropylene Cone,
Rubber Surround

1,800Hz, LR4

0.27 cu ft (7.7 liter)

Bass Reflex

Imagine C

Center

47-23,000Hz
45-20,000Hz
45-10,000Hz
40Hz

87dB
89dB

4 Ohms
4 Ohms

20 - 150 Watts
150 Watts

1” (25mm)
Titanium Dome
with Ferrofluid

2 x 5-1/4” (135mm)
Polypropylene Cone,
Rubber Surround

1,800Hz, LR4

0.54 cu ft (15.4 liter)

Bass Reflex

Imagine S

Surround

65-23,000Hz
68-20,000Hz
68-10,000Hz
58Hz

87dB
89dB

4 Ohms
4 Ohms Bipole/Dipole

(8 Ohm - 2 Channel Mode)

20 - 150 Watts
150 Watts

2 x 1” (25mm)
Titanium Dome
with Ferrofluid

2 x 5-1/4” (135mm)
Polypropylene Cone,
Rubber Surround

2,000Hz, B3

0.22 cu ft (6.2 liter)

Acoustic Suspension

Size (W x H x D)

Weight

Net
Shipping

Finish

8-1/4 x 37-3/16 x 13-5/8"
210 x 945 x 346mm

40.6 lb (18.5kg)/each
52 lb (23.6kg)/each

Black Ash or
Dark Cherry
Wood Veneer

7-1/2 x 13 x 12”
191 x 330 x 305mm

17.2 lb (7.8kg)/each

38 lb (17.3kg)/pair

Black Ash or
Dark Cherry
Wood Veneer

20-1/2 x 7-1/2 x 13-5/8”
521 x 191 x 346mm

26.8 lb (12.2kg)/each

30.5 lb (13.9kg)/pair

Black Ash or
Dark Cherry
Wood Veneer

10-3/4 x 12-5/8 x 6-7/8”
273 x 321 x 175mm

16.3 lb (7.4kg)/each
37 lb (16.8kg)/pair

Black Ash or
Dark Cherry
Wood Veneer

www.psbspeakers.com
1 888 772 0000

PSB Speakers reserves the right to change specifications or features
without notice. © 2008 PSB Speakers, a division of Lenbrook Industries
Limited. PSB is a registered trademark of Lenbrook Industries Limited.
Printed in Canada 08/08. All rights reserved. No part of this publication
may be reproduced, stored or transmitted in any form whatsoever
without the written permission of PSB Speakers. 710 BROCH IMAGINE
