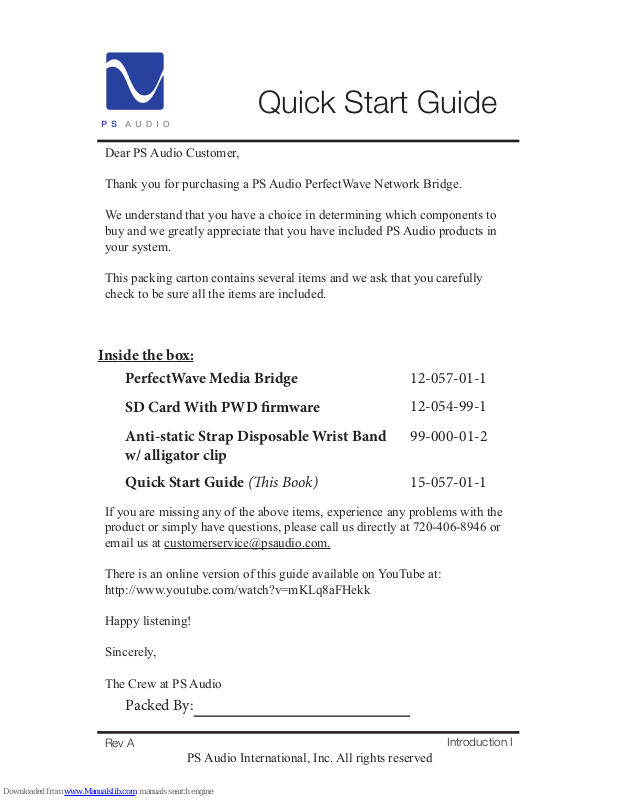

Quick Start Guide
Dear PS Audio Customer,
Thank you for purchasing a PS Audio PerfectWave Network Bridge.
We understand that you have a choice in determining which components to
buy and we greatly appreciate that you have included PS Audio products in
your system.
This packing carton contains several items and we ask that you carefully
check to be sure all the items are included.
Inside the box:
If you are missing any of the above items, experience any problems with the
product or simply have questions, please call us directly at 720-406-8946 or
email us at customerservice@psaudio.com.
There is an online version of this guide available on YouTube at:
http://www.youtube.com/watch?v=mKLq8aFHekk
Happy listening!
Sincerely,
The Crew at PS Audio
Packed By:
PerfectWave Media Bridge
SD Card With PWD rmware
Anti-static Strap Disposable Wrist Band
w/ alligator clip
Quick Start Guide (is Book)
99-000-01-2
12-054-99-1
15-057-01-1
Rev A
12-057-01-1
Page 2
Introduction II
4826 Sterling Drive, Boulder, CO 80301 PH: 720.406.8946 FX: 720.406.8967
Bridge Installation
PerfectWave Bridge Installation Instructions
Turn off the DAC using the power switch on the rear of the unit
Using a Phillips screwdriver (#1 tip), remove the two screws holding the
blank panel over the expansion slot on the rear of the PerfectWave DAC.
Retain the screws to hold the Bridge card in place later.
Follow the instructions on the bag of the disposable wrist strap included
in the box. Connect the alligator clip to a suitable earth ground.
4
Remove the PerfectWave Bridge printed circuit board assembly from the
ESD bag.
Insert the Bridge card into the expansion slot. Slide the board in the rail
guides. You will feel some resistance when the connector mates with the
ngers on the front of the Bridge card. Press rmly until the surface of
the Bridge card back panel contacts the back of the DAC.
1
2
3
5
Page 3
Introduction III
PS Audio International, Inc. All rights reserved
Quick Start Guide
Reinstall the screws to hold the Bridge card in place.
6
You may now remove the wrist strap.
7
Insert the SD card into the slot on the back of the DAC . When pressed
all the way it will hold itself in. Do not force it. It should slide easily if
inserted properly.
Note: This SD card plugs
into the socket with the gold
contacts facing up. Make
sure the SD card has the gold
contacts facing up, or the
socket could be damaged.
9
Verify that the tab on the side of the SD card from the Bridge shipping
box is in the unlocked position
– towards the top
8
Turn on the power to the DAC. You should observe the logo light button
on the front panel of the DAC blinking. This will take approximately 30
seconds. When the blinking stops you will see the initialize screen on
display. The DAC should power up normally. It is now updated with the
software necessary to run the Bridge.
10
Page 4
Introduction IV
4826 Sterling Drive, Boulder, CO 80301 PH: 720.406.8946 FX: 720.406.8967
Bridge Installation
11
Connect an Ethernet cable from a network switch, router, or hub to the
Ethernet port on the Bridge card back panel.
To view the owners manual Online:
http://www.psaudio.com/ps/manuals
To have one sent to you:
Email customerservice@psaudio.com
Phone 720.406.8946
This Accessory, when properly installed in a Perfect Wave DAC,
complies with all relevant CE requirements.
Check to see if the Bridge requires a rmware update. To do this you must be
connected to the Internet. Once connected, go to the Input Select screen on
the PWD’s touch screen. On the Media Bridge input select choice, touch the
green edit icon on the right hand side. This brings you to the Bridge setup
page where you can touch the option to upgrade the rmware. Once upgrading DO NOT REMOVE POWER WHILE THE BRIDGE IS UPDATING.
