PS Audio Classic 250, PCA-2, HCA-2, P300, P500 Brochure

For more than a quarter century, PS Audio has contributed
to the field of home entertainment by designing and building
components that faithfully reproduce the beauty and fine
nuances of music and film.

Our passionate approach to product design, dedication to
excellence and absolute commitment to customer service
has garnered us a loyal following of both music and film
lovers the world over. We would encourage you to take a
moment and browse through our product line, visit us on
our website at www.psaudio.com and speak with your
local dealer about stepping up to PS Audio.

We trust our passion is infectious and if we can help, in
any way, please do not hesitate to let us know.

Paul McGowan
CEO

PS AUDIO

PS Power Plants created the revolution in power technology that is sweeping the audio
video industry today. The world’s first and only pure AC regenerator, the Power Plant,
produces a laboratory grade AC power output that is pure, regulated and protected.

Power Plant

™

regenerator technology takes the raw AC out of the wall, converts it to pure
DC voltage (like a battery) and rebuilds the voltage into a perfect AC sinewave to power
connected equipment. The end result; AC power is completely rebuilt and perfected.

Power Plants provide complete user control over the output voltage, frequency and
waveform. Unique features of the Power Plant series include MultiWave

™

, TubeWave™and

AutoWave

™

technologies. These computer generated output waveforms go far beyond

even the most ideal AC line conditions.

Other competing AC conditioners and correction products provide minimal improvements
to AV systems. The PS Audio Power Plants represent a landmark in performance benefits
unmatched by any other AC power device in the world.

Don’t settle for sub-standard power. PS Audio Power Plants produce pure, regulated, AC
power, dramatically superior to the power provided by local utilities.

Power Plants

Regenerated Power

Regenerated power is the process of

taking raw AC from the wall, converting

it to DC and then rebuilding perfect AC

power to feed connected equipment.

Regeneration assures that the original

AC has almost no bearing on the output

fed to your equipment. The Power Plant is

the world’s only high-end AC regenerator

and is superior to all other forms of

power filtration, correction or cleansing.

Regulated Clean Output

The AC power at your wall outlet is

anything but steady. Dips and bumps in

the voltage are commonplace. Power

amplifiers and projectors are adversely

affected and can result in fewer watts to

your loudspeakers or a dimmer picture.

Power Plants regulate the voltage to

better than 1%, typically 0.1%.

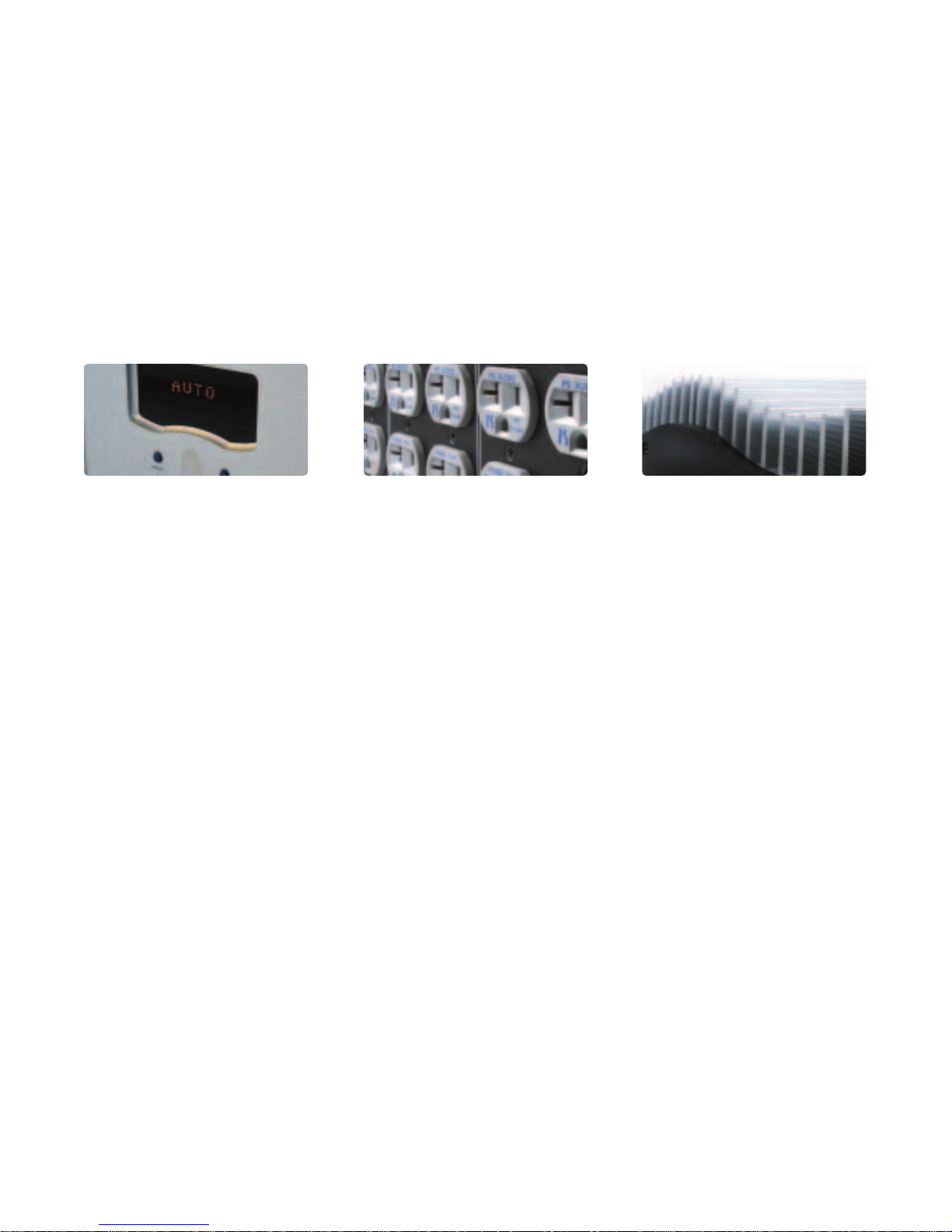

MultiWave, TubeWave and AutoWave

To further improve the performance of

the Power Plants, PS Audio has

designed unique waveforms that go

beyond the performance potential of a

basic sine wave.

Power Ports

Nickel plated and highly polished contacts

in the Power Port help provide superior

connectivity. All Power Plants exclusively

use Power Port AC receptacles to provide

the most ideal cable connection possible.

Adjustable Output Voltage

Power Plants provide the user the

freedom to adjust the output voltage

with 1-volt increments, regardless of the

input AC voltage.

Variable Frequency

Power Plants allow the user to adjust

the AC frequency from 50Hz to 120Hz,

(in 1Hz increments) to find the best

possible performance point. In North

America the frequency of the AC line is

60Hz. In many other parts of the world

the frequency is 50Hz. While these are

standards within a particular country they

are not necessarily the best frequencies

to optimize AV performance.

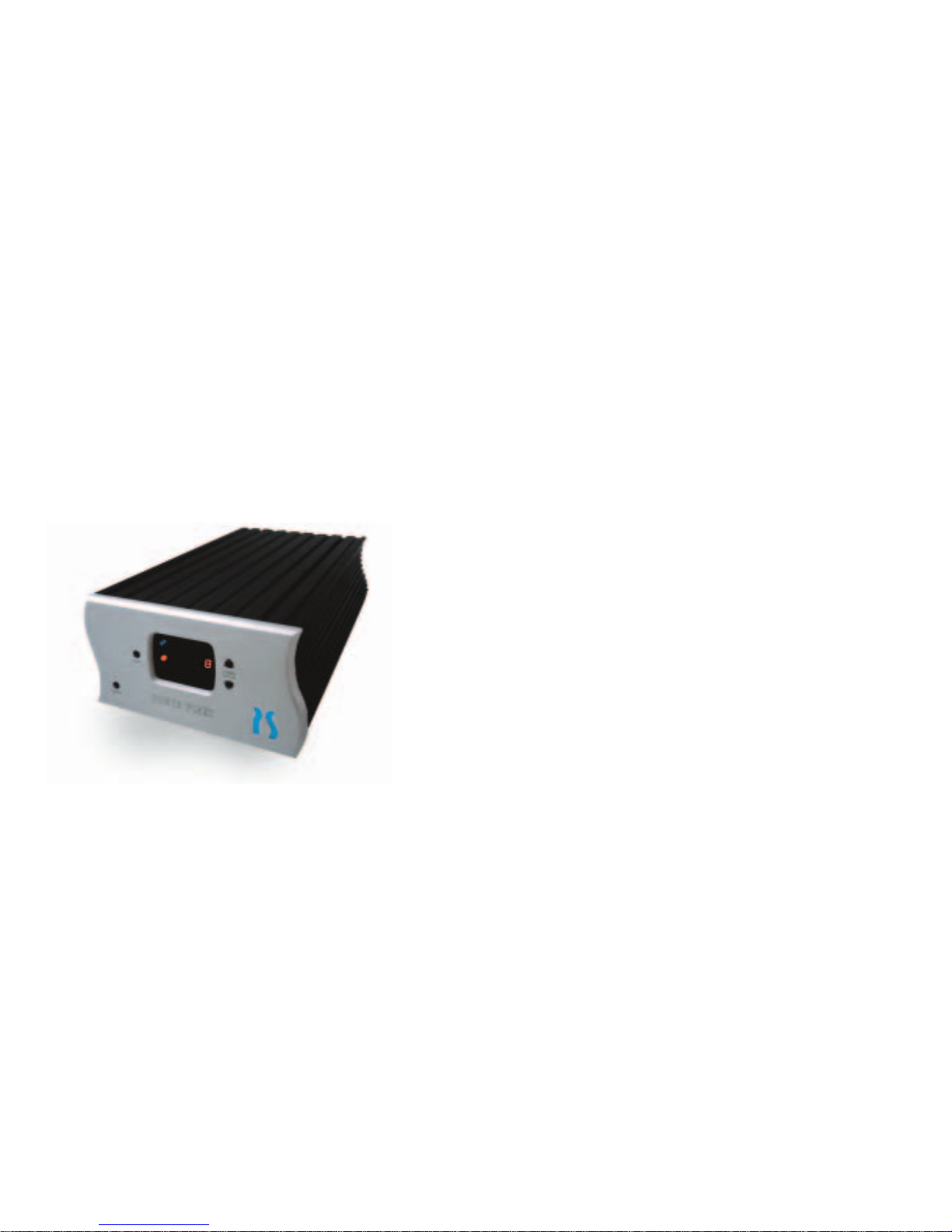

The P300 started the power revolution in the audio video
world. It is the classic analog AC power regenerator that
provides up to 300 watts of perfect power for connected
equipment. Designed primarily as a pure power generator
for source equipment such as CD players, preamplifiers
and processors, the P300 is even capable of powering
small power amplifiers and integrated amplifiers as well.

· 300 watt AC regenerator

· Adjustable output voltage

· Balanced power

· Adjustable frequencies

· MultiWave and TubeWave

· On board power meter

P300

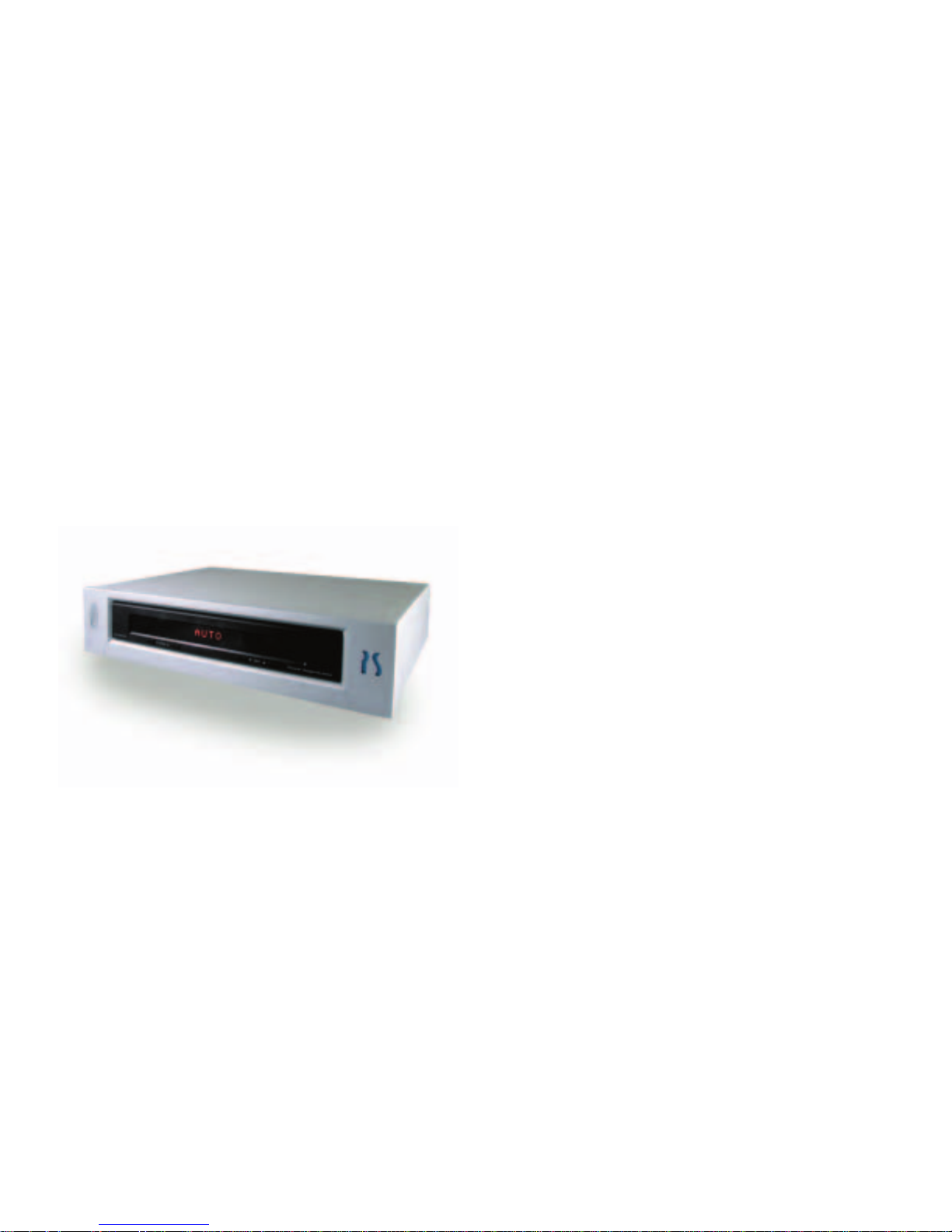

The P500 Power Plant will produce up to 500 watts of
pure, balanced power. From its regenerated outputs the
P500 can power most small to medium systems in their
entirety. With its built in Ultimate Outlet, the P500 will pass
through clean protected AC power to any size load. The
P500 is the most popular and versatile AC regenerator.

· 500 watt AC regenerator

· Built in Ultimate Outlet

· Adjustable output voltage

· Balanced power

· MultiWave, TubeWave and AutoWave

· Rack mountable frame chassis

· On board power meter

· Available in black or silver

P500

The P1000 is the largest AC regenerator. Capable of
providing 1000 watts of pure, clean balanced power, this
amazing product will handle even the most power thirsty
systems. Comes complete with a built in Ultimate Outlet
for unlimited filtered and protected power. The P1000 is
designed for large power amplifiers and entire systems.

· 1000 watt AC regenerator

· Built in Ultimate Outlet

· Adjustable output voltage

· Balanced power

· MultiWave, TubeWave and AutoWave

· On board power meter

P1000

Every product deserves quality AC power. Cleaning, protecting and properly distributing
AC power are key elements in the quest for perfecting the performance of AV systems.

PS Audio’s power management products, including the Ultimate Outlet

™

, Power Director™,

Juice Bar

™

and Power Port™address these critical requirements.

The PS Ultimate Outlet represents a major breakthrough in passive AC protection and
cleaning. Based on a unique non-limiting AC technology, the Ultimate Outlet provides both
protection and noise reduction in a small package.

The PS Audio Power Director Series is based on the Ultimate Outlet design and includes
two models: the 3.5 and the 4.7. Both models provide remarkable surge and spike
protection, managed power distribution and a lower noise floor.

The Juice Bar and Power Port continue the tradition of being the finest AC extension
component and AC receptacles in the world.

Power Management

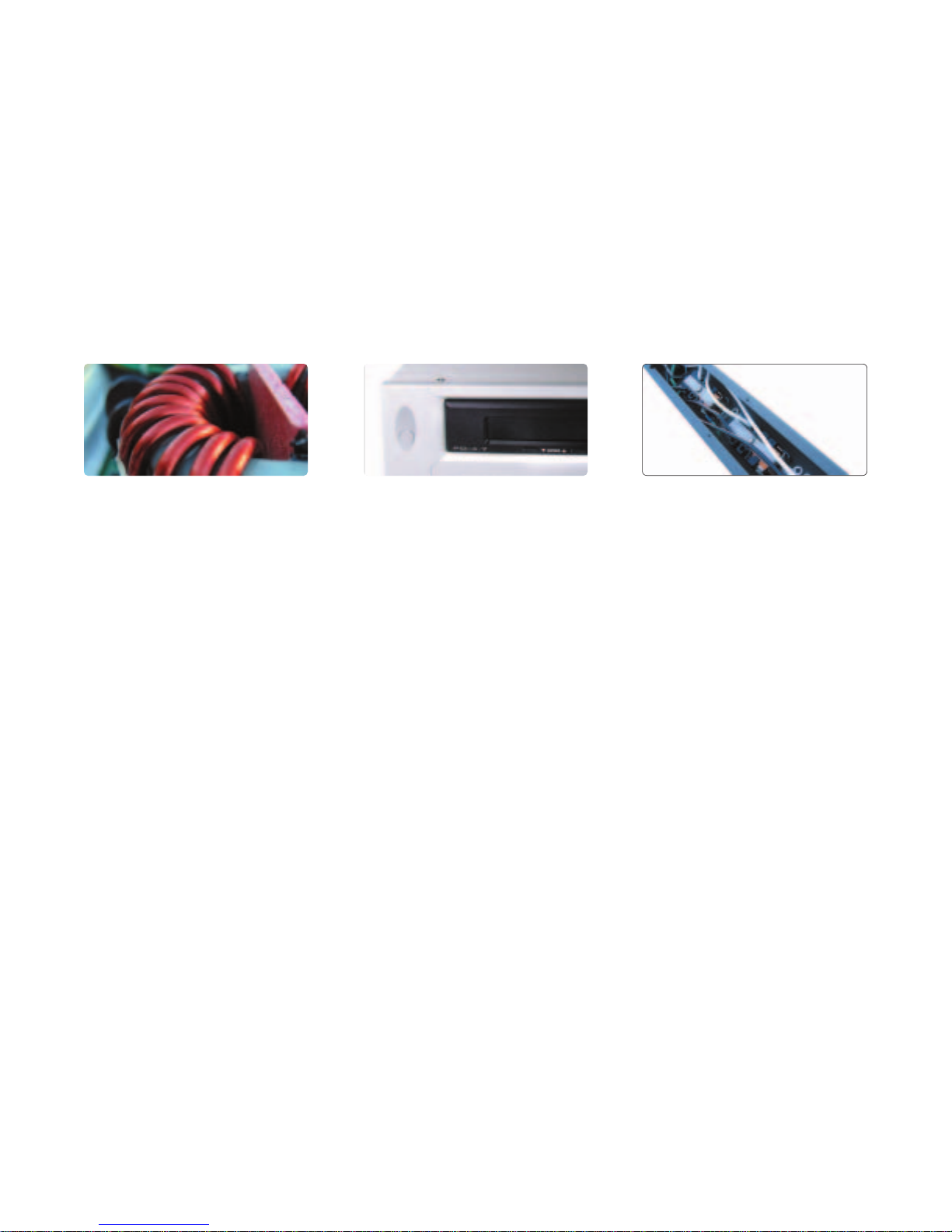

Star Wiring

Star wiring is the preferred wiring

technique because each piece of

powered equipment will not contaminate

the neighboring equipment. All PS Audio

power management products are star

wired to minimize equipment interaction.

Unrestricted Power Path

Most power products use as little copper

as is allowed for safety. While this practice

is indeed safe, it is not desirable as too

little copper results in restricted power

delivery. PS Audio uses much more

copper than required to allow for

unrestricted power delivery which is

essential to great audio and video

performance.

Sophisticated Control

The Power Director line uses micro-

processor technology to monitor the

power line and provide convenience

features such as switched and delayed

outlets. The Power Director 4.7 allows

full control via the included remote.

Power Ports

Every PS power management product

utilizes the state of the art Power Port for

power delivery. Custom manufactured to

PS Audio specifications, the Power Port

is the world’s finest AC receptacle.

Up to 40dB of Cleaning

The Power Director and Ultimate Outlet

series, utilize Ultimate Outlet Technology

to provide noise cancellation in excess of

40dB. This equates to a reduction of about

100 times less noise and interference

found on all powerlines in the world.

Surge and Spike Control

PS Audio power products utilize multiple

surge protection devices for the ultimate

line of defense against surge and spike

attacks that threaten the life of connected

equipment.

The Ultimate Outlet is the ultimate in passive cleaning and
protection components. Affordable and portable, the UO
can be placed anywhere it’s needed, from the ceiling for a
projector, to the floor for a power amplifier. Producing up
to 15 amps of clean protected power, the UO sets the
standard in performance improvement and delivery of
unrestricted AC power.

· Up to 20 amps unlimited power

· 40dB of cleaning

· Surge and spike protected

· Power Port output

· Custom wound Balun

Ultimate
Outlet

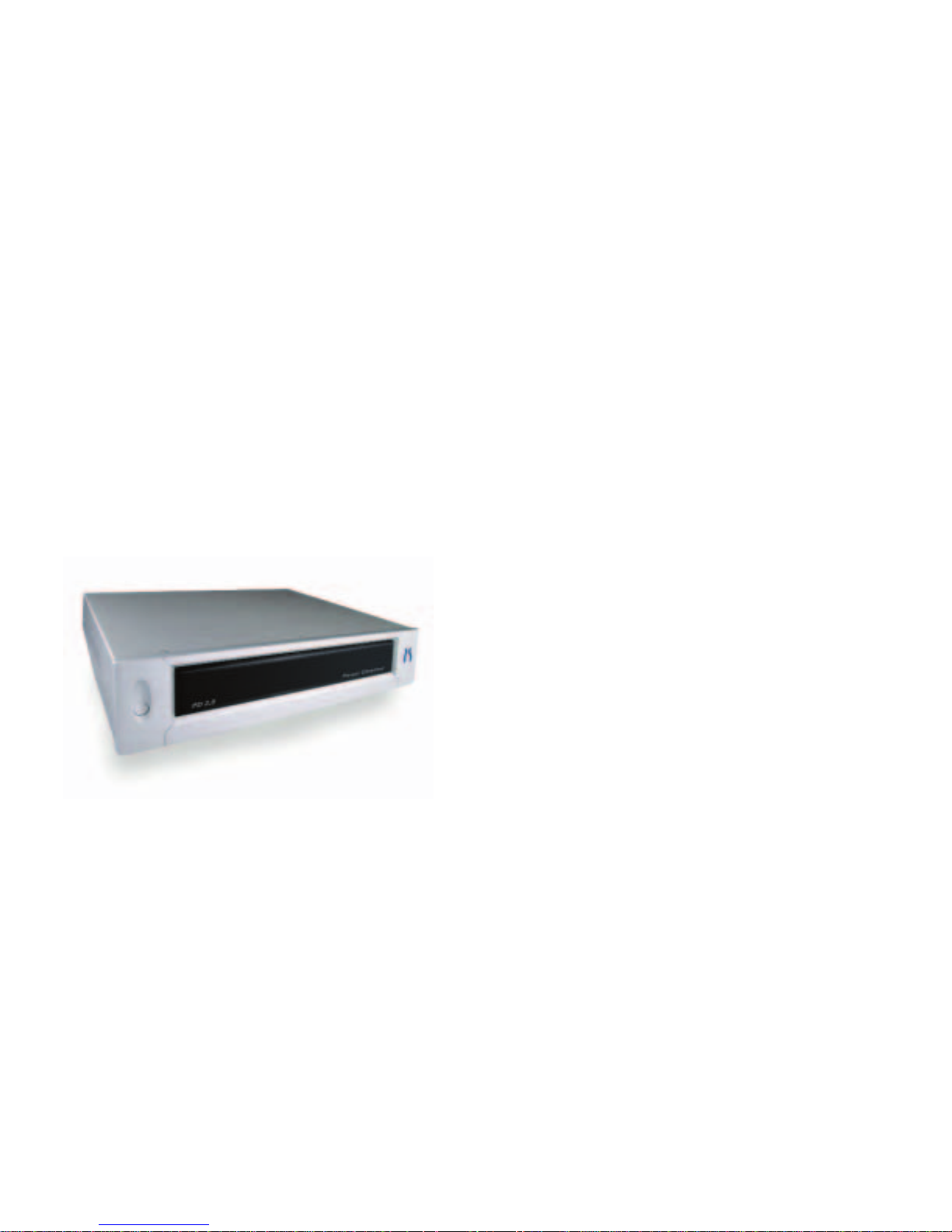

The Power Director 3.5 is the most affordable power
management product designed to deliver and protect
distributed power to an entire system. Inside are three
Ultimate Outlets feeding five separate Power Ports
which deliver power to up to 10 components. Each of
the three isolated power zones can be always on,
switched or delayed.

· 3 High current UO’s inside

· 5 Power Ports

· Delayed, switched or always-on power mode

· CATV protection

· Surge and spike protection

· Available in black or silver

Power
Director 3.5

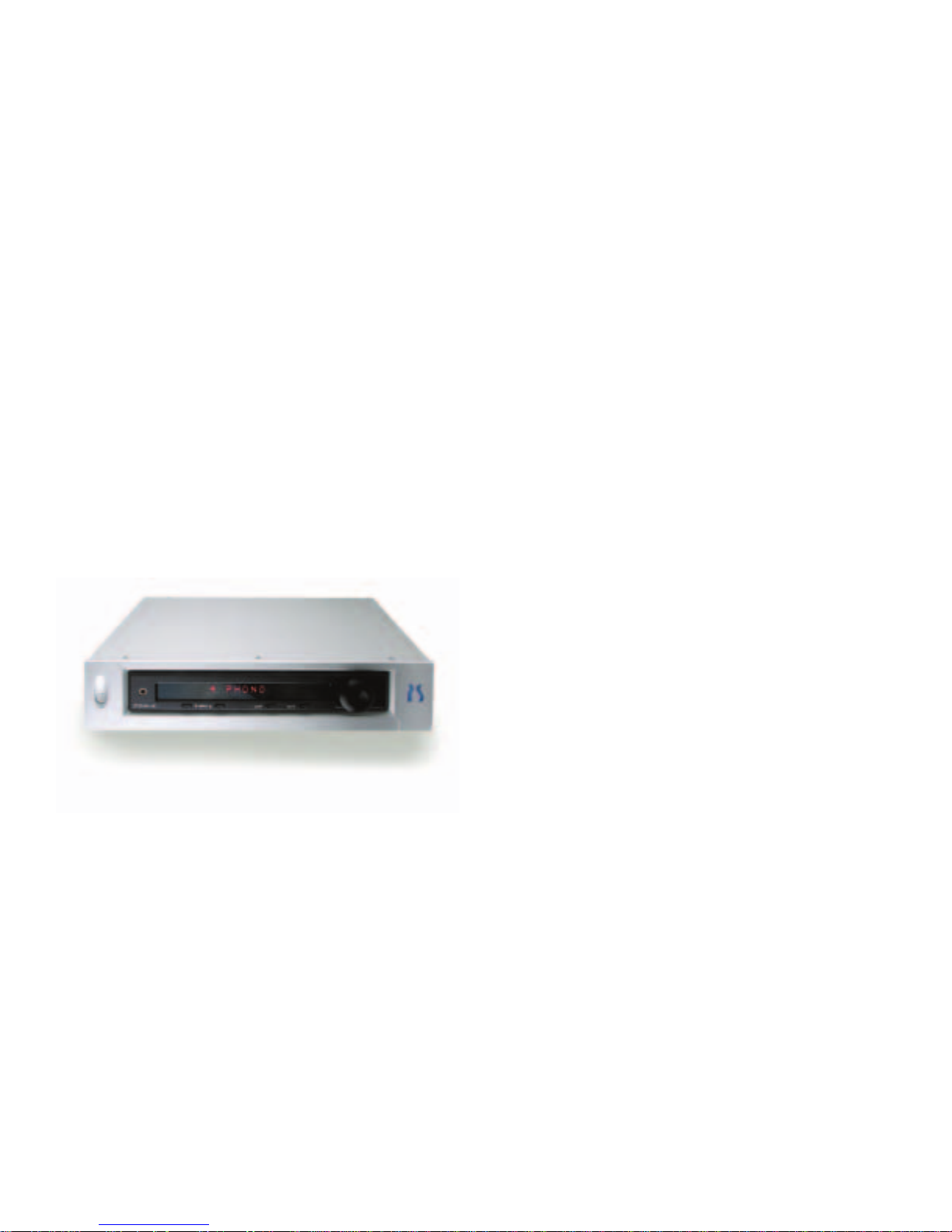

Our finest system wide power management product is the
PD 4.7. Controlled by a sophisticated microprocessor, the

4.7 monitors and displays voltage and current at the touch
of a button. 14 AC receptacles will provide enough clean
and protected power for any size audio or theater system.

· 4 High current UO’s inside

· 7 Power Ports

· PS Bus control

· Computer monitored voltage and current

· CATV and phone protection

· Surge and spike protection

· Delayed, switched or always-on power mode

· Available in black or silver

Power
Director 4.7

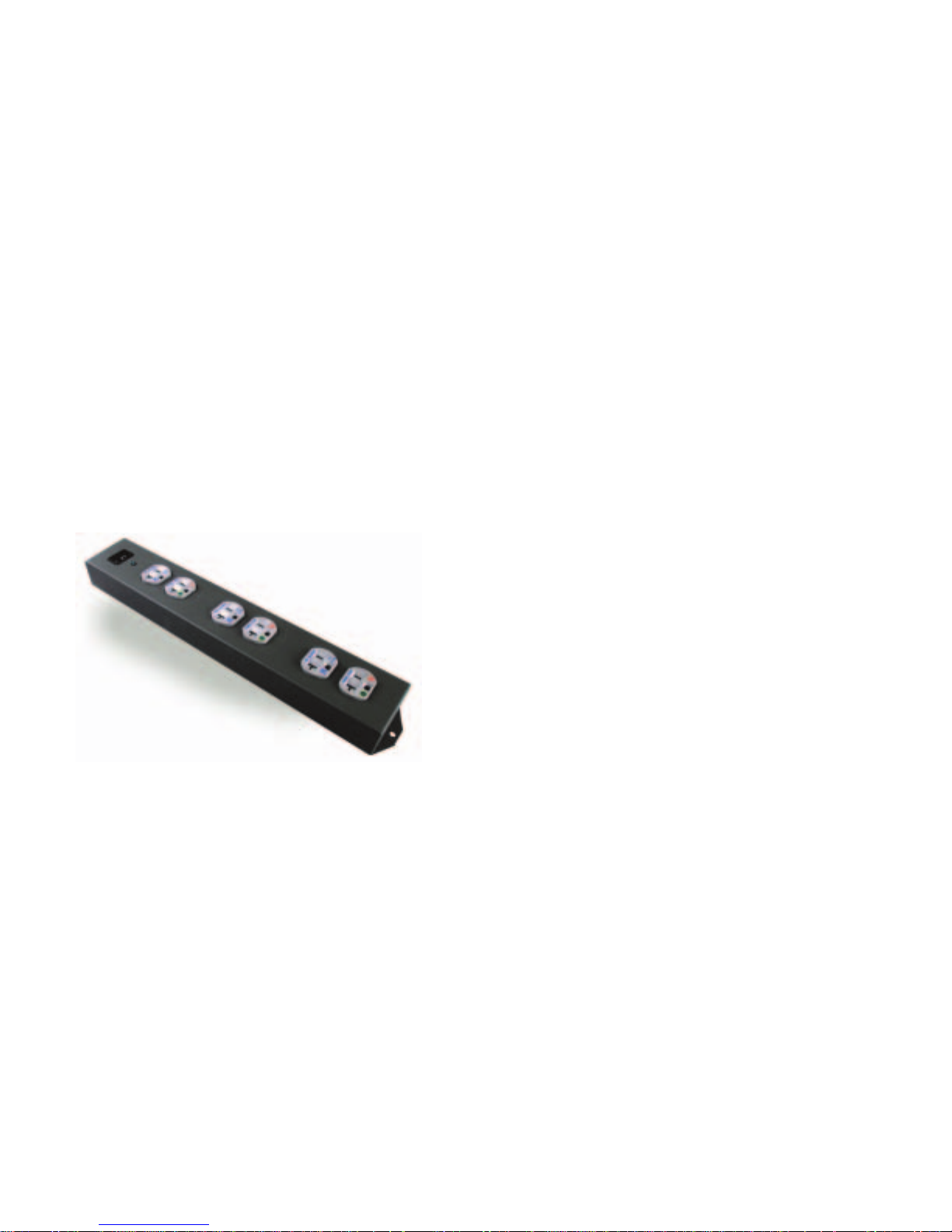

When an extra AC receptacle is needed, don’t compromise
the quality of the AC by using an off-the-shelf outlet extender.
A surprising level of degradation occurs with these less than
adequate devices. The PS Juice Bar provides 6 additional
outlets, each wired in a star configuration reducing the
potential for interference from associated equipment.

· 3 Power Ports provide 6 receptacles

· Star wired

· Unimpeded power delivery

· Metal, shielded chassis

Juice Bar

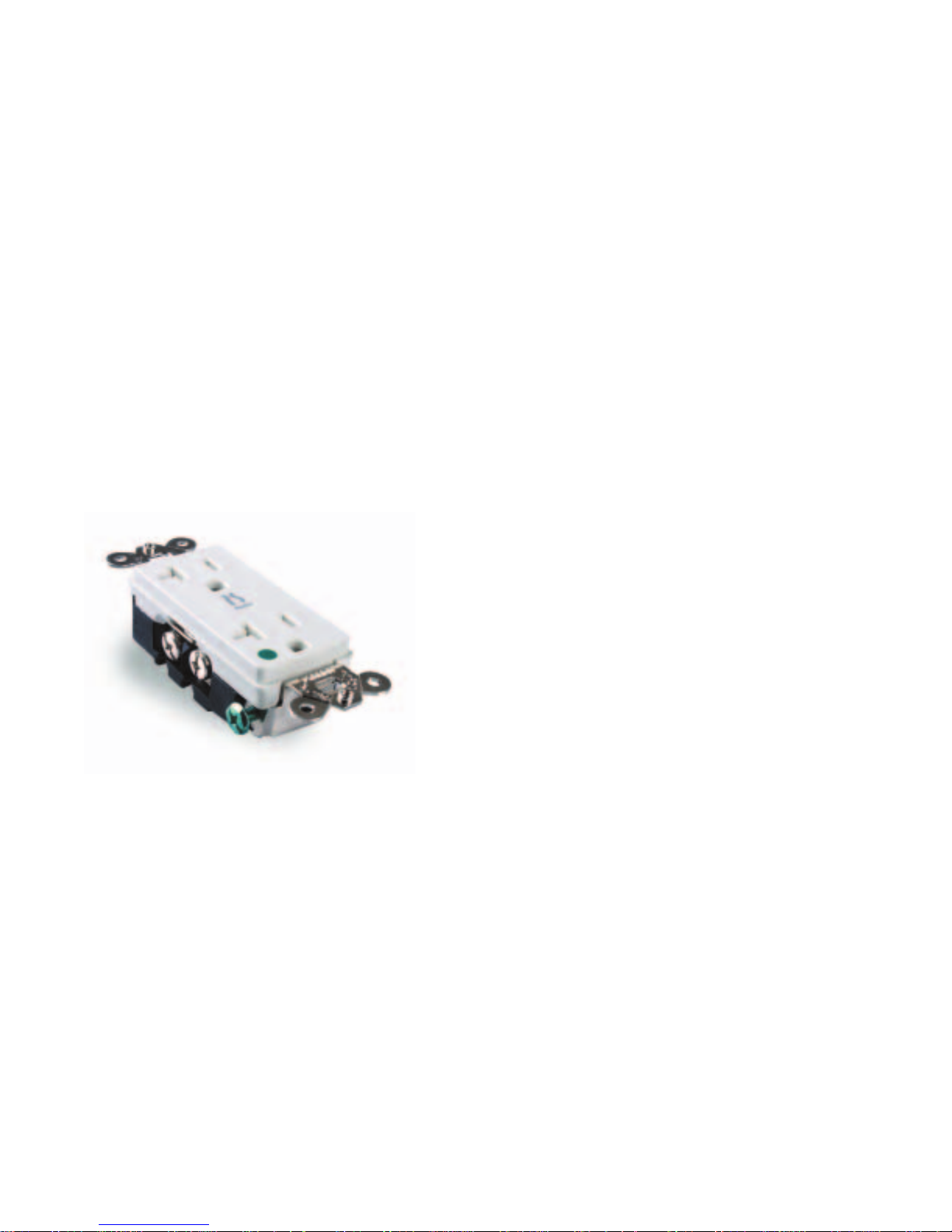

Each piece of equipment receives its power through an
AC receptacle. Most standard power receptacles use
cheap connectors with inexpensive materials. Over time
the internal stamped brass can corrode and provide a less
than adequate connection from the AC mains. Get the
power delivery system right from the beginning of the
chain for the best performance possible.

· 15 coats polished nickel

· Classic and Designer models

· Hospital grade

· 15 or 20 amp ready

· Improves images

· Lowers noise

· Easy to install

Power Port

Controlling the audio signal and powering the loudspeakers are two tasks that require the
utmost care in the creation of an audio product. Years of experience and hundreds of
listening hours are used in the design phase of each product.

Musical, accurate and powerful, the PS Audio preamplifier and power amplifiers are both
beautiful works of the engineering art and the sculptor’s finely crafted metalwork.

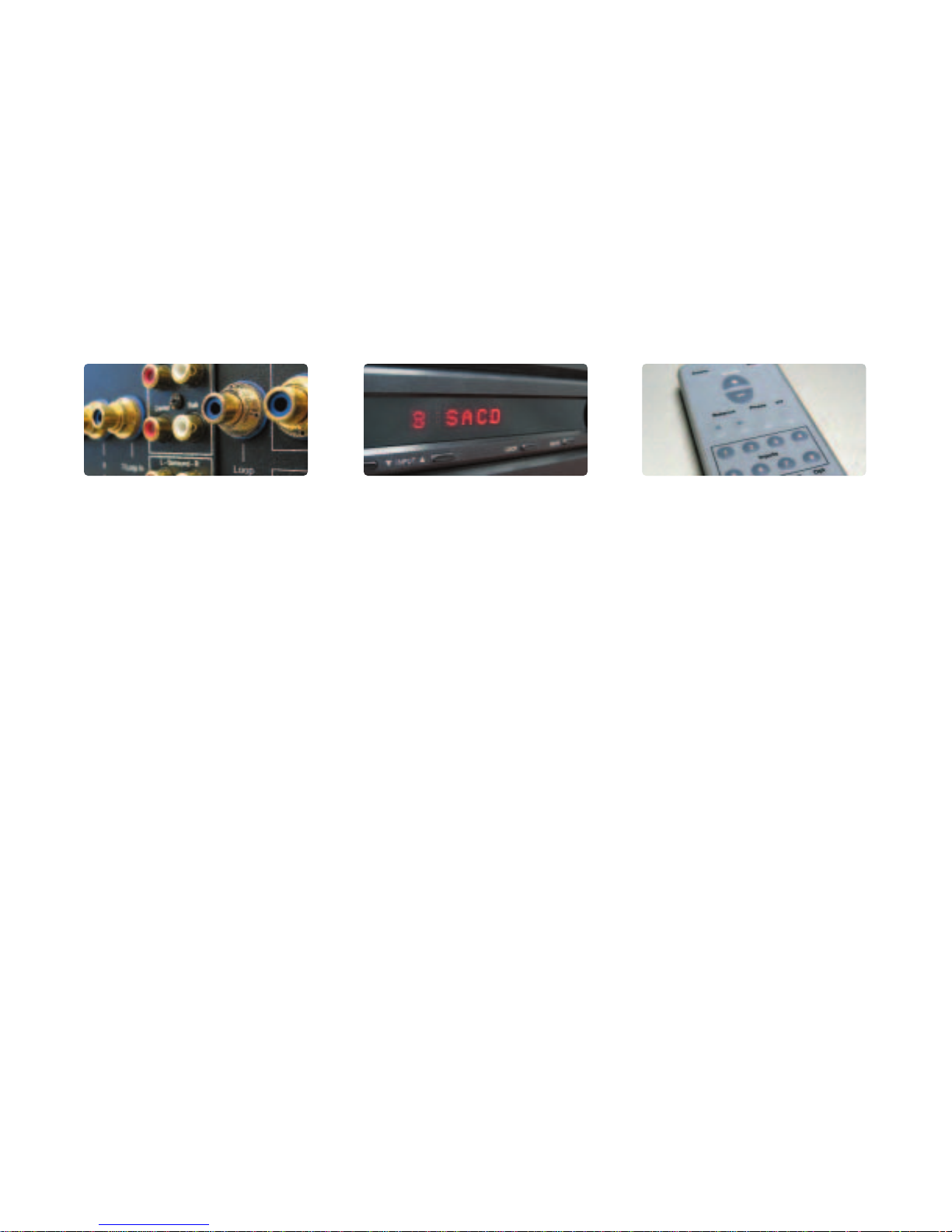

The PCA-2 preamplifier can be configured as a state of the art two-channel preamplifier or
a 5.1 channel control center with the Multichannel option. Purists can add the External
Power Supply for the PCA-2 as well as the optional phono preamplifier.

The HCA-2 power amplifier represents the future of power amplification with its unique
SDAT™ power output stage that produces little heat while providing full power to your
loudspeakers. At 150 watts per channel, the HCA-2 is a stunningly efficient presentation
of music.

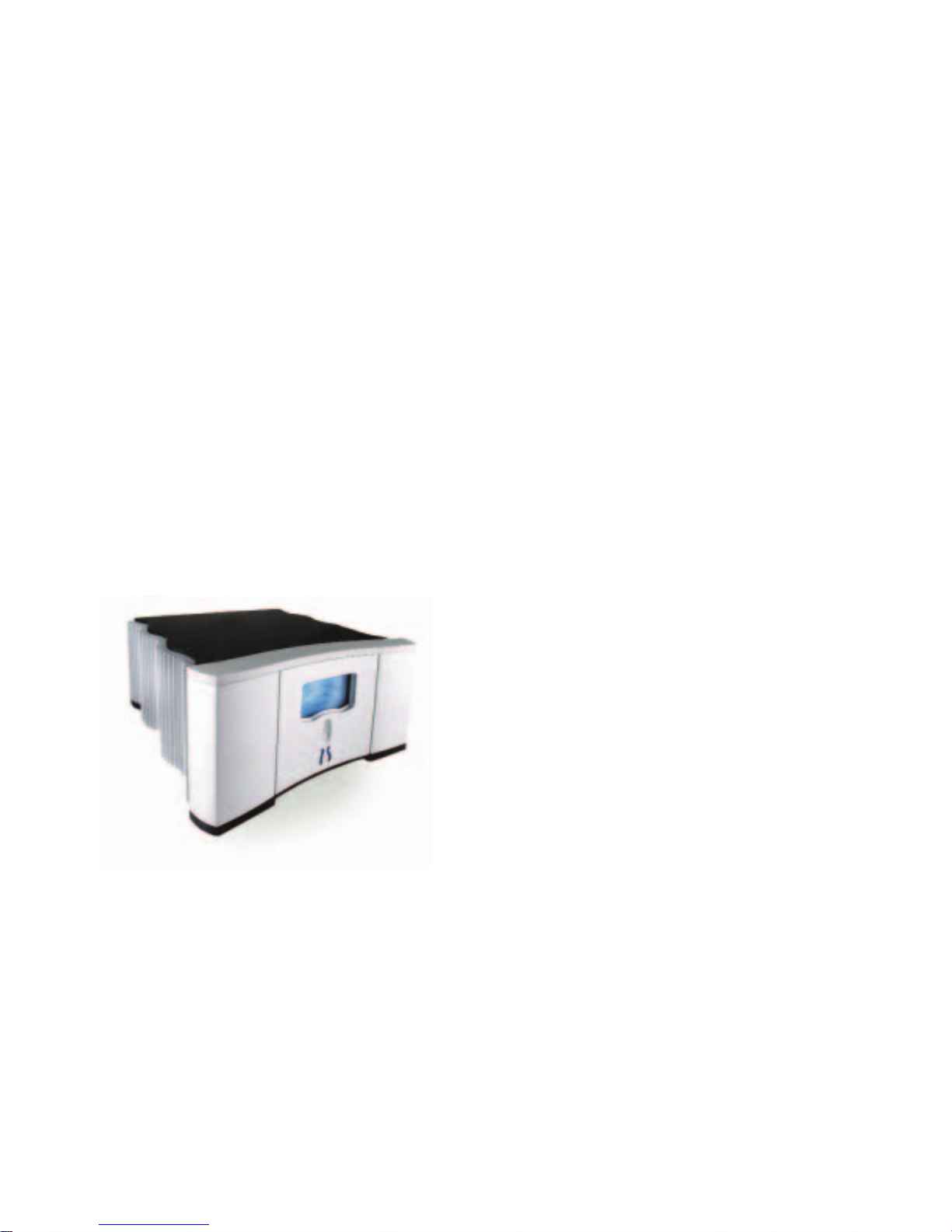

The Classic 250 is PS Audio’s statement amplifier. Designed around a no feedback, fully
balanced output stage, the Classic 250 is both musical and powerful. The amplifier can be
configured in stereo at 250 watts per channel or in mono as 1000 watts per channel.

Audio

Musical purity

All PS Audio amplification products are

optimized for musical purity because the

sound of live, un-amplified music, is easy

for the human ear to detect perfection and

realism. Hundreds of hours of listening

to music guide our amplification design

process from the beginning. Whether the

sound is that of the human voice, a

symphony orchestra or a rock band,

music and the accurate reproduction of

it guide our every step.

SDAT

™

Stereo Digital Amplifier Technology runs

cool and sounds great! Found in the

HCA-2,SDAT represents the future in

audio and home theater amplification.

Complete control

The PCA-2 preamplifier is a sophisticated

product. All inputs have assignable names

and discrete gain control. The PCA-2

can be used as a 2-channel or 5.1

channel preamplifier (with the optional

Multi-channel card).

30 years of design experience

PS Audio engineering has been working,

learning and setting the standard for fine

audio and video reproduction for the last

30 years. Every aspect of the design and

production process has been honed to a

fine art over the last quarter century. PS

Audio has an impressive and growing list

of achievements in the art of audio and

power design.

Audiophile grade components

A fine recipe is only as good as the

ingredients that go in and the skill of the

chef. The same is true for any audio or

video equipment. Each and every

component that finds its way into a PS

product has been auditioned, tested and

proven worthy of inclusion. We believe

every element in the chain has a significant

effect on the performance of the piece.

The PCA-2 is fully balanced from input to output, uses
high bias class A gain stages, and produces some of the
best sounding music on the planet. Used as a 2-channel
preamplifier or as part of a home theater system with the
multichannel option card, the PCA-2 is state of the art.

· 7 inputs (1 XLR, 6 RCA)

· 4 outputs (2 XLR, 2 RCA)

· Optional High Current Power supply

· Optional Phono stage

· Multichannel option card

· Headphone amplifier

· Remote control

· Assignable input names

· Individual gain adjust per input

· Home Theater Bypass loop

· Available in black or silver

PCA-2
preamplifier

The stereo Hybrid Class A power amplifier runs cool and
sounds hot! Using exclusive SDAT power output stage
coupled with a fully balanced class A input stage, the
HCA-2 is becoming one of the most popular power
amplifiers in audio history.

· 150 watt per channel into 8 ohms

· 225 watt per channel into 4 ohms

· Balanced JFET input stage

· Built in High Current UO

· XLR and RCA inputs

· True balanced XLR inputs

· Produces almost no heat

· Available in black and silver

HCA-2
Power
Amplifier

The Classic 250 is the definitive statement on the art of
analog power amplification. A classic design, the C250 is
powerful enough to handle the biggest loads and the
most difficult speakers with ease.

· 250W stereo 8 Ohms

· 500W stereo 4 Ohms

· 1000W mono 8 Ohm

· 1800W mono 4 Ohm

· 40 output devices

· Built-in Power Plant

· 2 800va toroidal transformers

· Dual WBT binding posts

· RCA and XLR inputs

Classic
250 Power
Amplifier

PS Audio provides a full range of signal and power delivery products in our xStream™line
of cables. Only the finest materials and construction techniques are used in the xStreams.
Populating an audio or theater system with these state of the art cables will provide a level
of realism never before achieved.

The xStream audio cables include the Prelude, Plus and Statement models, each a step
up in performance from the last. Audio interconnects are available in both single ended
RCA as well as balanced XLR versions.

The xStream speaker cables include the Prelude, Plus, Statement and Bi-wire models.
Terminations are both banana and spade and are included with every xStream speaker pair.

The xStream Digital series includes RCA (SPDIF), XLR (AESEBU), and glass optical
(TOSLINK) cables that are unrivaled by any other digital delivery system in the world.

Cable

Highest Purity Oxygen Free Copper

PS Audio xStream cables use only the

highest purity Oxygen Free Copper for

greatest signal purity. Power cables as

well as audio video cables need the

cleanest and purest copper for all

applications. In some cases, high purity

silver plating is added to the OFC when

it is appropriate. From the most expensive

cable to the least there is never

compromise on materials.

Custom Connectors

Every aspect of a cable’s performance is

directly related to both its construction

materials and build techniques. Every

connector used in the xStream line of

cables is custom designed and

machined. Extensive engineering

resources have been invested in their

design and build.

Ferrite Cleaning

The PS xStream power cable line is the

only power cable in the world that uses

patent pending ferrite impregnated

distributed shield in the outer jacket.

Ferrite is a magnetic material that can

significantly reduce high frequency

interference in a power cable when

properly implemented. So, not only do

the xStream power cables deliver

unimpeded power but that power is

cleaned along the delivery path as well.

Multiple Shields

Shielding the xStream cables from outside

noise and interference can be just as

important as shielding the outside world

from the radiation of what’s traveling down

the cable itself. PS Engineering has

devised a system of multiple shields for

every xStream product on the market. A

combination of conductive plastic, OFC

90% braid and tightly wound foil is used

to provide the most effective shield.

Unique Geometry

Each xStream cable utilizes the finest of

materials and construction techniques

along with unique cable geometries to

achieve their performance goals. Braiding,

solid core and multi-strand combinations,

air injected foam insulators and many

exotic techniques are used to build the

world’s finest cables, the PS xStreams.

The xStream Audio cables are truly exceptional. Offered in
both balanced and single ended configurations, the xStream
audio cables feature outstanding shielding, Oxygen Free
Copper (OFC) materials and custom connectors. The
xStream’s will compare to any other audio cables in the
world.

· OFC copper

· Multiple shields

· Conductive PVC

· Low capacitance

· 24 carat gold plated RCA connector

· Custom XLR connectors

· Ultra low noise

xStream
Audio

Making the proper digital connection can be more crucial
than the analog connections in a system. The xStream
Digital series has been designed specifically for the
demanding requirements of digital signals and maintains
the highest symmetry and bandwidth of the bit stream.

· 3 shields

· Conductive PVC layer

· OFC copper and silver conductors

· Multi-stranded for surface area

· PE Foam insulation

· Low absorption dielectric

· Low capacitance

· RCA coax

· BNC Coax

· XLR AESEBU

· TOSLINK Glass

xStream
Digital

Delivering the power from your equipment’s amplifier to
your speakers is a critical task. Anything lost along the
way will not make it to your listening position.The xStream
speaker cables address this dilemma with near perfect
resolution and no loss of information.

· Bi-Wire available

· Comes with spade and banana

· Solid core and Multi-strand build

· Soldered connections

· Open, spacious, transparent sound

xStream
Speaker

Perhaps nothing in the entire AV chain is more important
than the AC power. If this critical element is not properly
delivered then every subsequent effort to maximize
performance is wasted. Delivering the AC power without
restriction or noise is a major challenge, one addressed
by the xStream Power Cables better than any other power
delivery system in the world.

· 6 models to choose from

· Custom machined connectors

· Nickel plated and polished contacts

· Multiple shields

· Ferrite impregnated jacket

· Solid core and multi-strand OFC

· Conductive PVC

· Hermetically sealed

· Cold and hot fused terminations

· Finest power cable in the world

xStream
Power

4826 Sterling Drive, Boulder, CO 80301 PH: 720.406.8946 FX: 720.406.8967 www.psaudio.com
