The PRYMEBLU BTH-SPM100 is a Bluetooth enabled version of the
PRYME Observer remote speaker microphone. The BTH-SPM100
PRYMEBLU BTH-SPM100
Wireless Bluetooth Speaker Microphone
connects wirelessly to a PRYMEBLU Radio Adapter.
PTT Button
When the PRYMEBLU Speaker
Microphone is paired to a PRYMEBLU
Radio Adapter, pressing and holding
PRYME® and PRYMEBLU® are trademarks owned by PRYME Radio Products,
Brea CA. All other product or service names are the property of their respective owners.
Model No.: BTH-SPM100 Series
Made in Taiwan
TOLL FREE: 800.666.2654
911 Mariner St., Brea, CA 92821
PH: 714.257.0300 FAX: 714.257.0600
this button will cause the two-way
© 2013 PRYME Radio Products, Brea CA. All Rights Reserved
radio to transmit.
WWW.PRYME.COM
Accessory Jack
This jack is used to connect
the supplied wall charger to the
speaker microphone; can also be
used to connect a wired listen-only
earphone for enhanced privacy.

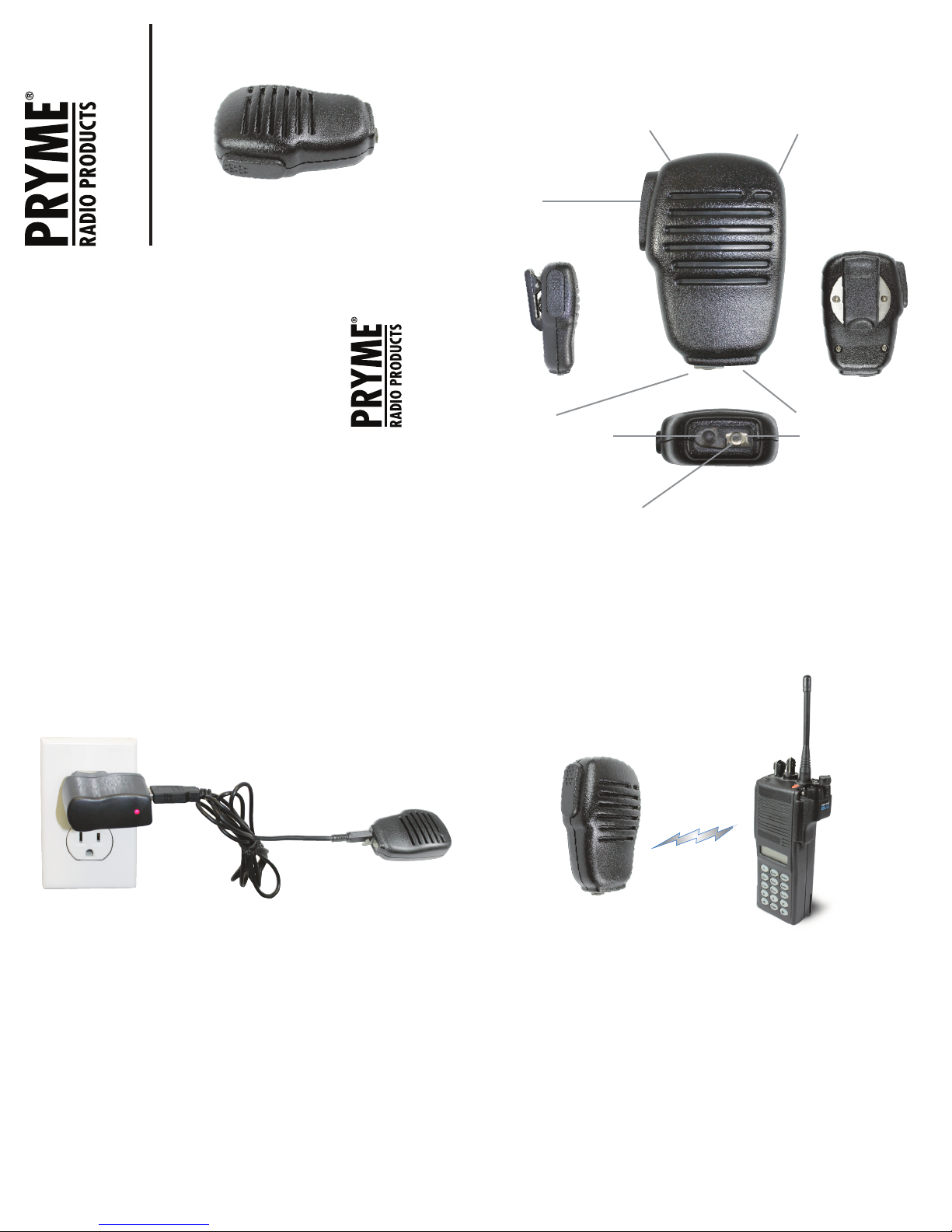

Controls and Connection
Front Firing Speaker
Received calls are heard over this speaker.
The volume level is controlled using the
volume control knob on the two-way radio.
Microphone:
This microphone picks up the user’s
voice audio to send over- the-air
Clothing Clip
The alligator-type clip secures
the PRYMEBLU Speaker Microphone
to the user’s clothing during use.
The clip can be rotated to allow the
microphone to be better positioned.
Status LED
The LED ashes messages that
let the user know the current
status of the PRYMEBLU Speaker
Microphone.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is encouraged to
try to correct the interference by one of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. To maintain compliance with FCC RF exposure
compliance requirements, please avoid direct contact to the transmitting antenna
during transmitting.
RF Exposure Warning!
Please keep product 20cm away from your
body or bystander during the radio operation.
The typical handheld two-way radios were
certied under mobile usage condition
(i.e. keep 20cm away from the user body)
and use of such radio closer than 20cm may
The PRYMEBLU Speaker Microphone has an internal Lithium Ion rechargeable battery pack which must
be charged prior to operation, and must be recharged regularly. A fully charged battery will provide
approximately 11 hours (or more) of operation before needing to be recharged. However, operating time
can vary depending on usage and the condition of the battery pack. Recharge the battery regularly.
STEP ONE: Charging the PRYMEBLU Speaker Microphone
To charge the PRYMEBLU Speaker Microphone
1. Ensure the PRYMEBLU Speaker Microphone is turned o using the multifunction button.
2. Plug the supplied wall charger into a standard 120 volt AC outlet.
3. Plug the charge cable into the AC wall charger and then into the charge jack on the bottom of the
PRYMEBLU Speaker Microphone. You will need to remove the protective rubber cover that is inserted
into the charge jack. (To prevent dust and moisture from damaging your speaker microphone, always
ensure this cover is in place when you are not charging the BTH-SPM100.)
4. Once the charging process has begun, the LED indicator on the bottom of the PRYMEBLU Speaker
Microphone will show a constant red light. When the battery is done charging, the LED light will
change to a constant green color.
5. Typical charge time is approximately three hours. Actual charge time will vary depending on several
factors including the battery’s charge state, condition, and age.
6. Disconnect the charger from the adapter when charging is completed.
Charging Cautions:
- Use only the wall charger supplied by the manufacturer. Do not use any other charger.
- Do not use a wall charger that appears to be damaged. (Example: frayed wires, melted plastic, etc.)
Contact PRYME to get a new manufacturer-approved replacement charger.
- Do not tamper with or modify the PRYMEBLU Speaker Microphone or charger.
- Always turn PRYMEBLU Speaker Microphone o when charging.
3 4
exceed the US RF exposure limit
version 1.0.A October 2013
and shall be avoided.
Multifunction Button
Turns the PRYMEBLU Speaker Microphone on and o. Also, this button can be used
to place the PRYMEBLU Speaker Microphone into pairing mode so that it can be
connected wirelessly to a new PRYMEBLU Radio Adapter.
2
Pairing with a PRYMEBLU Radio Adapter and 2-way RadioCharging the PRYMEBLU Speaker Microphone
STEP TWO: Pairing with a PRYMEBLU Radio Adapter
When pairing the PRYMEBLU Speaker Microphone with a PRYMEBLU Radio Adapter, make sure
that the speaker microphone, adapter, and the two-way radio the adapter is connected to are
all powered o.
If your PRYMEBLU Radio Adapter gets power directly from the two-way radio it is attached to:
• Hold down the Talk button on the PRYMEBLU Radio Adapter while turning the two-way radio ON.
If your PRYMEBLU Radio Adapter has its own charger/internal battery pack:
• Turn the power switch on the PRYMEBLU Radio Adapter to the ON position while holding down
the multifunction Talk button on the PRYMEBLU Radio Adapter.
If your PRYMEBLU Radio Adapter gets power from an external source (such as an automobile cigarette
lighter jack):
• Hold down the Talk button on the PRYMEBLU Radio Adapter while plugging the adapter into the
external power source (cigarette lighter jack).
Continued on page 5
Continued from page 4
EH-389SC
Rubber Ear Hook
15” Coiled
3.5 mm right-angle
EH-1389X
Acousc Tube
30” Straight
3.5 mm right-angle
EH-1399X
Acousc Tube
30” Straight
3.5 mm straight
Display:
Blue, Red, and Green
Operang Time (Connuous Talk)
> 5 hours
Using the PRYMEBLU Speaker Microphone
• Continue to hold the Talk button on the adapter down for approximately three seconds. Release
the Talk button when the status LED on the PRYMEBLU Radio Adapter begins to ash two times
per second. The PRYMEBLU Radio Adapter is now in audio accessory pairing mode.
• Hold down the Multifunction Button on the PRYMEBLU Speaker Microphone. Continue to hold the
button down for approximately 3 seconds, until you see the LED on the speaker microphone begin
to quickly ash RED-BLUE-RED-BLUE in sequence. The PRYMEBLU Speaker Microphone is now in
pairing mode.
• After a few seconds, the two devices should synch to one another. Once the PRYMEBLU
Speaker Microphone and Adapter are paired with each other, the status LED on the adapter will
show a constant blue light for three seconds. The LEDs on both the adapter and speaker
microphone will then show one FLASH every few seconds.
• If the PRYMEBLU Radio Adapter does not detect the speaker microphone within 60 seconds of
being put into pairing mode, the adapter will exit the pairing mode and resume normal
operation.
• Once successfully paired, you will be able to operate your 2-way radio using the PRYMEBLU
Speaker Mic.
Reconnecting a Previously Speaker Microphone and Radio Adapter
Once the PRYMEBLU Speaker Microphone and Radio Adapter have been successfully paired
together, both devices will remember that connection. The adapter and speaker mic will attempt
to reestablish their link whenever the radio/adapter and microphone are both powered on and
in within range of each other. Re-establishing this connection can take 10-60 seconds.
Once your PRYMEBLU Speaker Microphone and PRYMEBLU Adapter have been paired
together:
Received signals will be heard over your PRYMEBLU Speaker Microphone’s front-ring
speaker or through the optional earphone. The volume of received calls can be adjusted
using the volume control on the two-way radio.
When transmitting or on a phone call, the operator’s voice is picked-up by the microphone in
the PRYMEBLU Speaker Microphone.
Push-to-Talk can be activated one of several dierent ways:
• By pressing and holding the PTT button on the PRYMEBLU Speaker Microphone.
• By pressing and holding the Talk button on the PRYMEBLU Adapter.
• Using an optional wired PTT that is plugged into the PRYMEBLU Adapter.
• Using an optional PRYMEBLU Wireless Bluetooth PTT (model BT-PTT, sold separately). Note
that if you are using a PRYMEBLU BT-PTT, you will rst need to pair the adapter with the PTT
using the instructions located in the PRYMEBLU PTT User’s Guide.
STATUS LED MESSAGES
The meanings of the various status LED messages shown by the PRYMEBLU PTT are shown
on the following table:
LED INDICATION
Constant Red (while plugged into charger)
Constant Green (while plugged into charger)
Flashes red-blue-red-blue repeatedly
Two blue ashes every two seconds
One blue ash every two seconds
Constant red with one blue ash every two seconds
No indication
MEANING
Charge mode
Charging is nished
Pairing mode
Adapter is powered on but not paired
Adapter is powered and paired
PTT is pressed
Device is powered o
OPTIONAL EAPRHONES
Although the PRYMEBLU Speaker
Microphone has a built-in speaker
for listening to received calls, some
users may prefer to use a listen only
earphone for enhanced privacy.
The accessory jack on the speaker
microphone will accept any mono
earphone with a 3.5 mm audio plug.
When an earphone is used, the
front-ring speaker is disabled.
PRYME EH-1389SC model shown.
Earphone sold separately.
PRYME makes a variety of listen-only earphones in dierent styles that
will work with the BTH-SPM100.
Model Earphone Style Cable Length/Type Connector
EH-389XC Rubber Ear Hook 25” Coiled 3.5 mm right-angle
EH-1289SC Plasc D-Ring 15” Coiled 3.5 mm right-angle
EH-1289XC Plasc D-Ring 25” Coiled 3.5 mm right-angle
EH-1389SC Acousc Tube 15” Coiled 3.5 mm right-angle
SPECIFICATIONS
Bluetooth Version: v2.1+EDR
Speaker Output:
Maximum Audio Level: 126 dB
Receiver Sensivity:
Power Class: Bluetooth class 2
Range: 10 meters
Bluetooth Profile: HFP,HSP,SPP Profile
Operang Voltage: 5 VDC
Baery Capacity: 240 mAH
Operang Time (Standby) > 50 hours
Operang Time (Typical) > 11 hours
Push-to-Talk Funcon: Built-in
Operang Temperature: -70°F to +120°F (approx.)
Weight: 60 grams (approx.)
1 wa
-82 dBm (typ.)
7
65
SUPPORT AND WARRANTY
PRYME Radio Products warrants this product against defects in materials or workmanship
for a period of one year from the date of retail purchase. PRYME will repair or replace a
defective unit, at our option, without charge for parts or labor. The limited warranty is
extended only to the original purchaser and is valid only to consumers in the United States
and Canada. It does not cover damage or failure caused by or attributable to Acts of God,
abuse, misuse, improper or abnormal usage, faulty installation, improper maintenance,
lightning, or other incidences of excessive voltage, or any tampering or repairs by other
than a PRYME authorized repair facility. It does not cover replacement of consumable
parts, transportation costs, or damage in transit.
Repair or replacement under the terms of this warranty does not extend the terms of this
warranty. This warranty can only be modied by an ocer of PRYME Radio Products, and
then only in writing. Should this product prove defective in workmanship or material, the
consumer’s sole remedies shall be such repair or replacement as provided by the terms of
this warranty. Under no circumstances shall PRYME Radio Products be liable for any loss or
damage, direct, consequential, or incidental, arising out of the use of or inability to use this
product. Some states do not allow limitations on how long an implied warranty lasts or the
exclusions or limitations of incidental or consequential damages, so the above limitations
or exclusions may not apply to you. This warranty gives you specic legal rights. You may
also have other rights, which may vary, from state to state.
For support or warranty service on your PRYME product, contact us at 1-800-666-2654 or
visit us on the web at www.PRYME.com.
COPYRIGHT AND TRADEMARK INFO
© 2013 PRYME Radio Products, Brea CA. All rights reserved.
PRYME® and PRYMEBLU® are trademarks owned by PRYME Radio Products. All other
product or service names are the property of their respective owners.
DISCLAIMER: The Bluetooth wireless link used by PRYMEBLU products is an open
standard, unsecured technology. As such, it is not recommended for rst-responder or
other mission critical users.
8
Loading...
