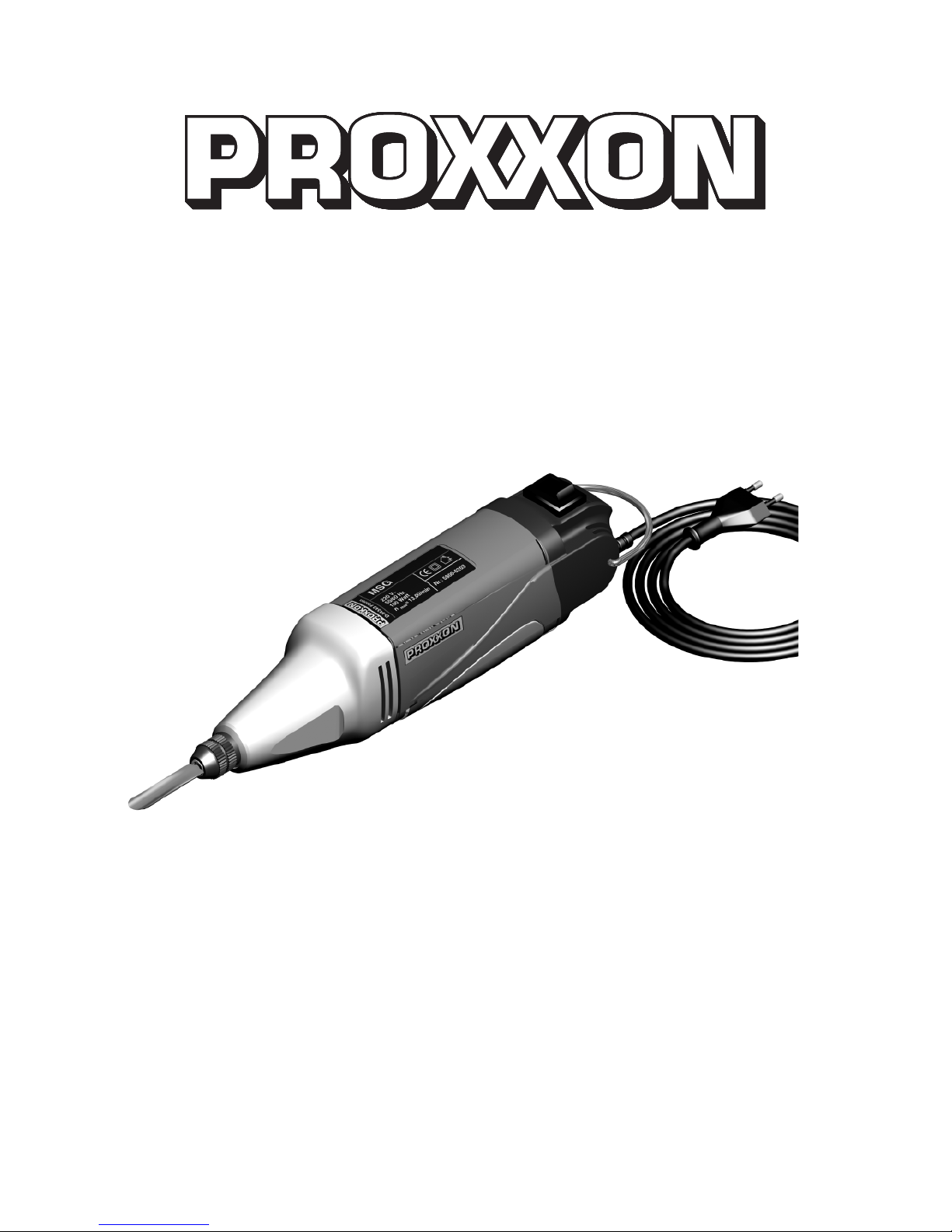

Page 1
PROXXON-MICROMOT
MSG
Page 2
3
3
1
2
4
1
7
2
3
5
6
Fig. 1
Fig. 2
Page 3
Translation of the Original Operating
Instructions
Operating Instructions
PROXXON-MICROMOT MSG
motorised carver
Dear customer,
Congratulations on your purchase of a PROXXON
MICROMAT MSG motorised carver. Here you have
the ideal unit to cut all types of wood, to carry out
renovation and general work with furniture and antiques, to carve wood, sculptures or plaster, to cut
linoleum, and many more applications as well.
The scope of supply includes:
1 pc. MSG motorised carver
1 pc. Chuck key
1 pc. Blade inserts (3 pcs, bimetallic):
U, V and flat blade
1 pc. Storage case
1 pc. Operating manual
1 pc. General Safety Rules

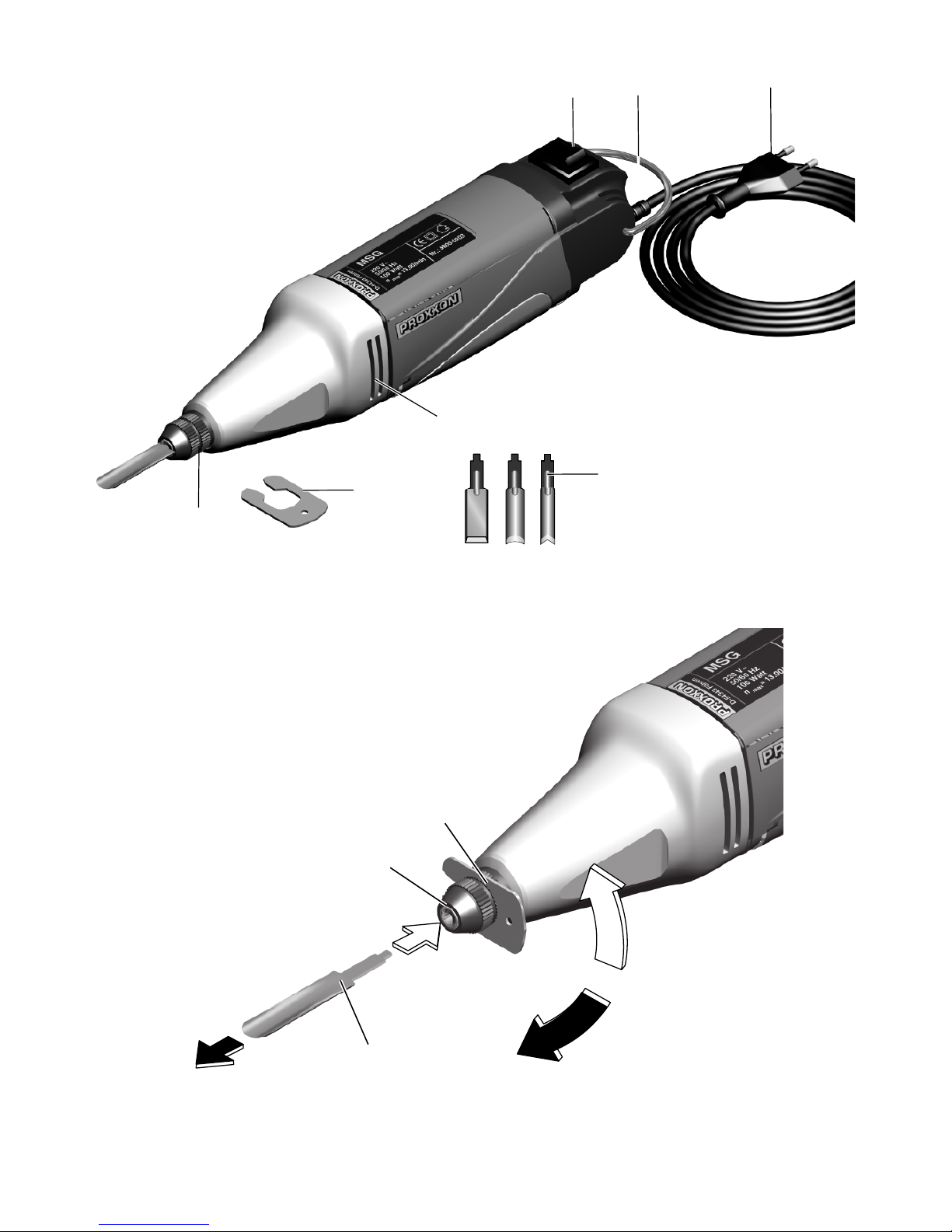

Captions: (Fig. 1)
1. ON-OFF switch
2. Device clamp
3. Connecting cable with mains plug
4. Coupling ring to attach the blade
5. Ventilation slots
6. Chuck key
7. Set of blade inserts
The MSG offers you:
1. Maximum operating comfort and convenience
thanks to an ergonomically shaped case.
2. Low weight for optimum handling and to mini-
mize tiredness when working.
3. A gearbox casing made of diecast aluminium
for precise locations of the ball bearings and
more stability under ex treme loading.
4. A quiet, powerful and maintenance-free 24-pole
motor.
5. Electrical safety to protection class 2.
WARNING!
Read all safety warnings and instructions. Failure to follow all safety warnings and instructions listed below may
result in electric shock, fire and/or serious injury.
KEEP ALL SAFETY WARNINGS AND INSTRUCTIONS
FOR THE FUTURE !
In this way you can
1. get to know your motorised carver better
2. avoid problems due to incorrect handling
3. increase the life of your motorised carver
4. minimize the risk of injuries, and
5. use your MSG motorised carver more effectively.
Please note the following in addition:
PROXXON is not liable for any damage occurring as
a result of:
1. Handling that is not done in the normal way
2. Using the unit for purposes that are not listed in
the instructions
3. Failure to comply with the safety stipulations
Any claim to warranty shall be null and void in the
event of
1. Errors in the use of the unit
2. Inappropriate operation
3. Manipulation or opening-up of the unit
Only use PROXXON original spare parts. Only these
can guarantee maximum quality and reliability.
We reserve the right to make changes and improvements without notice.
8
GB
Page 4
Technical data
Motor:
Voltage 230 V ~, 50/60 Hz
AC Rating 50 Watt
Short-term operation SO 5 min
Rotating speed 11.000 rpm
Weight approx. 640 g
Noise typically 74 dB(A)
Vibration at the handle < 2.5 m/s
2
General measuring uncertainty K=3 dB
The noise level can exceed 85 dB(A)
during work. For your safety, always
wear hearing protection while working!
Noise/vibration information
The information on vibration and noise emission has
been determined in compliance with the prescribed
standardised and normative measuring methods
and can be used to compare electrical devices and
tools with each other.
These values also allow a preliminary evaluation of
the loads caused by vibration and noise emissions.
Warning!
Depending on the operating conditions while operating the device, the actually occurring emissions
could differ from the values specified above!
Please bear in mind that the vibration and noise
emission can deviate from the values given in these
instructions, depending on the conditions of use of
the tool. Poorly maintained tools, inappropriate
working methods, different work pieces, too high a
feed or unsuitable work pieces or materials or unsuitable bits and cutters (here: saw blade) can significantly increase the vibration load and noise
emission across the entire work period.
To more accurately estimate the actual vibration and
noise load, also take the times into consideration
where the device is switched off, or is running but
is not actually in use. This can clearly reduce the vi-
bration and noise load across the entire work period.
Warning:
• Ensure regular and proper maintenance of your
tool
• Stop operation of the tool immediately if exces-
sive vibration occurs!
• Unsuitable bits and cutters can cause excessive
vibration and noises. Only use suitable bits and
cutters!
• Take breaks if necessary when working with the
device!

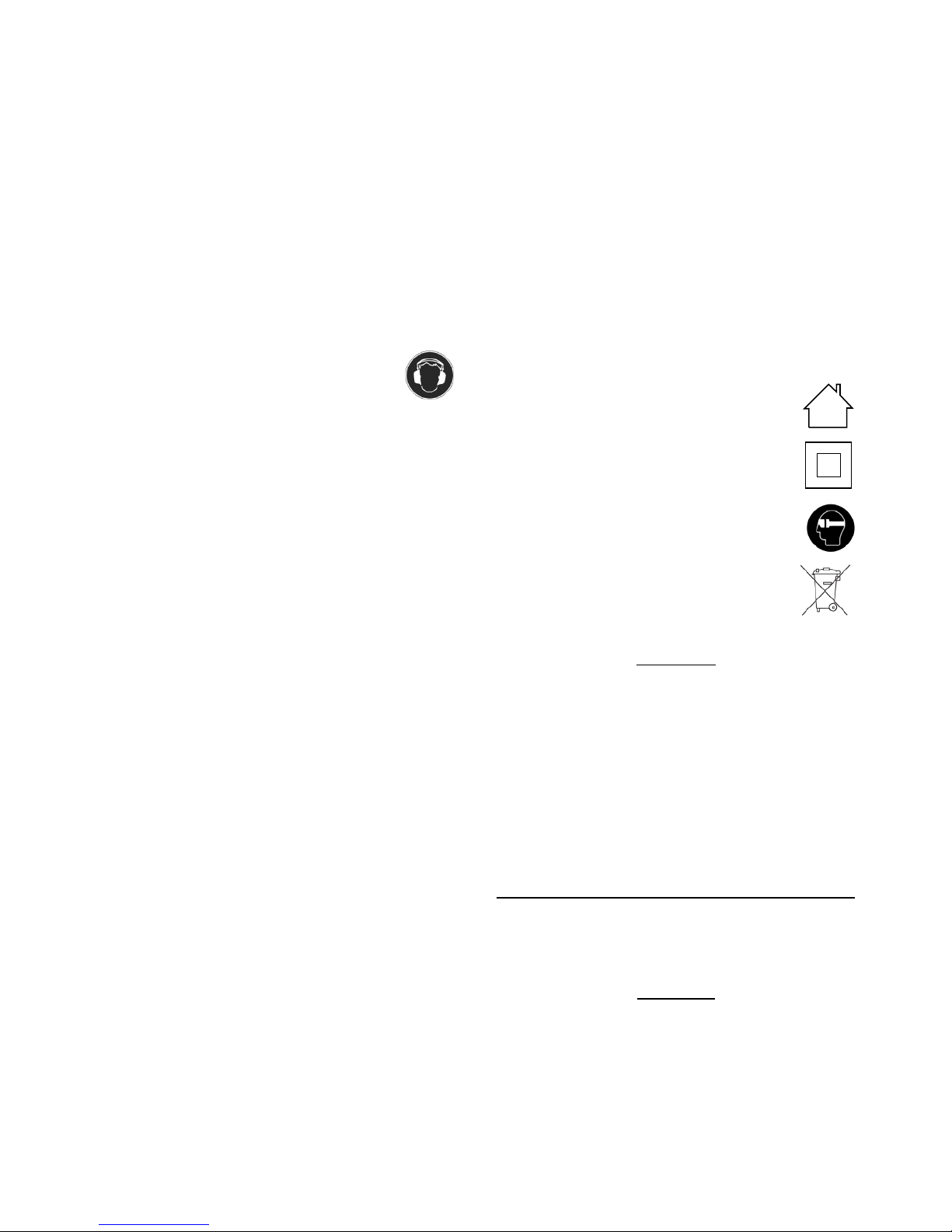

For use in dry environments only
Protection class II device
Wear safety glasses!
Please do not dispose off the machine!
WARNING!
Please note the following:
Pull out the mains plug before carrying out any work
on the unit!
In any case ensure that the switch is set to the
"OFF" position in order to prevent the unit starting
up again accidentally or unexpectedly.
Operation of the MSG motorised carver
Inserting or replacing the blades (Fig. 2)
WARNING:
Always ensure that the mains plug has been pulled
out when you insert or change the blade!
Please note the following when handling the blades:
The blades have a sharp cutting edge:
DANGER OF INJURY!
9
Page 5
1. Loosen the coupling ring (1) with the chuck key
(2) and pull the blade (3) out to the front.
2. Push the new blade into the slot
3. Tighten up the coupling ring again.
Please ensure that the blade has been securely
tightened up. This is essential for safe and proper
work. This will benefit both the work piece and the
tool and will considerably reduce wear. In addition,
the results of the work will be considerably better.
Note:
Blunt blades should be replaced in good time.
The blades can be resharpened with sharpening
stone No. 28 578 (not part of the scope of supply).
Working with the carver
WARNING!

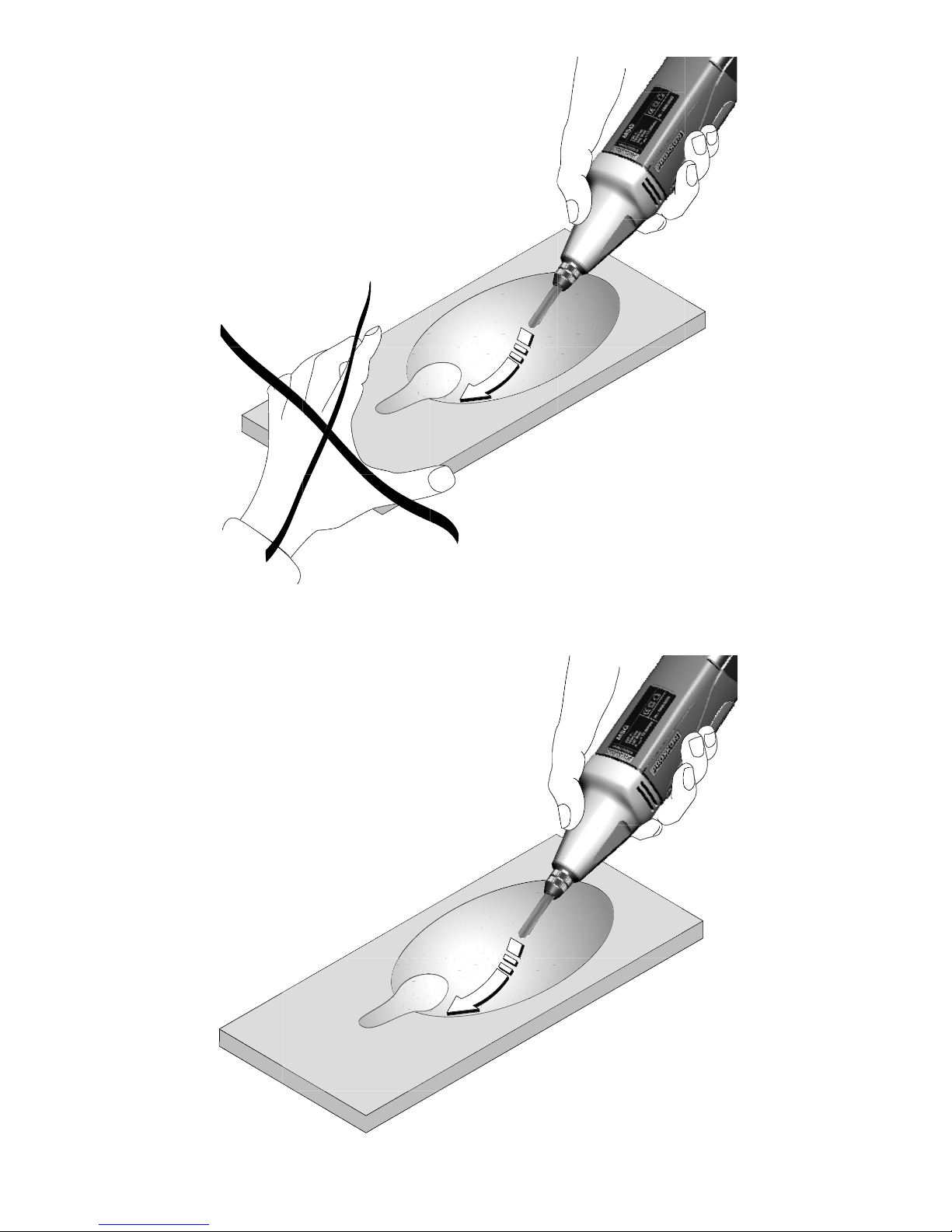

Always work moving away from the body and never
hold your fingers or hand (Fig. 3) in the direction of
cutting. You could hurt yourself if you slipped. Work
as shown in Fig. 4!
WARNING!
Do not switch on the unit when it is under load (axial
pressure). Do not work without protective glasses.
1. Firmly secure the work piece.
2. Turn on the unit at the switch 1 (Fig. 1).
3. Hold the unit such that the ventilation slots 5
(Fig. 1) are not covered.
4. Guide the unit with light hand pressure (Fig. 4)
and avoid strong pressure. You can achieve
cleaner work results if you let the unit cut
through the material by itself without much
pressure.
Immediately switch off the machine and allow
it to cool down if it has overheated.
Note:
Trace or draw the design motif before starting the
work on the work piece and cut it out roughly.
You can find technical books and templates at your
bookstore. You will also find usual information about
materials and working techniques in our "Manual
for Creative Model Makers" with part number
28 996.
Maintenance, cleaning and care
Attention:
Disconnect the mains plug prior to every adjustment, maintenance measure or repair!
Note:
Every device is dirtied by dust when working with
wood. Cleaning is therefore essential. To ensure a
long service life, however, the machine should be
cleaned with a soft cloth or brush after each use.
Mild soap or other suitable cleaning agent may be
used in this context. Solvents or cleaning agents
containing alcohol (e.g. petrol, cleaning alcohols,
etc.) should be avoided, since these can attack plastic casings.
The apertures required for cooling the motor must
always be kept free of dust and dirt.
Accessories
For more detailed information on accessories,
please request our device catalogue from the address specified on the last page in the warranty information.
Please note in general:
Proxxon bits and cutters have been designed to
work with our machines, which makes them optimal
for their use.
We will not assume any liability whatsoever for the
safe and proper function of our devices when using
third-party bits and cutters!
10
Page 6
Service note
Please note: The mains power input may only be replaced by our Proxxon Service Department or a
qualified specialist!
Disposal
Please do not dispose of the device in domestic
waste! The device contains valuable substances that
can be recycled. If you have any questions about
this, please contact your local waste management
enterprise or other corresponding municipal facilities.
EC Declaration of Conformity
Name and address:
PROXXON S.A.
6-10, Härebierg
L-6868 Wecker
Product designation: MSG
Article No.: 28644
In sole responsibility, we declare that this product
conforms to the following directives and normative
documents:
EU EMC Directive 2014/30/EC
DIN EN 55014-1 / 09.2016
DIN EN 55014-2 / 01.2016
DIN EN 61000-3-2 / 03.2015
DIN EN 61000-3-3 / 03.2014
EU Machinery Directive
2006/42/EC DIN EN 62841-1 / 07.2016
Date: 20.12.2017
Dipl.-Ing. Jörg Wagner
PROXXON S.A.
Machine Safety Department
The CE document authorized agent is identical with
the signatory.
11
Page 7
52
Page 8
53

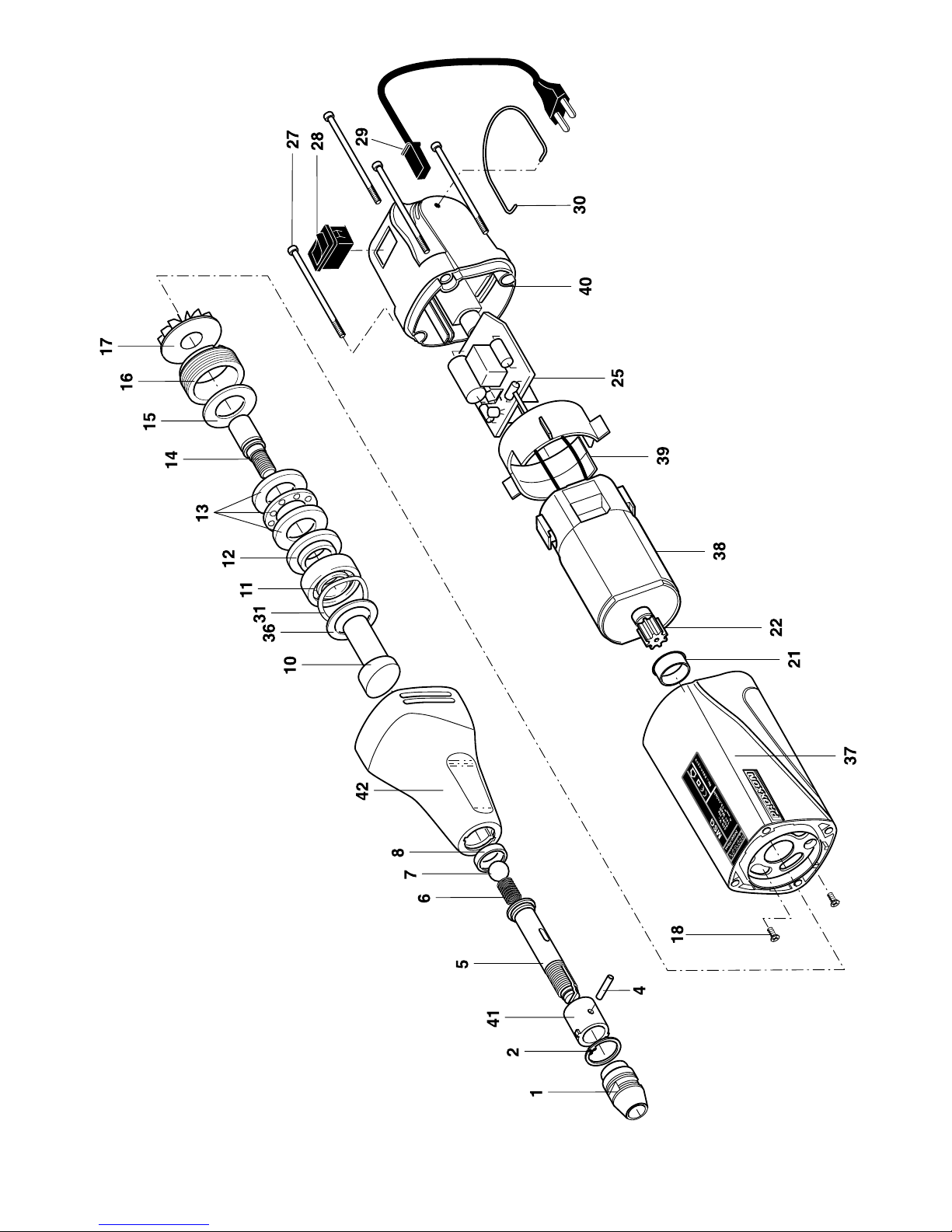

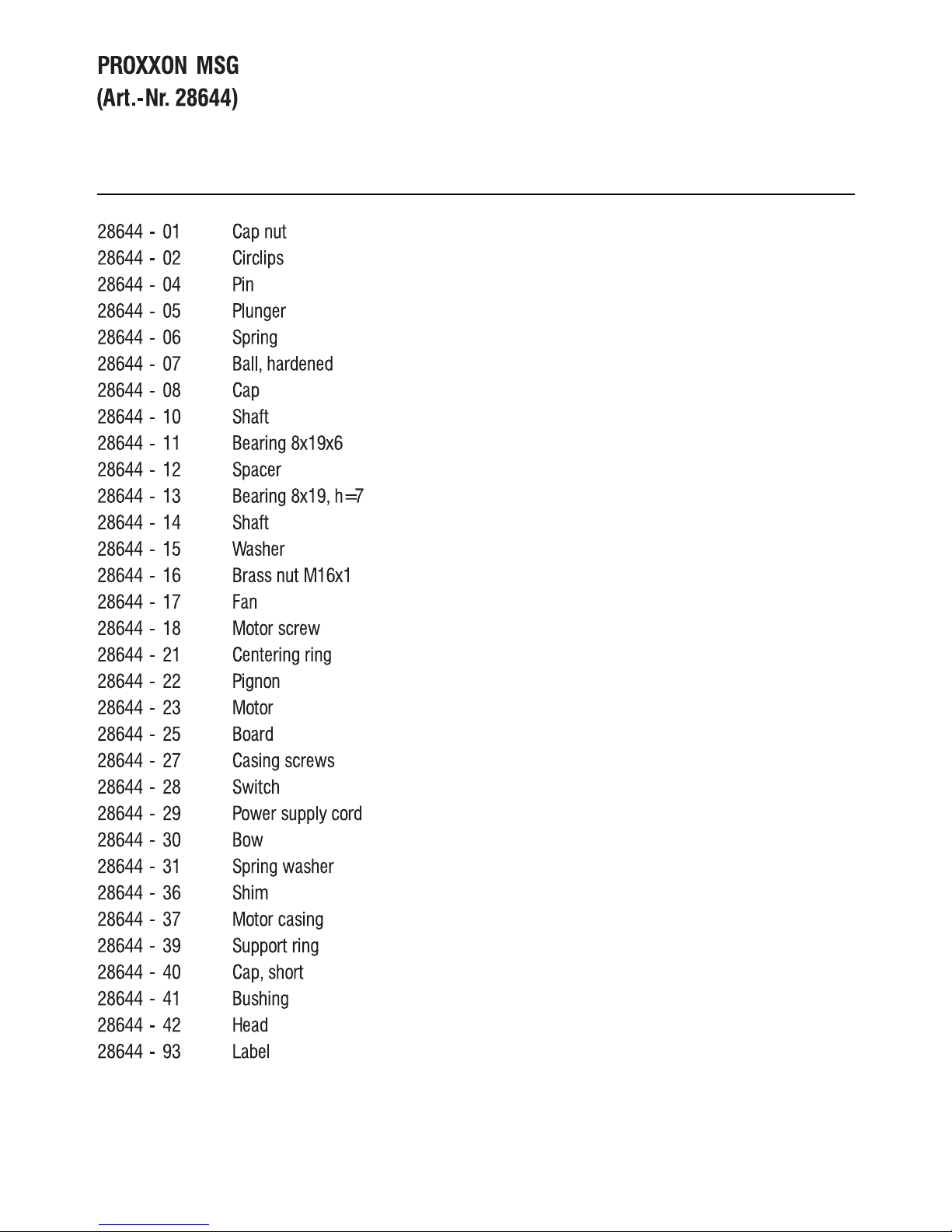

ET-Nr.: Description
Page 9
54
Fig. 4
Fig. 3
Page 10
GB Service note
All PROXXON products are thoroughly inspected after
production. Should a defect occur nevertheless, please
contact the dealer from whom you purchased the
product. Only the dealer is responsible for handling all
legal warranty claims which refer exclusively to material
and manufacturer error.
Improper use, such as capacity overload, damage due to
outside influences and normal wear are excluded from
the warranty.
You will find further notes regarding "Service and Spare
Parts Management" at www.proxxon.com.
Art.-Nr. 28644-99 PR 712717703 J
