DP8400x/
DP8500x
High-performance Installation—Innovative Ease of Use
User’s Guide
This entire user’s guide is available on the enclosed CD as an Adobe Acrobat pdf file in the following languages: English, Fren
ch, German, Italian, Norwe-
gian, Portuguese, Spanish, Russian, Japanese, Korean, Traditional Chinese, Simplified Chinese. Before using this projector, ple
ase read these instructions.
Le mode d'emploi complet est disponible sur le CD joint sous forme de fichier pdf d'Adobe Acrobat dans les langues suivantes :
anglais, français,
allemand, italien, norvégien, portugais, espagnol, russe, japonais, coréen, chinois traditionnel, chinois simplifié. Avant d'ut
iliser ce projecteur, veuillez
lire ces instructions.
Die vollständige Benutzeranleitung ist auf der im Lieferumfang enthaltenen CD als Adobe Acrobat PDF-Datei in den folgenden Spra
chen verfügbar:
Englisch, Französisch, Deutsch, Italienisch, Norwegisch, Portugiesisch, Spanisch, Russisch, Japanisch, Koreanisch, Traditionell
es Chinesisch und
Vereinfachtes Chinesisch. Bitte lesen Sie diese Anweisungen vor der Verwendung des Projektors.
La presente guida è disponibile sul CD allegato, come file Adobe Acrobat pdf, nelle seguenti lingue: inglese, francese, tedesco
, italiano, norvegese,
portoghese, spagnolo, russo, giapponese, coreano, cinese tradizionale e cinese semplificato. Prima di usare questo proiettore,
leggere le seguenti istruzioni.
Hele denne brukerhåndboken finnes på den vedlagte CD-en som en Adobe Acrobat pdf-fil på følgende språk: Engelsk, fransk, tysk,
italiensk, norsk,
portugisisk, spansk, russisk, japansk, koreansk, tradisjonell og forenklet kinesisk. Les diss anvisningene før projektoren tas
i bruk.
Este guia do usuário completo está disponível no CD anexo, como um arquivo pdf do Adobe Acrobat nos seguintes idiomas: inglês,
francês, alemão, italiano,
norueguês, português, espanhol, russo, japonês, coreano, chinês tradicional, chinês simplificado. Antes de utilizar este projet
or, leia estas instruções.
Este manual de uso está disponible en su totalidad en el CD incluido, como archivo pdf de Adobe Acrobat, en los siguientes idio
mas: inglés, frances, alemán,
italiano, noruego, português, español, ruso, japonés, coreano, chino tradicional, chino simplificado. Antes de usar el proyecto
r, lea estas instrucciones.
Ⱦɚɧɧɨɟ ɪɭɤɨɜɨɞɫɬɜɨ ɩɨɥɶɡɨɜɚɬɟɥɹ ɜ ɩɨɥɧɨɦ ɨɛɴɟɦɟ ɩɪɟɞɫɬɚɜɥɟɧɨ ɧɚ ɩɪɢɥɚɝɚɟɦɨɦ ɤɨɦɩɚɤɬ-ɞɢɫɤɟ ɜ ɜɢɞɟ pdf-ɮɚɣɥɚ Adobe Acrobat ɧɚ ɫɥɟɞɭɸɳɢɯ
ɹɡɵɤɚɯ: ɚɧɝɥɢɣɫɤɨɦ, ɮɪɚɧɰɭɡɫɤɨɦ, ɧɟɦɟɰɤɨɦ, ɢɬɚɥɶɹɧɫɤɨɦ, ɧɨɪɜɟɠɫɤɨɦ, ɩɨɪɬɭɝɚɥɶɫɤɨɦ, ɢɫɩɚɧɫɤɨɦ, ɪɭɫɫɤɨɦ, ɹɩɨɧɫɤɨɦ, ɤɨɪɟɣɫɤɨɦ,
ɬɪɚɞɢɰɢɨɧɧɨɦ ɢ ɭɩɪɨɳɟɧɧɨɦ ɤɢɬɚɣɫɤɨɦ. ɉɟɪɟɞ ɢɫɩɨɥɶɡɨɜɚɧɢɟɦ ɩɪɨɟɤɬɨɪɚ, ɩɪɨɱɢɬɚɣɬɟ ɞɚɧɧɵɟ ɢɧɫɬɪɭɤɰɢɢ.
ŘųKПП .ŴЕ<R$Ű֞ඤŜūʼnƐ CD Ű Adobe Acrobat ų PDF :P༜ŭŜūⲟŚƑūʼnƃŞЖᜑų➸⠰ųKПП
.Ɨřߓ᰻ʼnŤťŖƃŞЖ␣⠰Е:NX⠰Е.)⠰Е$O⠰Е3PП⠰ЕBP-P⠰Е?X⠰ЕR⠰ЕᎣᒍ⠰Е⺩
ઞ⠰Е‱ת
Ԟઞ⠰Е↭תԞઞ⠰ЖŘų<R$Ɨ᰻ŞƐ߰ŰЕKПП .Ɨ྿şŏ⠿ƄŔťŚʼnЖ
&' $GREH$FUREDW S GI
Adobe Acrobat (PDF)
동봉된 CD에는 Adobe Acrobat pdf 파일 형식의 사용 설명서가 영어, 프랑스어, 독일어, 이탈리아어, 노르웨이어, 포르투갈어, 스페인어, 러시아어, 일본어, 한국
어, 중국어(번체 및 간체)로 제공됩니다. 이 프로젝터를 사용하기 전에 다음 지침을 읽으십시오.
2
This entire user’s guide is available on the enclosed CD as an Adobe Acrobat pdf file in the following languages: English, French, German, Italian, Norwegian, Portuguese, Spanish, Russian, Japanese, Korean, Traditional Chinese, Simplified Chinese. Before using this projector, please read these instructions.
3
Declaration of Conformity
Manufacturer: InFocus Corporation, 27700B SW Parkway Ave. Wilsonville, Oregon
97070 USA
European Office: Strawinskylaan 585, 1077 XX Amsterdam, The Netherlands
We declare under our sole responsibility that this projector conform to the following
directives and norms:
EMC Directive 89/336/EEC, Amended by 93/68/EEC
EMC: EN 55022
EN 55024
EN 61000-3-2
EN 61000-3-3
Low Voltage Directive 73/23/EEC, Amended by 93/68/EEC
Safety: EN 60950: 2000
August, 2003
Trademarks
Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple
Computer, Inc. IBM is a trademark or registered trademark of International Business
Machines, Inc. Microsoft, PowerPoint, and Windows are trademarks or registered
trademarks of Microsoft Corporation. Adobe and Acrobat are trademarks or
registered trademarks of Adobe Systems Incorporated. InFocus, ProjectorManager,
ProjectorNet, and LP are trademarks or registered trademarks of InFocus
Corporation.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of
this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
Canada
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
Agency Approvals
UL, CUL, NOM, IRAM, GOST, C-tick
Other specific Country Approvals may apply, see please product certification label.

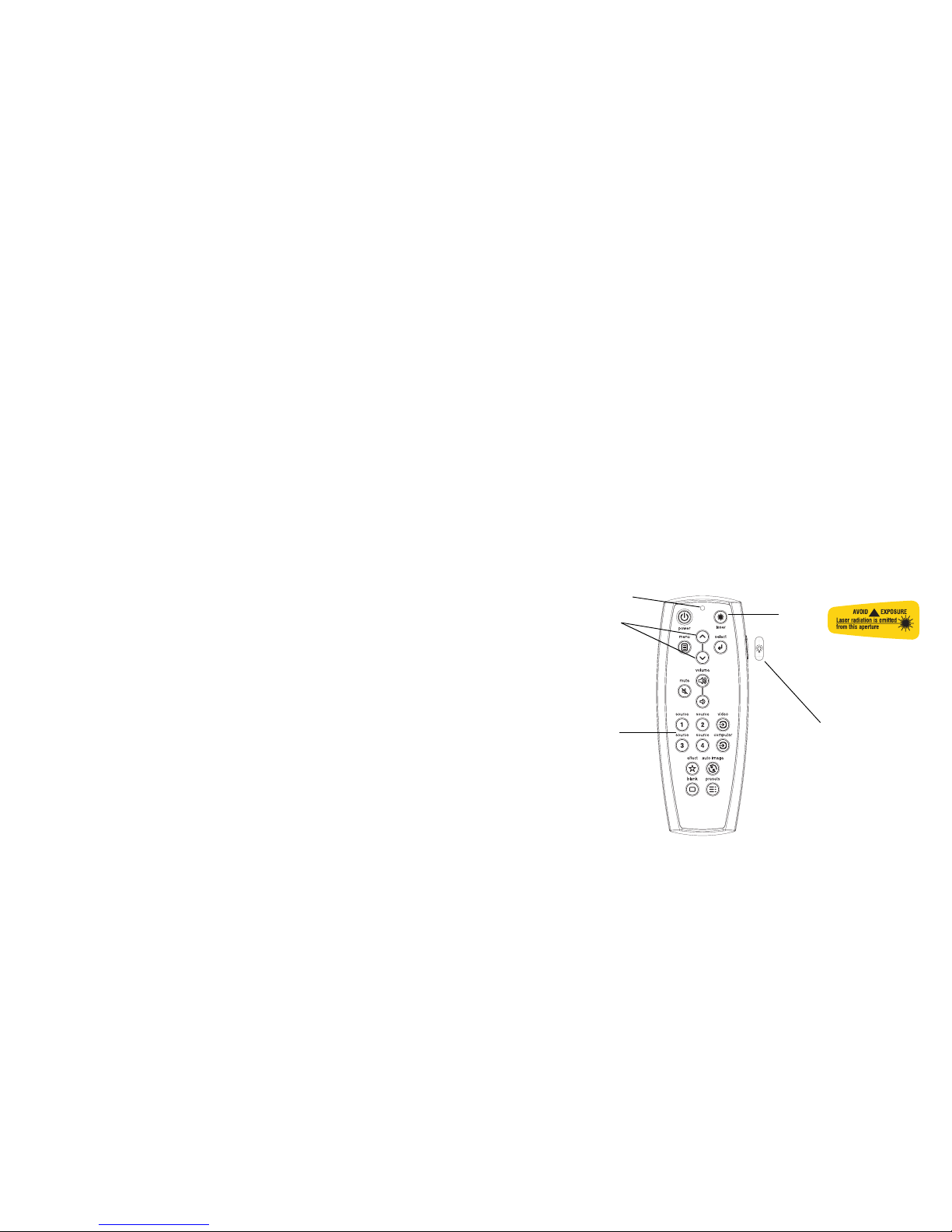

Remote Control Warning
Laser radiation class II product; wavelength 650nm; maximum output 1mW. Remote
control complies with applicable requirements of 21 CFR 1040.10 and 1040.11.
Remote control complies with applicable requirements of EN 60 825-1: 1994 +A11.
Do not look into the laser beam emitted
from the front of the remote control.
4
Table of Contents
Introduction 6
Positioning the projector 8
Connecting a computer 9
Required computer connections 9
Displaying a computer image 11
First-time projector use with Windows 98 12
Adjusting the image 14
Connecting a video device 15
Displaying a video image 17
Shutting down the projector 19
Troubleshooting your setup 19
Using the keypad buttons 27
Using the remote control 28
Using the audio 29
Optimizing computer images 30
Presentation features 30
Optimizing video images 31
Customizing the projector 31
Using the menus 32
Picture menu 33
Settings menu 36
Maintenance 40
Cleaning the lens 40
Changing the lens 40
Replacing the projection lamp 41
Cleaning the dust filter 43
Using the security lock 43
Appendix 44
Projected image size 44
LED Behavior 47
RS-232 commands 48
If you are experienced in setting up presentation systems, use the included
Quick Set Up card. For complete details on connecting and operating the
projector, refer to this User’s Guide. Electronic versions of this User’s Guide
in multiple languages are available on the included CD and on our website.
The website also has technical specifications (an interactive image size calculator, laptop activation commands, connector pin outs, a glossary, the
product data sheet), a web store to buy accessories, and a page for online
registration. See the inside of the back cover for a list of all contact numbers
and relevant web addresses.
Important Operating Considerations
Do not place the projector on a tablecloth or other soft covering that may
block the vents. Vents are placed along the back, left and front sides of the
projector.
Do not use a non-approved ceiling mount. In the unlikely event of
the lamp rupturing, discard any edible items placed in the surrounding area
and thoroughly clean the area along the sides and in the front of the projector.
2 ft (.6m)
2 ft (.6m)
2 ft (.6m)
Do not place objects in the areas along the left, back and front sides of the projector
5
6
Introduction
Your new multimedia projector provides three computer, three video, and
two audio inputs, one audio output, RS-232 control, and has XGA 1024x768
resolution. Optional user-changeable short, fixed short, long and super long
throw lenses make this a flexible product suitable for many different uses.
The projector is easy to connect, easy to use, and easy to maintain.
Product specifications
To read the latest specifications on your multimedia projector, be sure to
visit our website. Web address information is located on the back inside
cover of this User’s Guide.
Accessories
The standard accessories that came with your projector can be found on the
packing list that came with your projector. Optional accessories are listed in
the Accessories catalog that came with the projector and can also found on
our website. See the inside back cover for the web address.
Online Registration
Register your projector on our website to receive product updates,
announcements, and registration incentives. See the inside back cover for
the web address.
Projector components and features: front
Projector components and features: back
keypad
speakers
lens
elevator foot release
remote
control
receiver (IR)
elevator foot release
air intake
vent
heat vent
connectors
back
foot
air intake
vent
air intake
vent
handle
7
Connector Panel
The projector provides three computer and three video connection options:
• one M1-D (DVI with USB)
• one VESA computer
• one BNC (RGBHV and Pr, Pb, Y)
• one component RCA video (Pr, Pb, Y)
• one S-video
• one composite RCA video
The projector provides computer and video connectors for audio support:
• two composite RCA stereo audio (L, R)
• one audio out
• two audio ins for computer
The projector also provides the following connectors:
• one wired remote
• one monitor out
• RS-232 serial connector (for serial control)
• RJ-45 connector (for networked control via ProjectorNet software)
The RS-232 Command Line Interface (CLI) specifications and commands
are available on our website. See the back inside cover of this User’s Guide
for website information.
lock
power
connector
M1-D computer
monitor
s-video
composite
computer
audio
external
speakers
(audio out)
RJ-45
VESA computer
component video
video
power switch
BNC
RS232
serial control
wired
remote
remote
control
receiver (IR
)
8
Positioning the projector
To determine where to position the projector, consider the size and shape of
your screen, the location of your power outlets, and the distance between
the projector and the rest of your equipment. Here are some general guidelines:
• Position the projector on a flat surface at a right angle to the screen. The
projector (with the standard lens) must be at least 3 feet (0.9m) from the
projection screen.
• Position the projector within 10 feet (3m) of your power source and
within 6 feet (1.8m) of your video device (unless you purchase extension cables). To ensure adequate cable access, do not place the projector
within 6 inches (.15m) of a wall or other object.
• If you are installing the projector on the ceiling, refer to the installation
guide that comes with the Ceiling Mount Kit for more information. To
turn the image upside down, see “Ceiling” on page 36. We recommends using an authorized ceiling mount. The Ceiling Mount Kit is
sold separately; see the Accessories catalog that came with this projector or visit our website for more information.
• Position the projector the desired distance from the screen. The distance
from the lens of the projector to the screen, the zoom setting, and the
video format determine the size of the projected image. For information
about image sizes at different distances, see “Projected image size” on
page 44.
• For the standard lens that comes with the projector, the image exits at a
given angle. However, the lens shift feature makes the image offset
variable. The image offset is 100% at a 10:0 ratio when the projector is in
4:3 mode (default mode). This means that if you have an image 10’
high, all 10’ will appear above the center of the lens.
• This image offset is 50% when the lens shift is at a 1:1 ratio. This means
that if you have an image 10’ high, the bottom of the image will be 5’
below the center of the lens.
• For information about the optional lenses image offsets, see “Projected
image size” on page 44.
bottom of image
100% above lens
10 ft high
Projection angle in 4:3 mode (default)
lens center
10:0
1:1
center
bottom of image
50% below lens
center
10:0
1:0
9
Connecting a computer
Required computer connections
Connect one end of the VESA computer cable to the Computer 2 connector
on the projector. Connect the other end to the video port on your computer.
If you are using a desktop computer, you first need to disconnect the monitor cable from the computer’s video port.
Connect the black power cable to the connector on the back of the projector
and to your electrical outlet.
NOTE: Always use the power cable that shipped with the projector.
Optional computer connections
To control your computer’s mouse using the projector’s remote control, connect the USB and DVI cables to the USB and DVI ports on your computer,
and connect the other end to the Computer 1 (M1-D) connector on the projector. USB drivers must be installed to use the USB feature. For more information, see page 13.
If your projector cannot receive the remote’s signal due to IR interference,
you can connect directly to the projector via a remote cable. To do so, plug
the remote cable into the wired remote connector on the projector. Plug the
other end into the connector on the remote.
.
To have sound with your presentation, connect the audio cable to your computer and to the corresponding computer Audio In connector on the projector.
connect computer cable
connect power cable
connect M1-D cable
connect wired remote
connect audio cable
10
If you are using a desktop computer and want to see the image on your
computer screen as well as on the projection screen, plug the monitor cable
to the Monitor out connector on the projector.
You can also connect to your computer using a BNC cable. Connect the BNC
connectors on the BNC cable to the appropriate Computer 3 connectors on
the projector. Connect the other end to the video port on your computer. If
you are using a desktop computer, you first need to disconnect the monitor
cable from the computer’s video port. When all 5 BNCs are connected, the
projector handles separate synchs on H and V.
You can control the projector from an LCD control panel, touch screen, or
other control device or computer by connecting an RS-232 cable to the projector’s Serial connector. Specific RS-232 commands can be found in the Service and Support section of our website and in this User’s Guide’s
Appendix.
The projector can be managed by ProjectorNet networking software
through its Network (RJ-45) connector. Contact an authorized dealer or
visit our website for information on ProjectorNet.
connect monitor cable
connect BNC cables
H
V
RG B
connect RS-232 cable
Network
connect CAT-5 cable
11
Displaying a computer image
Remove the lens cap.
Press the power switch on the back of the projector to the on position, then
press the Powe r button on the top of the projector or the remote.
The LED flashes green and the fans start to run. When the lamp comes on,
the startup screen is displayed and the LED is steady green. It can take a
minute for the image to achieve full brightness.
? No startup screen? Get help on page 20.
Turn on your computer.
The computer’s image should appear on the projection screen. If it doesn’t,
press the Computer button on the projector’s keypad.
Make sure your laptop’s external video port is active.
Many laptops do not automatically turn on their external video port when a
projector is connected. Usually a key combination like FN + F5 is used to
turn the external display on and off. Refer to your computer’s documentation to learn your computer’s key combination.
? No computer image? Try pressing the Auto Image
button on the keypad. Get help on page 20.
remove lens cap
1
2
press Power switch press Power button
I
O
turn on computer
activate laptop’s external port
12
First-time projector use with Windows 98
The first time you connect a computer running Windows 98 to the projector,
the computer recognizes the projector as “new hardware” and the Add
New Hardware Wizard appears. Follow these instructions to use the Wizard to load the correct driver (which was installed with your Windows
operating system).
If you are running Windows 2000, Windows ME, or Window XP, skip these
steps and go to “Adjusting the image” on page 14.
a Click Next to begin searching for the driver.
b Make sure “Search for the best driver” is selected, then click Next.
c Uncheck any checked boxes, then click Next. Windows automatically
locates the driver. If this driver has been removed, reload the driver using
your Windows operating system CD.
d When Windows finds the driver, you are ready to install it. Click Next.
a
b
c
d
13
Skip this page if you did not connect a USB mouse cable
For Windows 98:
• If you connected the USB cable, the Add New Hardware Wizard
appears again. Drivers must be installed to use the USB functionality.
• The Wizard launches two times.
The first time it detects a USB Human Interface Device (for the keyboard).
The second time it detects a USB Human Interface Device (for the
mouse).
For Windows 2000, Windows ME, and Windows XP:
• The USB drivers are automatically installed.
14
Adjusting the image
Adjust the height of the projector, if necessary, by pressing the release buttons on each side of the projector’s front to extend the elevator feet.
Position the projector the desired distance from the screen at a 90 degree
angle (perpendicular) to the screen.
See page 44 for a table listing screen sizes and distances.
Adjust the zoom or focus by pressing the power Zoom or power Focus
buttons on the keypad until the desired image size and focus are produced.
You can also adjust the zoom and focus via the menus. See page 33
If the image is not on the screen or viewing area, adjust the it by pressing the
lens shift button on the keypad.
Press the upper Lens Shift button to shift the lens upward. Press the lower
Lens Shift button to shift the lens downward
.
You can also adjust the lens shift via the menus. See page 33.
Adjust the Contrast or Brightness in the Picture menu.
See page 32 for help with the menus.
adjust height
elevator
foot
elevator
foot
release
button
release
button
adjust distance
zoom focus
adjust Zoom and Focus
lens shift
adjust Lens Shift
adjust Contrast or Brightness
contrast
brightness
15
Connecting a video device
Standard video connections
Plug the audio/video (A/V) cable’s yellow connector into the video-out
connector on the video device. Plug the other yellow connector into the yellow Video 3 connector on the projector.
Plug a white connector into the left audio out connector on the video device
and plug a red connector into the right audio out connector on the video
device. Plug the remaining white connector into the left audio in connector
on the projector (to the right of the yellow Video 3 connector), and plug the
red connector into the right audio in connector on the projector.
Connect the black power cable to the connector on the back of the projector
and to your electrical outlet.
NOTE: Always use the power cable that shipped with the projector.
Optional video connections
If the video device uses a round, four-prong S-video connector, plug an
S-video cable (sold separately) into the S-video connector on the video
device and into the Video 2 connector on the projector. Use the A/V cable’s
audio connectors as described directly above (the yellow connectors on the
A/V cable are not used).
If the video device uses component cable connectors (sold separately), plug
the cable’s green connectors into the green component-out connector on the
video device and into the Video 1 green component connector (labeled “Y”)
on the projector. Plug the component cable’s blue connectors into the blue
component-out connector on the video device and into the blue component
connector (labeled “Pb”) on the projector. Plug the component cable’s red
connectors into the red component-out connector on the video device and
into the red component connector (labeled “Pr”) on the projector. Use the
A/V cable’s audio connectors as described above (the yellow connectors on
the A/V cable are not used).
connect A/V cable
connect power cable
connect S-video and video cables
connect component cables
and video cables
16
You can also connect to your video device using a BNC cable. Connect the
BNC connectors of the BNC cable to the appropriate Computer 3 connectors on the projector. Connect the other end to the video port on your video
device. Use the A/V cable’s audio connectors as described on the previous
page (the yellow connectors on the A/V cable are not used).
When 4 BNCs are connected, the projector handles a composite synch on H.
When 3 BNCs are connected, the projector handles a composite synch on G.
connect BNC cables
H
V
RG B
17
Displaying a video image
Remove the lens cap.
Press the power switch on the back of the projector to the on position, then
press the Powe r button on the top of the projector.
The LED flashes green and the fans start to run. When the lamp comes on,
the startup screen is displayed and the LED is steady green. It can take a
minute for the image to achieve full brightness.
? No startup screen? Get help on page 20.
Plug in and turn on the video device.
The video device’s image should appear on the projection screen. If it
doesn’t, press the Video button on the keypad.
Adjust the height of the projector, if necessary, by pressing the release buttons on each side of the projector’s front to extend the elevator feet.
Position the projector the desired distance from the screen at a 90 degree
angle to the screen. See page 44 for a table listing screen sizes and distances
to the screen.
remove lens cap
press Power switch press Power button
I
O
1
2
turn on video device
adjust height
elevator
foot
elevator
foot
release
button
release
button
adjust distance
18
Adjust the zoom or focus by pressing the power Zoom or power Focus
buttons on the keypad until the desired image size and focus are produced.
You can also adjust the zoom and focus via the menus. See page 33
If the image is not on the screen or viewing area, adjust the it by pressing the
lens shift button on the keypad.
Press the upper Lens Shift button to shift the lens upward. Press the lower
Lens Shift button to shift the lens downward
.
You can also adjust the lens shift via the menus. See page 33.
Adjust the volume on the keypad or remote.
Adjust the Contrast, Brightness, Color, or Tint in the Picture menu.
See page 32 for help with the menus.
zoom focus
adjust Zoom and Focus
lens shift
adjust Lens Shift
volume
adjust volume
adjust Picture menu
contrast
brightness
color
tint
19
Shutting down the projector
The projector automatically blanks the screen after no active source is
detected for 30 minutes. This blank screen helps preserve the life of the projector. The image returns when an active source is detected or a remote or
keypad button is pressed.
Screen Save
You can make the blank screen appear after five minutes by turning on
Screen Save in the Settings>System menu. See page 37.
Power S av e
The projector also has a Power Save feature that automatically turns the
lamp off after no signals are detected for 20 minutes. After 10 additional
minutes with no signal, the projector powers down. If an active signal is
received before the projector powers down, the image is displayed. You
must press the Power button to display an image after 30 minutes have
passed. When Power Save is enabled, Screen Save is disabled. See page 37.
Turning off the projector
To turn off the projector, press the power button and verify that you want to
turn the projector off by pressing the power button again within 3 seconds.
You can cancel the shutdown by not pressing the power button a second
time. The lamp turns off and the LED blinks green for over 1 minute while
the fans continue to run to cool the lamp. When the lamp has cooled, the
LED lights green and the fans stop. Press the power switch on the back of
the projector and unplug the power cable to completely power off the projector.
Troubleshooting your setup
If your image appears correctly on the screen, skip to the next section. If it
does not, troubleshoot the setup. The LED on top of the projector indicates
the state of the projector and can help you troubleshoot. See “LED Behavior” on page 47. for information on LED behavior and what it means.
The following tables show common problems. In some cases, more than one
possible solution is provided. Try the solutions in the order they are presented. When the problem is solved, you can skip the additional solutions.
20
Source Troubleshooting
Problem Solution Result
No startup screen
Plug power cable in, press power switch,
press power button. Remove lens cap.
Correct image
Only startup screen appears
Press the Computer button
Activate laptop’s external port
Computer image projected
1
2
3
startup
screen
startup
screen
A
or restart
laptop
A
A
21
No computer image, just the words “Signal out of
range”
Adjust computer refresh rate in Control
Panel>Display>Settings>Advanced>
Adapter (location varies by operating
system)
Computer image projected
A
Signal out of
range
You may also need to set a different
resolution on your computer, as shown
in the following problem, “Image fuzzy
or cropped”
A
A
22
Image fuzzy or cropped
Set your computer’s display resolution to
the native resolution of the projector
(Start>Settings>Control
Panel>Display>Settings tab,
select1024x768)
Image clear and not cropped
Remote control navigation buttons not working
with my computer
Connect USB cable (page 9) then load USB
drivers, if needed (page 12). Or, connect
wired remote cable and reboot your
computer (page 9).
Remote controls navigation buttons.
See page 28 for information on the remote
A
A
A
For a laptop,
disable laptop
monitor
or turn-on dualdisplay mode
A
X
23
Projector troubleshooting
Problem Solution Result
Image not square Adjust keystone the Picture menu
Square image
Image not sharp
Adjust the focus on the keypad or
Sharpness in the Picture>Advanced menu
Correct image
Image does not fit 16:9 screen
Change aspect ratio to 16:9 in
Picture>Aspect ratio menu
Correct image
ABAB
AB
24
Image upside down
Turn on/off Ceiling in Settings>System
menu
Correct image
Image reversed left to right
Turn on/off Rear in Settings>System menu
Correct image
Projected colors don’t match source
Adjust color, tint, color temperature,
brightness, contrast in the menus
Correct image
A
B
AB
A
AB
COLOR
COLOR
25
Lamp won’t turn on, Temp LED solid red (page 47)
Make sure vents aren’t blocked; allow
projector to cool for one minute
Unplug projector; wait one minute; plug in
projector and turn it on: lamp lights
Lamp won’t turn on, Lamp LED blinking red
(page 47)
Lamp must be replaced (page 41)
Lamp turns on
solid
red
temp
lamp
startup
screen
blinking
red
temp
lamp
startup
screen
26
Still having problems?
If you need assistance, visit our website or call us. See the inside of the back
cover for a list of all contact numbers and relevant web addresses.
This product is backed by a limited two-year warranty. An extended warranty plan may be purchased from your dealer. When sending the projector
in for repair, we recommend shipping the unit in its original packing material, or having a professional packaging company pack the unit. An optional
ATA shipping case is available for purchase that provides adequate protection for shipping. Please insure your shipment for its full value.
Image not centered on screen
Move projector, adjust zoom or lens shift on
keypad, adjust height
Correct image
Adjust horizontal or vertical position in
Picture>Advanced menu
27
Using the keypad buttons
Most buttons are described in detail in other sections, but here is an overview of their functions:
power–turns the projector on (page 11) and off (page 17).
lens shift–shifts the projected image up or down
zoom–moves the projected image closer or further away.
focus–adjusts the clarity.
menu–opens the on-screen menus (page 32).
up/down arrows–navigates to and adjusts settings in the menus (page 32).
select–confirms choices made in the menus (page 32).
volume–adjusts sound (page 29).
video and computer–changes the active source.
temp–alerts you to possible temperature-related problems (page 47).
lamp–alerts you to possible lamp-related problems (page 47).
Temp
menu navigation buttons
28
Using the remote control
The remote uses two (2) provided AAA batteries. They are easily installed
by sliding the cover off the remote's back, aligning the + and - ends of the
batteries, sliding them into place, and then replacing the cover.
To operate, point the remote at the projection screen or at the projector (not
at the computer). The range of optimum operation is about 30 feet (9.14m).
To use the laser pointer, press and hold the Laser button. The laser turns off
when the button is released, or times out after two (2) minutes of continuous operation.
WARN IN G: Do not look into the laser beam emitted from the top of the
remote control.
The remote contains four Source buttons that allow you to assign a particular input to a specific source. Simply press the numbered Source buttons to
travel to whatever four sources you wish to have available.
Press the remote's Menu button to open the projector's menu system. Use
the arrow buttons to navigate, and the Select button to select features and
adjust values in the menus.
The remote also has a power button to turn the projector on and off, volume
buttons and a mute button to control the sound, a backlight button to light
the remote's buttons in the dark, and a video and computer button to switch
between those two sources.
Two presentation-specific features are also provided. Use the blank button
to display a blank screen instead of the current slide; use the effect button to
invoke a user-definable action, such as freeze, PiP, or magnify.
The Auto Image button reacquires the computer image and the Presets button lets you customize the settings for each source. Up to three Preset settings can be customized and saved.
Troubleshooting the remote
• Make sure the batteries are installed in the proper orientation and are
not dead. The LED at the top of the remote lights when any button is
pressed when the battery power is adequate.
• Make sure you’re pointing the remote at the projector, not the computer, and are within the remote range of 30 feet (9.14m).
• If you are trying to control your computer’s mouse, make sure a mouse
cable is connected. If using a the USB cable that is part of the M1 cable,
make sure the correct drivers are installed.
backlight button
navigation buttons
LED
source buttons
laser
button
29
Using the audio
To play sound from the projector, connect your source to the Audio In connector on the projector.
To adjust the volume, use the buttons on the keypad or remote.
To adjust the balance, or loudness, use the Audio menu (see page 36).
To mute the sound, press the Mute button.
Troubleshooting audio
If there is no sound, check the following:
• Make sure the audio cable is connected.
• Make sure mute isn’t active.
• Make sure the volume is turned up enough. Press the volume button
on the keypad or remote.
• Make sure you are connected to the corresponding audio in for your
source. Computer 1 and 3 share a single audio input. Computer 2 has
its own audio input. Video 1, 2 and 3 share a single stereo input.
• Adjust the audio source.
• If playing a video, make sure the playback has not been paused.
Connecting external speakers
The projector can be attached to external speakers that have their own
power source by plugging speaker cables into the projector’s Audio Out
connector.
connect audio cable
volum
e
adjust volume
computer 1
computer in
audio in
computer 2
computer 3
audio in
computer 1 and 3
corresponding audio
computer 2 and
corresponding audio
external speakers
speaker
cable
audio out
30
Optimizing computer images
After your computer is connected properly and the computer’s image is on
the screen, you can optimize the image using the onscreen menus. For general information on using the menus, see page 32.
• Adjust the Keystone, Contrast, or Brightness in the Picture menu.
• Change the Aspect Ratio. Aspect Ratio is the ratio of the image width to
image height. TV screens are usually 1.33:1, also known as 4:3. HDTV
and most DVDs are 1.78:1, or 16:9. Choose the option that best fits your
input source. See page 33 for details.
• Adjust the Color Temperature in the Advanced menu.
• Adjust the Phase, Tracking, or Horizontal or Vertical position in the
Advanced menu.
• Once you have optimized the image for a particular source, you can
save the settings using Presets. This allows you to quickly recall these
settings later. See page 34.
Presentation features
Several features are provided to make giving presentation easier. The following is an overview, details are found in the menu section on page 32.
•The remote’s Effect button allows you to assign various features to the
key. The default effect is Magnify.You can select from Blank, Mute,
Aspect Ratio, Source, Auto Image, Freeze, Magnify, About, and PiP
Source. See page 38 for details.
• The Freeze effect allows you to freeze the displayed image. This is useful if you want to make changes on your computer without your audience seeing them.
•The Blank button on the remote allows you to display a blank screen
instead of the active source. See page 37.
• The PiP Source effect lets you change the video source in a smaller window on top of the computer image. See page 38.
• The Startup Logo menu option lets you change the default startup
screen to a black, white, blue, or a custom logo screen via Logo Capture. See page 37.
• Two menu options, Power Save and Screen Save, are provided to automatically shut down the projector after several minutes of inactivity or
display a blank screen. This helps preserve lamp life. See page 36 and
page 37.
• A Low Power menu option is also available to help lower the projector’s fan sound volume. See page 36.
31
Optimizing video images
After the video device is connected properly and the image is on the screen,
you can optimize the image using the onscreen menus. For general information on using the menus, see page 32.
• Adjust the Keystone, Contrast, Brightness, Color, or Tint in the Picture
menu. See page 33.
• Change the Aspect ratio. Aspect ratio is the ratio of the image width to
image height. TV screens are usually 1.33:1, also known as 4:3. HDTV
and most DVDs are 1.78:1, or 16:9. Choose the option that best fits your
input source. See page 33.
• Select a Sharpness setting. See page 35.
• Adjust the Color Temperature. Select a listed value, or select User and
individually adjust the intensity of the red, green, and blue color. See
page 35.
Customizing the projector
You can customize the projector for your specific setup and needs. See
page 36 to page 40 for details on these features.
• For rear projection, turn Rear mode on in the Settings>System menu.
• For ceiling mounted projection, turn Ceiling mode on in the Set-
tings>System menu.
• Specify which source the projector checks first for an active signal during power-up.
• Specify the function of the Effect Key on the remote.
• Turn the projector’s on-screen display messages on and off.
• Turn on power saving features.
• Specify blank screen colors and startup logos.
• Specify the menu language.
• Manage your projector via ProjectorNet software. See page 10 for more
information.
• Control your projector using RS232 commands. See page 10.
• Customize the projector for your specific installation using optional
long or short throw lenses. See the inside back cover of this User’s
Guide for ordering information.
• Gain control of your projector from your laptop with InFocus
ProjectorManager
, a free application that turns any PC into an
advanced projector remote control.
ProjectorManager can be downloaded from our website link found on
the CD that came with your projector.
32
Using the menus
To open the menus, press the menu button on the keypad or remote. (The
menus automatically close after 60 seconds if no buttons are pressed.) The
Main menu appears. Use the arrow buttons to move up and down to highlight the desired submenu, then press the Select button.
To change a menu setting, highlight it, press Select, then use the up and
down arrow buttons to adjust the value, select an option using radio buttons, or turn the feature on or off using check boxes. Press Select to confirm
your changes. Use the arrows to navigate to another setting. When your
adjustments are complete, navigate to Previous, then press Select to go to
the previous menu; press the Menu button at any time to close the menus.
Dots appear before the menu name. The number of dots indicate the menu’s
level, ranging from one (the Main menu) to four (the most nested menus).
The menus are grouped by usage:
• The Picture menu provides image adjustments.
• The Settings menu provides set-up type adjustments that are not
changed often.
• The About menu provides a read-only display of information about the
projector and source.
Certain menu items may be grayed out until a particular source is connected. For example, Sharpness is only available for video sources and will
be hidden when a computer source is active. Other menu items may be
grayed out when they are not available. For example, Brightness is grayed
out until an image is active.
Keypad navigation
buttons
Main menu
Menu
button
Dot
Settings
menu
Dots
menu
About menu
33
Picture menu
To adjust the following six settings, highlight the setting, press Select, use
the up and down arrows to adjust the values, then press select to confirm
the changes.
Zoom: allows you to adjust a lens to zoom in and out. Highlight Zoom,
then press the up or down arrows on the keypad or remote.
Focus: allows you to adjust the lens focus for an image. Highlight Focus,
then press the up or down arrows on the keypad or remote.
Lens Shift: allows you to mechanically shift the lens. Highlight Lens Shift,
then press the up or down arrows on the keypad or remote.
Key stone Ver ti cal : adjusts the image vertically and makes a squarer image
by using an adjustable scale band.
Keystone Horizontal: adjusts the image horizontally and makes a squarer
image by using an adjustable scale band.
Contrast: controls the degree of difference between the lightest and darkest
parts of the picture and changes the amount of black and white in the
image.
Brightness: changes the intensity of the image.
Color: (video sources only) adjusts a video image from black and white to
fully saturated color.
Tint: adjusts the red-green color balance in the image.
Aspect Ratio: Aspect ratio is the ratio of the image width to image height.
TV screens are usually 1.33:1, also known as 4:3. HDTV and most DVDs are
1.78:1, or 16:9. The default is 4:3, which displays the input resized up or
down to fill the display area.
increasing keystone
Keystone Vertical
decreasing keystone
Keystone Horizontal
Aspect Ratio
34
Presets: The provided Presets optimize the projector for displaying com-
puter presentations, photographs, film images, and video images. (Film
input is material originally captured on a film camera, like a movie; video
input is material originally captured on a video camera, like a TV show or
sporting event.) You can use the preset as a starting point, then further customize the settings for each source. The settings you customize are saved in
the preset for each source. To restore the factory default settings, choose Factory Reset in the Settings>Service menu.
There are also three user-definable presets. To set a preset for the current
source, adjust the image, then choose Save User 1, 2, or 3 in the Save Set-
tings menu. You can recall these settings in the future by selecting the
appropriate user presets.
Presets
Save Settings
35
Advanced settings
Sharpness: (video sources only) changes the clarity of the edges of a video
image. Select a sharpness setting.
Color Space: This option applies to computer and component video
sources. It allows you to select a color space that has been specifically tuned
for the input signal. When Auto is selected, the projector automatically
determines the standard. To choose a different setting, turn off Auto, then
choose RGB for computer sources, choose either SMPTE240, REC709 or
REC601 for component video sources.
Color Temperature: changes the intensity of the colors. Select a listed
value, or select User and individually adjust the intensity of the red, green,
and blue colors.
Video Standard: when set to Auto, the projector attempts to automatically
pick the video standard based on the input signal it receives. (The video
standard options may vary depending on your region of the world.) If the
projector is unable to detect the correct standard, the colors may not look
right or the image may appear “torn.” If this happens, manually select a
video standard by selecting NTSC, PAL, or SECAM from the Video Standard menu.
Overscan: (video sources only) removes noise around the video image.
The following 4 options are for computer sources only.
Phase: adjusts the horizontal phase of a computer source.
Tr a c k i ng : adjusts the vertical scan of a computer source.
Horizontal / Vertical Position: adjusts the position of a computer source.
Sharpness
Color Space
Color Temperature
Video Standard
36
Settings menu
Audio: allows adjustments to the Balance and Volume. Also allows you to
turn on and off the Internal speakers, and projector startup Chime.
Sources: allows you to assign a particular input to a specific source key
when using the Integrator remote. Also allows selection of a default Startup
Source and enables or disables Autosource.
Sources>Power-up Source: this determines which source the projector
checks first for active signal during power-up.
Sources>Autosource: When Autosource is not checked, the projector
defaults to the source selected in Powerup Source. If no source is found, a
blank screen displays. When Autosource is checked, Powerup Source determines which source the projector defaults to at power-up. If no signal is
present, the projector checks the sources in order until a source is found or
until power down.
System>Rear: reverses the image so you can project from behind a
translucent screen.
Ceiling: turns the image upside down for ceiling-mounted projection.
IR Receivers: turns individual IR receivers off or on to avoid environ-
mental interference.
Auto Power: When Auto Power is checked, the projector automatically
goes into the startup state after the projector is powered on. This allows
control of ceiling mounted projectors with a wall power switch.
Display Messages: displays status messages (such as “Searching” or
“Mute”) in the lower-left corner of the screen.
Low Power: toggles between on and off. Turn it on to lower the light output of the lamp. This also lowers the fan speed, making the projector quieter.
NND: prevents your notebook computer from going into Screen Save
mode (functions only when the USB connector is plugged in).
Power S av e: automatically turns the lamp off after no signals are
detected for 20 minutes. After 10 additional minutes with no signal, the
projector powers down. If an active signal is received before the projector powers down, the image will be displayed.
Audio
Settings
menu
Sources
Powerup
Source
System menu
IR Receivers
37
Screen Save: automatically blanks the screen after no signals are
detected for five minutes. The image returns when an active source is
detected or a remote or keypad button is pressed. Screen Save is disabled
when Power Save is enabled.
Startup Logo: allows you to display a blank Black, White, or Blue screen
instead of the default screen at startup and when no source is detected. It
also allows you to capture and display a custom startup screen.
To capture a custom logo, display the image you want to capture on your
computer and select the Logo Capture option. From the Logo Capture
menu, use the Capture Position X and Capture Position Y adjustments to
frame the logo to be captured. Press Capture Start in the Logo Capture
menu. The projector will let you know if the capture was a success or a
failure.
The next time you start the projector, the custom logo you captured displays.
Blank Screen: determines what color is displayed when you press the
Blank button on the remote.
Save Screen
Startup Logo
Logo Capture
Blank Screen
38
PiP: (Picture in Picture) allows you to overlay a smaller window showing
the video source on top of the larger computer source window. Only video
sources 2 and 3 (composite and S-video) support PiP. You must have both a
computer and video source connected to use PiP. You can’t show a computer image in the smaller PiP window, only a video image. You can select a
small, medium, or large window. You can also move the PiP window on the
screen using the PiP Position X and Y options, or the Upper left, Upper
Right, Lower Left, or Lower Right options in the menu. Press the up and
down arrows to change the position.
Effect Key: allows you to assign a different function to the Effect button on
the remote to quickly and easily use the effect. Only one effect can be
enabled at a time. Highlight an effect and press Select to choose a different
one.
Blank: shows an empty screen.
Mute: turns off all sound.
Aspect Ratio: sets the ratio of the image width to image height.
Source: cycles through the available sources.
Auto Image: causes computer sources to be reacquired.
Freeze: pauses the projected image.
Magnify: Is the default effect. It allows you to enlarge a section of the
projected image.
About: displays the About menu.
PiP Source: changes the video source of Picture in Picture smaller win-
dow display on the projected screen.
PiP menu
PiP Enable
PiP Position
Effect Key
39
Network: The projector has an RJ45 Ethernet connector that supports net-
work connections and TCP/IP protocols. This will allow for the control and
management of the projector over a corporate network. The following fields
are accessible when DHCP is not checked and available for manual entry of
data.
IP Address: Identifies the projector on the network.
Subnet mask: Separates the network address part of the IP address.
Default gateway: The IP address of the local router.
DHCP: Select this to automatically obtain an IP address, Subnet mask,
and Default gateway.
Network Info: Provides information on the network configuration.
The Network Info menu is informational and cannot be edited. It displays
the current IP Address, Subnet Mask, Default Gateway, and the projector’s
MAC Address.
Language: allows you to select a language for the onscreen display of
menus and messages.
Service: to use these features, highlight them and press Select.
Factory Reset: restores all settings (except Lamp Hours and Network set-
tings) to their default after displaying a confirmation dialog box.
Lamp Reset: resets the lamp hours counter in the About menu to zero. Do
this only after changing the lamp. It displays a confirmation dialog box.
Filter Reset: resets the filter counter in the About menu to zero. Do this
only after cleaning the filter. It displays a confirmation dialog box.
Service Code: only used by authorized service personnel.
Network
Network
Info
Language
Service menu
40
Maintenance
NOTE: When you are performing maintenance activities on your projector,
keep in mind that you should only remove screws that are single-slot, or
flathead, screws. Any other type of screw, such as a phillips or star should
not be removed. These types of screws should only be removed by technical
support experts.
Cleaning the lens
1 Apply a non-abrasive camera lens cleaner to a soft, dry cloth.
Avoid using an excessive amount of cleaner, and don’t apply the
cleaner directly to the lens. Abrasive cleaners, solvents or other harsh
chemicals might scratch the lens.
2 Lightly wipe the cleaning cloth over the lens in a circular motion. If you
don’t intend to use the projector immediately, replace the lens cap.
Changing the lens
Long throw and short throw lenses are available with your projector.
1 Turn off the projector and unplug the power cable.
2 Turn the projector upright with the lens facing upward and use a screw-
driver to remove the two screws from the front bezel release holes on the
bottom of the projector.
3 Lift off the front bezel.
4 Gently place a flathead screwdriver into the slot on the top of the projec-
tor (it is by the right speaker) and slide the small lever toward the right
speaker. The cover that protects the lens and the lamp housing pops up.
5 Loosen the captive screw to the door that covers the lens housing.
clean the lens
with a soft dry cloth
and non-abrasive
cleaner
turn off and unplug
the projector
lens release holes
front
bezel
slide lever in slot to
pop open cover
cover
41
6
To remove a lens, push the lever inside the lens housing and turn the
lens counterclockwise until it stops. Remove the lens.
7 To install a new lens, place it in the opening through the front of the pro-
jector, aligning the red dot (near the base of the lens) with the red dot on
the projector. Turn clockwise until you feel the lens click into place.
8 Tighten the captive screw to the lens housing door. Place the front bezel
back onto the projector and replace the two screws on the bottom of the
projector. Replace the cover that protects the lens and the lamp housing
on top of the projector.
Replacing the projection lamp
The lamp hour timer in the About menu counts the number of hours the
lamp has been in use. Twenty hours before the specified end of the lamp’s
life, the message “Replace lamp” briefly appears on the projected screen.
After twenty additional hours, the lamp will no longer light. You can order
new lamp modules from your dealer. See the Accessories catalog that came
with the projector or visit our website for information.
1 Turn off the projector and unplug the power cable.
2 Wait 60 minutes to allow the projector to cool thoroughly.
3 Gently place a flathead screwdriver into the slot on the top of the projec-
tor (it is by the right speaker) and slide the small lever toward the right
speaker. The cover that protects the lamp housing and the lens pops up.
The lamp module is on the right.
lever inside
lens housing
About menu
turn off and unplug
the projector
wait 60 minutes
slide lever in slot to
pop open cover
cover
42
4
Loosen the three captive screws on the lamp module.
WARNINGS:
• To avoid burns, allow the projector to cool for at least 60 minutes before
you replace the lamp.
• Do not drop the lamp module. The glass may shatter and cause injury.
• Do not touch the glass lamp screen. Fingerprints can obscure projection
sharpness.
• Be extremely careful when removing the lamp housing. In the unlikely
event that the lamp ruptures, small glass fragments may be generated.
The lamp module is designed to contain most of these fragments, but
use caution when removing it.
5 Carefully remove the lamp module by grasping and lifting the metal
bail wire. Dispose of the lamp in an environmentally proper manner.
6 Install the new lamp module, making sure that it is properly seated.
7 Tighten the three captive screws.
8 Replace the cover over the lamp module by inserting the tabs into the
tab bays and pushing the rest of the cover down into place.
9 Plug in the power cable, press the power switch then press the Powe r
button to turn the projector back on.
10 Reset the lamp hour timer. See page 39 for more information.
Resetting the lamp timer
If the lamp timer has reached the maximum number of hours for the projector lamp, the LED on the projector’s keypad will show a lamp error (see
“LED Behavior” on page 47). To reset the lamp timer, simultaneously press
the decrease volume button and increase volume button on the keypad for
10 seconds. At that point the LED will turn green and you can power on the
projector. You can also navigate to the Settings>Service menu and select
Lamp Reset to reset the lamp timer.
loosen the captive screws on lamp module
remove module using bail wire
reset lamp time in Service menu
43
Cleaning the dust filter
1 Turn off the projector and unplug the power cable.
2 Wait 60 minutes to allow the projector to cool thoroughly.
WARN IN G: To avoid burns, allow the projector to cool for at least 60
minutes before you clean or replace the dust filter.
3 Remove the dust filter grill door on the side of the projector by pulling
down on the two tabs at the grill’s top.
4 Press the tab on the center of the dust filter and lift it off.
5 Clean the filter using a vacuum set on low power.
6 Replace the dust filter and the dust filter grill door.
7 Reset the filter hour timer.
Troubleshooting
If the Temp and Lamp LEDs indicate a problem with the filter, check the following:
• Use a soft cloth to wipe the mirrors on the dust filter grill.
• Remove the dust filter and use a soft cloth to wipe the window behind
the dust filter.
• Replace the dust filter and the dust filter grill.
Using the security lock
The projector has a security lock for use with a cable lock system. See the
Accessories catalog that came with the projector, or visit our website, for
ordering information. Refer to the information that came with the lock for
instructions on how to use it.
turn off and unplug
the projector
wait 60 minutes
remove dust filter grill
remove dust filter
security lock
44
Appendix
Projected image size
The image offset range for the standard lens is 10:1 (100%) to 1:1 (50%).
The image offset range for the short throw lens is 10:1 (100%) to 1:1 (50%).
The optimal offset setting for the fixed focus short throw lens is 50% (on
axis).
Table 1:
Image sizes for standard lens (1.5 - 2.2:1 lens throw)
Distance to
screen
(feet/m)
Minimum
Diagonal
(feet/m)
Maximum
Diagonal
(feet/m)
3/0.9 1.7/0.52 2.5/0.76
5/1.5 2.84/0.87 4.17/1.27
10/3.0 5.68/1.73 8.33/2.54
15/4.6 8.52/2.60 12.5/3.81
20/6.1 11.36/3.46 16.67/5.08
25/7.6 14.20/4.33 20.83/6.35
30/9.1 17.05/5.2 25.0/7.62
35/10.7 19.89/6.06 29.17/8.89
40/12.2 22.73/6.93 33.33/10.16
45.5/13.9 25.85/7.88 37.92/11.56
Table 2:
Image sizes for short throw lens (1.1 - 1.5:1)
Distance to
screen
(feet/m)
Minimum
Diagonal
(feet/m)
Maximum
Diagonal
(feet/m)
2/0.6 1.67/0.51 2.27/0.69
5/1.5 4.17/1.27 5.68/1.73
10/3.0 8.33/2.54 11.36/3.46
15/4.6 12.5/3.81 17.05/5.20
20/6.1 16.67/5.08 22.73/6.93
25/7.6 20.83/6.35 28.41/8.66
30.5/9.3 25.42/7.75 34.66/10.56
Table 3:
Image sizes for fixed focus short throw lens (0.8:1)
Distance to
screen
(feet/m)
Diagonal
(feet/m)
3/0.9 4.69/1.43
5/1.5 7.81/2.38
10/3 15.63/4.76
12/3.7 18.75/5.72
Table 2:
Image sizes for short throw lens (1.1 - 1.5:1)
Distance to
screen
(feet/m)
Minimum
Diagonal
(feet/m)
Maximum
Diagonal
(feet/m)
45
The image offset range for the long throw lens is 10:1 (100%) to 1:1 (50%).
Table 4:
Image sizes for long throw lens (2.2 - 4.1:1)
Distance to
screen
(feet/m)
Minimum
Diagonal
(feet/m)
Maximum
Diagonal
(feet/m)
4.2/1.3 1.28/0.39 2.39/0.73
10/3.0 3.05/0.93 5.68/1.73
15/4.6 4.57/1.39 8.52/2.6
20/6.1 6.1/1.86 11.36/3.46
25/7.6 7.62/2.32 14.2/4.33
30/9.1 9.15/2.79 17.05/5.2
35/10.7 10.67/3.25 19.89/6.06
40/12.2 12.2/3.72 22.73/6.93
45/13.7 13.72/4.18 25.57/7.79
50/15.2 15.24/4.65 28.42/8.66
55/16.8 16.77/5.11 31.25/9.53
60/18.3 18.29/5.58 34.09/10.39
65/19.8 19.82/6.04 36.93/11.26
70/21.3 21.34/6.5 39.77/12.12
75/22.9 22.87/6.97 42.61/12.99
80/24.4 24.39/7.43 45.45/13.85
83/25.4 25.37/7.73 47.27/14.41
Table 5:
Image sizes for super long throw lens 3.9 - 7.3:1)
Distance to
screen
(feet/m)
Minimum
Diagonal
(feet/m)
Maximum
Diagonal
(feet/m)
7.5/2.3 1.28/0.39 2.4/0.73
10/3 1.71/0.52 3.21/.98
15/4.6 2.57/0.78 4.81/1.47
20/6.1 3.42/1.04 6.41/1.95
25/7.6 4.28/1.3 8.01/2.44
30/9.1 5.14/1.57 9.62/2.93
35/10.7 5.99/1.83 11.22/3.42
40/12.2 6.85/2.09 12.82/3.91
45/13.7 7.71/2.35 14.42/4.4
50/15.2 8.56/2.61 16.03/4.88
55/16.8 9.42/2.87 17.63/5.37
60/18.3 10.27/3.13 19.23/5.86
65/19.8 11.13/3.39 20.83/6.35
70/21.3 11.99/3.65 22.44/6.84
75/22.9 12.84/3.91 24.04/7.33
80/24.4 13.7/4.18 25.64/7.82
85/25.9 14.55/4.44 27.24/8.3
90/27.4 15.41/4.7 28.85/8.79
95/29 16.27/4.96 30.45/9.28
100/30.5 17.12/5.22 32.05/9.07
105/32 17.98/5.48 33.65/10.26
110/33.5 18.84/5.74 35.26/10.75
115/35.1 19.69/6 36.86/11.23
46
The image offset range for the super throw lens is 10:1 (100%) to 1:1 (50%).
NOTE: Visit our website for an interactive image size calculator.
120/36.6 20.55/6.26 38.46/11.72
125/38.1 21.4/6.52 40.06/12.21
130/39.6 22.26/6.78 41.67/12.7
135/41.1 23.12/7.05 43.27/13.19
140/42.7 23.97/7.31 44.87/13.68
146.5/44.7 25.09/7,65 46.96/14.31
Table 5:
Image sizes for super long throw lens 3.9 - 7.3:1)
Distance to
screen
(feet/m)
Minimum
Diagonal
(feet/m)
Maximum
Diagonal
(feet/m)
47
LED Behavior
LED color/behavior Meaning
Power: blinking green
Te m p : N / A
Lamp: N/A
The power switch has been toggled
on and the software is initializing, or
the projector is powering down and
the fans are running to cool the lamp.
Power: blinking green (once)
Te m p : N / A
Lamp: N/A
Power Save or Screen Save.
Power: solid green
Te m p : N / A
Lamp: N/A
The power switch has been toggled
on and the software has initialized or
the projector has been powered off
via the remote.
Power: solid green
Temp: blinking red
Lamp: blinking red
If Temp and Lamp are flashing simultaneously, the filter hasn’t been cleaned
in 100 hrs.
If Temp and Lamp are flashing simultaneously (twice), the cooling air filter
may be dusty. Please see “Cleaning
the dust filter” on page 43.
If Temp and Lamp are flashing alternately, the projector is below temperature specifications. Please use the
projector in an environment between
0
°C/32°F to 35°C/95°F. C on t a ct
Technical Support if the problem persists.
Power : solid red
Te m p : N / A
Lamp: blinking red
Lamp won’t strike (blinks one time)
Lamp has exceeded lamp hours limit
(blinks two times)
Lamp has failed (blinks three times)
Lamp door is open (blinks four times)
Turn off the projector and wait one
minute, then turn the projector on
again. If the projector has exceeded
its lamp life limit, replace the lamp
and reset the lamp timer. Please contact Technical Support if the problem
persists.
Power : solid red
Temp: blinking red
Lamp: N/A
Fan failure. Make sure the vents aren’t
blocked. Contact Technical Support if
the problem persists.
Power : solid red
Te m p : s o l id r e d
Lamp: N/A
The projector is overheating. Contact
Technical Support if the problem persists.
Power : solid red
Te m p : N / A
Lamp: N/A
Unidentified error. Please contact
Technical Support.
48
RS-232 commands
Communication Configuration
Visit our website for additional RS-232 settings and information.
To control this projector via RS-232, connect a null modem cable and set the
control system serial port settings to match the following communication
configuration:
Command Format
All commands consist of 3 alpha characters followed by a request, all
enclosed in parentheses. The request can be a read request (indicated by a
"?") or a write request (indicated by 1 to 4 ASCII digits).
A read request example:
(AAA?) where
( starts the command
AAA denotes the command
? denotes the read request
) ends the command
A read command returns the range and the current setting, for example:
A write request example:
(AAA####) where
(starts the command
AAA denotes the command
#### denotes the value to be written
(leading zeros not necessary)
) ends the command
Some commands have ranges, while others are absolute. If a number greater
than the maximum range is received, it is automatically set to the maximum
number for that function. If a command is received that is not understood, a
"?" is returned. With absolute settings, "0" is off, 1-9999 is on. The one exception is the Power command, where 0 is off and 1 is on.
To assure the projector can process a command, wait 3 seconds before entering the next command.
RS-232 Port Settings
Setting Value
Bits per second 19,200
Data bits 8
Parity None
Stop bits 1
Flow control None
Emulation VT100
Read Command Examples
Function Command Response
Brightness (BRT?) (96-160,128)
Volume (VOL?) (0-32, 0)
Lamp Hours (LMP?) (0-65534, 42)
49
Error Conditions
Not all commands are supported for all projectors. If an unsupported command is issued, the command will be ignored. If a command is received that
is not understood, a ‘?’ character will be returned indicating the command
was not understood.
Limitations
The projector cannot respond to commands coming in at a high-rate. Therefore, a delay must occur between commands to ensure that the command
gets properly executed. To assure the projector can process a command,
wait 3 seconds before entering the next command.
The Step column refers to increasing or decreasing the menu bar position
since the On-screen Display is not an exact match of values. For example,
Step 2 changes the data by 2 through the CLI (Command Line Interface).
The menu bar is up (or down) by 1.
Write Command Examples
Function Command Response
Brightness (BRT140) Sets the brightness to 140
Power (PWR0) Turns power off
Power (PWR1) Turns power on
Function
Command
Min Max
Default
Step
Auto Power
0: disable
1: enable
APO at RW 0 1 0
Aspect Ratio
0: Native
1: 16:9
2: 4:3
ARZ at RW 0 2 2
Auto Source
0: disable
1: enable
ASC at RW 0 1 1
Balance BAL at RW 0 100 50 1
Blue Gain BCG at RW 0 100 50 2
Brightness BRT at RW 96 160 128 1
Blank Screen
0: black
1: blue
2: white
BSC at RW 0 2 1
Blank
0: off
1: on
BLK at W 0 1 -1
Ceiling
0: disable
1: enable
CEL at RW 0 1 0
Color CLR at RW 65 191 128 1
50
Function
Command
Min Max
Default
Step
Contrast CON at RW 96 160 128 1
Color Space
0: RGB
1: SMPTE240
2: REC709
3: REC601
7: Auto
CSM at RW 0 7 7
Green Gain GCG at RW 0 100 50 2
Vertical Keystone DKC at RW 78 178 128 1
Horizontal Keystone DKH at RW 78 178 128 1
Display Messages
0: disable
1: enable
DMG at RW01 11
Power-up Source
0: computer 1
1: computer 2
2: video 1
3: video 2
4: video 3
5: computer 3
DSC at RW 0 5 0
Startup Logo
0: blank screen
1: default
2: captured
DSU at RW 0 2 1
Function
Command
Min Max
Default
Step
Effect
0: blank
1: mute
2: aspect ratio
3: source
4: auto image
5: freeze
6: zoom
7: PiP Source
EFK at RW08 71
Horizontal Position HPS at RW def:
-50
def: +50 auto 1
Language
0 = English
1 = French
2 = German
3 = Spanish
4 = Traditional Chinese
5 = Japanese
6 = Korean
7 = Portuguese
8 = Russian
9 = Norwegian
10 = Simplified Chinese
11 = Italian
LAN at RW 0 11 0 1
Time In Hours Last
Bulb1 Lasted
LB1 at R 0 32766 0
Time In Hours Last
Bulb2 Lasted
LB2 at R 0 32766 0
51
Function
Command
Min Max
Default
Step
Time In Hours Last
Bulb3 Lasted
LB3 at R 0 32766 0
Lamp Lit
0: not lit
1: lit
LML at R 0 1
Lamp Hours LMP at R 0 65534 0 1
Lamp Reset
0: not reset
1: reset
LMR at RW 0 32766 0
Lamp Total On Time
(All Bulbs)
LMT at R 0 214748
3646
Low Power
0: disable
1: enable
LPE at RW 0 1 0
Menu
0: disable
1: enable
MNU at RW 0 1 0
Phase MSS at RW 0 31 18 1
Mute
0: disable
1: enable
MTE at RW 0 1 0
Tracking MTS at RW def:
-128
def:
+128
auto 1
Function
Command
Min Max
Default
Step
Menu Navigation
0: up
1: down
4: select
NAV at W 0 4 -1
NND
0: disable
1: enable
NND at RW 0 1 1
Unit Total Time On ONL at R 0 214748
3646
0
Overscan
0: disable
1: enable
OVS at RW 0 1 0
Presets
0: presentation
1: photography
2: film
3: video
10: user 1
11: user 2
12: user 3
PST at RW 0 12 c: 0
v: 3
Power Save
0: disable
1: enable
PSV at RW 0 1 0
Power
0: disable
1: enable
PWR at RW 0 1 0
Red Gain at RW RCG at RW 0 100 50 2
52
Function
Command
Min Max
Default
Step
Rear
0: disable
1: enable
REA at RW 0 1 0
Factory Reset
0: not reset
1: reset
RST at W 0 1 -1
Sharpness
5 = Sharpest
6 = Sharper
7 = Standard
8 = Softer
9 = Softest
SHP at RW 126 130 128 1
Source
0: computer1
1: computer2
2: video 1
3: video 2
4: video 3
5: computer 3
SRC at RW 0 5 0
Screen Save
0: 5 minutes
1: 10 minutes
2: 15 minutes
3: 20 minutes
4: 25 minutes
5: 30 minutes
SSV at RW05 01
Function
Command
Min Max
Default
Step
Color Temp
0: 9300K
1: 6500K
2: 7200K
3: User
TMP at RW 0 3 2
Tint TNT at RW 114 142 128 1
Volu m e VO L a t RW 0 3 2 1 6 1
Vertical Position VPS at RW 0 def:
auto x 2
auto 1
Video Standard
0: Auto
1: NTSC
2: PAL
3: SECAM
VSU at RW 0 3 0
IR Receiver front
0: disable
1: enable
IRF at RW 0 1 1
IR Receiver rear
0: disable
1: enable
IRR at RW 0 1 1
IR Receiver top
0: disable
1: enable
IRT at RW 0 1 1
53
Function
Command
Min Max
Default
Step
PiP Size Selection
0: off
1: small
2: medium
3: large
PSS at RW 0 3 0
PiP Input
3: video 2
1: video 3
PIN at RW 3 4 3
PiP Position
0: upper left
1: upper right
2: lower left
3: lower right
10: user
PPO at RW 0 4 2
54
Numerics
1024x768 resolution 6
A
About 38
Aspect Ratio 38
audio 29
Audio In connector 9, 15
Auto Image 38
Auto Power 36
Autosource 36
B
Blank 38
BNC 10, 16
BNC connectors 16
Brightness 14
C
Capture Position 37
Capture Start 37
changing the lens 40
cleaning the dust filter 43
cleaning the lens 40
Color 18
colors are incorrect 24
component cable connector 15
computer 10
computer connections
optional 9
required 9
computer image
optimize 30
troubleshooting 20
connector panel 7
contacting InFocus 26
Contrast 14, 18
custom logo
startup screen 37
customer service contact information 26
D
Default gateway 39
DHCP 39
Display Messages 36
displaying
computer image 11
PiP 38
video image 17
Drivers 12
USB 13
Windows 98 13
dust filter, cleaning 43
E
Effect Key 38
elevator foot 14, 17
F
Factory Reset 39
Filter Reset 39
first time use
driver installation 12
focus 14, 18
Freeze 38
fuzzy image 22
I
display computer 11
display video 17
size 8
image does not fit screen 23
image not centered 26
image not sharp 23
image not square 23
image reversed 24
image size matrix 44
image upside down 24
55
Info
network 39
IP Address 39
IR Receivers 36
L
lamp replacement 41
Lamp Reset 39
lamp won’t turn on 25
Language 39
laptop
connecting 9
external video port 11
LED 19
blinking red 25
solid red 25
lens
changing 40
cleaning 40
Logo Capture 37
Low Power 36
M
Magnify 38
Main menu 32
menu system 32
Monitor connector 10
mouse, using your 9
Mute 38
N
Network 39
Network connector 10
Network Info 39
NND 36
no computer image 21
no startup screen 20
O
only startup screen appears 20
Overscan 35
P
Picture in Picture 38
Picture menu 33
PiP 38
Power button 17
power cable 9, 15
Power Save 36
Power-up Source 36
presentation features 30
projection distance 8
projector
connector panel 7
customizing 31
positioning 8
setting up 8
shutdown 19
troubleshooting problems 19
projector height 14, 17
projector positioning 14, 17
R
Rear 36
remote 9
remote control 28
not working 22
replacing the lamp 41
RS-232
cable 10
connecting 7
56
S
security lock 43
Serial connection 10
serial connection 7
Service 39
Service Code 39
Settings menu 36
shutdown
projector 19
solid red 47
Source 38
Source troubleshooting 20
Sources 36
Subnet mask 39
S-video connector 15
T
Tint 18
Troubleshooting 20
troubleshooting 19
U
USB, using your mouse 9
V
video 16
Video button 17
video connections
optional 15
standard 15
Video connector 15
video images
optimizing 31
Video Standard 35
volume adjustment 18
W
warranty 26, 57
Windows 2000 13
Windows 98 12
Windows ME, XP 13
wired 9
wired remote 9
X
XGA 6
Z
zoom 14, 18
57
Limited Warranty
InFocus Corporation (“InFocus”) warrants that the Projector (“Product”) purchased
from InFocus, an InFocus distributor, or an InFocus reseller will conform to the man-
ufacturer's specifications and be free from defects in material or workmanship for the
Warranty period provided below. InFocus does not warrant that the Product will
meet the specific requirements of the end-user customer.
If the Product, which is the subject of this Limited Warranty, is defective in material or
workmanship during the warranty period, InFocus, at its option
, will REPAIR or
REPLACE the Product.
All exchanged parts and products replaced under this Warranty will become prop-
erty of InFocus. InFocus’ sole obligation
is to supply (or pay for) all labor necessary to
repair the Product found to be defective within the Warranty period and to repair or
replace defective parts with new parts or, at the option of InFocus
, serviceable used
parts that are equivalent or superior to new parts performance.
Limited Warranty Alternatives: Subject to the Limitations, Exclusions and Dis-
claimers, InFocus Warrants as follows:
• 2 Year Parts and Labor Product Warranty - From the date of purchase, InFo-
cus warrants that the Product will conform to the manufacturers’ specifications
and be free from defects in material or workmanship for a period of two (2)
years.
• 1 Year Parts Only Accessory Warranty - From the date of purchase, InFocus
warrants that the customer replaceable and accessory products will conform to the
manufacturers’ specifications and be free from defects in material or workmanship
for a period of one (1) year.
• 90 Day/500 Hour Replacement Lamp Warranty - Lamp Products purchased
in projectors or separately as replacements after the original projector purchase is
Ninety (90) days or 500 hours, whichever comes first. During the Warranty period for the
Product, InFocus warrants that Replacement lamps, which are purchased at the time of projector purchase, will have a 90-day or 500 hour warranty, whichever comes first, from the date
the spare lamp is put into use.
WARRANTY LIMITATION AND EXCLUSION
THIS WARRANTY SETS FORTH INFOCUS’ MAXIMUM LIABILITY FOR ITS
PRODUCT. THIS WARRANTY EXTENDS ONLY TO PRODUCTS PURCHASED
FROM INFOCUS OR AN INFOCUS AUTHORIZED RESELLER. InFocus shall have
no further obligation under the foregoing Limited Warranty if the Product has been
damaged due to abuse, misuse, neglect, smoke exposure (cigarette or otherwise),
accident, unusual physical or electrical stress, unauthorized modifications (including
use of an unauthorized mount), tampering, alterations, or service other than by InFocus or its authorized agents, causes other than from ordinary use or failure to properly use the Product in the application for which said Product was intended.
This Warranty excludes Product or accessory cleaning, repair, or replacement of plas-
tics due to cosmetic damage and damage as a result of normal wear. Product repair
outside of the terms of the Limited Warranty will be on a time and materials basis.
Prolonged Product “demonstration” causes unusual Product wear and is not consid-
ered normal use under the terms of this Limited Warranty.
The Accessory Warranty covers the accessory item only and excludes normal wear.
The Lamp Product Warranty excludes expected lamp degradation.
Remanufactured Products and Software Products are exempt from the foregoing
Limited Warranty. Please refer to the appropriate Remanufactured Product Limited
Warranty or Software Product Limited Warranty for applicable Warranty informa-
tion.
DISCLAIMER OF UNSTATED WARRANTIES
THE WARRANTY PRINTED ABOVE IS THE ONLY WARRANTY APPLICABLE TO
THIS PRODUCT. ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUD-
ING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABIL-
ITY AND FITNESS FOR PARTICULAR PURPOSE ARE DISCLAIMED. THERE ARE
NO WARRANTIES THAT EXTEND BEYOND THE DESCRIPTION ON THE FACE
HEREOF AND THE FOREGOING WARRANTY SHALL NOT BE EXTENDED,
ALTERED OR VARIED EXCEPT BY WRITTEN INSTRUMENT SIGNED BY INFO-
CUS. SOME JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG
AN IMPLIED WARRANTY MAY LAST, SO SUCH LIMITATIONS MAY NOT APPLY
TO YOU.
58
Limited Warranty Period
The Limited Warranty period commences on the date of purchase by the end-user
customer for both the 2 year Product Warranty and the 1 year Accessory Warranty.
These Limited Warranty provisions shall apply only to the end-user purchaser (first
person or entity that purchased a new Product for personal or business use and not
for the purpose of distribution or resale).
To Be Eligible For Limited Warranty Coverage
Any person exercising a claim under this Limited Warranty must establish to the sat-
isfaction of InFocus both the date of purchase and that the Product was purchased
new. The sales receipt or invoice, showing the date of purchase of the Product or
Accessory is the proof of the date of purchase.
To Obtain Warranty Service
During the Limited Warranty period, to exercise this Limited Warranty, the purchaser
must first contact 1) InFocus, 2) a service facility authorized by InFocus or 3) the place
of original purchase.
InFocus Customer Service - 1-800-799-9911 or techsupport@infocus.com
For Warranty service, the purchaser will be advised to return or deliver the defective
Product freight and all fees prepaid, to an InFocus Service Center or to a service facility authorized by InFocus. When returning Product to InFocus, a Return Material
Authorization Number (RMA #) is required and must be clearly displayed on the outside of the shipping carton or a similar package affording an equal degree of protection. InFocus or the service facility authorized by InFocus will return the repaired/
replaced Product freight prepaid to the purchaser.
Products returned for Warranty service must be accompanied by a written letter that:
(i) explains the problem; (ii) provides proof of date of purchase; (iii) provides the
dealer’s name; and (iv) provides the model and serial number of the Product. Upon
request of InFocus Corporation or an InFocus authorized repair center receiving the
Product, proof of legal importation must accompany the warranty repair Product,
otherwise the Product must be returned to the place of original purchase, to the manufacturer (Purchaser must bear all tax, duty and freight), or the Purchaser must bear
charges for the warranty repair.
No repair or replacement of Product or part thereof shall extend the Limited War-
ranty period as to the entire Product. Warranty on the repair part and workmanship
shall only be effective for a period of ninety (90) days following the repair or replace-
ment of that part or the remaining period of the Product Limited Warranty whichever
is greater.
LIMITATION OF LIABILITY
IT IS UNDERSTOOD AND AGREED THAT INFOCUS’ LIABILITY WHETHER IN
CONTRACT, IN TORT, UNDER ANY WARRANTY, IN NEGLIGENCE OR OTHER-
WISE SHALL NOT EXCEED THE RETURN OF THE AMOUNT OF THE PUR-
CHASE PRICE PAID BY PURCHASER AND UNDER NO CIRCUMSTANCES
SHALL INFOCUS BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CON-
SEQUENTIAL DAMAGES OR LOST PROFITS, LOST REVENUES OR LOST SAV-
INGS. THE PRICE STATED FOR THE PRODUCTS IS A CONSIDERATION IN
LIMITING INFOCUS’ LIABILITY.
Limitation on Bringing Action - No action, regardless of form, arising out of the
agreement to purchase the product may be brought by purchaser more than one year
after the cause of action has accrued.
Governing Law - Any action, regardless of form, arising out of the agreement to
purchase the product is governed by Oregon law.
Mandatory Arbitration - Any action, regardless of form, arising out of the agree-
ment to purchase the product is subject to mandatory arbitration.
SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATION
OR EXCLUSION MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES
YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS,
DEPENDING ON JURISDICTION.
Safety Certifications UL, CUL, NOM, IRAM, GOST, C-tick
IF YOU NEED ASSISTANCE…
call InFocus Corporation Customer Service directly at 1-800-799-9911.
SUPPORT IS FREE
between 6 a.m. and 6 p.m. PST,
Monday through Friday. Support
is available in North America
after hours and weekends for a fee
at 1-888-592-6800.
Or, send us an e-mail at
techsupport@infocus.com.
IN EUROPE,
call InFocus Corporation in
The Netherlands at
(31) 20 579 2820.
IN ASIA,
call InFocus Corporation in
Singapore at (65) 6334-9005.
Many resources are available on
our website at www.proxima.com.
Here’s a sample:
•product data sheet
•technical specifications,
an interactive image size
calculator, laptop activation
commands, connector pin outs,
command line interface (CLI)
and a glossary
• online product registration
InFocus Corporation
27700B SW Parkway Avenue
Wilsonville, Oregon 97070-9215
1-800-294-6400 •503-685-8888
Fax: 503-685-8887
http://www.infocus.com
In Europe:
InFocus International B.V.
Strawinskylaan 585
1077 XX Amsterdam,The Netherlands
Phone: +31 20 579 2000
Fax: +31 20 579 2999
In Asia:
238A Thomson Road
#18-01/04 Novena Square
Singapore 307684
Telephone: (65) 6334-9005
Fax: (65) 6333-4525
DP8400x/
DP8500x
63598200_COV.qxd 7/23/03 11:24 AM Page 1
Loading...
