Liquid Crystal Projector

Model

DP5800

USER’S GUIDE

Please read this user’s guide for fast setup and use of your new projector. After reading this guide,
keep it in a safe place for future reference.

DP5800 Features

High brightness

Highly efficient optical system with a metal halide lamp
ensures high brightness.

High resolution

Three separate high-definition liquid crystal panels are
used to provide sharp, clear pictures.

Compact size and light weight for

portability
RGB output terminal
RS232C communication
Mouse emulation
Power zoom and power focus

Contents Page

Symbols Used in this Guide ...3

Safety Precautions ................. 4

Your DP5800 Projector ........... 6

Installation ..............................8

Using the Projector.................9

Projector Messages and

Indicators.................... 11

Using the Menus ..................12

Connecting to a Video

Source......................... 17

Connecting to an

RGB Signal ................. 17

Connecting to a Control

Signal ..........................20

System Setup ....................... 25

Cleaning the Air Filter...........26

Lamp Replacement ..............26

Troubleshooting .................... 27

Specifications ...................... 28

Warranty and Servicing

..................... Back cover

For Customers in the United Kingdom

THIS PRODUCT IS SUPPLIED WITH A TWO-PIN MAINS PLUG FOR USE IN MAINLAND EUROPE.
FOR USE IN THE U.K., PLEASE REFER TO THE NOTES ON THIS PAGE.

IMPORTANT FOR THE UNITED KINGDOM

The mains lead on this equipment is supplied with a moulded plug incorporating a fuse, the value of which is
indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA or BSI approved BS 1362
fuse must be used of the same rating. If the fuse cover is detachable, never use the plug with the cover omitted.
If a replacement fuse cover is required, ensure it is of the same colour as that visibe on the pin face of the plug.
Fuse covers are available from your dealer.

DO NOT cut off the mains plug from this equipment. if the plug fitted is not suitable for the power points in
your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension
lead or consult your dealer.

Should it be necessary to change the mains plugs, this must be carried out by a competent person, preferably a
qualified electrician.

If there is no alternative to cutting off the mains plug, ensure that you dispose of it immediately, having first
removed the fuse, to avoid a possible shock hazard by inadvertent connection to the mains supply.

WARNING: THIS EQUIPMENT MUST BE EARTH GROUNDED

Important:

The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow = Earth
Blue = Neutral
Brown = Live

Green & Yellow to Earth

Blue to Neutral

As these colours may notorrespond with the colured markings identifying the terminals in your plug,
proceed as follows:

1. The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is
marked with the letter E or by the earth symbol or coloured Green or Green and Yellow.

2. The wire coloured Blue must be connected to the terminal marked with the letter N or coloured
BLUE or BLACK.

Brown to Live

Fuse

Cord Clamp

3. The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured
BROWN or RED.

2

WARNING: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.

Instructions to Users:

This equipment complies with the requirements of FCC (Federal Communication Commission) Class A
equipments provided the following conditions are met.

(1) Video signal cables:

Double shielded coaxial cables (so called FCC shield cable) must be used and the outer shield must be
connected to the ground. Or, if normal coaxial cables are used, the cables must be enclosed in metal pipes
or in a similar way to reduce interference noise radiation.

(2) Power cord:

Shielded power cord must be used. The outer shield must be connected to the ground.

(3) Video inputs:

The input signal amplitude must not exceed the specified level.

Symbols Used in This Guide

Various symbols are used in this guide to help you use the product correctly and safely, and also to protect you
and others from danger and your property from being damaged.

Warning

Caution

Examples of
illustrated
marks

This symbol indicates conditions that could result in serious injury or death
if ignored.

This symbol indicates conditions that could result in injury or damage to the
equipment if ignored.

The mark indicates a Warning (or Caution).
The details of the warning (the left diagram shows the caution for an electric
shock hazard) are shown in the diagram.

The
(the left diagram shows a warning not to disassemble the unit) are shown in the
diagram or near it.

mark indicates a prohibited action. The details of the prohibited action

The
shows “Disconnect the power plug from the power outlet”) are drawn in the
diagram.

mark informs you of actions you must do. The details (the left diagram

3

Safety Precautions

Warnings

If any unusual performance occurs.

An abnormal smell or smoke may indicate the possibility

•

of fire or electric shock, etc. When any unusual
performance is observed, immediately turn off the power
switch and pull out the power plug from the power outlet.
Check that there is no smoke, etc., and then contact your
dealer to repair the unit. Do not repair it yourself .
Do not use this unit as it is after

•

trouble has occurred, such as “No
picture”,“No sound”, “Abnormal
sound”, etc. This may cause a fire,
electric shock, etc. In this case
immediately turn off the power
switch and disconnect the power
plug, then contact your dealer to
repair the unit.
If water, etc. enters inside the unit, turn off the power

•

switch of the unit first and then disconnect the power plug
and contact your dealer. If you use it as it is, it may cause
fire, electric shock, etc.

Pull out the
power plug
from the
power outlet.

Do not install this unit in an
unstable place.

Avoid placing the projector in an unstable

•

place such as weak base, inclined floor, etc.
This may cause it to drop or fall over, resulting
in injury.

Do not open the cabinet.

There are high voltage parts inside
the cabinet which may cause electric
shock. Ask your dealer to check
inside and adjust and repair the unit.

Electric
shock
hazard

Prohibition
of disassembly

Do not use the projector near water.

Do not use this unit in a kitchen,
bathroom, etc. This may cause a
fire, electric shock, etc.

Do not use
near water

Do not look directly at the lens when
the lamp is lit.

Since a strong light is used, it could damage your
vision, etc. Pay special attention if children are
present.

Do not apply any shock.

If you drop this unit or if the cabinet is broken,
turn off the power switch, disconnect the
power plug and contact your dealer. If you use
it as it is, it may cause a fire, electric
shock, etc.

Pull out the
power plug
from the
power outlet.

Do not modify this unit.

Do not modify this unit. It may cause a fire,
electric shock, etc.

Prohibition
of disassembly

Do not put a container, etc. with liquid
on this unit.

Do not put a vase, flowerpot, cosmetic
container, medicine or water or small metal
objects on this unit. If liquid spills and enter
inside the unit, it may cause a fire, electric
shock, etc.

Do not use power supplies other
than those specified.

Do not use this unit with a power voltage other
than those specified. It may cause a fire,
electric shock, etc.

Be careful in handling the power cord.

Do not scratch or damage or bend the power cord. Do not

•

put a heavy object on it, heat it or pull it. If you do, the
power cord may be damaged and it may cause a fire,
electric shock, etc.
Do not rest the projector on the power cord. The power

•

cord may be damaged and it may cause a fire, electric
shock, etc, be sure that heavy objects are not put on it.

If the cord is damaged (core wire is exposed,

•

disconnected, etc.), ask your dealer to replace
it. It may cause a fire, electric shock, etc.

Check that no dirt adheres to the power plug and fully

•

insert it without any play. If dirt adheres or the connection
is incomplete, it may cause a fire, electric shock, etc.

Do not insert any foreign object.

Do not insert a metal or flammable object

•

inside the ventilation holes or other openings.
This may cause a fire, electric shock, etc.

If foreign matter enters the case, turn the

•

power switch off and disconnect the power
plug from the power outlet and contact your
dealer. If you use as it is, it may cause a fire,
electric shock, etc. Be especially careful if
children could touch the unit.

Pull out the
power plug
from the
power outlet.

4

Cautions

Do not step on this unit or place a
heavy object on it.

Do not step on this unit. Pay special attention

•

if children are present. If you do, the unit may
fall over or may be broken causing an injury.

Do not put a heavy object on this unit. If you do, the unit

•

may fall due to its imbalance or it may drop, causing an
injury.

Do not block the ventilation holes.

If the ventilation holes are blocked, heat may
build up inside and it may cause a fire. Do not
use this unit on its side, in a poorly ventilated,
narrow place, on a carpet or bedspread or covered
with a cloth. Place this unit so that the ventilation holes
are kept 10cm or more away from the wall.

Cleaning

Be sure to pull out the power plug
from the power outlet for safety
when cleaning.

Pull out the
power plug
from the
power outlet.

Do not place this unit in a moist or
dusty place.

Do not place this unit in a moist or dusty place. It may

•

cause a fire, electric shock, etc.
Do not place this unit where it would be

•

exposed to soot or steam, near a cooking stove
or humidifier, etc. It may cause a fire, electric
shock, etc.

Set the caster stoppers.

When this unit is installed on a table with casters,
set the caster stoppers. If the table moves, it may
fall over, causing an injury.

Handle the power cord carefully.

Do not bring the power cord near a heating device. The

•

shield of the cord may melt and it may cause a fire, electric
shock, etc.
Do not insert/disconnect the power plug with

•

wet hands. It may cause an electric shock.

When the power plug is to be

•

disconnected, do not pull on the power
cord itself. The power cord may be
damaged and it may cause a fire, electric
shock, etc. Pull on the power plug.

Use of batteries.

Do not use batteries not specified for this unit.

•

Do not use new batteries mixed together with
old ones. This may cause a fire or injury due
to burst of battery or liquid leakage.

When inserting batteries in this unit, pay

•

attention to the direction of the
polarity indications and insert the batteries
correctly. If the polarities are confused, it
may cause injury or damage near the unit
due to burst batteries, liquid leakage, etc.

and

Long term without use.

When you are not going use this
unit for a long time be sure to pull
the power plug from the power
outlet and cover the lens.

Pull out the
power plug
from the
power outlet.

Clean inside the unit every 24 months.

Ask your dealer to clean inside the unit at least
once every two years. If the unit is left with
too much dust inside, it may cause a fire.

Caution when carrying it.

Cover the lens and be sure to
disconnect the power plug from
the power outlet and check that all
external connection cords are
removed before moving the
projector. If not, the cord may be
damaged and it may cause a fire,
electric shock, etc.

Pull out the
power plug
from the
power outlet.

Do not place this unit where it gets hot.

If you place the unit outdoors or in a place
exposed to direct sunlight or near a heating
device, the cabinet and parts could be affected.

Cleaning the lens.

To clean the lens, use a generally-available lens
cleaning tissue (used for cleaning cameras,
glasses, etc.). Be careful not to scratch the lens
with a hard object.

Cleaning the cabinet.

Do not use benzene, thinner, and other cleaning chemicals,

•

etc., as they may damage the plastic coating.
When a chemically-treated cloth is used, follow the

•

cautions that come with the cloth.
Do not leave a rubber or vinyl object touching the cabinet

•

for a long time. It may cause the cabinet to change in
quality or the coating to peel off.
Clean the dirt from the cabinet and operation panel by

•

dusting lightly with soft cloth, or wipe it with a cloth
moistened with detergent diluted with water. Then, wipe it
off with a dry soft cloth.

5

Your DP5800 Projector

Handle

LAMP indicator

Glows when the lamp
should be replaced.
(See page 11.)

FOCUS button

Adjusts focus.

RESET button

Resets unit to factory
settings.

MENU button

Picture adjustments.
Refer to pages 12 − 16
for details.

Speaker

ON indicator

Blinks in Standby mode.
Glows in operation mode.
(See page 11.)

lamp

power

focus

reset

menu

Remote control
sensor

STANDBY / ON
button

Power ON/OFF button.
OFF sets the unit in
Standby mode.

temp

zoom

mute

Input

TEMP Indicator

Glows when temperature
inside the projector is too
high. (See page 11.)

ZOOM buttons

Adjust picture size.

MUTE button
INPUT button

To select the input source.
Each time this button is pressed, the input source is
changed in sequence as shown below.
RGB1 RGB2 VIDEO1 VIDEO2

Cooling fan
(exhaust)

Lens Cooling fan

VIDEO input terminal

(on video-equipped models only)
S-VIDEO input terminal

Mini DIN 4pin connector

VIDEO input terminal

RCA Jack

AUDIO L/R input terminal

RCA Jack

MAIN POWER switch

Main power ON/OFF switch.

Remote control
sensor

AC IN socket

Connect the provided
power cord.

S-VIDEO VIDEO

AC SW

(intake)

LR

AUDIO

AUDIOINAUDIO

AC IN

AUDIO input
terminal

Stereo mini jack

The remote control will function within
16 feet of the projector sensor and
within 30° to both the left and right.

RGB IN

RGB input terminal

RGB input terminal

D-sub 15 pin

OUT

RGB OUT

CONTROL

RGB output
terminal

RGB output terminal

D-sub 15 pin

CONTROL terminal

D-sub 15 pin RS232

AUDIO output
terminal
(RGB/VIDEO)

Stereo mini jack

6

Your DP5800 Projector (continued)

Remote control

STANDBY / ON button

Power ON/OFF button.
OFF sets the unit in Standby mode.

ZOOM button

Adjusts picture size.

TIMER ON / OFF button

Displays or removes the TIMER menu.
When a Blank screen is displayed,
TIMER can not be set. (See page 15.)

BLANK ON / OFF button

Displays a blank screen which can be
revealed by moving the MENU STICK
SWITCH. (See page 14.)

POSITION button

Move the picture with the MENU STICK
SWITCH while pressing the POSITION
button.

RIGHT

RIGHT

RISET

RESET

STANDBY/ON

TIMER

BLANK

POSITION MUTE

INPUT

MENU

FOCUSZOOM

VOL

RGB1/2VIDEO1/2

MENU STICK SWITCH

Selects or adjusts the menu items in
Menu mode.
Works as the mouse in Play mode.

RESET / RIGHT button

Resets menu items to factory settings
when menus are open.
Works as right mouse button in
Computer mode.

MENU ON / OFF button

Displays or removes the on-screen
menus.

FOCUS button

Adjusts focus.

VOLUME button

Adjusts volume.

MUTE button

Turns the Audio off.

INPUT SELECT button

Selects the input source.

How to insert batteries

1. Remove the battery
compartment cover.

Slide the battery compartment
cover in the direction of the
arrow while pressing slightly
down on it.

Caution

• Do not use batteries not specified for this unit. Do not use
old and new batteries together. It may cause a fire, injury
due to burst of battery or liquid leakage.

• When inserting batteries, pay attention to the direction of
the
correctly. If the polarities are not correct, it may cause
injury or damage near the unit due to a battery explosion
or liquid leakage.

Cautions on use of batteries

and polarity indications and insert the batteries

2. Insert the batteries as
illustrated inside the
battery compartment.

3. Replace the cover.

Caution

• Do not drop the remote control or apply any shock to it.

• Do not let the remote control get wet and do not put it on
a wet object.

• If you are not going to use the remote control for a long
time, remove the batteries from it.

• If operation of the remote control becomes difficult,
replace the batteries.

Cautions on remote
control use

7

Installation

Projector and screen setup

Determine proper picture size and projection distance as illustrated below.

Screen

Screen (inches)

40
60

80
100
120
150
200

Top view

a (inches)

Minimum

60

89
119
149
179
224
298

Maximum

89
134
179
224
269
336
448

b (inches)

3.4

5.1

6.9

8.6

10.3

12.9

17.2

Side view

Lens center

b

a

a: Distance from the projector to the screen
b: Length from the center of the lens to the bottom

of the picture

Using the foot adjusters

Adjust the projection position using the foot adjusters at the bottom of the projector.

Front view

In = unlock
Out = lock

Foot adjuster

Viewing angle can be changed from 1° ~ 7°.

1. Lift up the projector and unlock the foot adjusters.

2. Adjust the feet to the best viewing angle, and then lock the foot adjusters.

3. To adjust the angle slightly, rotate the foot adjusters.

Caution

Do not unlock the foot adjusters unless you are supporting the projector, to avoid dropping the
projector and causing an injury.
Do not revolve the foot adjusters by force.
If the foot adjusters do not lock completely, move the foot slightly before locking.

Side view

8

Using the Projector

Projecting the picture

4

5

72

2

RIGHT

RIGHT

RISET

RESET

STANDBY/ON

4

TIMER

BLANK

1

POSITION MUTE

7

3

INPUT

1

Turn the MAIN POWER switch of the projector on. [  : ON]

•The ON indicator will glow orange.

2

Press the STANDBY/ON button.

•The ON indicator blinks (green) and then glows (green).

RGB1/2VIDEO1/2

MENU

FOCUSZOOM

VOL

5

3

Remove the lens cap.

4

Adjust the picture size using the ZOOM buttons.

5

Adjust the focus using the FOCUS buttons.

(1) Press the FOCUS button. The on-screen display shown on the right appears.
(2) Press the Focus +/- buttons until the picture is clear.

6

Turn on all connected equipment.

See pages 17-19 for the correct sequence for turning on various equipment.

7

Press the INPUT button or the INPUT SELECT (VIDEO or RGB)
button to select the source of the projected signal.

•The selected signal input source is displayed at the bottom right of the screen.
NOTE: Video 1/2 works with video capable units only.

+++FOCUS+++

RGB 1

9

Using the Projector (continued)

Turning off the power

1

2

3

1

RIGHT

RIGHT
RISET

RESET

STANDBY/ON

MENU

1

Press and hold the STANDBY/ON button for 1 second.

•The ON indicator lights up orange and the lamp turns off. About 1 minute later, the fan stops and the
indicator blinks orange.

NOTE: If you press the STANDBY/ON button for less than 1 second, the projector will not switch

to Standby mode.

2

Turn the MAIN POWER switch of the projector off. [

3

Replace the lens cap.

Caution

Do not turn off the projector’s MAIN POWER switch before pressing the STANDBY/ON
button. After the STANDBY/ON button is pressed, the fan will run for about 1 minute to cool

the projector.

: OFF]

10

Projector Messages and Indicators

On screen display

The following messages may be displayed on the screen.

Message

NO SIGNAL IS DETECTED
SYNC IS OUT OF RANGE

CHANGE THE LAMP

Check the input signal connection.
The horizontal frequency of the input signal exceeds the range of the

projector,and it cannot be displayed. Change the resolution of the input signal.
The lamp should be replaced.

Action

Indicator display

The ON indicator, LAMP indicator and TEMP indicator will light or blink in the following cases.

Action

—————————————
—————————————
—————————————
—————————————

ON indicator

LAMP indicator

TEMP indicator

Indicator status

Lights orange
Blinks green
Lights green
Blinks orange
Lights red
Blinks red
Lights red
Blinks red

Meaning

Standby mode
Warming up
Normal operation
Cooling down
Lamp cannot light
Air filter detached
Temperature inside too high
Cooling fan failure

Cool projector by power off for 20 minutes.
Check the air filter.
Check that ventilation holes are clear.
Service the projector.

The LAMP indicator will light when the lamp becomes too hot.

1. Turn off the power and let the projector cool for 20 minutes.

2. Turn the projector back on. If the LAMP indicator still glows red, contact your dealer.

11

Using the Menus

RIGHT

STANDBY/ON

RISET

MENU

3

2, 3

2

RIGHT

1

1

Press the MENU ( ) button or the MENU ON / OFF button.

•Menus are displayed on the screen.

2

Select the menu to be adjusted using the MENU ( )

menu

RESET

1

buttons or the MENU STICK SWITCH.

•The menu displayed in green is selected.

3

Select the item to be adjusted using the MENU ( )
buttons or MENU STICK SWITCH.

•The item displayed in green can be adjusted.

4

The changes take effect.

Storing your settings

Settings can be saved for the VIDEO1, VIDEO2, RGB1 and RGB2 input terminals. These adjustments are
saved after projector power is turned off.

To return to the initial settings

• Select the menu item to restore to the initial setting using the
menu buttons or menu stick switch.

• Press the RESET button.

• Select DEFAULT

• Select the item to restore to the initial setting.

• Press the RESET button a second time.

SETUP INPUT IMAGE OPT.

VOL
BRI
CON
SHA
COL
TIN

RESET ‘SETUP’

DEFAULT
CANCEL

12

Using the Menus (continued)

SET UP Menu

The SET UP menu lets you change the picture characteristics and position. The menus will be different for RGB
and video signals.

RGB signal Setup mumu

SETUP INPUT IMAGE OPT.

VOLUME
BRIGHT
CONTRAST
V.POSIT
H.POSIT
H.PHASE
H.SIZE

121

57

7

800

Item

VOLUME
BRIGHT

(BRIGHTNESS)
CONTRAST
SHARPNESS*
COLOR*
TINT*
V.POSIT

(V.POSITION)
H.POSIT

(H.POSITION)
H.PHASE
H.SIZE

VIDEO signal Setup menu (video models only)

SETUP INPUT IMAGE OPT.

VOLUME
BRIGHT
CONTRAST
SHARPNESS
COLOR
TINT

Range

Decrease Increase
Dark Bright
Lower Higher

Soft
Less
Red

Moves the picture up or down.

Moves the picture left or right.
Decreases the picture flicker.

Widens or narrows the horizontal size of picture.

Sharp
More

Green



* Video models only

NOTE: • TINT cannot be adjusted with PAL/SECAM video signal input (video models only).

• TINT, COLOR and SHARPNESS cannot be adjusted with an RGB signal input.

• V.POSIT, H.POSIT, H.PHASE and H.SIZE cannot be adjusted with a VIDEO signal input
(video models only).

13

Using the Menus (continued)

INPUT Menu

Use this menu to select an input source.

For Video inputs, you must also select a video format.

SETUP INPUT IMAGE OPT.

RGB1
RGB2
VIDEO1
VIDEO2
TEST
PATTERN

RGB1
RGB2
VIDEO1*
VIDEO2*
TEST PATTERN
SYSTEM

* Video models only.

IMAGE Menu

Item

SETUP INPUT IMAGE OPT.

RGB1
RGB2
VIDEO1
VIDEO2
TEST
PATTERN

Options

Selects the RGB 1 terminal.
Selects the RGB 2 terminal.
Selects the VIDEO 1 terminal.
Selects the VIDEO 2 terminal.
Selects the TEST PATTERN. (Start up screen).
Selects the video signal systems.

SYSTEM

AUTO
NTSC
PAL
SECAM

The IMAGE menu controls picture inversion, Size, Reveal and Blanking.

SETUP INPUT IMAGE OPT.

MIRROR
BLANK
REVEAL
DISP. SIZE
MESSAGE

SETUP INPUT IMAGE OPT.

BLANK

WHITE
BLUE
BLACK

SETUP INPUT IMAGE OPT.

SETUP INPUT IMAGE OPT.

MIRROR

REVEAL

NORMAL
H : INVERT
V : INVERT
H&V:
INVERT

FAST

MEDIUM

SLOW

14

Using the Menus (continued)

Select normal or expanded image size.

SETUP INPUT IMAGE OPT.

DISP. SIZE

Adjustment Item

MIRROR

BLANK
REVEAL

DISP. SIZE

MESSAGE

NORMAL
SMALL

Inverts the picture horizontally or vertically for ceiling or rear screen projection.

H&V: INVERT Inverts the picture horizontally and vertically.
Selects a color when a blank screen is displayed.
Selects the speed of revealing the image display. Use the menu stick switch to

reveal the image.
NORMAL : Displayed clock is same as signal source.

LARGE : Displayed clock is mach as signal source. (picture is wider)
NOTE: For XGA signals, NORMAL mode will compress the image, and some

Turn off the on-screen system messages. (FOCUS, selected source, etc.)



H : INVERT Inverts the picture horizontally.
V : INTERT Inverts the picture vertically.

lines may be missing. LARGE mode will fill the window.

SETUP INPUT IMAGE OPT.

MESSAGE

Details of adjustment

TURN ON
TURN OFF

OPT. (Options) Menu

The Option menu allows you to set options for the CONTROL port. This menu can also be used to set the Break
Timer, Display Language and Automatic Shutoff.

SETUP INPUT IMAGE OPT.

COM. SPEED
COM. BITS
TIMER
LANGUAGE
AUTO OFF

15

Using the Menus (continued)

SETUP INPUT IMAGE OPT.

COM. SPEED

(bps)

SETUP INPUT IMAGE OPT.

TIMER

SETUP INPUT IMAGE OPT.

AUTO OFF

1200
2400
4800
9600

19200

10 min.

0 min.

STOP

SETUP INPUT IMAGE OPT.

COM. BITS

SETUP INPUT IMAGE OPT.







LANGUAGE

ENGLISH
FRANCAIS
DEUTSCH
ESPANOL
ITALIANO
NORSK
NEDERLANDS

7N1
8N1

Adjustment Item

COM. SPEED

COM. BITS

TIMER
LANGUAGE
AUTO OFF

Details of adjustment

Select speed of data transmission.
Select the data format.

7N1... 7 data-bits, No parity, 1 stop bit.
8N1... 8 data-bits, No parity, 1 stop bit.

Sets the on-screen timer.
Selects a language for the on-screen menu.

(English, Francais, Deutsch, Espanol, Italiano, Norsk, Nederlands)
Set the amount of time before the power will turn off if the input

source is turned off.

16

Connecting to a Video Source

Available for video models only.

1.Input signal specifications

S-VIDEO signal
VIDEO signal

AUDIO signal

Input
Output

Luminance signal 1.0Vp-p, 75 Ω termination
Chrominance signal 0.286Vp-p (burst signal), 75 Ω termination

1.0Vp-p, 75 Ω termination
200mVrms, 20 kΩ below (MAX 3.0Vp-p)
0~200mVrms, 1k Ω

2.Signal input terminal pin-out

Chrominance signal

Ground

S VIDEO input (Mini DIN4 pin)

NOTE: Video input signal terminals have priority in the following order:

1. S-VIDEO input terminal 2. RCA jack input terminal

Luminance signal

Ground

Connecting to an RGB Signal

1.Input / output signal specifications

Video signal
Horizontal sync signal
Vertical sync signal
Composite sync signal

Audio signal

Input
Output

2.Signal input / output terminal pin-out

1

Video signal (Red)

2

Video signal (Green)

3

Video signal (Blue)

4

N.C

5

N.C

6

Ground (for R)

Analog 0.7Vp-p 75 Ω termination (Positive polarity)
TTL level (Positive/negative polarity)
TTL level (Positive/negative polarity)
TTL level
200mVrms, 20k Ω below (MAX 3.0Vp-p)
0 ∼ 200mVrms, 1k Ω

9

N.C

10

Ground

11

Ground

12

N.C

13

Horizontal/Composite sync signal

14

Vertical sync signal

7

Ground (for G)

8

Ground (for B)

15

N.C

D-sub 15 pin terminal (Female)

17

Connecting to an RGB Signal (continued)

3.Example of computer signal

Computer/Signal source

15kHz RGB

(NTSC)

VGA-1

(IBM compatible)

VGA-2

(IBM compatible)

VGA-3

(IBM compatible)

Macintosh 13 inch mode

(Apple)

VESA (72 Hz)

SVGA

(VESA 60Hz)

Resolution

H × V

—

640 × 350

640 × 400

640 × 480

640 × 480

640 × 480

800 × 600

fH

(kHz)

15.7

31.5

31.5

31.5

35.0

37.9

37.9

fV

(Hz)

60

70.1

70.1

59.9

66.7

72.8

60.3

Sync Signal

H, V composite

H, V separate
H: Positive
V: Negative

H, V separate
H: Negative
V: Positive

H, V separate
H: Negative
V: Negative

H, V separate
H: Negative
V: Negative

H, V separate
H: Negative
V: Negative

H, V separate
H: Positive
V: Positive

Interlaced /

Non-interlaced

Interlaced

Non-interlaced

Non-interlaced

Non-interlaced

Non-interlaced

Non-interlaced

Non-interlaced

Note

∗

1

SW 1 ON
SW 2 ON

SVGA

(VESA 72Hz)

Macintosh 16 inch mode

(Apple)

XGA

(VESA 60Hz)

XGA

(VESA 75Hz)

800 × 600

832 × 624

1024 × 768

1024 × 768

48.1

49.7

48.4

60.0

72.2

74.5

60.0

75.0

H, V separate
H: Positive
V: Positive

H, V separate
H: Positive
V: Positive

H, V separate
H: Negative
V: Negative

H, V separate
H: Positive
V: Positive

Non-interlaced

Non-interlaced

Non-interlaced

Non-interlaced

∗

1

SW 2 ON
SW 4 ON

NOTE: A MAC adapter is necessary to set the resolution mode. The projector is compatible

with 13inch and 16inch mode.

OFFON

654321

Sample 16inch mode adaptor

XGA images will be compressed to 800 x 600. Some lines may therefore be missing.

NOTE: Some input sources may not be displayed properly because they are not compatible

with the projector.

18

Connecting to an RGB Signal (continued)

4.Initial signal settings

The following signals are initially set. The settings may need to be changed for specific computer types.
Use the Setup menu (page 16) to adjust the settings.

DATA
HSYNC

a

c

Computer/Signal sorce

15kHz RGB

VGA-1
VGA-2
VGA-3

Mac 13inch mode

VESA (72Hz)
SVGA (60Hz)
SVGA (72Hz)

Mac 16inch mode

XGA (60Hz)

b

d

Horizontal Timing (µs)

a

9.8

5.7

5.7

5.7

5.3

5.4

5.4

3.7

5.0

4.0

b

52.7

25.2

25.2

25.2

21.2

20.5

20.0

16.0

14.5

16.0

c

4.7

3.8

3.8

3.8

2.1

1.3

3.2

2.4

1.1

2.8

d

63.6

31.8

31.8

31.8

28.6

26.7

26.4

20.8

20.1

20.4

DATA
VSYNC

XGA (75Hz)

a

c

Computer/Signal sorce

15kHz RGB

VGA-1
VGA-2
VGA-3

Mac 13inch mode

VESA (72Hz)
SVGA (60Hz)

3.6

a

19.5
62
37
35
42
31
27

12.8

b

d

Vertical Timing (µs)

b
240
350
400
480
480
480
600

1.2

c
3
2
2
2
3
3
4

16.6

d

262.5
449
449
525
525
520
628

SVGA (72Hz)

Mac 16inch mode

XGA (60Hz)
XGA (75Hz)

29
42
48
44

600
624
768
768

6
4
8
3

666
667
817
803

19

Connecting to a Control Signal

1.CONTROL terminal

Pin No

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15

.

RS232C

GND

RDP

TDP

PS/2

CLK

DATA

SEL0
SEL1

GND

+5V

Mouse

ADB

SDATA

SEL0
SEL1

GND

+5V

Serial

TDM

SEL0
SEL1

READY

GND

D-sub 15 pin terminal (Male)

Caution

Turn off the power of both the projector and computer before connecting to the CONTROL port.
Connect the computer to the CONTROL terminal of the projector using an appropriate cable.
Refer to the instruction manual for each device before connecting them through the CONTROL port.

2.Mouse emulation

(1) Turn the projector and computer off.
(2) Connect the projector and the mouse terminal of computer using an appropriate cable.
(3) Turn on the projector.
(4) Turn on the computer.
(5) Start mouse emulation mode.

If you cannot start mouse emulation, reset the computer with a soft reset or by pressing the reset switch.

NOTE: For some Notebook computers with internal pointing devices, mouse emulation will not work

without disabling the internal pointing device. Check your Notebook PC manual for the correct
procedure to disable the internal pointing device.

20

Connecting to a Control Signal (continued)

PS/2 mouse

ADB (Mac) mouse

CLK

DATA

SEL0

SEL1

GND

+5V

SDATA

SEL0

SEL1

GND

+5V

ComputerProjector

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15

1

2

3

4

5

6

7

8

9
10
11

12
13
14
15

1
2
3
4
5
6

PS/2 cable

ComputerProjector

1



2
3
4

ADB cable

DATA

GND
+5V
CLK

ADB
(POWER ON)
GND
+5V

Mini Din 6pin

6

5

4

1

2

Mini Din 4pin

4

3

2

3

1

Serial mouse

Projector

TDM

SELO

SEL1

READY

GND

Computer

1
2
3
4
5
6
7
8

9
10
11

12

13
14

15

Serial cable (option)

1
2
3
4
5
6
7
8
9

CD
RD
TD
DTR
GND

DSR
RTS
CTS
RI

D-sub 9pin

2345

1

67

8

9

21

Connecting to a Control Signal (continued)

3.Communication settings

(1) Connect the projector and computer using an RS 232C cable.
(2) Turn on the computer. After the computer is fully started, turn on the projector.
(3) Start communication.

Projector

1
2
3
4
5
6
7
8
9

GND

10

11

12

RDP

13

TDP

14
15

4.Control command codes

Control command table

Projector→Computer

RS232C cable

Computer

1

CD
RD

2

TD

3

DTR

4

GND

5
6

DSR
RTS

7

DTS

8

RI

9

D-sub 9pin

2345

1

67

Computer→Projector

8

9

Item

MOUSE
COMMUNICATE
POWER
ZOOM
FOCUS
MIRROR
INPUT
(VIDEO) SYSTEM
VOLUME
MUTE
BRIGHT
CONTRAST
COLOR
TINT
SHARPNESS

Reply code
1st 2nd data
11h 05h +1
11h 06h +1
11h 11h +1
11h 12h +1
11h 13h +1
11h 14h +1
11h 21h +1
12h 22h +2
11h 23h +1
11h 24h +1
13h 31h +3
13h 32h +3
13h 33h +3
13h 34h +3
13h 35h +3

Ask code
1st 2nd
20h 05h
20h 06h
20h 11h

———

———
20h 14h
20h 21h
20h 22h
20h 23h
20h 24h
20h 31h
20h 32h
20h 33h
20h 34h
20h 35h

Set code
1st 2nd data
31h 05h +1
31h 06h +1
31h 11h +1
31h 12h +1
31h 13h +1
31h 14h +1
31h 21h +1
32h 22h +2
31h 23h +1
31h 24h +1
33h 31h +3
33h 32h +3
33h 33h +3
33h 34h +3
33h 35h +3

Default code

1st 2nd
40h 05h
40h 06h

———
———

———
40h 14h
40h 21h
40h 22h
40h 23h
40h 24h
40h 31h
40h 32h
40h 33h
40h 34h
40h 35h

H.PHASE
H.POSIT
H.SIZE
V.POSIT
BLANK
REVEAL

13h 37h +3
14h 38h +4
14h 36h +4
14h 3Ah +4
11h 41h +1
11h 42h +1

20h 37h
20h 38h
20h 36h
20h 3Ah
20h 41h
20h 42h

33h 37h +3
34h 38h +4
34h 36h +4
34h 3Ah +4
31h 41h +1
31h 42h +1

40h 37h
40h 38h
40h 36h
40h 3Ah
40h 41h

———

22

Connecting to a Control Signal (continued)

Control data table

Item
MOUSE
COMMUNICATE

POWER
ZOOM
FOCUS
MIRROR
INPUT
VIDEO SYSTEM

VOLUME
MUTE
BRIGHT
CONTRAST
COLOR
TINT

Data code
00h=stop mouse emulation. 01 ∼ 7Fh=start mouse emulation
0Xh=8N1

1Xh=7N1
X0h=1200bps, X1h=2400bps, X2h=4800bps, X3h=9600bps, X4h=19200bps

1Eh=Power off, 1Fh=Power on
01-3Fh=Zoom +, 41-7Fh=Zoom- 01, 04 (short) ∼ 3F, 7F (long)
01-3Fh=Focus +, 41-7Fh=Focus- 01, 04 (short) ∼ 3F, 7F (long)
00h=Normal, 01h=H:Invert, 02h=V:Invert, 03h=H & V:Invert
11h=VIDEO1, 12h=VIDEO2, 21h=RGB1, 22h=RGB2
00h 00h=Auto, 00h 01h=NTSC

00h 02h=PAL, 00h 03h=SECAM
00h (min) ∼ 7Fh (max)
00h=Mute off, 01h=Mute on
00h 00h 00h (dark) ∼ 00h 00h 7Fh (brighter)
00h 00h 00h (lower) ∼ 00h 00h 7Fh (higher)
00h 00h 00h (less) ∼ 00h 00h 7Fh (more)

00h 00h 00h (red) ∼ 00h 00h 7Fh (green)
SHARPNESS
H.PHASE
H.POSIT
H.SIZE
V.POSIT
BLANK

REVEAL

00h 00h 00h (soft) ∼ 00h 00h 7Fh (sharp)

00h 00h 00h ∼ 00h 00h 1Fh

00h 00h 00h 00h (left) ∼ 00h 00h 7Fh 01h (right)

00h 00h 02h 06h (narrow) ∼ 00h 00h 1Eh 08h (wide)

00h 00h 00h 00h (up) ∼ 00h 00h 7Fh 01h (down)

0Xh=Blank off

1Xh=Blank on

bit0 0=Blue off, 1=Blue on, bit1 0=Green off, 1=Green on
bit2 0=red off, 1=Red on, bit3 0=Not change, 1=Change

X1h=Reveal down, X4h=Reveal right, X=0 (slow) ∼ 7 (fast)

NOTE: If the computer sends an undefined command code or data code the projector

may not operate properly.

Commands consist of 2 command bytes and following data bytes.
The first byte indicates the kinds of commands and the length of the command.

‘0xH’ : Error-reply Projector sends to computer.
‘1xH’ : Command reply Projector sends to computer.
‘2xH’ : Ask command Computer sends to Projector.
‘3xH’ : Set command Computer sends to Projector.
‘4xH’ : Default set command Computer sends to Projector.
‘5xH’ — ‘FxH’ : Reserved

‘x’ indicates the length of data bytes.
The second byte indicates the command code ‘yy’ as listed in the command table.
The control data table shows the data byte.

23

Connecting to a Control Signal (continued)

Procedure for checking projector status.

1. The computer sends the command ’20H’ + ‘yyH’ to the projector.

2. The projector replies with the command ‘1xH’ + ‘yyH’ + data bytes.

Procedure for setting projector status

1. The computer sends the command ‘3xH’ + ‘yyH’ + data bytes.

2. The projector changes its status.

3. The projector replies with the command ‘1xH’ + ‘yyH’ + data bytes to indicate its newstatus.

Caution

Resetting the defaults

1. The computer sends the command ’40H’ + ‘yyH’

2. The projector changes its status to the default setting.

3. The projector replies with the command ‘1xH’ + ‘yyH’ + data bytes to the computer to indicate a return to
default settings.

NOTE: If the projector sends a ‘4Dh’ before the command code, the computer will ignore the ‘4Dh’.

Sample of command error

1. The computer sends the command ‘2xH’, ‘3xH’ or ‘4xH’ + ‘yyH’ + data bytes.

2. The projector doesn’t understand this code.

3. The projector replies with the command ‘00H’ + ‘yyH’

Sample of data error

1. The computer sends the command ‘2xH’, ‘3xH’ or ‘4xH’ + ‘yyH’ + data bytes.

2. The projector doesn’t understand these data bytes.

3. The projector replies with the command ‘0xH’ + ‘yyH’ + data bytes (same as step 1).

Data bytes in step 3 are not always same as data bytes in step 1.
If the projector cannot accept the status of the step 1 data bytes, the projector will set the proper
status and reply with this new data bytes setting to the computer, or the projector will reply
with the error reply ‘0xH’ + ‘yyH’ + data bytes that are the same as those sent in step 1.

Sample of framing error

1. The projector detects a framing error.

2. The projector changes to 1200bps 7N1 if not currently set at 1200bps 7N1.

3. The projector replies with ’70H’ + ’70H’ 10 times, every 1 second.

4. When projector receives ’70H’ + ’70H’, it replies ’12H’ + ’03H’ + ’01H’ + ’00H’.

Command byte and data byte interval error

1. If the interval of bytes exceeds 500mS, the projector replies with ’70H’ + ’70H’.

2. Projector waits 1 second for a return command from the computer.

3. If there is no command from the computer, the projector treats it as a framing error.

NOTE: The interval of command bytes and data bytes must be over 1mS and under 500mS.

If it is under 1mS, it may be treated as a framing error. The interval between reply codes and other
codes must be over 40mS.

24

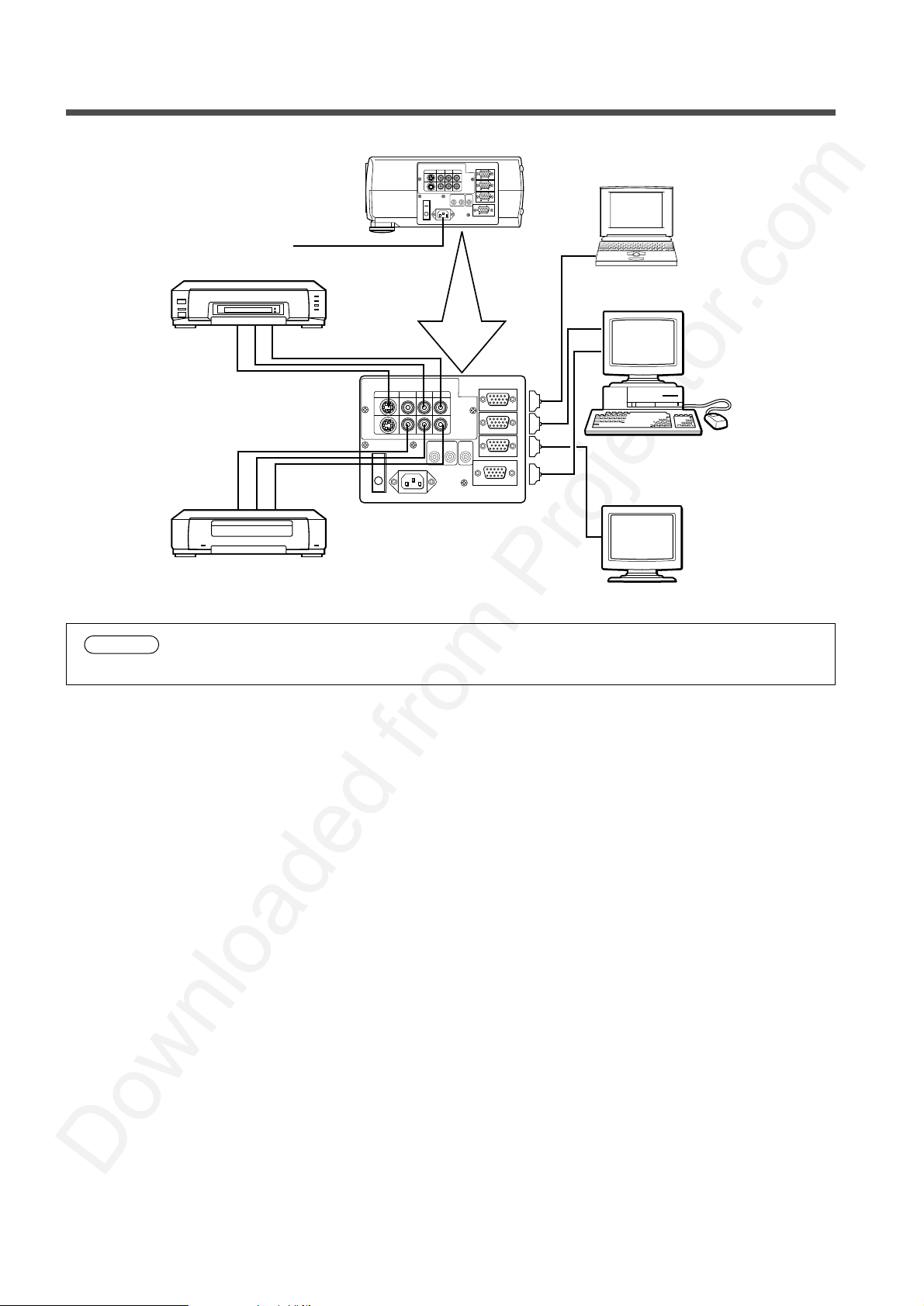

System Setup

Typical system connections:

AC Outlet

VCR with S-VHS out (video models only)

Computer (Notebook type)

Computer (Desktop type)

Caution

VCR, etc. (video models only)

CRT Display

Turn power off to all devices before connecting.
Refer to the instruction manual for each device before connecting.

25

Cleaning the air filter

Clean the air filter about every 100 hours of operation.

1

Turn off the MAIN POWER switch of the projector and pull out
the power cord.

2

Remove the air filter from the bottom.

2

3

Clean the air filter using a vacuum cleaner.

If dirt is still present, wipe the air filter with a cloth moistened with water, or use a neutral detergent and
wipe the filter dry with a dry cloth.

4

Re-install the air filter.

Caution

If the air filter is filled with dust, etc., the protection circuit will turn the projector power off.

Lamp Replacement

The estimated operating time of the lamp is approximately 700 hours. The following symptoms indicate that the
lamp should be replaced:

• A dark picture.

• “CHANGE THE LAMP” on-screen message.

• LAMP indicator glows red.

Contact your dealer for replacement lamps.

26

Troubleshooting

Check the following before asking for service.
If trouble continues, call your dealer or Proxima Technical Support.
Phone: [phone], Worldwide Web: http://www.proxima.com

Problem

Power does not turn on.

No picture or sound.

Picture is displayed with
no sound.

Sound is heard with
no picture.

Color is weak and tint is
incorrect.

Picture is dark.

Picture is not clear.
LAMP indicator glows

red.

Possible Cause

•The Main power is not turned on.

•The power cord is disconnected.

•The setting of the input source is not
correct.

•Wiring to the projector is not correct.

•Wiring to the projector is not correct.

•The volume is set to minimum.

•The unit is set in Mute mode.

•Wiring to the projector is not correct.

•The brightness is set too dark.

The color and tint have been adjusted
incorrectly.

•The brightness and contrast have been
adjusted incorrectly.

•The lamp has not been adjusted.

Focus is not correct.
Trouble with the lamp.

Action

•Turn the MAIN POWER switch on.

•Insert the power cord into an AC socket.

•Set the correct input using the input
select button of the projector or the
remote control.

•Connect the cable correctly.

•Connect the cable correctly.

•Press the VOL button.

•Press the MUTE button.

•Connect the cable correctly.

•Press the MENU button, select BRIGHT
and press the

Adjust the color and tint.

•Adjust the brightness and contrast.

•Replace the lamp with a new one.

Adjust the focus.
Turn off the power and let it rest for 20

minutes. Then, turn the power on again.

button.

Page

9
6

6, 7, 9

6, 24
6, 24

6, 7
6, 7

6, 24

12, 13

12, 13

12, 13

26

6, 7, 9
11, 26

TEMP indicator glows
red.

LAMP indicator blinks
red.

Inside of the projector is too hot.

Air filter is detached.

Check the ventilation holes.

Reseat the air filter.

11

11, 26

27

Specifications • All specifications are subject to change without notice.

Product type
Model name
Display system

Panel size

Liquid crystal
panel

Lens
Lamp
Speaker
Power supply
Power consumption
Usable temperature range
Dimensions
Weight

Input/Output
terminal

Drive system
Number of pixels

video signal input
terminal

RGB input/output
signal terminal

Liquid crystal projector
DP5800
3 sheets of liquid crystal panels, 3 primary color lights shutter system

1.3 inches
TFT active matrix
(H800 x V600) 480,000 pixels
Zoom lens F=2.3 ∼ 3.0 f=48.1 ∼ 72.1mm
Metal halide lamp 250W
2W
AC100 ∼ 120V, 5A / AC220 ∼ 240V, 2A
350W
32°F - 95°F (0°C - 35°C)

16.3″ (W) × 6.2″ (H) × 12.5″ (D), 414 mm (W) x 157 mm (H) x 317.5 mm (D)
19 lbs. (8.5 kg)
S VIDEO : Mini DIN4-pin terminal

VIDEO : RCA Jack terminal
AUDIO : RCA Jack terminal

RGB signal : D-sub 15 pin terminal (Female)
AUDIO : Stereo mini jack

Control terminal

Accessories

D-sub 15 pin shrink terminal (Male)

Remote control.............................. 1

POWER cord ................................ 1

BATTERIES AA (or R6P).............. 2

VGA cable..................................... 1

Dimension diagram

All dimensions shown in inches. (mm)

16.3″ (414 mm)

16.3(415)

1.6″ (40 mm)

MAC adaptor................................. 1

Video/Audio cable ......................... 1

RS 232C cable.............................. 1

Mouse cable.................................. 2

12.0(305)

12.5″ (317.5 mm)

10.1(260)

10.1″ (260 mm)

6.2″ (157 mm)

12.6″ (320 mm)

28

Warranty and Servicing

Please read this operating guide before calling for service.
For warranty and service claims, please contact Proxima Corporation

Proxima Corporation

Main Office Proxima Europe LTD.

9440 Carroll Park Drive St. Thomas House
San Diego, CA 92121-2298 28-32 Spittal Street
U.S.A. Marlow Bucks SL7 1DB
Phone [phone] United Kingdom
Fax [phone] Phone [phone]
http://www.proxima.com Fax [phone]

7/97 Part Number: 710-00519-1 Printed in USA

PLEASE READ

We are in no way responsible for the
contents of the manual. We do not guarantee
its accuracy and we do not make any claim
of copyright. The copyright remains the
property of their respective owners.

Visit the site to read the latest projector
news and reviews, read and comment on
projector specifications, download user
manuals and much more.
