Proxima C250W User Manual

1

Declaration of Conformity

Manufacturer: InFocus Corporation, 27500 SW Parkway Avenue, Wilsonville,
Oregon 97070 USA
European Office: Louis Armstrongweg 110

, 1311 RL Almere, The Netherlands
We declare under our sole responsibility that this projector conforms to the following
dir

ectives and norms:

EMC Directive 2004/108/EC
EMC: EN 55022

EN 55024

EN 61000-3-2
EN 61000-3-3

Low Voltage Directive 73/23/EEC, Amended by 93/68/EEC

Safety: IEC 60950-1: 1

st

Edition

September, 2007

Trademarks

Microsoft, PowerPoint, Word, Excel and Windows are trademarks or registered trade­marks of Microsoft Corporation. Adobe and Acr

obat are trademarks or registered
trademarks of Adobe Systems Incorporated. DLP® and the DLP logo are registered
trademarks of Texas Instruments and BrilliantColor™ is a trademark of Texas Instru­ments. InFocus, In Focus

, and INFOCUS (stylized) are either registered trademarks or

trademarks of InFocus Corporation in the United States and other countries.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro­vide reasonable protection against harmful in

terference when the equipment is oper­ated in a commercial environment. This equipment generates, uses, and can radiate
r

adio frequency energy and, if not installed and used in accordance with the instruc­tion manual, may cause harmful interference to radio communications. Operation of
this

equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
Changes or modifications not expressly appr

oved by InFocus Corporation may void

authority to operate the equipment.

EN 55022 Warning

This is a Class A product. In a domestic environment it may cause radio interference,
in which case the user may be required to take adequate measures. The typical use is
in a conference room, meeting room or auditorium.

Canada

This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

Agency Approvals

UL, CUL, TUV
Other specific Country Approvals may apply, plea

se see product certification label.

This user’s guide applies to models W360: I

N35, C250, IN35W, C250W, IN37, C315.

InFocus reserves the right to alter product offerings and specifications at any time.

2

Table of Contents

Introduction 3

Connecting a computer 5

Required computer connections 5
Displaying a computer image 7
Adjusting the image 8

Connecting a video device 9

Displaying a video image 10

Shutting down the projector 12

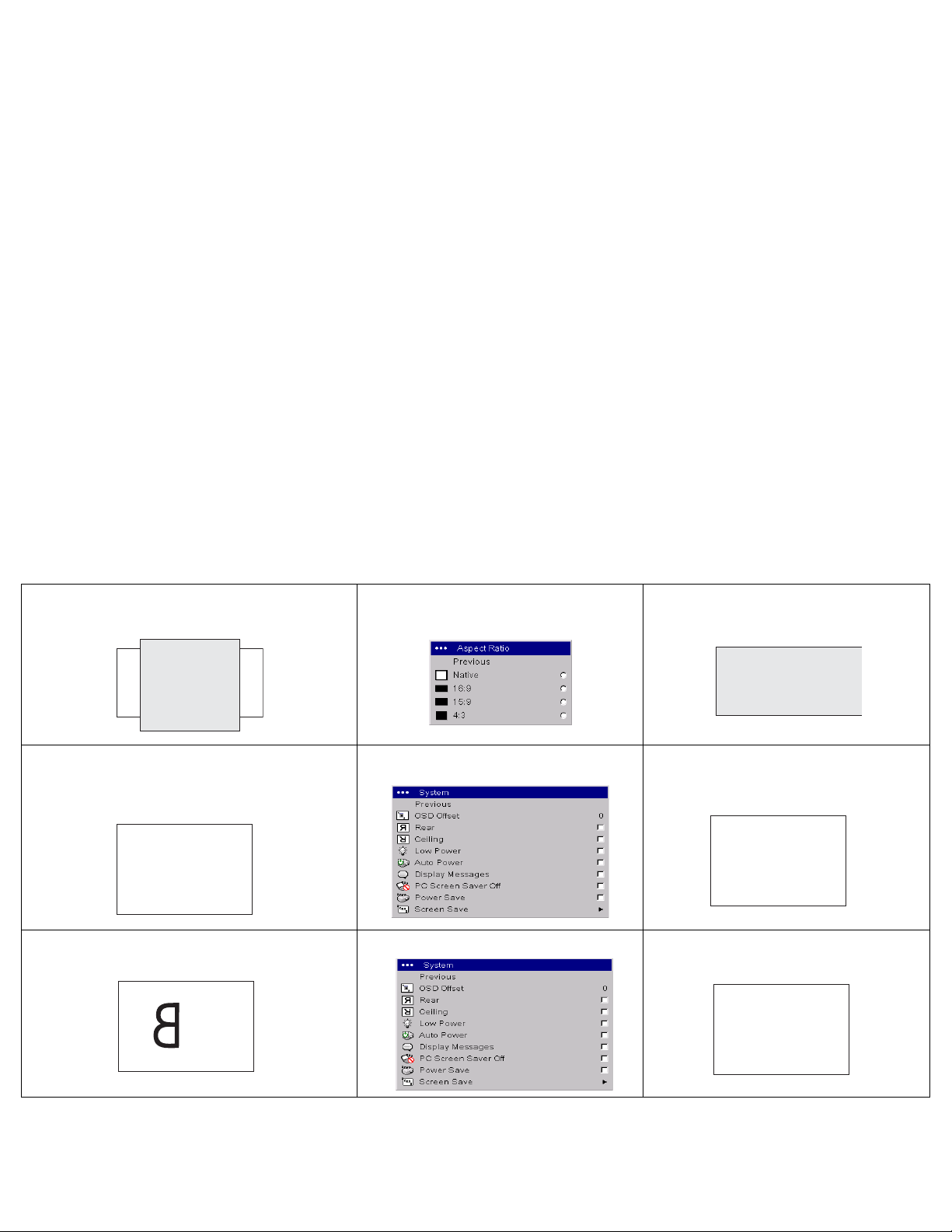

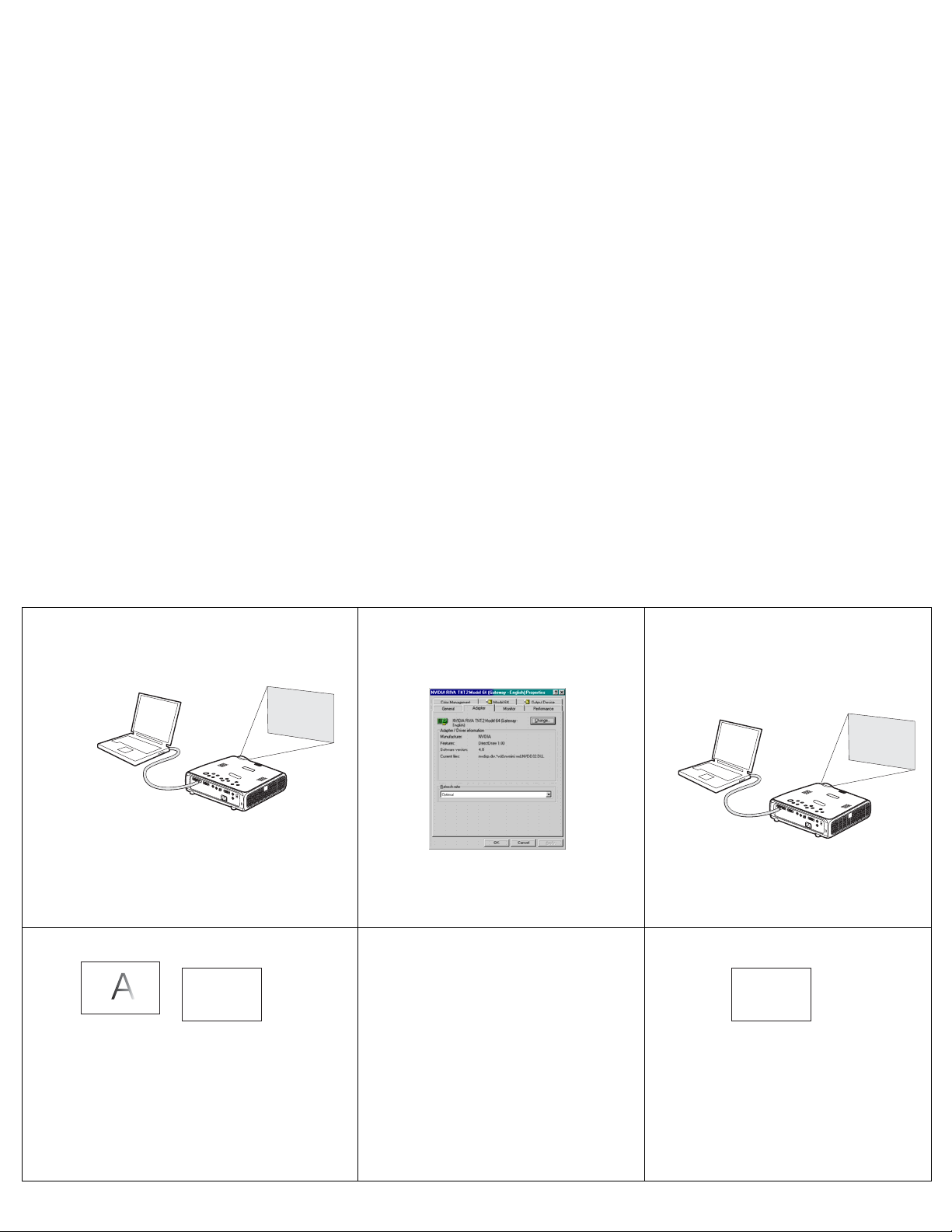

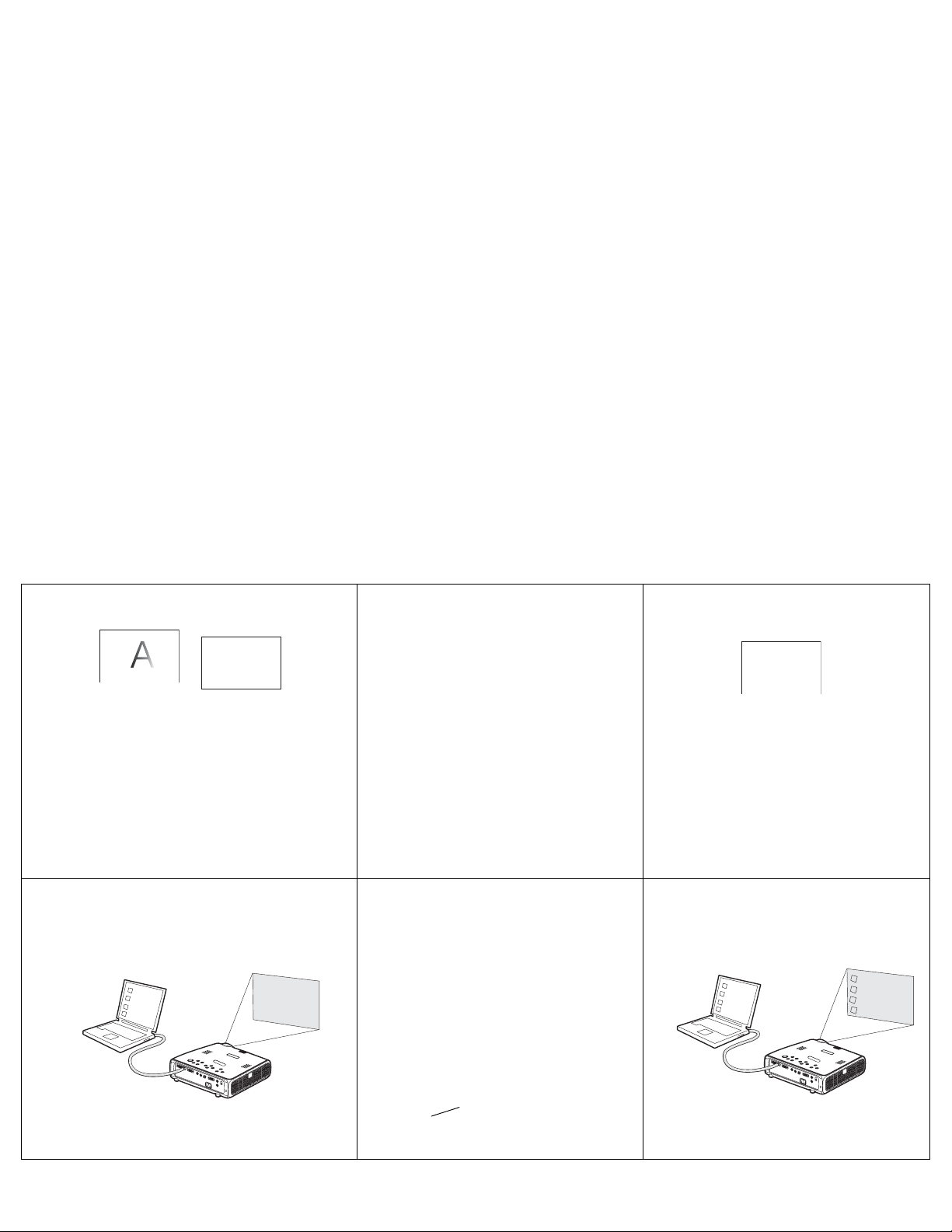

Troubleshooting your setup 12

Using the keypad buttons 20
Using the remote control 21
Using the audio 22

Optimizing computer images 23
Presentation features 23
Optimizing video images 23
Customizing the projector 23

Using the menus 24

Picture menu 25
Settings menu 28

Maintenance 32

Cleaning the lens 32
Using the security lock 32
Replacing the projection lamp 33

Appendix 35

Projected image size 35

Important Operating Considerations for Safety

• Place the projector in a horizontal po

sition no greater than 15 degrees

off axis.

• Locate the projector in a well-ventilated area without any obstructions
to intake or exhaust vents. Do not place the projector on a tablecloth or
other soft covering that may block the vents.

• Locate the projector at least 4' (1.2 m) away from any heating or cooling
vents.

• Use only InFocus-approved ceiling mounts.

• Only InFocus lamps are tested and certifi

ed for use in this projector.
InFocus is not liable for the performance, safety or certification of any
other lamps. The use of other lamps violates the projector warranty and
voids all certification marks on this projector.

• Use only the power cord provided. A surge-protected power strip is
recommended.

• Refer to this guide for proper startup and shutdown procedures.

• Warn ing: Hg – Lamp contains mercury. Manage in accordance
wi

th local disposal laws. See www.lamprecycle.org.

• In the unlikely event of a lamp rupture, particles may exit through the
projector side vents. When the projector is turned on, keep people,
food, and drinks out of the "keep out" area under and around the pro­jector, as indicated by the "X" areas below.

Follow these instructions to help ensure image quality and lamp life over
the life of the projector. Failure to follow these instructions may affect the
warranty. For complete details of the warranty, see the Warranty booklet.

2’ / 0.6 m

3’ / 1 m

5

’ /1.5m

8

’

/2.4m

3

Introduction

Your new digital projector provides computer and video inputs and deliv­ers outstanding color using BrilliantColor™ technology. The projector is
easy to connect, easy to use, and easy to maintain.
The C250 and C315 have XGA 1024x768 r

esolution while the C250W has

WXGA 1280x800 resolution.

Product specifications

To read the latest specifications on your multimedia projector, be sure to
visit our website at www.infocus.com, as specifications are subject to
change.

Accessories

The standard accessories that came with your projector are listed in the
included user’s guide. Optional accessories can be found on our website at

www.infocus.com or at your retailer or dealer.

Online Registration

Register your projector on our website at www.infocus.com/register to acti-
vate your warranty and receive produc

t updates, announcements, and reg-

istration incentives.

Projector components and features

keypad

speaker

zoom

focus

el

evator foot release

remote
control
receiver (IR)

connectors

leveling
foot

heat vent

IR receiver

IR receiver

status indicators

4

Connector Panel

The projector provides computer and video connectors:

• one M1-D/A (HD, DVI, and computer)

• one VESA (HD, HD component, and computer)

• one VESA (monitor out)

• one S-video

• one composite RCA video

• one audio in/one audio out

It also has an RJ-45 connector for serial contr

ol. The Command Line Inter-

face (CLI) specifications and commands are on our website.

Connector panel

loc

k

power
connector

M1-D/A

s-video

composite

external
speaker
(audio out)

RJ-45 serial control

video

computer

audio in

VESA in

monitor out

5

Connecting a computer

Required computer connections

Connect the black end of the computer cable to the Computer 1 connector
on the projector. Connect the blue end to the video port on your computer. If
you are using a desktop computer, you first need to disconnect the monitor
cable from the computer’s video port.
Some Macintosh® com

puters do not have a standard VESA-out video port.
If the supplied computer cable will not connect to your computer, purchase
the appropriate adapter from your Apple® reseller.

Connect the black power cable to the connector on the back of the projector
and

to your electrical outlet.

The Power light on the Sta

tus Indicator Panel (page 12) turns amber.

NOTE: Always use the

power cable that shipped with the projector.

Optional computer connections

To advance slides in a PowerPoint™ presentation using the up and down
arrow buttons on the remote, plug the USB connector on the computer cable
into the USB mouse connector on your computer.

To have sound with your presentation, connect an audio cable (sold sepa­rately) to your computer and to the Audio In connector on the projector.

connect computer cable

connect power cable

connect computer cable

connect audio cable

6

If you are using a desktop computer and want to see the image on your
computer screen as well as on the projection screen, plug the monitor cable
to the Monitor Out connector on the projector.

If you prefer connecting your projector to your computer with an optional
VESA

cable, connect one end of the cable to the VESA port on your com-

puter, and connect the other end

of the cable to the blue Computer 2 con-

nector on the projector.

You can control the projector from an LCD control panel or computer by
connecting an RS-2

32 cable to the projector’s Serial Control connector. Spe-

cific RS-232 commands can be found in the

Service and Support section of

our website.

connect monitor cable

connect VESA cable

connect RS-232 cable

7

Displaying a computer image

Remove the lens cap.

Press the Power button on the top of the projector or the remote.

The Power light on the Status Indicator Panel (page 12) blinks green and the
fans start to run. When the lamp comes on, the start up screen displays and
the Powe

r light is steady green. It can take a minute for the image to achieve

full brightness.

? No startup screen? Get help on page 13.

Turn on your computer.

The computer’s image should appear on the

projection screen. If it doesn’t,

press the Source button on the projector’s keypad.

Make sure your laptop’s external video

port is active.

Many laptops do not automatically turn o

n their external video port when a
projector is connected. Usually a key combination like FN + F8 or CRT/LCD
key turns the external display on and off. Locate a function key labeled
CRT/LCD or a function key with a monitor symbol. Press FN and the
labeled function key simultaneously. Refer to your laptop’s documenta-

tion to learn your laptop’s key combination.

? No computer image? Tr

y pres s i ng the Auto Image

button on the keypad. Get help on page 13.

remove lens c ap

press Power button

turn on computer

activate laptop’s external port

8

Adjusting the image

Adjust the height of the projector, if necessary, by pressing the release but­ton to extend the elevator foot.

Rotate the leveling foot (located at the

bottom back right corner), if neces-

sary.

Position the projector the desired distance fr

om the screen, so that the lens is

perpendicular to the screen.

See page 35 for a table listing screen sizes and distances.

Adjust the zoom or focus rings by rotating them until the desired image size
and focus are produced.

If the image is not square, adjust the vertical digital keystone by using the
buttons on the keypad. Press the upper Keysto ne button to reduce the
upper part of the image, and press the lower Keysto ne button to reduce the
lower part.
You can also adjust the keystone via the menus. See

page 25.

Adjust the Contrast or Brightness in the Picture menu.

See page 24 for help with the menus.

adjust height

rotate
leveling
foot

elevator
foot

re

l

ease button

adjust distance

adjust zoom and focus

focus

zoom

adjust keystone

adjust Contrast or Brightness

9

Connecting a video device

No video or audio cables are included with your projector.

If the video device uses a round, four-prong S-video connector, plug an
S-video cable into that connector on the video device and into the Video 2
connector on the projector. If the device uses a composite video connector,
plug a composite video cable into that connector on the video device and
into the Video 1 connector on the projector.

For audio, plug a mini-plug audio Y-cable

into the Audio in connector on

the projector and into the video device’s left and right audio out connectors.

Connect the black power cable to the connector on the back of the projector
and

to your electrical outlet.

NOTE: Always use the power cable that shipped with the projector.

To connect a progressive scan EDTV or HD source, use the Component to
M1 adapter (sold separately).

connect S-video and audio cables

connect video and audio cables

connect power cable

10

Displaying a video image

Remove the lens cap.

Press the Power button on the top of the projector or the remote.
The Power light on the Status Indicator Panel (page 12) blinks green and the
fans start to run. When the lamp comes on, the start up screen displays and
the Powe

r light is steady green. It can take a minute for the image to achieve

full brightness.

.

? No startup screen?

Get help on page 12.

Plug in and turn on the video device.

The video device’s image should appear on the projection screen. If it
doesn’t, press the Source button on the keypad.

Adjust the height of the projector by pressing the release button to extend
the elevator foot. Rotate the leveling foot, if necessary.

Position the projector the desired distance from the screen, so that the lens is
perpendicular to the screen. See page 35 for a table listing screen sizes and
distances to the screen.

remove lens cap

press Power button

turn on video device

adjust height

rotate
leveling
foot

elevator
foot

release button

adjust distance

11

Adjust the zoom or focus rings by rotating them until the desired image size
and focus are produced.

If the image is not square, adjust the vertical keystone using the buttons on
the keypad.
Press the upper Ke

yston e button to reduce the upper part of the image, and
press the lower Keystone button to reduce the lower part.
You can also adjust the keystone via the menus. See

page 25.

Adjust the volume on the keypad.

Adjust the Contrast, Brightness, Color, or Tint in the Picture menu.

See page 24 for help with the menus.

adjust zoom and focus

focus

zoom

adjust keystone

adjust volume

adjust Picture menu
