Proware Technologies Co DN523V2 Users Manual
PW-DN523
300M Mini Wireless N USB Adapter
Rev: 1.0.0
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a registered trademark of
PROWARE TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or
registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from PROWARE
TECHNOLOGIES CO., LTD. Copyright © 2010 PROWARE TECHNOLOGIES CO., LTD. All
rights reserved.
http://www.proware.com.cn
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarant ee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
FCC RF Radiation Exposure Statement:
This device has been tested for compliance with FCC RF Exposure (SAR) limits in the typical
laptop computer configuration and this device can be used in desktop or laptop computers with
side mounted PCMCIA slots. This device cannot be used with handheld PDAs (personal digital
assistants). This device and its antenna must not be co-located or operated in conjunction with
any other antenna or transmitter.
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
National restrictions
This device is intended for home and office use in all EU countries (and other countries following
the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:
Country Restriction Reason/remark
Bulgaria None
Outdoor use limited to 10
France
Italy None
Luxembourg None
Norway Implemented
Russian Federation None Only for indoor applications
mW e.i.r.p. within the band
2454-2483.5 MHz
General authorization required for outdoor use and
public service
Military Radiolocation use. Refarming of the 2.4 GHz
band has been ongoing in recent years to allow current
relaxed regulation. Full implementation planned 2012
If used outside of own premises, general authorization is
required
General authorization required for network and service
supply(not for spectrum)
This subsection does not apply for the geographical area
within a radius of 20 km from the centre of Ny-Ålesund
Note: Please don’t use the product outdoors in France.
Make sure the adapter is more than 5mm away from you when it in use.
CONTENTS
Package Contents....................................................................................................1
Chapter 1 Introduction .........................................................................................2
1.1 Overview of the Product........................................................................................ 2
1.2 Features................................................................................................................ 2
1.3 LED Status............................................................................................................ 3
Chapter 2 Installation Guide................................................................................ 4
2.1 Hardware Installation............................................................................................. 4
2.2 Software Installation..............................................................................................4
2.2.1 Overview................................................................................................4
2.2.2 Software Installation for Windows XP .................................................... 4

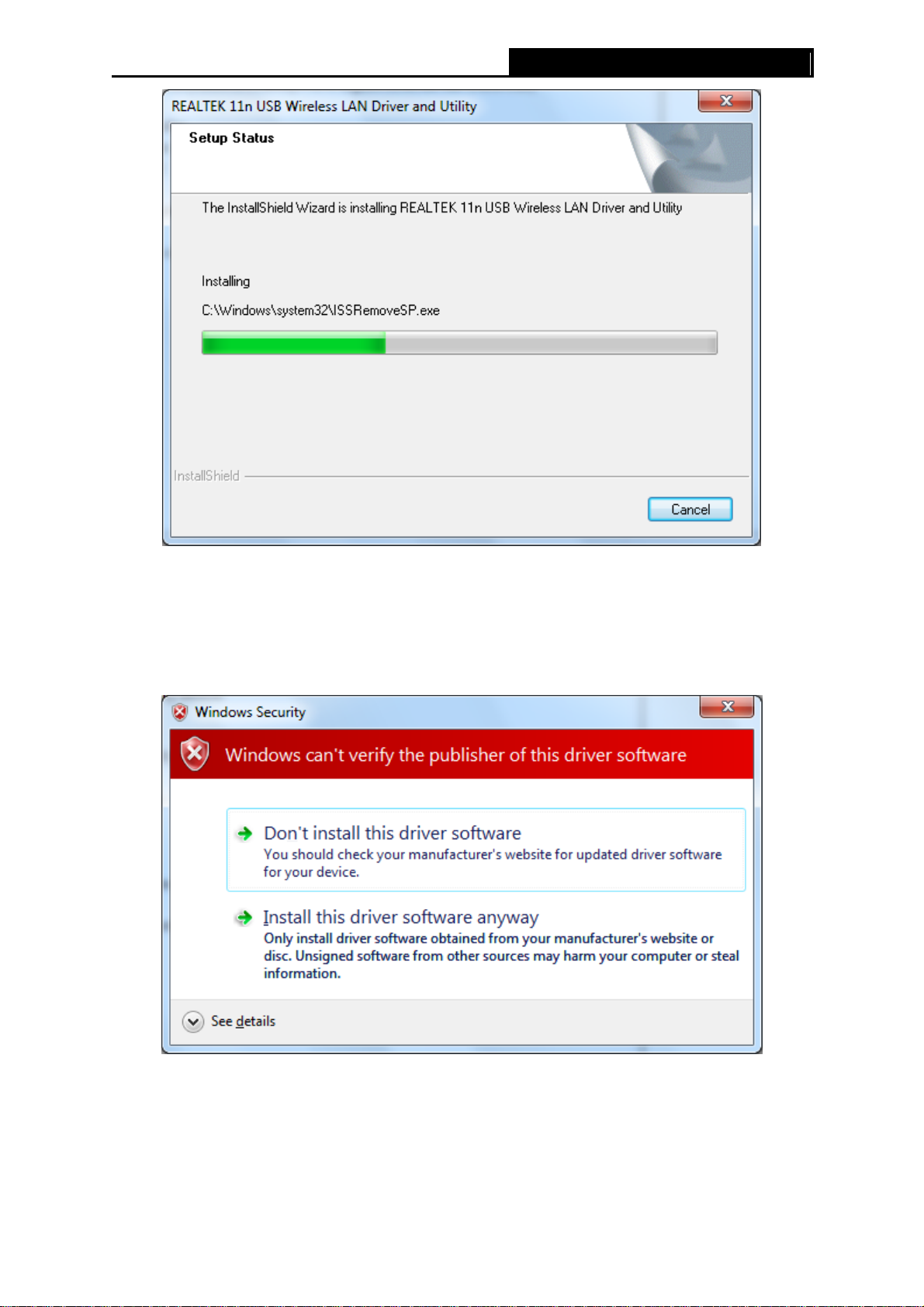

2.2.3 Software Installation for Windows Vista................................................. 8
Chapter 3 Configuration.....................................................................................13

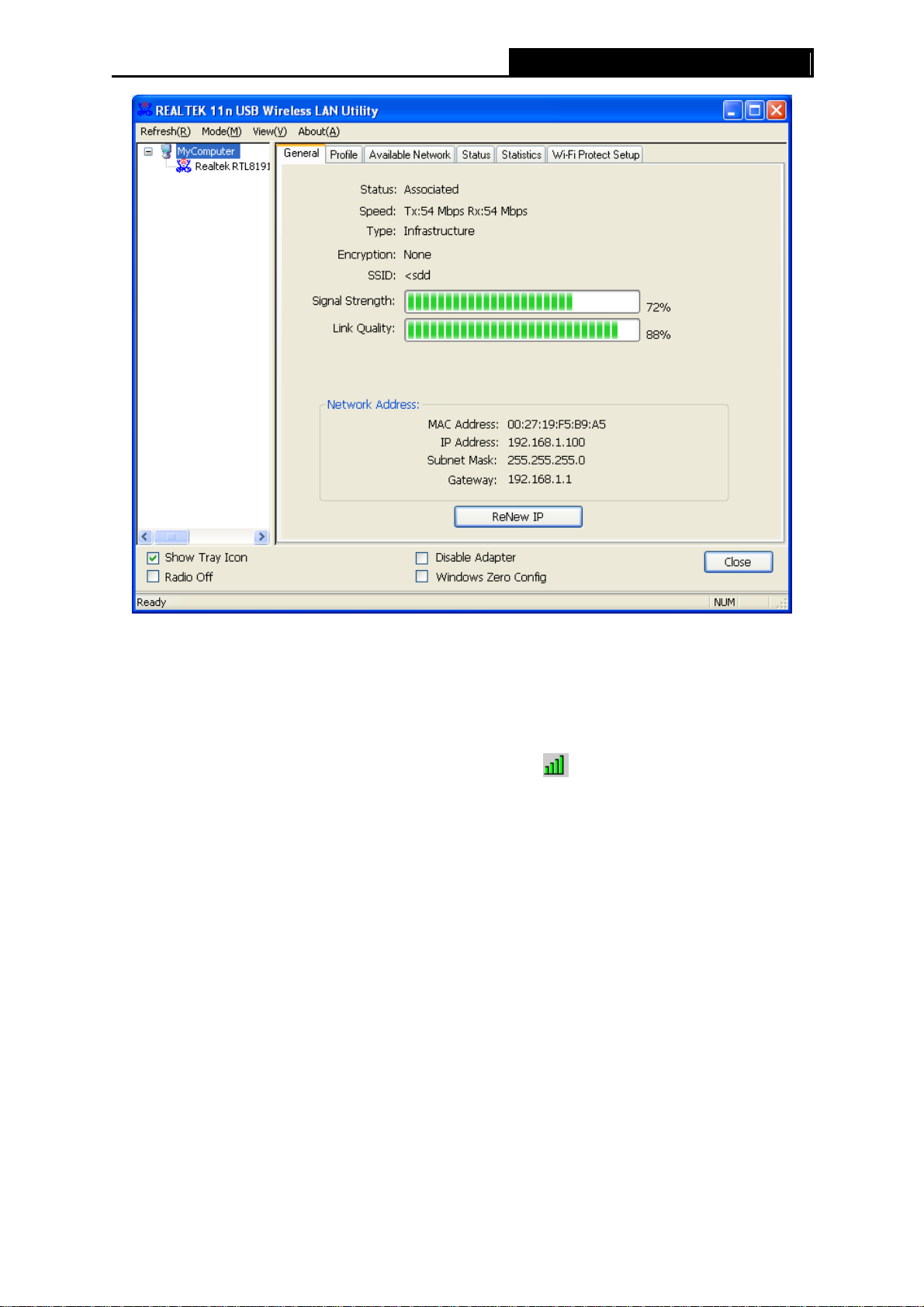

3.1 General Status .................................................................................................... 13

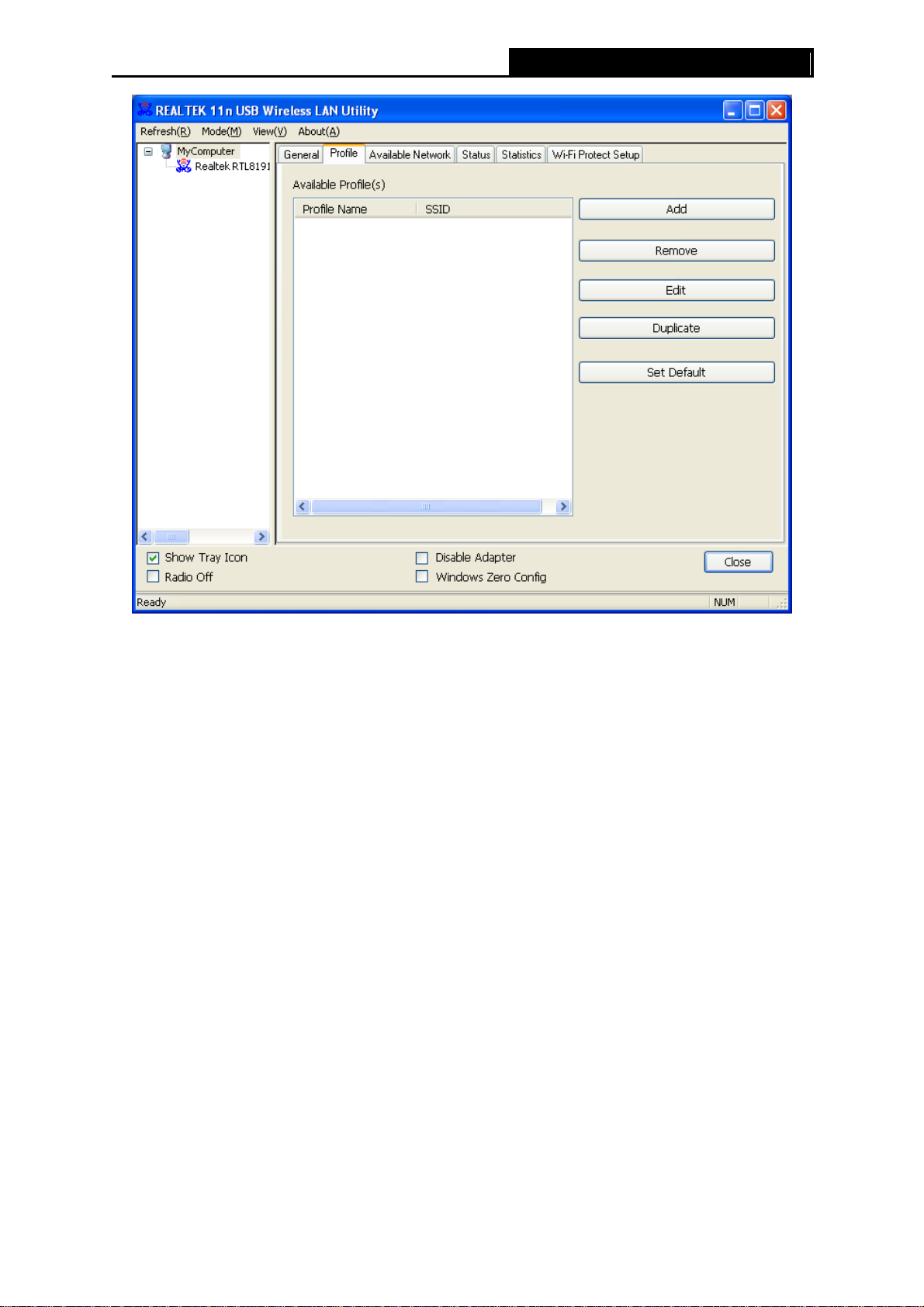

3.2 Profile Management ............................................................................................ 14

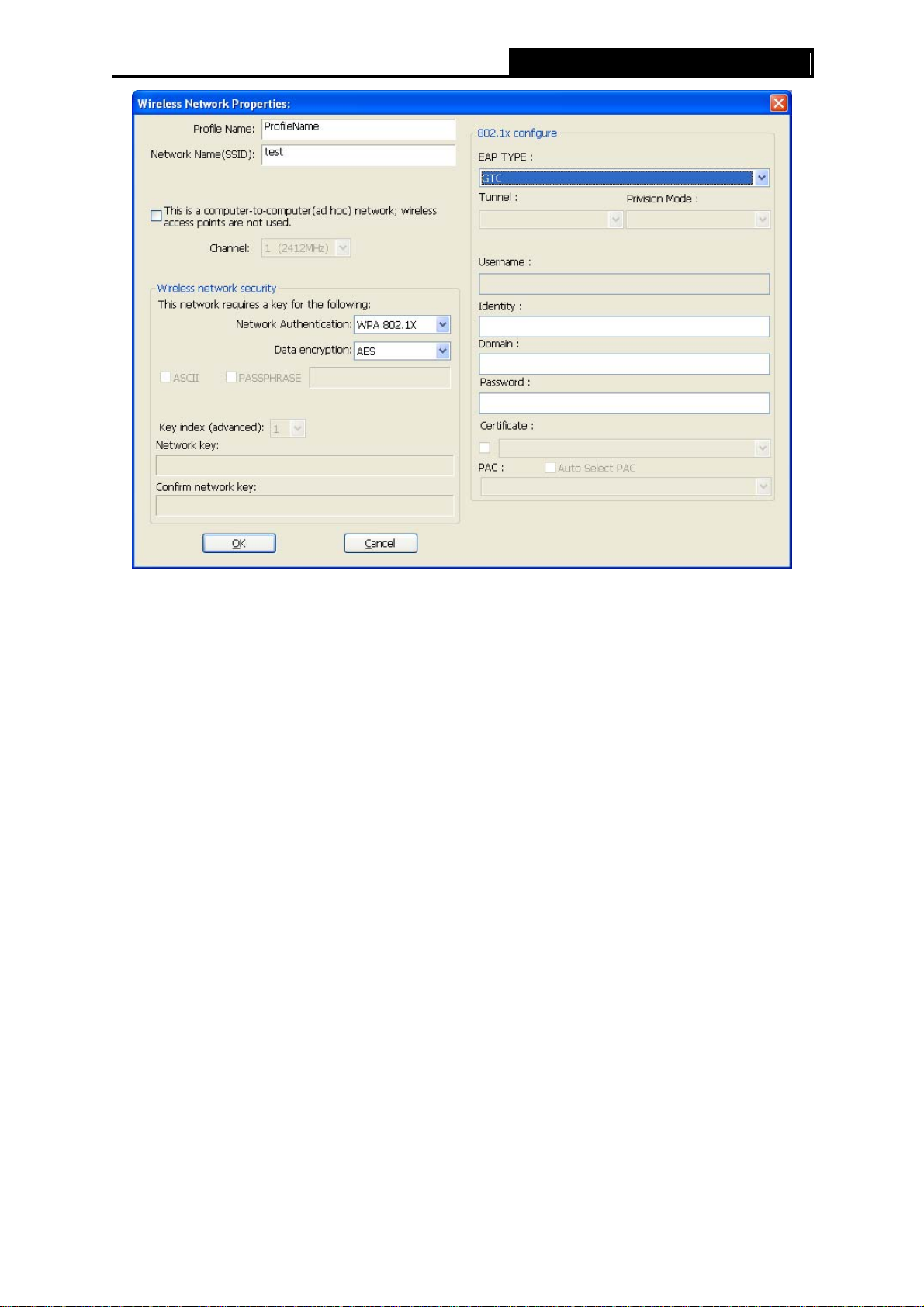

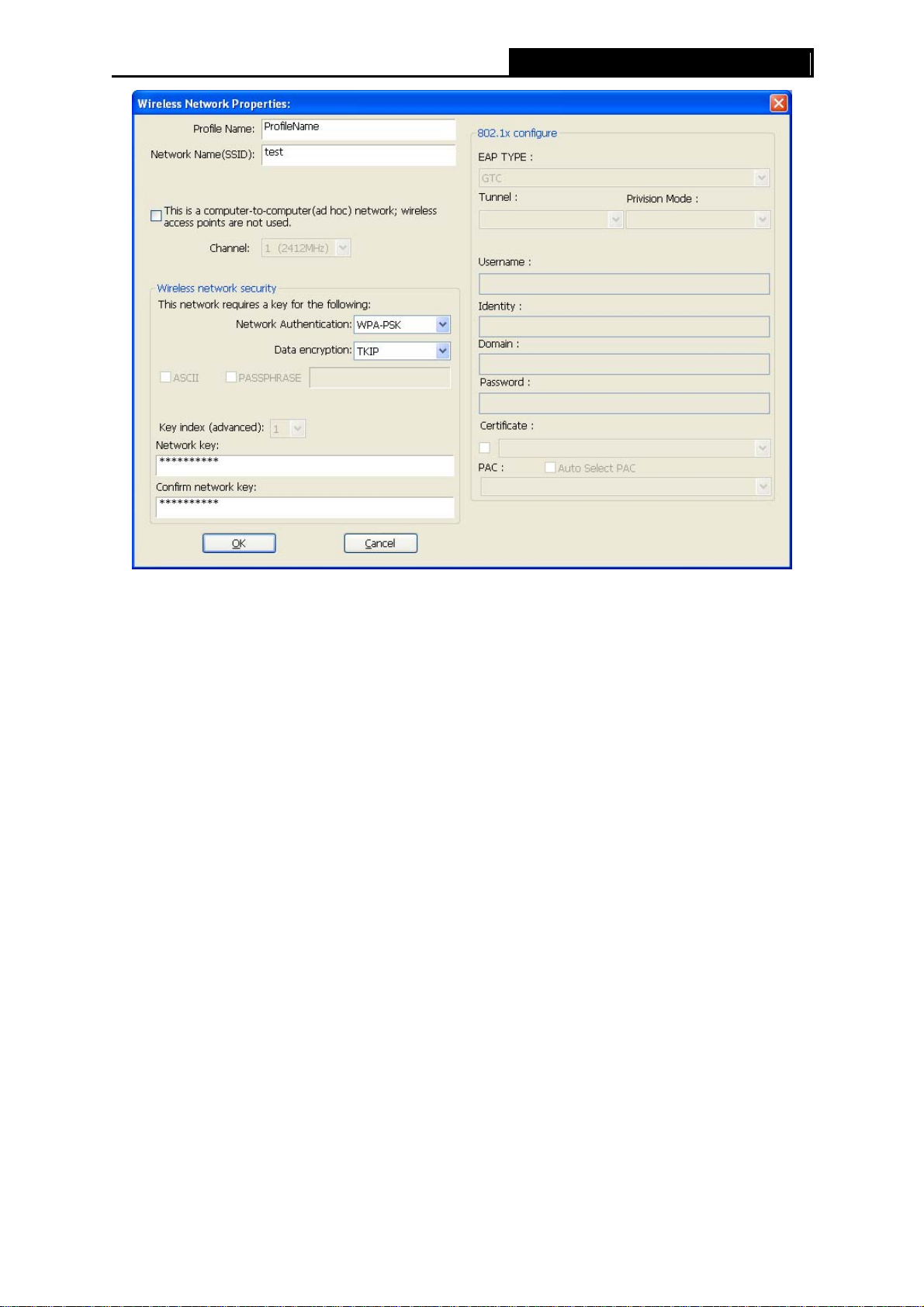

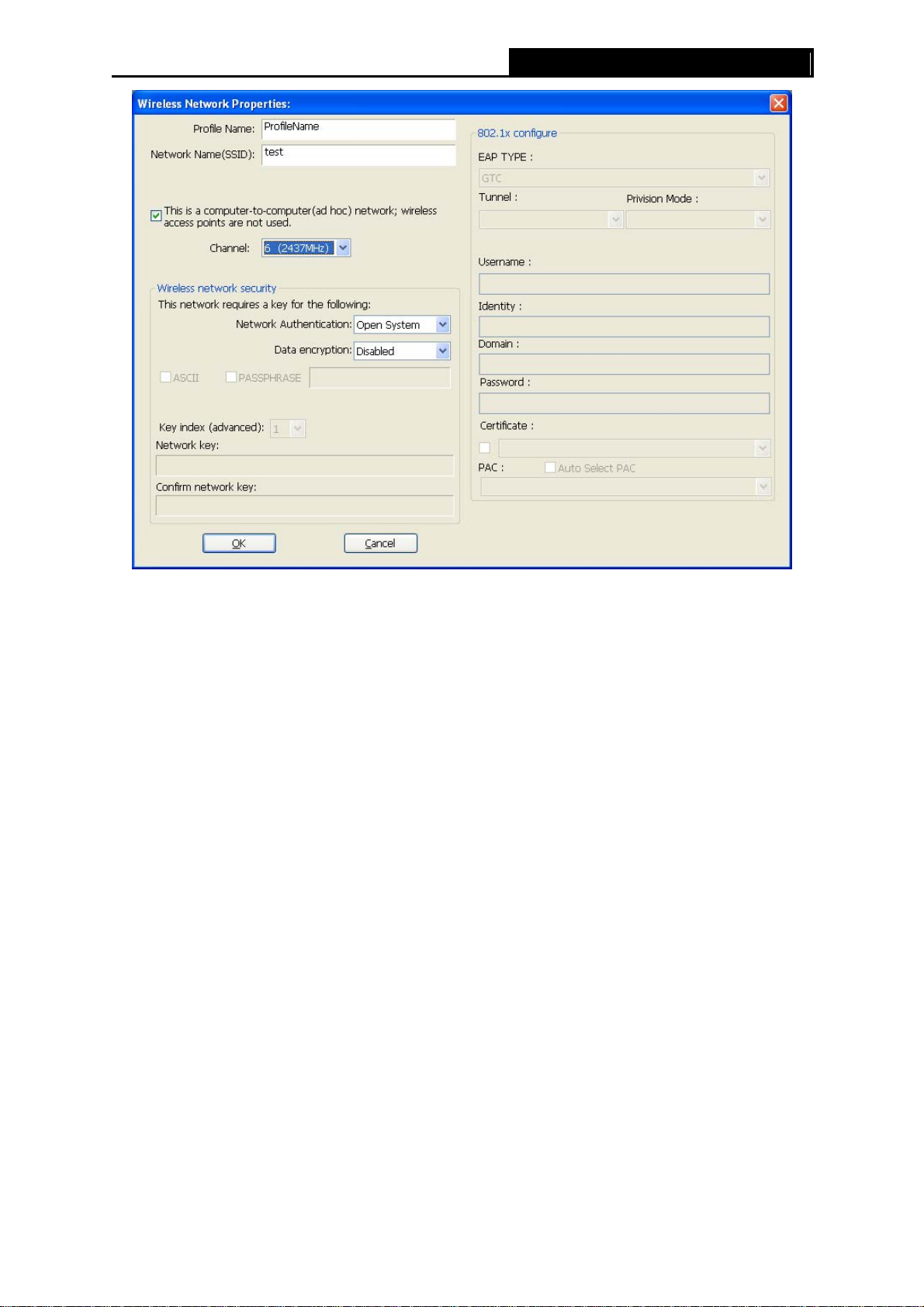

3.2.1 Add or Edit a Configuration Profile....................................................... 15
3.2.2 Remove a configuration profile............................................................. 20
3.2.3 Duplicate a configuration file................................................................ 21

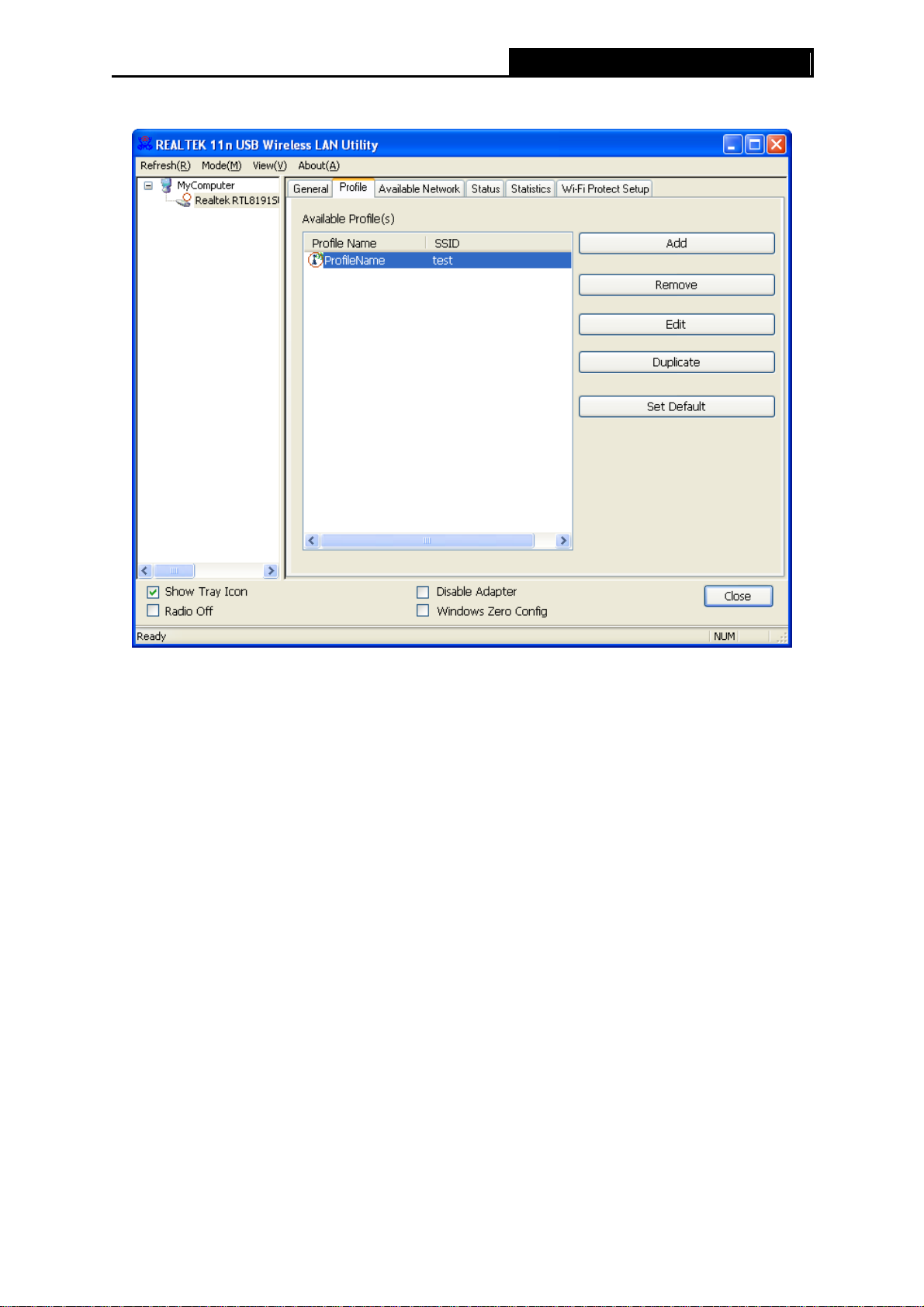

3.2.4 Set default configuration profile............................................................ 21

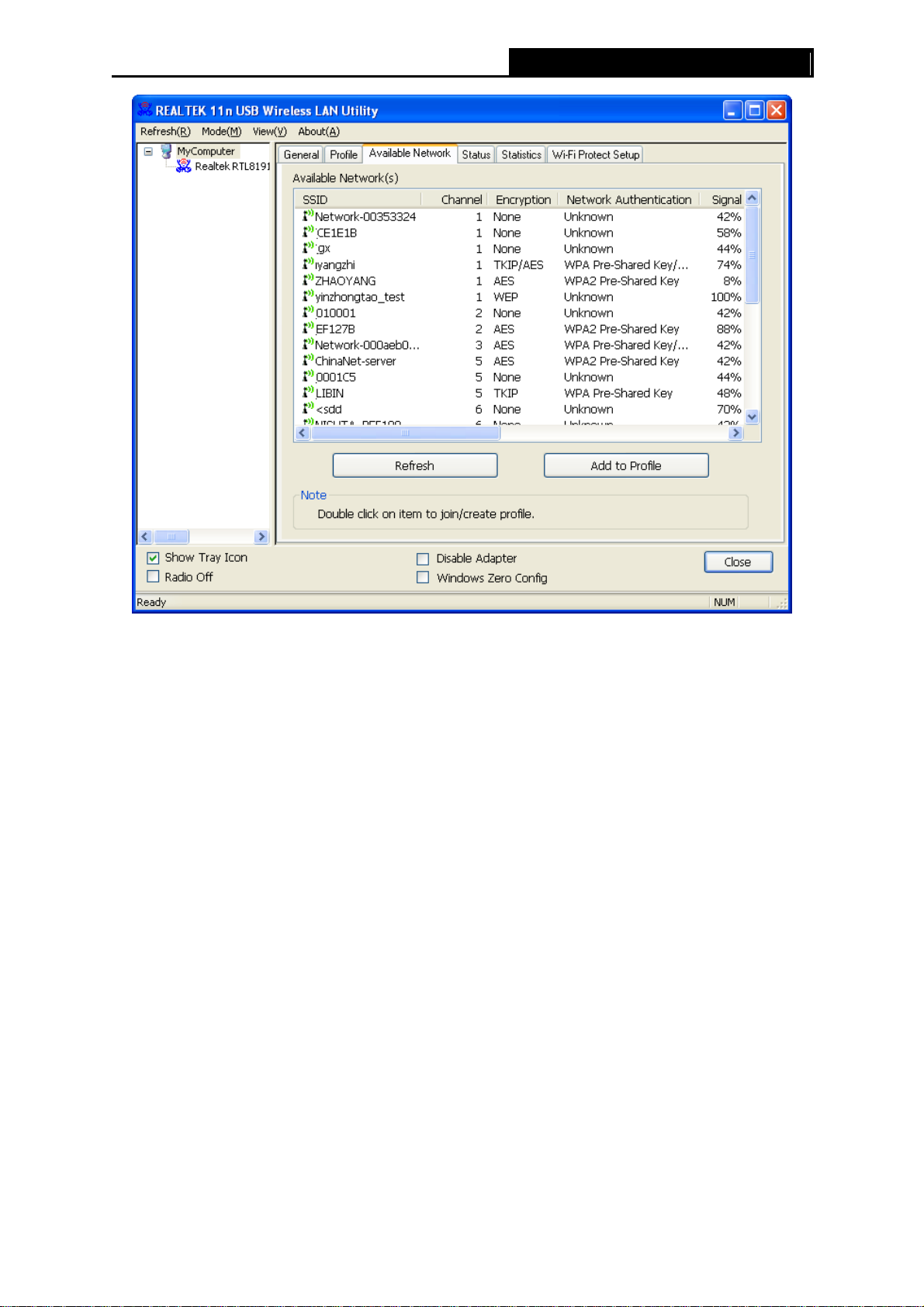

3.3 Available Network................................................................................................ 21

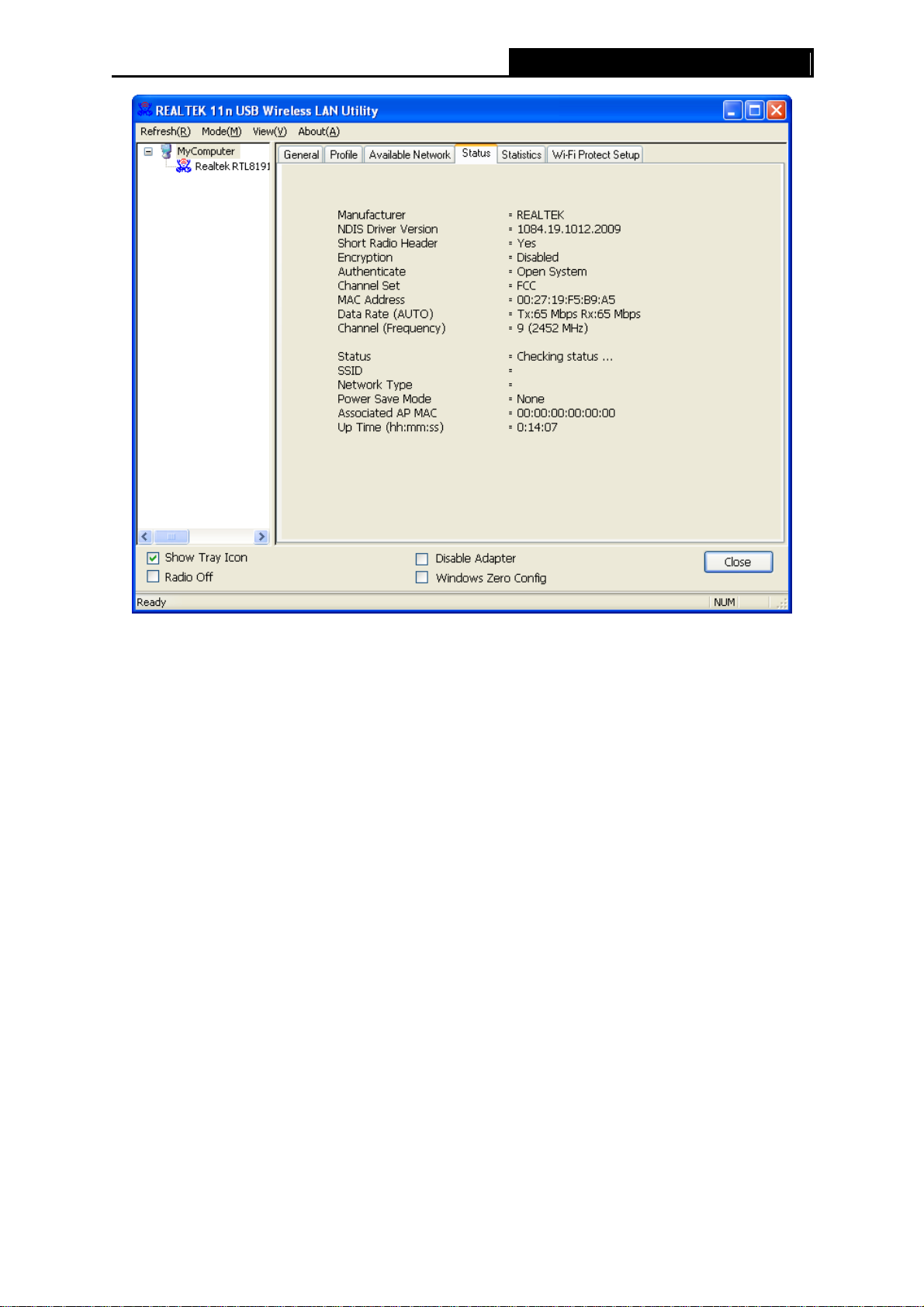

3.4 Status.................................................................................................................. 22

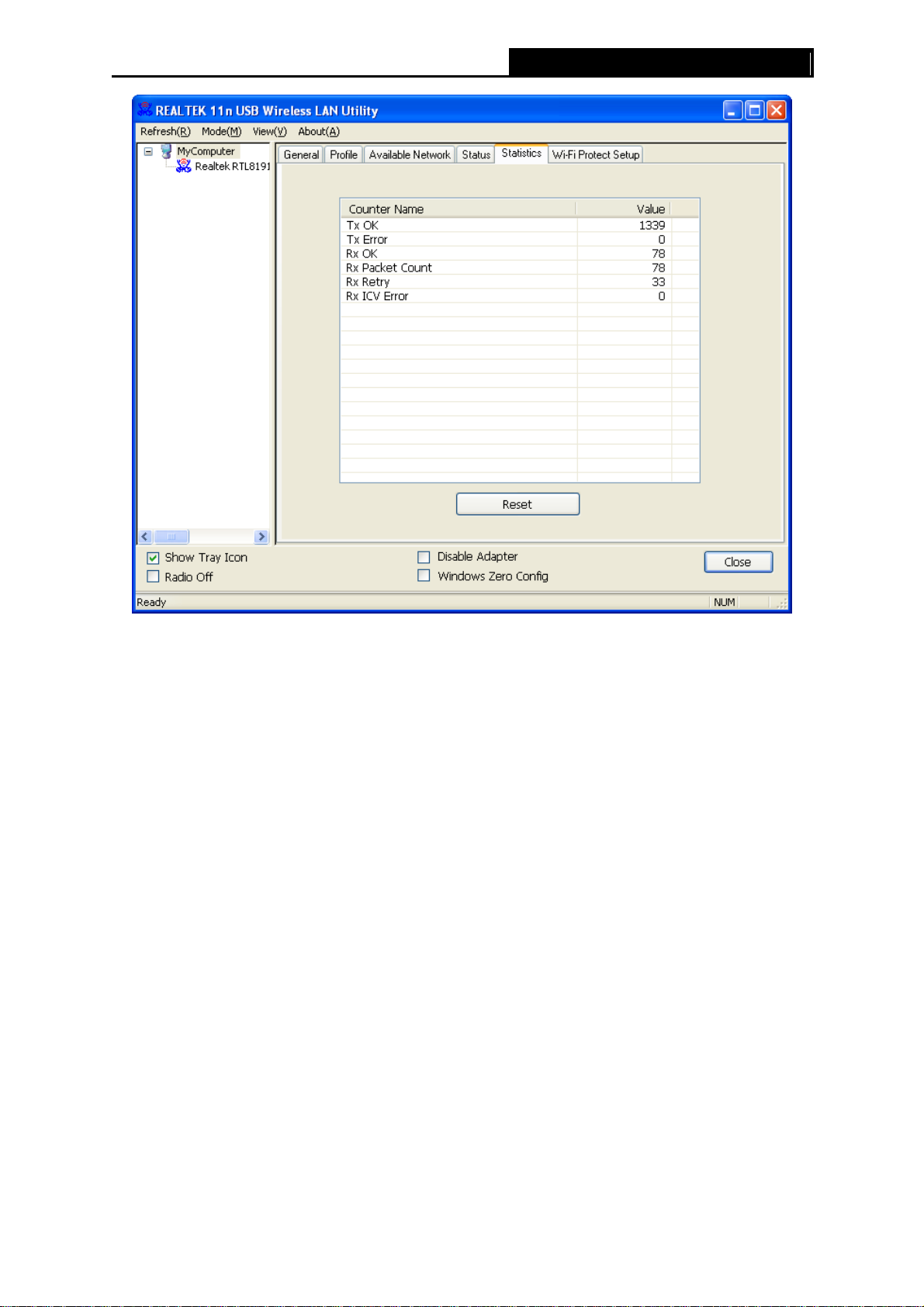

3.5 Statistics.............................................................................................................. 23

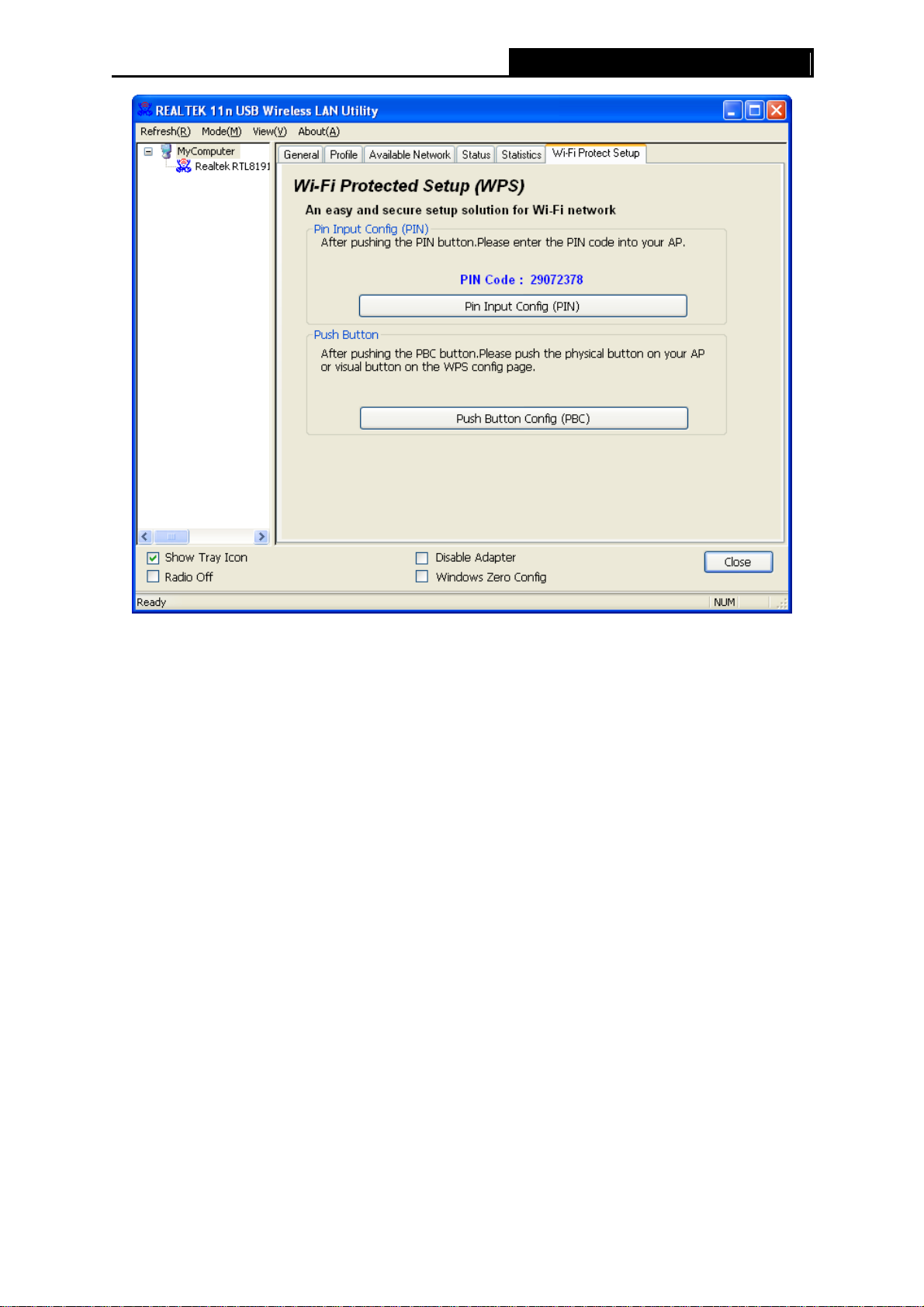

3.6 Wi-Fi Protect Setup ............................................................................................. 24

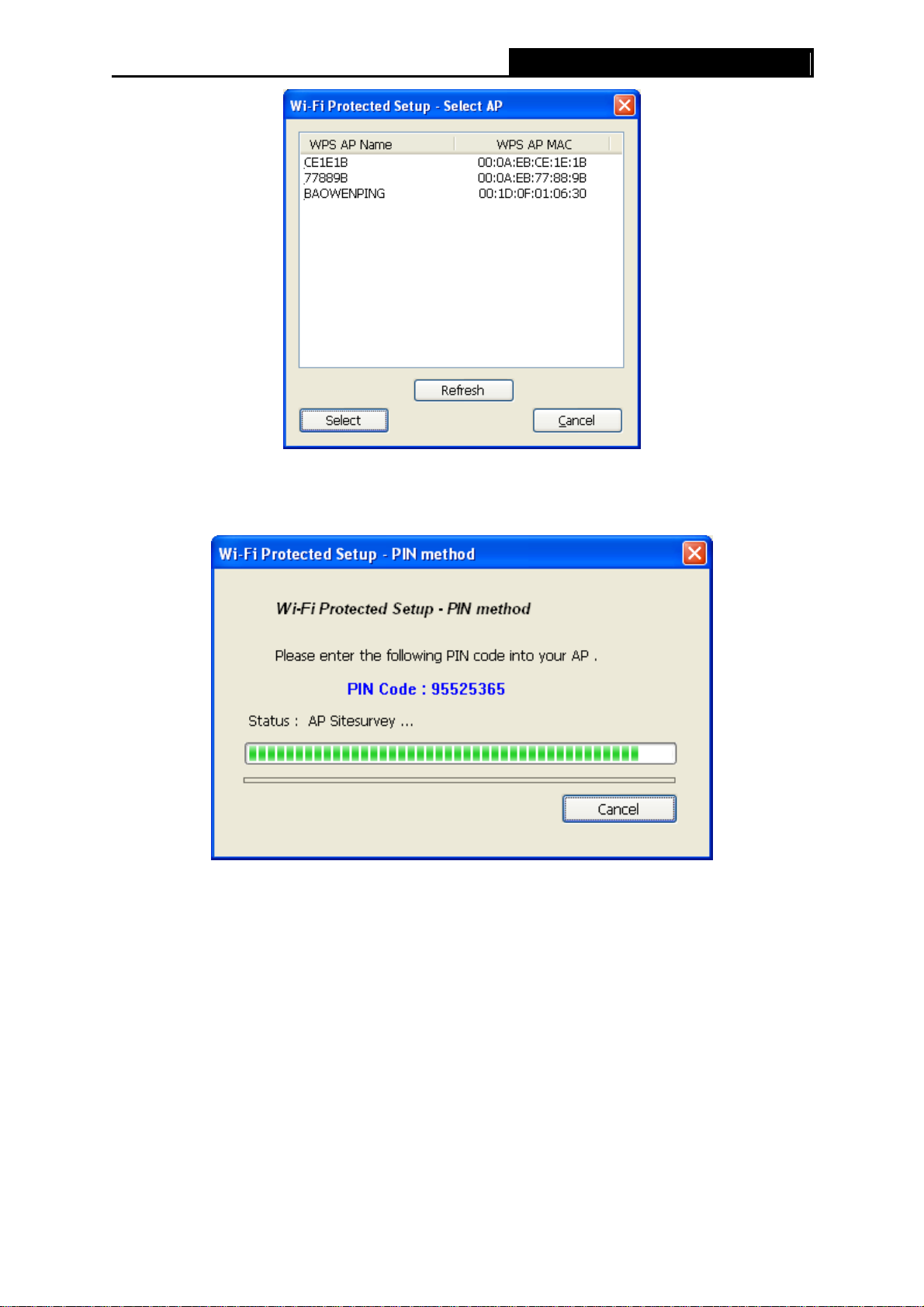

3.6.1 PIN....................................................................................................... 25
3.6.2 Question-Answer Method..................................................................... 26

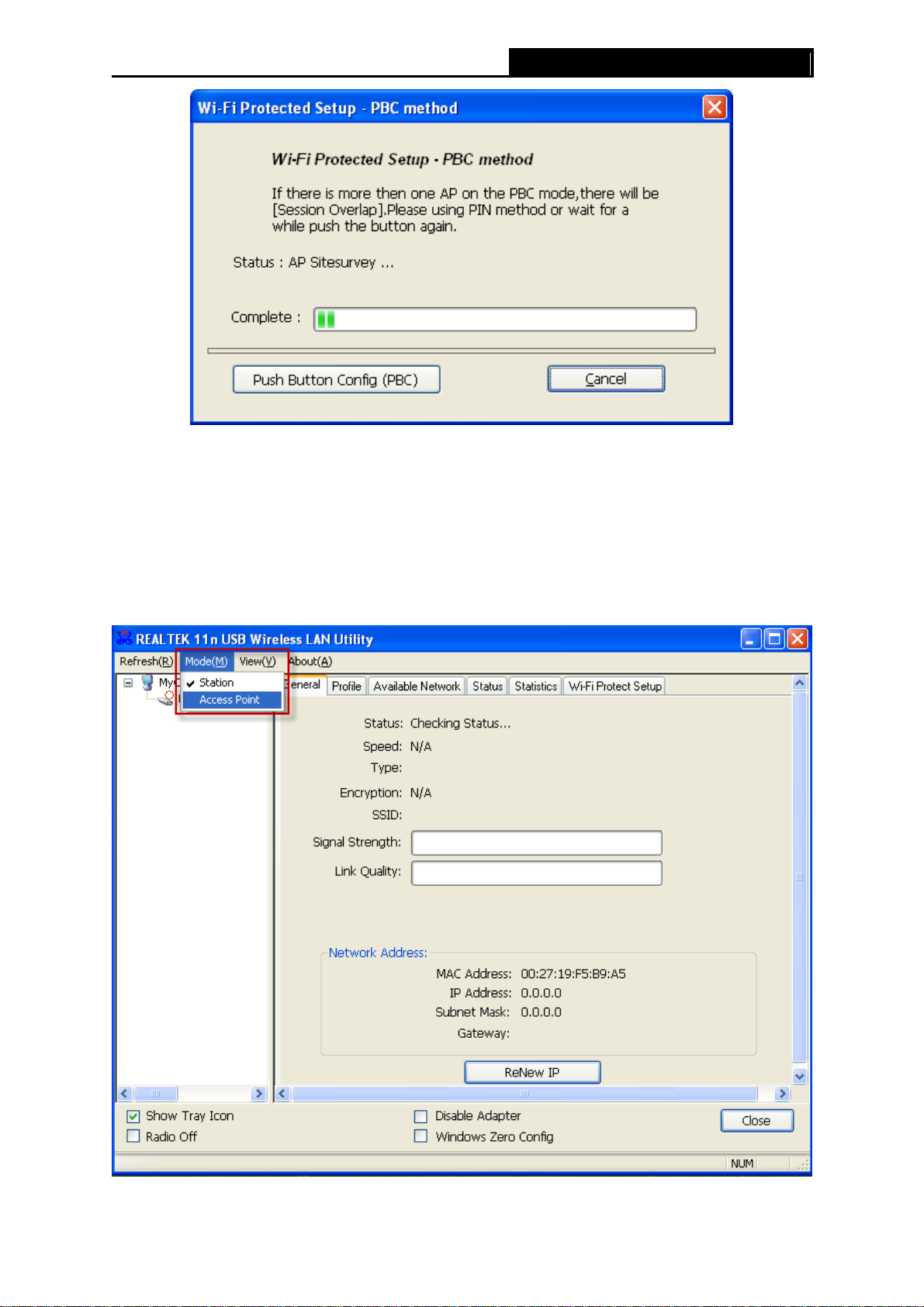

3.7 Access Point Mode.............................................................................................. 27
Appendix A: Specifications...................................................................................28
Appendix B: Glossary............................................................................................ 29
Package Contents
The following items should be found in your package:
¾ One PW-DN523 300M Mini Wireless N USB Adapter
¾ Quick Installation Guide
¾ One Resource CD for PW-DN523, including:
• Wireless Utility and Drivers
• User Guide
• Other Helpful Information
Note:
)
Make sure that the package contains the above items. If any of the listed items are damaged or
missing, please contact with your distributor.
Conventions:
The ‘Adapter’ mentioned in this User guide both stand for PW-DN523 300M Mini Wireless N USB
Adapter without any explanations.
1
PW-DN523 300M Mini Wireless N USB Adapter
Chapter 1 Introduction
Thank you for choosing the PW-DN523 300M Mini Wireless N USB Adapter!
1.1 Overview of the Product
The adapter is a 802.11n client device; it is designed to provide a high-speed and unrivaled
wireless performance for your notebook and PC. With a faster wireless connection, you can get a
better Internet experience, such as downloading, gaming, video streaming and so on.
With the 802.11n technology, higher throughput improvements using MIMO (multiple input,
multiple output antennas), the PW-DN523’s auto-sensing capability allows high packet transfer
rate of up to 300Mbps for receiver and 150Mbps for transmitter. It has good capability on
anti-jamming, it can also interoperate with other wireless (802.11b/g) products. The adapter
supports WEP, WPA and WPA2 encryption to prevent outside intrusion and protect your personal
information from being exposed.
With unmatched wireless performance, reception, and security protection, the PW-DN523 is the
best choice for easily adding or upgrading wireless connectivity.
1.2 Features
¾ Complies with IEEE802.11n, IEEE802.11g, IEEE802.11b standards
¾ Supports IEEE802.1x authentication, WEP, WPA/WPA2/WPA-PSK/WPA2-PSK encryption
¾ Supports high rate of up to 300Mbps for receiver and 150Mbps for transmitter, supports
automatically adjust to lower speeds due to distance or other operating limitations
¾ Provides USB interface
¾ Supports Ad-Hoc and Infrastructure modes
¾ Good capability on anti-jamming
¾ Supports roaming between access points when configured in Infrastructure mode
¾ Ease to configure and provides monitoring information
¾ Supports Windows XP, Windows vista, Windows 7.
¾ Built-in two internal antennas which are listed in a format of 1x2 for two receivers and one
transmitter.
2
1.3 LED Status
Status Working Status
Off The driver has not been installed.
PW-DN523 300M Mini Wireless N USB Adapter
Flashing Slowly
Flashing Quickly There is data being transmitted or received.
The driver has been installed but there is no data being transmitted
or received.
3
PW-DN523 300M Mini Wireless N USB Adapter
Chapter 2 Installation Guide
2.1 Hardware Installation
There are two ways to install the Adapter:
1. Plug the Adapter directly to the USB port on your computer.
2. Connect the Adapter and your computer through the USB cable attached in package.
The LED will light up when the Adapter is installed successfully and the PC is on.
2.2 Software Installation
2.2.1 Overview
The Adapter’s Setup Wizard will guide you through the Installation procedur. The Setup Wizard
will install the Wireless Utility and drivers.
When you install the hardware before installing the software, the system will prompt “Found New
Hardware Wizard”, click Cancel, and run the Setup Wizard program on the CD-ROM.
The Setup steps for Windows operation Systems are very similar. The User guide takes the
Windows XP for example to explain the installation.

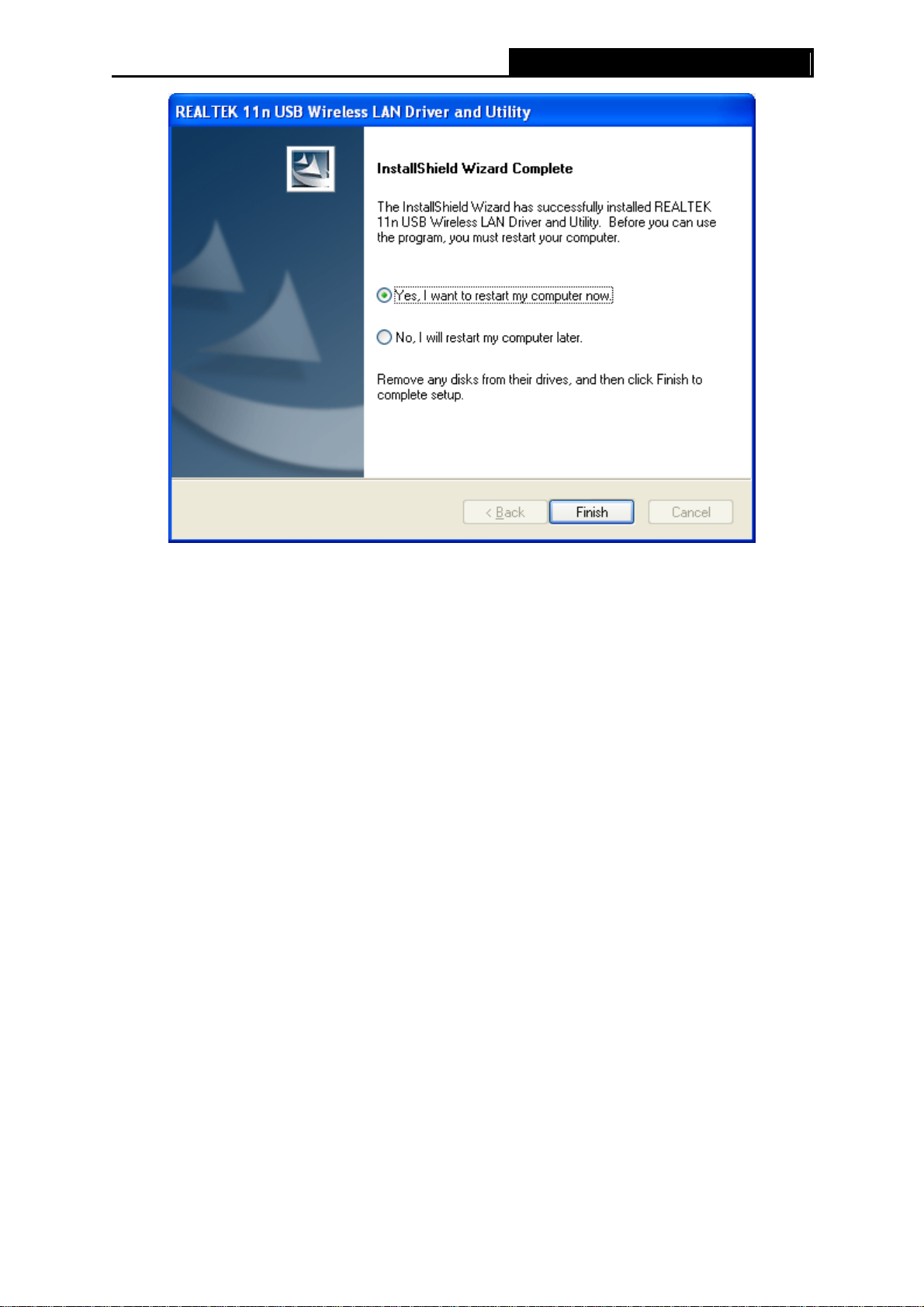

2.2.2 Software Installation for Windows XP
Step 1: Insert the Resource CD into your CD-ROM drive, and open the folder with the same
name as your product. Then double-click Setup.exe in the proper folder to start the

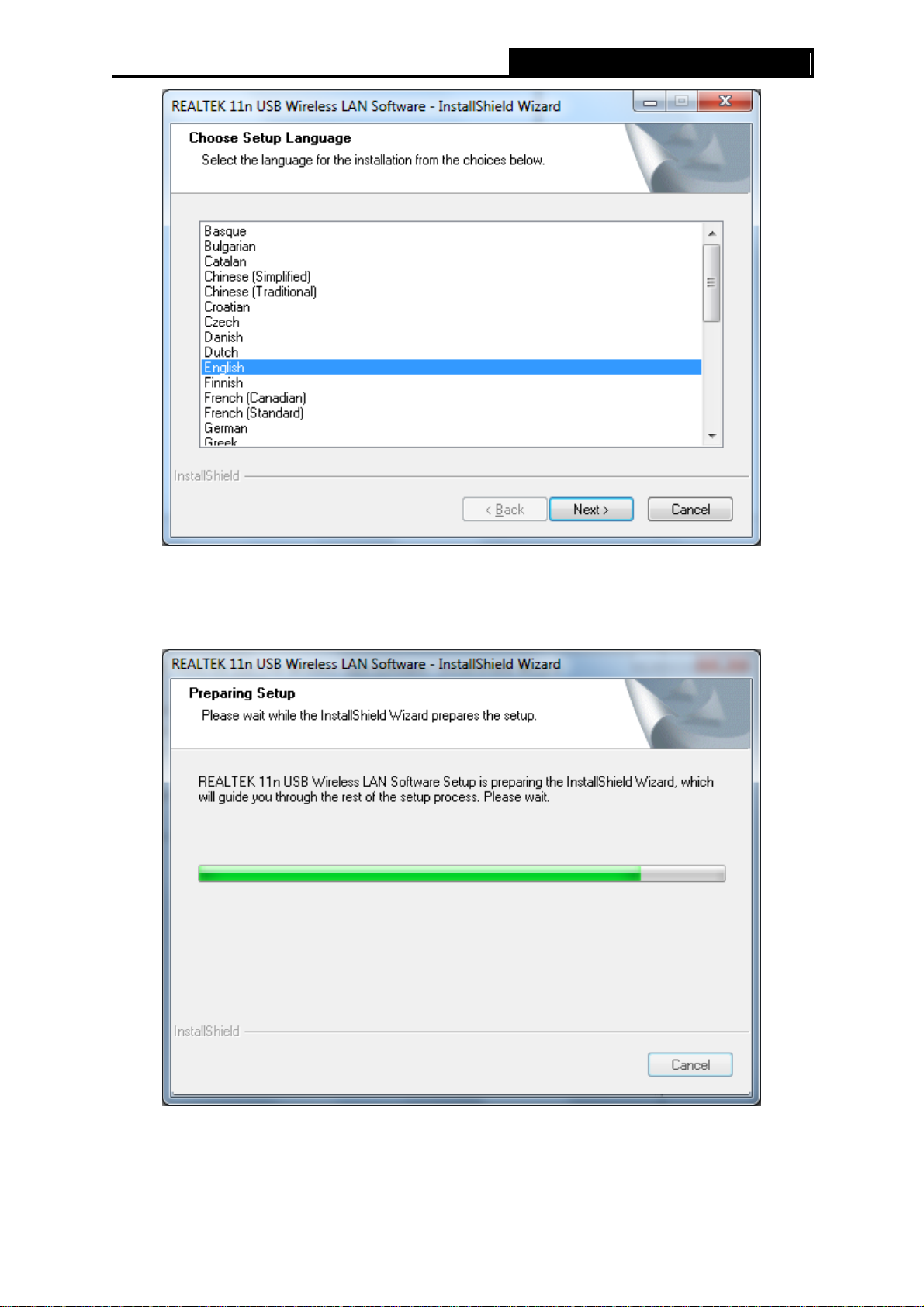

installation, and Figure 2-1 will appear. Select the language for the installation. Click
Next in the screen below to continue, you can click Cancel to end the installation.
4
PW-DN523 300M Mini Wireless N USB Adapter
Figure 2-1
Step 2: You can click Cancel to end the installation in the screen. Otherwise, the installation will
continue.

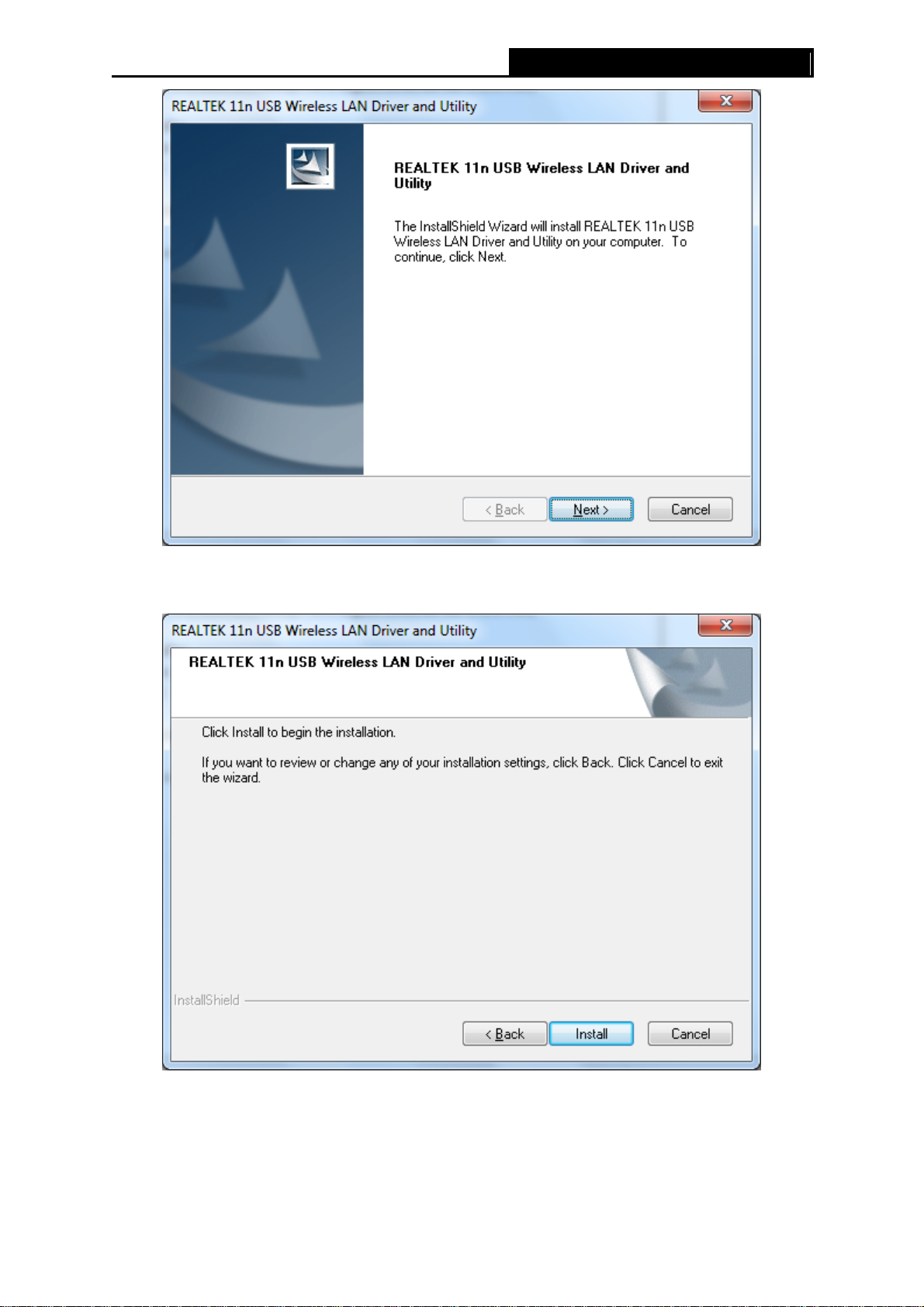

Step 3: Click Next in the screen below (shown in Figure 2-2) to continue, you can click Cancel to
end the installation.
5
PW-DN523 300M Mini Wireless N USB Adapter
Figure 2-2
Step 4: After that, the next screen appears, select Install to continue.
Figure 2-3

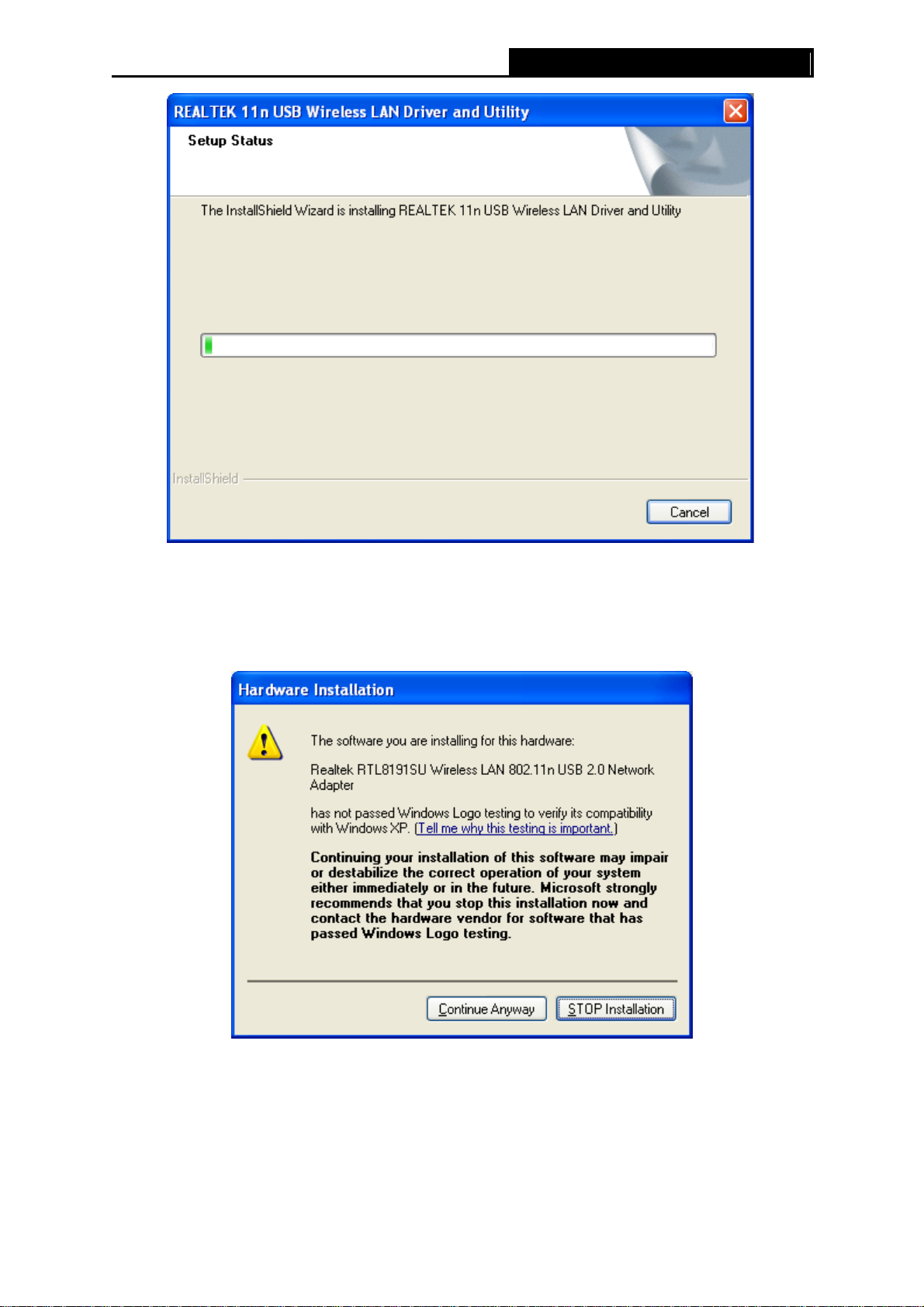

Step 5: In the next screen, the files will be copied as the next screen shown (shown in Figure
2-4). To end the Installation, click Cancel.
6
