RY/TP7231RY/TP723F"

522Odru"Yktgnguu"P"Tqwvgt"

Rev: 1.0.0

1910020497

HEE"UVCVGOGPV"

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

 Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful interference.

2) This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

- I -

HEE"TH"Tcfkcvkqp"Gzrquwtg"Uvcvgogpv"

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.

“To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.”

EG"Octm"Yctpkpi"

This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

Pcvkqpcn"tguvtkevkqpu"

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Eqwpvt{" Tguvtkevkqp" Tgcuqp1tgoctm"

Bulgaria None

General authorization required for outdoor use and

public service

France

Outdoor use limited to 10

mW e.i.r.p. within the band

2454-2483.5 MHz

Military Radiolocation use. Refarming of the 2.4 GHz

band has been ongoing in recent years to allow current

relaxed regulation. Full implementation planned 2012

Italy None

If used outside of own premises, general authorization is

required

Luxembourg None

General authorization required for network and service

supply(not for spectrum)

Norway Implemented

This subsection does not apply for the geographical area

within a radius of 20 km from the centre of Ny-Ålesund

Russian Federation None Only for indoor applications

Note: Please don’t use the product outdoors in France.

- II -

EQPVGPVU"

Rcemcig"Eqpvgpvu 00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000003

Ejcrvgt"30 Kpvtqfwevkqp000000000000000000000000000000000000000000000000000000000000000000000000000000000000000004

1.1 Overview of the Router...............................................................................................2

1.2 Conventions ...............................................................................................................3

1.3 Main Features ............................................................................................................ 3

1.4 Panel Layout .............................................................................................................. 4

1.4.1 The Front Panel.............................................................................................. 4

1.4.2 The Rear Panel ..............................................................................................5

Ejcrvgt"40 Eqppgevkpi"vjg"Tqwvgt 000000000000000000000000000000000000000000000000000000000000000000000008

2.1 System Requirements ................................................................................................ 6

2.2 Installation Environment Requirements ...................................................................... 6

2.3 Connecting the Router ............................................................................................... 6

Ejcrvgt"50 Swkem"Kpuvcnncvkqp"Iwkfg000000000000000000000000000000000000000000000000000000000000000000000 :

3.1 TCP/IP Configuration ................................................................................................. 8

3.2 Quick Installation Guide ........................................................................................... 10

Ejcrvgt"60 Eqphkiwtkpi"vjg"Tqwvgt 0000000000000000000000000000000000000000000000000000000000000000000038

4.1 Login ........................................................................................................................ 16

4.2 Status ....................................................................................................................... 16

4.3 Quick Setup..............................................................................................................17

4.4 WPS......................................................................................................................... 17

4.5 Network....................................................................................................................20

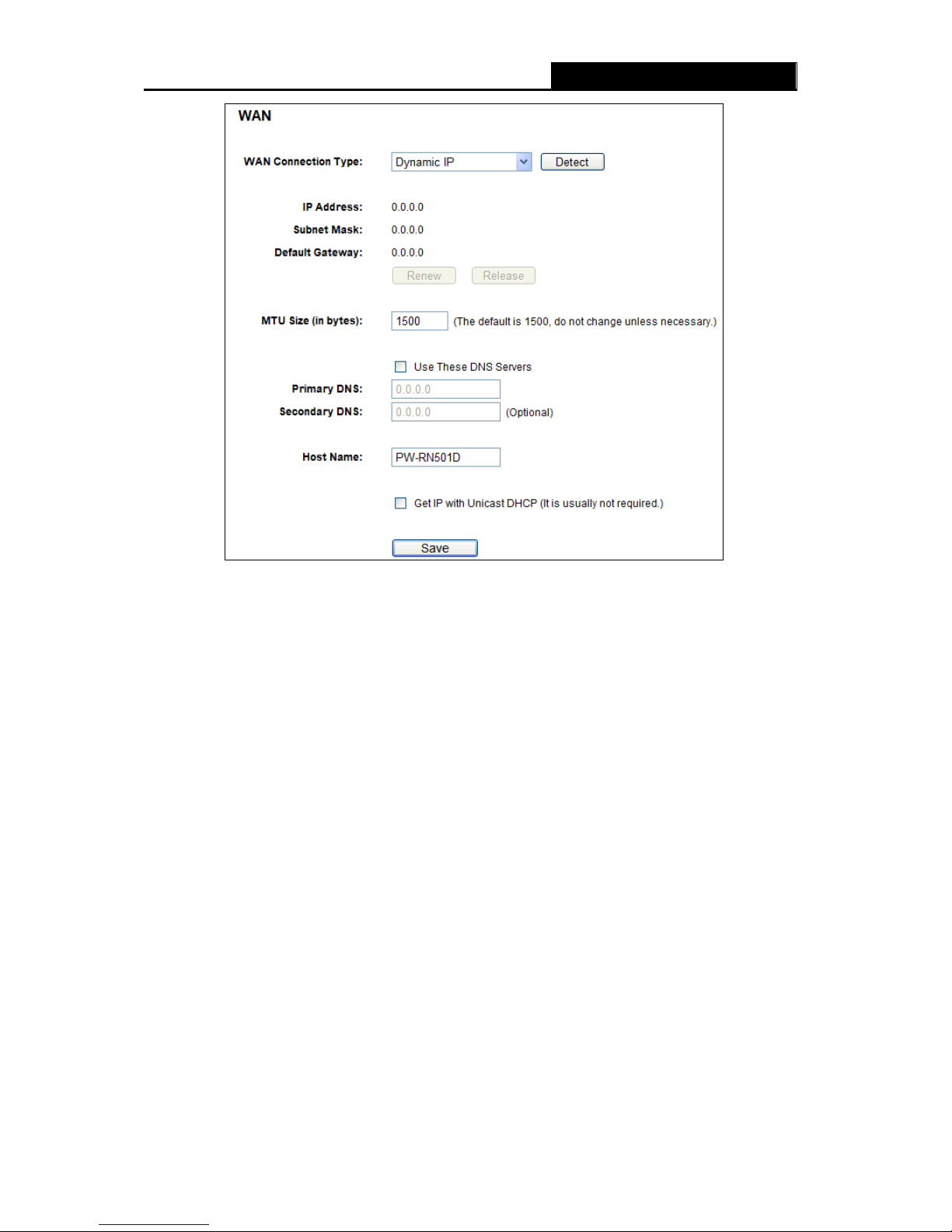

4.5.1 WAN .............................................................................................................20

4.5.2 MAC Clone ................................................................................................... 30

4.5.3 LAN ..............................................................................................................31

4.6 Wireless ................................................................................................................... 32

4.6.1 Wireless Settings.......................................................................................... 32

4.6.2 Wireless Security.......................................................................................... 34

4.6.3 Wireless MAC Filtering ................................................................................. 37

4.6.4 Wireless Advanced....................................................................................... 39

4.6.5 Wireless Statistics......................................................................................... 40

4.7 DHCP.......................................................................................................................41

4.7.1 DHCP Settings .............................................................................................41

4.7.2 DHCP Client List........................................................................................... 42

- III

4.7.3 Address Reservation .................................................................................... 43

4.8 Forwarding ............................................................................................................... 44

4.8.1 Virtual Servers.............................................................................................. 44

4.8.2 Port Triggering..............................................................................................46

4.8.3 DMZ.............................................................................................................. 48

4.8.4 UPnP ............................................................................................................ 48

4.9 Security.................................................................................................................... 49

4.9.1 Basic Security............................................................................................... 49

4.9.2 Advanced Security........................................................................................ 51

4.9.3 Local Management....................................................................................... 52

4.9.4 Remote Management ................................................................................... 53

4.10 Parental Control ....................................................................................................... 54

4.11 Access Control ......................................................................................................... 57

4.11.1 Rule ..............................................................................................................57

4.11.2 Host ..............................................................................................................62

4.11.3 Target............................................................................................................64

4.11.4 Schedule....................................................................................................... 66

4.12 Advanced Routing.................................................................................................... 67

4.12.1 Static Routing ............................................................................................... 68

4.12.2 System Routing Table................................................................................... 69

4.13 Bandwidth Control....................................................................................................69

4.13.1 Control Settings ............................................................................................ 69

4.13.2 Rules List...................................................................................................... 70

4.14 IP & MAC Binding.....................................................................................................71

4.14.1 Binding Settings............................................................................................ 71

4.14.2 ARP List........................................................................................................73

4.15 Dynamic DNS........................................................................................................... 74

4.15.1 Comexe.cn DDNS ........................................................................................ 74

4.15.2 Dyndns.org DDNS ........................................................................................ 75

4.15.3 No-ip.com DDNS .......................................................................................... 76

4.16 System Tools............................................................................................................ 77

4.16.1 Time Settings................................................................................................ 78

4.16.2 Diagnostic..................................................................................................... 79

4.16.3 Firmware Upgrade........................................................................................ 81

4.16.4 Factory Defaults ...........................................................................................82

4.16.5 Backup & Restore......................................................................................... 82

- IV -

- V -

4.16.6 Reboot.......................................................................................................... 83

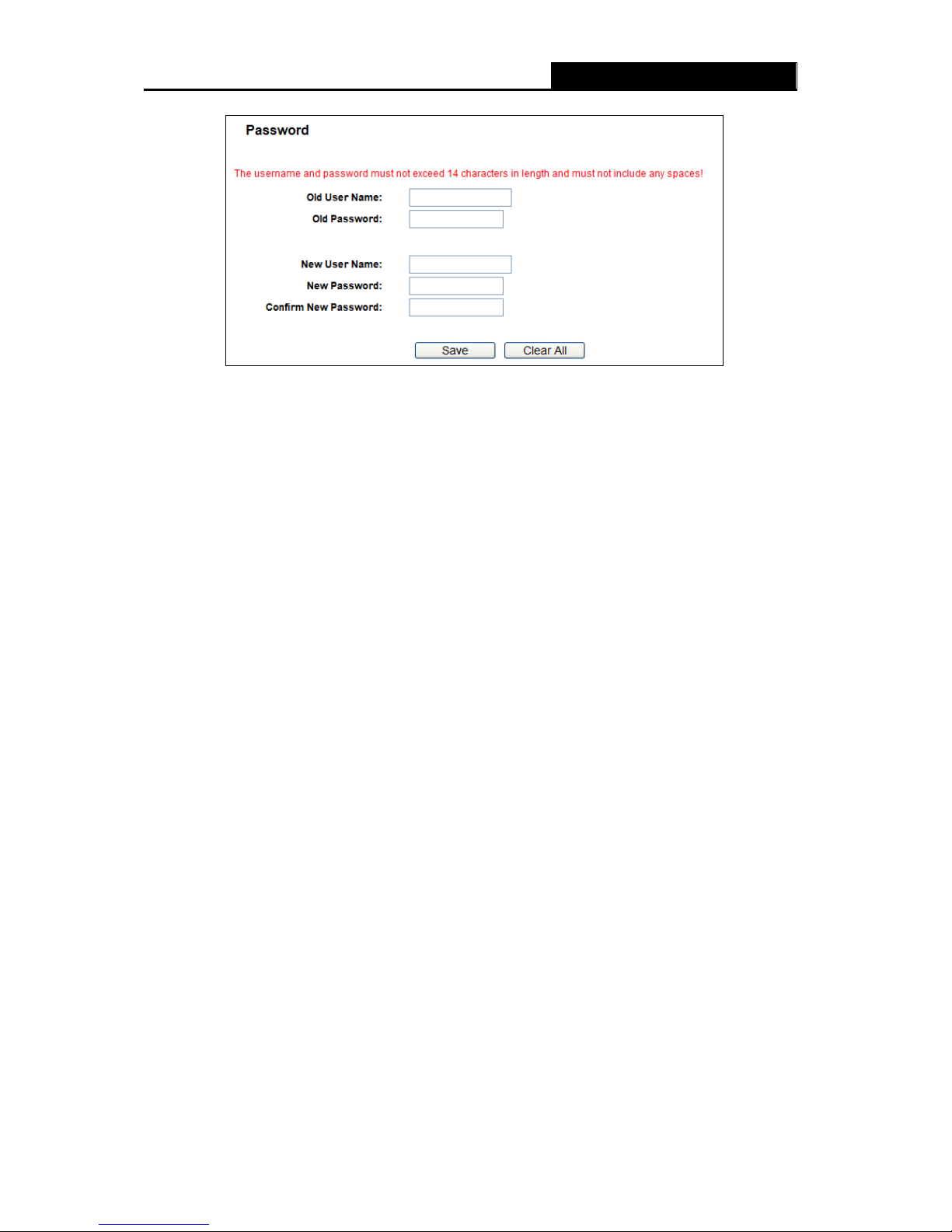

4.16.7 Password...................................................................................................... 83

4.16.8 System Log................................................................................................... 84

4.16.9 Statistics ....................................................................................................... 86

Crrgpfkz"C<"HCS 0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 :;

Crrgpfkz"D<"Eqphkiwtkpi"vjg"RE000000000000000000000000000000000000000000000000000000000000000000000000000;6

Crrgpfkz"E<"Urgekhkecvkqpu 00000000000000000000000000000000000000000000000000000000000000000000000000000000000 ;:

Crrgpfkz"F<"Inquuct{ 00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000;;

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 1 -

Rcemcig"Eqpvgpvu"

The following items should be found in your package:

 PW-RN501/PW-RN501D 300Mbps Wireless N Router

 Power Adapter for PW-RN501/PW-RN501D 300Mbps Wireless N Router

 Quick Installation Guide

 Resource CD for PW-RN501/PW-RN501D 300Mbps Wireless N Router, including:

 This Guide

 Other Helpful Information

"

Pqvg<"

Make sure that the package contains the above items. If any of the listed items are damaged or missing, please contact your distributor.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 2 -

Ejcrvgt"30" Kpvtqfwevkqp"

Thank you for choosing the PW-RN501/PW-RN501D 300Mbps Wireless N Router.

303" Qxgtxkgy"qh"vjg"Tqwvgt"

The PW-RN501/PW-RN501D 300Mbps Wireless N Router integrates 4-port Switch, Firewall, NAT-Router and Wireless AP. Powered by 2x2 MIMO technology, the 300Mbps Wireless N Router delivers exceptional range and speed, which can fully meet the need of Small Office/Home Office (SOHO) networks and the users demanding higher networking performance.

The PW-RN501/PW-RN501D 300Mbps Wireless N Router provides up to 300Mbps wireless connection with other 802.11n wireless clients. The incredible speed makes it ideal for handling multiple data streams at the same time, which ensures your network stable and smooth. The performance of this 802.11n wireless Router will give you the unexpected networking experience at speed much faster than 802.11g. It is also compatible with all IEEE 802.11g and IEEE 802.11b products.

With multiple protection measures, including SSID broadcast control and wireless LAN 64/128/152-bit WEP encryption, WiFi protected Access (WPA2- PSK, WPA- PSK), as well as advanced Firewall protections, the PW-RN501/PW-RN501D 300Mbps Wireless N Router provides complete data privacy.

The PW-RN501/PW-RN501D 300Mbps Wireless N Router provides flexible access control, so that parents or network administrators can establish restricted access policies for children or staff. It also supports Virtual Server and DMZ host for Port Triggering, and then the network administrators can manage and monitor the network in real time with the remote management function.

Since the Router is compatible with virtually all the major operating systems, it is very easy to manage. Quick Setup Wizard is supported and detailed instructions are provided step by step in this user guide. Before installing the Router, please look through this guide to know all the Router’s functions.

Kpetgfkdng"Urggf"

Ownvkrng"Ugewtkv{"Rtqvgevkqpu

Hngzkdng"Ceeguu"Eqpvtqn"

Ukorng"Kpuvcnncvkqp

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 3 -

304" Eqpxgpvkqpu"

The Router or PW-RN501/PW-RN501D mentioned in this guide stands for PW-RN501/PW-RN501D 300Mbps Wireless N Router without any explanation.

"

Pqvg<

The two devices of PW-RN501 and PW-RN501D are sharing this User Guide. For simplicity, we will take PW-RN501D for example throughout this Guide.

The differences between them are:

 PW-RN501 Router with 2 fixed antennas.

 PW-RN501D Router with 2 detachable antennas.

305" Ockp"Hgcvwtgu"

 Complies with IEEE 802.11n to provide a wireless data rate of up to 300Mbps.

 One 10/100M Auto-Negotiation RJ45 WAN port, four 10/100M Auto-Negotiation RJ45 LAN

ports, supporting Auto MDI/MDIX.

 Provides WPA/WPA2, WPA-PSK/WPA2-PSK authentication, TKIP/AES encryption security.

 Shares data and Internet access for users, supporting Dynamic IP/Static IP/PPPoE Internet

access.

 Supports Virtual Server, Special Application and DMZ host.

 Supports UPnP, Dynamic DNS, Static Routing.

 Provides Automatic-connection and Scheduled Connection on certain time to the Internet

 Built-in NAT and DHCP server supporting static IP address distributing.

 Supports Parental Control and Access Control.

 Connects Internet on demand and disconnects from the Internet when idle for PPPoE.

 Provides 64/128/152-bit WEP encryption security and wireless LAN ACL (Access Control

List).

 Supports Flow Statistics.

 Supports firmware upgrade and Web management.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 4 -

306" Rcpgn"Nc{qwv"

30603" Vjg"Htqpv"Rcpgn"

Figure 1-1 Front Panel sketch

The Router’s LEDs are located on the front panel (View from left to right).

Pcog" Uvcvwu" Kpfkecvkqp"

Off Power is off.

PWR

On Power is on.

Flashing The Router is working properly.

SYS

On /Off The Router has a system error.

Off The Wireless function is disabled.

WLAN

Flashing The Wireless function is enabled.

Off There is no device linked to the corresponding port.

There is a device linked to the corresponding port but there is no activity.

WAN, LAN 1-4

Flashing There is an active device linked to the corresponding port.

Slow Flash

A wireless device is connecting to the network by WPS function. This process will last in the first 2 minutes.

A wireless device has been successfully added to the network by WPS function.

WPS

Quick Flash

A wireless device failed to be added to the network by WPS function.

Table 1-1 The LEDs Description

"

Pqvg<"

1. After a device is successfully added to the network by WPS function, the WPS LED will keep on for about 5 minutes and then turn off.

2. When press and hold the WPS/Reset button for more than 5 seconds, you will reset the router.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 5 -

30604" Vjg"Tgct"Rcpgn"

Figure 1-2 Rear Panel sketch

The following parts are located on the rear panel (View from left to right).

 RQYGT<"The Power socket is where you will connect the power adapter. Please use the

power adapter provided with this PW-RN501/ PW-RN501D 300Mbps Wireless N Router.

 QP1QHH<"The switch for the power."

 6.5.4.3"*NCP+< These ports (4,3,2,1) connect the Router to the local PC(s).

 YCP< This WAN port is where you will connect the DSL/cable Modem, or Ethernet.

 Yktgnguu"cpvgppc<"To receive and transmit the wireless data.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 6 -

Ejcrvgt"40" Eqppgevkpi"vjg"Tqwvgt"

403" U{uvgo"Tgswktgogpvu"

 Broadband Internet Access Service (DSL/Cable/Ethernet)

 One DSL/Cable Modem that has an RJ45 connector (which is not necessary if the Router is

connected directly to the Ethernet.)

 PCs with a working Ethernet Adapter and an Ethernet cable with RJ45 connectors

 TCP/IP protocol on each PC

 Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari

404" Kpuvcnncvkqp"Gpxktqpogpv"Tgswktgogpvu"

 Place the Router in a well ventilated place far from any heater or heating vent

 Avoid direct irradiation of any strong light (such as sunlight)

 Keep at least 2 inches (5 cm) of clear space around the Router

 Operating Temperature: 0 ~40 (32 ~104 ) 

 Operating Humidity: 10%~90%RH, Non-condensing

405" Eqppgevkpi"vjg"Tqwvgt"

Before installing the Router, make sure your PC is connected to the Internet through the broadband service successfully. If there is any problem, please contact your ISP. After that, please install the Router according to the following steps. Don't forget to pull out the power plug and keep your hands dry.

1. Power off your PC, Cable/DSL Modem, and the Router.

2. Locate an optimum location for the Router. The best place is usually at the center of your wireless network.

3. Adjust the direction of the antenna. Normally, upright is a good direction.

4. Connect the PC(s) and each Switch/Hub in your LAN to the LAN Ports on the Router, shown in Figure 2-1. (If you have the wireless NIC and want to u

se the wireless function, you can

skip this step.)

5. Connect the DSL/Cable Modem to the WAN port on the Router, shown in Figure 2-1.

Connect the power adapter to the power socket on the Router, and the other end into an electrical outlet. The Router will start to work automatically.

7. Power on your PC and Cable/DSL Modem.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 7 -

Figure 2-1 Hardware Installation of the PW-RN501D 300Mbps Wireless N Router

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 8 -

Ejcrvgt"50" Swkem"Kpuvcnncvkqp"Iwkfg"

This chapter will show you how to configure the basic functions of your 300Mbps Wireless N Router using Swkem"Ugvwr Yk|ctf within minutes.

503" VER1KR"Eqphkiwtcvkqp"

The default IP address is 192.168.1.1, and the default Subnet Mask is 255.255.255.0. These values can be changed as you desire. In this guide, we use all the default values for description.

Connect the local PC to the LAN ports of the Router. And then you can configure the IP address for your PC in the following two ways.

 Configure the IP address manually

1) Set up the TCP/IP Protocol for your PC. If you need instructions as to how to do this,

please refer to Appendix B: "Configuring the PC"

2) Configure the network parameters. The IP address is 192.168.1.xxx ("xxx" is any number

from 2 to 254), Subnet Mask is 255.255.255.0, and Gateway is 192.168.1.1 (The Router's default IP address)

 Obtain an IP address automatically

1) Set up the TCP/IP Protocol in "Qdvckp"cp"KR"cfftguu"cwvqocvkecnn{" mode on your PC.

If you need instructions as to how to do this, please refer to Appendix B: "Configuring the

PC”.

2) Then the built-in DHCP server will assign IP address for the PC.

Now, you can run the Ping command in the eqoocpf"rtqorv to verify the network connection between your PC and the Router. The following example is in Windows 2000 OS.

Open a command prompt, and type"ping 192.168.1.1, and then press Gpvgt.

 If the result displayed is similar to the Figure 3-1, it means the connection between your PC

and the Router has been established well.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 9 -

Figure 3-1 Success result of Ping command

 If the result displayed is similar to the Figure 3-2, it means the connection between your PC

and the Router is failed.

Figure 3-2 Failure result of Ping command

Rngcug"ejgem"vjg"eqppgevkqp"hqnnqykpi"vjgug"uvgru<"

1. Is the connection between your PC and the Router correct?

"

Pqvg<

The 1/2/3/4 LEDs of LAN ports which you link to on the Router and LEDs on your PC's adapter should be lit.

2. Is the TCP/IP configuration for your PC correct?

"

Pqvg<" "

If the Router's IP address is 192.168.1.1, your PC's IP address must be within the range of

192.168.1.2 ~ 192.168.1.254.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 10 -

3. Is the default LAN IP of the Router correct?

"Pqvg<""

If the LAN IP of the modem connected with your router is 192.168.0.x, the default LAN IP of the Router will automatically switch from 192.168.0.1 to 192.168.1.1 to avoid IP conflict. Therefore, in order to verify the network connection between your PC and the Router, you can open a command prompt, and type ping 192.168.0.1, and then press Gpvgt.

504" Swkem"Kpuvcnncvkqp"Iwkfg"

With a Web-based utility, it is easy to configure and manage the 300Mbps Wireless N Router. The Web-based utility can be used on any Windows, Macintosh or UNIX OS with a Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.

1. To access the configuration utility, open a web-browser and type in the default IP address

192.168.1.1 in the address field of the browser.

Figure 3-3 Log in the Router

After a moment, a login window will appear, similar to the Figure 3-4. Enter cfokp" for the User Name and Password, both in lower case letters. Then click the QM button or press the Gpvgt key.

Figure 3-4 Login Windows

"

Pqvg<"

If the above screen does not pop-up, it means that your Web-browser has been set to a proxy. Go to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears, cancel the Using Proxy checkbox, and click OK to finish it.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 11 -

1. After successfully log in, you can click the"Swkem"Ugvwr menu to quickly configure your Router.

Figure 3-5 Quick Setup

2. Click Pgzv, and then YCP"Eqppgevkqp"V{rg"page will appear, shown in Figure 3-6.

Figure 3-6 WAN Connection Type

The Router provides Cwvq/Fgvgev function and supports three popular ways RRRqG, F{pcoke"KR"and Uvcvke"KR to connect to the Internet. It’s recommended that you make use of the Cwvq/Fgvgev"function. If you are sure of what kind of connection type your ISP provides, you can select the very type and click Pgzv to go on configuring.

3. If you select Cwvq/Fgvgev, the Router will automatically detect the connection type your ISP provides. Make sure the cable is securely plugged into the WAN port before detection. The appropriate configuration page will be displayed when an active Internet service is successfully detected by the Router.

1) If the connection type detected is RRRqG, the next screen will appear as shown in Figure

3-7.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 12 -

Figure 3-7 Quick Setup - PPPoE

 Wugt" Pcog/Rcuuyqtf" /" Enter the Wugt" Pcog and Rcuuyqtf provided by your ISP.

These fields are case sensitive. If you have difficulty with this process, please contact your ISP.

 Eqphkto" Rcuuyqtf" /" Re-enter the password provided by your ISP to ensure the

Password you entered is correct. If the Password is different from the Confirm Password, the screen will appear as shown below. Click QM, and re-enter the Password" and Confirm Password.

2) If the connection type detected is Dynamic IP, the next screen will appear as shown in

Figure 3-8.



If you are visiting the Router from the main computer, please select [gu, and then click Enqpg"OCE"Cfftguu.

Figure 3-8 Quick Setup – MAC Clone

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 13 -

 If you are visiting the Router from another computer, rather than the main computer,

please select Pq, and then enter the main computer’s MAC in the field YCP"OCE" Cfftguu.

Figure 3-9 Quick Setup – MAC Clone

3) If the connection type detected is Static IP, the next screen will appear as shown in Figure

3-10.

Figure 3-10 Quick Setup - Static IP

 KR" Cfftguu" /" This is the WAN IP address as seen by external users on the Internet

(including your ISP). Enter the IP address into the field.

 Uwdpgv" Ocum" /" The Subnet Mask is used for the WAN IP address, it is usually

255.255.255.0.

 Fghcwnv"Icvgyc{"/"Enter the gateway IP address into the box if required.

 Rtkoct{ FPU"/"Enter the DNS Server IP address into the box if required.

 Ugeqpfct{"FPU"/"If your ISP provides another DNS server, enter it into this field."

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 14 -

4. Click Pgzv to continue, the Wireless settings page will appear as shown in Figure 3-11.

Figure 3-11 Quick Setup – Wireless

 Yktgnguu" Tcfkq" /" The wireless radio can only be enabled/disabled by using the WIFI

ON/OFF switch on the device."

 Yktgnguu" Pgvyqtm"Pcog" /" Enter a value of up to 32 characters. The same name of

SSID (Service Set Identification) must be assigned to all wireless devices in your network. Considering your wireless network security, the default SSID is set to be _XXXXXX (XXXXXX indicates the last unique six numbers of each Router’s MAC address). This value is case-sensitive. For example, TEST is NOT the same as test.

 Tgikqp / Select your region from the drop-down list. This field specifies the region

where the wireless function of the Router can be used. It may be illegal to use the wireless function of the Router in a region other than one of those specified in this field. If your country or region is not listed, please contact your local government agency for assistance.

"Pqvg<"

Limited by local law regulations, version for North America does not have region selection option.

 Oqfg"/ This field determines the wireless mode which the Router works on.

 Ejcppgn"Ykfvj"/ Select any channel width from the drop-down list. The default setting

is automatic, which can adjust the channel width for your clients automatically.

 Ejcppgn" /" This field determines which operating frequency will be used. The default

channel is set to Cwvq, so the AP will choose the best channel automatically. It is not

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 15 -

necessary to change the wireless channel unless you notice interference problems with another nearby access point.

 Ocz"Vz"Tcvg"/ You can limit the maximum transmission rate of the Router through this

field.

 Fkucdng" Ugewtkv{" / The wireless security function can be enabled or disabled. If

disabled, the wireless stations will be able to connect the Router without encryption. It is recommended strongly that you choose one of following options to enable security.

 YRC/RUM1YRC4/RUM"/ Select WPA based on pre-shared passphrase.

 RUM"Rcuuyqtf - You can enter CUEKK or Jgzcfgekocn characters.

For CUEKK, the key can be made up of any numbers 0 to 9 and any letters A to Z, the length should be between 8 and 63 characters.

For Jgzcfgekocn, the key can be made up of any numbers 0 to 9 and letters A to F, the length should be between 8 and 64 characters.

Please also note the key is case sensitive, this means that upper and lower case keys will affect the outcome. It would also be a good idea to write down the key and all related wireless security settings.

 Pq"Ejcpig"/ If you chose this option, wireless security configuration will not change!

These settings are only for basic wireless parameters. For advanced settings, please refer to

4.6 Wireless

5. Click the Pgzv button. You will then see the Hkpkuj page as shown in Figure 3-12.

lick the Hkpkuj"button to finish the Swkem"Ugvwr.

Figure 3-12 Quick Setup - Finish

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 16 -

Ejcrvgt"60" Eqphkiwtkpi"vjg"Tqwvgt"

This chapter will show each Web page's key functions and the configuration way.

603" Nqikp"

After your successful login, you will see the fifteen main menus on the left of the Web-based utility. On the right, there are the corresponding explanations and instructions.

The detailed explanations for each Web page’s key function are listed below.

604" Uvcvwu"

The Status page provides the current status information about the Router. All information is read-only.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 17 -

Figure 4-1 Router Status

605" Swkem"Ugvwr"

Please refer to 3.2 Quick Installation Guide.

606" YRU"

This section will guide you to add a new wireless device to an existing network quickly by WPS *Yk/Hk"Rtqvgevgf"Ugvwr+"function. "

a). Choose menu “WPS”, and you will see the next screen (shown in Figure 4-2 ).

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 18 -

Figure 4-2 WPS

 YRU"Uvcvwu"/"Enable or disable the WPS function here.

 Ewttgpv"RKP"/"The current value of the Router's PIN is displayed here. The default PIN of the

Router can be found in the label attached on the router.

 Tguvqtg"RKP"/"Restore the PIN of the Router to its default.

 Igp"Pgy"RKP"/"Click this button, and then you can get a new random value for the Router's

PIN. You can ensure the network security by generating a new PIN.

 Fkucdng" Fgxkeg‚u" RKP" /" You can disable the Router’s PIN manually here. If the router

receives multiple failed attempts to authenticate an external registrar, this function will be disabled automatically.

 Cff" Fgxkeg" /" You can add a new device to the existing network manually by clicking this

button.

b). To add a new device:

If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can establish a wireless connection between wireless adapter and Router using either Push Button Configuration (PBC) method or PIN method.

"

Pqvg<

To build a successful connection by WPS, you should also do the corresponding configuration of the new device for WPS function meanwhile.

K0" Wug"vjg"Yk/Hk"Rtqvgevgf"Ugvwr"Dwvvqp"

Use this method if your client device has a Wi-Fi Protected Setup button.

Uvgr"3<" Press the WPS/RESET button on the back panel of the Router for one second.

You can also keep the default WPS Status as Gpcdngf and click the"Cff"Fgxkeg button in Figure 4-2, then Choose “Rtguu"

vjg"dwvvqp"qh"vjg"pgy"fgxkeg"kp"vyq"okpwvgu” and

click Eqppgev. (Shown in the following figure)

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 19 -

Figure 4-3 Add A New Device

Uvgr"4<" Press and hold the WPS button of the client device directly. Uvgr"5<" The Wi-Fi Protected Setup LED flashes for two minutes during the Wi-Fi Protected Setup

process.

Uvgr"6<" When the WPS LED is on, the client device has successfully connected to the Router. Uvgr"7<" Refer back to your client device or its documentation for further instructions.

KK0" Gpvgt"vjg"enkgpv"fgxkeg‚u"RKP"qp"vjg"Tqwvgt"

Use this method if your client device has a Wi-Fi Protected Setup PIN number.

Uvgr"3<" Keep the default WPS Status as Gpcdngf and click the"Cff"Fgxkeg button in Figure 4-2,

then the following screen will appear. "

Figure 4-4 Add A New Device

Uvgr"4<" Enter the PIN number from the client device in the field on the above WPS screen. Then

click Eqppgev"button.

Uvgr"5<" “Eqppgev"uweeguuhwnn{” will appear on the screen of Figure 4-4, which means the client

device has successfully connected to the Route

KKK0" Gpvgt"vjg"Tqwvgt‚u"RKP"qp"{qwt"enkgpv"fgxkeg"

Use this method if your client device asks for the Router’s PIN number.

Uvgr"3<" On the client device, enter the PIN number listed on the Router’s Wi-Fi Protected Setup

screen. (It is also labeled on the bottom of the Router.)

Uvgr"4<" The Wi-Fi Protected Setup LED flashes for two minutes during the Wi-Fi Protected

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 20 -

Setup process.

Uvgr"5<" When the WPS LED is on, the client device has successfully connected to the Router. Uvgr"6<" Refer back to your client device or its documentation for further instructions.

"

Pqvg<

1) The WPS LED on the Router will light green for five minutes if the device has been successfully added to the network.

2) The WPS function cannot be configured if the Wireless Function of the Router is disabled. Please make sure the Wireless Function is enabled before configuring the WPS.

607" Pgvyqtm"

Figure 4-5 the Network menu

There are three submenus under the Network menu (shown in Figure 4-5): NCP, YC P and OCE"

Enqpg0"Click any of them, and you will be able to configure the corresponding function.

60703" YCP"

Choose menu “Pgvyqtm" →"YCP”, you can configure the IP parameters of the WAN on the screen below.

30" If your ISP provides the DHCP service, please choose F{pcoke"KR"type,"and the Router will

automatically get IP parameters from your ISP. You can see the page as follows (Figure 4-6):

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 21 -

Figure 4-6 WAN – Dynamic IP

This page displays the WAN IP parameters assigned dynamically by your ISP, including IP address, Subnet Mask, Default Gateway, etc. Click the Tgpgy button to renew the IP parameters from your ISP. Click the Tgngcug button to release the IP parameters.

 OVW"Uk|g"/ The normal OVW (Maximum Transmission Unit) value for most Ethernet networks

is 1500 Bytes. It is not recommended that you change the default OVW"Uk|g unless required by your ISP.

 Wug"Vjgug" FPU" Ugtxgtu" /" If your ISP gives you one or two DNS addresses, select Wug"

Vjgug"FPU"Ugtxgtu and enter the primary and secondary addresses into the correct fields.

Otherwise, the DNS servers will be assigned dynamically from your ISP.

"

Pqvg<"

If you find error when you go to a website after entering the DNS addresses, it is likely that your DNS servers are set up improperly. You should contact your ISP to get DNS server addresses.

 Jquv"Pcog / This option specifies the Host Name of the Router.

 Igv" KR" ykvj" Wpkecuv" FJER" / A few ISPs' DHCP servers do not support the broadcast

applications. If you cannot get the IP Address normally, you can choose this option. (It is rarely required.)

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 22 -

Click the Ucxg button to save your settings.

40" If your ISP provides a static or fixed IP Address, Subnet Mask, Gateway and DNS setting,

select Uvcvke"KR. The Static IP settings page will appear, shown in Figure 4-7.

Figure 4-7 WAN - Static IP

 KR"Cfftguu"/ Enter the IP address in dotted-decimal notation provided by your ISP.

 Uwdpgv" Ocum" / Enter the subnet Mask in dotted-decimal notation provided by your ISP,

usually is 255.255.255.0.

 Fghcwnv" Icvgyc{" / (Optional) Enter the gateway IP address in dotted-decimal notation

provided by your ISP.

 OVW"Uk|g"/"The normal"OVW (Maximum Transmission Unit) value for most Ethernet networks

is 1500 Bytes. It is not recommended that you change the default OVW"Uk|g unless required by your ISP.

 Rtkoct{1Ugeqpfct{" FPU" /" (Optional) Enter one or two DNS addresses in dotted-decimal

notation provided by your ISP.

Click the Ucxg button to save your settings.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 23 -

50" If your ISP provides a PPPoE connection, select" RRRqG1Twuukc" RRRqG option. Then

should enter the following parameters (Figure 4-8):

Figure 4-8 WAN - PPPoE

 Wugt" Pcog1Rcuuyqtf" / Enter the User Name and Password provided by your ISP. These

fields are case-sensitive.

 Ugeqpfct{"Eqppgevkqp / It’s available only for PPPoE Connection. If your ISP provides an

extra Connection type such as Dynamic/Static IP to connect to a local area network, then you can check the radio button of Dynamic/Static IP to activate this secondary connection.

 Fkucdngf / The Secondary Connection is disabled by default, so there is PPPoE

connection only. This is recommended.

 F{pcoke" KR /" You can check this radio button to use Dynamic IP as the secondary

connection to connect to the local area network provided by ISP.

 Uvcvke"KR / You can check this radio button to use Static IP as the secondary connection

to connect to the local area network provided by ISP.

 Eqppgev"qp"Fgocpf"/ In this mode, the Internet connection can be terminated automatically

after a specified inactivity period (Ocz"Kfng"Vkog) and"be"re-established when you attempt to access the Internet again." If you want your Internet connection keeps active all the time, please enter “0” in the Ocz"Kfng"Vkog field.

Otherwise, enter the number of minutes you want

to have elapsed before your Internet access disconnects.

 Eqppgev" Cwvqocvkecnn{" / The connection can be re-established automatically when it was

down.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 24 -

 Vkog/dcugf" Eqppgevkpi" / The connection will only be established in the period from the

start time to the end time (both are in HH:MM format).

"

Pqvg<"

Only when you have configured the system time on “U{uvgo" Vqqnu" Vkog”" page, will the Vkog/dcugf"Eqppgevkpi function can take effect.

 Eqppgev" Ocpwcnn{"/"You can click the Eqppgev/Fkueqppgev" button to connect/disconnect

immediately."This mode also supports the Ocz"Kfng" Vkog function as Eqppgev"qp"Fgocpf mode. The Internet connection can be disconnected automatically after a specified inactivity period and"re-established when you attempt to access the Internet again. "

Click the Eqppgev button to connect immediately. Click the Fkueqppgev button to disconnect immediately.

Ecwvkqp: Sometimes the connection cannot be terminated although you specify a time to Max Idle Time because some applications are visiting the Internet continually in the background.

If you want to do some advanced configurations, please click the Cfxcpegf"button, and the page shown in Figure 4-9 will then appear:

Figure 4-9 PPPoE Advanced Settings

 OVW" Uk|g" / The default MTU size is “1480” bytes, which is usually fine. It is not

recommended that you change the default OVW"Uk|g unless required by your ISP.

 Ugtxkeg" Pcog1CE" Pcog" / The service name and AC (Access Concentrator) name should

not be configured unless you are sure it is necessary for your ISP.

In most cases, leaving

these fields blank will work.

 KUR"Urgekhkgf"KR"Cfftguu"/"If your ISP does not automatically assign IP addresses to the

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 25 -

Router during login, please click “Wug"KR"cfftguu"urgekhkgf"d{"KUR” check box and enter the IP address provided by your ISP in dotted-decimal notation.

 Fgvgev"Qpnkpg"Kpvgtxcn"/ The Router will detect Access Concentrator online at every interval.

The default value is “0”. You can input the value between “0” and “120”. The value “0”"means no detect.

 Rtkoct{"FPU1Ugeqpfct{"FPU"/"If your ISP does not automatically assign DNS addresses to

the Router during login, please click “Wug"vjg"hqnnqykpi"FPU"ugtxgtu” check box and enter the IP address in dotted-decimal notation of your ISP’s primary DNS server. If a secondary DNS server address is available, enter it as well.

Click the Ucxg button to save your settings.

60" If your ISP provides BigPond Cable (or Heart Beat Signal) connection, please select

DkiRqpf"Ecdng. And you should enter the following parameters (Figure 4-10):

Figure 4-10

 Wugt" Pcog1Rcuuyqtf" / Enter the User Name and Password provided by your ISP. These

fields are case-sensitive.

 Cwvj"Ugtxgt"/ Enter the authenticating server IP address or host name.

 Cwvj"Fqockp"/"Type in the domain suffix server name based on your location.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 26 -

e.g.

NSW / ACT - puy0dkirqpf0pgv0cw VIC / TAS / WA / SA / NT - xke0dkirqpf0pgv0cw QLD - snf0dkirqpf0pgv0cw

 OVW"Uk|g"/"The normal"OVW (Maximum Transmission Unit) value for most Ethernet networks

is 1500 Bytes. It is not recommended that you change the default OVW"Uk|g unless required by your ISP.

 Eqppgev"qp"Fgocpf"/ In this mode, the Internet connection can be terminated automatically

Otherwise, enter the number of minutes you want

to have elapsed before your Internet access disconnects.

 Eqppgev" Cwvqocvkecnn{" / The connection can be re-established automatically when it was

down.

 Eqppgev" Ocpwcnn{"/"You can click the Eqppgev/Fkueqppgev" button to connect/disconnect

Click the Eqppgev button to connect immediately. Click the Fkueqppgev button to disconnect immediately.

Ecwvkqp: Sometimes the connection cannot be terminated although you specify a time to Max Idle Time because some applications are visiting the Internet continually in the background.

Click the Ucxg button to save your settings.

70" If your ISP provides L2TP connection, please select N4VR1Twuukc" N4VR option. And you

should enter the following parameters (Figure 4-11):

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 27 -

Figure 4-11

 Wugt" Pcog1Rcuuyqtf" / Enter the User Name and Password provided by your ISP. These

fields are case-sensitive.

 F{pcoke" KR1" Uvcvke" KR" / Choose either as you are given by your ISP. Click the Eqppgev

button to connect immediately. Click the Fkueqppgev button to disconnect immediately.

 Eqppgev" qp" Fgocpf" / You can configure the Router to disconnect from your Internet

connection after a specified period of inactivity (Ocz"Kfng"Vkog). If your Internet connection has been terminated due to inactivity, Eqppgev" qp" Fgocpf enables the Router to automatically re-establish your connection as soon as you attempt to access the Internet again. If you wish to activate Eqppgev"qp"Fgocpf, check the radio button. If you want your Internet connection to remain active at all times, enter 0 in the Ocz"Kfng"Vkog field. Otherwise, enter the number of minutes you want to have elapsed before your Internet connection terminates.

 Eqppgev"Cwvqocvkecnn{"/ Connect automatically after the Router is disconnected. To use this

option, check the radio button.

 Eqppgev"Ocpwcnn{"/"You can configure the Router to make it connect or disconnect manually.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 28 -

you want your Internet connection to remain active at all times, enter "0" in the Ocz"Kfng"Vkog field. Otherwise, enter the number of minutes that you wish to have the Internet connecting last unless a new link is requested.

Ecwvkqp: Sometimes the connection cannot be disconnected although you specify a time to Ocz" Kfng"Vkog, because some applications are visiting the Internet continually in the background.

Click the Ucxg button to save your settings.

80" If your ISP provides PPTP connection, please select RRVR1Twuukc" RRVR option. And you

should enter the following parameters (Figure 4-12):

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 29 -

Figure 4-12 PPTP Settings

 Wugt" Pcog1Rcuuyqtf" / Enter the User Name and Password provided by your ISP. These

fields are case-sensitive.

 F{pcoke"KR1"Uvcvke" KR"/ Choose either as you are given by your ISP and enter the ISP’s IP

address or the domain name.

If you choose static IP and enter the domain name, you should also enter the DNS assigned by your ISP. And click the Ucxg"button.

Click the Eqppgev button to connect immediately. Click the Fkueqppgev button to disconnect immediately.

 Eqppgev" qp" Fgocpf" / You can configure the Router to disconnect from your Internet

connection after a specified period of inactivity (Ocz"Kfng"Vkog). If your Internet connection has been terminated due to inactivity, Eqppgev" qp" Fgocpf enables the Router to automatically re-establish your connection as soon as you attempt to access the Internet again. If you wish to activate Eqppgev"qp"Fgocpf, check the radio button. If you want your Internet connection to remain active at all times, enter “0” in the Ocz" Kfng" Vkog field. Otherwise, enter the number of minutes you want to have elapsed before your Internet connection terminates.

 Eqppgev"Cwvqocvkecnn{"/ Connect automatically after the Router is disconnected. To use this

option, check the radio button.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 30 -

 Eqppgev"Ocpwcnn{"/"You can configure the Router to make it connect or disconnect manually.

After a specified period of inactivity (Ocz" Kfng" Vkog), the Router will disconnect from your Internet connection, and you will not be able to re-establish your connection automatically as soon as you attempt to access the Internet again. To use this option, click the radio button. If you want your Internet connection to remain active at all times, enter "0" in the Ocz"Kfng"Vkog field. Otherwise, enter the number in minutes that you wish to have the Internet connecting last unless a new link is requested.

Ecwvkqp: Sometimes the connection cannot be disconnected although you specify a time to Ocz" Kfng"Vkog because some applications are visiting the Internet continually in the background.

Click the Ucxg button to save your settings.

"

Pqvg<"

If you don't know how to choose the appropriate connection type, click the Fgvgev"button to allow the Router to automatically search your Internet connection for servers and protocols. The connection type will be reported when an active Internet service is successfully detected by the Router. This report is for your reference only. To make sure the connection type your ISP provides, please refer to the ISP. The various types of Internet connections that the Router can detect are as follows:

 RRRqG / Connections which use PPPoE that requires a user name and password.

 F{pcoke"KR / Connections which use dynamic IP address assignment.

 Uvcvke"KR / Connections which use static IP address assignment.

The Router can not detect PPTP/L2TP/BigPond connections with your ISP. If your ISP uses one of these protocols, then you must configure your connection manually.

60704" OCE"Enqpg"

Choose menu “Pgvyqtm" →"OCE"Enqpg”, you can configure the MAC address of the WAN on the screen below, Figure 4-13:

Figure 4-13 MAC Address Clone

Some ISPs require that you register the MAC Address of your adapter. Changes are rarely

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 31 -

needed here.

 YCP"OCE"Cfftguu"/ This field displays the current MAC address of the WAN port. If your

ISP requires you to register the MAC address, please enter the correct MAC address into this field in XX-XX-XX-XX-XX-XX format (X is any hexadecimal digit).

 [qwt"RE)u"OCE"Cfftguu"/ This field displays the MAC address of the PC that is managing

the Router. If the MAC address is required, you can click the Enqpg" OCE" Cfftguu Vq button and this MAC address will fill in the YCP"OCE"Cfftguu field.

Click Tguvqtg" Hcevqt{" OCE to restore the MAC address of WAN port to the factory default value.

Click the Ucxg button to save your settings.

"

Pqvg<

Only the PC on your LAN can use the MAC Address Clone function.

60705" NCP"

Choose menu “Pgvyqtm" →"NCP”, you can configure the IP parameters of the LAN on the screen as below.

Figure 4-14 LAN

 OCE"Cfftguu / The physical address of the Router, as seen from the LAN. The value can't

be changed.

 KR"Cfftguu"/ Enter the IP address of your Router or reset it in dotted-decimal notation

(factory default: 192.168.1.1).

 Uwdpgv" Ocum" / An address code that determines the size of the network. Normally use

255.255.255.0 as the subnet mask.

"

Pqvg<

1) If you change the IP Address of LAN, you must use the new IP Address to log in the Router.

2) If the new LAN IP Address you set is not in the same subnet, the IP Address pool of the DHCP server will change accordingly at the same time，while the Virtual Server and DMZ Host will not take effect until they are re-configured.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 32 -

608" Yktgnguu"

Figure 4-15 Wireless menu

There are five submenus under the Wireless menu (shown in Figure 4-15): Yktgnguu"Ugvvkpiu, Yktgnguu"Ugewtkv{."Yktgnguu"OCE"Hknvgtkpi."Yktgnguu"Cfxcpegf and"Yktgnguu"Uvcvkuvkeu0"Click any of them, and you will be able to configure the corresponding function.

60803" Yktgnguu"Ugvvkpiu"

Choose menu “Yktgnguu" →" Yktgnguu" Ugvvkpiu”, you can configure the basic settings for the wireless network on this page.

Figure 4-16 Wireless Settings

 Yktgnguu"Pgvyqtm"Pcog"/"Enter a value of up to 32 characters. The same name of SSID

(Service Set Identification) must be assigned to all wireless devices in your network. Considering your wireless network security, the default SSID is set to be _XXXXXX (XXXXXX indicates the last unique six numbers of each Router’s MAC address). This value is case-sensitive. For example, TEST is NOT the same as test.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 33 -

 Tgikqp / Select your region from the drop-down list. This field specifies the region where the

wireless function of the Router can be used. It may be illegal to use the wireless function of the Router in a region other than one of those specified in this field. If your country or region is not listed, please contact your local government agency for assistance.

When you select your local region from the drop-down list, click the Ucxg"button. then the Note Dialog appears. Click QM.

Note Dialog

"

Pqvg<

Limited by local law regulations, version for North America does not have region selection option.

 Oqfg"/ Select the desired mode. The default setting is 11bgn mixed.

33d"qpn{"/"Select if all of your wireless clients are 802.11b.

33i"qpn{"/"Select if all of your wireless clients are 802.11g.

33p"qpn{/"Select only if all of your wireless clients are 802.11n."

33di"okzgf"/"Select if you are using both 802.11b and 802.11g wireless clients."

33dip"okzgf"/"Select if you are using a mix of 802.11b, 11g, and 11n wireless clients.

Select the desired wireless mode. When 11g only mode is selected, only 802.11g wireless stations can connect to the Router. When 11n only mode is selected, only 802.11n wireless stations can connect to the AP. It is strongly recommended that you set the Mode to 33dip" okzgf, and all of 802.11b, 802.11g, and 802.11n wireless stations can connect to the Router.

 Ejcppgn" ykfvj" /" Select the channel width from the drop-down list. The default setting is

automatic, which can adjust the channel width for your clients automatically.

"

Pqvg<

If 33d" qpn{, 33i" qpn{, or 33di" okzgf" is selected in the Oqfg" field, the Ejcppgn" Ykfvj" selecting field will turn grey and the value will become 20M, which is unable to be changed.

 Ejcppgn"/"This field determines which operating frequency will be used. The default channel

is set to Cwvq, so the AP will choose the best channel automatically. It is not necessary to change the wireless channel unless you notice interference problems with another nearby access point.

 Ocz"Vz"Tcvg"/"You can limit the maximum tx rate of the Router through this field.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 34 -

 Gpcdng" Yktgnguu" Tqwvgt" Tcfkq" /" The wireless radio of this Router can be enabled or

disabled to allow wireless stations to access. The wireless radio can only be enabled or disabled by using the WIFI ON/OFF switch on the device."

 Gpcdng"UUKF"Dtqcfecuv"/"When wireless clients survey the local area for wireless networks

to associate with, they will detect the SSID broadcast by the Router. If you select the Gpcdng" UUKF"Dtqcfecuv checkbox, the Wireless Router will broadcast its name (SSID) on the air.

 Gpcdng"YFU"Dtkfikpi"/ Check this box to enable WDS. With this function, the Router can

bridge two or more Wlans. If this checkbox is selected, you will have to set the following parameters as shown in Figure 4-17. Make sure the following settings are correct.

Figure 4-17

 UUKF*vq"dg"dtkfigf+ - The SSID of the AP your Router is going to connect to as a client.

You can also use the search function to select the SSID to join.

 DUUKF*vq"dg"dtkfigf+ - The BSSID of the AP your Router is going to connect to as a

client. You can also use the search function to select the BSSID to join.

 Uwtxg{ - Click this button, you can search the AP which runs in the current channel.

 Mg{"v{rg - This option should be chosen according to the AP's security configuration. It

is recommended that the security type is the same as your AP's security type

 YGR" Kpfgz - This option should be chosen if the key type is WEP(ASCII) or

WEP(HEX).It indicates the index of the WEP key.

 Cwvj" V{rg - This option should be chosen if the key type is WEP(ASCII) or

WEP(HEX).It indicates the authorization type of the Root AP.

 Rcuuyqtf - If the AP your Router is going to connect needs password, you need to fill

the password in this blank.

60804" Yktgnguu"Ugewtkv{"

Choose menu “Yktgnguu" →" Yktgnguu"Ugewtkv{”, you can configure the security settings of your wireless network.

There are five wireless security modes supported by the Router: WEP (Wired Equivalent Privacy),

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 35 -

WPA (Wi-Fi Protected Access), WPA2 (Wi-Fi Protected Access 2), WPA-PSK (Pre-Shared Key), WPA2-PSK (Pre-Shared Key).

Figure 4-18 Wireless Security

 Fkucdng"Ugewtkv{"/ If you do not want to use wireless security, check this radio button. But it’s

strongly recommended to choose one of the following modes to enable security.

 YGR"/ It is based on the IEEE 802.11 standard. If you check this radio button, you will find a

notice in red as show in Figure 4-19.

Figure 4-19



V{rg / you can choose the type for the WEP security on the drop-down list. The default setting is Cwvqocvke, which can select

Ujctgf"Mg{ or Qrgp"U{uvgo authentication type

automatically based on the wireless station's capability and request.

 YGR"Mg{"Hqtocv / Jgzcfgekocn" and CUEKK"formats are provided here. Jgzcfgekocn

format stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length. CUEKK format stands for any combination of keyboard characters in the specified

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 36 -

length.

 YGR"Mg{ / Select which of the four keys will be used and enter the matching WEP key that

you create. Make sure these values are identical on all wireless stations in your network.

 Mg{" V{rg / You can select the WEP key length (64-bit, or 128-bit, or 152-bit.) for

encryption. "Disabled" means this WEP key entry is invalid.

86/dkv"/

You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is

not promoted) or 5 ASCII characters.

34:/dkv"/ You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not promoted) or 13 ASCII characters.

374/dkv"/ You can enter 32 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not promoted) or 16 ASCII characters.

"

Pqvg<

If you do not set the key, the wireless security function is still disabled even if you have selected Shared Key as Authentication Type.

 YRC"1YRC4"⁄"Gpvgtrtkug"/ It’s based on Radius Server.

 Xgtukqp / you can choose the version of the WPA security on the drop-down list. The

default setting is Cwvqocvke, which can select

YRC" *Wi-Fi Protected Access) or YRC4"

*WPA version 2) automatically based on the wireless station's capability and request.

 Gpet{rvkqp"/ You can select either Cwvqocvke, or VMKR or CGU0"

"

Pqvg<

If you check the YRC"1YRC4"⁄"Gpvgtrtkug radio button and choose TKIP encryption, you will find a notice in red as shown in Figure 4-20.

Figure 4-20



Tcfkwu"Ugtxgt"KR"/"Enter the IP address of the Radius server.

 Tcfkwu"Rqtv"/"Enter the port number of the Radius server.

 Tcfkwu"Rcuuyqtf"/"Enter the password for the Radius server.

 Itqwr"Mg{"Wrfcvg"Rgtkqf"/"Specify the group key update interval in seconds. The value

should be 30 or above. Enter 0 to disable the update.

 YRC/RUM1YRC4/RUM" ⁄" Rgtuqpcn" *Tgeqoogpfgf+"/ It’s the WPA/WPA2 authentication

type based on pre-shared passphrase.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 37 -

 Xgtukqp / you can choose the version of the WPA-PSK security on the drop-down list. The

default setting is Cwvqocvke, which can select

YRC/RUM" (Pre-shared key of WPA) or

YRC4/RUM" (Pre-shared key of WPA) automatically based on the wireless station's capability and request.

 Gpet{rvkqp /"When YRC/RUM or YRC is set as the Authentication Type, you can select

either"Cwvqocvke, or VMKR or CGU as Encryption.

"

Pqvg<

If you check the YRC/RUM1YRC4/RUM" ⁄" Rgtuqpcn" *Tgeqoogpfgf+ radio button and choose TKIP encryption, you will find a notice in red as shown in Figure 4-21.

Figure 4-21



RUM"Rcuurjtcug" /"You can enter ASCII characters between 8 and 63 characters or 8 to 64 Hexadecimal characters.

 Itqwr"Mg{"Wrfcvg"Rgtkqf"/"Specify the group key update interval in seconds. The value

should be 30 or above. Enter 0 to disable the update.

Be sure to click the Ucxg button to save your settings on this page.

60805" Yktgnguu"OCE"Hknvgtkpi""

Choose menu “Yktgnguu" →" OCE"Hknvgtkpi”, you can control the wireless access by configuring the Yktgnguu"OCE"Hknvgtkpi function, shown in Figure 4-22.

Figure 4-22 Wireless MAC Filtering

To filter wireless users by MAC Address, click Gpcdng. The default setting is Fkucdngf.

 OCE"Cfftguu / The wireless station's MAC address that you want to filter.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 38 -

 Uvcvwu / The status of this entry, either Gpcdngf or Fkucdngf.

 Fguetkrvkqp"/ A simple description of the wireless station.

To Add a Wireless MAC Address filtering entry, click the Cff"Pgy” button. The "Cff"qt"Oqfkh{" Yktgnguu"OCE"Cfftguu"Hknvgtkpi"gpvt{""page will appear, shown in Figure 4-23:

Figure 4-23 Add or Modify Wireless MAC Address Filtering entry

Vq"cff"qt"oqfkh{"c"OCE"Cfftguu"Hknvgtkpi"gpvt{."hqnnqy"vjgug"kpuvtwevkqpu<"

1. Enter the appropriate MAC Address into the OCE" Cfftguu field. The format of the MAC Address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). For example: 00-0A-EB-B0-00-0B.

2. Give a simple description for the wireless station in the Fguetkrvkqp field. For example: Wireless station A.

3. Select Gpcdngf or Fkucdngf for this entry on the Uvcvwu drop-down list.

4. Click the Ucxg button to save this entry.

Vq"oqfkh{"qt"fgngvg"cp"gzkuvkpi"gpvt{<"

1. Click the Oqfkh{"in the entry you want to modify. If you want to delete the entry, click the" Fgngvg.

2. Modify the information.

3. Click the Ucxg button.

Click the Gpcdng"Cnn button to make all entries enabled

Click the Fkucdng"Cnn button to make all entries disabled.

Click the Fgngvg"Cnn"button to delete all entries.

Click the Pgzv button to go to the next page.

Click the Rtgxkqwu button to return to the previous page.

Hqt"gzcorng<" If you desire that the wireless station A with MAC address 00-0A-EB-B0-00-0B and the wireless station B with MAC address 00-0A-EB-00-07-5F are able to access the Router, but all the other wireless stations cannot access the Router, you can configure the Yktgnguu" OCE" Cfftguu"Hknvgtkpi list by following these steps:

1. Click the Gpcdng button to enable this function.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 39 -

2. Select the radio button “Allow the stations specified by any enabled entries in the list to access” for Hknvgtkpi"Twngu.

3. Delete all or disable all entries if there are any entries already.

4. Click the

Cff"Pgy000 button.

1) Enter the MAC address

00-0A-EB-B0-00-0B/00-0A-EB-00-07-5F

in the OCE"Cfftguu field.

2) Enter wireless station A/B in the Fguetkrvkqp field.

3) Select Gpcdngf in the Uvcvwu drop-down list.

4) Click the Ucxg button.

5) Click the Dcem button.

The filtering rules that configured should be similar to the following list:

60806" Yktgnguu"Cfxcpegf"

Choose menu “Yktgnguu" →" Yktgnguu"Cfxcpegf”, you can configure the advanced settings of your wireless network.

Figure 4-24 Wireless Advanced

 Vtcpuokv"Rqygt"/"Here you can specify the transmit power of Router. You can select High,

Middle or Low which you would like. High is the default setting and is recommended.

 Dgceqp"Kpvgtxcn" /" Enter a value between 40-1000 milliseconds for Beacon Interval here.

The beacons are the packets sent by the Router to synchronize a wireless network. Beacon Interval value determines the time interval of the beacons. The default value is 100.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 40 -

 TVU"Vjtgujqnf"/"Here you can specify the RTS (Request to Send) Threshold. If the packet

is larger than the specified RTS Threshold size, the Router will send RTS frames to a particular receiving station and negotiate the sending of a data frame. The default value is

2346.

 Htciogpvcvkqp"Vjtgujqnf"/"This value is the maximum size determining whether packets

will be fragmented. Setting the Fragmentation Threshold too low may result in poor network performance because of excessive packets. 2346 is the default setting and is recommended.

 FVKO"Kpvgtxcn"/"This value determines the interval of the Delivery Traffic Indication Message

(DTIM). A DTIM field is a countdown field informing clients of the next window for listening to broadcast and multicast messages. When the Router has buffered broadcast or multicast messages for associated clients, it sends the next DTIM with a DTIM Interval value. You can specify the value between 1-255 Beacon Intervals. The default value is 1, which indicates the DTIM Interval is the same as Beacon Interval.

 Gpcdng"YOO"/"YOO function can guarantee the packets with high-priority messages being

transmitted preferentially. It is strongly recommended.

 Gpcdng"Ujqtv"IK"/ This function is recommended for it will increase the data capacity by

reducing the guard interval time

 Gpcdngf" CR" Kuqncvkqp" /" This function can isolate wireless stations on your network from

each other. Wireless devices will be able to communicate with the Router but not with each other. To use this function, check this box. AP Isolation is disabled by default.

"

Pqvg<" "

If you are not familiar with the setting items in this page, it's strongly recommended to keep the provided default values; otherwise it may result in lower wireless network performance.

60807" Yktgnguu"Uvcvkuvkeu"

Choose menu “Yktgnguu" →" Yktgnguu"Uvcvkuvkeu”, you can see the MAC Address, Current Status, Received Packets and Sent Packets for each connected wireless station.

Figure 4-25 Wireless Statistics

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 41 -

 OCE"Cfftguu"/"The connected wireless station's MAC address

 Ewttgpv" Uvcvwu / The connected wireless station's running status, one of UVC/CWVJ1"

UVC/CUUQE1"UVC/LQKPGF1"YRC1"YRC/RUM1"YRC41"YRC4/RUM1"CR/WR1"CR/FQYP1"Fkueqppgevgf

 Tgegkxgf"Rcemgvu / Packets received by the station

 Ugpv"Rcemgvu / Packets sent by the station

You cannot change any of the values on this page. To update this page and to show the current connected wireless stations, click on the Tghtguj button.

If the numbers of connected wireless stations go beyond one page, click the Pgzv button to go to the next page and click the Rtgxkqwu button to return the previous page.

"

Pqvg<" "

This page will be refreshed automatically every 5 seconds.

609" FJER"

Figure 4-26 The DHCP menu

There are three submenus under the DHCP menu (shown in Figure 4-26), FJ

ER" Ugvvkpiu,

FJER"Enkgpv"Nkuv"and Cfftguu"Tgugtxcvkqp0"Click any of them, and you will be able to configure

the corresponding function.

60903" FJER"Ugvvkpiu"

Choose menu “FJER" →" FJER"Ugvvkpiu”, you can configure the DHCP Server on the page as shown in Figure 4-27.The Router is set up by default as a DHCP

(Dynamic Host Configuration Protocol) server, which provides the TCP/IP configuration for all the PC(s) that are connected to the Router on the LAN.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 42 -

Figure 4-27 DHCP Settings

 FJER" Ugtxgt" /" Gpcdng or Fkucdng"the DHCP server. If you disable the Server, you must

have another DHCP server within your network or else you must configure the computer manually.

 Uvctv"KR"Cfftguu"/ Specify an IP address for the DHCP Server to start with when assigning

IP addresses. 192.168.1.100 is the default start address.

 Gpf"KR"Cfftguu"/ Specify an IP address for the DHCP Server to end with when assigning IP

addresses. 192.168.1.199 is the default end address.

 Cfftguu"Ngcug"Vkog"/ The Cfftguu"Ngcug"Vkog is the amount of time a network user will

be allowed connection to the Router with their current dynamic IP Address. Enter the amount of time in minutes and the user will be "leased" this dynamic IP Address. After the time is up, the user will be automatically assigned a new dynamic IP address. The range of the time is 1 ~ 2880 minutes. The default value is 120 minutes.

 Fghcwnv"Icvgyc{"/"(Optional.) It is suggested to input the IP address of the LAN port of the

Router. The default value is 192.168.1.1.

 Fghcwnv"Fqockp"/ (Optional.) Input the domain name of your network.

 Rtkoct{"FPU"/" (Optional.) Input the DNS IP address provided by your ISP or consult your

ISP.

 Ugeqpfct{" FPU" /" (Optional.) Input the IP address of another DNS server if your ISP

provides two DNS servers.

"

Pqvg<"

To use the DHCP server function of the Router, you must configure all computers on the LAN as "Obtain an IP Address automatically".

60904" FJER"Enkgpv"Nkuv"

Choose menu “FJER" →" FJER" Enkgpv" Nkuv”, you can view the information about the clients

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 43 -

attached to the Router in the screen as shown in Figure 4-28.

Figure 4-28 DHCP Clients List

 Enkgpv"Pcog /"The name of the DHCP client

 OCE"Cfftguu / The MAC address of the DHCP client

 Cuukipgf"KR / The IP address that the Router has allocated to the DHCP client

 Ngcug"Vkog / The time of the DHCP client leased. After the dynamic IP address has expired,

a new dynamic IP address will be automatically assigned to the user.

You cannot change any of the values on this page. To update this page and to show the current attached devices, click the Tghtguj button.

60905" Cfftguu"Tgugtxcvkqp"

Choose menu “FJER" →" Cfftguu"Tgugtxcvkqp”, you can view and add a reserved address for clients via the next screen (shown in Figure 4-29).When you specify a reserved IP address for a PC on the LAN, that PC

will always receive the same IP address each time when it accesses the DHCP server. Reserved IP addresses should be assigned to the servers that require permanent IP settings.

Figure 4-29 Address Reservation

 OCE"Cfftguu"/ The MAC address of the PC for which you want to reserve an IP address.

 Tgugtxgf"KR"Cfftguu"/"The IP address reserved for the PC by the Router.

 Uvcvwu / The status of this entry, either Gpcdngf or Fkucdngf.

Vq"Tgugtxg"cp"KR"cfftguu<

1. Click the"Cff"Pgy”"button. Then Figure 4-30 will pop up.

Enter the MAC address (in XX-XX-XX-XX-XX-XX format.) and IP address (in dotted-decimal notation) of the computer for which you want to reserve an IP address.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 44 -

3. Click the Ucxg button.

Figure 4-30 Add or Modify an Address Reservation Entry

Vq"oqfkh{"qt"fgngvg"cp"gzkuvkpi"gpvt{<"

1. Click the Oqfkh{"in the entry you want to modify. If you want to delete the entry, click the"

Fgngvg.

2. Modify the information.

3. Click the Ucxg button.

Click the Gpcdng1Fkucdng"Cnn button to make all entries enabled/disabled

Click the Fgngvg"Cnn"button to delete all entries.

Click the Pgzv button to go to the next page and Click the Rtgxkqwu button to return the previous page."

60:" Hqtyctfkpi"

Figure 4-31 The Forwarding menu

There are four submenus under the Forwarding menu (shown in Figure 4-31), Xktvwcn"Ugtxgtu, Rqtv" Vtkiigtkpi, FO\ and WRpR. Click any of them, and you will be able to configure the corresponding function.

60:03" Xktvwcn"Ugtxgtu"

Choose menu “Hqtyctfkpi" →" Xktvwcn" Ugtxgtu”, you can view and add virtual servers in the screen as shown in Figure 4-32. Virtual servers can be used for setting up public services on

your LAN, such as DNS, Email and

FTP. A virtual server is defined as a service port, and all requests from the Internet to this service port will be redirected to the computer specified by the server IP. Any PC that was used for a virtual server must have a static or reserved IP Address because its IP Address may be changed when using the DHCP function.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 45 -

Figure 4-32 Virtual Servers

 Ugtxkeg" Rqtv" / The numbers of External Ports. You can type a service port or a range of

service ports (in XXX – YYY format, XXX is the start port number, YYY is the end port number).

 Kpvgtpcn"Rqtv - The Internal Service Port number of the PC running the service application.

You can leave it blank if the Kpvgtpcn" Rqtv is the same as the Ugtxkeg" Rqtv, or enter a specific port number when Ugtxkeg"Rqtv is a single one.

 KR"Cfftguu"/ The IP Address of the PC providing the service application.

 Rtqvqeqn" / The protocol used for this application, either VER, WFR, or Cnn"(all protocols

supported by the Router).

 Uvcvwu"/ The status of this entry, either Gpcdngf or Fkucdngf.

Vq"ugv"wr"c"xktvwcn"ugtxgt"gpvt{<" "

1. Click the"Cff"Pgy”"button, the next screen will pop-up as shown in Figure 4-33.

Select the service port you want to use from the Eqooqp"Ugtxkeg"Rqtv list. If the Eqooqp" Ugtxkeg" Rqtv list does not have the service that you want to use, type the service port number or service port range in the Ugtxkeg"Rqtv box.

3. Type the IP Address of the computer in the"KR"Cfftguu"box.

4. Select the protocol used for this application, either VER, WFR, or Cnn.

5. Select the Gpcdng to enable the virtual server.

6. Click the Ucxg button.

Figure 4-33 Add or Modify a Virtual Server Entry

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 46 -

"

Pqvg<"

If your computer or server has more than one type of available service, please select another service, and enter the same IP Address for that computer or server.

Vq"oqfkh{"qt"fgngvg"cp"gzkuvkpi"gpvt{<"

1. Click the Oqfkh{"in the entry you want to modify. If you want to delete the entry, click the"

Fgngvg.

2. Modify the information.

3. Click the Ucxg button.

Click the Gpcdng1Fkucdngf"Cnn button to make all entries enabled/disabled.

Click the Fgngvg"Cnn"button to delete all entries.

Click the Pgzv button to go to the next page and click the Rtgxkqwu button to return the previous page."

"

Pqvg<"

If you set the service port of the virtual server as 80, you must set the Web management port on “Ugewtkv{" →" Tgoqvg" Ocpcigogpv” page to be any other value except 80 such as 8080. Otherwise there will be a conflict to disable the virtual server.

60:04" Rqtv"Vtkiigtkpi"

Choose menu “Hqtyctfkpi" →" Rqtv"Vtkiigtkpi”, you can view and add port triggering in the screen as shown in Figure 4-34. Some applications require multiple connections, like Internet games, video con

ferencing, Internet calling and so on. These applications cannot work with a pure NAT Router.

Port Triggering is used for some of these applications that can work with an NAT Router.

Figure 4-34 Port Triggering

Once the Router is configured, the operation is as follows:

1. A local host makes an outgoing connection using a destination port number defined in the Trigger Port field.

2. The Router records this connection, opens the incoming port or ports associated with this entry in the Port Triggering table, and associates them with the local host.

3. When necessary， the external host will be able to connect to the local host using one of the

ports defined in the Kpeqokpi"Rqtvu"field.

 Vtkiigt"Rqtv"/ The port for outgoing traffic. An outgoing connection using this port will trigger

this rule.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 47 -

 Vtkiigt" Rtqvqeqn" / The protocol used for Trigger Ports, either VER, WFR, or Cnn" (all

protocols supported by the Router).

 Kpeqokpi"Rqtvu"/ The port or port range used by the remote system when it responds to the

outgoing request. A response using one of these ports will be forwarded to the PC that triggered this rule. You can input at most 5 groups of ports (or port sections). Every group of ports must be set apart with ",". For example, 2000-2038, 2050-2051, 2085, 3010-3030.

 Kpeqokpi"Rtqvqeqn"/ The protocol used for Incoming Ports Range, either VER or WFR, or

CNN (all protocols supported by the Router).

 Uvcvwu"/ The status of this entry, either Gpcdngf or Fkucdngf.

Vq"cff"c"pgy"twng."hqnnqy"vjg"uvgru"dgnqy0" "

1. Click the"Cff"Pgy”"button, the next screen will pop-up as shown in Figure 4-35.

Select a common application from the Eqooqp" Crrnkecvkqpu drop-down list, then the

Vtkiigt"Rqtv"field and the Kpeqokpi" Rqtvu field will be automatically filled. If the Eqooqp" Crrnkecvkqpu" do not have the application you need, enter the Vtkiigt" Rqtv" and the Kpeqokpi"Rqtvu manually.

3. Select the protocol used for Trigger Port from the Vtkiigt"Rtqvqeqn drop-down list, either VER, WFR, or Cnn.

4. Select the protocol used for Incoming Ports from the Kpeqokpi" Rtqvqeqn drop-down list, either VER or WFR, or Cnn0

5. Select Gpcdng"in Uvcvwu field.

6. Click the Ucxg button to save the new rule.

Figure 4-35 Add or Modify a Port Triggering Entry

Vq"oqfkh{"qt"fgngvg"cp"gzkuvkpi"gpvt{<"

1. Click the Oqfkh{"in the entry you want to modify. If you want to delete the entry, click the" Fgngvg.

2. Modify the information.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 48 -

3. Click the Ucxg button.

Click the Gpcdng"Cnn button to make all entries enabled

Click the Fkucdng"Cnn button to make all entries disabled.

Click the Fgngvg"Cnn"button to delete all entries

"

Pqvg<

1. When the trigger connection is released, the corresponding opening ports will be closed.

2. Each rule is allowed to be used only by one host on LAN synchronously. The trigger connection of other hosts on LAN will be refused.

3. Incoming Ports cannot overlap each other.

60:05" FO\"

Choose menu “Hqtyctfkpi" →"FO\”, you can view and configure DMZ host in the screen as shown in Figure 4-36. The DMZ host feature allows one local h

ost to be exposed to the Internet for a special-purpose service such as Internet gaming or videoconferencing. DMZ host forwards all the ports at the same time. Any PC whose port is being forwarded must have its DHCP client function disabled and should have a new static IP Address assigned to it because its IP Address may be changed when using the DHCP function.

Figure 4-36 DMZ

Vq"cuukip"c"eqorwvgt"qt"ugtxgt"vq"dg"c"FO\"ugtxgt<" "

1. Check the Gpcdng radio button.

2. Enter the IP Address of a local host in the FO\"Jquv"KR"Cfftguu field.

3. Click the Ucxg button.

"

Pqvg<" "

After you set the DMZ host, the firewall related to the host will not work.

60:06" WRpR"

Choose menu “Hqtyctfkpi" →"WRpR”, you can view the information about WRpR"(Universal Plug and Play) in the screen as shown in Figure 4-37. The UPnP feature allows the devices, such as

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 49 -

Internet computers, to access the local host resources or devices as needed. UPnP devices can be automatically discovered by the UPnP service application on the LAN.

Figure 4-37 UPnP

 Ewttgpv"WRpR"Uvcvwu"/"UPnP can be enabled or disabled by clicking the Gpcdng or Fkucdng

button.

 Ewttgpv"WRpR"Ugvvkpiu"Nkuv"/"This table displays the current UPnP information.

 Crr"Fguetkrvkqp"/"The description provided by the application in the UPnP request.  Gzvgtpcn"Rqtv / The external port the Router opens for the application.  Rtqvqeqn"/"The type of protocol the Router opens for the application.  Kpvgtpcn"Rqtv /"The Internal port the Router opens for local host.  KR"Cfftguu / The IP address of the UPnP device that is currently accessing the Router.  Uvcvwu"/ The status of the port is displayed here. “Enabled” means that the port is still

active. Otherwise, the port is inactive.

Click Tghtguj to update the Current UPnP Settings List.

60;" Ugewtkv{"

Figure 4-38 The Security menu

There are four submenus under the Security menu as shown in Figure 4-38: Dcuke" Ugewtkv{, Cfxcpegf"Ugewtkv{, Nqecn"Ocpcigogpv and Tgoqvg"Ocpcigogpv0"Click any of them, and you will be able to configure the corresponding function.

60;03" Dcuke"Ugewtkv{"

Choose menu “Ugewtkv{" →" Dcuke"Ugewtkv{”, you can configure the basic security in the screen as shown in Figure 4-39.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 50 -

Figure 4-39 Basic Security

 Hktgycnn" /" A firewall protects your network from the outside world. Here you can enable or

disable the Router’s firewall.

 URK" Hktgycnn"/"SPI (Stateful Packet Inspection, also known as dynamic packet filtering)

helps to prevent cyber attacks by tracking more state per session. It validates that the traffic passing through the session conforms to the protocol. SPI Firewall is enabled by factory default. If you want all the computers on the LAN exposed to the outside world, you can disable it.

 XRP" /" VPN Passthrough must be enabled if you want to allow VPN tunnels using IPSec,

PPTP, or L2TP protocols to pass through the Router’s firewall."

 RRVR"Rcuuvjtqwij"/ Point-to-Point Tunneling Protocol (PPTP) allows the Point-to-Point

Protocol (PPP) to be tunneled through an IP network. To allow PPTP tunnels to pass through the Router, keep the default, Gpcdngf.

 N4VR" Rcuuvjtqwij / Layer 2 Tunneling Protocol (L2TP) is the method used to enable

Point-to-Point sessions via the Internet on the Layer 2 level. To allow L2TP tunnels to pass through the Router, keep the default, Gpcdngf.

 KRUge" Rcuuvjtqwij / Internet Protocol Security (IPSec) is a suite of protocols for

ensuring private, secure communications over Internet Protocol (IP) networks, through the use of cryptographic security services. To allow IPSec tunnels to pass through the Router, keep the default, Gpcdngf.

 CNI"/"It is recommended to enable Application Layer Gateway (ALG) because ALG allows

customized Network Address Translation (NAT) traversal filters to be plugged into the

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 51 -

gateway to support address and port translation for certain application layer "control/data" protocols such as FTP, TFTP, H323 etc. "

 HVR" CNI" / To allow FTP clients and servers to transfer data across NAT, keep the

default Gpcdng. "

 VHVR"CNI"/"To allow TFTP clients and servers to transfer data across NAT, keep the

default Gpcdng."

 J545" CNI" /" To allow Microsoft NetMeeting clients to communicate across NAT, keep

the default Gpcdng."

 TVUR"CNI - To allow some media player clients to communicate with some streaming

media servers across NAT, click Enable. "

Click the Ucxg"button to save your settings.

60;04" Cfxcpegf"Ugewtkv{"

Choose menu “Ugewtkv{" → " Cfxcpegf" Ugewtkv{”, you can protect the Router from being attacked by TCP-SYN Flood, UDP Flood and ICMP-Flood in the screen as shown in Figure 4-40.

 TVUR"CNI - To allow some media player clients to communicate with some streaming media servers

across NAT, click Enable.

Figure 4-40 Advanced Security

 Rcemgvu"Uvcvkuvkeu"Kpvgtxcn"*7Å82+"/"The default value is 10. Select a value between 5 and

60 seconds from the drop-down list. The Packets Statistics Interval value indicates the time

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 52 -

section of the packets statistics. The result of the statistics is used for analysis by SYN Flood, UDP Flood and ICMP-Flood.

 FqU" Rtqvgevkqp" / Denial of Service protection. Check the Enable or Disable button to

enable or disable the DoS protection function. Only when it is enabled, will the flood filters be enabled.

"

Pqvg<"

Dos Protection will take effect only when the Vtchhke"Uvcvkuvkeu"in “U{uvgo"Vqqn" →"Vtchhke" Uvcvkuvkeu” is enabled.

 Gpcdng" KEOR/HNQQF" Cvvcem" Hknvgtkpi / Enable or Disable the ICMP-FLOOD Attack

Filtering.

 KEOR/HNQQF" Rcemgvu" Vjtgujqnf" *7Å5822+ / The default value is 50. Enter a value

between 5 Å 3600. When the current ICMP-FLOOD Packets number is beyond the set value, the Router will startup the blocking function immediately.

 Gpcdng"WFR/HNQQF"Hknvgtkpi / Enable or Disable the UDP-FLOOD Filtering.

 WFR/HNQQF" Rcemgvu" Vjtgujqnf" *7Å5822+ / The default value is 500. Enter a value

between 5 Å 3600. When the current UPD-FLOOD Packets number is beyond the set value, the Router will startup the blocking function immediately.

 Gpcdng" VER/U[P/HNQQF" Cvvcem" Hknvgtkpi / Enable or Disable the TCP-SYN-FLOOD

Attack Filtering.

 VER/U[P/HNQQF" Rcemgvu" Vjtgujqnf" *7Å5822+ / The default value is 50. Enter a value

between 5 Å 3600. When the current TCP-SYN-FLOOD Packets numbers is beyond the set value, the Router will startup the blocking function immediately.

 Kipqtg"Rkpi" Rcemgv" Htqo" YCP" Rqtv" vq" Tqwvgt / Enable or Disable Ignore Ping Packet

From WAN Port to Router. The default setting is disabled. If enabled, the ping packet from the Internet cannot access the Router.

 Hqtdkf"Rkpi"Rcemgv"Htqo"NCP"Rqtv"vq"Tqwvgt / Enable or Disable Forbid Ping Packet From

LAN Port to Router. The default setting is disabled. If enabled, the ping packet from LAN cannot access the Router. This function can be used to defend against some viruses.

Click the Ucxg button to save the settings.

Click the Dnqemgf"FqU"Jquv"Nkuv"button to display the DoS host table by blocking.

60;05" Nqecn"Ocpcigogpv"

Choose menu “Ugewtkv{" →" Nqecn"Ocpcigogpv”, you can configure the management rule in the screen as shown in Figure 4-41. The management feature allows you to deny computers in LAN from accessing the Route

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 53 -

Figure 4-41 Local Management

By default, the radio button “Cnn" vjg" REu" qp" vjg" NCP" ctg" cnnqygf" vq" ceeguu" vjg" Tqwvgt)u" Ygd/Dcugf"Wvknkv{” is checked. If you want to allow PCs with specific MAC Addresses to access the Setup page of the Router's Web-Based Utility locally from inside the network, check the radio button “Qpn{" vjg" REu" nkuvgf" ecp" dtqyug"vjg" dwknv/kp" ygd" rcigu" vq" rgthqto" Cfokpkuvtcvqt" vcumu”, and then enter each MAC Address in a separate field. The format for the MAC Address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). Only the PCs with MAC address listed can use the password to browse the built-in web pages to perform Administrator tasks while all the others will be blocked.

After click the Cff button, your PC's MAC Address will be placed in the list above.

Click the Ucxg button to save your settings.

"

Pqvg<"

If your PC is blocked but you want to access the Router again, use a pin to press and hold the Tgugv"Dwvvqp"(hole) on the back panel for about 5 seconds to reset the Router’s factory defaults on the Router’s Web-Based Utility.

60;06" Tgoqvg"Ocpcigogpv"

Choose menu “Ugewtkv{" →" Tgoqvg"Ocpcigogpv”, you can configure the Remote Management function in the screen as shown in Figure 4-42. This feature allows you to manage your Router from a remote location v

ia the Internet.

Figure 4-42 Remote Management

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 54 -

 Ygd" Ocpcigogpv" Rqtv" / Web browser access normally uses the standard HTTP service

port 80. This Router's default remote management web port number is 80. For greater security, you can change the remote management web port to a custom port by entering that number in the box provided. Choose a number between 1 and 65534 but do not use the number of any common service port.

 Tgoqvg"Ocpcigogpv"KR"Cfftguu / This is the current address you will use when accessing

your Router from the Internet. This function is disabled when the IP address is set to the default value of 0.0.0.0. To enable this function change 0.0.0.0 to a valid IP address. If set to

255.255.255.255, then all the hosts can access the Router from internet.

"

Pqvg<"

1) To access the Router, you should type your Router's WAN IP address into your browser's

address (in IE) or Location (in Navigator) box, followed by a colon and the custom port number. For example, if your Router's WAN address is 202.96.12.8, and the port number used is 8080, please enter http://202.96.12.8:8080

in your browser. Later, you may be asked for the Router's password. After successfully entering the username and password, you will be able to access the Router's web-based utility.

2) Be sure to change the Router's default password to a very secure password.

6032"" Rctgpvcn"Eqpvtqn"

Choose menu “Rctgpvcn" Eqpvtqn”, and you can configure the parental control in the screen as shown in Figure 4-43. The Parental Control function can be used to control the internet a

ctivities

of the child, limit the child to access certain websites and restrict the time of surfing.

Figure 4-43 Parental Control Settings



Rctgpvcn"Eqpvtqn" / Check Gpcdng if you want this function to take effect, otherwise check Fkucdng.

 OCE"Cfftguu"qh"Rctgpvcn"RE"/ In this field, enter the MAC address of the controlling PC, or

you can make use of the Eqr{"Vq"Cdqxg button below.

 OCE"Cfftguu"qh"[qwt"RE"/ This field displays the MAC address of the PC that is managing

this Router. If the MAC Address of your adapter is registered, you can click the Copy To Above button to fill this address to the MAC Address of Parental PC field above.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 55 -

 Ygdukvg"Fguetkrvkqp"/"Description of the allowed website for the PC controlled.

 Uejgfwng / The time period allowed for the PC controlled to access the Internet. For detailed

information, please go to “Ceeguu"Eqpvtqn" →" Uejgfwng”.

 Oqfkh{ / Here you can edit or delete an existing entry.

Vq"cff"c"pgy"gpvt{."rngcug"hqnnqy"vjg"uvgru"dgnqy0"

1. Click the Cff"Pgy” button and the next screen will pop-up as shown in Figure 4-44.

Enter the MAC address of the PC (e.g. 00-11-22-33-44-AA) you’d like to control in the MAC Address of Child PC field. Or you can choose the MAC address from the All Address in Current LAN"drop-down list.

3. Give a description (e.g. Allow Google) for the website allowed to be accessed in the Website Description field.

4. Enter the allowed domain name of the website, either the full name or the keywords (e.g. google) in the Allowed Domain Name" field. Any domain name with keywords in it (www.google.com

, www.google.com.hk) will be allowed.

5. Select from the Effective Time drop-down list the schedule (e.g. Schedule_1) you want the entry to take effect. If there are not suitable schedules for you, click the Uejgfwng" in red below to go to the Advance Schedule Settings page and create the schedule you need.

6. In the Status field, you can select Gpcdngf"or Fkucdngf to enable or disable your entry.

7. Click the Ucxg button.

Click the Gpcdng"Cnn button to enable all the rules in the list.

Click the Fkucdng"Cnn button to disable all the rules in the list.

Click the Fgngvg"Cnn button to delete all the entries in the table.

Click the Pgzv button to go to the next page, or click the Rtgxkqwu button return to the previous page.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 56 -

Figure 4-44 Add or Modify Parental Control Entry

Hqt" gzcorng: If you desire that the children’s PC with MAC address 00-11-22-33-44-AA can access www.google.com on Saturday only while the parent PC with MAC address 00-11-22-33-44-BB is without any restriction, you should follow the settings below.

1. Click “Rctgpvcn"Eqpvtqn” menu on the left to enter the Parental Control Settings page. Check Enable and enter the MAC address 00-11-22-33-44-BB in the MAC Address of Parental PC field.

2. Click “Ceeguu"Eqpvtqn"→"Uejgfwng” on the left to enter the Schedule Settings page. Click Cff"Pgy000 button to create a new schedule with Schedule Description is Schedule_1, Day is Sat and Time is all day-24 hours.

3. Click “Rctgpvcn" Eqpvtqn” menu on the left to go back to the Add or Modify Parental Control Entry page:

 Click Cff"Pgy000 button.

 Enter 00-11-22-33-44-AA in the OCE"Cfftguu"qh"Ejknftgp‚u"RE field.

 Enter “Allow Google” in the Ygdukvg"Fguetkrvkqp field.

 Enter “www.google.com” in the Cnnqygf"Ygdukvg"Pcog field.

 Select “Schedule_1” you create just now from the Ghhgevkxg"Vkog drop-down list.

 In Uvcvwu field, select Enable.

4. Click Ucxg to complete the settings.

Then you will go back to the Parental Control Settings page and see the following list, as shown in Figure 4-45.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 57 -

Figure 4-45 Parental Control Settings

6033"Ceeguu"Eqpvtqn"

Figure 4-46 Access Control

There are four submenus under the Access Control menu as shown in Figure 4-46: Twng, Jquv, Vcti g v and Uejgfwng. Click any of them, and you will be able to configure the corresponding function.

603303"Twng"

Choose menu “Ceeguu" Eqpvtqn" →"Twng”, you can view and set Access Control rules in the screen as shown in Figure 4-47.

Figure 4-47 Access Control Rule Management



Gpcdng" Kpvgtpgv" Ceeguu" Eqpvtqn" / Select the check box to enable the Internet Access Control function, so the Default Filter Policy can take effect.

 Twng"Pcog"/ Here displays the name of the rule and this name is unique.

 Jquv"/ Here displays the host selected in the corresponding rule.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 58 -

 Vctigv"/ Here displays the target selected in the corresponding rule.

 Uejgfwng"/"Here displays the schedule selected in the corresponding rule.

 Cevkqp"/ Here displays the action the Router takes to deal with the packets. It could be Cnnqy

or Fgp{. Cnnqy means that the Router permits the packets to go through the Router. Fgp{ means that the Router rejects the packets to go through the Router.

 Uvcvwu"/ This field displays the status of the rule. Gpcdngf means the rule will take effect,

Fkucdngf means the rule will not take effect.

 Oqfkh{"/ Here you can edit or delete an existing rule.

Vjgtg"ctg"vyq"ogvjqfu"vq"cff"c"pgy"twng0"

Ogvjqf"Qpg<"

1. Click Ugvwr"Yk|ctf button and the next screen will appear as shown in Figure 4-48.

Figure 4-48 Quick Setup – Create a Host Entry

 Oqfg - Here are two options, KR"Cfftguu and OCE"Cfftguu. You can select either of them

from the drop-down list.

 Jquv"Fguetkrvkqp - In this field, create a unique description for the host (e.g. Host_1).

If the KR"Cfftguu is selected, you can see the following item:

 NCP"KR"Cfftguu"- Enter the IP address or address range of the host in dotted-decimal format

(e.g. 192.168.1.23). "

If the MAC Address is selected, you can see the following item:

 OCE"Cfftguu - Enter the MAC address of the host in XX-XX-XX-XX-XX-XX format (e.g.

00-11-22-33-44-AA).

2. Click Pgzv when finishing creating the host entry, and the next screen will appear as shown in Figure 4-49.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 59 -

Figure 4-49 Quick Setup – Create an Access Target Entry

 Oqfg - Here are two options, IP Address and Domain Name. You can choose either of them

from the drop-down list.

 Vctigv"Fguetkrvkqp - In this field, create a description for the target. Note that this description

should be unique (e.g. Target_1).

If the KR"Cfftguu is selected, you will see the following items:

 KR"Cfftguu - Enter the IP address (or address range) of the target (targets) in dotted-decimal

format (e.g. 192.168.1.23).

 Vctigv"Rqtv - Specify the port or port range for the target. For some common service ports,

you can make use of the Common Service Port item below.

 Rtqvqeqn - Here are four options, All, TCP, UDP, and ICMP. Select one of them from the

drop-down list for the target.

 Eqooqp" Ugtxkeg" Rqtv - Here lists some common service ports. Select one from the

drop-down list, and the corresponding port number will be filled in the Target Port field automatically. For example, if you select "FTP", "21" will be filled in the Target Port automatically.

If the Fqockp"Pcog is selected, you will see the following items:

 Fqockp"Pcog - Here you can enter 4 domain names, either the full name or the keywords

(for example, google). Any domain name with keywords in it (www.google.com, www.google.cn) will be blocked or allowed.

3. Click Pgzv when finishing creating the access target entry, and the next screen will appear as shown in Figure 4-50.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 60 -

Figure 4-50 Quick Setup – Create an Advanced Schedule Entry

 Uejgfwng"Fguetkrvkqp - In this field, create a description for the schedule. Note that this

description should be unique (e.g. Schedule_1).

 Fc{ - Choose Select Days and select the certain day (days), or choose Everyday.

 Vkog - Select "24 hours", or specify the Start Time and Stop Time yourself.

 Uvctv"Vkog - Enter the start time in HHMM format (HHMM are 4 numbers). For example 0800

is 8:00.

 Uvqr"Vkog - Enter the stop time in HHMM format (HHMM are 4 numbers). For example 2000

is 20:00.

4. Click Pgzv" when finishing creating the advanced schedule entry, and the next screen will appear as shown in Figure 4-51.

Figure 4-51 Quick Setup – Create an Internet Access Control Entry

 Twng - In this field, create a name for the rule. Note that this name should be unique (e.g.

Rule_1).

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 61 -

 Jquv"- In this field, select a host from the drop-down list for the rule. The default value is the

Jquv"Fguetkrvkqp you set just now.

 Vctigv - In this filed, select a target from the drop-down list for the rule. The default value is

the Vctigv"Fguetkrvkqp you set just now.

 Uejgfwng - In this field, select a schedule from the drop-down list for the rule. The default

value is the Uejgfwng"Fguetkrvkqp you set just now.

 Uvcvwu - In this field, there are two options, Gpcdngf or Fkucdngf. Select Gpcdngf so that the

rule will take effect. Select Fkucdngf so that the rule won't take effect.

5. Click Hkpkuj to complete adding a new rule.

Ogvjqf"Vyq<"

1. Click the Cff"Pgy” button and the next screen will pop up as shown in Figure 4-52.

Give a name (e.g. Rule_1) for the rule in the Twng"Pcog"field.

3. Select a host from the Jquv"drop-down list or choose “Enkem"Jgtg"Vq"Cff"Pgy"Jquv"Nkuv”.

4. Select a target from the Vctigv"drop-sown list or choose “Enkem"Jgtg"Vq"Cff"Pgy"Vctigv" Nkuv”.

5. Select a schedule from the Uejgfwng" drop-down list or choose “Enkem" Jgtg" Vq" Cff" Pgy" Uejgfwng”.

6. In the Uvcvwu field, select Gpcdngf"or Fkucdngf to enable or disable your entry.

7. Click the Ucxg button.

Figure 4-52 Add Internet Access Control Entry

Hqt" gzcorng: If you desire to allow the host with MAC address 00-11-22-33-44-AA to access www.google.com only from 18:00 to 20:00 on Saturday and Sunday, and forbid other hosts in the LAN to access the Internet, you should follow the settings below:

1. Click the submenu Twng"qh"Ceeguu"Eqpvtqn in the left to return to the Rule List page. Select Enable Internet Access Control and choose "Allow the packets specified by any enabled access control policy to pass through the Router".

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 62 -

2. We recommend that you click Ugvwr"Yk|ctf"button to finish all the following settings.

3. Click the submenu Jquv"qh"Ceeguu"Eqpvtqn in the left to enter the Host List page. Add a new entry with the Host Description is Host_1 and MAC Address is 00-11-22-33-44-AA.

4. Click the submenu Vctigv"qh"Ceeguu"Eqpvtqn in the left to enter the Target List page. Add a new entry with the Target Description is Target_1 and Domain Name is www.google.com.

5. Click the submenu Uejgfwng"qh"Ceeguu"Eqpvtqn in the left to enter the Schedule List page. Add a new entry with the Schedule Description is Schedule_1, Day is Sat and Sun, Start Time is 1800 and Stop Time is 2000.

6. Click the submenu Twng"qh"Ceeguu"Eqpvtqn in the left, Click Cff"Pgy000 button to add a new rule as follows:

 In Rule Name field, create a name for the rule. Note that this name should be unique, for

example Rule_1.

 In Host field, select Host_1.

 In Target field, select Target_1.

 In Schedule field, select Schedule_1.

 In Status field, select Enable.

 Click Save to complete the settings.

Then you will go back to the Access Control Rule Management page and see the following list.

603304"Jquv"

Choose menu “Ceeguu" Eqpvtqn" →"Jquv”, you can view and set a Host list in the screen as shown in Figure 4-53. The host list is necessary for the Access Control Rule.

Figure 4-53 Host Settings



Jquv"Fguetkrvkqp"/ Here displays the description of the host and this description is unique.

 Kphqtocvkqp"/ Here displays the information about the host. It can be IP or MAC.

 Oqfkh{"/ To modify or delete an existing entry.

Vq"cff"c"pgy"gpvt{."rngcug"hqnnqy"vjg"uvgru"dgnqy0"

1. Click the Cff"Pgy” button.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 63 -

2. In the Oqfg"field, select IP Address or MAC Address.

 If you select IP Address, the screen shown is Figure 4-54.

1) In Jquv"Fguetkrvkqp field, create a unique description for the host (e.g. Host_1).

2) In NCP"KR"Cfftguu field, enter the IP address.

 If you select MAC Address, the screen shown is Figure 4-55.

1) In Jquv"Fguetkrvkqp field, create a unique description for the host (e.g. Host_1).

2) In OCE"Cfftguu field, enter the MAC address.

3. Click the Ucxg button to complete the settings.

Click the Fgngvg"Cnn button to delete all the entries in the table.

Click the Pgzv button to go to the next page, or click the Rtgxkqwu button return to the previous page.

Figure 4-54 Add or Modify a Host Entry

Figure 4-55 Add or Modify a Host Entry

Hqt" gzcorng: If you desire to restrict the internet activities of host with MAC address 00-11-22-33-44-AA, you should first follow the settings below:

1. Click Cff"Pgy000 button in Figure 4-53 to enter the Add or Modify a Host Entry page.

2. In Oqfg field, select MAC Address fro

m the drop-down list.

3. In Jquv"Fguetkrvkqp field, create a wpkswg description for the host (e.g. Host_1).

4. In OCE"Cfftguu field, enter 00-11-22-33-44-AA.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 64 -

5. Click Ucxg to complete the settings.

Then you will go back to the Host Settings page and see the following list.

603305"Vctigv"

Choose menu “Ceeguu"Eqpvtqn" →"Vctigv”, you can view and set a Target list in the screen as shown in Figure 4-56. The target list is necessary for the

Access Control Rule.

Figure 4-56 Target Settings



Vctigv"Fguetkrvkqp" / Here displays the description about the target and this description is unique.

 Kphqtocvkqp"/ The target can be IP address, port, or domain name.

 Oqfkh{"/ To modify or delete an existing entry.

Vq"cff"c"pgy"gpvt{."rngcug"hqnnqy"vjg"uvgru"dgnqy0

1. Click the Cff"Pgy” button.

2. In Oqfg field, select IP Address or Domain Name.

 If you select KR"Cfftguu, the screen shown is Figure 4-57.

1) In Vctigv" Fguetkrvkqp field, create a unique description for the target (e.g. Target_1).

2) In KR"Cfftguu field, enter the IP address of the target.

3) Select a common service from Eqooqp" Ugtxkeg" Rqtv" drop-down list, so that the Vctigv"Rqtv will be automatically filled. If the Eqooqp"Ugtxkeg"Rqtv"drop-down list doesn’t have the service you want, specify the Vctigv"Rqtv manually.

4) In Rtqvqeqn"field, select TCP, UDP, ICMP or ALL."

 If you select Fqockp"Pcog, the screen shown is Figure 4-58.

1) In Vctigv" Fguetkrvkqp field, create a unique description for the target (e.g. Target_1).

2) In Fqockp"Pcog field, enter the domain name, either the full name or the keywords (for example google) in the blank. Any domain name with keywords in it (www.google.com

, www.google.hk) will be blocked or allowed. You can enter 4

domain names.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 65 -

3. Click the Ucxg button.

Click the Fgngvg"Cnn button to delete all the entries in the table.

Click the Pgzv button to go to the next page, or click the Rtgxkqwu button return to the previous page.

Figure 4-57 Add or Modify an Access Target Entry

Figure 4-58 Add or Modify an Access Target Entry

Hqt" gzcorng: If you desire to restrict the internet activities of host with MAC address 00-11-22-33-44-AA in the LAN to access yyy0iqqing0eqo only, you should first follow the settings below:

1. Click Cff"Pgy” button in Figure 4-56 to enter the Add or Modify an Access Target Entry page.

2. In Oqfg field, selec

t Domain Name from the drop-down list.

3. In Vctigv"Fguetkrvkqp field, create a unique description for the target (e.g. Target_1).

4. In Fqockp"Pcog field, enter www.google.com.

5. Click Ucxg to complete the settings.

Then you will go back to the Target Settings page and see the following list,

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 66 -

603306"Uejgfwng"

Choose menu “Ceeguu"Eqpvtqn" →" Uejgfwng”, you can view and set a Schedule list in the next screen as shown in Figure 4-59. The Schedule list is necessary for the Access Control Rule.

Figure 4-59 Schedule Settings



Uejgfwng"Fguetkrvkqp / Here displays the description of the schedule and this description is unique.

 Fc{"/ Here displays the day(s) in a week.

 Vkog"/ Here displays the time period in a day.

 Oqfkh{ / Here you can edit or delete an existing schedule.

Vq"cff"c"pgy"uejgfwng."hqnnqy"vjg"uvgru"dgnqy0"

1. Click Cff"Pgy000 button shown in Figure 4-59 and the next screen will pop-up as shown in

Figure 4-60.

2. In Uejgfwng"

Fguetkrvkqp field, create a unique description for the schedule (e.g.

Schedule_1).

3. In Fc{ field, select the day or days you need.

4. In Vkog field, you can select all day-24 hours or you may enter the Start Time and Stop Time

in the corresponding field.

5. Click Ucxg to complete the settings.

Click the Fgngvg"Cnn button to delete all the entries in the table.

Click the Pgzv button to go to the next page, or click the Rtgxkqwu button return to the previous page.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 67 -

Figure 4-60 Advanced Schedule Settings

Hqt" gzcorng: If you desire to restrict the internet activities of host with MAC address 00-11-22-33-44-AA to access www.google.com only from" 3:<22" vq" 42<22 on Ucvwtfc{" and" Uwpfc{, you should first follow the settings below:

1. Click Cff" Pgy000 button shown in Figure 4-59 to enter the Advanced Schedule Settings page.

2. In Uejgfwng"

Fguetkrvkqp field, create a unique description for the schedule (e.g.

Schedule_1).

3. In Fc{"field, check the Select Days"radio button and then select Sat and Sun.

4. In Vkog field, enter 1800 in Start Time field and 2000 in Stop Time field.

5. Click Ucxg to complete the settings.

Then you will go back to the Schedule Settings page and see the following list.

6034"Cfxcpegf"Tqwvkpi"

Figure 4-61 Advanced Routing Menu

There are two submenus under the Network menu (shown in Figure 4-61): Uvcvke"Tqwvkpi"Nkuv and U{uvgo" Tqwvkpi" Vcdng. Click any of them, and you will be able to configure the corresponding function.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 68 -

603403"Uvcvke"Tqwvkpi"

Choose menu ›Cfxcpegf"Tqwvkpi" →" Uvcvke"Tqwvkpi”, and you can configure the static route in the next screen, shown in Figure 4-62. A static route is a pre-determine

d path that network

information must travel to reach a specific host or network.

Figure 4-62 Static Routing

Vq"cff"uvcvke"tqwvkpi"gpvtkgu."hqnnqy"vjg"uvgru"dgnqy0"

1. Click Cff"Pgy” shown in Figure 4-62, you will see the following screen Figure 4-63.

Figure 4-63 Add or Modify a Static Route Entry

2. Enter the following data.

 Fguvkpcvkqp"Pgvyqtm / The Fguvkpcvkqp"Pgvyqtm is the address of the network or host

that you want to assign to a static route.

 Uwdpgv" Ocum / The Uwdpgv" Ocum determines which portion of an IP Address is the

network portion, and which portion is the host portion.

 Fghcwnv"Icvgyc{ / This is the IP Address of the default gateway device that allows for the

contact between the Router and the network or host.

3. Select Gpcdngf or Fkucdngf for this entry on the Uvcvwu drop-down list.

4. Click the Ucxg button to make the entry take effect.

Click the Fgngvg button to delete the entry.

Click the Gpcdng"Cnn button to enable all the entries.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 69 -

Click the Fkucdng"Cnn button to disable all the entries.

Click the Fgngvg"Cnn button to delete all the entries.

Click the Rtgxkqwu button to view the information in the previous screen, click the Pgzv button to view the information in the next screen.

603404"U{uvgo"Tqwvkpi"Vcdng"

Choose menu ›Cfxcpegf" Tqwvkpi" →" U{uvgo" Tqwvkpi" Vcdng”, and you can views all of the valid route entries in use. The Destination IP address, Subnet Mask, Gateway, and Interface will be displayed for each entry.

 Fguvkpcvkqp" Pgvyqtm" /" The Destination Network is the address of the network or host to

which the static route is assigned.

 Uwdpgv"Ocum"/"The Subnet Mask determines which portion of an IP address is the network

portion, and which portion is the host portion.

 Icvgyc{"/"This is the IP address of the gateway device that allows for contact between the

Router and the network or host.

 Kpvgthceg" /" This interface tells you whether the Destination IP Address is on the NCP" ("

YNCP (internal wired and wireless networks), the YCP*Kpvgtpgv+.

Click the Tghtguj button to refresh the data displayed.

6035"" Dcpfykfvj"Eqpvtqn"

Figure 4-64

There are two submenus under the Bandwidth Control menu as shown in Figure 4-64. Click any of them, and you will be able to configure the corresponding function. The detailed explanations for each submenu are provided below.

603503"Eqpvtqn"Ugvvkpiu"

Choose menu “Dcpfykfvj" Eqpvtqn" → " Eqpvtqn" Ugvvkpiu”, you can configure the Egress Bandwidth and Ingress Bandwidth in the next screen. Their values you configure should be less

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 70 -

than 100000Kbps. For optimal control of the bandwidth, please select the right Line Type and ask your ISP for the total bandwidth of the egress and ingress.

Figure 4-65 Bandwidth Control Settings

 Gpcdng"Dcpfykfvj"Eqpvtqn"/ Check this box so that the Bandwidth Control settings can take

effect."

 Nkpg"V{rg / Select the right type for you network connection. If you don’t know how to choose,

please ask your ISP for the information."

 Gitguu"Dcpfykfvj"- The upload speed through the WAN port

 Kpitguu"Dcpfykfvj"/"The download speed through the WAN port."

603504"Twngu"Nkuv"

Choose menu “Dcpfykfvj"Eqpvtqn" →" Twngu" Nkuv”, you can view and configure the Bandwidth Control rules in the screen below.

Figure 4-66 Bandwidth Control Rules List

 Fguetkrvkqp"/ This is the information about the rules such as address range.

 Gitguu"dcpfykfvj"/ This field displays the max and mix upload bandwidth through the WAN

port, the default is 0.

 Kpitguu"dcpfykfvj" / This field displays the max and mix download bandwidth through the

WAN port, the default is 0.

 Gpcdng"/ This displays the status of the rule.

 Oqfkh{"/"Click Oqfkh{ to edit the rule. Click Fgngvg to delete the rule.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 71 -

Vq"cff1oqfkh{"c"Dcpfykfvj"Eqpvtqn"twng."hqnnqy"vjg"uvgru"dgnqy0"

Uvgr"3<" Click Cff"Pgy” shown in Figure 4-66, you will see a new screen shown in Figure 4-67.

Uvgr"4<" Enter the information like the screen shown below.

Figure 4-67 Bandwidth Control Rule Settings

Uvgr"5<" Click the Ucxg button.

6036"" KR"("OCE"Dkpfkpi" "

Figure 4-68 the IP & MAC Binding menu

There are two submenus under the IP &MAC Binding menu (shown in Figure 4-68): Dkpfkpi" Ugvvkpiu" and"CTR"Nkuv. Click any of them, and you will be able to scan or configure the corresponding function. The detailed explanations for each submenu are provided below.

603603"Dkpfkpi"Ugvvkpiu"

This page displays the KR"("OCE"Dkpfkpi"Ugvvkpi table; you can operate it in accord with your desire as shown in Figure 4-69.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 72 -

Figure 4-69 Binding Settings

 OCE"Cfftguu /"The MAC address of the controlled computer in the LAN.

 KR"Cfftguu"/ The assigned IP address of the controlled computer in the LAN.

 Dkpf / Check this option to enable ARP binding for a specific device.

 Oqfkh{ /"To modify or delete an existing entry.

When you want to add or modify an IP & MAC Binding entry, you can click the Cff"Pgy” button or Oqfkh{ button, and then you will go to the next page. This page is used for adding or modifying an IP & MAC Binding entry,

shown in Figure 4-70.

Figure 4-70 IP & MAC Binding Settings

Vq"cff"KR"("OCE"Dkpfkpi"gpvtkgu."hqnnqy"vjg"uvgru"dgnqy0"

1. Click the Cff"Pgy000 button as shown in Figure 4-69.

Enter the MAC Address and IP Address.

3. Select the Bind checkbox.

4. Click the Ucxg button to save it.

Vq"oqfkh{"qt"fgngvg"cp"gzkuvkpi"gpvt{."hqnnqy"vjg"uvgru"dgnqy0

1. Find the desired entry in the table.

2. Click Oqfkh{ or Fgngvg as desired on the Oqfkh{ column.

Vq"hkpf"cp"gzkuvkpi"gpvt{."hqnnqy"vjg"uvgru"dgnqy0

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 73 -

1. Click the Hkpf button as shown in Figure 4-69.

2. Enter the MAC Address or IP Address.

3. Click the Hkpf button in the page as shown in Figure 4-71.

Figure 4-71 Find IP & MAC Binding Entry

Click the Gpcdng"Cnn button to make all entries enabled.

Click the Fgngvg"Cnn button to delete all entries.

603604"CTR"Nkuv"

To manage the computer, you could observe the computers in the LAN by checking the relationship of MAC address and IP address on the ARP list, and you could configure the items on the ARP list also. This page displays the ARP List; it shows all the existing IP & MAC Binding entries as shown in Figure 4-72.

Figure 4-72 ARP List

 OCE"Cfftguu / The MAC address of the controlled computer in the LAN.

 KR"Cfftguu / The assigned IP address of the controlled computer in the LAN.

 Uvcvwu / Indicates whether or not the MAC and IP addresses are bound.

 Eqphkiwtg / Load or delete an item.

 Nqcf / Load the item to the IP & MAC Binding list.

 Fgngvg / Delete the item.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 74 -

Click the Dkpf"Cnn button to bind all the current items, available after enable.

Click the Nqcf"Cnn button to load all items to the IP & MAC Binding list.

Click the Tghtguj button to refresh all items.

"

Pqvg<"

An item could not be loaded to the IP & MAC Binding list if the IP address of the item has been loaded before. Error warning will prompt as well. Likewise, "Load All" only loads the items without interference to the IP & MAC Binding list.

6037"" F{pcoke"FPU"

Choose menu “F{pcoke"FPU”, and you can configure the Dynamic DNS function.

The Router offers the FFPU (Dynamic Domain Name System) feature, which allows the hosting of a website, FTP server, or e-mail server with a fixed domain name (named by yourself) and a dynamic IP address, and then your friends can connect to your server by entering your domain name no matter what your IP address is. Before using this feature, you need to sign up for DDNS service providers such as www.comexe.cn

, www.dyndns.org, or www.no-ip.com. The Dynamic

DNS client service provider will give you a password or key.

603703"Eqogzg0ep"FFPU"

If the dynamic DNS Ugtxkeg" Rtqxkfgt" you select is www.comexe.cn, the page will appear as shown in

Figure 4-73.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 75 -

Figure 4-73 Comexe.cn DDNS Settings

Vq"ugv"wr"hqt"FFPU."hqnnqy"vjgug"kpuvtwevkqpu<"

1. Type the Fqockp"Pcog received from your dynamic DNS service provider.

2. Type the Wugt"Pcog for your DDNS account.

3. Type the Rcuuyqtf for your DDNS account.

4. Click the Nqikp"button to log in to the DDNS service.

Eqppgevkqp"Uvcvwu"/The status of the DDNS service connection is displayed here.

Click Nqiqwv"to log out of the DDNS service.

603704"F{pfpu0qti"FFPU"

If the dynamic DNS Ugtxkeg" Rtqxkfgt you select is www.dyndns.org, the page will appear as shown in Figure 4-74.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 76 -

Figure 4-74 Dyndns.org DDNS Settings

To set up for DDNS, follow these instructions:

1. Type the Wugt"Pcog for your DDNS account.

2. Type the Rcuuyqtf for your DDNS account.

3. Type the Fqockp"Pcog you received from dynamic DNS service provider here.

4. Click the Nqikp"button to log in to the DDNS service.

Eqppgevkqp"Uvcvwu"/The status of the DDNS service connection is displayed here.

Click Nqiqwv"to logout of the DDNS service.

603705"Pq/kr0eqo"FFPU"

If the dynamic DNS Ugtxkeg" Rtqxkfgt" you select is www.no-ip.com, the page will appear as shown in Figure 4-75.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 77 -

Figure 4-75 No-ip.com DDNS Settings

To set up for DDNS, follow these instructions:

1. Type the Wugt"Pcog for your DDNS account.

2. Type the Rcuuyqtf for your DDNS account.

3. Type the Fqockp"Pcog"you received from dynamic DNS service provider.

4. Click the Nqikp"button to log in the DDNS service.

Eqppgevkqp"Uvcvwu"/ The status of the DDNS service connection is displayed here.

Click Nqiqwv"to log out the DDNS service.

6038"" U{uvgo"Vqqnu"

Figure 4-76 The System Tools menu

Choose menu “U{uvgo" Vqqnu”, and you can see the submenus under the main menu:"Vkog" Ugvvkpiu, Fkcipquvke, Hktoyctg" Writcfg, Hcevqt{" Fghcwnvu." Dcemwr" (" Tguvqtg." Tgdqqv."

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 78 -

Rcuuyqtf."U{uvgo"Nqi"and Uvcvkuvkeu0"Click any of them, and you will be able to configure the corresponding function. The detailed explanations for each submenu are provided below.

603803"Vkog"Ugvvkpiu"

Choose menu “U{uvgo"Vqqnu" →" Vkog"Ugvvkpiu”, you can configure the time on the following screen.

Figure 4-77 Time settings



Vkog"|qpg"/ Select your local time zone from this drop-down list.

 Fcvg"/ Enter your local date in MM/DD/YY into the right blanks.

 Vkog"/ Enter your local time in HH/MM/SS into the right blanks.

 PVR"Ugtxgt" 3"1"PVR"Ugtxgt"4"/ Enter the address or domain of the PVR"Ugtxgt"3"or PVR"

Ugtxgt"4, and then the Router will get the time from the NTP Server preferentially. In addition, the Router built-in some common NTP Servers, so it can get time automatically once it connects the Internet."

 Gpcdng"Fc{nkijv"Ucxkpi"/"Check the box to enable the Daylight Saving function. "

 Uvctv"/"The time to start the Daylight Saving. Select the month in the first field, the week in the

second field, the day in the third field and the time in the last field."

 Gpf"/"The time to end the Daylight Saving. Select the month in the first field, the week in the

second field, the day in the third field and the time in the last field."

 Fc{nkijv"Ucxkpi"Uvcvwu"/"Displays the status whether the Daylight Saving is in use."

Vq"ugv"vkog"ocpwcnn{<"

1. Select your local time zone.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 79 -

2. Enter the Fcvg in Month/Day/Year format.

3. Enter the Vkog in Hour/Minute/Second format.

4. Click Ucxg.

Vq"ugv"vkog"cwvqocvkecnn{<"

1. Select your local time zone.

2. Enter the address or domain of the PVR"Ugtxgt"K"or PVR"Ugtxgt"KK.

3. Click the Igv" IOV button to get system time from Internet if you have connected to the Internet.

Vq"ugv"Fc{nkijv"Ucxkpi<"

1. Check the box to enable Daylight Saving.

2. Select the start time from the drop-down lists in the Uvctv field.

3. Select the end time from the drop-down lists in the Gpf field.

4. Click the Ucxg button to save the settings.

"Pqvg<"

1. This setting will be used for some time-based functions such as firewall. You must specify your time zone once you login to the router successfully, otherwise, these functions will not take effect.

2. The time will be lost if the router is turned off.

3. The Router will automatically obtain GMT from the Internet if it is configured accordingly.

4. The Daylight Saving will take effect one minute after the configurations are completed.

603804"Fkcipquvke"

Choose menu “U{uvgo"Vqqnu" →" Fkcipquvke”, you can transact Ping or Traceroute function to check connectivity of your network in the following screen.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 80 -

Figure 4-78 Diagnostic Tools

 Fkcipquvke"Vqqn"/ Check the radio button to select one diagnostic too.

 Rkpi"/"This diagnostic tool troubleshoots connectivity, reachability, and name resolution

to a given host or gateway.

 Vtcegtqwvg"/ This diagnostic tool tests the performance of a connection."

"

Pqvg<

You can use ping/traceroute to test both numeric IP address or domain name. If pinging/tracerouting the IP address is successful, but pinging/tracerouting the domain name is not, you might have a name resolution problem. In this case, ensure that the domain name you are specifying can be resolved by using Domain Name System (DNS) queries.

 KR" Cfftguu1Fqockp" Pcog" / Type the destination IP address (such as 192.168.1.1) or

Domain name (such as ).

 Rkpiu"Eqwpv"/"The number of Ping packets for a Ping connection. "

 Rkpi"Rcemgv"Uk|g"/"The size of Ping packet."

 Rkpi"Vkogqwv"/"Set the waiting time for the reply of each Ping packet. If there is no reply in

the specified time, the connection is overtime. "

 Vtcegtqwvg"Ocz"VVN"/"The max number of hops for a Traceroute connection."

Click Uvctv to check the connectivity of the Internet.

The"Fkcipquvke"Tguwnvu page displays the result of diagnosis.

If the result is similar to the following screen, the connectivity of the Internet is fine.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 81 -

Figure 4-79 Diagnostic Results

"

Pqvg<"

Only one user can use this tool at one time. Options “Number of Pings”, “Ping Size” and “Ping Timeout” are used for Rkpi"function. Option “Tracert Hops” are used for Vtcegtv"function.

603805"Hktoyctg"Writcfg"

Choose menu “U{uvgo" Vqqnu" →" Hktoyctg" Writcfg”, you can update the latest version of firmware for the Router on the following screen.

Figure 4-80 Firmware Upgrade

 Hktoyctg"Xgtukqp / This displays the current firmware version.

 Jctfyctg"Xgtukqp / This displays the current hardware version. The hardware version of the

upgrade file must accord with the Router’s current hardware version.

Vq"writcfg"vjg"Tqwvgt)u"hktoyctg."hqnnqy"vjgug"kpuvtwevkqpu"dgnqy<"

30" Download a more recent firmware upgrade file from our website.

40" Type the path and file name of the update file into the Hkng field. Or click the Dtqyug button to

locate the update file.

50" Click the Writcfg button.

"

Pqvg<"

1) New firmware versions are posted at and can be downloaded for free. There is no need to

upgrade the firmware unless the new firmware has a new feature you want to use. However, when experiencing problems caused by the Router rather than the configuration, you can try to upgrade the firmware."

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 82 -

2) When you upgrade the Router's firmware, you may lose its current configurations, so before

upgrading the firmware please write down some of your customized settings to avoid losing important settings.

3) Do not turn off the Router or press the Reset button while the firmware is being upgraded,

otherwise, the Router may be damaged.

4) The Router will reboot after the upgrading has been finished.

603806"Hcevqt{"Fghcwnvu"

Choose menu “U{uvgo"Vqqnu" →" Hcevqt{" Fghcwnvu”, and you can restore the configurations of the Router to factory defaults on the following screen

Figure 4-81 Restore Factory Default

Click the Tguvqtg button to reset all configuration settings to their default values.

 The default Wugt"Pcog: admin

 The default Rcuuyqtf: admin

 The default KR"Cfftguu: 192.168.1.1

 The default Uwdpgv"Ocum: 255.255.255.0

"

Pqvg<" "

1. Any settings you have saved will be lost when the default settings are restored.

2. When press and hold the WPS/Reset button for more than 5 seconds, you will reset the

router.

603807"Dcemwr"("Tguvqtg"

Choose menu “U{uvgo"Vqqnu" →" Dcemwr"("Tguvqtg”, you can save the current configuration of the Router as a backup file and restore the configuration via a backup file as shown in Figure 4-82.

Figure 4-82 Backup & Restore Configuration

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 83 -

 Click the Dcemwr button to save all configuration settings as a backup file in your local

computer.

 To upgrade the Router's configuration, follow these instructions.

 Click the Dtqyug” button to locate the update file for the Router, or enter the exact path

to the Setting file in the text box.

 Click the Tguvqtg button.

"

Pqvg<"

The current configuration will be covered by the uploading configuration file. The upgrade process lasts for 20 seconds and the Router will restart automatically. Keep the Router on during the upgrading process to prevent any damage.

603808"Tgdqqv"

Choose menu “U{uvgo"Vqqnu" →" Tgdqqv”, you can click the Tgdqqv button to reboot the Router via the next screen.

Figure 4-83 Reboot the Router

Some settings of the Router will take effect only after rebooting, which include

 Change the LAN IP Address (system will reboot automatically).

 Change the DHCP Settings.

 Change the Wireless configurations.

 Change the Web Management Port.

 Upgrade the firmware of the Router (system will reboot automatically).

 Restore the Router's settings to factory defaults (system will reboot automatically).

 Update the configuration with the file (system will reboot automatically.

603809"Rcuuyqtf"

Choose menu “U{uvgo"Vqqnu" →"Rcuuyqtf”, you can change the factory default user name and password of the Router in the next screen as shown in Figure 4-84.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 84 -

Figure 4-84 Password

It is strongly recommended that you should change the factory default user name and password of the Router, because all users who try to access the Router's Web-based utility or Quick Setup will be prompted for the Router's default user name and password.

"

Pqvg<"

The new user name and password must not exceed 14 characters in length and not include any spaces. Enter the new Password twice to confirm.

Click the Ucxg button when finished.

Click the Engct"Cnn"button to clear all.

60380:"U{uvgo"Nqi"

Choose menu “U{uvgo"Vqqnu" →" U{uvgo"Nqi”, you can view the logs of the Router.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 85 -

Figure 4-85 System Log



Cwvq"Ockn"Hgcvwtg"/ Indicates whether auto mail feature is enabled or not.

 Ockn"Ugvvkpiu" / Set the receiving and sending mailbox address, server address, validation

information as well as the timetable for Auto Mail Feature, as shown in Figure 4-86.

Figure 4-86 Mail Account Settings

 Htqo"/"Your mail box address. The Router would connect it to send logs.

 Vq /"Recipient’s address. The destination mailbox where the logs would be received.

 UOVR"Ugtxgt"/ Your smtp server. It corresponds with the mailbox filled in the From field.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 86 -

You can log on the relevant website for Help if you are not clear with the address.

 Cwvjgpvkecvkqp / Most SMTP Server requires Authentication. It is required by most

mailboxes that need User Name and Password to log in.

"

Pqvg<"

Only when you select Cwvjgpvkecvkqp, do you have to enter the User Name and Password in the following fields.

 Wugt" Pcog" / Your mail account name filled in the From field. The part behind @ is

excluded.

 Rcuuyqtf"/ Your mail account password.

 Eqphkto"Vjg"Rcuuyqtf"/ Enter the password again to confirm.

 Gpcdng" Cwvq" Ockn" Hgcvwtg" / Select it to mail logs automatically. You could mail the

current logs either at a specified time everyday or by intervals, but only one could be the current effective rule. Enter the desired time or intervals in the corresponding field as shown in Figure 4-86

lick Ucxg to keep your settings.

Click Dcem to return to the previous page.

 Nqi"V{rg"/ By selecting the log type, only logs of this type will be shown.

 Nqi"Ngxgn"/ By selecting the log level, only logs of this level will be shown.

 Tghtguj"/ Refresh the page to show the latest log list.

 Ucxg"Nqi"/ Click to save all the logs in a txt file.

 Ockn" Nqi" / Click to send an email of current logs manually according to the address and

validation information set in Mail Settings.

 Engct"Nqi"/ All the logs will be deleted from the Router permanently, not just from the page.

Click the Pgzv button to go to the next page, or click the Rtgxkqwu button return to the previous page.

60380;"Uvcvkuvkeu"

Choose menu “U{uvgo"Vqqnu" →" Uvcvkuvkeu”, you can view the statistics of the Router, including total traffic and the value of the last Packets Statistic Interval in seconds.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 87 -

Figure 4-87 Statistics

 Ewttgpv"Uvcvkuvkeu"Uvcvwu"/ Enable or Disable. The default value is disabled. To enable, click

the Gpcdng button. If disabled, the function of DoS protection in Security settings will disabled.

 Rcemgvu"Uvcvkuvkeu"Kpvgtxcn"（7/82）"/"The default value is 10. Select a value between 5 and

60 seconds in the drop-down list. The Packets Statistic interval indicates the time section of the packets statistic.

 Uqtvgf"Twngu"⁄ Choose how displayed statistics are sorted.

Select the Cwvq/tghtguj checkbox to refresh automatically.

Click the Tghtguj button to refresh immediately.

Click Tgugv Cnn to reset the values of all the entries to zero.

Click Fgngvg Cnn"to delete all entries in the table.

Uvcvkuvkeu"Vcdng<"

KR1OCE"Cfftguu"

The IP and MAC address are displayed with related statistics.

Rcemgvu

The total number of packets received and transmitted by the Router.

Vqvcn"

D{vgu"

The total number of bytes received and transmitted by the Router.

Rcemgvu

The total number of packets received and transmitted in the last" Packets

Statistic interval seconds.

D{vgu"

The total number of bytes received and transmitted in the last Packets

Statistic interval seconds.

KEOR"Vz

The number of the ICMP packets transmitted to WAN per second at the

specified Packets Statistics interval. It is shown like “current transmitting rate

/ Max transmitting rate”.

Ewttgpv"

WFR"Vz

The number of UDP packets transmitted to the WAN per second at the

specified Packets Statistics interval. It is shown like “current transmitting rate

/ Max transmitting rate”.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 88 -

VER"

U[P"Vz"

The number of TCP SYN packets transmitted to the WAN per second at the

specified Packets Statistics interval. It is shown like “current transmitting rate

/ Max transmitting rate”.

Tgugv"

Reset the value of he entry to zero.

Oqfkh{"

Fgngvg"

Delete the existing entry in the table.

There would be 5 entries on each page. Click Rtgxkqwu to return to the previous page and Pgzv to the next page.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 89 -

Crrgpfkz"C<"HCS"

30" Jqy"fq"K"eqphkiwtg"vjg"Tqwvgt"vq"ceeguu"Kpvgtpgv"d{"CFUN"wugtuA"

1) First, configure the ADSL Modem configured in RFC1483 bridge model.

2) Connect the Ethernet cable from your ADSL Modem to the WAN port on the Router. The

telephone cord plugs into the Line port of the ADSL Modem.

3) Log in to the Router, click the “Pgvyqtm” menu on the left of your browser, and click

"YCP" submenu. On the YCP page, select “PPPoE” for WAN Connection Type. Type user name in the “User Name” field and password in the “Password” field, finish by clicking Eqppgev.

Figure A-1 PPPoE Connection Type

4) If your ADSL lease is in “pay-according-time” mode, select “Connect on Demand” or

“Connect Manually” for Internet connection mode. Type an appropriate number for “Max Idle Time” to avoid wasting paid time. Otherwise, you can select “Auto-connecting” for Internet connection mode.

Figure A-2 PPPoE Connection Mode

"

Pqvg<

1) Sometimes the connection cannot be disconnected although you specify a time to Max Idle Time, since some applications is visiting the Internet continually in the background.

2) If you are a Cable user, please configure the Router following the above steps.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 90 -

40" Jqy"fq"K"eqphkiwtg"vjg"Tqwvgt"vq"ceeguu"Kpvgtpgv"d{"Gvjgtpgv"wugtuA"

1) Log in to the Router, click the “Pgvyqtm” menu on the left of your browser, and click "YCP" submenu. On the YCP page, select “Dynamic IP” for "WAN Connection Type", finish by clicking Ucxg.

2) Some ISPs require that you register the MAC Address of your adapter, which is connected to your cable/DSL Modem during installation. If your ISP requires MAC register, log in to the Router and click the "Pgvyqtm" menu link on the left of your browser, and then click "OCE"Enqpg" submenu link. On the "OCE"Enqpg" page, if your PC’s MAC address is proper MAC address, click the Enqpg"OCE" Cfftguu button and your PC’s MAC address will fill in the "WAN MAC Address" field. Or else, type the MAC Address into the "WAN MAC Address" field. The format for the MAC Address is XX-XX-XX-XX-XX-XX. Then click the Ucxg button. It will take effect after rebooting.

Figure A-3 MAC Clone

50" K"ycpv"vq"wug"PgvOggvkpi."yjcv"fq"K"pggf"vq"fqA"

1) If you start NetMeeting as a sponsor, you don’t need to do anything with the Router.

2) If you start as a response, you need to configure Virtual Server or DMZ Host and make sure the H323 ALG is enabled.

3) How to configure Virtual Server: Log in to the Router, click the “Hqtyctfkpi” menu on the left of your browser, and click "Xktvwcn"Ugtxgtu" submenu. On the "Xktvwcn"Ugtxgtu" page, click Cff" Pgy”. Then on the “Cff" qt" Oqfkh{" c" Xktvwcn" Ugtxgt" Gpvt{” page, enter “11130” for the “Service Port” blank, and your IP address for the “IP Address” blank, taking 192.168.1.198 for an example, remember to Gpcdng and Ucxg.

Figure A-4 Virtual Servers

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 91 -

Figure A-5 Add or Modify a Virtual server Entry

"

Pqvg<"

Your opposite side should call your WAN IP, which is displayed on the “Status” page.

4) How to enable DMZ Host: Log in to the Router, click the “Hqtyctfkpi” menu on the left of your browser, and click "FO\" submenu. On the "DMZ" page, click Gpcdng radio button and type your IP address into the “DMZ Host IP Address” field, using

192.168.1.198 as an example, remember to click the Ucxg button.

Figure A-6 DMZ

5) How to enable H323 ALG: Log in to the Router, click the “Ugewtkv{” menu on the left of your browser, and click “Dcuke" Ugewtkv{” submenu. On the “Dcuke" Ugewtkv{” page, check the Gpcdng radio button next to J545"CNI. Remember to click the Ucxg button.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 92 -

Figure A-7 Basic Security

60" K"ycpv"vq"dwknf"c"YGD"Ugtxgt"qp"vjg"NCP."yjcv"ujqwnf"K"fqA"

1) Because the WEB Server port 80 will interfere with the WEB management port 80 on the Router, you must change the WEB management port number to avoid interference.

2) To change the WEB management port number: Log in to the Router, click the “Ugewtkv{” menu on the left of your browser, and click "Tgoqvg"Ocpcigogpv" submenu. On the "Tgoqvg"Ocpcigogpv" page, type a port number except 80, such as 88, into the "Web Management Port" field. Click Ucxg and reboot the Router.

Figure A-8 Remote Management

"

Pqvg<"

If the above configuration takes effect, configure to the Router by typing 192.168.1.1:88 (the Router’s LAN IP address: Web Management Port) in the address field of the Web browser.

3) Log in to the Router, click the “Hqtyctfkpi” menu on the left of your browser, and click the "Xktvwcn"Ugtxgtu" submenu. On the "Xktvwcn"Ugtxgtu" page, click Cff"Pgy”, then on the “Cff" qt" Oqfkh{" c" Xktvwcn" Ugtxgt” page, enter “80” into the blank next to the “Ugtxkeg"Rqtv”, and your IP address next to the “KR"Cfftguu”, assuming 192.168.1.188

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 93 -

for an example, remember to Gpcdng and Ucxg.

Figure A-9 Virtual Servers

Figure A-10 Add or Modify a Virtual server Entry

70" Vjg"yktgnguu"uvcvkqpu"ecppqv"eqppgev"vq"vjg"Tqwvgt0"

1) Make sure the "Gpcdng"Yktgnguu"Tqwvgt"Tcfkq" is checked.

2) Make sure that the wireless stations' SSID accord with the Router's SSID.

3) Make sure the wireless stations have right KEY for encryption when the Router is encrypted.

4) If the wireless connection is ready, but you can’t access the Router, check the IP Address of your wireless stations.

RY/TP7231RY/TP723F " 522Odru"Yktgnguu"P"Tqwvgt"

- 94 -

Crrgpfkz"D<"Eqphkiwtkpi"vjg"RE"

In this section, we’ll introduce how to install and configure the TCP/IP correctly in Windows XP. First make sure your Ethernet Adapter is working, refer to the adapter’s manual if necessary.

30" Eqphkiwtg"VER1KR"eqorqpgpv"

1) On the Windows taskbar, click the Uvctv button, and then click Eqpvtqn"Rcpgn.

2) Click the Pgvyqtm" cpf" Kpvgtpgv" Eqppgevkqpu icon, and then click on the Pgvyqtm" Eqppgevkqpu tab in the appearing window.

3) Right click the icon that showed below, select Properties on the prompt page.

Figure B-1"

4) In the prompt page that showed below, double click on the Kpvgtpgv"Rtqvqeqn"*VER1KR+.

Proware PW-RN501, PW-RN501D User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
